Page 2 of 304

Seating and Safety Restraints82
Seating 82
Safety restraints 93
Airbags 108
Child restraints 124
Tires, Wheels and Loading141
Tire information 143
Tire inflation 145
Tire Pressure Monitoring System (TPMS) 159
Vehicle loading 164
Trailer towing 171
Recreational towing 176
Driving178
Starting 178
Brakes 184
Electronic stability control 187
Transmission operation 193
Roadside Emergencies207
Hazard flasher switch 207
Fuel pump shut-off switch 207
Fuses and relays 208
Changing tires 215
Wheel lug nut torque 226
Overheating 227
Jump starting 228
Wrecker towing 234
Customer Assistance236
Reporting safety defects (U.S. only) 246
Reporting safety defects (Canada only) 246
Cleaning247
Table of Contents
2
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Page 53 of 304

The sliding tray and inside bin can
be hooked on the side or rear of the
console for extra storage.
AUXILIARY POWER POINT (12VDC)
WARNING:Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlet as this will
damage the outlet and blow the fuse. Do not hang any type of
accessory or accessory bracket from the plug. Improper use of the
power outlet can cause damage not covered by your warranty.
The auxiliary power point is located
in front of the gearshift and on the
rear side of the center console.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of
12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and relays in theRoadside Emergencies chapter for information
on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
• do not use the power point longer than necessary when the engine is
not running,
• do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
53
Page 194 of 304

If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal depressed, it is possible that a fuse
has blown or the vehicle’s brakelamps are not operating properly. Refer
toFuses and relays in theRoadside Emergencies chapter.
If the fuse is not blown, perform the following procedure: 1. Apply the parking brake, turn the ignition to off, then remove the key.
2. Using a screwdriver or similar tool, carefully pry out the small
Brake Transmission Shift
Interlock (BTSI) cover cap
located to the right of the
gearshift lever.
3. Insert a screwdriver or similar tool straight down into the
access hole and press downward
while pulling the gearshift lever
out of the P (Park) position and
into the N (Neutral) position.
4. Remove tool and reinstall the BTSI cover cap.
5. Start the vehicle and release the parking brake.
WARNING: Do not drive your vehicle until you verify that the
brakelamps are working.
WARNING: Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
WARNING: If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. Drive slowly and carefully to your authorized dealer.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driving
194
Page 208 of 304

This switch is located in the front
passenger’s footwell, behind a
flip-up cover, by the kick panel
access cover.
To reset the switch:1. Turn the ignition to the off position.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the switch by pushing in on the
reset button.
4. Turn the ignition to the on position.
5. Wait a few seconds and return the key to the off position.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note: Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
208
Page 210 of 304

The fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Protective Circuits
1 30A Not used (spare)
2 15A Brake On/Off switch
3 15A Not used (spare)
4 30A Moon roof
5 10A Brake Shift Interlock (BSI),
SPDJB
6 20A Turn signals, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Backlighting
11 10A Four wheel drive
12 7.5A Power mirror switch
13 5A Not used (spare)
14 10 A FCIM (radio buttons), Front
display module
15 10A Climate control
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
210
Page 211 of 304

Fuse/RelayLocation Fuse Amp
Rating Protective Circuits
16 15A Not used (spare)
17 20A All lock motor feeds, Liftgate release, Liftglass release
18 20A Heated seat
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Not used (spare)
31 10A Restraints control module
32 10A Not used (spare)
33 10A Not used (spare)
34 5A Anti-lock Brake System (ABS)
35 10A Four wheel drive, Electronic power steering (EPAS)
36 5A PATS transceiver
37 10A Climate control
38 20A Subwoofer/Amp (Audiophile radio)
39 20A Radio
40 20A Front power point
41 15A Driver/passenger door lock switches, Moon roof
42 10A Not used (spare)
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
211
Page 212 of 304

Fuse/RelayLocation Fuse Amp
Rating Protective Circuits
43 10A Rear wiper logic, Heated seats relay, Instrument cluster
44 10A Not used (spare)
45 5A Front wiper logic, Blower motor relay
46 7.5A OCS (restraints), PADI (restraints)
47 30A Circuit BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
212
Page 213 of 304

The high-current fuses are coded as follows.
Fuse/RelayLocation Fuse Amp
Rating Protected Circuits
A 80A Midi Electronic power steering module (EPAS)
B 125A Midi SPDJB 1 15A* Heated mirror
2 30A** Rear defroster
3 20A** Rear power point (center console)
4 — Not used
5 10A* Powertrain Control Module (PCM) Keep Alive power, PCM relay,
Canister vent
6 15A* Alternator
7 15A* Liftgate latch
8 20A* Trailer tow parking lamps
9 50A** Anti-lock Brake System (ABS)
10 30A** Front wipers
11 30A** Starter
12 40A** Blower motor
13 10A* A/C clutch
14 15A* Trailer tow turn lamps
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
213

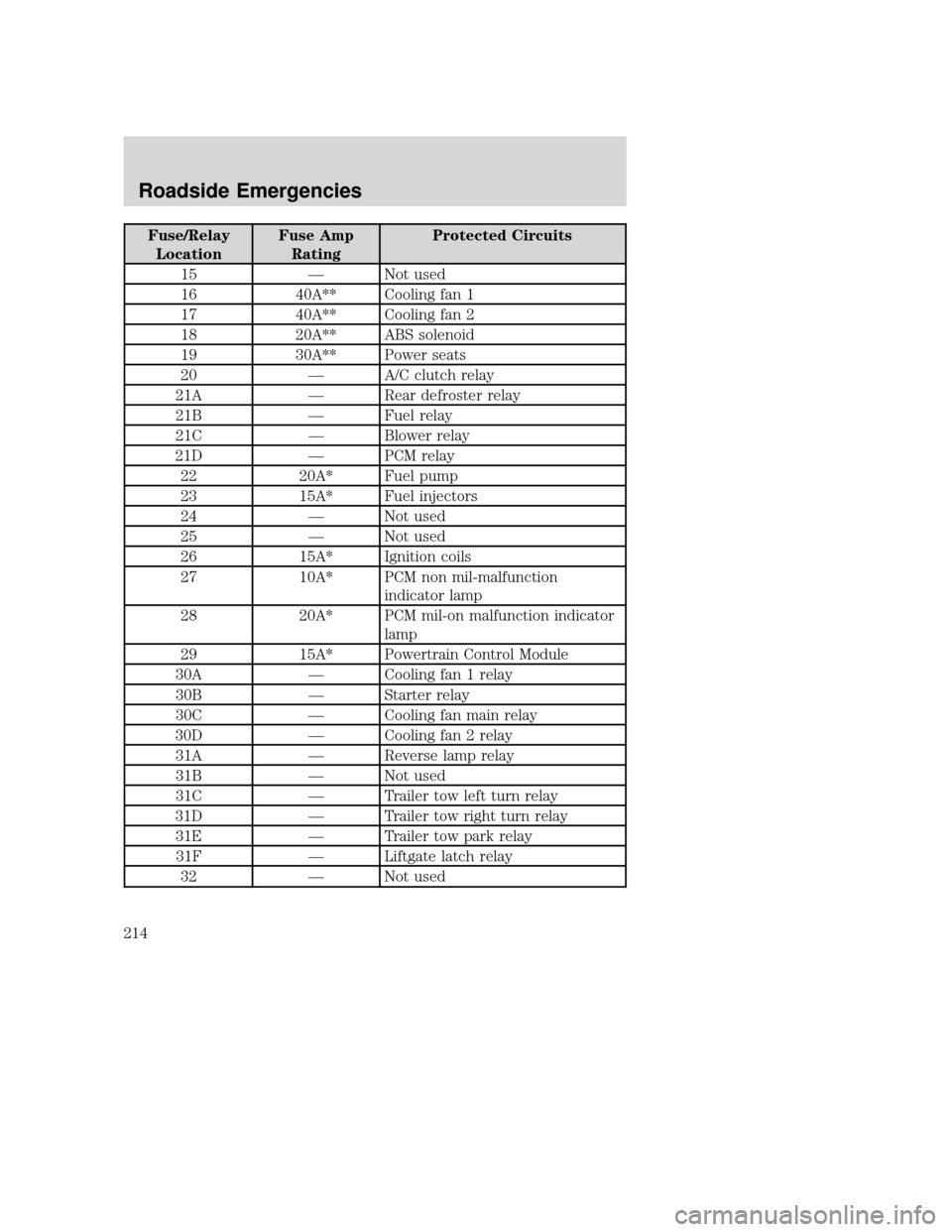

Page 214 of 304

Fuse/RelayLocation Fuse Amp
Rating Protected Circuits
15 — Not used
16 40A** Cooling fan 1
17 40A** Cooling fan 2
18 20A** ABS solenoid
19 30A** Power seats
20 — A/C clutch relay
21A — Rear defroster relay
21B — Fuel relay
21C — Blower relay
21D — PCM relay
22 20A* Fuel pump
23 15A* Fuel injectors
24 — Not used
25 — Not used
26 15A* Ignition coils
27 10A* PCM non mil-malfunction
indicator lamp
28 20A* PCM mil-on malfunction indicator
lamp
29 15A* Powertrain Control Module
30A — Cooling fan 1 relay
30B — Starter relay
30C — Cooling fan main relay
30D — Cooling fan 2 relay
31A — Reverse lamp relay
31B — Not used
31C — Trailer tow left turn relay
31D — Trailer tow right turn relay
31E — Trailer tow park relay
31F — Liftgate latch relay
32 — Not used
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
214
Page 215 of 304

Fuse/RelayLocation Fuse Amp
Rating Protected Circuits
33 — PCM diode
34 — Start diode
35 10A* Run/start, Reverse lamps, Rear defrost relay
36 — Not used
37 — Not used
* Mini fuse ** Cartridge fuse
CHANGING A FLAT TIRE
If you get a flat tire while driving:
• do not brake heavily.
• gradually decrease the vehicle’s speed.
• hold the steering wheel firmly.
• slowly move to a safe place on the side of the road.
Your vehicle may be equipped with a conventional spare tire that is
different in one or more of the following: type, brand, size, speed rating
and tread design. If this is the case, this dissimilar spare tire is still rated
for your vehicle loads (GAWR and GVWR). This temporary spare tire is
not equipped with a Tire Pressure Monitor System (TPMS) sensor.
Note: The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the TPMS system, all road wheels equipped with the tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer to Tire Pressure Monitoring System
(TPMS) in theTires, Wheels, and Loading chapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING: The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
