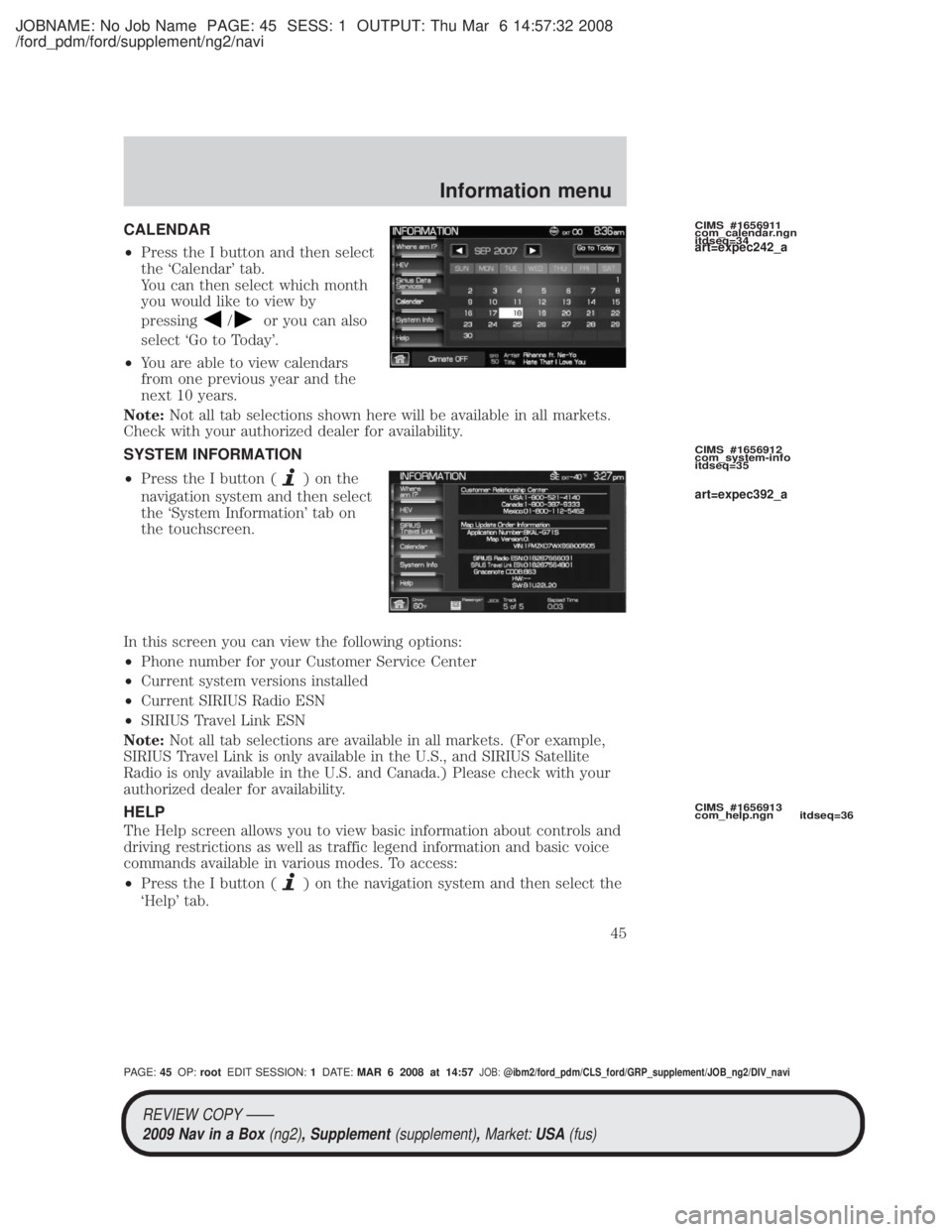

CALENDAR
²Press the I button and then select
the `Calendar' tab.
You can then select which month
you would like to view by
pressing
/or you can also
select `Go to Today'.
² You are able to view calendars
from one previous year and the
next 10 years.
Note: Not all tab selections shown here will be available in all markets.
Check with your authorized dealer for availability.
SYSTEM INFORMATION
² Press the I button (
)onthe
navigation system and then select
the `System Information' tab on
the touchscreen.
In this screen you can view the following options:
² Phone number for your Customer Service Center
² Current system versions installed
² Current SIRIUS Radio ESN
² SIRIUS Travel Link ESN
Note: Not all tab selections are available in all markets. (For example,
SIRIUS Travel Link is only available in the U.S., and SIRIUS Satellite
Radio is only available in the U.S. and Canada.) Please check with your
authorized dealer for availability.
HELP
The Help screen allows you to view basic information about controls and
driving restrictions as well as traffic legend information and basic voice
commands available in various modes. To access:
² Press the I button (
) on the navigation system and then select the
`Help' tab.
CIMS #1656911
com_calendar.ngn
itdseq=34
CIMS #1656912
com_system-info
itdseq=35
CIMS #1656913
com_help.ngn itdseq=36
art=expec242_a
art=expec392_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 45OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Information menu
45
Page 46 of 81
JOBNAME: No Job Name PAGE: 46 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

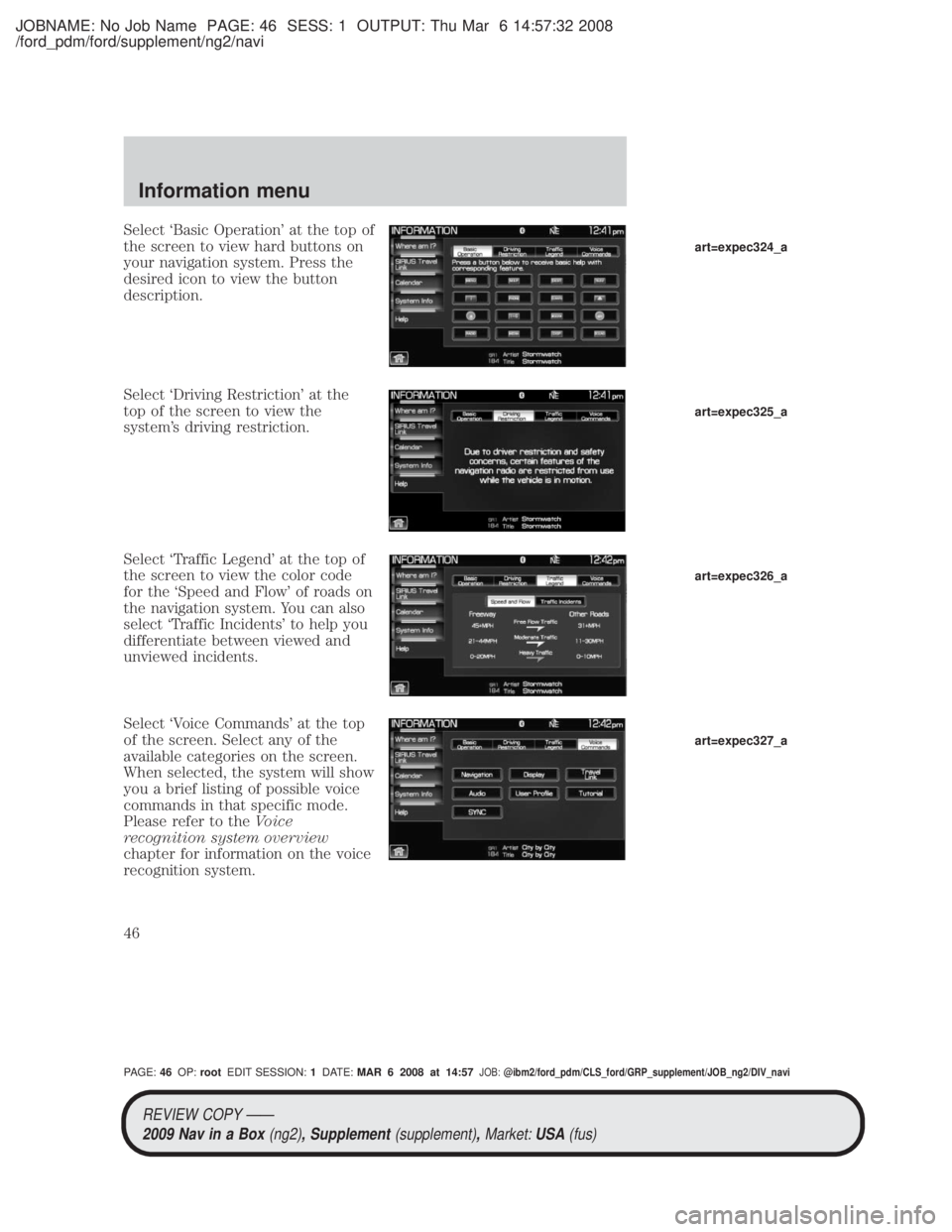

Select `Basic Operation' at the top of
the screen to view hard buttons on
your navigation system. Press the
desired icon to view the button
description.
Select `Driving Restriction' at the
top of the screen to view the
system's driving restriction.
Select `Traffic Legend' at the top of
the screen to view the color code
for the `Speed and Flow' of roads on
the navigation system. You can also
select `Traffic Incidents' to help you
differentiate between viewed and
unviewed incidents.
Select `Voice Commands' at the top
of the screen. Select any of the
available categories on the screen.
When selected, the system will show
you a brief listing of possible voice
commands in that specific mode.
Please refer to theVoice
recognition system overview
chapter for information on the voice
recognition system.
art=expec324_a
art=expec325_a
art=expec326_a
art=expec327_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 46OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Information menu
46
Page 47 of 81
JOBNAME: No Job Name PAGE: 47 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

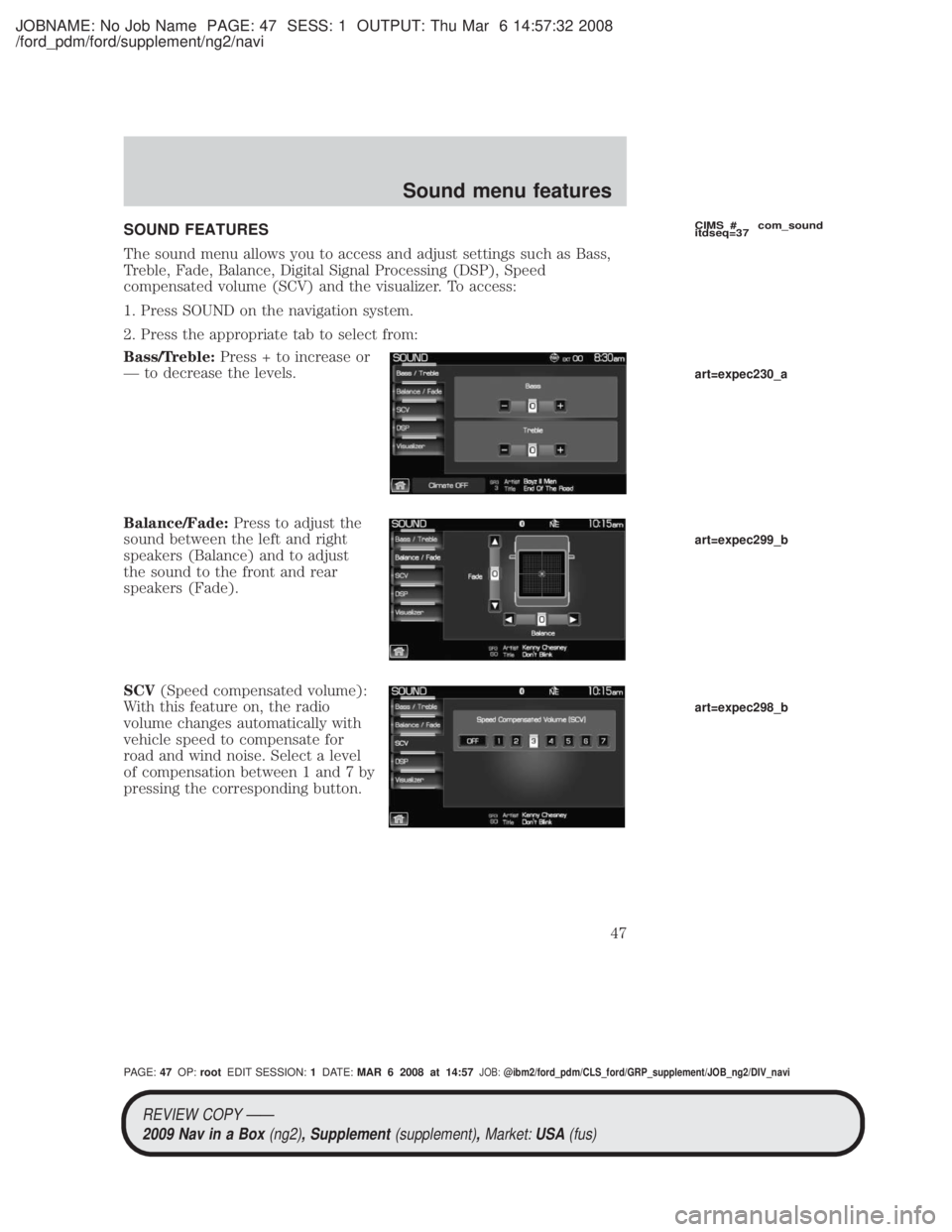

SOUND FEATURES
The sound menu allows you to access and adjust settings such as Bass,
Treble, Fade, Balance, Digital Signal Processing (DSP), Speed
compensated volume (SCV) and the visualizer. To access:
1. Press SOUND on the navigation system.
2. Press the appropriate tab to select from:
Bass/Treble:Press + to increase or
Ð to decrease the levels.
Balance/Fade: Press to adjust the
sound between the left and right
speakers (Balance) and to adjust
the sound to the front and rear
speakers (Fade).
SCV (Speed compensated volume):
With this feature on, the radio
volume changes automatically with
vehicle speed to compensate for
road and wind noise. Select a level
of compensation between 1 and 7 by
pressing the corresponding button.CIMS # com_sound
itdseq=37
art=expec230_a
art=expec299_b
art=expec298_b
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 47OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Sound menu features
47
Page 49 of 81
JOBNAME: No Job Name PAGE: 49 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

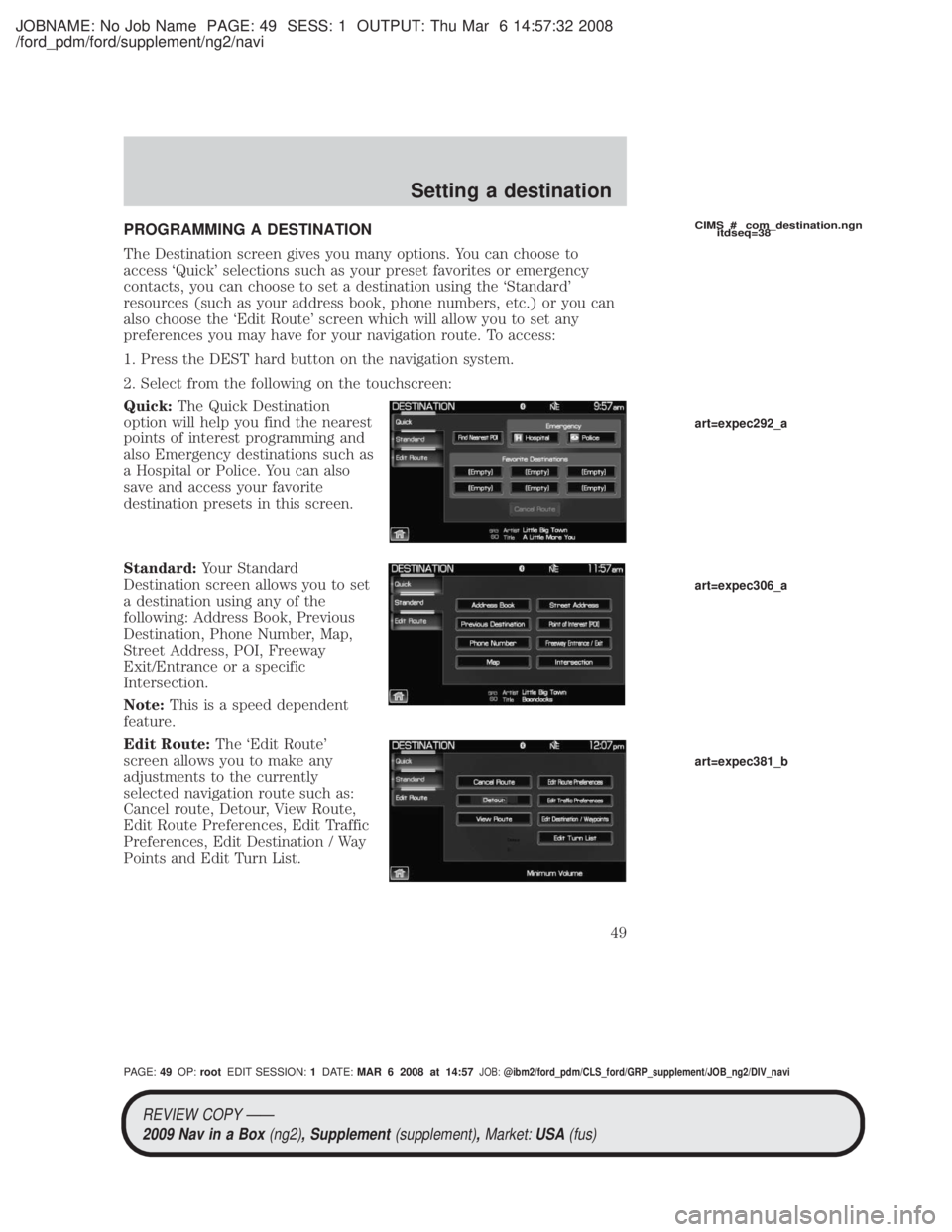

PROGRAMMING A DESTINATION
The Destination screen gives you many options. You can choose to
access `Quick' selections such as your preset favorites or emergency
contacts, you can choose to set a destination using the `Standard'
resources (such as your address book, phone numbers, etc.) or you can
also choose the `Edit Route' screen which will allow you to set any
preferences you may have for your navigation route. To access:
1. Press the DEST hard button on the navigation system.
2. Select from the following on the touchscreen:
Quick:The Quick Destination
option will help you find the nearest
points of interest programming and
also Emergency destinations such as
a Hospital or Police. You can also
save and access your favorite
destination presets in this screen.
Standard: Your Standard
Destination screen allows you to set
a destination using any of the
following: Address Book, Previous
Destination, Phone Number, Map,
Street Address, POI, Freeway
Exit/Entrance or a specific
Intersection.
Note: This is a speed dependent
feature.
Edit Route: The `Edit Route'
screen allows you to make any
adjustments to the currently
selected navigation route such as:
Cancel route, Detour, View Route,
Edit Route Preferences, Edit Traffic
Preferences, Edit Destination / Way
Points and Edit Turn List.CIMS # com_destination.ngn itdseq=38
art=expec292_a
art=expec306_a
art=expec381_b
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 49OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Setting a destination
49
Page 50 of 81
JOBNAME: No Job Name PAGE: 50 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

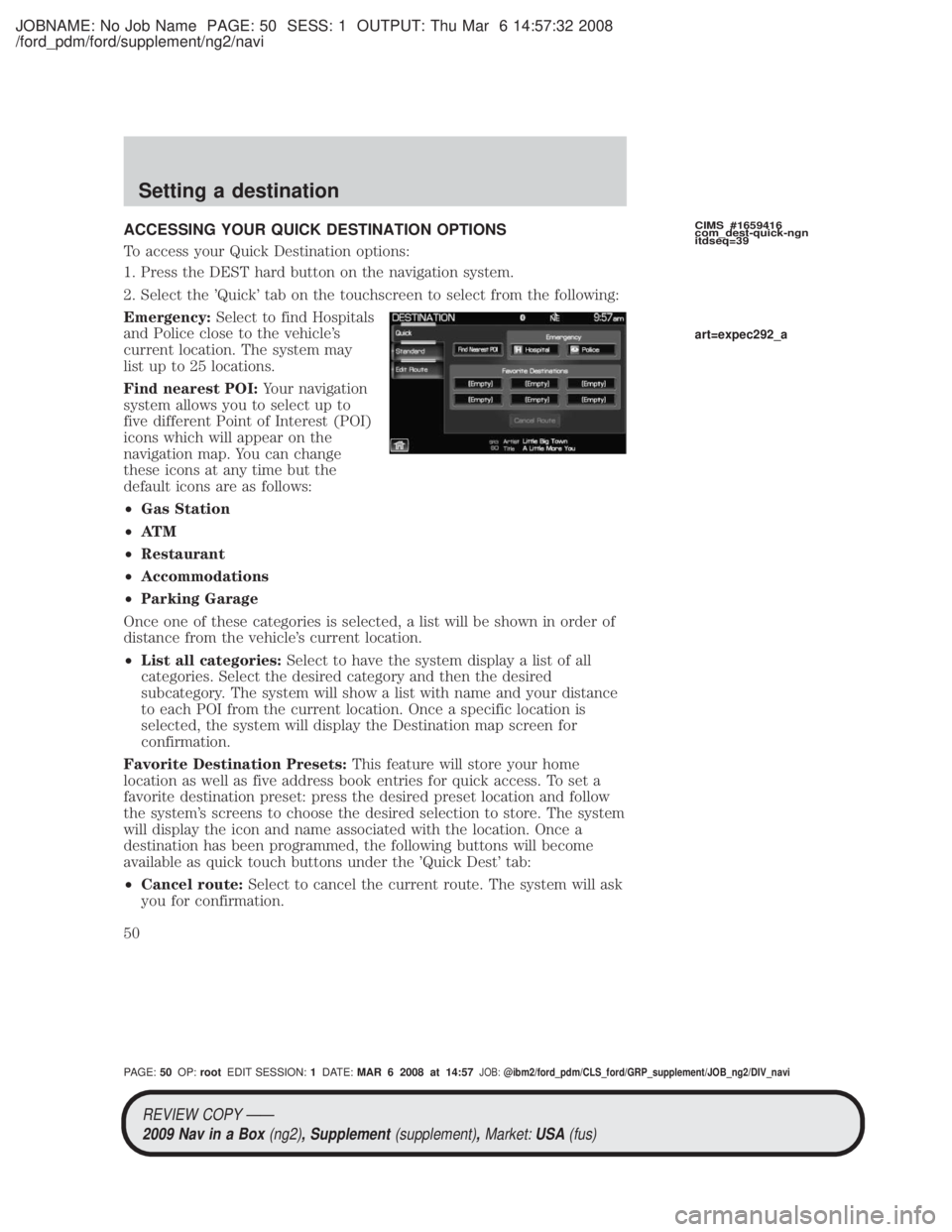

ACCESSING YOUR QUICK DESTINATION OPTIONS
To access your Quick Destination options:
1. Press the DEST hard button on the navigation system.
2. Select the 'Quick' tab on the touchscreen to select from the following:
Emergency:Select to find Hospitals
and Police close to the vehicle's
current location. The system may
list up to 25 locations.
Find nearest POI: Your navigation
system allows you to select up to
five different Point of Interest (POI)
icons which will appear on the
navigation map. You can change
these icons at any time but the
default icons are as follows:
² Gas Station
² AT M
² Restaurant
² Accommodations
² Parking Garage
Once one of these categories is selected, a list will be shown in order of
distance from the vehicle's current location.
² List all categories: Select to have the system display a list of all
categories. Select the desired category and then the desired
subcategory. The system will show a list with name and your distance
to each POI from the current location. Once a specific location is
selected, the system will display the Destination map screen for
confirmation.
Favorite Destination Presets: This feature will store your home
location as well as five address book entries for quick access. To set a
favorite destination preset: press the desired preset location and follow
the system's screens to choose the desired selection to store. The system
will display the icon and name associated with the location. Once a
destination has been programmed, the following buttons will become
available as quick touch buttons under the 'Quick Dest' tab:
² Cancel route: Select to cancel the current route. The system will ask
you for confirmation.CIMS #1659416
com_dest-quick-ngn
itdseq=39
art=expec292_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 50OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Setting a destination
50
Page 51 of 81
JOBNAME: No Job Name PAGE: 51 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

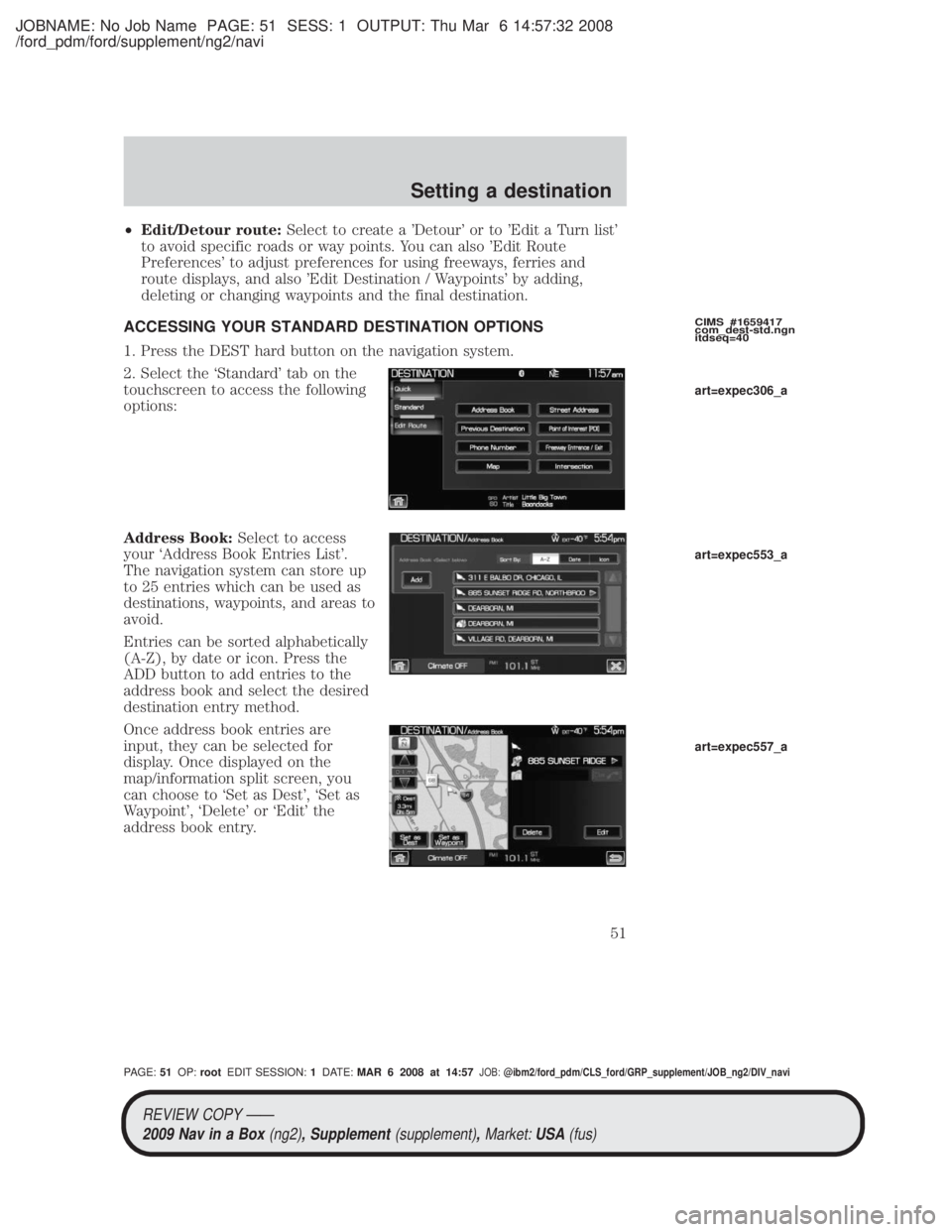

²Edit/Detour route: Select to create a 'Detour' or to 'Edit a Turn list'
to avoid specific roads or way points. You can also 'Edit Route
Preferences' to adjust preferences for using freeways, ferries and
route displays, and also 'Edit Destination / Waypoints' by adding,
deleting or changing waypoints and the final destination.
ACCESSING YOUR STANDARD DESTINATION OPTIONS
1. Press the DEST hard button on the navigation system.
2. Select the `Standard' tab on the
touchscreen to access the following
options:
Address Book: Select to access
your `Address Book Entries List'.
The navigation system can store up
to 25 entries which can be used as
destinations, waypoints, and areas to
avoid.
Entries can be sorted alphabetically
(A-Z), by date or icon. Press the
ADD button to add entries to the
address book and select the desired
destination entry method.
Once address book entries are
input, they can be selected for
display. Once displayed on the
map/information split screen, you
can choose to `Set as Dest', `Set as
Waypoint', `Delete' or `Edit' the
address book entry.
CIMS #1659417
com_dest-std.ngn
itdseq=40
art=expec306_a
art=expec553_a
art=expec557_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 51OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Setting a destination
51
Page 52 of 81
JOBNAME: No Job Name PAGE: 52 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

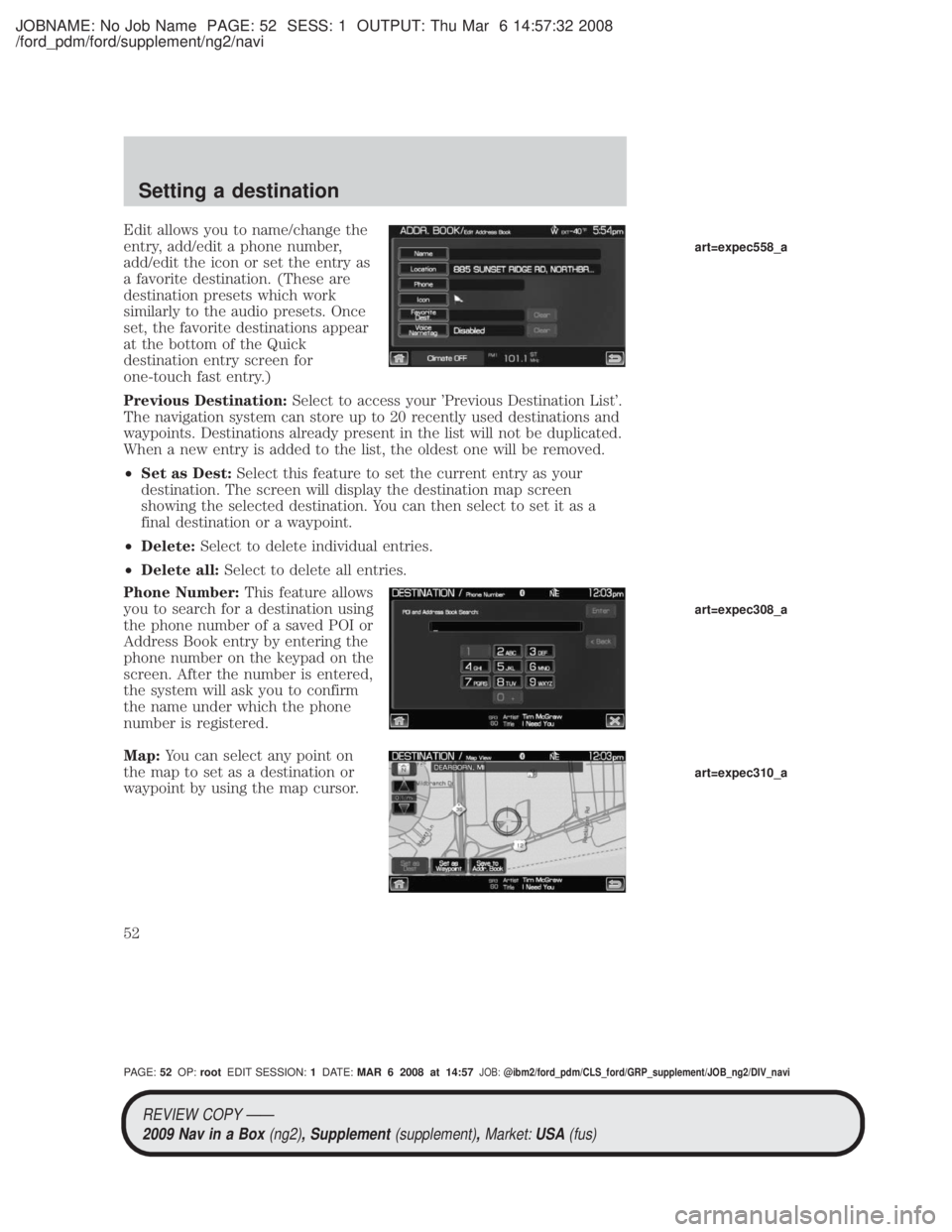

Edit allows you to name/change the
entry, add/edit a phone number,
add/edit the icon or set the entry as
a favorite destination. (These are
destination presets which work
similarly to the audio presets. Once
set, the favorite destinations appear
at the bottom of the Quick
destination entry screen for
one-touch fast entry.)
Previous Destination:Select to access your 'Previous Destination List'.
The navigation system can store up to 20 recently used destinations and
waypoints. Destinations already present in the list will not be duplicated.
When a new entry is added to the list, the oldest one will be removed.
² Set as Dest: Select this feature to set the current entry as your
destination. The screen will display the destination map screen
showing the selected destination. You can then select to set it as a
final destination or a waypoint.
² Delete: Select to delete individual entries.
² Delete all: Select to delete all entries.
Phone Number: This feature allows
you to search for a destination using
the phone number of a saved POI or
Address Book entry by entering the
phone number on the keypad on the
screen. After the number is entered,
the system will ask you to confirm
the name under which the phone
number is registered.
Map: You can select any point on
the map to set as a destination or
waypoint by using the map cursor.
art=expec558_a
art=expec308_a
art=expec310_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 52OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Setting a destination
52
Page 54 of 81
JOBNAME: No Job Name PAGE: 54 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi
Select USA and then the desired state or select Canada and then any
province or territory. Depending on your settings, this may be
automatically filled in.
² City: Enter the desired city name.
² Category: Select the desired POI category or subcategory.
² Name: Select to search for a POI using a full or partial name.
² List: Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
Freeway Exit/Entrance: Your
navigation system allows you to
enter a freeway name and then you
can select an entrance or exit to
that freeway. The entrance/exit can
be sorted alphabetically or in the
order of distance from the vehicle's
position. The selected entrance/exit
can then be selected as a final
destination or waypoint.
² State/Prov: Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA and then the desired state or select Canada and then any
province or territory. Depending on your settings, this may be
automatically filled in.
² Freeway: The Smart Speller will help enter a valid freeway in the
area specified.
² List: Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
art=expec309_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 54OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Setting a destination
54
Page 59 of 81
JOBNAME: No Job Name PAGE: 59 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

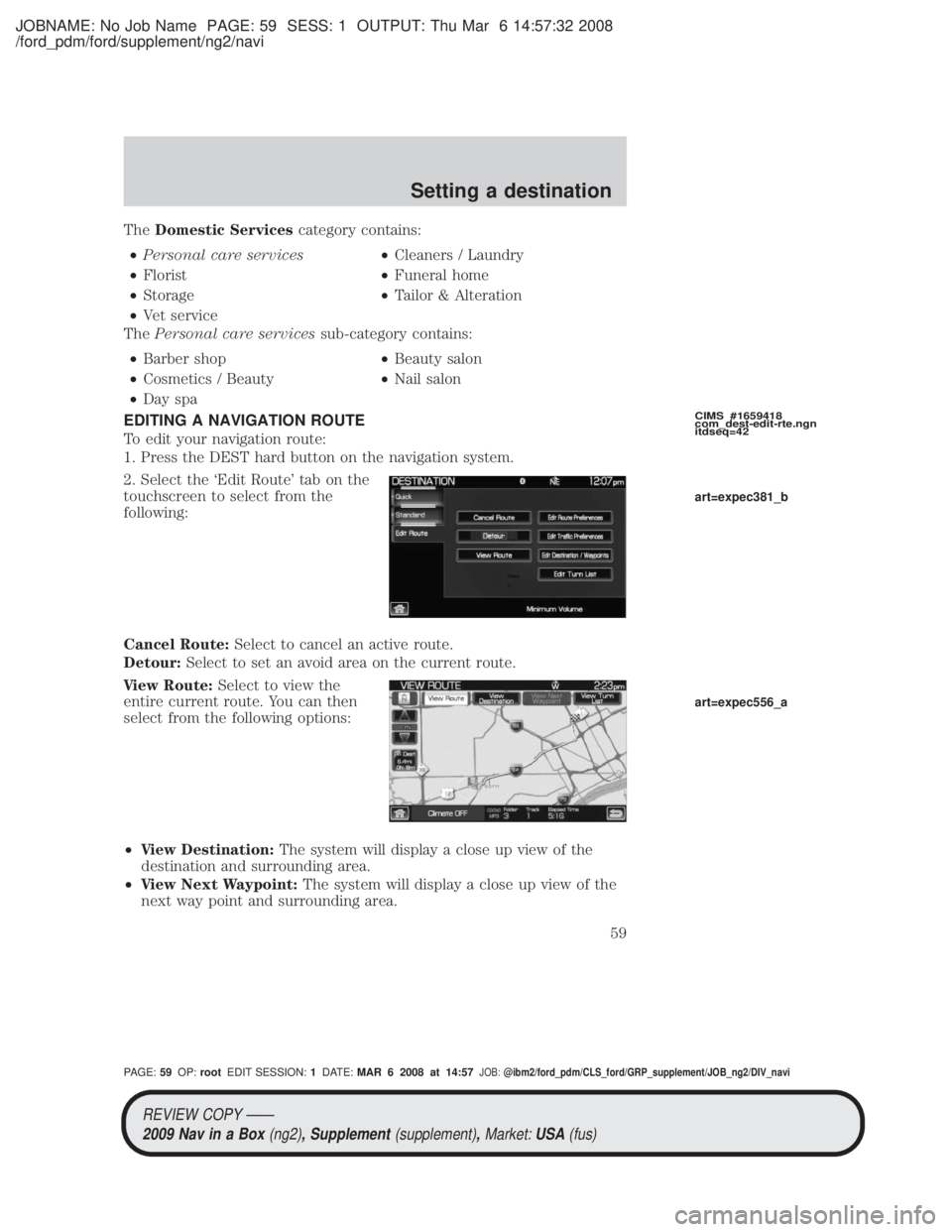

TheDomestic Services category contains:
² Personal care services ²Cleaners / Laundry
² Florist ²Funeral home
² Storage ²Tailor & Alteration
² Vet service
The Personal care services sub-category contains:
² Barber shop ²Beauty salon
² Cosmetics / Beauty ²Nail salon
² Day spa
EDITING A NAVIGATION ROUTE
To edit your navigation route:
1. Press the DEST hard button on the navigation system.
2. Select the `Edit Route' tab on the
touchscreen to select from the
following:
Cancel Route: Select to cancel an active route.
Detour: Select to set an avoid area on the current route.
View Route: Select to view the
entire current route. You can then
select from the following options:
² View Destination: The system will display a close up view of the
destination and surrounding area.
² View Next Waypoint: The system will display a close up view of the
next way point and surrounding area.
CIMS #1659418
com_dest-edit-rte.ngn
itdseq=42
art=expec381_b
art=expec556_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 59OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Setting a destination
59
Page 60 of 81
JOBNAME: No Job Name PAGE: 60 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

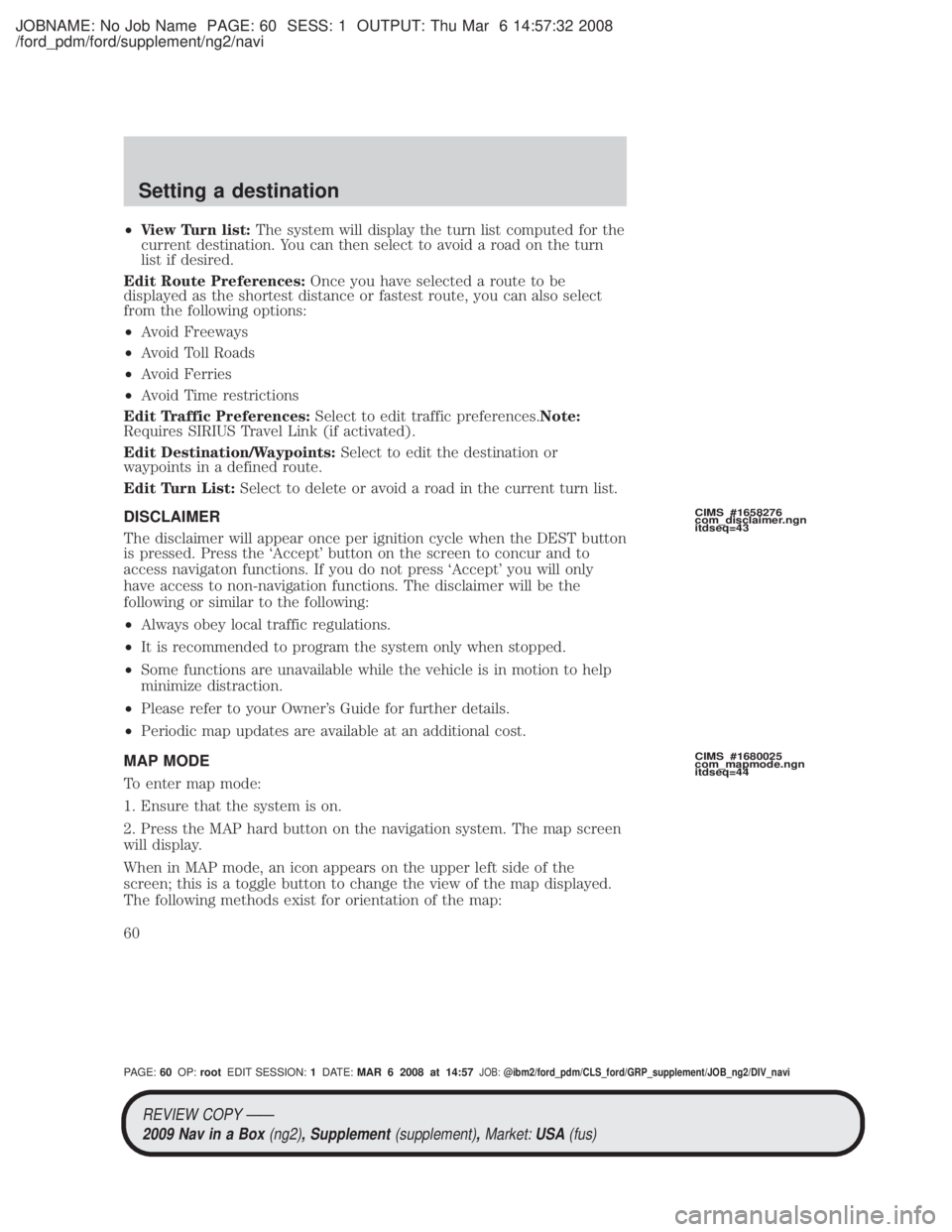

²View Turn list: The system will display the turn list computed for the
current destination. You can then select to avoid a road on the turn
list if desired.
Edit Route Preferences: Once you have selected a route to be
displayed as the shortest distance or fastest route, you can also select
from the following options:
² Avoid Freeways
² Avoid Toll Roads
² Avoid Ferries
² Avoid Time restrictions
Edit Traffic Preferences: Select to edit traffic preferences. Note:
Requires SIRIUS Travel Link (if activated).
Edit Destination/Waypoints: Select to edit the destination or
waypoints in a defined route.
Edit Turn List: Select to delete or avoid a road in the current turn list.
DISCLAIMER
The disclaimer will appear once per ignition cycle when the DEST button
is pressed. Press the `Accept' button on the screen to concur and to
access navigaton functions. If you do not press `Accept' you will only
have access to non-navigation functions. The disclaimer will be the
following or similar to the following:
² Always obey local traffic regulations.
² It is recommended to program the system only when stopped.
² Some functions are unavailable while the vehicle is in motion to help
minimize distraction.
² Please refer to your Owner's Guide for further details.
² Periodic map updates are available at an additional cost.
MAP MODE
To enter map mode:
1. Ensure that the system is on.
2. Press the MAP hard button on the navigation system. The map screen
will display.
When in MAP mode, an icon appears on the upper left side of the
screen; this is a toggle button to change the view of the map displayed.
The following methods exist for orientation of the map:
CIMS #1658276
com_disclaimer.ngn
itdseq=43
CIMS #1680025
com_mapmode.ngn
itdseq=44
REVIEW COPY ÐÐ 2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 60OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Setting a destination
60
