Page 479 of 526

8–21
Customer Information and Reporting Safety Defects
Recording of Vehicle Data
Recording of Vehicle Data
This vehicle is equipped with a computer which records the following mai\
n vehicle data
related to vehicle controls, operation, and other driving conditions.
Recorded data
Vehicle conditions such as engine speed and vehicle speed Driving operation conditions such as accelerator and brake pedals, and i\
nformation related
to the environmental circumstances while the vehicle is driven Malfunction diagnosis information from each on-vehicle computer Information related to controls of other on-vehicle computers
NOTE
The recorded data may vary depending on the vehicle grade and optional equipment.\
Voice
and images are not recorded.
Data handling
Mazda and its subcontracting parties may obtain and use the recorded dat\
a for vehicle
malfunction diagnosis, research and development, and quality improvement\
.
Mazda will not disclose or provide any of the obtained data to a third p\
arty unless:
An agreement from the vehicle owner (agreements from lessor and lessee \
for leased
vehicle) is obtained Officially requested by the police or other law enforcement authorities For statistical processing by a research institution after processing th\
e data so that
identification of the owner or the vehicle is impossible
MX-5_8EU4-EA-15D_Edition3.indb 212015/10/21 16:56:08
Page 498 of 526

8–40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
SAMPLE
WARNING
Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage, serious damage to the vehicle, or loss of
control.
Always keep the vehicle within the axle weight rating limits.
GCW
MX-5_8EU4-EA-15D_Edition3.indb 402015/10/21 16:56:14
Page 509 of 526

9–3
Specifications
Identification Numbers
Engine Number
Forward
MX-5_8EU4-EA-15D_Edition3.indb 32015/10/21 16:56:21
Page 510 of 526

9–4
Specifications
Specifications
Specifications
Engine
ItemSpecification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
Electrical System
ItemClassification
Battery 12V-45Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
Lubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 6-27.
Coolant FL-22 type
Manual transmission oil Mazda Original Long Life Gear Oil IS
*1
Automatic transmission fluid Mazda Genuine JWS3309
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life Gear Oil IS is recommended. If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-90)). However, shifting in very low temperatures may become difficult.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
MX-5_8EU4-EA-15D_Edition3.indb 42015/10/21 16:56:22
Page 511 of 526

9–5
Specifications
Specifications
Capacities
(Approximate Quantities)
ItemCapacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 4.1 L (4.3 US qt, 3.6 Imp qt)
Coolant Manual transmission
6.0 L (6.3 US qt, 5.3 Imp qt)
Automatic transmission 5.9 L (6.2 US qt, 5.2 Imp qt)
Manual transmission oil 2.0 L (2.1 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.2 L (7.6 US qt, 6.3 Imp qt)
Rear differential oil 0.6 L (0.6 US qt, 0.5 Imp qt)
Fuel tank 45.0 L (11.9 US gal, 9.90 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Dimensions
U.S.A. and Canada
ItemVehicle specification
Overall length 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle
1,235 mm (48.6 in)
17 inch wheel vehicle 1,240 mm (48.8 in)
Front tread 1,495 mm (58.9 in)
Rear tread 1,505 mm (59.3 in)
Wheelbase 2,310 mm (90.9 in)
Mexico
ItemVehicle specification
Overall length 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle
1,225 mm (48.2 in)
17 inch wheel vehicle 1,230 mm (48.4 in)
Front tread 1,495 mm (58.9 in)
Rear tread 1,505 mm (59.3 in)
Wheelbase 2,310 mm (90.9 in)
MX-5_8EU4-EA-15D_Edition3.indb 52015/10/21 16:56:22
Page 512 of 526

9–6
Specifications
Specifications
Weights
U.S.A. and Canada
ItemWeight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight Rating) 1,245 kg (2,745 lbs)1,265 kg (2,789 lbs)
GAWR (Gross Axle Weight Rating) Front
628 kg (1,384 lbs) 642 kg (1,415 lbs)
Rear 620 kg (1,367 lbs) 626 kg (1,380 lbs)
Mexico
Item Weight
GVW (Gross Vehicle Weight) Total
1,242 kg (2,738 lbs)
Front 627 kg (1,382 lbs)
Rear 615 kg (1,356 lbs)
GAW (Permissible axle load) Front
630 kg (1,389 lbs)
Rear 615 kg (1,356 lbs)
Air Conditioner
The type of refrigerant used is indicated on a label attached to the ins\
ide of the engine
compartment. Check the label before recharging the refrigerant. Refer to Climate Control
System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
MX-5_8EU4-EA-15D_Edition3.indb 62015/10/21 16:56:22
Page 521 of 526

10–3

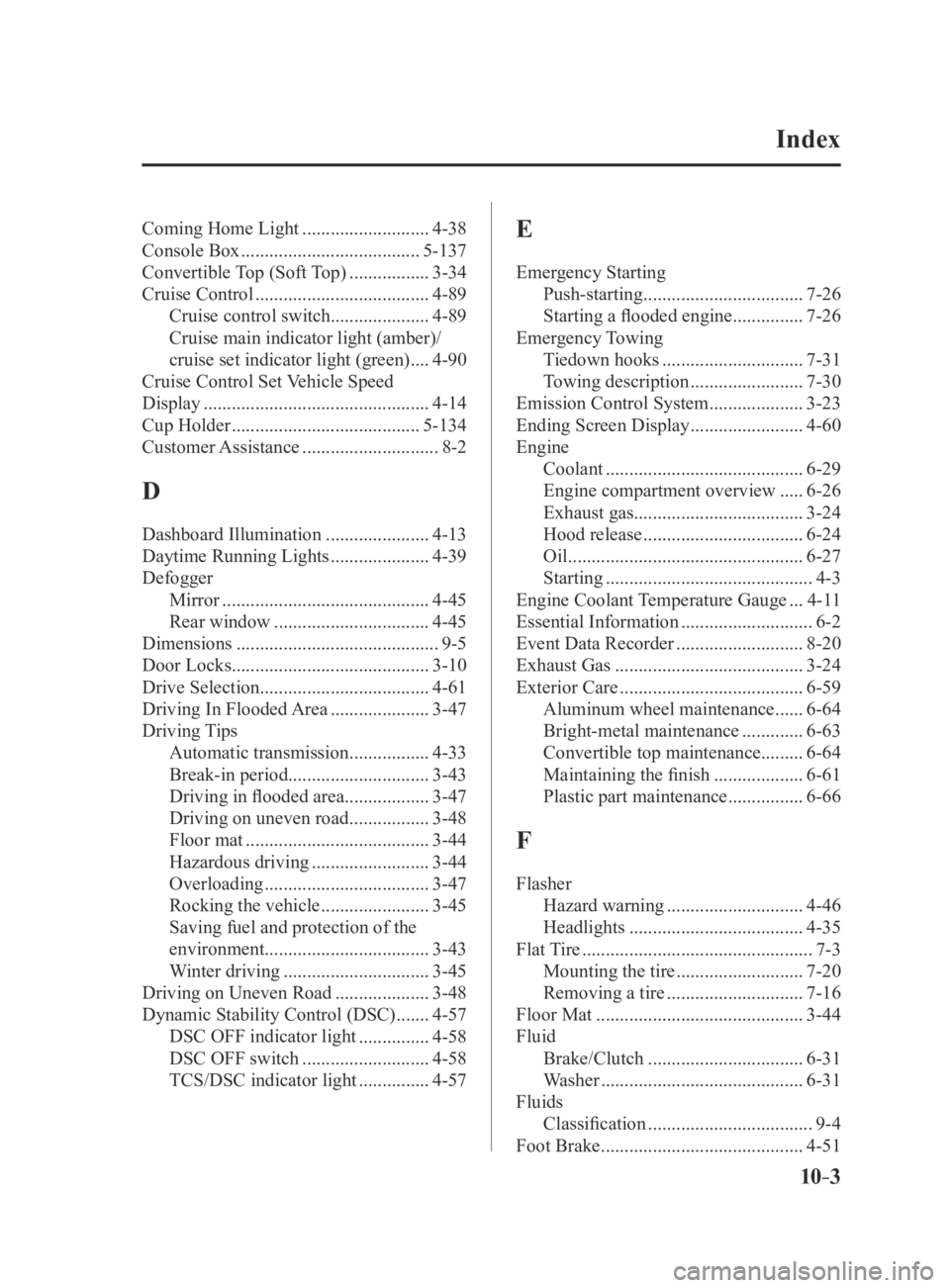

Index
Coming Home Light ...........................4-38
Console Box
......................................5-137
Convertible Top (Soft Top)
.................3-34
Cruise Control
.....................................4-89
Cruise control switch .....................4-89
Cruise main indicator light (amber)/
cruise set indicator light (green)
....4-90
Cruise Control Set Vehicle Speed
Display
................................................4-14
Cup Holder
........................................5-134
Customer Assistance
.............................8-2
D
Dashboard Illumination ......................4-13
Daytime Running Lights
.....................4-39
Defogger Mirror
............................................4-45
Rear window
.................................4-45
Dimensions
...........................................9-5
Door Locks
..........................................3-10
Drive Selection
....................................4-61
Driving In Flooded Area
.....................3-47
Driving Tips Automatic transmission
.................4-33
Break-in period .............................. 3-43
Driving in flooded area ..................3-47
Driving on uneven road
.................3-48
Floor mat
.......................................3-44
Hazardous driving
.........................3-44
Overloading
...................................3-47
Rocking the vehicle
.......................3-45
Saving fuel and protection of the
environment ................................... 3-43
Winter driving
...............................3-45
Driving on Uneven Road
....................3-48
Dynamic Stability Control (DSC)
.......4-57
DSC OFF indicator light
...............4-58
DSC OFF switch
...........................4-58
TCS/DSC indicator light
...............4-57
E
Emergency Starting Push-starting
..................................7-26
Starting a flooded engine
...............7-26
Emergency Towing Tiedown hooks
..............................7-31
Towing description
........................7-30
Emission Control System
....................3-23
Ending Screen Display
........................4-60
Engine Coolant
..........................................6-29
Engine compartment overview
.....6-26
Exhaust gas .................................... 3-24
Hood release
..................................6-24
Oil
..................................................6-27
Starting
............................................4-3
Engine Coolant Temperature Gauge
...4-11
Essential Information
............................6-2
Event Data Recorder
...........................8-20
Exhaust Gas
........................................3-24
Exterior Care
.......................................6-59
Aluminum wheel maintenance
......6-64
Bright-metal maintenance
.............6-63
Convertible top maintenance .........6-64
Maintaining the finish
...................6-61
Plastic part maintenance
................6-66
F
Flasher Hazard warning
.............................4-46
Headlights
.....................................4-35
Flat Tire
.................................................7-3
Mounting the tire
...........................7-20
Removing a tire
.............................7-16
Floor Mat
............................................3-44
Fluid Brake/Clutch
.................................6-31
Washer
...........................................6-31
Fluids Classification
...................................9-4
Foot Brake
...........................................4-51
MX-5_8EU4-EA-15D_Edition4.indb 32016/01/20 11:08:29
Page 522 of 526

10–4
Index
Forward Sensing Camera (FSC) .........4-84
Fuel Filler lid and cap ............................ 3-25
Gauge
............................................4-12
Requirements ................................. 3-22
Tank capacity
..................................9-5
Fuel Consumption Display
.................4-60
Fuel Economy Monitor
.......................4-59
Ending screen display
...................4-60
Fuel consumption display
.............4-60
Fuel-Filler Lid When fuel-filler lid cannot be
opened
...........................................7-29
Fuses
...................................................6-54
Panel description
...........................6-56
Replacement
..................................6-54
G
Gauges ...................................................4-9
H
Hazard Warning Flasher ......................4-46
Hazardous Driving
..............................3-44
Head Restraint
.......................................2-6
Headlights Coming home light
........................4-38
Control ........................................... 4-35
Flashing
.........................................4-38
High-low beam
..............................4-38
Leaving home light
.......................4-39
Leveling ......................................... 4-39
High Beam Control System (HBC)
....4-66
High Beam Control System (HBC)
indicator light (green)
....................4-68
Hill Launch Assist (HLA)
...................4-53
HomeLink Wireless Control System ...4-47
Hood Release
......................................6-24
Horn
....................................................4-46
I
i-ACTIVSENSE ..................................4-64
Adaptive Front Lighting System
(AFS)
.............................................4-65
Blind Spot Monitoring (BSM)
......4-74
Camera and sensors
.......................4-64
Forward Sensing Camera (FSC)
...4-84
High Beam Control System
(HBC)
............................................4-66
Lane Departure Warning System
(LDWS)
.........................................4-69
Radar sensors (rear) .......................4-87
Rear Cross Traffic Alert (RCTA) ...4-81
If a Warning Light Turns On or
Flashes................................................. 7-33
Ignition Switch
..............................................4-2
Ignition Not Switched Off (STOP)
Warning Beep
......................................7-46
Illuminated Entry System
.................5-132
Immobilizer System
............................3-39
Indicator Lights
...................................4-18
Low engine coolant temperature
...4-20
Wrench
..........................................4-20
Inside Trunk Release Lever
................3-20
Inspecting Brake/Clutch Fluid Level ...6-31
Inspecting Coolant Level
....................6-29
Inspecting Engine Oil Level
...............6-28
Inspecting Washer Fluid Level ............6-31
Instrument Cluster
.................................4-9
Interior Care
........................................6-66
Cleaning the floor mats
.................6-69
Cleaning the window interiors
......6-69
Instrument panel top maintenance ...6-68
Leather upholstery maintenance
...6-67
Panel maintenance
.........................6-68
Plastic part maintenance
................6-68
Seat belt maintenance
....................6-66
Upholstery maintenance
................6-67
Vinyl upholstery maintenance
.......6-67
Interior Lights Overhead light
.............................5-131
MX-5_8EU4-EA-15D_Edition4.indb 42016/01/20 11:08:29
Page 523 of 526

10–5
Index
J
Jack .......................................................7-4
Jump-Starting
......................................7-23
K
Key Left-in-trunk Warning Beep (With the
advanced keyless function)
.................7-47
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)
...........7-47
Key Removed from Vehicle Warning
Beep
....................................................7-47
Key Suspend Function
..........................3-7
Keyless Entry System
...........................3-3
Keys
......................................................3-2
Key suspend function
......................3-7
Transmitter
......................................3-4
L
Label Information .................................9-2
Lane-Change Signals
..........................4-40
Lane Departure Warning System
(LDWS)
...............................................4-69
LDWS switch
................................4-72
Lane Departure Warning System (LDWS)
Warning Sound
....................................7-48
Leaving Home Light
...........................4-39
Light Bulbs Replacement
..................................6-45
Specifications
..................................9-7
Lighting Control .................................. 4-35
Lights-on Reminder
............................7-45
Lubricant Quality
..................................9-4
M
Maintenance Information
......................................6-2
Scheduled
........................................6-4
Maintenance Monitor
..........................6-20 Manual Transmission Operation
.........4-21
Recommendations for shifting
......4-23
Message Indicated on Display
............7-43
Meters and Gauges
................................4-9
Mirror Defogger
..................................4-45
Mirrors Outside mirrors .............................. 3-28
Rearview mirror
............................3-29
O
Odometer and Trip Meter ....................4-10
Outside Mirrors
...................................3-28
Outside Temperature Display
..............4-13
Overhead Light
.................................5-131
Overheating
.........................................7-27
Overloading
.........................................3-47
Owner Maintenance Closing the hood
...........................6-25
Engine compartment overview
.....6-26
Key battery replacement
...............6-38
Opening the hood
..........................6-24
Owner maintenance precautions
...6-22
P
Parking Brake ......................................4-52
Personalization Features
.......................9-9
Power Steering
....................................4-63
Power Windows
..................................3-31
R
Radar Sensors (Rear) ..........................4-87
Rear Cross Traffic Alert (RCTA)
........4-81
Rear Window Defogger
......................4-45
Rearview Mirror
..................................3-29
Recommended Oil
..............................6-27
Recording of Vehicle Data
..................8-21
Recreational Towing
...........................3-49
Registering Your Vehicle in A Foreign
Country
...............................................8-17
MX-5_8EU4-EA-15D_Edition4.indb 52016/01/20 11:08:30
Page 524 of 526

10–6
Index
ReplacementFuse
...............................................6-54
Key battery
....................................6-38
Light bulbs
....................................6-45
Tires
...............................................6-43
Wheel
............................................6-43
Wiper
.............................................6-33
Request Switch Inoperable Warning Beep
(With the advanced keyless function)
...7-47
Rocking the Vehicle
............................3-45
S
SRS Air Bags How the SRS air bags work
..........2-31
Limitations to SRS air bag
............2-35
Monitoring ..................................... 2-42
Passenger occupant classification
system
............................................2-37
SRS air bag deployment criteria
...2-34
Supplemental restraint system
components
...................................2-29
Safety Defects, Reporting
...................8-13
Satellite Radio
.....................................5-46
Saving Fuel and Protection of the
Environment
........................................3-43
Scheduled Maintenance
........................6-4
Seat
........................................................2-4
Seat Belt System
.................................2-10
3-point type
...................................2-10
Automatic locking
...........................2-9
Emergency locking
..........................2-9
Extender
........................................2-13
Pregnant women
..............................2-9
Seat belt precautions
.......................2-7
Seat Belt Warning Beep
......................7-46
Seat Side Box
....................................5-137
Seats Head restraint
..................................2-6
Seat warmer
.....................................2-5
Security System Immobilizer system
.......................3-39
Theft-deterrent system
..................3-41 Specifications
........................................9-4
Speedometer
........................................4-10
Starting the Engine
................................4-3
Steering Wheel
....................................3-27
Horn ............................................... 4-46
Storage Compartments
......................5-137
Back trim storage box
.................5-138
Console box
.................................5-137
Seat side box
...............................5-137
Sunvisors
...........................................5-131
T
Tachometer ..........................................4-11
Theft-Deterrent System
.......................3-41
Tiedown Hook
..............................................7-31
Tire Inflation Pressure Warning Beep ...7-47
Tire Information
..................................8-24
Tire Pressure Monitoring System
.......4-93
Tires
....................................................6-41
Flat tire
............................................7-3
Replacing a tire
.............................6-43
Replacing a wheel
.........................6-43
Snow tires
......................................3-46
Specifications
..................................9-8
Tire chains
.....................................3-46
Tire inflation pressure
....................6-41
Tire rotation
...................................6-42
Uniform tire quality grading system
(UTQGS)
.......................................8-22
Towing Recreational towing
......................3-49
Trailer towing
................................3-49
Towing Description
.............................7-30
Traction Control System (TCS)
..........4-56
TCS/DSC indicator light
...............4-56
Transmitter
............................................3-4
Trip Computer
.....................................4-14
Trip Meter
...........................................4-10
MX-5_8EU4-EA-15D_Edition3.indb 62015/10/21 16:56:25
