MAZDA MX5 MIATA 2016 Owners Manual

7–43
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Message Indicated on Display
If a message is displayed in the center display (type B audio), take appropriate action (in a
calm manner) according to the displayed message.
(Display example)
Stop Vehicle in Safe Place Immediately
If the following messages are displayed in the center display (Type B audio), a vehicle
system may be malfunctioning. Stop the vehicle in a safe place and conta\
ct an Authorized
Mazda Dealer.
DisplayIndicated Condition
Displays if the engine coolant temperature has increased excessively.
Displays if the charging system has a malfunction.
MX-5_8EU4-EA-15D_Edition3.indb 432015/10/21 16:56:02

7–44
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Verify Display Content
Displays in the following cases:
DisplayIndicated Condition/Action to be taken
The following message is displayed when the temperature around the center display is high.
Lowering the temperature in the cabin or the
temperature around the center display by avoiding
direct sunlight is recommended.
MX-5_8EU4-EA-15D_Edition3.indb 442015/10/21 16:56:03

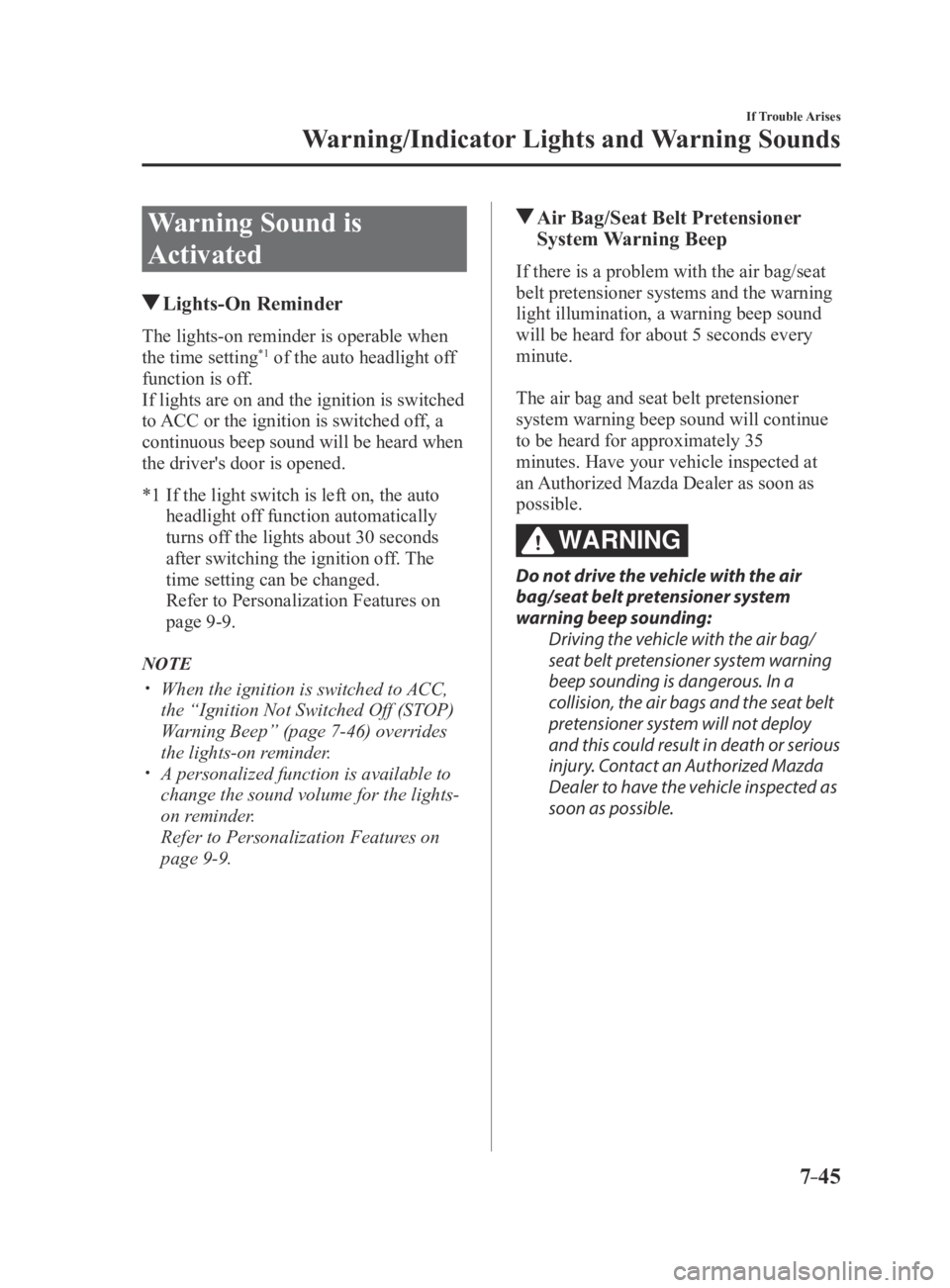

7–45
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Warning Sound is
Activated
Lights-On Reminder
The lights-on reminder is operable when
the time setting*1 of the auto headlight off
function is off.
If lights are on and the ignition is switched
to ACC or the ignition is switched off, a
continuous beep sound will be heard when
the driver's door is opened.
*1 If the light switch is left on, the auto
headlight off function automatically
turns off the lights about 30 seconds
after switching the ignition off. The
time setting can be changed.
Refer to Personalization Features on
page 9-9.
NOTE
 When the ignition is switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-46) overrides
the lights-on reminder.
 A personalized function is available to
change the sound volume for the lights-
on reminder.
Refer to Personalization Features on
page 9-9.
Air Bag/Seat Belt Pretensioner
System Warning Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35
minutes. Have your vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/seat belt pretensioner system
warning beep sounding: Driving the vehicle with the air bag/
seat belt pretensioner system warning
beep sounding is dangerous. In a
collision, the air bags and the seat belt
pretensioner system will not deploy
and this could result in death or serious
injury. Contact an Authorized Mazda
Dealer to have the vehicle inspected as
soon as possible.
MX-5_8EU4-EA-15D_Edition3.indb 452015/10/21 16:56:03

7–46
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
Except Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the passenger's seat belt is
not fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
a beep sound will be heard again for a
specified period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 To allow the passenger occupant
classification sensor to function
properly, do not place and sit on
an additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
 If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20 km/h
(12 mph) with the driver or passenger's
seat belt unfastened, a warning beep
sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item.
 To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion
on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference.
 If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
MX-5_8EU4-EA-15D_Edition3.indb 462015/10/21 16:56:03

7–47
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and
all the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside
the vehicle will be heard 6 times, and the
KEY warning light (red) in the instrument
cluster flashes continuously to notify
the driver that the ignition has not been
switched OFF.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times and the KEY warning
light (red) in the instrument cluster turns
on continuously to notify the driver that
the ignition has not been switched OFF.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried,
a beep will be heard outside for about 2
seconds to notify the driver that the door
or trunk lid cannot be locked.
Key Left-in-trunk Warning Beep
(With the advanced keyless
function)
If the key is left in the trunk with all the
doors locked and the trunk lid closed, a
beep will be heard outside for about 10
seconds to notify the driver that the key is
in the trunk. In this case, take out the key
by pressing the electric trunk lid opener
and opening the trunk lid. The key taken
out of the trunk may not operate because
its functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure (page
3-7).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and trunk are locked using
another key while the key is left in the
cabin, the beep which sounds outside of
the vehicle will be heard for about 10
seconds to notify the driver that the key
is in the cabin. In this case, take out the
key by opening the door. A key taken
out of the vehicle using this method may
not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-7).
Tire Inflation Pressure Warning
Beep*
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tire inflation pressures
(page 4-93).
MX-5_8EU4-EA-15D_Edition3.indb 472015/10/21 16:56:04

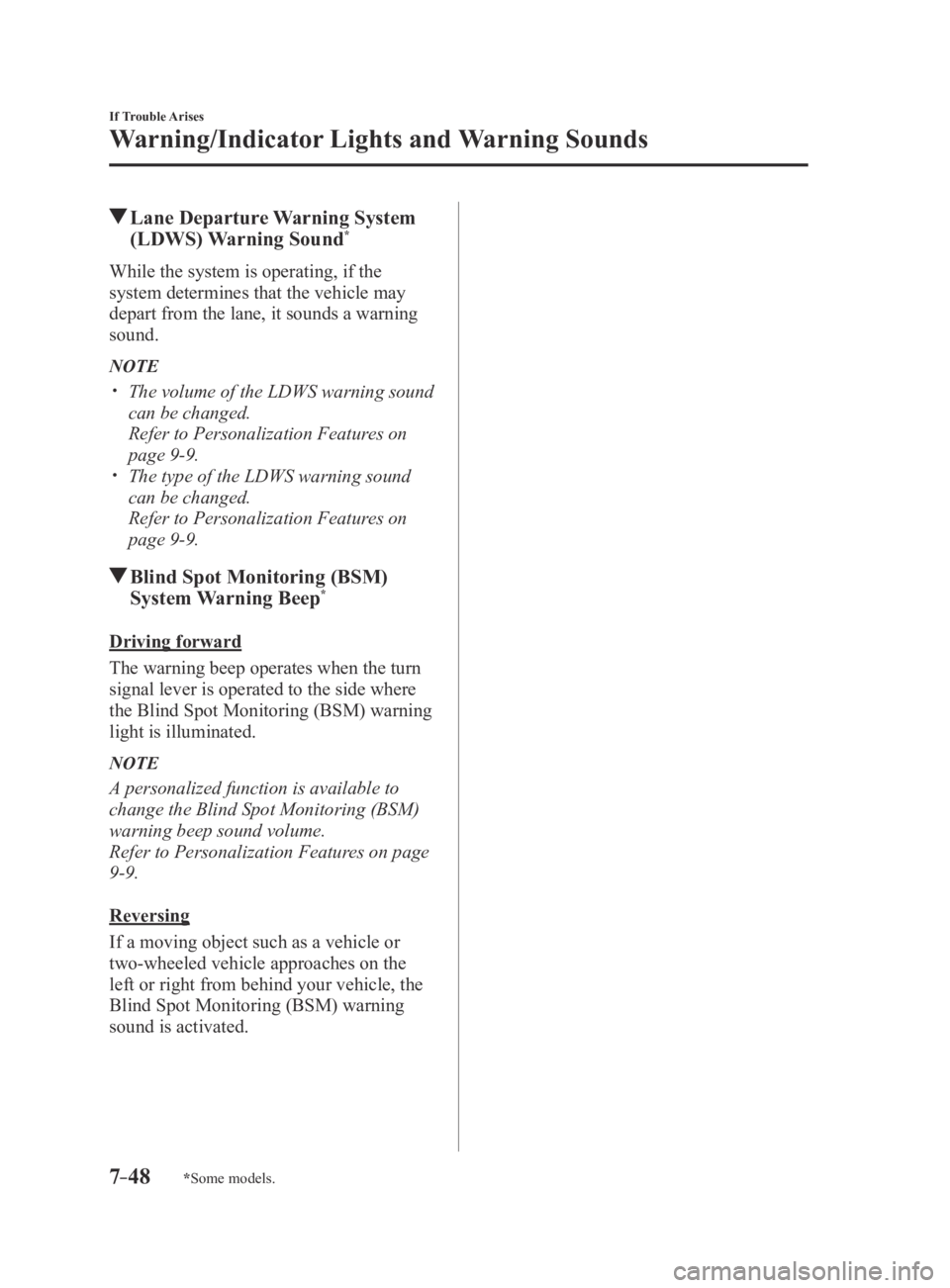

7–48
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Lane Departure Warning System
(LDWS) Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
 The volume of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9. The type of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9.
Blind Spot Monitoring (BSM)
System Warning Beep*
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-9.
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
MX-5_8EU4-EA-15D_Edition3.indb 482015/10/21 16:56:04

7–49
If Trouble Arises
When Trunk Lid Cannot be Opened
When Trunk Lid Cannot
be Opened
If the battery is dead, the trunk cannot be
unlocked and opened.
In this case, the trunk can be unlocked by
taking care of the dead battery situation.
Refer to Jump-Starting on page 7-23.
If the trunk cannot be unlocked even
if the dead battery situation has been
resolved, the electrical system may have a
malfunction.
1. Close the convertible top.
Refer to Raising the Convertible Top
on page 3-37.
2. Remove the windblocker.

Windblocker
3. Remove the fasteners on the right side
of the vehicle.

4. Partially peel back the cover on the
right side of the vehicle.

5. Turn and loosen the cap screws until
the screws start to spin free.

MX-5_8EU4-EA-15D_Edition3.indb 492015/10/21 16:56:05

7–50
If Trouble Arises
When Trunk Lid Cannot be Opened
6. Pull out the cap and open the trunk lid.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.

CAUTION
Do not pull the screw when pulling the
cap. Otherwise, the screw may fall off
and become lost.
MX-5_8EU4-EA-15D_Edition3.indb 502015/10/21 16:56:05

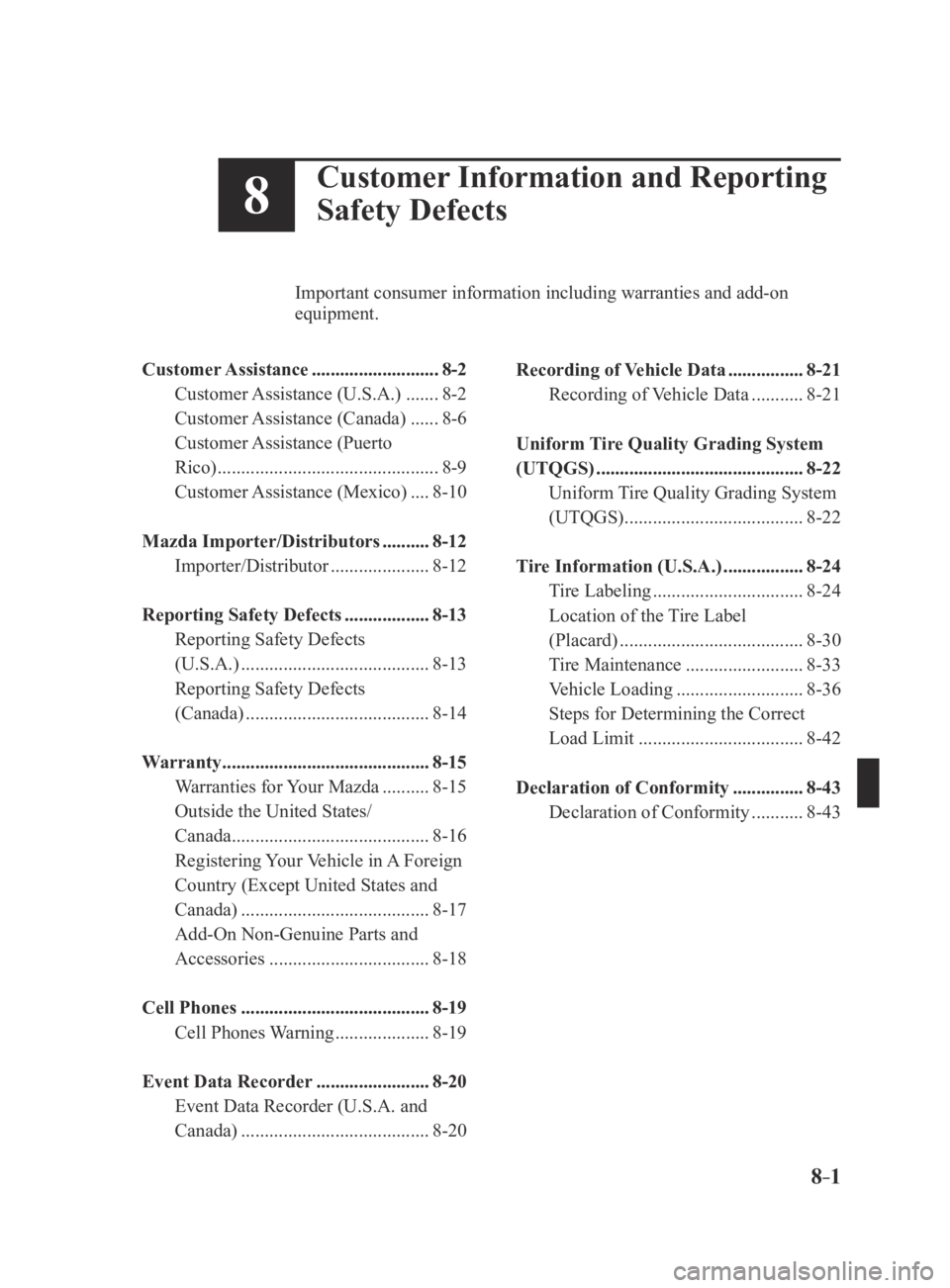

8–1
8
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on
equipment.
Customer Assistance ...........................8-2
Customer Assistance (U.S.A.)
.......8-2
Customer Assistance (Canada)
......8-6
Customer Assistance (Puerto
Rico)
...............................................8-9
Customer Assistance (Mexico)
....8-10
Mazda Importer/Distributors
..........8-12
Importer/Distributor
.....................8-12
Reporting Safety Defects
..................8-13
Reporting Safety Defects
(U.S.A.)
........................................8-13
Reporting Safety Defects
(Canada)
.......................................8-14
Warranty
............................................8-15
Warranties for Your Mazda
..........8-15
Outside the United States/
Canada
..........................................8-16
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada)
........................................8-17
Add-On Non-Genuine Parts and
Accessories
..................................8-18
Cell Phones
........................................8-19
Cell Phones Warning
....................8-19
Event Data Recorder
........................8-20
Event Data Recorder (U.S.A. and
Canada)
........................................8-20 Recording of Vehicle Data
................8-21
Recording of Vehicle Data
...........8-21
Uniform Tire Quality Grading System
(UTQGS)
............................................8-22
Uniform Tire Quality Grading System
(UTQGS)
......................................8-22
Tire Information (U.S.A.)
.................8-24
Tire Labeling
................................8-24
Location of the Tire Label
(Placard)
.......................................8-30
Tire Maintenance
.........................8-33
Vehicle Loading
...........................8-36
Steps for Determining the Correct
Load Limit
...................................8-42
Declaration of Conformity
...............8-43
Declaration of Conformity
...........8-43
MX-5_8EU4-EA-15D_Edition3.indb 12015/10/21 16:56:05

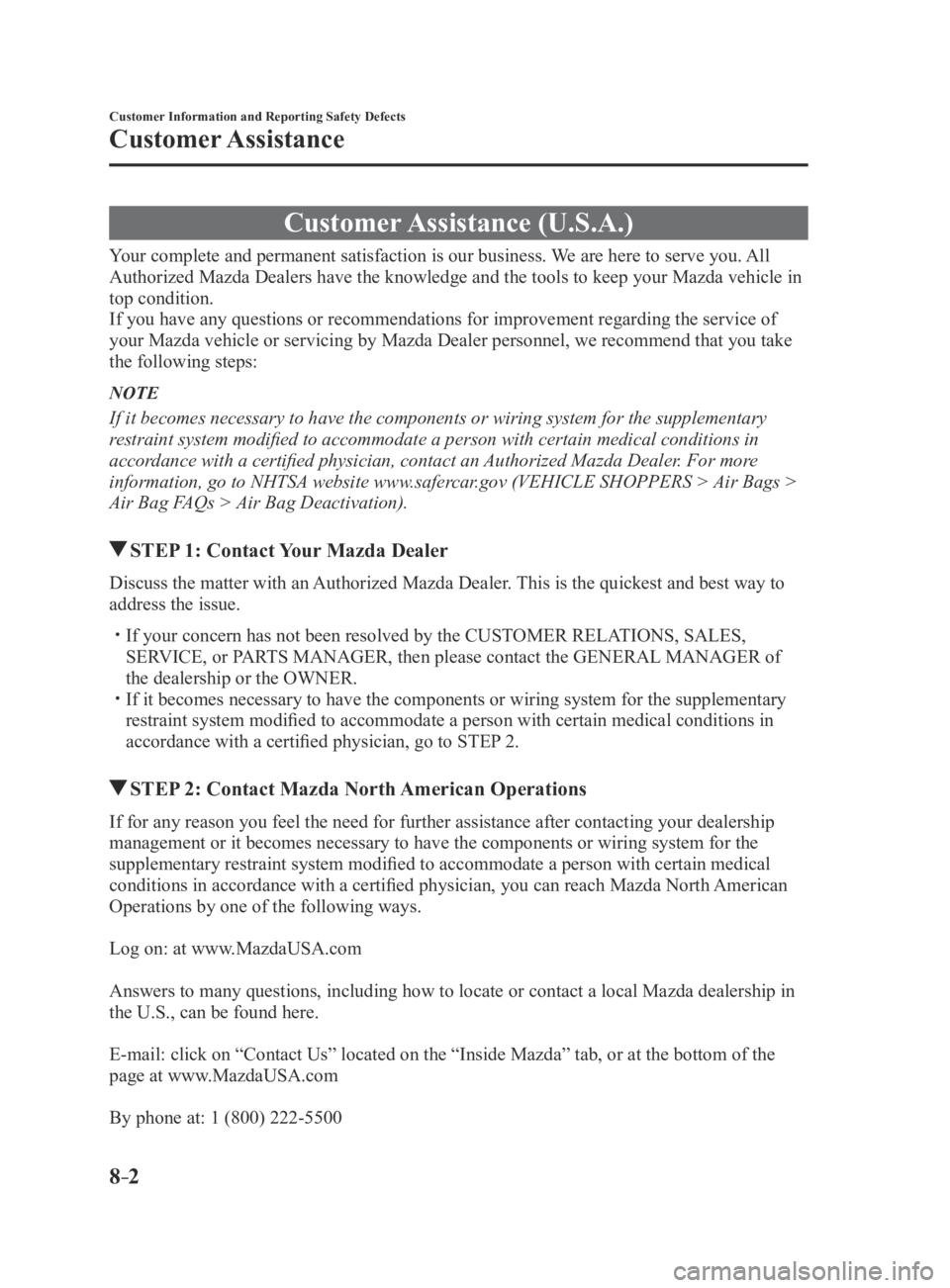

8–2
Customer Information and Reporting Safety Defects
Customer Assistance
Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your M\
azda vehicle in
top condition.
If you have any questions or recommendations for improvement regarding t\
he service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend \
that you take
the following steps:
NOTE
If it becomes necessary to have the components or wiring system for the \
supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, contact an Authorized Mazda Dealer. For more
information, go to NHTSA website www.safercar.gov (VEHICLE SHOPPERS > Air Bags >
Air Bag FAQs > Air Bag Deactivation).
STEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue.
 If your concern has not been resolved by the CUSTOMER RELATIONS, SALES,
SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of
the dealership or the OWNER.
 If it becomes necessary to have the components or wiring system for the \
supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, go to STEP 2.
STEP 2: Contact Mazda North American Operations
If for any reason you feel the need for further assistance after contact\
ing your dealership
management or it becomes necessary to have the components or wiring syst\
em for the
supplementary restraint system modified to accommodate a person with certain medical
conditions in accordance with a certified physician, you can reach Mazda North American
Operations by one of the following ways.
Log on: at www.MazdaUSA.com
Answers to many questions, including how to locate or contact a local Ma\
zda dealership in
the U.S., can be found here.
E-mail: click on “Contact Us” located on the “Inside Mazda” \
tab, or at the bottom of the
page at www.MazdaUSA.com
By phone at: 1 (800) 222-5500
MX-5_8EU4-EA-15D_Edition3.indb 22015/10/21 16:56:06
