Page 81 of 568
3 –25 Before Driving
Fuel and Emission
Fuel-Filler Lid and Cap WARNING When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop, then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel tank
and the fuel-filler cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in a fuel leak, which could
result in serious burns or death in an
accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the
fuel pump nozzle has shut off
automatically is dangerous because
overfilling the fuel tank may cause
fuel overflow or leakage. Fuel overflow
and leakage could damage the vehicle
and if the fuel ignites it could cause a
fire and explosion resulting in serious
injury or death. CAUTION Always use only a genuine Mazda fuel-
filler cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in
a serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
Fuel-Filler Lid When the fuel-filler lid end is pressed with
the doors unlocked, the fuel-filler lid rises.
The fuel-filler lid operates in conjunction
with the door locking/unlocking
mechanism.
Make sure to lock both the doors when
leaving the vehicle.
Refer to Door Locks on page 3-10 .
To close, press the fuel-filler lid until a
click sound is heard.
NOTE
Lock the doors after closing the fuel lid.
If the fuel lid is closed after locking the
doors, the fuel lid cannot be locked.
MX-5_8FR4-EA-16J_Edition1.indb 25 2016/08/11 20:28:33
Page 82 of 568
3 –26 Before Driving
Fuel and Emission Fuel-Filler CapTo remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel-filler cap, turn it
clockwise until a click is heard. Open
Close
CAUTION If the check fuel cap warning light
illuminates, the fuel-filler cap may not
be properly installed. If the warning
light illuminates, park your vehicle
safely off the right-of-way, remove the
fuel-filler cap and reinstall it correctly.
After the cap has been correctly
installed, the fuel cap warning light
may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of
starting the engine (after four or more
hours with the engine off ) and driving
the vehicle on city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
MX-5_8FR4-EA-16J_Edition1.indb 26 2016/08/11 20:28:33
Page 89 of 568
3 –33 Before Driving
WindowsEngine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to off with both doors
closed. If any door is opened, the power
window will stop operating.
NOTE
For engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
Power Window Lock SwitchThis feature prevents the passenger's
power window from operating. Keep
this switch in the locked position while
children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
Both power windows on each door can be
operated. Lock position
Unlock position
NOTE
When the power window lock switch is
in the locked position, the light on the
passenger power window switch turns off.
The light may be difficult to see depending
on the surrounding brightness.
MX-5_8FR4-EA-16J_Edition1.indb 33 2016/08/11 20:28:35
Page 92 of 568
3 –36 Before Driving
Convertible Top (Soft Top) Lowering the Convertible Top
CAUTION Do not sit on the folded convertible
top. Otherwise, the convertible top
could be damaged or you may fall off
and be injured.
1. Make sure the parking brake is applied.
2. If the engine is running, turn it off.
3. Make sure there are no objects which
have been placed in the area where the
convertible top is to be retracted.
4. With the lock release button depressed
forward, pull back the top latch lever to
unlock it.
Top latchLock release button
5. Remove the striker from the anchor.
Anchor
Striker NOTE
If the power windows do not go down
automatically, fully open the windows or
open the doors.
6. Standing outside of the vehicle, hold
the convertible top along the front edge
and pull it toward the vehicle rear.
Front edge
NOTE
To lower the convertible top from inside
the vehicle, use the convertible top's
handles.
Convertible top's handles
MX-5_8FR4-EA-16J_Edition1.indb 36 2016/08/11 20:28:35
Page 93 of 568
3 –37 Before Driving
Convertible Top (Soft Top)7. Move the convertible top rearward and
fold it while pressing the rear glass
lightly with your hand.
8. With the back end of the convertible
top pressed, press the front end until a
latch sound is heard.
Lightly rock the retracted convertible
top to make sure it is securely locked.
Raising the Convertible Top
1. Make sure the parking brake is applied.
2. If the engine is running, turn it off. 3. Pull up the unlock lever to disengage
the lock.
Unlock Le ve r
4. Standing outside of the vehicle, hold
the convertible top along the front edge
and pull it towards the vehicle front.
Front edge
MX-5_8FR4-EA-16J_Edition1.indb 37 2016/08/11 20:28:35
Page 101 of 568
3 –45 Before Driving
Convertible Top (Retractable Fastback) Opening the Roof1. Park on a hard, level surface off the
right-of-way and firmly set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake
pedal depressed.
4. Start the Engine.
NOTE
Do not open/close the roof with the engine
stopped. Otherwise the vehicle's battery
power could be depleted.
5. Continue pressing the retractable
fastback switch in the open direction
until the roof is completely open. NOTE
If the retractable fastback switch is
pressed in the open direction, a warning
beep sounds.
If the windows are closed, the windows
automatically open partially when the
rear roof opens.
After the rear roof is opened and
the retractable fastback switch is
continuously pressed in the open
direction, the power windows close
completely.
Once you remove your hand from the
switch, the power windows do not
close even if it is operated again. If this
happens, completely close the power
windows using the power window
switch.
The roof keeps opening and the
operation indicator light flashes while
the retractable fastback switch is
pressed in the open direction.
If the switch is released while the roof is
opening, the roof stops opening. If the
switch is pressed in the open direction
again, the roof resumes opening.
When the operation is finished, a beep
sound is heard and the operation
indicator light turns off.
When the roof is half-open, the front
roof resumes opening after the rear roof
is completely open.
Closing the Roof
1. Park on a hard, level surface off the
right-of-way and firmly set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake
pedal depressed.
4. Start the Engine.
MX-5_8FR4-EA-16J_Edition1.indb 45 2016/08/11 20:28:37
Page 102 of 568

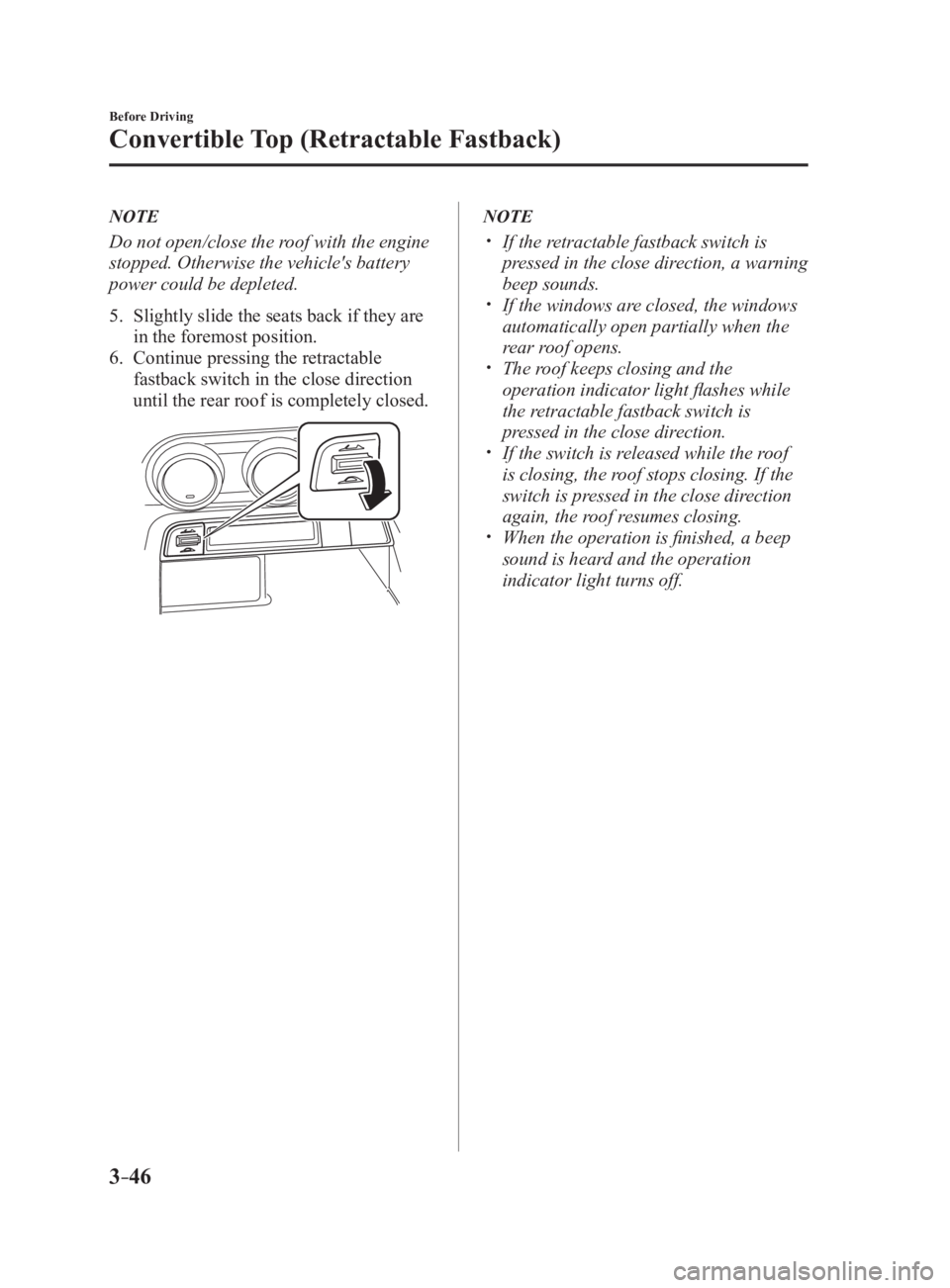

3 –46 Before Driving
Convertible Top (Retractable Fastback) NOTE
Do not open/close the roof with the engine
stopped. Otherwise the vehicle's battery
power could be depleted.
5. Slightly slide the seats back if they are
in the foremost position.
6. Continue pressing the retractable
fastback switch in the close direction
until the rear roof is completely closed. NOTE
If the retractable fastback switch is
pressed in the close direction, a warning
beep sounds.
If the windows are closed, the windows
automatically open partially when the
rear roof opens.
The roof keeps closing and the
operation indicator light flashes while
the retractable fastback switch is
pressed in the close direction.
If the switch is released while the roof
is closing, the roof stops closing. If the
switch is pressed in the close direction
again, the roof resumes closing.
When the operation is finished, a beep
sound is heard and the operation
indicator light turns off.
MX-5_8FR4-EA-16J_Edition1.indb 46 2016/08/11 20:28:37
Page 103 of 568
3 –47 Before Driving
Security System
Modification and Add-On
Equipment Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
MX-5_8FR4-EA-16J_Edition1.indb 47 2016/08/11 20:28:37
Page 104 of 568
3 –48 Before Driving
Security System NOTE
The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
OperationNOTE
The engine may not start and security
indicator light may illuminate or flash
if the key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard. Move
the key to a location within the signal
range, switch the ignition off, and then
restart the engine.
Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light. Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
NOTE
If the security indicator light flashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
MX-5_8FR4-EA-16J_Edition1.indb 48 2016/08/11 20:28:38
Page 106 of 568
3 –50 Before Driving
Security System NOTE
The theft-deterrent system can also be
armed by activating the auto relock
function with both the doors, the trunk
lid and the hood closed.
Refer to Transmitter on page 3-4 .
The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
Unlocking any door.
Opening any door.
Opening the hood.
Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
To Turn Off an Armed SystemAn armed system can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the doors.
The hazard warning lights will flash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off. To Stop the Alarm A triggered alarm can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the doors.
Pressing the electric trunk lid opener
while the key is being carried.
The hazard warning lights will flash twice.
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the console box.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
MX-5_8FR4-EA-16J_Edition1.indb 50 2016/08/11 20:28:38
