Page 75 of 568

3 –19 Before Driving
Doors and Locks Opening and Closing the Trunk
LidOpening the trunk lid
Using the remote release button
Push the release button.
The remote release button function can
be disabled by locking the doors using
the transmitter, auxiliary key, or a request
switch to prevent an intruder in the vehicle
from opening the trunk.
To enable the remote release button
operation, unlock the doors by using the
transmitter, auxiliary key, or a request
switch, or switch the ignition ON.
NOTE
The remote release button cannot be
disabled by locking the doors using the
door-lock switch/door-lock knob.
Refer to Locking, Unlocking with Door-
Lock Switch on page 3-14 .
Refer to Locking, Unlocking with Door-
Lock Knob on page 3-17 . Using the electric trunk lid opener
(With the advanced keyless function)
A trunk lid can also be opened while the
key is being carried.
Press the electric trunk lid opener and raise
the trunk lid when the latch releases. Electric trunk lid
opener
NOTE
When opening the trunk lid with the
doors locked, it may require a few
seconds for the trunk lid latch to release
after the electric trunk lid opener is
pressed.
The trunk lid can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the trunk lid can be
opened by pressing the electric trunk lid
opener. If the trunk lid cannot be opened
despite doing this procedure, first push
the trunk lid completely closed, then
press the electric trunk lid opener to
fully open the trunk lid.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the trunk lid cannot be
unlocked, the trunk lid can be opened by
performing the emergency procedure.
Refer to When Trunk Lid Cannot be
Opened on page 7-52 .
MX-5_8FR4-EA-16J_Edition1.indb 19 2016/08/11 20:28:31

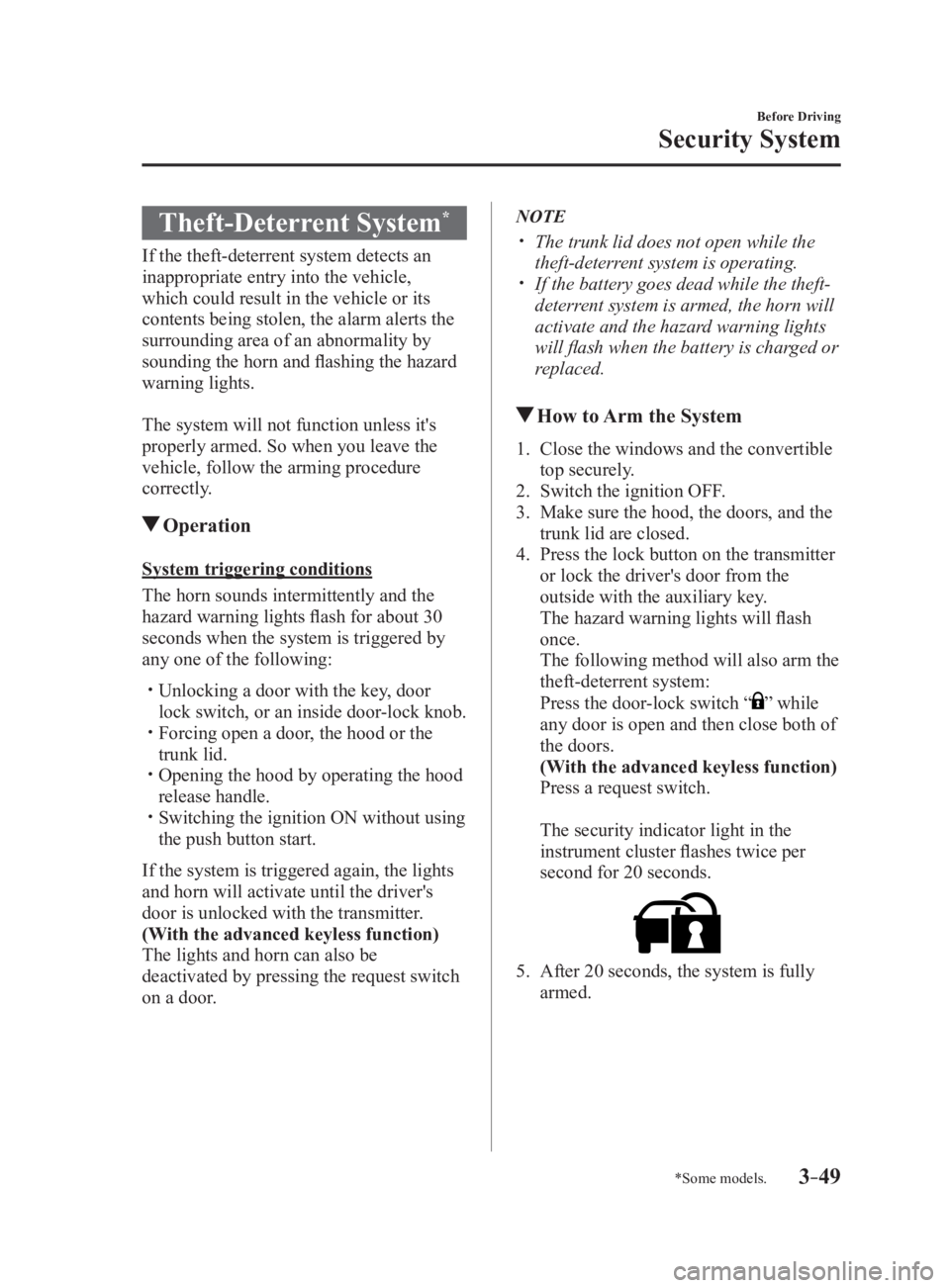

Page 105 of 568

3 –49 Before Driving
Security System
*Some models.Theft-Deterrent System *
If the theft-deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
OperationSystem triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
Unlocking a door with the key, door
lock switch, or an inside door-lock knob.
Forcing open a door, the hood or the
trunk lid.
Opening the hood by operating the hood
release handle.
Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door is unlocked with the transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door. NOTE
The trunk lid does not open while the
theft-deterrent system is operating.
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will flash when the battery is charged or
replaced.
How to Arm the System 1. Close the windows and the convertible
top securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
trunk lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “ ” while
any door is open and then close both of
the doors.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
MX-5_8FR4-EA-16J_Edition1.indb 49 2016/08/11 20:28:38
Page 106 of 568

3 –50 Before Driving
Security System NOTE
The theft-deterrent system can also be
armed by activating the auto relock
function with both the doors, the trunk
lid and the hood closed.
Refer to Transmitter on page 3-4 .
The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
Unlocking any door.
Opening any door.
Opening the hood.
Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
To Turn Off an Armed SystemAn armed system can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the doors.
The hazard warning lights will flash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off. To Stop the Alarm A triggered alarm can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the doors.
Pressing the electric trunk lid opener
while the key is being carried.
The hazard warning lights will flash twice.
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the console box.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
MX-5_8FR4-EA-16J_Edition1.indb 50 2016/08/11 20:28:38
Page 118 of 568

4 –4 When Driving
Start/Stop Engine
Ignition Switch Push Button Start PositionsThe system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
NOTE
The engine starts by pressing the push
button start while depressing the clutch
pedal (manual transmission) or the
brake pedal (automatic transmission).
To switch the ignition position, press the
push button start without depressing the
pedal.
Do not leave the ignition switched
ON while the engine is not running.
Doing so could result in the battery
going dead. If the ignition is left in
ACC (For automatic transmission, the
selector lever is in the P position, and
the ignition is in ACC), the ignition
switches off automatically after about
25 minutes. Off
The power supply to electrical devices
turns off and the push button start indicator
light (amber) also turns off.
In this position the steering wheel is
locked.
WARNING Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the selector lever
is in P (automatic transmission) or in 1st
gear or R (manual transmission):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the selector
lever to P (automatic transmission) or
to 1st gear or R (manual transmission)
is dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to leave
the vehicle for even a short period, it
is important to switch the ignition off,
as leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber) illuminates.
NOTE
The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.
MX-5_8FR4-EA-16J_Edition1.indb 4 2016/08/11 20:28:41
Page 472 of 568

7 –38 If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.Signal Warning
(Red)
KEY Warning
Indication *
“Keyless System malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authorized Mazda Dealer.
CAUTION If the message is indicated, or the push button start indicator light (amber) flashes, the
engine may not start. If the engine cannot be started, try starting it using the emergency
operation for starting the engine, and have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9 .
(Amber)
KEY Warning
Indication *
“Ignition is on” is displayed
This message is displayed when the driver's door is opened without switching the ignition
off.
“Key not detected” is displayed
This message is displayed when any of the following operations is performed with the key
out of the operational range or placed in areas inside the cabi n where it is difficult for the
key to be detected.
The push button start is pressed with the ignition switched off
The ignition is switched on
All doors are closed without switching the ignition off
(Red)
(Illuminate)
KEY Warning
Light *
If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION If the key warning indicator light illuminates or the push button start indicator light
(amber) flashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9 .
MX-5_8FR4-EA-16J_Edition1.indb 38 2016/08/11 20:30:04
Page 483 of 568

7 –49 If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models. Seat Belt Warning BeepExcept Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the passenger's seat belt is
not fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
a beep sound will be heard again for a
specified period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
To allow the passenger occupant
classification sensor to function
properly, do not place and sit on
an additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20 km/h
(12 mph) with the driver or passenger's
seat belt unfastened, a warning beep
sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph). NOTE
Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item.
To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion
on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference.
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Retractable Fastback Warning
Beep *
When operating the retractable fastback
switch, the warning beep is activated when
the retractable fastback operation begins
and when it is completed.
If there is a problem with the retractable
fastback, the warning beep is activated
continuously while operating the switch. If
the warning beep is activated continuously
while operating the switch, have the
vehicle inspected at an Authorized Mazda
Dealer .
Ignition Not Switched Off (STOP)
Warning Bee p
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
MX-5_8FR4-EA-16J_Edition1.indb 49 2016/08/11 20:30:06
Page 484 of 568

7 –50 If Trouble Arises
Warning/Indicator Lights and Warning Sounds Key Removed from Vehicle
Warning BeepVehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and
all the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside
the vehicle will be heard 6 times, and the
KEY warning light (red) in the instrument
cluster flashes continuously to notify
the driver that the ignition has not been
switched OFF.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times and the KEY warning
light (red) in the instrument cluster turns
on continuously to notify the driver that
the ignition has not been switched OFF.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried,
a beep will be heard outside for about 2
seconds to notify the driver that the door
or trunk lid cannot be locked. Key Left-in-trunk Warning Beep
(With the advanced keyless
function) If the key is left in the trunk with all the
doors locked and the trunk lid closed, a
beep will be heard outside for about 10
seconds to notify the driver that the key is
in the trunk. In this case, take out the key
by pressing the electric trunk lid opener
and opening the trunk lid. The key taken
out of the trunk may not operate because
its functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure (page
3-7 ).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function) If all the doors and trunk are locked using
another key while the key is left in the
cabin, the beep which sounds outside of
the vehicle will be heard for about 10
seconds to notify the driver that the key
is in the cabin. In this case, take out the
key by opening the door. A key taken
out of the vehicle using this method may
not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-7 ).
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or flashes and
the buzzer operates at the same time.
Refer to Warning Indication/Warning
Lights on page 4-26 .
MX-5_8FR4-EA-16J_Edition1.indb 50 2016/08/11 20:30:07
Page 543 of 568

8 –43 Customer Information and Reporting Safety Defects
Declaration of Conformity
Declaration of Conformity Keyless Entry System/Immobilizer System
MX-5_8FR4-EA-16J_Edition1.indb 43 2016/08/11 20:30:19
Page 557 of 568

9 –9 Specifications
Personalization Features
Personalization FeaturesThe following personalization features can be set or changed by the customer or an
Authorized Mazda Dealer.
Personalization features and settings which can be changed differ depending on the market
and specification.
Settings Change Method
Settings can be changed by operating the center display screen.
A: Refer to Settings on page 5-53 .
B: Refer to Fuel Economy Monitor on page 4-69 .
Settings can be changed by operating the vehicle switches.
C: Refer to Auto Lock/Unlock Function on page 3-15 .
D: Refer to Transmitter on page 3-4 .
E: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function)
on page 3-12 .
F: Refer to Outside Temperature Display on page 4-15 .
Settings can be changed by an Authorized Mazda Dealer. Item Feature Factory
Setting Available
Settings Settings
Change
Method
Safety
Lane Departure Warning
System (LDWS) (page
4-79 ). Distance by which the system uses
to determine the possibility of a lane
departure Before At/Before A —
Warning sensitivity (likelihood of
warning) Low High/Low A —
Warning beep sound Beep Beep/Rumbl. A —
Warning beep volume Rumbl. High High/Mid/Low A —
Beep High High/Low A —
Blind Spot Monitoring
(BSM) system (page
4-85 ). Warning beep volume *1
High High/
Low/
Off A —
MX-5_8FR4-EA-16J_Edition1.indb 9 2016/08/11 20:30:22
Page 558 of 568

9 –10 Specifications
Personalization Features Item Feature Factory
Setting Available
Settings Settings
Change
Method
Vehicle
Door locks (page 3-15 ). Operation condition of auto lock/
unlock function Lock:
When
Driving
Unlock:
IGN Off Lock: When
Driving Unlock:
In Park/
Lock: Out of
Park Unlock: In
Park/
Lock: Shifting
Out of Park/
Lock: When
Driving Unlock:
IGN Off/
Lock: When
Driving/
Off A C
Keyless entry system (page
3-3 ). Method for unlocking door using
transmitter Driver's:
Once, All
Doors:
Twice All Doors: Once/
Driver's: Once,
All Doors: Twice A D
Time for locking door automatically 60 seconds 90 seconds/
60 seconds/
30 seconds A —
Advanced keyless entry
system (page 3-8 ). Method for unlocking door using
request switch/transmitter Driver's:
Once, All
Doors:
Twice All Doors: Once/
Driver's: Once,
All Doors: Twice A D,
E
Time for locking door automatically 60 seconds 90 seconds/
60 seconds/
30 seconds A —
Auto-lock function operation/non-
operational Off On/Off A —
Beep volume when locking/
unlocking Medium High/
Medium/
Low/
Off A D,
E
Illuminated entry system
(page 5-133 ). Time until interior lights turn off
after closing door 15 seconds 60 seconds/
30 seconds/
15 seconds/
7.5 seconds A —
Time until interior lights turn off
automatically when any door is not
closed completely 30 minutes 60 minutes/
30 minutes/
10 minutes A —
Auto-wiper control (page
4-51 ). Operational/non-operational On On/Off *2
A —
Daytime running lights
(page 4-49 ). Operational/non-operational On On/Off — —
MX-5_8FR4-EA-16J_Edition1.indb 10 2016/08/11 20:30:23
