MAZDA MX5 MIATA 2017 Owners Manual

6 –49 Maintenance and Care
Owner MaintenanceRear turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.

Rem ova l
Installation
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
4. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the trunk side trim.
Rem ova l
Installation
MX-5_8FR4-EA-16J_Edition1.indb 49 2016/08/11 20:29:48

6 –50 Maintenance and Care
Owner Maintenance 5. To provide a hole for inserting a finger
to remove the rear combination lamp
unit later in the procedure, pinch the
top and bottom of the grommet shown
in the figure and press it out of the hole
in the direction of the rear combination
lamp unit.

Grommet
Rear combination lamp
unit
GrommetBody 6. Apply protective tape as shown in the
figure. Otherwise, the rear combination
lamp unit will contact the body and
may scratch or damage it.
Always apply three layers of protective
tape to the area indicated in the figure.
Protecti ve tape
Rear combination
lamp unit
Area specifically in need
of protection
CAUTION 
Do not use tape with strong adhesive
strength. Otherwise, the vehicle paint
may peel off. 
Always apply three layers of protective
tape to the area indicated in the figure.
Otherwise, the body may become
scratched or damaged when pulling out
the rear combination lamp unit.
7. Remove the screw and nut.

MX-5_8FR4-EA-16J_Edition1.indb 50 2016/08/11 20:29:48

6 –51 Maintenance and Care
Owner Maintenance8. To remove the rear combination lamp
unit, insert your finger from inside the
trunk and into the hole from which the
grommet was removed in Step 5, and
while holding the lamp lens (round
part) of the rear combination lamp with
your hand, press the rear combination
lamp unit until the hook detaches from
the clip.

Rear combination lamp unitHookGrommet installation
hole
9. After the hook is detached, pull out
the rear combination lamp unit in the
direction of the arrow and remove it.

Grommet installation holeClip
Hook Rear combination
lamp unit CAUTION Carefully pull out the rear combination
lamp unit when removing it from the
body.
The wiring may become damaged
if the rear combination lamp unit is
forcefully pulled out.
10. Turn the socket and bulb assembly
counterclockwise and remove it.
11. Disconnect the bulb from the socket.

12. Install the new bulb in the reverse order
of the removal procedure.
MX-5_8FR4-EA-16J_Edition1.indb 51 2016/08/11 20:29:48

6 –52 Maintenance and Care

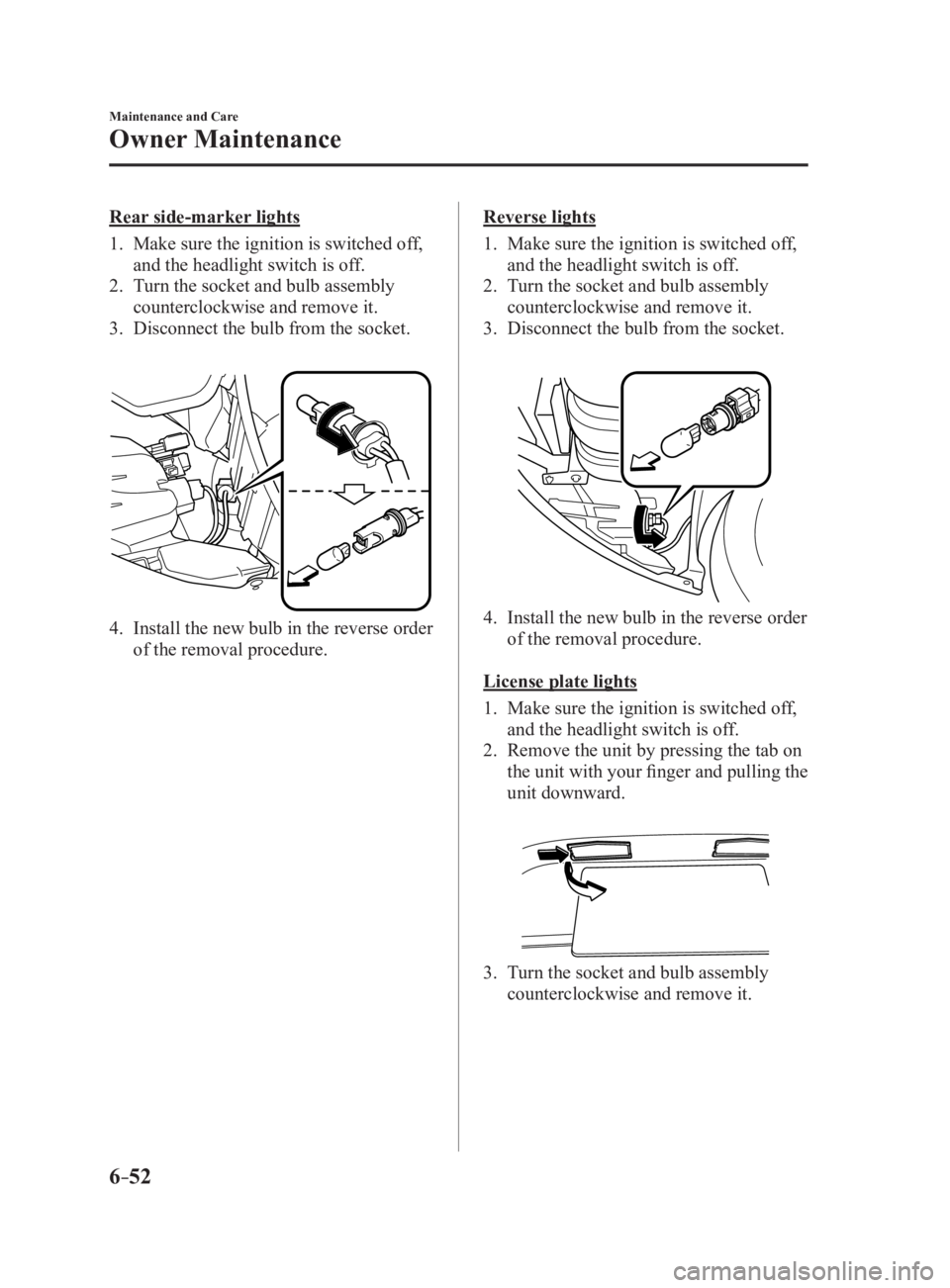

Owner Maintenance Rear side-marker lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.

4. Install the new bulb in the reverse order
of the removal procedure. Reverse lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.

4. Install the new bulb in the reverse order
of the removal procedure.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the unit by pressing the tab on
the unit with your finger and pulling the
unit downward.

3. Turn the socket and bulb assembly
counterclockwise and remove it.
MX-5_8FR4-EA-16J_Edition1.indb 52 2016/08/11 20:29:49

6 –53 Maintenance and Care
Owner Maintenance4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse order
of the removal procedure.
Replacing Interior Light BulbsOverhead light
1. Wrap a small flathead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order
of the removal procedure. Trunk light
1. Wrap a small flathead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.

2. Disconnect the connector from the unit.
3. Disconnect the bulb by pulling it out.

4. Install the new bulb in the reverse order
of the removal procedure.
MX-5_8FR4-EA-16J_Edition1.indb 53 2016/08/11 20:29:49

6 –54 Maintenance and Care
Owner Maintenance
FusesYour vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
Fuse ReplacementReplacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover. 3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
Normal Blown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If
it does not fit tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
MX-5_8FR4-EA-16J_Edition1.indb 54 2016/08/11 20:29:49

6 –55 Maintenance and Care
Owner MaintenanceReplacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
NOTE
If the lock is forcefully opened, the fuse
block cover may come in contact with the
frame when it is removed and become
scratched.
When removing the cover, remove it slowly
according to the following procedure.
1. Disengage the rear lock by pressing
down on the front tab with your
fingers.
2. Remove the front tab while slightly
lifting the front of the cover. 3. Remove the cover while lifting it and
sliding it to the rear.
3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING Do not replace the main fuse and
multiplex slow blow fuse by yourself.
Have an Authorized Mazda Dealer
perform the replacement:
Replacing these fuses by yourself is
dangerous because they are high
current fuses. Incorrect replacement
could cause an electrical shock or a
short circuit resulting in a fire.
4. Reinstall the cover and make sure that
it is securely installed.
MX-5_8FR4-EA-16J_Edition1.indb 55 2016/08/11 20:29:49

6 –56 Maintenance and Care
Owner Maintenance Fuse Panel DescriptionFuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 ENG IG3 5 A —
2 ENG IG2 5 A —
3 HORN2 7.5 A Horn
4 C/U IG1 15 A For protection of various circuits
5 ENG IG1 7.5 A Engine control system
6 — — —
7 INTERIOR 15 A Overhead light
8 ENG B
7.5 A Engine control system
9 AUDIO2 15 A Audio system
10 METER1 10 A Instrument cluster
11 SRS1 7.5 A Air bag
12 — — —
13 RADIO 7.5 A Audio system
14 ENGINE3 20 A Engine control system
15 ENGINE1 10 A Engine control system
16 ENGINE2 15 A Engine control system
17 AUDIO1 25 A Audio system
MX-5_8FR4-EA-16J_Edition1.indb 56 2016/08/11 20:29:50

6 –57 Maintenance and Care
Owner Maintenance
*Some models.DESCRIPTION FUSE
RATING PROTECTED COMPONENT
18 A/C MAG 7.5 A Air conditioner
19 AT PUMP
H/L HI 20 A Transmission control system *
20 AT 15 A Transmission control system *
21 D LOCK 25 A Power door locks
22 H/L RH 20 A Headlight (RH)
23
ENG
B2 7.5 A Engine control system
24 TAIL 20 A Taillights, License plate lights, Parking lights
25 DRL 15 A —
26 ROOM 25 A Overhead light
27 FOG 15 A —
28 H/CLEAN 20 A —
29 STOP 10 A Brake lights
30 HORN 15 A Horn
31 H/L LH 20 A Headlight (LH)
32 ABS/DSC S 30 A ABS, Dynamic stability control system
33 HAZARD 15 A Hazard warning flashers, Turn signal lights
34 FUEL PUMP 15 A Fuel system
35
ENG B3 5 A —
36 WIPER 20 A Windshield wipers
37
CABIN
B 50 A For protection of various circuits
38 — — —
39 — — —
40 ABS/DSC M 50 A ABS, Dynamic stability control system
41 EVVT
A/R PUMP 20 A Engine control system
42 EVPS 30 A Brake control system
43 FAN1 30 A Cooling fan
44 FAN2 40 A —
45 ENG.MAIN 40 A Engine control system
46 EPS 60 A Power steering system
47 DEFOG 30 A Rear window defogger
48 IG2 30 A For protection of various circuits
49 INJECTOR 30 A Engine control system
50 HEATER 40 A Air conditioner
51 — — —
52 — — —
MX-5_8FR4-EA-16J_Edition1.indb 57 2016/08/11 20:29:50

6 –58 Maintenance and Care
Owner Maintenance
*Some models.Fuse block (Left side)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 RHT R 30 A Retractable fastback (RH) *
2 RHT L 30 A Retractable fastback (LH) *
3 — — —
4 — — —
5 F.OUTLET 15 A Accessory sockets
6 — — —
7 AT IND 7.5 A AT shift indicator *
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A Retractable fastback (RH) *
10 R_DECK L 30 A Retractable fastback (LH) *
11 F.WASHER 15 A Windshield washer
12 P.WINDOW 30 A Power windows
13 — — —
14 SRS2/ESCL 15 A —
15 SEAT WARM 20 A Seat warmer *
16 M.DEF 7.5 A Mirror defogger *
