4. Switch the ignition OFF.
5. Remove the fasteners on the right sideof the vehicle.

6. Push the stopper rubber through thecover on the right side of the vehicle
while slightly lifti ng the cover up.

Cover
Stopper Rubber
7. Lift up the cove r from the outside of
the vehicle.

8. Insert your hand beneath the lifted cover and loosen the cap screws until
they spin freely.

NOTE
At this point, do not pull out the cap. If
the cap is pulled ou t, the trunk lock
will release but the rear roof will not
operate electrically.
9. Start the engine.
10. Continue pressing the retractable
hardtop switch in the close direction
until the rear roof is completely closed.
If Trouble Arises
When Trunk Lid Cannot be Opened
7-54
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

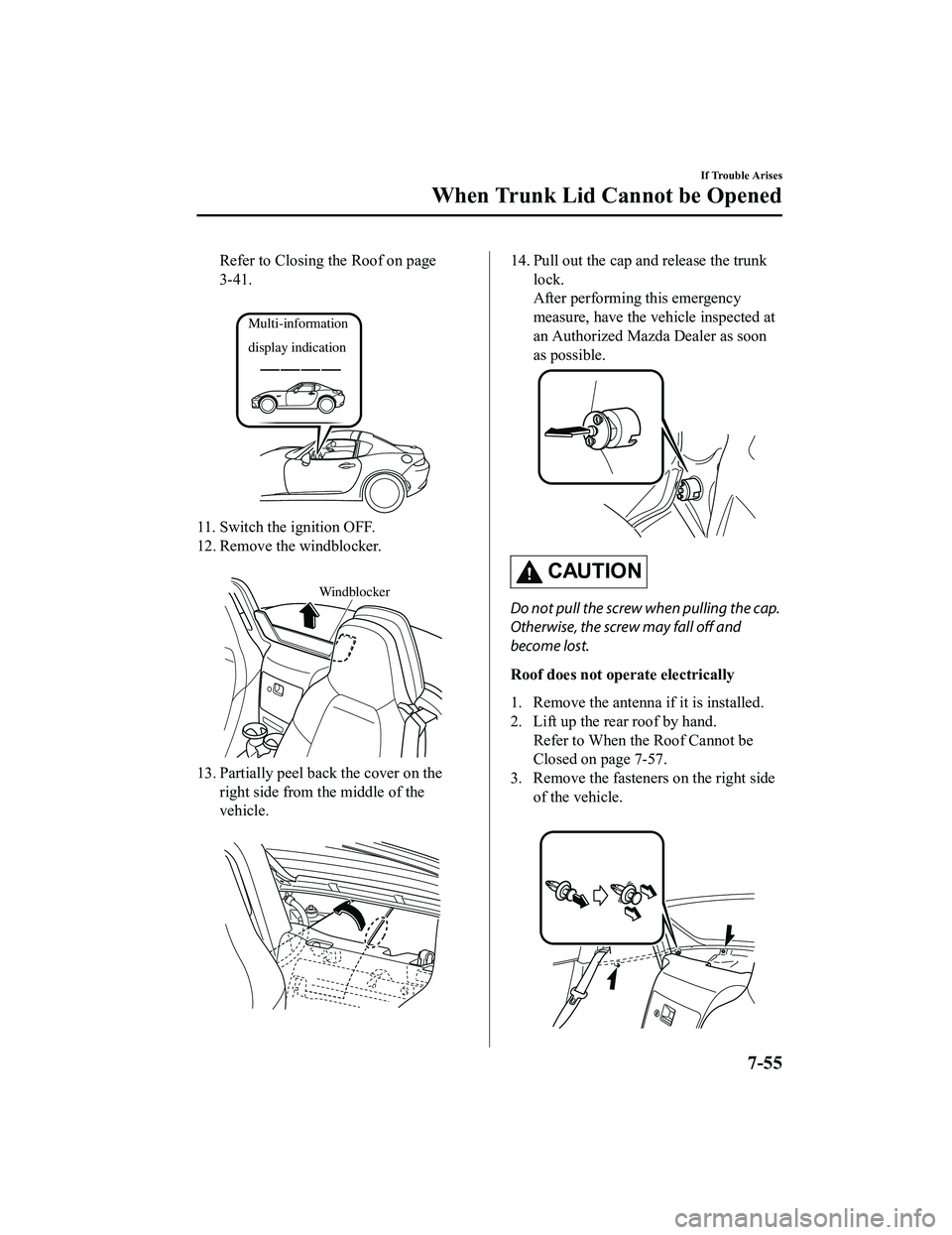

Refer to Closing the Roof on page
3-41.

Multi-information
display indication
11. Switch the ignition OFF.
12. Remove the windblocker.
Windblocker
13. Partially peel back the cover on theright side from the middle of the
vehicle.

14. Pull out the cap and release the trunk
lock.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.
CAUTION
Do not pull the screw when pulling the cap.
Otherwise, the screw may fall off and
become lost.
Roof does not operate electrically
1. Remove the antenna if it is installed.
2. Lift up the rear roof by hand.Refer to When the Roof Cannot be
Closed on page 7-57.
3. Remove the fasteners on the right side of the vehicle.

If Trouble Arises
When Trunk Lid Cannot be Opened
7-55
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

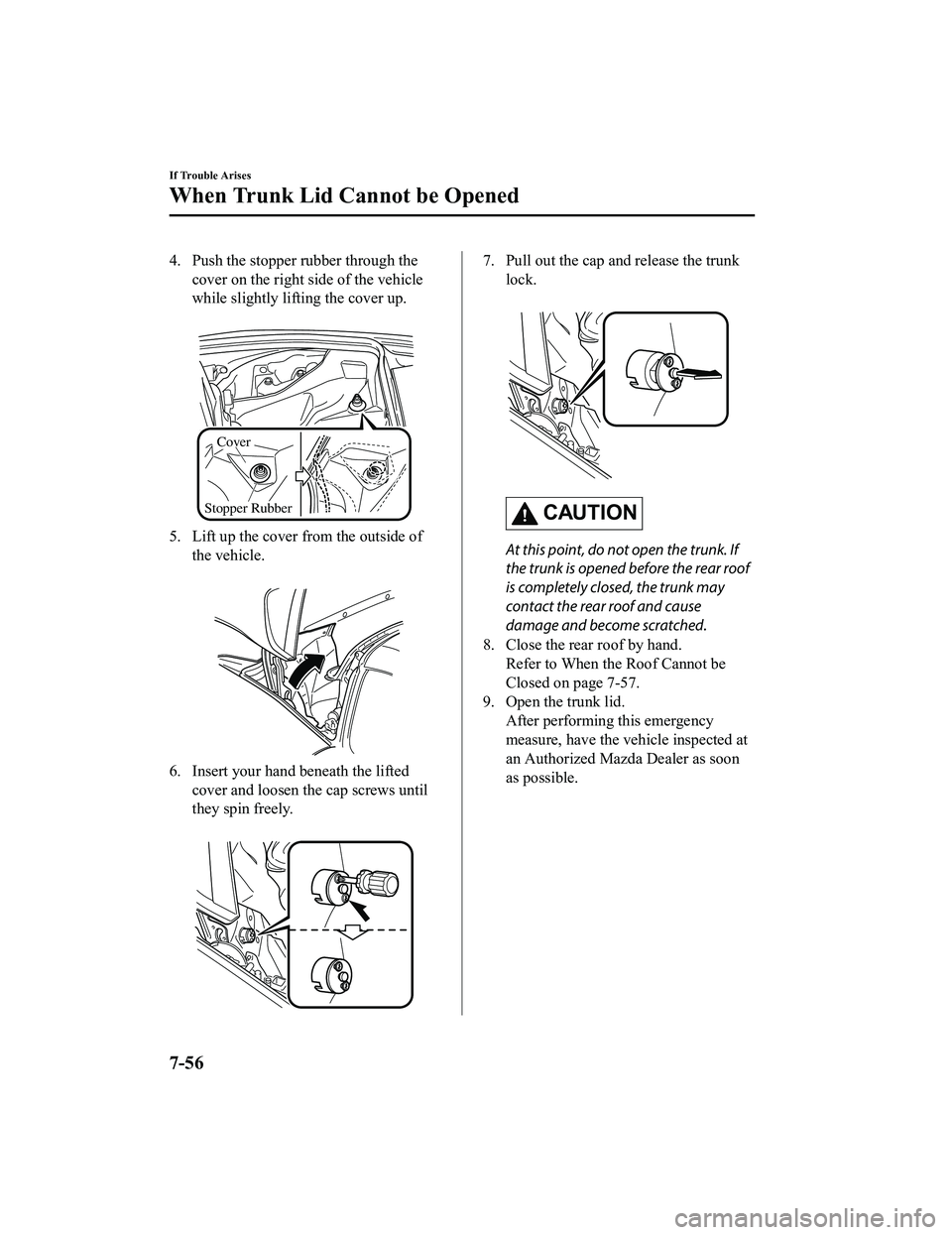

4. Push the stopper rubber through thecover on the right side of the vehicle
while slightly lifti ng the cover up.

Cover
Stopper Rubber
5. Lift up the cover from the outside of the vehicle.

6. Insert your hand beneath the liftedcover and loosen the cap screws until
they spin freely.

7. Pull out the cap and release the trunklock.

CAUTION
At this point, do not open the trunk. If
the trunk is opened before the rear roof
is completely closed, the trunk may
contact the rear roof and cause
damage and become scratched.
8. Close the rear roof by hand. Refer to When the Roof Cannot be
Closed on page 7-57.
9. Open the trunk lid.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.
If Trouble Arises
When Trunk Lid Cannot be Opened
7-56
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

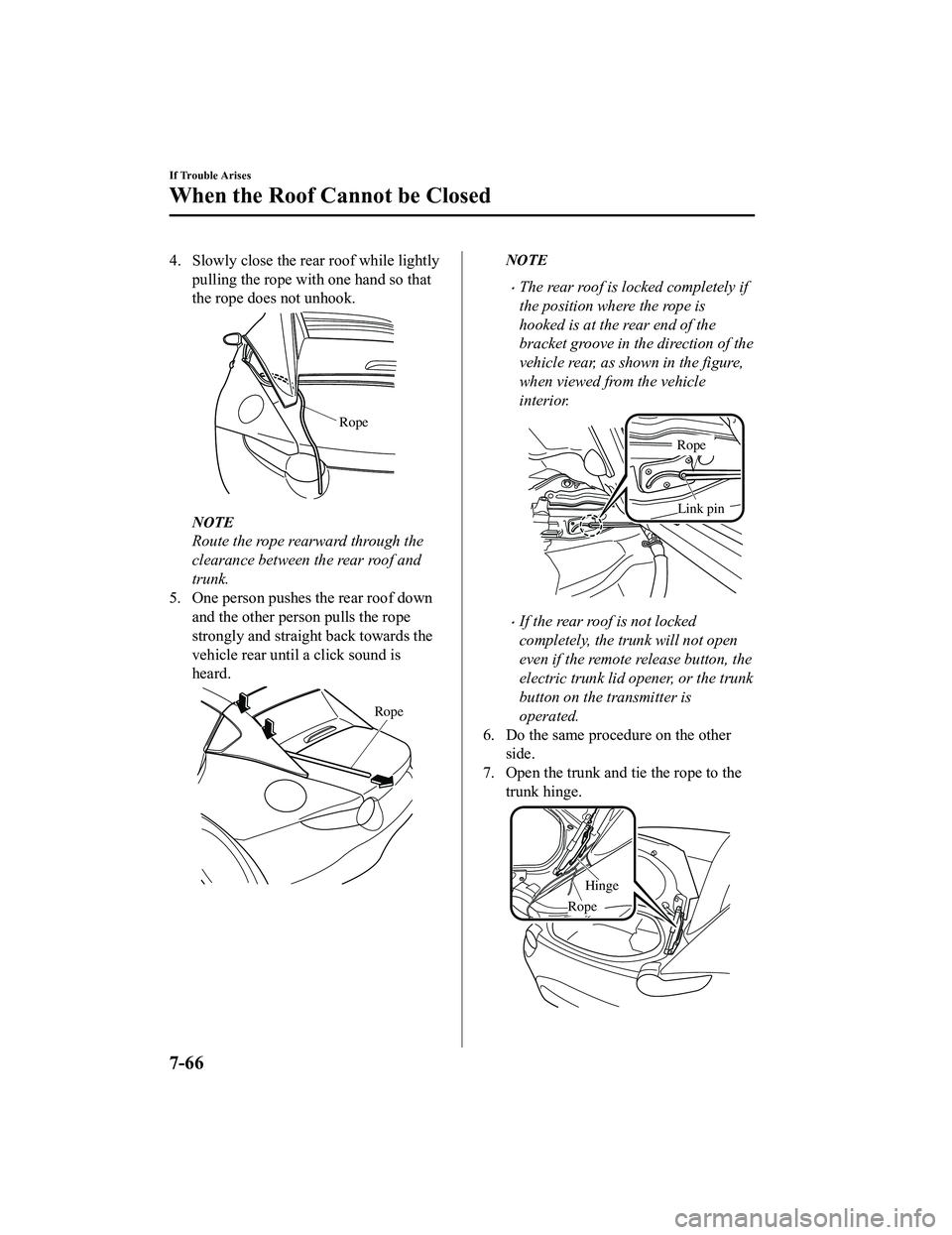

4. Slowly close the rear roof while lightlypulling the rope with one hand so that
the rope does not unhook.
Rope
NOTE
Route the rope rearward through the
clearance between the rear roof and
trunk.
5. One person pushes the rear roof down and the other person pulls the rope
strongly and straight back towards the
vehicle rear until a click sound is
heard.
Rope
NOTE
The rear roof is locked completely if
the position where the rope is
hooked is at the rear end of the
bracket groove in the direction of the
vehicle rear, as shown in the figure,
when viewed from the vehicle
interior.
Rope
Link pin
If the rear roof is not locked
completely, the trunk will not open
even if the remote release button, the
electric trunk lid opener, or the trunk
button on the transmitter is
operated.
6. Do the same procedure on the other side.
7. Open the trunk and tie the rope to the trunk hinge.
Hinge
Rope
If Trouble Arises
When the Roof Cannot be Closed
7-66
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24
