Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
The vehicle speed when reversing is about 10 km/h (6.3 mph) or faster.
The radar sensor (rear) detection area is obstructed by a nearby wall or parked vehicle.
(Reverse the vehicle to a position where the radar sensor detection area is no longer
obstructed.)
Your vehicle
A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
The vehicle is parked at an angle.
Your vehicle
Directly after the Blind Spot Monitoring (BSM) system becomes operable using the
personalization feature.
Radio wave interference from a radar sensor equipped on a nearby parked vehicle.
In the following cases, it may be difficult to view the illumination/flashing of the Blind
Spot Monitoring (BSM) warning indicator lights equipped on the door mirrors.
Snow or ice adheres to the door mirrors.
The door glass is fogged or covered in snow, frost or dirt.
Turn off the RCTA system while pulling a trailer or while an accessory such as a bicycle
carrier is installed to the rear of the vehicl e. Otherwise, the radio waves emitted by the
radar will be blocked causing the system to not operate normally.
When Driving
i-ACTIVSENSE
4-98
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

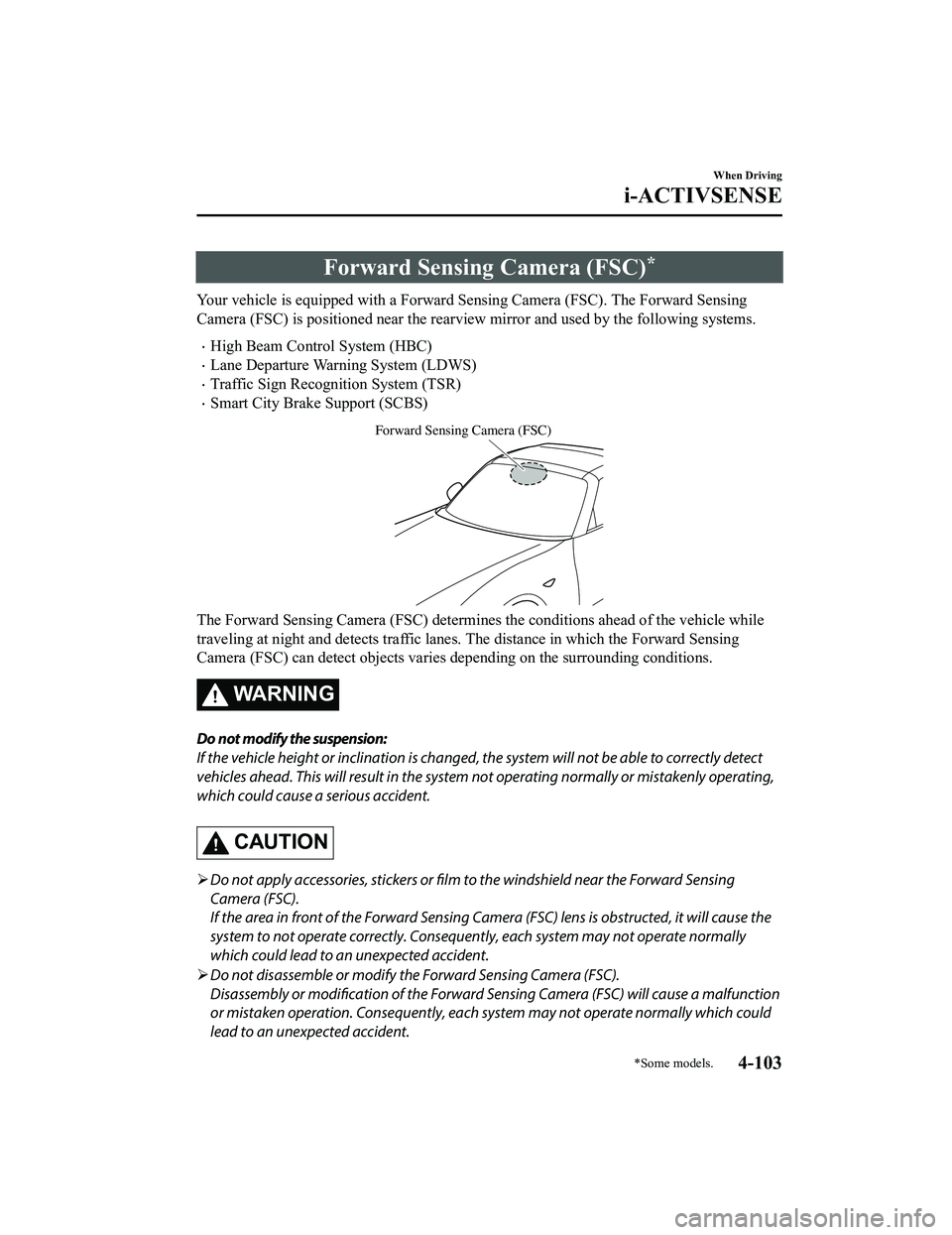

Forward Sensing Camera (FSC)*
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearvi ew mirror and used by the following systems.
High Beam Control System (HBC)
Lane Departure Warning System (LDWS)
Traffic Sign Recognition System (TSR)
Smart City Brake Support (SCBS)
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
traveling at night and detects traffic lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding conditions.
WA R N I N G
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly detect
vehicles ahead. This will result in the system not operating normally or mistakenly operating,
which could cause a serious accident.
CAUTION
 Do not apply accessories, stickers or film to the windshield near the Forward Sensing
Camera (FSC).
If the area in front of the Forward Sensing Came ra (FSC) lens is obstructed, it will cause the
system to not operate correctly. Consequently, each system may not operate normally
which could lead to an unexpected accident.
 Do not disassemble or modify th e Forward Sensing Camera (FSC).
Disassembly or modification of the Forward Sensing Camera (FSC) will cause a malfunction
or mistaken operation. Consequently, each sy stem may not operate normally which could
lead to an unexpected accident.
When Driving
i-ACTIVSENSE
*Some models.4-103
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Heed the following cautions to assure the correct operation of the Forward Sensing Camera
(FSC).
 Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get dirty.
 Do not remove the Forward Sensing Camera (FSC) cover.
 Do not place objects on the dashboard which reflect light.
 Always keep the windshield glass around the camera clean by removing dirt or fogging.
Use the windshield defroster to remove fogging on the windshield.
 Consult an Authorized Mazda Dealer regardi ng cleaning the interior side of the
windshield around the Forw ard Sensing Camera (FSC).
 Consult an Authorized Mazda Dealer before performing repairs around the Forward
Sensing Camera (FSC).
 The Forward Sensing Camera (FSC) is installe d to the windshield. Consult an Authorized
Mazda Dealer for windshield repair and replacement.
 When cleaning the wind shield, do not allow glass cleaners or similar cleaning fluids to
get on the Forward Sensing Camera (FSC) le ns. In addition, do not touch the Forward
Sensing Camera (FSC) lens.
 When performing repairs around the rearv iew mirror, consult an Authorized Mazda
Dealer.
 Consult an Authorized Mazda Dealer regarding cleaning of the camera lens.
 Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area around
it. If the Forward Sensing Camera (FSC) is severely hit or if there are cracks or damage
caused by flying gravel or debris in the area around it, stop using the following systems
and consult an Authorized Mazda Dealer.
 High Beam Control System (HBC)
 Lane Departure Warning System (LDWS)
 Traffic Sign Recognition System (TSR)
 Smart City Brake Support (SCBS)
 The direction in which the Forward Sensing Camera (FSC) is pointed has been finely
adjusted. Do not change the installation posi tion of the Forward Sensing Camera (FSC) or
remove it. Otherwise, it could result in damage or malfunction.
 Always use tires for all wheels that are of the specified size, and the same manufacturer,
brand, and tread pattern. In addition, do no t use tires with significantly different wear
patterns on the same vehicle as the system may not operate normally.
 The Forward Sensing Camera (FSC) includes a function for detecting a soiled windshield
and informing the driver, however, depending on the conditions, it may not detect plastic
shopping bags, ice or snow on the windshield. In such cases, the system cannot accurately
determine a vehicle ahead and may not be able to operate normally. Always drive carefully
and pay attention to the road ahead.
When Driving
i-ACTIVSENSE
4-104
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

▼Viewing the Display
Guide lines which indicate the width of the vehi
cle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicl e in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
b
a
a) Vehicle width guide lines (yellow) These guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines. These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red and yellow lines indicate the points about 0.5 m (19.7 in) for the red line and
1.0 m (39.4 in) for the yellow lines from the rear bumper (at the center point of each of
the lines).
CAUTION
The guide lines on the screen are fixed lines. They are not synced to the driver's turning of the
steering wheel. Always be careful and check the area to the vehicle's rear and the surrounding
area directly with your eyes while backing up.
▼ Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surround
ing conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
When Driving
Rear View Monitor
4-121
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Sunvisors
When you need a sunvisor, lower it for use
in front.
▼Va n i t y M i r r o r s
To use the vanity
mirror, lower the
sunvisor.
Interior Lights
NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.
Overhead Light
Switch Posi‐
tion Overhead Light
Light off
Light is on when any door is openLight is on or off when the illumi
‐
nated entry system is on
Light on

Trunk Light
The trunk light is on when the lid is open
and off when it's closed.

Interior Features
Interior Equipment
5-35
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
51 ―― ―
52 ENGINE4 20 A Engine control system
Fuse block (Left side)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1R HT R 3 0 A
Retractable hardtop (RH)
*
2R HT L 3 0 A
Retractable hardtop (LH)*
3 ―― ―
4 ENGINE6 10 A Engine control system
5 F.OUTLET 15 A Accessory sockets
6 ―― ―
7 AT IND 7.5 A
AT shift indicator
*
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A Retractable hardtop (RH)
*
10 R_DECK L 30 A Retractable hardtop (LH)*
11 F.WASHER 15 A Windshield washer
12 P.WINDOW 30 A Power windows
13 ―― ―
14 SRS2/ESCL 15 A Electronic steering lock
15 SEAT WARM 20 A Seat warmer
*
16M.DEF 7.5 A
Mirror defogger*
Maintenance and Care
Owner Maintenance
6-52*Some models.
