CAUTION
Do not drive the vehicle with the roof partia lly open. The vehicle operation may be affected
by the wind and could result in an accident.
 Do not perform the procedure in a strong wind as it could cause an unexpected accident.
 Two adults are required to perform the procedu re, especially when lifting up the front roof.
Do not do it alone so as not to cause injury or vehicle damage.
 Some steps in the procedure require using mult iple tools at the same time and a certain
level of technical expertise. In addition, hold ing your body extended over the car can result
in muscle strains so Mazda recommends having the roof checked at an Authorized Mazda
Dealer.
NOTE
This procedure is for manually closing the roof as an emergency measure. After closing
the roof manually, electric operation is not pos sible until the system is restored by an
Authorized Mazda Dealer.
Using a flashlight will facilitate the procedure.
If Trouble Arises
When the Roof Cannot be Closed
7-58
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

▼Manual closing
Before closing manually
WA R N I N G
Verify that the ignition is switched off
before manually operating the roof:
Manually closing the roof with the ignition
not switched off is dangerous as the
motors could turn on suddenly and cause
injury resulting from hands or fingers being
pinched in the mechanism.
1. Park on a hard, level surface off the
right-of-way and firmly set the parking
brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Switch the ignition off while depressing the brake pedal.
4. Turn on the hazard warning flasher if it is needed.
Tool preparation
Take out the five tool s stored in the seat
side box.
Refer to Seat Side Box on page 5-42.
Wire Gear
(tool kit) Rope
L-shaped
hexagonal wrench
(Small) L-shaped
hexagonal wrench
(Lar
ge)
Opening the rear roof
CAUTION
When turning the bolt, cover the front
roof using a cloth. The front roof may be
damaged if the L-shaped hexagonal
wrench contacts it.
 Because the clearance with the stored
front roof is narrow, be careful not to let
the L-shape hexagonal wrench contact
the roof when turning the bolt.
NOTE
Moving the seats as far forward as
possible and folding the seatbacks forward
will facilitate the procedure.
Refer to Adjusting the Driver's Seat on
page 2-5.
Refer to Adjusting the Passenger's Seat on
page 2-10.
1. Remove the antenna if it is installed.
2. Insert the short end of the L-shaped
hexagonal wrench (Large) into the
motor bracket bolt.
Bolt
If Trouble Arises
When the Roof Cannot be Closed
7-59
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

NOTE
If it is difficult to see the bolt, remove
the windblocker and identify the bolt
from the center of the vehicle.
Windblocker
3. Turn the L-shaped hexagonal wrench(Large) counterclockwi se to loosen the
bolt slightly.
4. Remove the L-shaped hexagonal wrench (Large) once from the bolt,
then insert the long end of the wrench
into the bolt.
NOTE
The tip of the long end of the L-shaped
hexagonal wrench can be used at an
angle. Moving the wrench upward
slightly will increase the clearance
between the rear roof and the stored
front roof and facilitate the procedure.
5. Turn the L-shaped hexagonal wrench (Large) counterclockwise 13 times or
more while pressing the wrench
against the bolt.
NOTE
The bolt cannot be removed
completely.
If it is hard to turn the bolt, repeat
Step 3 a few times.
6. Hook the wire to the link pin shown in the figure.
If Trouble Arises
When the Roof Cannot be Closed
7-60
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

7. While one person pushes the rear roofdown, another person pulls the wire
until a latch sound is heard and the rear
roof unlocks.
Lock
Link Pin
Wire
Unlock
8. Do the same procedure on the otherside.
9. While standing on both sides of the
vehicle, lift the rear roof to the position
it stops while keeping the height of its
left and right sides as parallel as
possible.
CAUTION
 Do not let go of the rear roof on both
sides until it is fully open. The rear
roof could fall if it is released too soon
and cause injury.
 Do not attempt to forcefully lift the
rear roof. If the rear roof is forcefully
lifted without being unlocked, it
could damage vehicle parts.
 Lift the rear roof with its left and right
height as parallel as possible. If the
rear roof is lifted with the left or right
height slanted, it could deform the
link mechanism.
Closing the front roof
CAUTION
 Some steps in the procedure require
holding your body in a strained position
and if over exerted it could result in
injury.
 Do the procedure being very careful not
to get your hands and
fingers caught
while closing the front roof. Otherwise,
your hands or fingers could be injured.
 Removal of the headliner is included in
the procedure, however, never drive the
vehicle with the headliner removed.
Driving the vehicle with the headliner
removed is prohibited by law. Correctly
perform the procedure while following
the instructions.
If Trouble Arises
When the Roof Cannot be Closed
7-61
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

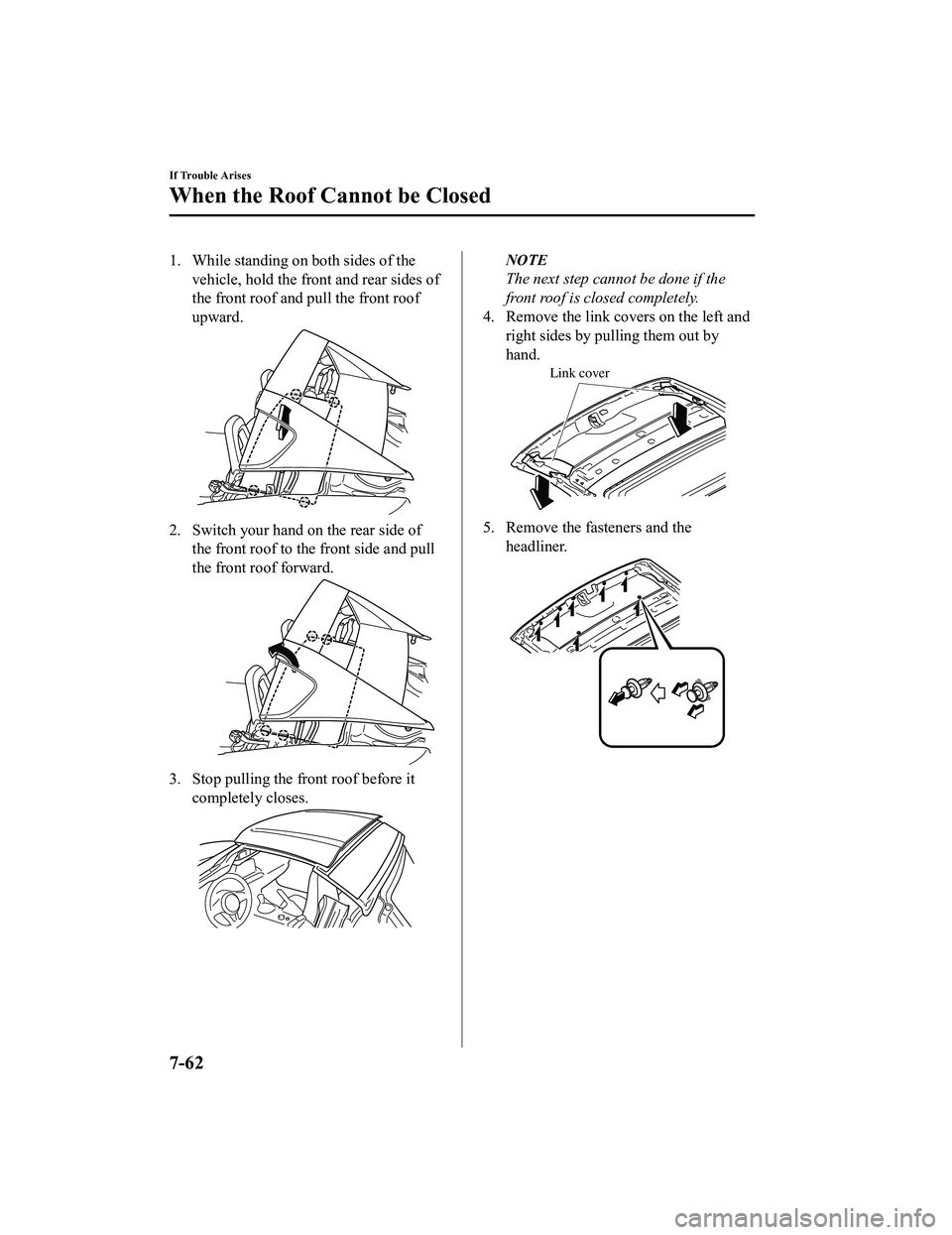

1. While standing on both sides of thevehicle, hold the front and rear sides of
the front roof and pull the front roof
upward.
2. Switch your hand on the rear side ofthe front roof to the front side and pull
the front roof forward.
3. Stop pulling the fr ont roof before it
completely closes.
NOTE
The next step cannot be done if the
front roof is closed completely.
4. Remove the link covers on the left and right sides by pulling them out by
hand.
Link cover
5. Remove the fasteners and the
headliner.
If Trouble Arises
When the Roof Cannot be Closed
7-62
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

6. Lightly press the front edge of thefront roof from outside of the vehicle
to close the front roof completely.
7. Insert the short end of the hexagonalwrench (Small) into the gear (tool kit)
and assemble.
L-shaped hexagonal
wrench (Small) Gear (tool kit)
8. Insert the point of the gear (tool kit)
into the hole beside the top lock motor
gear with the hexagonal wrench
inserted into the gear tool.
Top lock motor
gear
Gear (tool kit)
CAUTION
Insert the gear (tool kit) securely until it
engages with the top lock motor gear. If
the gear (tool kit) is not inserted
securely, it may come off and be
damaged.
9. Rotate the hexagonal wrench and move the hook in the lock direction so
that there is enough space for the
opening of the headliner to be attached
to the hook.
Unlock
Unlock
LockLock
NOTE
Turning the gear (tool kit) requires
some effort due to motor resistance.
Slowly operate the hexagonal wrench.
If Trouble Arises
When the Roof Cannot be Closed
7-63
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

10. Insert the hook into the opening of theheadliner.
Hook
Headliner
11. Turn the hexagonal wrench (Small)and gear (tool kit) counterclockwise
and engage the hook with the vehicle
body side.
NOTE
The top lock lever completely engages
with the vehicle body (locked
condition) at the position where the
teeth of the gear (tool kit) contact the
bracket.

Gear (tool kit)
Bracket
12. Lift the rear end of the headliner with
it hinged on the opening of the
headliner.
If Trouble Arises
When the Roof Cannot be Closed
7-64
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

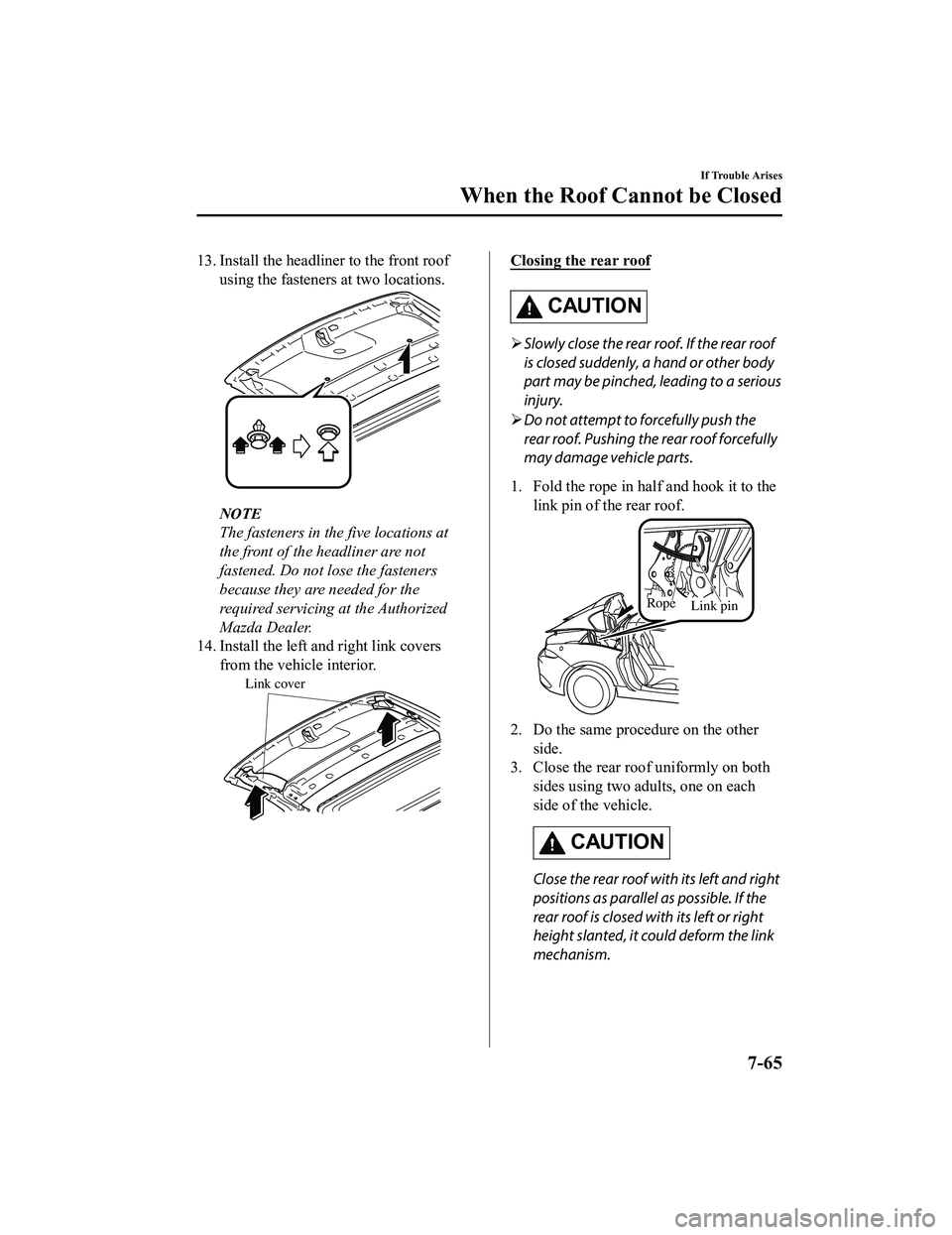

13. Install the headliner to the front roofusing the fasteners at two locations.
NOTE
The fasteners in the five locations at
the front of the headliner are not
fastened. Do not lose the fasteners
because they are needed for the
required servicing at the Authorized
Mazda Dealer.
14. Install the left and right link covers
from the vehicle interior.
Link cover
Closing the rear roof
CAUTION
Slowly close the rear roof. If the rear roof
is closed suddenly, a hand or other body
part may be pinched, leading to a serious
injury.
 Do not attempt to forcefully push the
rear roof. Pushing the rear roof forcefully
may damage vehicle parts.
1. Fold the rope in half and hook it to the link pin of the rear roof.
Rope Link pin
2. Do the same procedure on the other
side.
3. Close the rear roof uniformly on both
sides using two adults, one on each
side of the vehicle.
CAUTION
Close the rear roof with its left and right
positions as parallel as possible. If the
rear roof is closed with its left or right
height slanted, it could deform the link
mechanism.
If Trouble Arises
When the Roof Cannot be Closed
7-65
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

4. Slowly close the rear roof while lightlypulling the rope with one hand so that
the rope does not unhook.
Rope
NOTE
Route the rope rearward through the
clearance between the rear roof and
trunk.
5. One person pushes the rear roof down and the other person pulls the rope
strongly and straight back towards the
vehicle rear until a click sound is
heard.
Rope
NOTE
The rear roof is locked completely if
the position where the rope is
hooked is at the rear end of the
bracket groove in the direction of the
vehicle rear, as shown in the figure,
when viewed from the vehicle
interior.
Rope
Link pin
If the rear roof is not locked
completely, the trunk will not open
even if the remote release button, the
electric trunk lid opener, or the trunk
button on the transmitter is
operated.
6. Do the same procedure on the other side.
7. Open the trunk and tie the rope to the trunk hinge.
Hinge
Rope
If Trouble Arises
When the Roof Cannot be Closed
7-66
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

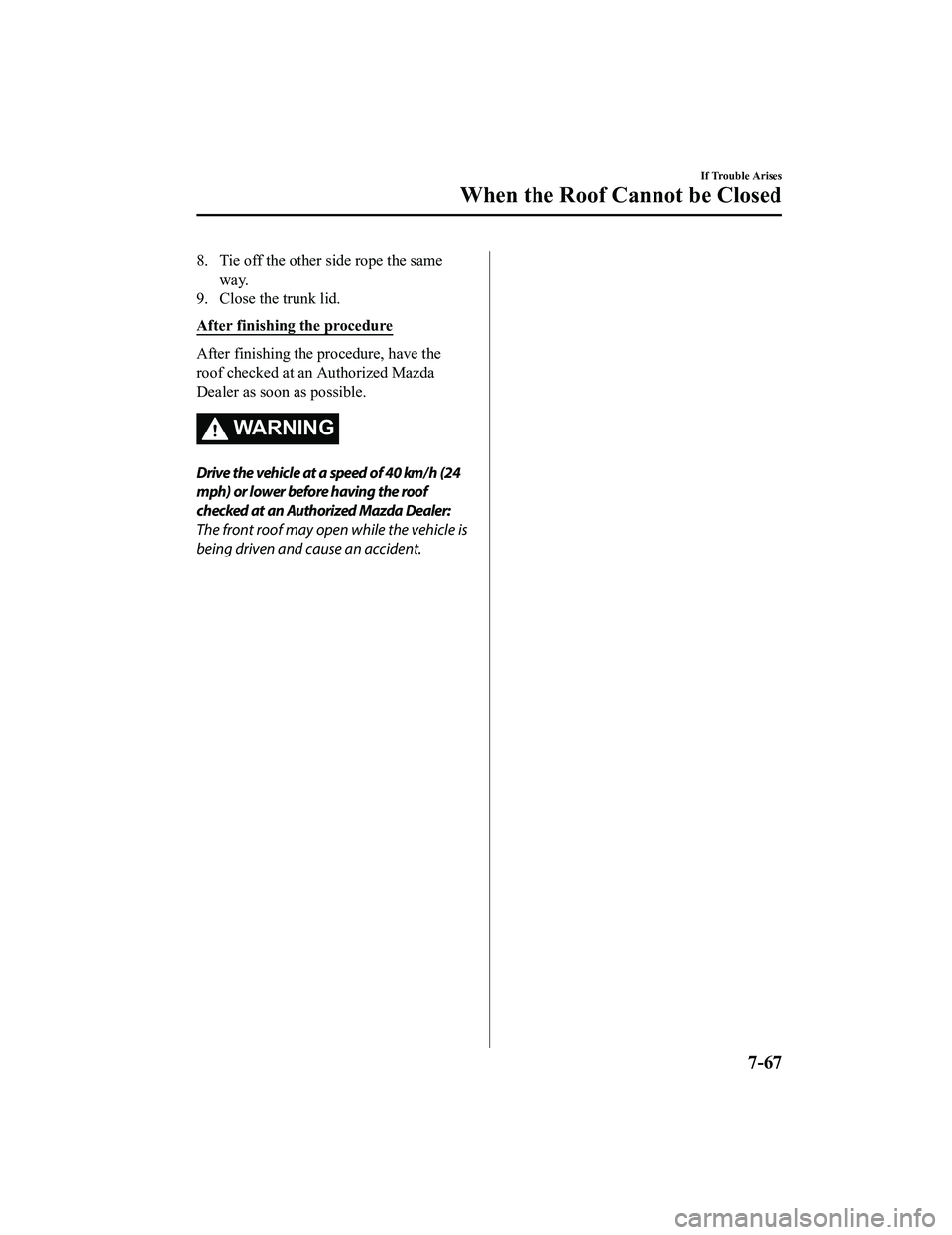

8. Tie off the other side rope the sameway.
9. Close the trunk lid.
After finishing the procedure
After finishing the procedure, have the
roof checked at an Authorized Mazda
Dealer as soon as possible.
WA R N I N G
Drive the vehicle at a speed of 40 km/h (24
mph) or lower before having the roof
checked at an Authorized Mazda Dealer:
The front roof may open while the vehicle is
being driven and cause an accident.
If Trouble Arises
When the Roof Cannot be Closed
7-67
