MAZDA MX5 MIATA 2023 Owners Manual

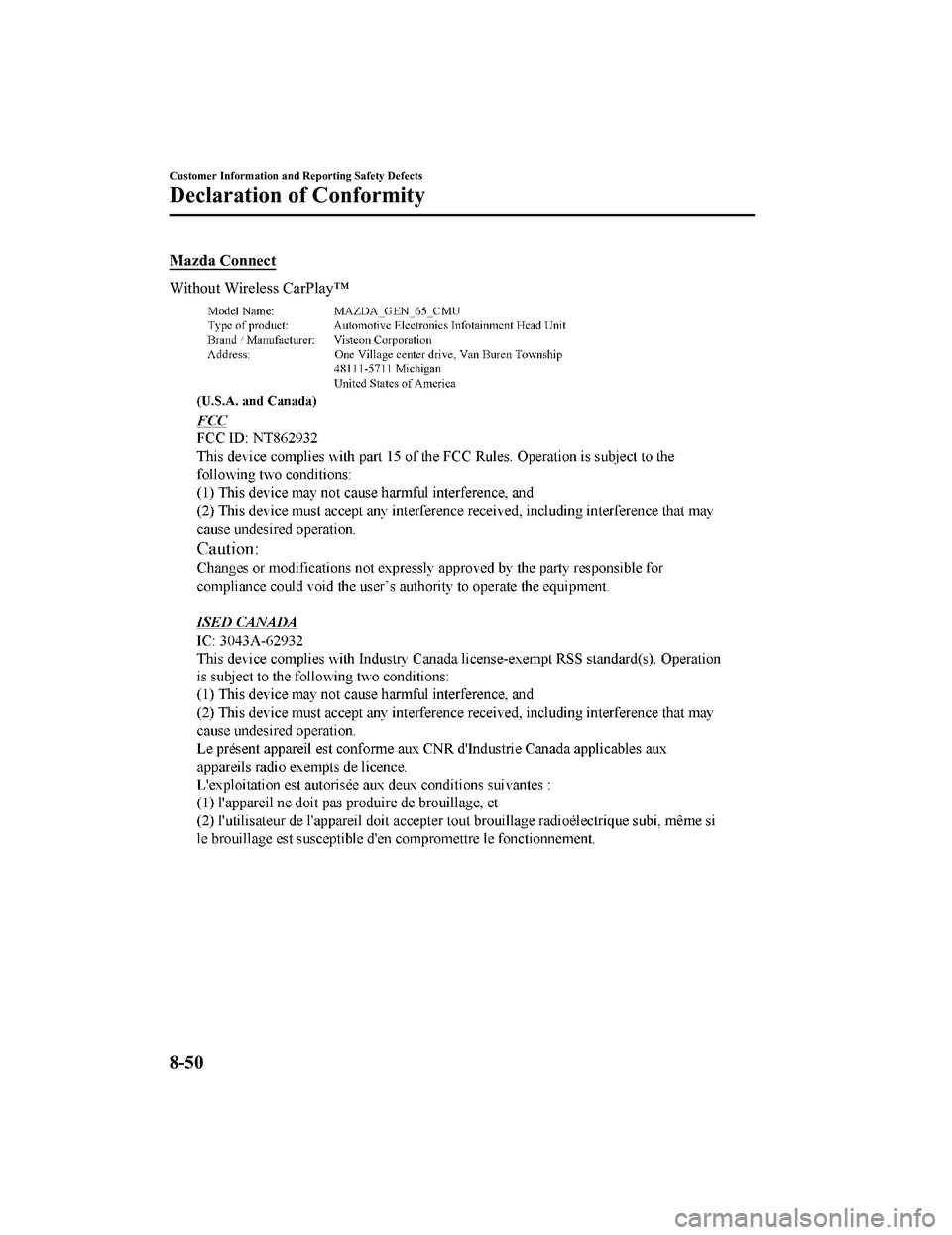

Mazda Connect
Without Wireless CarPlay™
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-50
MX-5_8LE7-EA-22K_Edition1_old2022-8-4 8:12:24

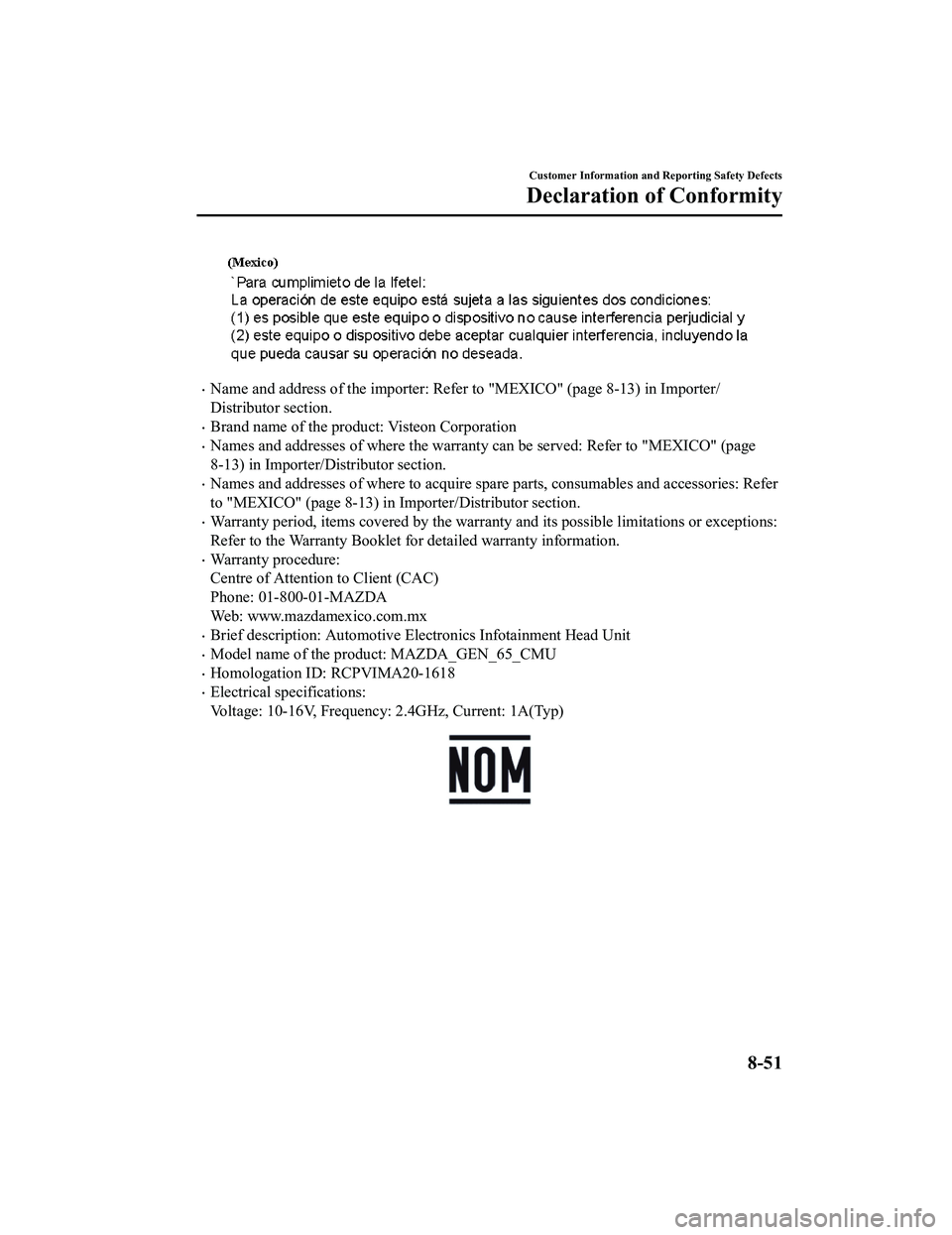

Name and address of the importer: Refer to "MEXICO" (page 8-13) in Importer/
Distributor section.
Brand name of the product: Visteon Corporation
Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-13) in Importer/Distributor section.
Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-13) in Importer/Distributor section.
Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet fo r detailed warranty information.
Warranty procedure:
Centre of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
Brief description: Automotive Electronics Infotainment Head Unit
Model name of the product: MAZDA_GEN_65_CMU
Homologation ID: RCPVIMA20-1618
Electrical specifications:
Voltage: 10-16V, Frequency: 2.4GHz, Current: 1A(Typ)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-51
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

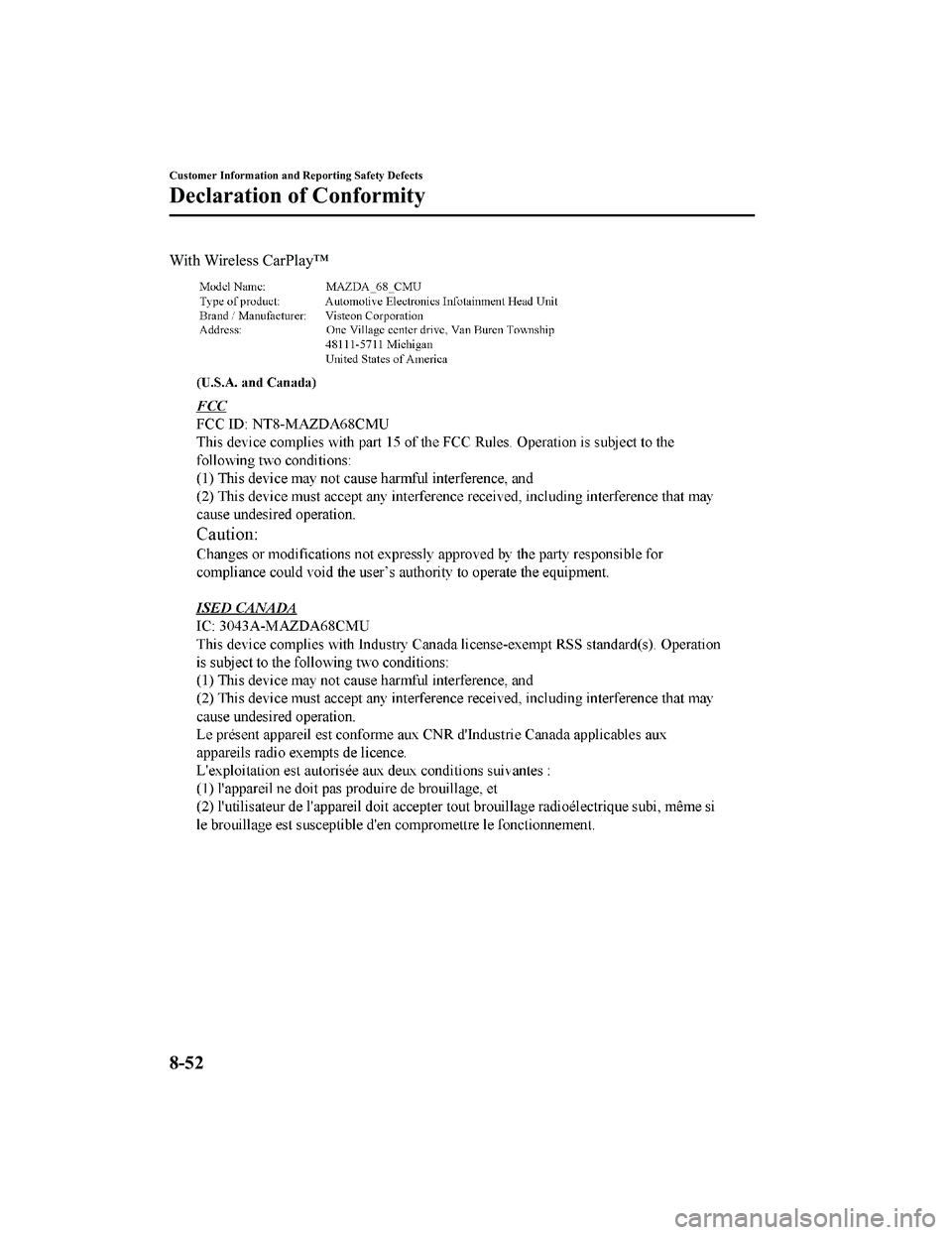

With Wireless CarPlay™
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-52
MX-5_8LE7-EA-22K_Edition1_old2022-8-4 8:12:24

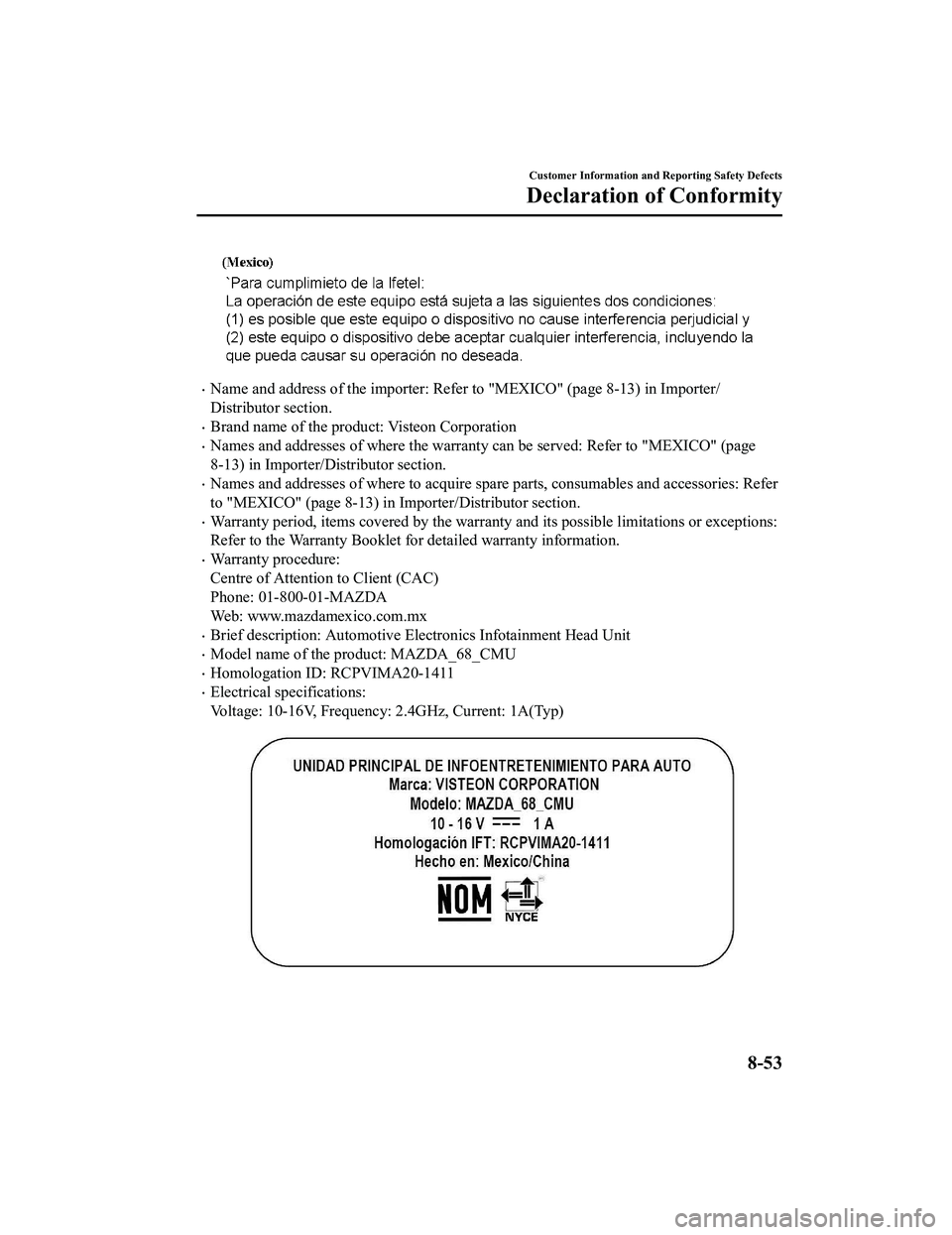

Name and address of the importer: Refer to "MEXICO" (page 8-13) in Importer/
Distributor section.
Brand name of the product: Visteon Corporation
Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-13) in Importer/Distributor section.
Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-13) in Importer/Distributor section.
Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet fo r detailed warranty information.
Warranty procedure:
Centre of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
Brief description: Automotive Electronics Infotainment Head Unit
Model name of the product: MAZDA_68_CMU
Homologation ID: RCPVIMA20-1411
Electrical specifications:
Voltage: 10-16V, Frequency: 2.4GHz, Current: 1A(Typ)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-53
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

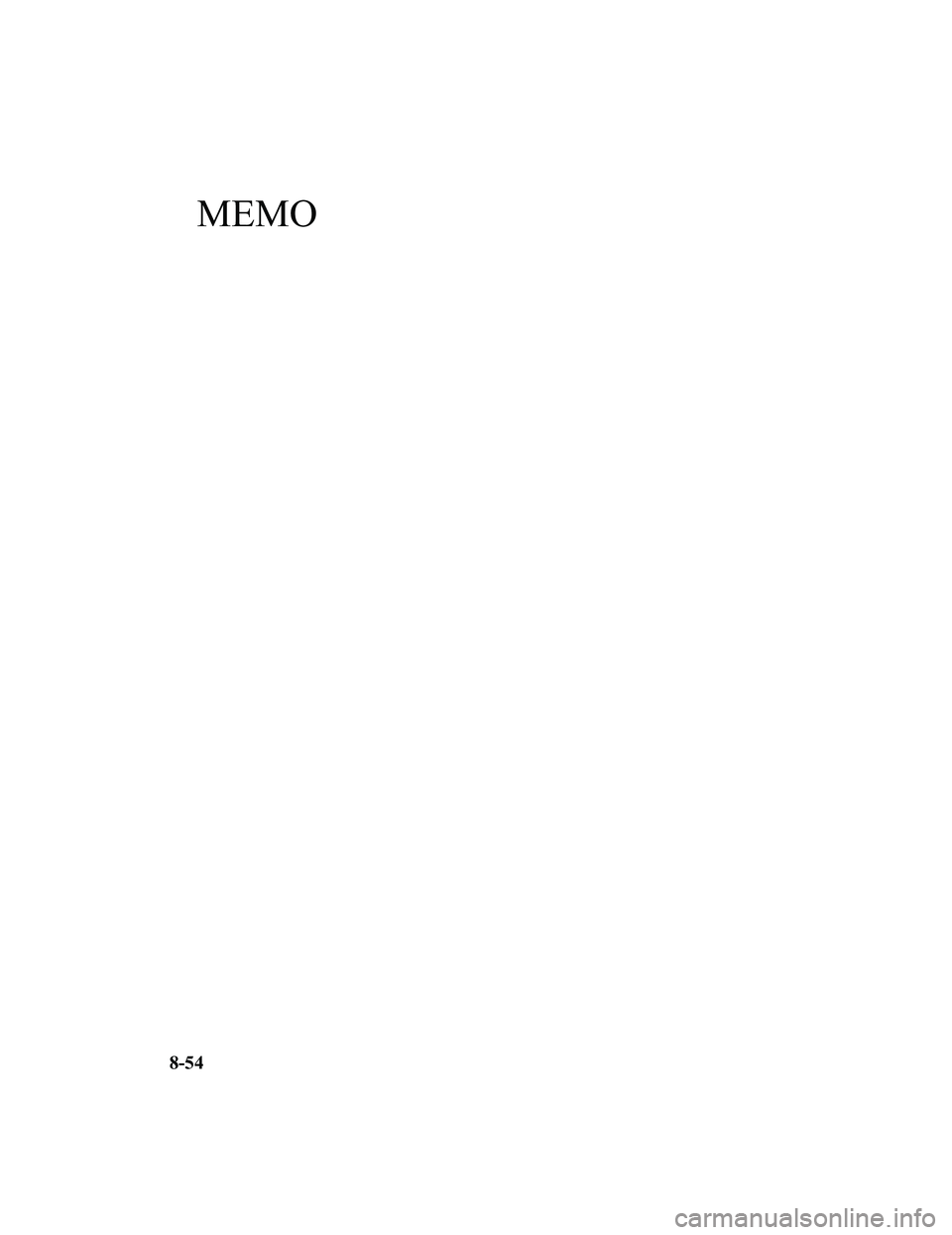

MEMO
8-54
MX-5_8LE7-EA-22K_Edition1_old2022-8-4 8:12:24

9Specifications
Technical information about your Mazda.
Identification Numbers..................... 9-2 Vehicle Information Labels.......... 9-2
Specifications..................................... 9-4Specifications............................... 9-4
9-1
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

▼Engine Number
Forward
Specifications
Identification Numbers
9-3
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

Specifications
▼Engine
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
▼Electrical System
Item
Classification
Battery
*112V-45Ah/20HR
Spark-plug number Mazda Genuine spark plug
*2PE5R-18-110-A or PE5S-18-110
*1 Check the battery installed on the vehicle and use a battery with an equal or higher performance. However, the
performance of the battery may vary even among the sa me battery types, consult an Authorized Mazda Dealer
for replacement.
*2 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

▼Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-20.
Coolant FL-22 type
Manual transmission oil Mazda Original Long Life Gear Oil IS
*1
Automatic transmission fluid*2Mazda Genuine JWS3309
Rear differential oil
*3Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life Gear Oil IS is recommended.
If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE
75W-90)). However, shifting in very lo w temperatures may become difficult.
*2 Periodic replacement is unnecessary.*3 Replacement is necessary when the component is submerged in water.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 4.1 L (4.3 US qt, 3.6 Imp qt)
Coolant Manual transmission
6.0 L (6.3 US qt, 5.3 Imp qt)
Automatic transmission U.S.A. and Canada 5.7 L (6.0 US qt, 5.0 Imp qt)
Mexico
5.8 L (6.1 US qt, 5.1 Imp qt)
Manual transmission oil 2.0 L (2.1 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.2 L (7.6 US qt, 6.3 Imp qt)
Rear differential oil 0.6 L (0.6 US qt, 0.5 Imp qt)
Fuel tank 45.0 L (11.9 US gal, 9.90 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
Specifications
