Do not spray water directly on the seam
area of the body and the convertible top
as it could result in water penetrating the
cabin and trunk.
Some leather treatment products can
ruin the convertible top's gloss. Be careful
of the one you choose.
 Test on an inconspicuous, small corner of
the convertible top if you are not sure.
 Do not wipe the convertible top using
alcohol, chlorine bleach, or organic
solvents such as thinner, benzene, or
gasoline. Otherwise, they may cause
discoloration or stains.
 Do not get any car wax on the
convertible top.
If you do, remove it with a good leather
cleaner or mild detergent (about 5%
solution).
 Too much treatment on the convertible
top can be as damaging as too little.
Follow the manufacturer's directions.
Do not overdo it!
 Let the convertible top dry completely
before lowering after applying treatment
or dressing.

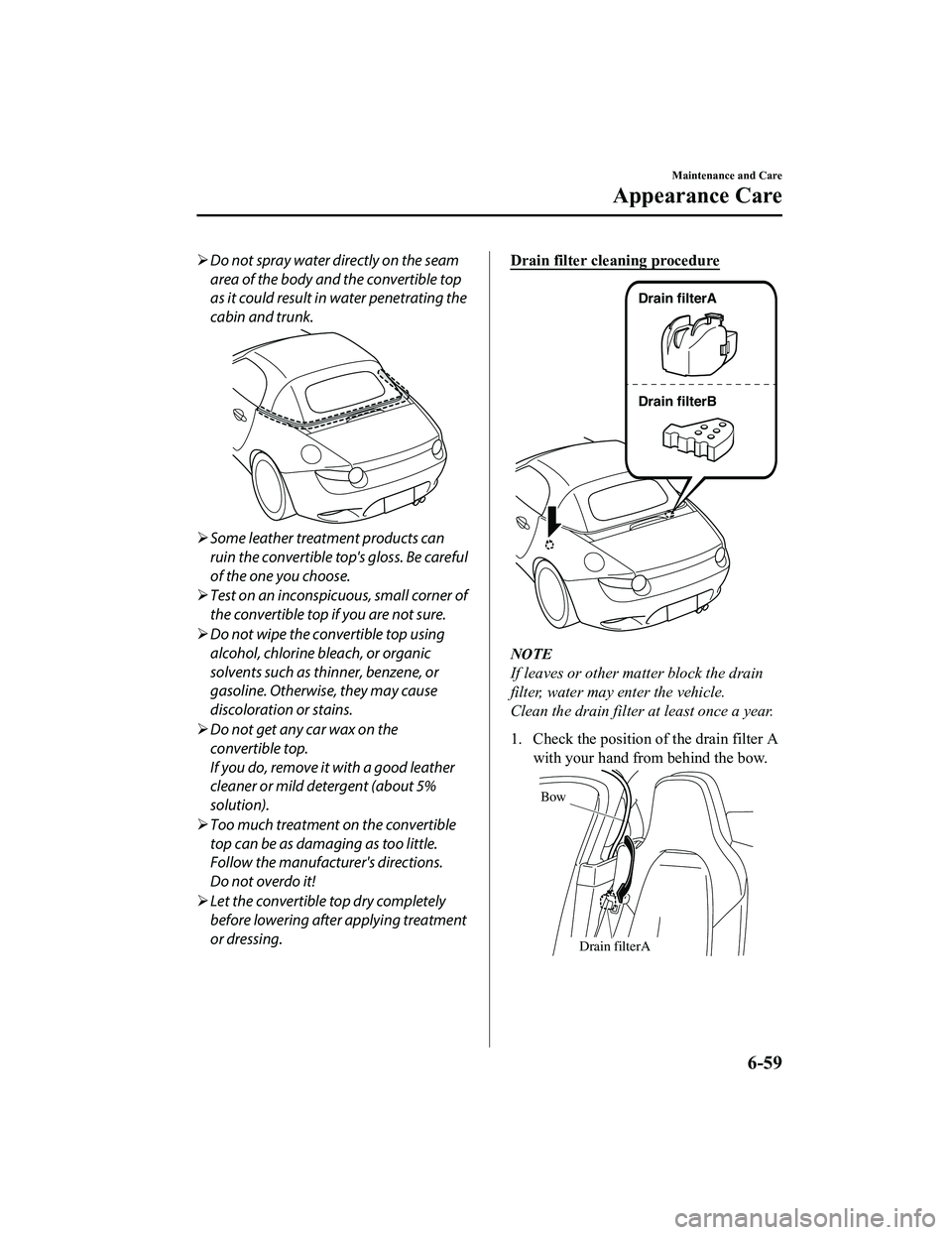

Drain filter cleaning procedure
Drain filterA
Drain filterB
NOTE
If leaves or other matter block the drain
filter, water may enter the vehicle.
Clean the drain filter at least once a year.
1. Check the position of the drain filter A
with your hand from behind the bow.
Drain filterA
Bow
Maintenance and Care
Appearance Care
6-59
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

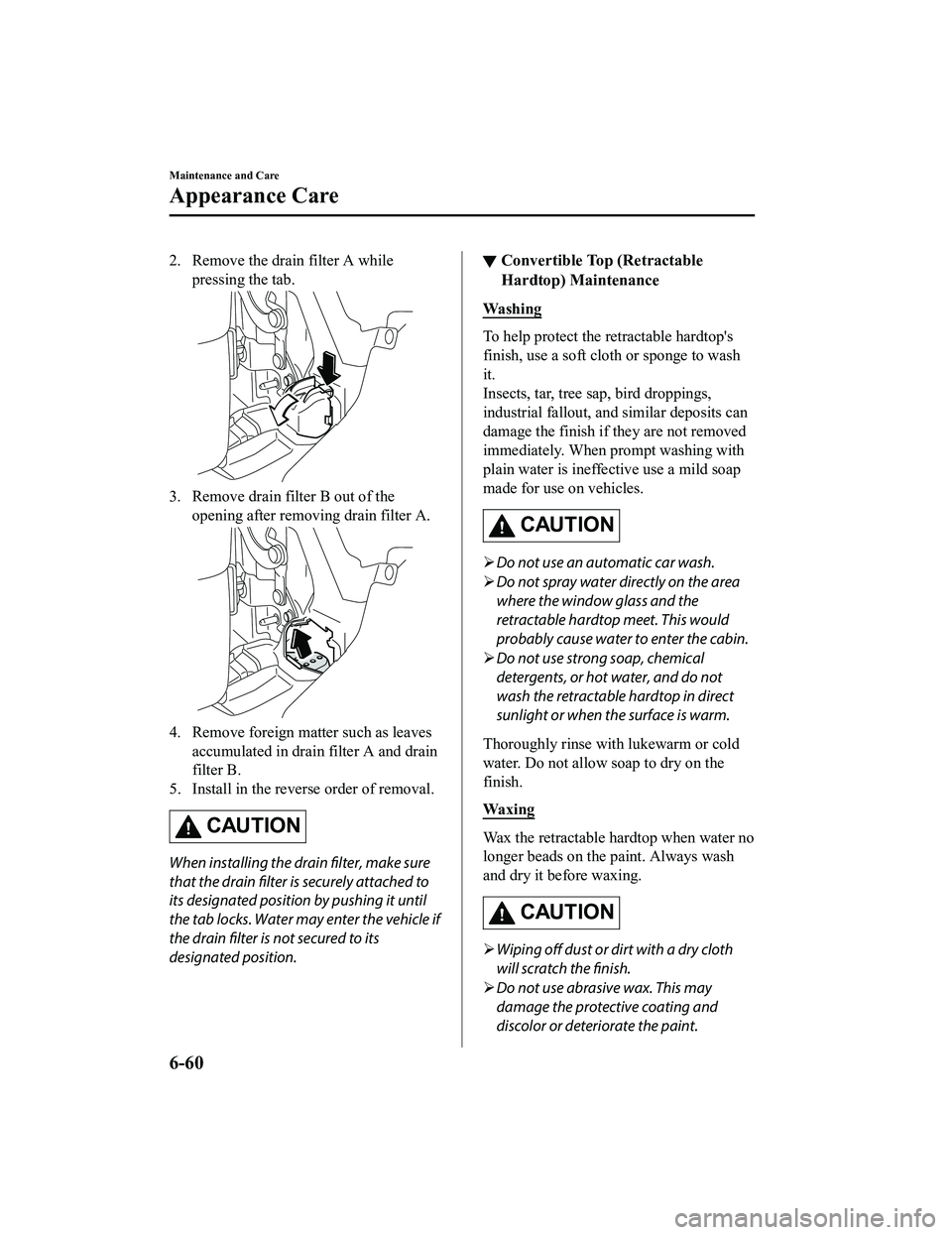

2. Remove the drain filter A whilepressing the tab.
3. Remove drain filter B out of theopening after removing drain filter A.
4. Remove foreign matter such as leavesaccumulated in drain filter A and drain
filter B.
5. Install in the reverse order of removal.
CAUTION
When installing the drain filter, make sure
that the drain filter is securely attached to
its designated position by pushing it until
the tab locks. Water may enter the vehicle if
the drain filter is not secured to its
designated position.
▼ Convertible Top (Retractable
Hardtop) Maintenance
Wa s h i n g
To help protect the retractable hardtop's
finish, use a soft cloth or sponge to wash
it.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if they are not removed
immediately. When prompt washing with
plain water is ineffective use a mild soap
made for use on vehicles.
CAUTION

Do not use an automatic car wash.
 Do not spray water directly on the area
where the window glass and the
retractable hardtop meet. This would
probably cause water to enter the cabin.
 Do not use strong soap, chemical
detergents, or hot water, and do not
wash the retractable hardtop in direct
sunlight or when the surface is warm.
Thoroughly rinse with lukewarm or cold
water. Do not allow soap to dry on the
finish.
Wa x i n g
Wax the retractable hardtop when water no
longer beads on the paint. Always wash
and dry it before waxing.
CAUTION
 Wiping off dust or dirt with a dry cloth
will scratch the finish.
 Do not use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
