Emergency releaseDriver's door .................................... 80
Vehicle ............................................ .80
Emergency Tensioning Devices
Activation ........................................ .54
Emergency unlocking
Tailgate ............................................ 82
Energy
Driving tips .................................... 157
Energy flow display ...........................187
ESP
®(Electronic Stability Pro-
gram)
Activating/deactivating (on-
board computer) ............................ 193
Characteristics ................................. 67
Deactivating/activating (notes) ....... 67
Display message ............................ 201
Function/notes ................................ 66
General notes .................................. 66
Important safety information ........... 66
Warning lamp ................................. 235
ETS/4ETS (Electronic Traction Sys-
tem) ...................................................... 66
Exhaustive discharging (high-volt-
age battery) ....................................... 290
Exterior lighting
Cleaning ......................................... 277
see Lights
Exterior mirrors
Adjusting ......................................... 95
Dipping (automatic) ......................... 96
Out of position (troubleshooting) ..... 95
Storing settings (memory func-
tion) ................................................. 98
Storing the parking position ............. 96
Eyeglasses compartment ................. 243
F
Flat tire
MOExtended tires .......................... 283
Preparing the vehicle ..................... 282
TIREFIT kit ...................................... 284
Floormats .......................................... .267
Folding table ...................................... 244
Frequencies
Mobile phone ................................. 332
Two-way radio ................................ 332 Front-passenger seat
Folding the backrest forward/
back ............................................... 245
Fuses
Allocation chart ............................ .299
Before changing ............................ .298
Fuse box in the engine compart-
ment .............................................. 298
Fuse box in the front-passenger
footwell .......................................... 299
Important safety notes .................. 298
G
Garage door opener
Clearing the memory ..................... 266
General notes ................................ 263
Important safety notes .................. 263
Opening/closing the garage door .. 266
Programming (button in the rear-
view mirror) ................................... 264
Synchronizing the rolling code ....... 264
Generated electrical energy (Audio
20) ...................................................... 144
Genuine parts ...................................... 20
Glove box .......................................... .243
H
Handbrake
see Parking brake
Hazard warning lamps
Display message ............................ 227
Switching on/off ........................... 102
Head restraints
Adjusting ......................................... 91
Adjusting (manually) ........................ 91
Adjusting (rear) ................................ 92
Headlamps
Fogging up ..................................... 103
see Automatic headlamp mode
Heating
see Climate control
High beam flasher .............................102
High voltage
see Safety notes
High-beam headlamps
Changing bulbs .............................. 106
Index9

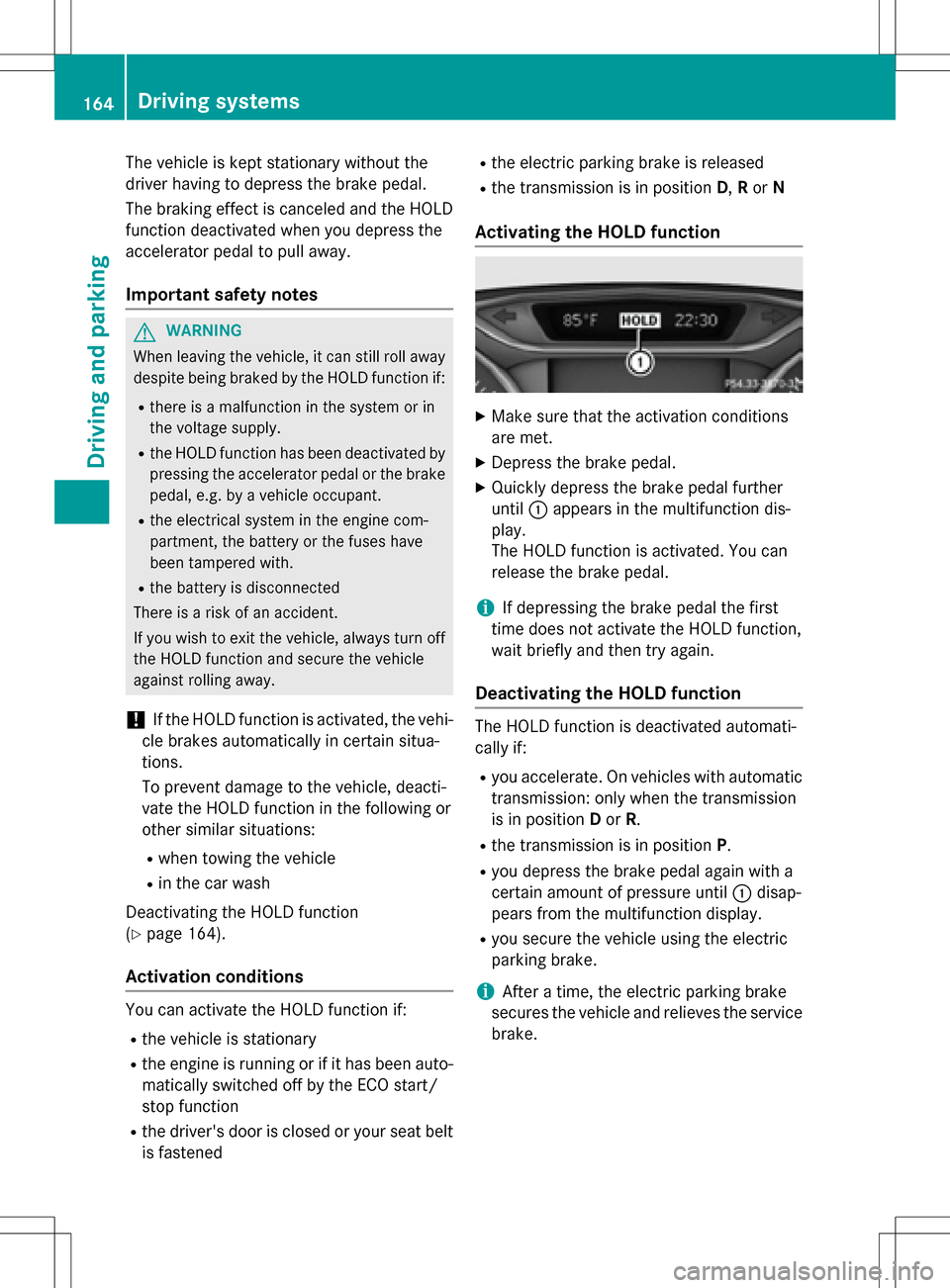

The vehicle is kept stationary without the
driver having to depress the brake pedal.
The braking effect is canceled and the HOLD
function deactivated when you depress the
accelerator pedal to pull away.
Important safety notes
GWARNING
When leaving the vehicle, it can still roll away despite being braked by the HOLD function if:
Rthere is a malfunction in the system or in
the voltage supply.
Rthe HOLD function has been deactivated by
pressing the accelerator pedal or the brake
pedal, e.g. by a vehicle occupant.
Rthe electrical system in the engine com-
partment, the battery or the fuses have
been tampered with.
Rthe battery is disconnected
There is a risk of an accident.
If you wish to exit the vehicle, always turn off the HOLD function and secure the vehicle
against rolling away.
!If the HOLD function is activated, the vehi-
cle brakes automatically in certain situa-
tions.
To prevent damage to the vehicle, deacti-
vate the HOLD function in the following or
other similar situations:
Rwhen towing the vehicle
Rin the car wash
Deactivating the HOLD function
(
Ypage 164).
Activation conditions
You can activate the HOLD function if:
Rthe vehicle is stationary
Rthe engine is running or if it has been auto-
matically switched off by the ECO start/
stop function
Rthe driver's door is closed or your seat belt
is fastened
Rthe electric parking brake is released
Rthe transmission is in position D,Ror N
Activating the HOLD function
XMake sure that the activation conditions
are met.
XDepress the brake pedal.
XQuickly depress the brake pedal further
until :appears in the multifunction dis-
play.
The HOLD function is activated. You can
release the brake pedal.
iIf depressing the brake pedal the first
time does not activate the HOLD function,
wait briefly and then try again.
Deactivating the HOLD function
The HOLD function is deactivated automati-
cally if:
Ryou accelerate. On vehicles with automatic
transmission: only when the transmission
is in position Dor R.
Rthe transmission is in position P.
Ryou depress the brake pedal again with a
certain amount of pressure until :disap-
pears from the multifunction display.
Ryou secure the vehicle using the electric
parking brake.
iAfter a time, the electric parking brake
secures the vehicle and relieves the service
brake.
164Driving systems
Driving and parking

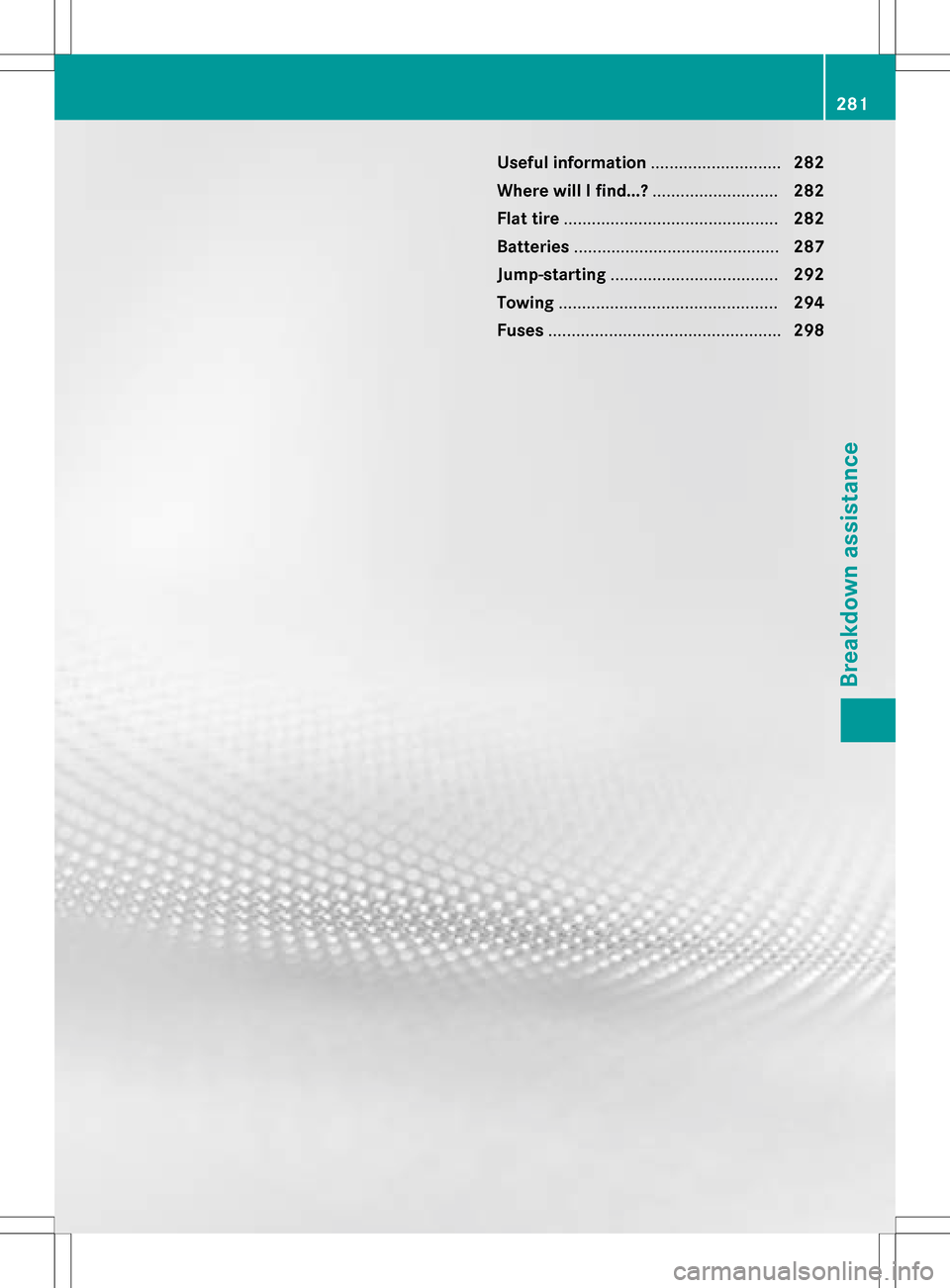

Useful information............................282
Where will I find...? ...........................282
Flat tire .............................................. 282
Batteries ............................................ 287
Jump-starting .................................... 292
Towing ............................................... 294
Fuses .................................................. 298
281
Breakdown assistance

XTurn the SmartKey to position0in the igni-
tion lock and remove it.
XSecure the vehicle.
The towing eye can be used to pull the vehicle
onto a trailer or transporter for transporting
purposes.

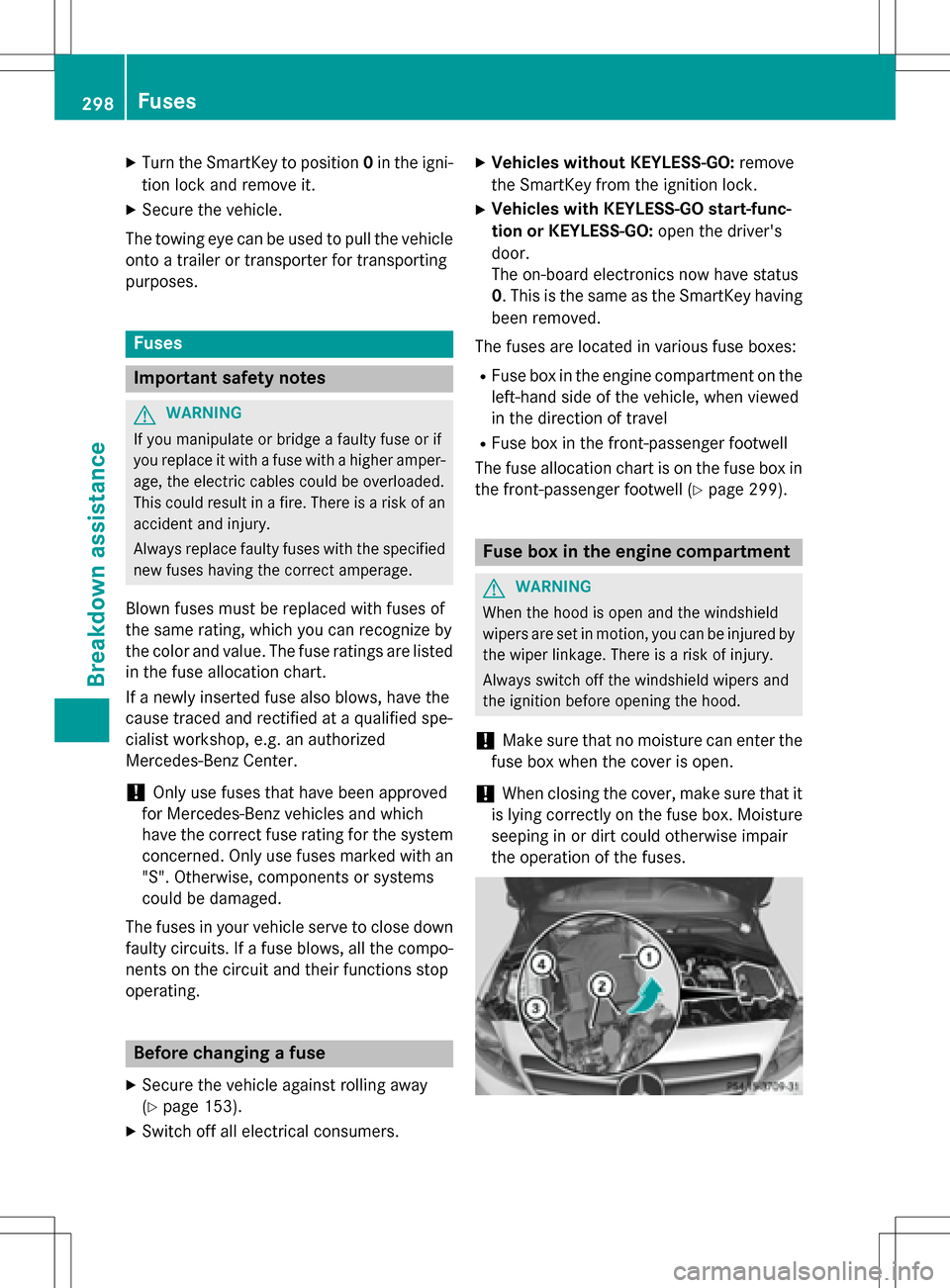

Fuses
Important safety notes
GWARNING
If you manipulate or bridge a faulty fuse or if
you replace it with a fuse with a higher amper- age, the electric cables could be overloaded.
This could result in a fire. There is a risk of an
accident and injury.
Always replace faulty fuses with the specified
new fuses having the correct amperage.
Blown fuses must be replaced with fuses of
the same rating, which you can recognize by
the color and value. The fuse ratings are listed
in the fuse allocation chart.
If a newly inserted fuse also blows, have the
cause traced and rectified at a qualified spe-
cialist workshop, e.g. an authorized
Mercedes-Benz Center.
!Only use fuses that have been approved
for Mercedes-Benz vehicles and which
have the correct fuse rating for the system
concerned. Only use fuses marked with an
"S". Otherwise, components or systems
could be damaged.
The fuses in your vehicle serve to close down
faulty circuits. If a fuse blows, all the compo-
nents on the circuit and their functions stop
operating.
Before changing a fuse
XSecure the vehicle against rolling away
(
Ypage 153).
XSwitch off all electrical consumers.
XVehicles without KEYLESS-GO: remove
the SmartKey from the ignition lock.
XVehicles with KEYLESS-GO start-func-
tion or KEYLESS-GO: open the driver's
door.
The on-board electronics now have status
0. This is the same as the SmartKey having
been removed.
The fuses are located in various fuse boxes:
RFuse box in the engine compartment on the
left-hand side of the vehicle, when viewed
in the direction of travel
RFuse box in the front-passenger footwell
The fuse allocation chart is on the fuse box in
the front-passenger footwell (
Ypage 299).
Fuse box in the engine compartment
GWARNING
When the hood is open and the windshield
wipers are set in motion, you can be injured by
the wiper linkage. There is a risk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
!Make sure that no moisture can enter the
fuse box when the cover is open.
!When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.
298Fuses
Breakdown assistance

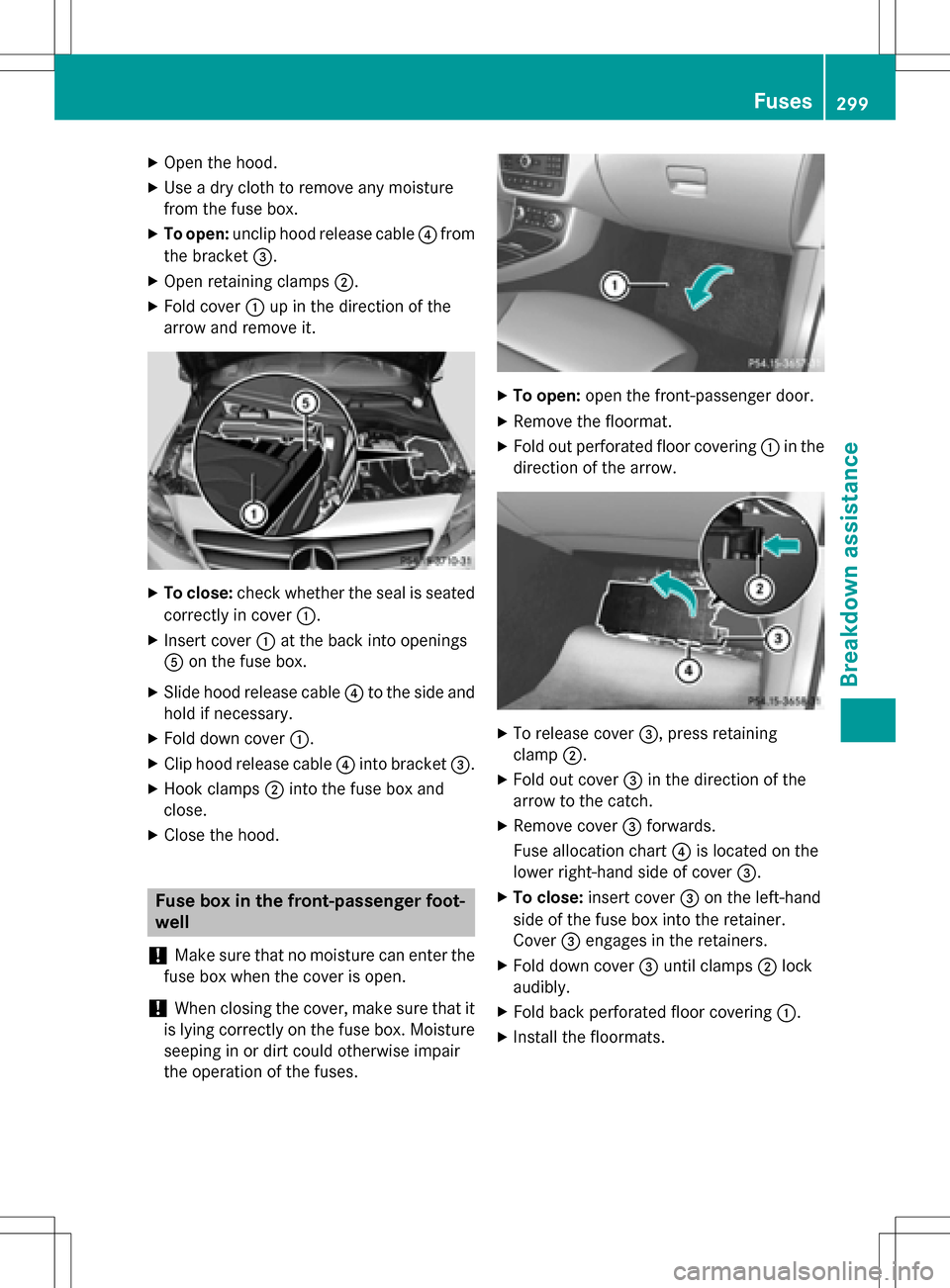

XOpen the hood.
XUse a dry cloth to remove any moisture
from the fuse box.
XTo open:unclip hood release cable ?from
the bracket =.
XOpen retaining clamps ;.
XFold cover:up in the direction of the
arrow and remove it.
XTo close: check whether the seal is seated
correctly in cover :.
XInsert cover:at the back into openings
A on the fuse box.
XSlide hood release cable ?to the side and
hold if necessary.
XFold down cover :.
XClip hood release cable ?into bracket =.
XHook clamps ;into the fuse box and
close.
XClose the hood.
Fuse box in the front-passenger foot-
well
!
Make sure that no moisture can enter the
fuse box when the cover is open.
!When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.
XTo open: open the front-passenger door.
XRemove the floormat.
XFold out perforated floor covering :in the
direction of the arrow.
XTo release cover =, press retaining
clamp ;.
XFold out cover =in the direction of the
arrow to the catch.
XRemove cover =forwards.
Fuse allocation chart ?is located on the
lower right-hand side of cover =.
XTo close:insert cover =on the left-hand
side of the fuse box into the retainer.
Cover =engages in the retainers.
XFold down cover =until clamps ;lock
audibly.
XFold back perforated floor covering :.
XInstall the floormats.
Fuses299
Breakdown assistance
