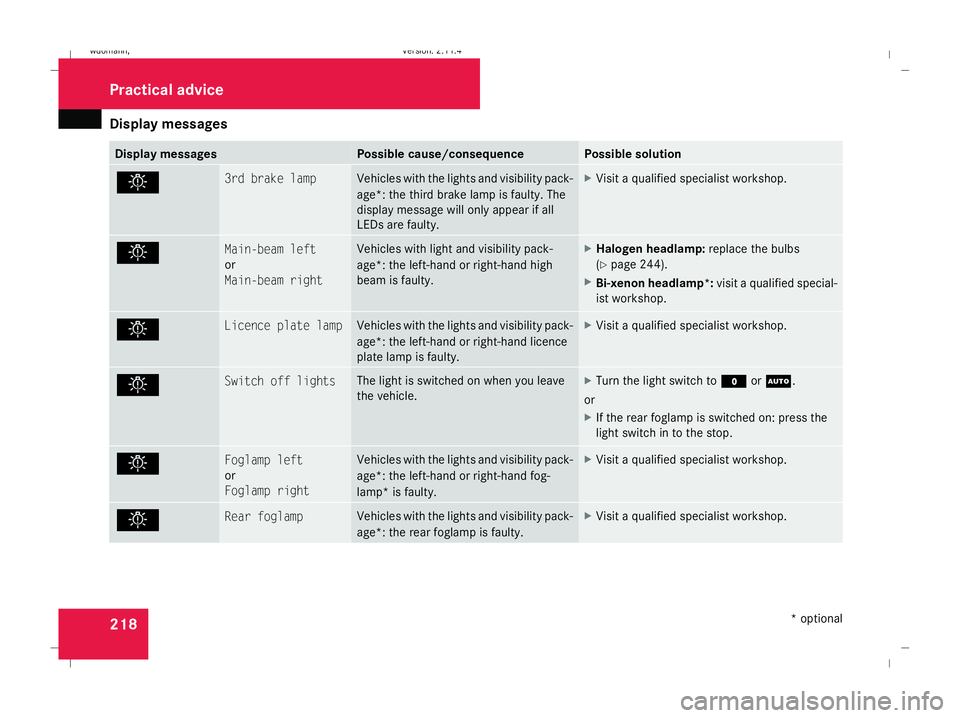

Display
messages 218 Display messages Possible cause/consequence Possible solution
. 3rd brake lamp Vehicles with the lights and visibility pack-
age*: the third brake lamp is faulty. The
display message will only appear if all
LEDs are faulty. X
Visit a qualified specialist workshop. . Main-beam left
or
Main-beam right Vehicles with light and visibility pack-
age*: the left-hand or right-hand high
beam is faulty. X
Halogen headlamp: replace the bulbs
(Y page 244).
X Bi-xenon headlamp*: visit a qualified special-
ist workshop. . Licence plate lamp Vehicles with the lights and visibility pack-
age*: the left-hand or right-hand licence
plate lamp is faulty. X
Visit a qualified specialist workshop. . Switch off lights The light is switched on when you leave
the vehicle. X
Turn the light switch to MorU.
or
X If the rear foglamp is switched on: press the
light switch in to the stop. . Foglamp left
or
Foglamp right Vehicles with the lights and visibility pack-
age*: the left-hand or right-hand fog-
lamp* is faulty. X
Visit a qualified specialist workshop. . Rear foglamp Vehicles with the lights and visibility pack-
age*: the rear foglamp is faulty. X
Visit a qualified specialist workshop. Practical advi
ce
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 218Dateiname: 6515_1640_02_buchblock.pdf; preflight

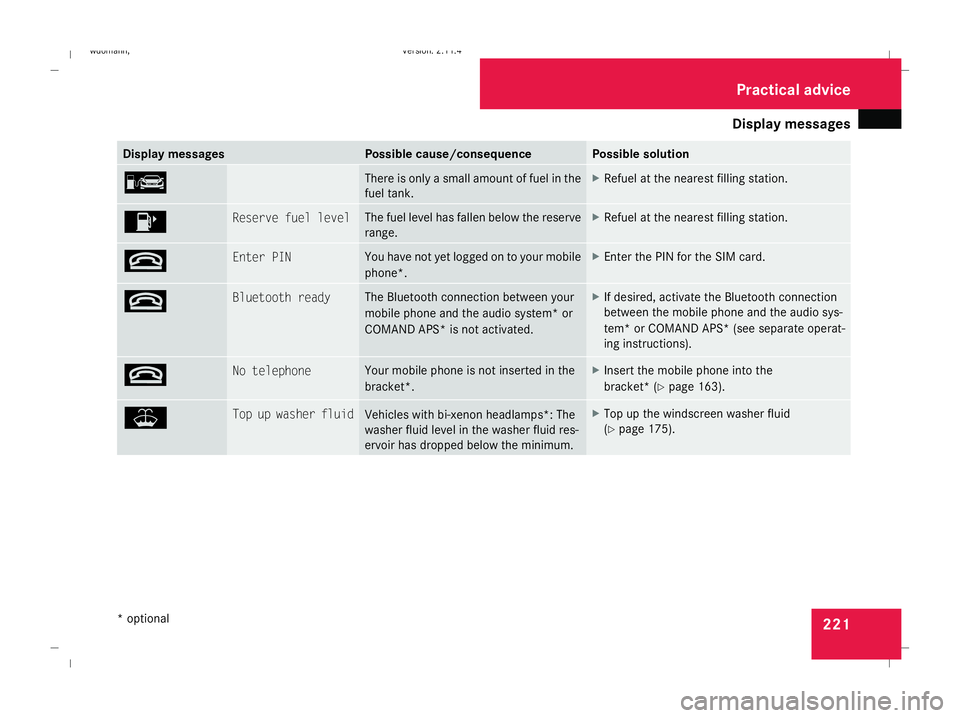

Display
messages 221Display messages Possible cause/consequence Possible solution
¿ There is only a small amount of fuel in the
fuel tank. X
Refuel at the nearest filling station. 4 Reserve fuel level The fuel level has fallen below the reserve
range. X
Refuel at the nearest filling station. t Enter PIN You have not yet logged on to your mobile
phone*. X
Enter the PIN for the SIM card. t Bluetooth ready The Bluetooth connection between your
mobile phone and the audio system* or
COMAND APS* is not activated. X
If desired, activate the Bluetooth connection
between the mobile phone and the audio sys-
tem* or COMAND APS* (see separate operat-
ing instructions). t No telephone Your mobile phone is not inserted in the
bracket*. X
Insert the mobile phone into the
bracket* ( Ypage 163). W Top up washer fluid
Vehicles with bi-xenon headlamps*: The
washer fluid level in the washer fluid res-
ervoir has dropped below the minimum. X
Top up the windscreen washer fluid
(Y page 175). Practical advi
ce
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 221 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

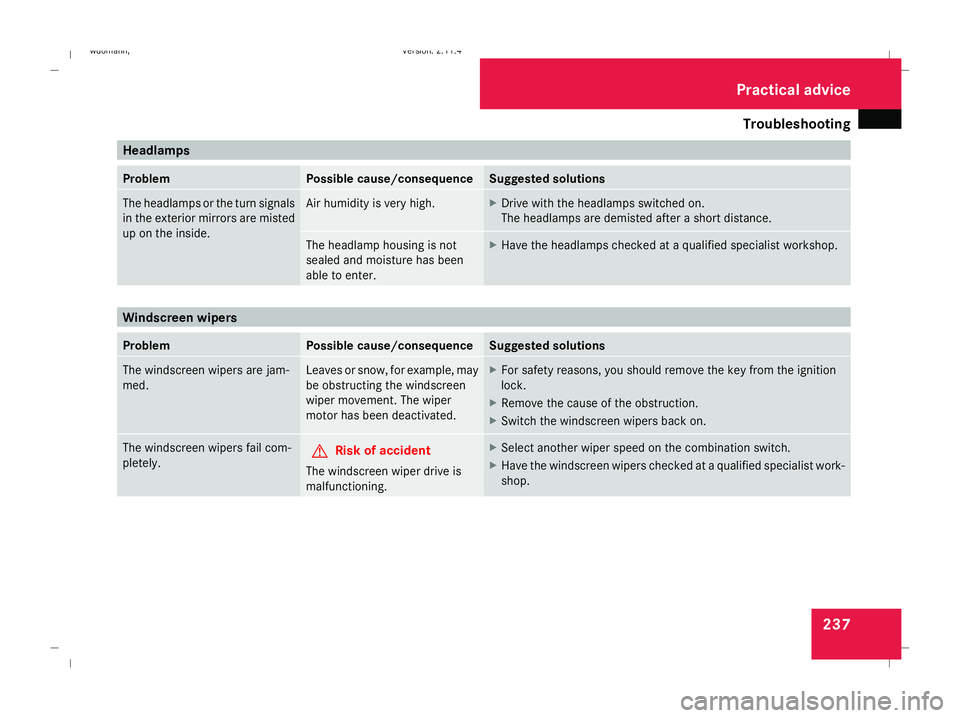

Troubleshooting
237Headlamps
Problem Possible cause/consequence Suggested solutions
The headlamps or the turn signals
in the exterior mirrors are misted
up on the inside. Air humidity is very high. X
Drive with the headlamps switched on.
The headlamps are demisted after a short distance. The headlamp housing is not
sealed and moisture has been
able to enter. X
Have the headlamps checked at a qualified specialist workshop. Windscreen wipers
Problem Possible cause/consequence Suggested solutions
The windscreen wipers are jam-
med. Leaves or snow, for example, may
be obstructing the windscreen
wiper movement. The wiper
motor has been deactivated. X
For safety reasons, you should remove the key from the ignition
lock.
X Remove the cause of the obstruction.
X Switch the windscreen wipers back on. The windscreen wipers fail com-
pletely. G
Risk of accident
The windscreen wiper drive is
malfunctioning. X
Select another wiper speed on the combination switch.
X Have the windscreen wipers checked at a qualified specialist work-
shop. Practical advice
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 237 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

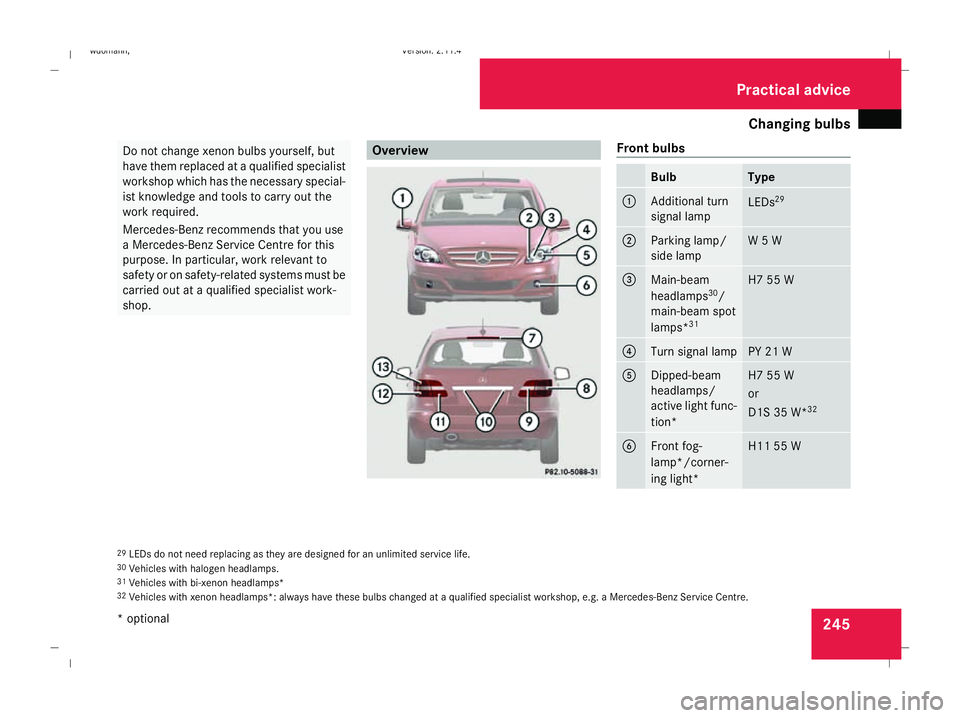

Changing bulbs
245Do not change xenon bulbs yourself, but
have them replaced at a qualified specialist
workshop which has the necessary special-
ist knowledge and tools to carry out the
work required.
Mercedes-Benz recommends that you use
a Mercedes-Benz Service Centre for this
purpose. In particular, work relevant to
safety or on safety-related systems must be
carried out at a qualified specialist work-
shop. Overview Front bulbs
Bulb Type
1
Additional turn
signal lamp
LEDs
29 2
Parking lamp/
side lamp W 5 W
3
Main-beam
headlamps
30
/
main-beam spot
lamps* 31 H7 55 W
4
Turn signal lamp PY 21 W
5
Dipped-beam
headlamps/
active light func-
tion* H7 55 W
or
D1S 35 W*
32 6
Front fog-
lamp*/corner-
ing light* H11 55 W
29
LEDs do not need replacing as they are designed for an unlimited service life.
30 Vehicles with halogen headlamps.
31 Vehicles with bi-xenon headlamps*
32 Vehicles with xenon headlamps*: always have these bulbs changed at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Practical advice
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 245 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

Changing bulbs
246
Rear bulbs Bulb Type
7
Third brake
lamp LED
8
Turn signal lamp PY 21 W
9
Reversing lamp P 21 W
a
Licence plate
lamp C 5 W
b
Rear foglamp P 21 W
c
Tail lamp P 5 W
d
Brake lamp P 21 W
Before changing bulbs
You can replace the following bulbs:
R
Dipped-beam headlamps (halogen head-
lamps)
R Main-beam headlamps (halogen head-
lamps)
R Side lamp/parking lamp
R Cornering light* (vehicles with bi-xenon
headlamps *)
R Front turn signal lamp R
Brake lamp
R Tail lamp
R Turn signal lamp (rear)
R Licence plate lamp
Observe the following points:
R Use only the bulb types specified here.
R To prevent a short-circuit, switch off the
lights before changing a bulb.
R Only hold bulbs with a clean, lint-free cloth.
R Do not work with wet or greasy fingers.
R If the new bulb still does not light up, con-
sult a qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre.
i Due to the location of the bulbs in the
front headlamps, it is best to have these
changed at a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre.
i Have the headlamp setting checked reg-
ularly at a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre. Changing the front bulbs
Removing/fitting the washer fluid res-
ervoir You must remove the washer fluid reservoir
from the engine compartment before you can
replace the bulbs in the front left-hand head-
lamp.
X
To remove: turn retaining screw 1anti-
clockwise.
X Remove washer fluid reservoir 2from
bracket 3.
X Put washer fluid reservoir 2to one side
and leave the lines and hoses connected.
Make sure that no washer fluid escapes.
X To fit: guide the lower retaining lug into the
rubber grommet on the longitudinal mem- Practical advice
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 246Dateiname: 6515_1640_02_buchblock.pdf; preflight

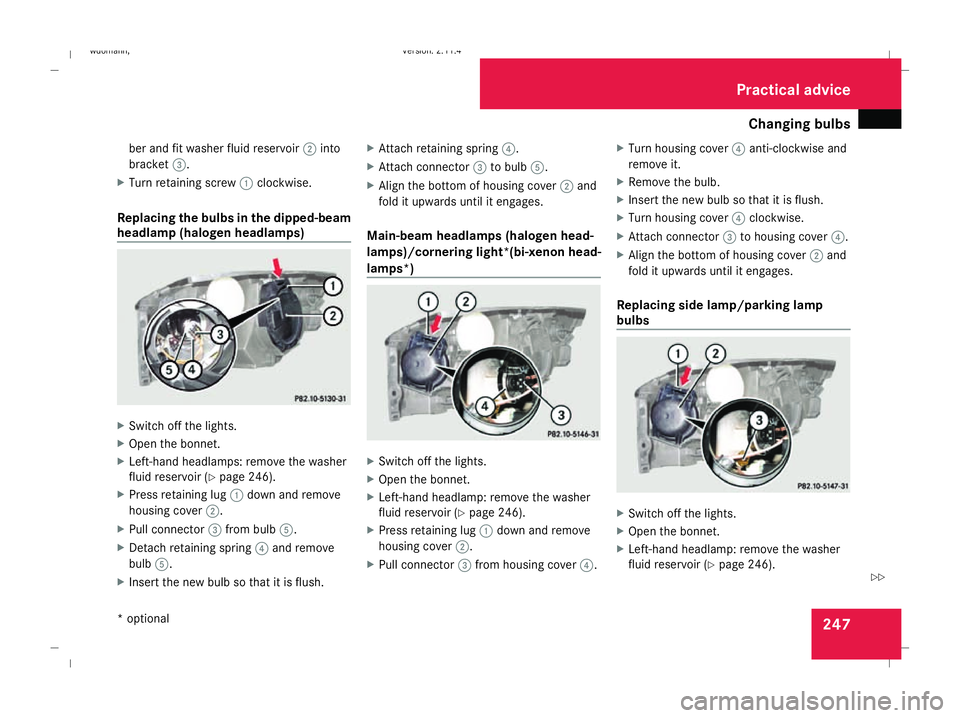

Changing bulbs
247
ber and fit washer fluid reservoir
2into
bracket 3.
X Turn retaining screw 1clockwise.
Replacing the bulbs in the dipped-beam
headlamp (halogen headlamps) X
Switch off the lights.
X Open the bonnet.
X Left-hand headlamps: remove the washer
fluid reservoir (Y page 246).
X Press retaining lug 1down and remove
housing cover 2.
X Pull connector 3from bulb 5.
X Detach retaining spring 4and remove
bulb 5.
X Insert the new bulb so that it is flush. X
Attach retaining spring 4.
X Attach connector 3to bulb 5.
X Align the bottom of housing cover 2and
fold it upwards until it engages.
Main-beam headlamps (halogen head-
lamps)/cornering light*(bi-xenon head-
lamps*) X
Switch off the lights.
X Open the bonnet.
X Left-hand headlamp: remove the washer
fluid reservoir (Y page 246).
X Press retaining lug 1down and remove
housing cover 2.
X Pull connector 3from housing cover 4.X
Turn housing cover 4anti-clockwise and
remove it.
X Remove the bulb.
X Insert the new bulb so that it is flush.
X Turn housing cover 4clockwise.
X Attach connector 3to housing cover 4.
X Align the bottom of housing cover 2and
fold it upwards until it engages.
Replacing side lamp/parking lamp
bulbs X
Switch off the lights.
X Open the bonnet.
X Left-hand headlamp: remove the washer
fluid reservoir (Y page 246). Practical advice
* optional
245_AKB; 2; 7, en-GB
wdomann
,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 247 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

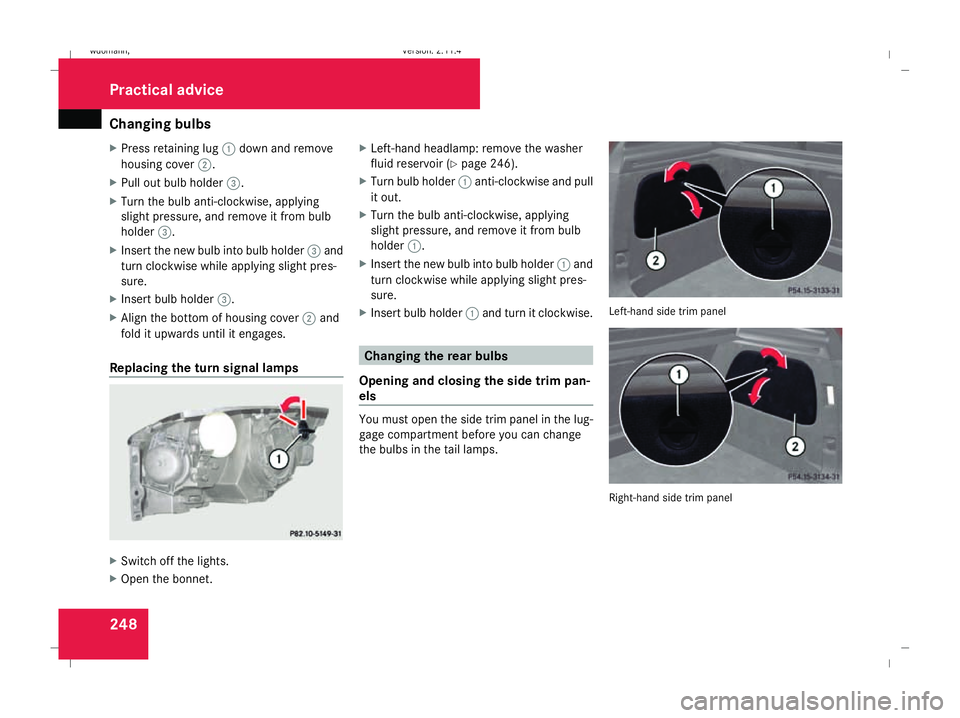

Changing bulbs
248
X
Press retaining lug 1down and remove
housing cover 2.
X Pull out bulb holder 3.
X Turn the bulb anti-clockwise, applying
slight pressure, and remove it from bulb
holder 3.
X Insert the new bulb into bulb holder 3and
turn clockwise while applying slight pres-
sure.
X Insert bulb holder 3.
X Align the bottom of housing cover 2and
fold it upwards until it engages.
Replacing the turn signal lamps X
Switch off the lights.
X Open the bonnet. X
Left-hand headlamp: remove the washer
fluid reservoir (Y page 246).
X Turn bulb holder 1anti-clockwise and pull
it out.
X Turn the bulb anti-clockwise, applying
slight pressure, and remove it from bulb
holder 1.
X Insert the new bulb into bulb holder 1and
turn clockwise while applying slight pres-
sure.
X Insert bulb holder 1and turn it clockwise. Changing the rear bulbs
Opening and closing the side trim pan-
els You must open the side trim panel in the lug-
gage compartment before you can change
the bulbs in the tail lamps. Left-hand side trim panel
Right-hand side trim panelPractical advice
245_AKB; 2; 7, en-GB
wdomann
,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 248 Dateiname: 6515_1640_02_buchblock.pdf; preflight

Service products and capacities
299Amount of antifreeze/corrosion inhibitor required for antifreeze protection
Down to
–37 †(approx.
50%)
3.0 l 4.25 l 4.0 l 4.85 l
Down to
–45 †(approx.
55%) 3.65 l 4.7 l 4.4 l 5.35 l
Brake fluid
Over a period of time, the brake fluid absorbs
moisture from the air; this lowers its boiling
point. G
Risk of accident
If the boiling point of the brake fluid is too
low, vapour pockets may form in the brake
system when the brakes are applied hard
(e.g. when driving downhill). This would
impair braking efficiency.
Have the brake fluid renewed every two
years with a brake fluid that has been
approved by Mercedes-Benz and have this
confirmed in the Service Booklet. i
There is usually a notice in the engine
compartment to remind you when the next
brake fluid change is due. Windscreen washer system
G
Risk of fire
Windscreen washer concentrate is highly
flammable. Fire, naked flames and smoking
are prohibited when windscreen washer
concentrate is being handled.
The washer fluid reservoir holds approxi-
mately 6.4 litres.
The headlamp cleaning system* and the
windscreen washer system are both supplied
from the washer fluid reservoir. Further information on windshield washer
fluid and the mixing ratio can be found on
(Y
page 175). Technical data
