CD player MERCEDES-BENZ B-CLASS HATCHBACK 2014 Owners Manual

Display message ............................ 281
Important safety note s.................. 318
Opening ......................................... 318
Boot load (maximum) ........................ 393
Brake
EBD .................................................. 79
Brake fluid
Display message ............................ 259
Notes ............................................. 392
Brake force distribution
see EBD (electronic brake force
distribution)
Brake lamps
Adaptive ........................................... 77
Display message ............................ 266
Brakes
ABS .................................................. 73
Adaptive Brake Assist ...................... 76
BAS .................................................. 74
Brake fluid (notes) ......................... 392
Display message ............................ 252
Driving tips .................................... 186
Hill start assist ............................... 163
HOLD function ............................... 201
Important safety notes .................. 186
Parking brake ................................ 182
Warning lamp ................................. 286
Breakdown
see Flat tyre
Brightness control (instrument
cluster lighting) ................................... 30
Buttons on the steering column ...... 233C
Calling up a fault see Display messages
Car wash (care) ................................. 324
Care
Automatic car wash ....................... 324
Carpets .......................................... 330
Display ........................................... 329
Exhaust pipe .................................. 328
Exterior lighting ............................. 327
Gear or selector lever .................... 329
High-pressure cleaner .................... 325
Interior ........................................... 329
Matt paintwork .............................. 326 Note
s............................................. 324
Paint .............................................. 326
Plastic trim .................................... 329
Reversing camera .......................... 328
Roof lining ...................................... 330
Seat belt ........................................ 330
Seat cove r..................................... 330
Sensors ......................................... 328
Steering wheel ............................... 329
Trim pieces .................................... 330
Washing by hand ........................... 325
Wheels ........................................... 326
Windows ........................................ 327
Wiper blades .................................. 327
Wooden trim .................................. 330
CD player/CD changer(on-board
computer) .......................................... 240
Central locking
Automatic locking (on-board com-puter) ............................................. 247
Locking/unlocking (key) .................. 87
Centre console
Lower section .................................. 34
Upper section .................................. 33
Changing bulbs
Dipped-beam headlamp s............... 129
Licence plate lighting ..................... 133
Main-beam headlamp s................... 130
Rear foglamp ................................. 131
Reversing lamps ............................ 131
Turn signals (front) ......................... 130
Turn signals (rear) .......................... 131
Child
Restraint system .............................. 58
Child seat
Forward-facing restraint system ...... 66
Integrated ........................................ 61
Integrated, ICS padded play table .... 62
Integrated, side head restraints ....... 64
ISOFIX .............................................. 59
On the front-passenger seat ............ 64
Rearward-facing restraint system .... 66
Recommendations ........................... 70
Suitable positions ............................ 66
Top Tether ....................................... 59
Child-proof locks
Important safety notes .................... 71
Rear doors ....................................... 72 6
Index

Audio player or audio media operation
:
Current track
Audio files from various audio players or
media can be played, depending on the equip- ment fitted in the vehicle.
X Switch on Audio 20 or COMAND Online and
select audio CD or MP3 mode; see the sep- arate operating instructions.
X Press the =or; button on the steer-
ing wheel to select the Audio Audiomenu.
X To select the next/previous track:
briefly press the 9or: button.
X To select a track from the track list
(rapid scrolling): press and hold the 9
or : button until the desired track has
been reached.
If you press and hold the 9or:
button, the rapid scrolling speed is
increased. Not all audio players or media
support this function.
If track information is stored on the audio
player or media, the multifunction display will
show the number and title of the track.
Video DVD operation It is only possible to use the
Audio Audiomenu to
operate video DVDs on vehicles with
COMAND Online. X
Switch on COMAND Online and select
video DVD (see the separate operating
instructions).
X Press the =or; button on the steer-
ing wheel to select the Audio Audiomenu.
X To select the next or previous scene:
briefly press the 9or: button.
X To select a scene from the scene list
(rapid scrolling): press and hold the 9
or : button until desired scene :has
been reached. Telephone menu
Introduction G
WARNING
Operating the integrated information systems and communications equipment in the vehicle
while driving will distract you from traffic con-
ditions. You could then lose control of the
vehicle. There is a risk of an accident.
Only operate these devices if road traffic con-
ditions permit. If you are unsure about the
surrounding conditions, pull over to a safe
location and make entries only while the vehi-
cle is stationary.
When telephoning, you must observe the
legal requirements for the country in which
you are currently driving. X Switch on the mobile phone (see the man-
ufacturer's operating instructions).
X Switch on Audio 20 or COMAND Online;
see the separate operating instructions.
X Insert the mobile phone into the bracket
(Y page 314).
or
X Establish a Bluetooth ®
connection to Audio
20 or COMAND Online; see the separate
operating instructions.
X Press the =or; button on the steer-
ing wheel to select the Tel
Tel menu. 240
Menus and sub
menusOn-board computer and displays

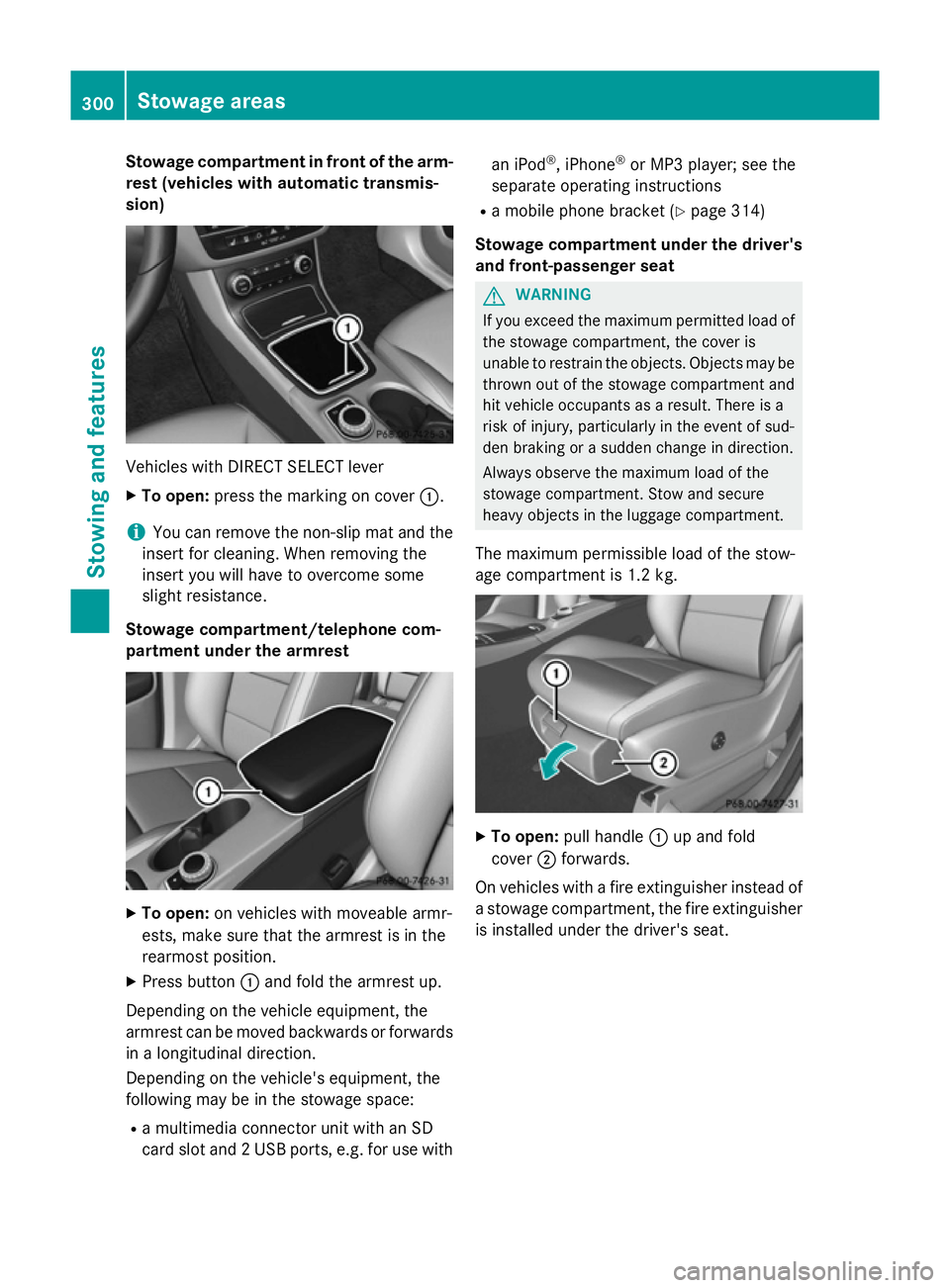

Stowage compartment in front of the arm-
rest (vehicles with automatic transmis-
sion) Vehicles with DIRECT SELECT lever
X To open: press the marking on cover :.
i You can remove the non-slip mat and the
insert for cleaning. When removing the
insert you will have to overcome some
slight resistance.
Stowage compartment/telephone com-
partment under the armrest X
To open: on vehicles with moveable armr-
ests, make sure that the armrest is in the
rearmost position.
X Press button :and fold the armrest up.
Depending on the vehicle equipment, the
armrest can be moved backwards or forwards
in a longitudinal direction.
Depending on the vehicle's equipment, the
following may be in the stowage space:
R a multimedia connector unit with an SD
card slot and 2 USB ports, e.g. for use with an iPod
®
, iPhone ®
or MP3 player; see the
separate operating instructions
R a mobile phone bracket (Y page 314)
Stowage compartment under the driver's and front-passenger seat G
WARNING
If you exceed the maximum permitted load of the stowage compartment, the cover is
unable to restrain the objects. Objects may be
thrown out of the stowage compartment and
hit vehicle occupants as a result. There is a
risk of injury, particularly in the event of sud-
den braking or a sudden change in direction.
Always observe the maximum load of the
stowage compartment. Stow and secure
heavy objects in the luggage compartment.
The maximum permissible load of the stow-
age compartment is 1.2 kg. X
To open: pull handle :up and fold
cover ;forwards.
On vehicles with a fire extinguisher instead of
a stowage compartment, the fire extinguisher
is installed under the driver's seat. 300
Stowage areasStowing and features
