tailgate MERCEDES-BENZ B-CLASS HATCHBACK 2014 Owners Manual

Traffic Sign Assist .......................... 218
Driving tips
Aquaplaning ................................... 187
Automatic transmission ................. 173
Brakes ...........................................1 86
DISTRONIC PLUS ........................... 200
Downhill gradient ........................... 186
Driving abroad ............................... 122
Driving in winter ............................ .187
Driving on flooded roads ................ 187
Driving on wet roads ..................... .187
Fuel ................................................ 184
General .......................................... 184
Icy road surfaces ........................... 187
Limited braking efficiency on sal-
ted roads ....................................... 186
New brake pads/linings ................ 187
Running-in tips ............................... 158
Snow chains .................................. 355
Symmetrical dipped bea m............. 122
The first 1500 km .......................... 158
Towing a trailer .............................. 225
Wet road surface ........................... 186
DVD video
Operating (on-board computer) ..... 240 E
EASY-VARIO-PLUS system Luggage compartment enlarge-
ment .............................................. 302
EBD (electronic brake force distri-
bution)
Display message ............................ 254
Function/note s................................ 79
ECO display
Function/note s............................. 185
On-board computer ....................... 236
ECO start/stop function
Automatic engine start .................. 165
Automatic engine switch-off .......... 164
Deactivating/activating ................. 166
General information ....................... 164
Important safety notes .................. 164
Introduction ................................... 163
Electromagnetic compatibility
Declaration of conformity ................ 23 Emergency
Automatic measures after an acci-
dent ................................................. 57
Emergency key
Unlocking the driver's door .............. 95
Emergency key element
Function/note s................................ 89
Inserting .......................................... 89
Locking vehicle ................................ 96
Removing ......................................... 89
Emergency release
Driver's door .................................... 95
Emergency spare wheel
General notes ................................ 380
Important safety notes .................. 380
Removing ....................................... 381
Technical data ............................... 382
Emergency unlocking
Tailgate ............................................ 97
Vehicle ............................................. 95
Engine
Display message ............................ 268
ECO start/stop function ................ 163
Engine number ............................... 386
Jump-starting ................................. 342
Running irregularly ......................... 167
Starting problems .......................... 167
Starting the engine with the key .... 162
Starting with the Start/Stop but-
ton ................................................. 162
Stopping ........................................ 181
Tow-starting (vehicle) ..................... 348
Warning lamp (engine diagnos-
tics) ............................................... 293
Engine electronics
Notes ............................................. 384
Problem (fault) ............................... 167
Engine oil
Additives ........................................ 391
Checking the oil level ..................... 319
Checking the oil level using the
dipstick .......................................... 320
Display message ............................ 270
Filling capacity ............................... 391
Notes about oil grade s................... 390
Notes on oil level/consumption .... 319
Topping up ..................................... 321
Viscosity ........................................ 391 Index
9

Sliding sunroof
see Panorama sliding sunroof
Snow chains ...................................... 355
Socket
Luggage compartment ...................3 13
Sockets
Centre console .............................. 313
General notes ................................ 312
Rear compartment ......................... 313
Specialist workshop ............................ 24
Spectacles compartment ................. 299
Speed, controlling
see Cruise control
Speedometer
Activating/deactivating the addi-
tional speedometer ........................ 246
Digital ............................................ 237
In the Instrument cluster ................. 30
Segments ...................................... 233
Selecting the unit of measure-
ment .............................................. 246
SPEEDTRONIC
Deactivating variable ..................... 192
Display message ............................ 275
Function/notes ............................ .191
Important safety notes .................. 191
LIM indicator lamp ......................... 191
Permanent ..................................... 193
Selecting ........................................ 191
Storing the current spee d.............. 192
Variabl e......................................... 191
SPEEDTRONIC (variable)
Storing the current speed and
calling up the last stored speed ..... 192
Start/Stop button
Removing ....................................... 160
Starting the engine ........................ 162
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 161
Status overview (on-board com-
puter) .................................................. 242
STEER CONTROL .................................. 79
Steering (display message) .............. 282
Steering assistant STEER CON-
TROL
see STEER CONTROL Steering wheel
Adjusting (manually) ...................... 114
Button overview ............................... 32
Buttons (on-board computer) ......... 233
Cleaning ......................................... 329
Gearshift paddle s........................... 174
Important safety notes .................. 114
Steering wheel gearshift paddles .... 174
Stowage compartment
Map pockets .................................. 301
Stowage compartments
Armrest (front) ............................... 300
Armrest (under) ............................. 300
Centre console .............................. 299
Centre console (rear) ..................... 301
Cup holde r..................................... 310
Glove compartment ....................... 299
Important safety information ......... 299
Spectacles compartment ............... 299
Under driver's seat/front-
passenger sea t.............................. 300
Stowage net ....................................... 301
Stowage space
Stowage net ................................... 301
Summer tyres .................................... 354
Sun visor ............................................ 311 T
Tail lamps see Lights
Tailgate
Display message ............................ 281
Emergency unlocking ....................... 97
Important safety notes .................... 96
Opening dimensions ...................... 393
Opening/closing (from outside) ....... 97
Technical data
Capacities ...................................... 386
Emergency spare wheel ................. 382
Information .................................... 384
Trailer load s................................... 396
Tyres/wheels ................................. 366
Vehicle data ................................... 393
Telephone
Accepting a call (multifunction
steering wheel) .............................. 241
Display message ............................ 283 Index
17

This steering support is provided in particular
if:
R both right wheels or both left wheels are on
a wet or slippery road surface when you
brake
R the vehicle starts to skid
Important safety notes i
Observe the "Important safety notes" sec-
tion (Y page 73).
No steering support is provided from STEER
CONTROL, if:
R ESP ®
is malfunctioning
R the steering is faulty
If ESP ®
is malfunctioning, you will be assisted
further by the electrical power steering. Protection against theft
Immobiliser
The immobiliser prevents your vehicle from
being started without the correct key.
X To activate with the key: remove the key
from the ignition lock.
X To activate with KEYLESS-GO start func-
tion or KEYLESS-GO: switch the ignition
off and open the driver's door.
X To deactivate: switch on the ignition.
When leaving the vehicle, always take the key with you and lock the vehicle. Anyone can
start the engine if a valid key has been left
inside the vehicle.
i The immobiliser is always deactivated
when you start the engine. ATA (Anti-Theft Alarm system)
X
To prime: lock the vehicle with the key or
KEYLESS-GO.
Indicator lamp :flashes. The alarm sys-
tem is primed after approximately
15 seconds.
X To deactivate: unlock the vehicle with the
key or KEYLESS-GO.
or X Insert the key into the ignition lock.
A visual and audible alarm is triggered if the
alarm system is primed and you open: R a door
R the vehicle with the emergency key ele-
ment
R the tailgate
R the bonnet
X To switch the alarm off with the key:
press the %or& button on the key.
The alarm is switched off.
or X Vehicles with KEYLESS-GO start-func-
tion or KEYLESS-GO: remove the Start/
Stop button from the ignition lock
(Y page 159).
X Insert the key into the ignition lock.
The alarm is switched off. 80
Protection against theftSafety

X
To switch the alarm off using KEYLESS-
GO: grasp the outside door handle. The key
must be outside the vehicle.
The alarm is switched off.
or
X Press the Start/Stop button on the dash-
board. The key must be inside the vehicle.
The alarm is switched off.
The alarm is not switched off, even if you
close the open door that has triggered it, for
example.
i If the alarm stays on for more than
30 second s,the Mercedes‑Benz emer-
gency call system automatically sends a
message to the Customer Assistance
Centre. This is done by means of a text
message or a data connection.
The emergency call system sends a mes-
sage or establishes a data connection pro-
vided that:
R you have subscribed to the
Mercedes‑Benz emergency call system
R the Mercedes‑ Benz emergency call sys-
tem has been activated properly
R the necessary mobile phone network is
available Tow-away protection
Function An audible and visual alarm is triggered if your
vehicle's angle of inclination is altered while
tow-away protection is primed. This can occur if the vehicle is jacked up on one side, for
example.
Priming X
Make sure that: R
the doors are closed
R the tailgate is closed
Only then is the tow-away protection
primed.
X Lock the vehicle with the key or KEYLESS-
GO.
Tow-away protection is primed after
approximately 60 second s.
Switching off X
Unlo ck the vehicle with the key or KEY-
LESS-GO.
or X Insert the key into the ignition lock.
Tow-away protection is switched off auto-
matically.
Deactivating X
Remove the key from the ignition lock.
or X Vehicles with KEYLESS-GO start func-
tion or KEYLESS-GO: switch off the engine
using the Start/Stop button and open the
driver's door.
X Press button :.
Indicator lamp ;lights up briefly.
X Lock the vehicle with the key or KEYLESS-
GO.
Tow-away protection is deactivated. Protection against theft
81Safety Z

Tow-away protection remains deactivated
until:
R the vehicle is unlocked again
R a door is opened and closed again and
R the vehicle is locked again
To prevent a false alarm, deactivate tow-away protection if you lock your vehicle and it:
R is being transported
R is being loaded onto a ferry or car trans-
porter, for example
R is parked on a movable surface, e.g. in a
split-level garage Interior motion sensor
Function When the interior motion sensor is primed, a
visual and audible alarm is triggered if move- ment is detected in the vehicle interior. This
can occur if someone reaches into the vehicle
interior, for example.
Priming X
Make sure that:
R the side windows are closed
R the panorama sliding sunroof is closed
R there are no objects, e.g. mascots, hang-
ing on the rear-view mirror or on the grab handles on the roof trim
This will prevent false alarms.
X Make sure that:
R the doors are closed
R the panorama sliding sunroof is closed
R the tailgate is closed
Only then is the interior motion sensor
primed.
X Lock the vehicle with the key or KEYLESS-
GO.
The interior motion sensor is primed after
approximately 30 seconds. Switching off X
Unlock the vehicle with the key or KEY-
LESS-GO.
or X Insert the key into the ignition lock.
or X Press the Start/Stop button.
The key must be in the vehicle.
The interior motion sensor is automatically switched off.
Deactivating X
Remove the key from the ignition lock.
or X Vehicles with KEYLESS-GO start func-
tion or KEYLESS-GO: switch off the engine
using the Start/Stop button and open the
driver's door.
X Press button :.
Indicator lamp ;flashes several times in
rapid succession.
X Lock the vehicle with the key or KEYLESS-
GO.
The interior motion sensor is deactivated.
The interior motion sensor remains deactiva- ted until:
R the vehicle is unlocked again and
R a door is opened and closed again and
R the vehicle is locked again 82
Protection against theftSafety

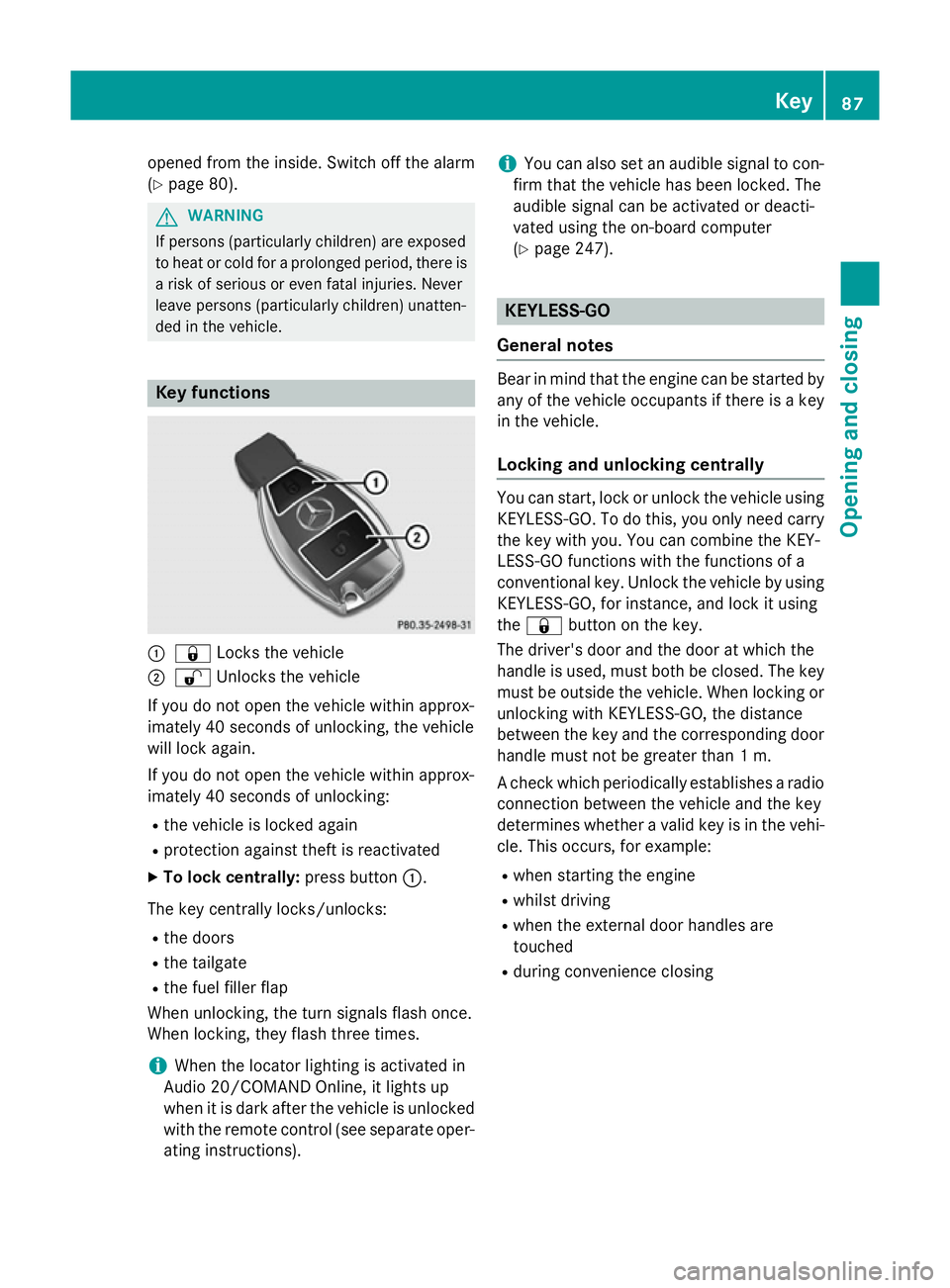

opened from the inside. Switch off the alarm
(Y page 80). G
WARNING
If persons (particularly children) are exposed
to heat or cold for a prolonged period, there is a risk of serious or even fatal injuries. Never
leave persons (particularly children) unatten-
ded in the vehicle. Key functions
:
& Locks the vehicle
; % Unlocks the vehicle
If you do not open the vehicle within approx-
imately 40 seconds of unlocking, the vehicle
will lock again.
If you do not open the vehicle within approx-
imately 40 seconds of unlocking:
R the vehicle is locked again
R protection against theft is reactivated
X To lock centrally: press button:.
The key centrally locks/unlocks: R the doors
R the tailgate
R the fuel filler flap
When unlocking, the turn signals flash once.
When locking, they flash three times.
i When the locator lighting is activated in
Audio 20/COMAND Online, it lights up
when it is dark after the vehicle is unlocked
with the remote control (see separate oper- ating instructions). i
You can also set an audible signal to con-
firm that the vehicle has been locked. The
audible signal can be activated or deacti-
vated using the on-board computer
(Y page 247). KEYLESS-GO
General notes Bear in mind that the engine can be started by
any of the vehicle occupants if there is a key
in the vehicle.
Locking and unlocking centrally You can start, lock or unlock the vehicle using
KEYLESS-GO. To do this, you only need carry the key with you. You can combine the KEY-
LESS-GO functions with the functions of a
conventional key. Unlock the vehicle by using
KEYLESS-GO, for instance, and lock it using
the & button on the key.
The driver's door and the door at which the
handle is used, must both be closed. The key
must be outside the vehicle. When locking or unlocking with KEYLESS-GO, the distance
between the key and the corresponding door
handle must not be greater than 1 m.
A check which periodically establishes a radio
connection between the vehicle and the key
determines whether a valid key is in the vehi- cle. This occurs, for example:
R when starting the engine
R whilst driving
R when the external door handles are
touched
R during convenience closing Key
87Opening and closing Z

X
To unlock the vehicle: touch the inner
surface of the door handle.
X To lock the vehicle: touch sensor sur-
face :or;.
Make sure that you do not touch the inner
surface of the door handle.
X Convenience closing feature: touch
recessed sensor surface ;for an exten-
ded period.
For further information on the convenience closing feature (Y page 99).X
To unlock the tailgate: pull the tailgate
handle.
Deactivating and activating If you do not intend to use the vehicle for an
extended period of time, you can deactivate
KEYLESS-GO. The key will then use very little power, thereby conserving battery power. For
the purposes of activation/deactivation, the
vehicle does not have to be nearby. X
To deactivate: press the&button on
the key twice in rapid succession.
The battery check lamp of the key
(Y page 90) lights up twice briefly and
KEYLESS-GO is deactivated.
X To activate: press any button on the key or
insert the key into the ignition lock.
KEYLESS-GO and all of its associated fea-
tures are available again. KEYLESS-GO start function
Bear in mind that the engine can be started by any of the vehicle occupants if there is a key
in the vehicle. Changing the settings of the locking
system
You can change the settings of the locking
system. This means that only the driver's door and the fuel filler flap are unlocked when the
vehicle is unlocked. This is useful if you fre-
quently travel alone.
X To change the setting: simultaneously
press the %and& buttons for
approximately 6 seconds until the battery
check lamp (Y page 90) flashes twice.
i If the setting of the locking system is
changed within the signal range of the vehi- cle, pressing the &or% button:
R locks or
R unlocks the vehicle
The key now functions as follows:
X To unlock the driver's door: press the
% button once.
X To unlock centrally: press the%but-
ton twice.
X To lock centrally: press the&button. 88
KeyOpening and closing

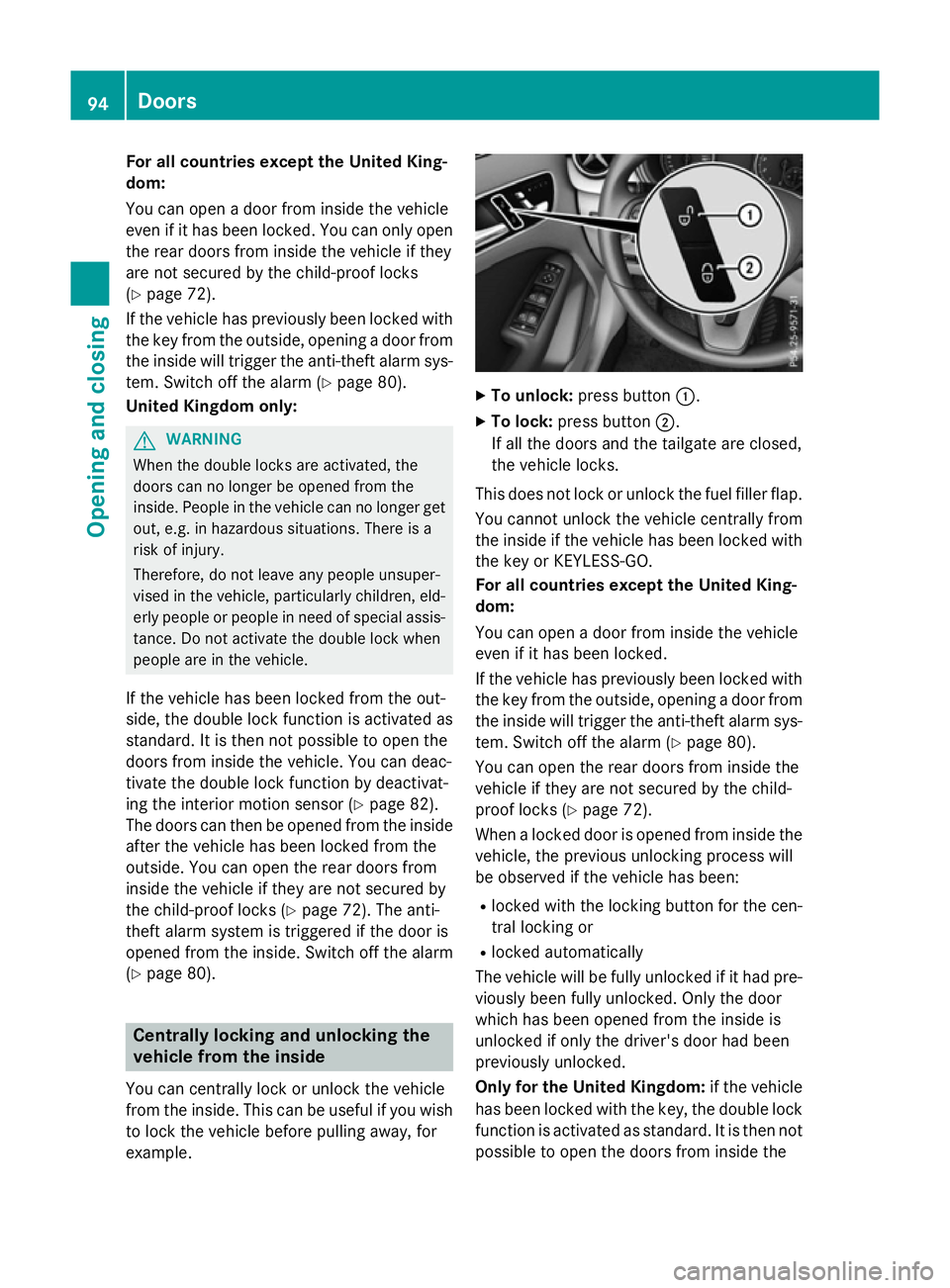

For all countries except the United King-
dom:
You can open a door from inside the vehicle
even if it has been locked. You can only open
the rear doors from inside the vehicle if they
are not secured by the child-proof locks
(Y page 72).
If the vehicle has previously been locked with
the key from the outside, opening a door from the inside will trigger the anti-theft alarm sys-
tem. Switch off the alarm (Y page 80).
United Kingdom only: G
WARNING
When the double locks are activated, the
doors can no longer be opened from the
inside. People in the vehicle can no longer get out, e.g. in hazardous situations. There is a
risk of injury.
Therefore, do not leave any people unsuper-
vised in the vehicle, particularly children, eld-
erly people or people in need of special assis-
tance. Do not activate the double lock when
people are in the vehicle.
If the vehicle has been locked from the out-
side, the double lock function is activated as
standard. It is then not possible to open the
doors from inside the vehicle. You can deac-
tivate the double lock function by deactivat-
ing the interior motion sensor (Y page 82).
The doors can then be opened from the inside after the vehicle has been locked from the
outside. You can open the rear doors from
inside the vehicle if they are not secured by
the child-proof locks (Y page 72). The anti-
theft alarm system is triggered if the door is
opened from the inside. Switch off the alarm
(Y page 80). Centrally locking and unlocking the
vehicle from the inside
You can centrally lock or unlock the vehicle
from the inside. This can be useful if you wish to lock the vehicle before pulling away, for
example. X
To unlock: press button :.
X To lock: press button ;.
If all the doors and the tailgate are closed,
the vehicle locks.
This does not lock or unlock the fuel filler flap. You cannot unlock the vehicle centrally from
the inside if the vehicle has been locked with
the key or KEYLESS-GO.
For all countries except the United King-
dom:
You can open a door from inside the vehicle
even if it has been locked.
If the vehicle has previously been locked with the key from the outside, opening a door from
the inside will trigger the anti-theft alarm sys- tem. Switch off the alarm (Y page 80).
You can open the rear doors from inside the
vehicle if they are not secured by the child-
proof locks (Y page 72).
When a locked door is opened from inside the vehicle, the previous unlocking process will
be observed if the vehicle has been:
R locked with the locking button for the cen-
tral locking or
R locked automatically
The vehicle will be fully unlocked if it had pre- viously been fully unlocked. Only the door
which has been opened from the inside is
unlocked if only the driver's door had been
previously unlocked.
Only for the United Kingdom: if the vehicle
has been locked with the key, the double lock
function is activated as standard. It is then not possible to open the doors from inside the 94
DoorsOpening and closing

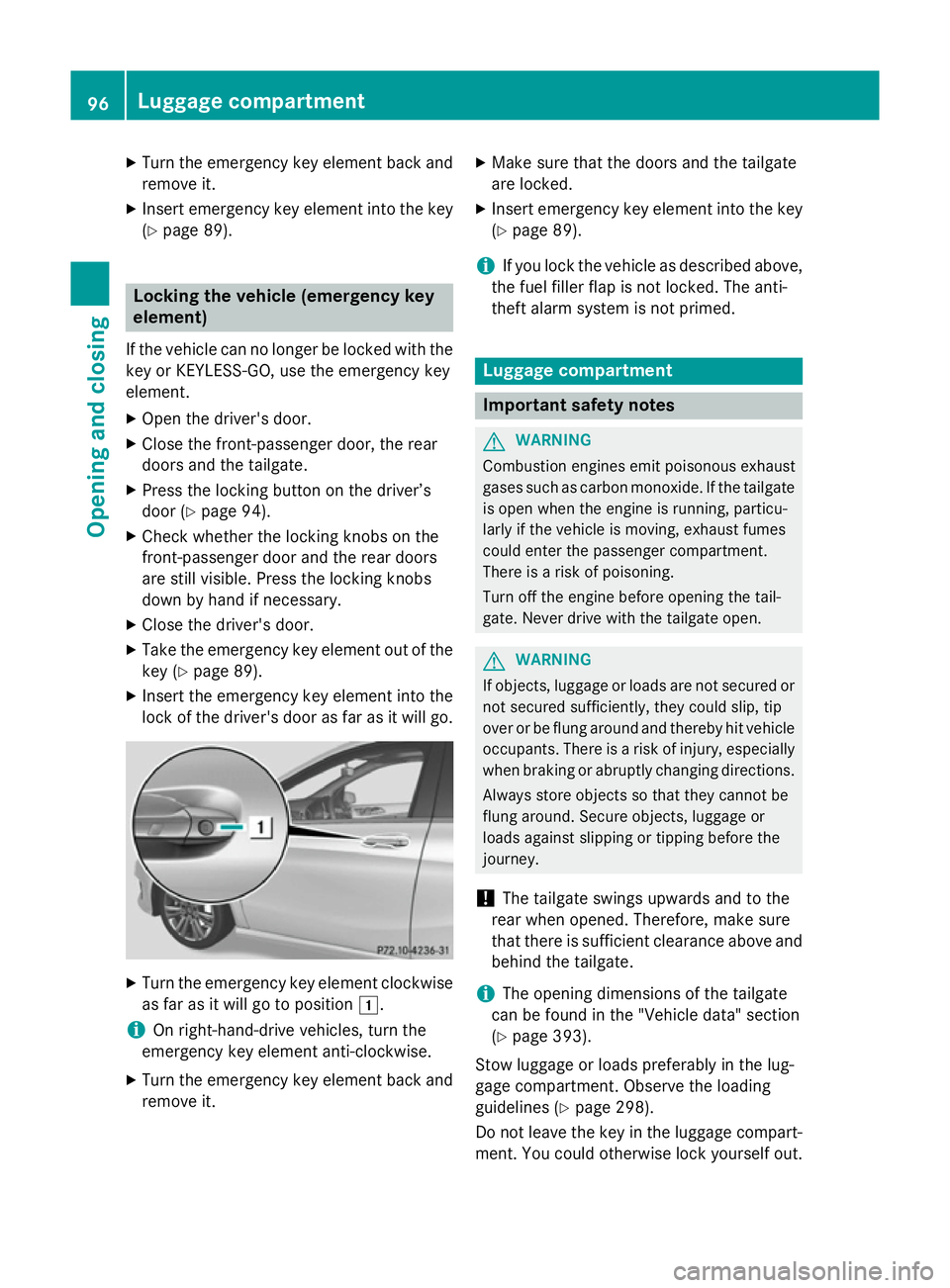

X
Turn the emergency key element back and
remove it.
X Insert emergency key element into the key
(Y page 89). Locking the vehicle (emergency key
element)
If the vehicle can no longer be locked with the key or KEYLESS-GO, use the emergency key
element.
X Open the driver's door.
X Close the front-passenger door, the rear
doors and the tailgate.
X Press the locking button on the driver’s
door (Y page 94).
X Check whether the locking knobs on the
front-passenger door and the rear doors
are still visible. Press the locking knobs
down by hand if necessary.
X Close the driver's door.
X Take the emergency key element out of the
key (Y page 89).
X Insert the emergency key element into the
lock of the driver's door as far as it will go. X
Turn the emergency key element clockwise
as far as it will go to position 1.
i On right-hand-drive vehicles, turn the
emergency key element anti-clockwise.
X Turn the emergency key element back and
remove it. X
Make sure that the doors and the tailgate
are locked.
X Insert emergency key element into the key
(Y page 89).
i If you lock the vehicle as described above,
the fuel filler flap is not locked. The anti-
theft alarm system is not primed. Luggage compartment
Important safety notes
G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning.
Turn off the engine before opening the tail-
gate. Never drive with the tailgate open. G
WARNING
If objects, luggage or loads are not secured or not secured sufficiently, they could slip, tip
over or be flung around and thereby hit vehicle
occupants. There is a risk of injury, especially when braking or abruptly changing directions.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey.
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and behind the tailgate.
i The opening dimensions of the tailgate
can be found in the "Vehicle data" section
(Y page 393).
Stow luggage or loads preferably in the lug-
gage compartment. Observe the loading
guidelines (Y page 298).
Do not leave the key in the luggage compart- ment. You could otherwise lock yourself out. 96

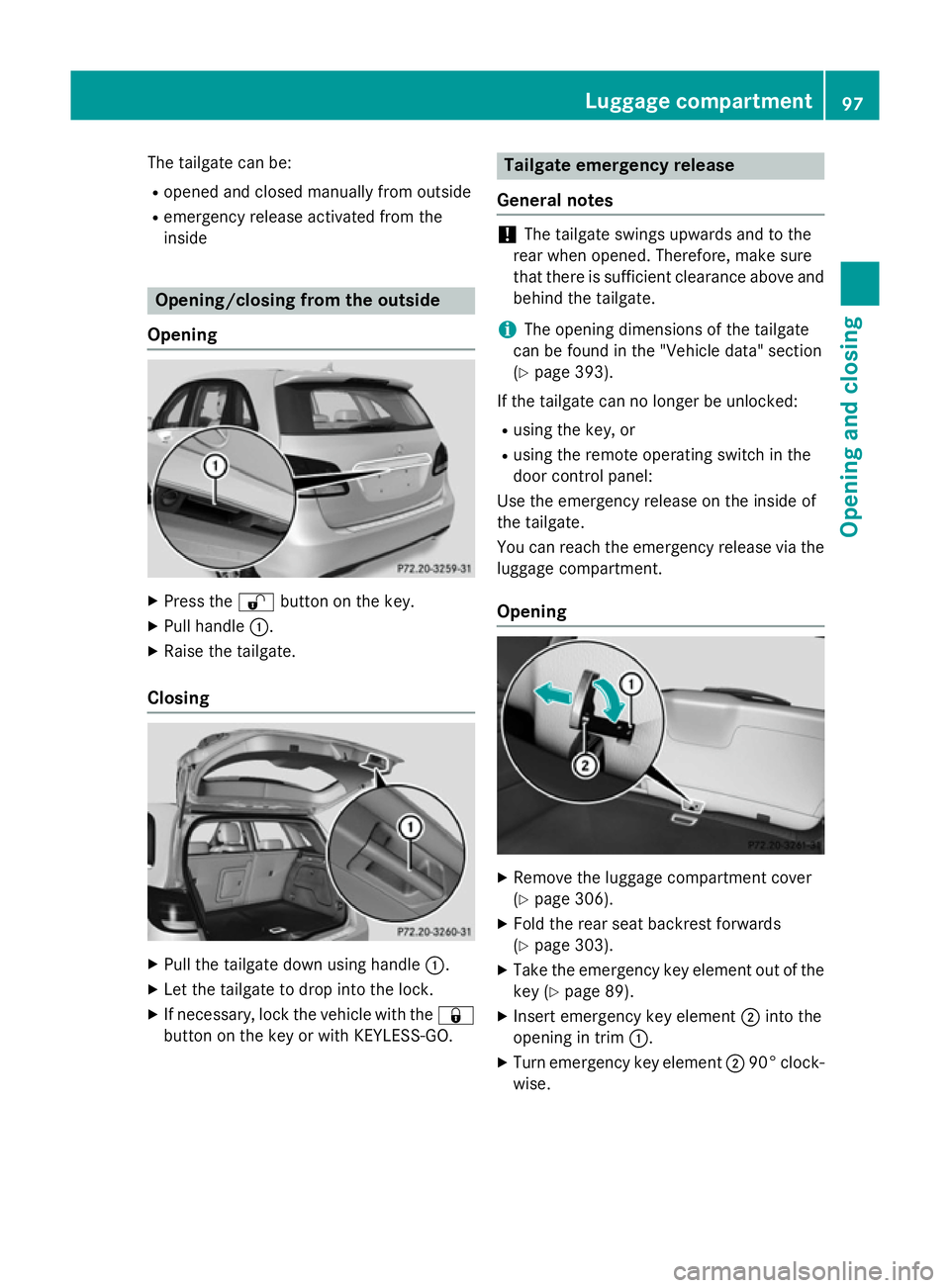

Luggage compartmentOpening and closing

The tailgate can be:
R opened and closed manually from outside
R emergency release activated from the
inside Opening/closing from the outside
Opening X
Press the %button on the key.
X Pull handle :.
X Raise the tailgate.
Closing X
Pull the tailgate down using handle :.
X Let the tailgate to drop into the lock.
X If necessary, lock the vehicle with the &
button on the key or with KEYLESS-GO. Tailgate emergency release
General notes !
The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and behind the tailgate.
i The opening dimensions of the tailgate
can be found in the "Vehicle data" section
(Y page 393).
If the tailgate can no longer be unlocked:
R using the key, or
R using the remote operating switch in the
door control panel:
Use the emergency release on the inside of
the tailgate.
You can reach the emergency release via the
luggage compartment.
Opening X
Remove the luggage compartment cover
(Y page 306).
X Fold the rear seat backrest forwards
(Y page 303).
X Take the emergency key element out of the
key (Y page 89).
X Insert emergency key element ;into the
opening in trim :.
X Turn emergency key element ;90° clock-
wise. Luggage compartment
97Opening and closing Z
