MERCEDES-BENZ B-CLASS HATCHBACK 2021 Owners Manual

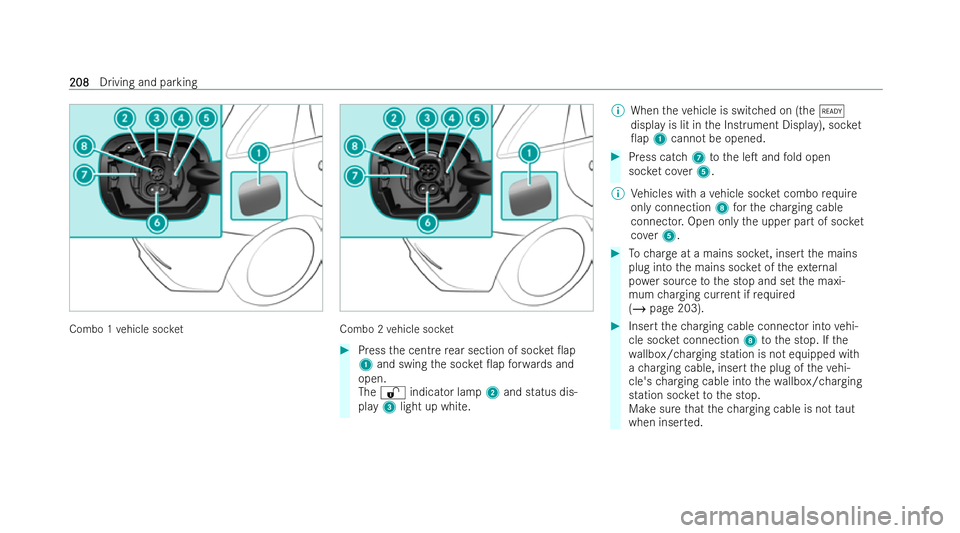

Combo 1
vehicle soc ket Combo 2
vehicle soc ket #
Press the centre rear section of soc ket 0ap
1 and swing the soc ket 0ap forw ards and
open.
The 0036 indicator lamp 2and status dis-
play 3light up white. %
When theve hicle is switched on (the õ
displ ayis lit in the Instrument Display), soc ket
0ap 1cannot be opened. #
Press cat ch7 tothe leT and fold open
soc ket co ver5.
% Vehicles with a vehicle soc ket combo requ ire
only connection 8forth ech arging cable
connector. Open only the upper part of soc ket
co ver5. #
Tocharge at a mains soc ket, insert the mains
plug into the mains soc ket of theex tern al
po we r source tothe stop and set the maxi-
mum charging cur rent if requ ired
(/ page 203). #
Insert thech arging cable connector into vehi-
cle soc ket connection 8tothe stop. If the
wa llbox/charging station is not equipped with
a ch arging cable, inse rtthe plug of theve hi-
cle's charging cable into thewa llbox/charging
station soc ketto the stop.
Make sure that thech arging cable is not taut
when inser ted. 208 208
Driving and parking

The
003D indicator lamp 4and status dis-
play 30ash orange and, as soon as the high-
vo ltage battery is charge d, green.
When thech arging cable is connected totheve hi-
cle, theve hicle cann otbe star ted or mo ved.
At the start of thech arging process, thech arge
le ve l display is shown in the Instrument Display
with a charging prediction. The charging predic-
tion either refers to the predicted charge leve l at
th e set departure time, or the time at which the
high- voltage battery will be fully charge d.
% Depending on thete mp erature, thefa n and
bat tery cooling system may audibly switch on
during thech arging process.
% Ifth eve hicle is idle for lengt hyperiods and
connected tothe mains suppl y,the high-volt-
age battery will be rech arge d automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control).
% The vehicle is equipped with an elect rical fuse
which pr otects it against overvoltage in the
mains suppl y.This electrical fuse may trip dur-
ing se vere thunderstorms, forex ample, and
may cause the fuse in the building totrip or may inter
rupt thech arging process. These
functions pr otect theve hicle.
ATer the fuse in the building is switched on
again, thech arging process resumes automat-
icall y.Fo llowing an inter ruption in the po wer
supply without the fuse in the building being
tripped, it may take up to te n minutes for
ch arging toresume automaticall y. Ending t
Ending t
he alt
he alter
ernating curr
nating curr ent c
ent char
harging pr
ging pr ocess
ocess
(mode 2/3)
(mode 2/3) R
R
eq
eq uir
uir ements:
ements:
R The dis tance between theke y and theve hicle
does not exceed 1 m. Combo 1 v
Combo 1 v ehicle socket
ehicle soc ket #
Press charging inter ruption button 3.
or #
Unlock theve hicle.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. Driving and parking
209
209

%
Vehicles equipped with a type 1 vehicle
soc ketfo rAC charging ha veno charging inter-
ru ption button 3. #
Press and hold button 2onthech arging
cable connector and remo vethech arging
cable connector from theve hicle soc ket.
% Ifyo u cannot remo vethech arging cable con-
nector, repeat the unlocking procedure. If the
ch arging cable connector is still loc ked, con-
ta ct a quali/ed specialist workshop. #
Close the soc ket co ver and the soc ket 0ap. #
Remo vethech arging cable connector from
th e mains soc ket, or from the soc ket on the
wa llbox/charging station, and st owtheve hi-
cle's charging cable safely in theve hicle
(/ page 198). Combo 2 v Combo 2 v
ehicle socket
ehicle soc ket #
Press charging inter ruption button 2.
or #
Unlock theve hicle.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. %
Vehicles only equipped with a type 2 vehicle
soc ketfo rAC charging ha veno charging inter-
ru ption button 2. #
Remo vethech arging cable connector from
th eve hicle soc ket within 30 seconds.
ATer the 30 seconds ha veelapsed, theve hicle
soc ket will be loc ked again.
% Ifyo u cannot remo vethech arging cable con-
nector, repeat the unlocking procedure. If the
ch arging cable connector is still loc ked, con-
ta ct a quali/ed specialist workshop. #
Close the soc ket co ver and the soc ket 0ap. #
Remo vethech arging cable connector from
th e mains soc ket, or from the soc ket on the
wa llbox/charging station, and st owtheve hi-
cle's charging cable safely in theve hicle
(/ page 198).
% ATer thech arging cable connector has been
disconnected, the0036 indicator lamp 1on
th eve hicle soc ketre mains lit for some time
before switching o.. 210 210
Driving and parking

S
S
t
tar
ar ting t
ting t he dir
he dir ect curr
ect curr ent c
ent char
harging pr
ging pr ocess
ocess
(mode 4)
(mode 4) &
D
D AN
AN GER

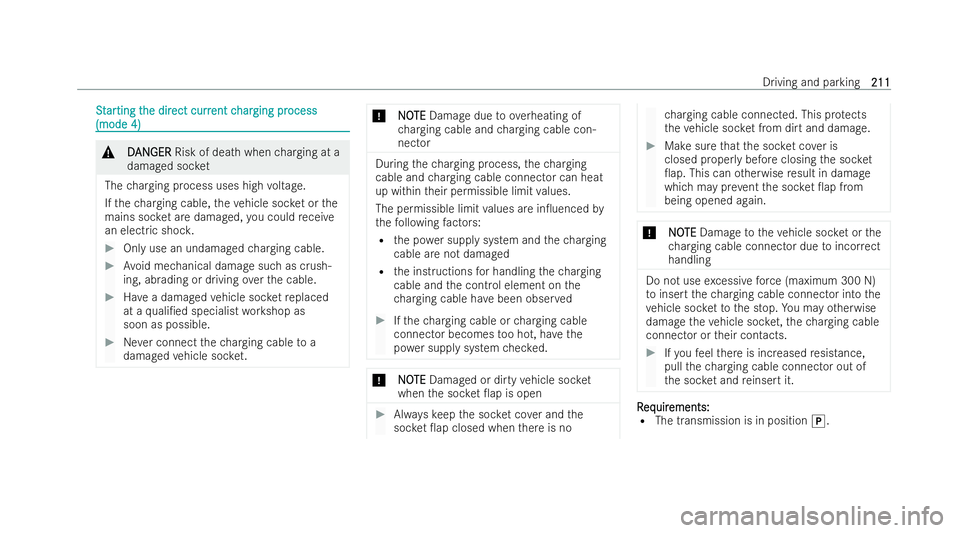

GER Risk of death when charging at a
damaged soc ket
The charging process uses high voltage.
If th ech arging cable, theve hicle soc ket or the
mains soc ket are damaged, you could receive
an elect ric shoc k. #
Only use an undamaged charging cable. #
Avoid mechanical damage such as crush-
ing, abrading or driving overth e cable. #
Have a damaged vehicle soc ketre placed
at a quali/ed specialist workshop as
soon as possible. #
Never connect thech arging cable to a
damaged vehicle soc ket. *
N
NOOTE
TE Damage due toove rheating of
ch arging cable and charging cable con-
nector During
thech arging process, thech arging
cable and charging cable connector can heat
up within their permissible limit values.
The permissible limit values are in0uenced by
th efo llowing factors:
R the po wer supply system and thech arging
cable are not damaged
R the inst ructions for handling thech arging
cable and the control element on the
ch arging cable ha vebeen obser ved #
Ifth ech arging cable or charging cable
connector becomes too hot, ha vethe
po we r supply system checked. *
N
NOOTE
TE Damaged or dirty vehicle soc ket
when the soc ket 0ap is open #
Alwayske ep the soc ket co ver and the
soc ket 0ap closed when there is no ch
arging cable connected. This pr otects
th eve hicle soc ket from dirt and damage. #
Make sure that the soc ket co ver is
closed proper lybefore closing the soc ket
0ap. This can otherwise result in damage
which may pr event the soc ket 0ap from
being opened again. *
N
NOOTE
TE Damage totheve hicle soc ket or the
ch arging cable connector due toincor rect
handling Do not use
excessive forc e (maximum 300 N)
to insert thech arging cable connector into the
ve hicle soc ketto the stop. You may otherwise
damage theve hicle soc ket,thech arging cable
connector or their contacts. #
Ifyo ufe el there is increased resis tance,
pull thech arging cable connector out of
th e soc ket and reinsert it. R
R
eq
eq uir
uir ements:
ements:
R The transmission is in position 005D. Driving and parking
211
211

R
The vehicle is unloc ked or the distance
between theke y and theve hicle does not
ex ceed 1 m.
R The vehicle is not switched on. The õdis-
play in the Instrument Display is o..
R The charging cable is not taut.
% Depending on the national version, theve hicle
is equipped with one of thefo llowing vehicle

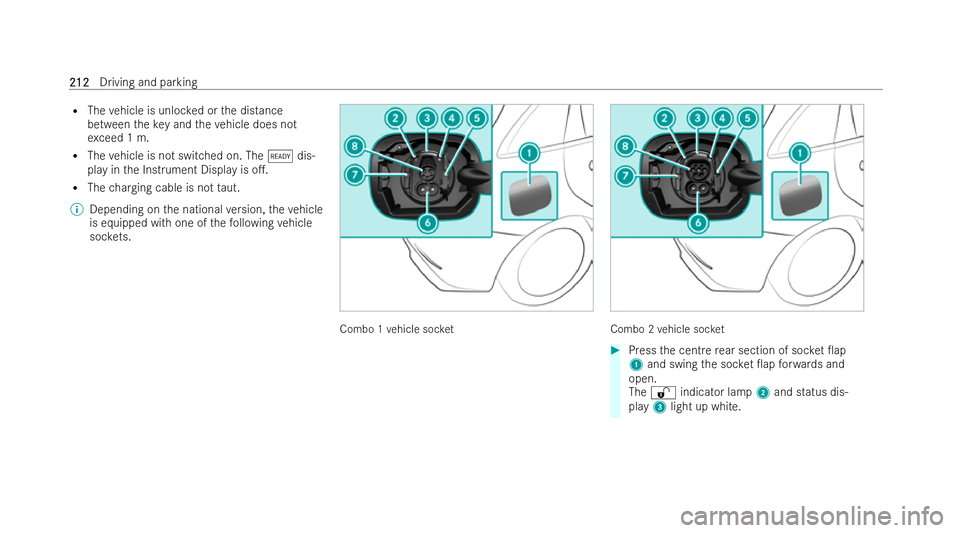

soc kets. Combo 1
vehicle soc ket Combo 2
vehicle soc ket #
Press the centre rear section of soc ket 0ap
1 and swing the soc ket 0ap forw ards and
open.
The 0036 indicator lamp 2and status dis-
play 3light up white. 212 212
Driving and parking

%
When theve hicle is switched on (the õ
displ ayis lit in the Instrument Display), soc ket
0ap 1cannot be opened. #
Press cat ch7 tothe leT and fold open
soc ket co ver5.
% The CCS charging cable connector requ ires
connections 6and 8. Therefore, it is nec-
essary toopen bo thparts of soc ket co ver5. #
Insert the CCS charging cable connector into
th eve hicle soc ketto the stop.
Make sure that thech arging cable is not taut
when inser ted.
The 003D indicator lamp 4and status dis-
play 30ash orange and, as soon as the high-
vo ltage battery is charge d, green.
When thech arging cable is connected totheve hi-
cle, theve hicle cann otbe star ted or mo ved.
At the start of thech arging process, thech arge
le ve l display is shown in the Instrument Display
with a charging prediction. The charging predic-
tion either refers to the predicted charge leve l at
th e set departure time, or the time at which the
high- voltage battery will be fully charge d. %
Depending on thete mp erature, thefa n and
bat tery cooling system may audibly switch on
during thech arging process.
% Ifth eve hicle is idle for lengt hyperiods and
connected tothe mains suppl y,the high-volt-
age battery will be rech arge d automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control). Ending t Ending t
he dir
he direct curr
ect curr ent c
ent c har
harging pr
ging pr ocess (mode
ocess (mode
4)
4) R
R
eq
eq uir
uir ements:
ements:
R The distance between theke y and theve hicle
does not exceed 1 m. Combo 1 v
Combo 1 v ehicle socket
ehicle soc ket #
Press charging inter ruption button 3.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. #
Press and hold button 2onthech arging
cable connector and remo vethech arging
cable connector from theve hicle soc ket. Driving and parking
213
213

%
Ifyo u cannot remo vethech arging cable con-
nector, unlock theve hicle and repeat the pro-
cedure. If thech arging cable connector is still
loc ked, contact a quali/ed specialist work-
shop. #
Close the soc ket co ver and the soc ket 0ap.
Combo 2 v
Combo 2 v ehicle socket
ehicle soc ket #
Press charging inter ruption button 2.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked.
% Ifyo u cannot remo vethech arging cable con-
nector, unlock theve hicle and repeat the pro-
cedure. If thech arging cable connector is still
loc ked, contact a quali/ed specialist work-
shop. #
Close the soc ket co ver and the soc ket 0ap.
% ATer thech arging cable connector has been
disconnected, the leT 0036 indicator lamp 1
on theve hicle soc ketre mains lit for some
time before switching o.. F
F
unction of t
unction of t he c
he charg
harg e lev
e lev el displa
el displa y in t
y in the Ins
he Instr tru-
u-
ment Display
ment Display 1
Current charge level
2 Time at which comple tely ch arged
3 Predicted charge leve l at pre-selected depar-
ture time
4 Current charging capacity
When theve hicle is connected tothe mains sup-
ply and is switched o., the Instrument Display
sho ws th ech arge leve l display for appr oximately
two minutes.
The value for cur rent charging capacity 4may
di.er from the display on thech arging station. At214 214
Driving and parking

a
ch arging capacity of 10 kW or highe r,th eva lue
in thech arge leve l display is rounded o. and
shown without a decimal place.
% The value in item 3varies depending on the
setting of thech arging process. It displ aysthe
ch arging prediction, e.g. the time at which the
selected charge leve l will be reached or the
ch arge leve l at the pre-selected departure
time. P P

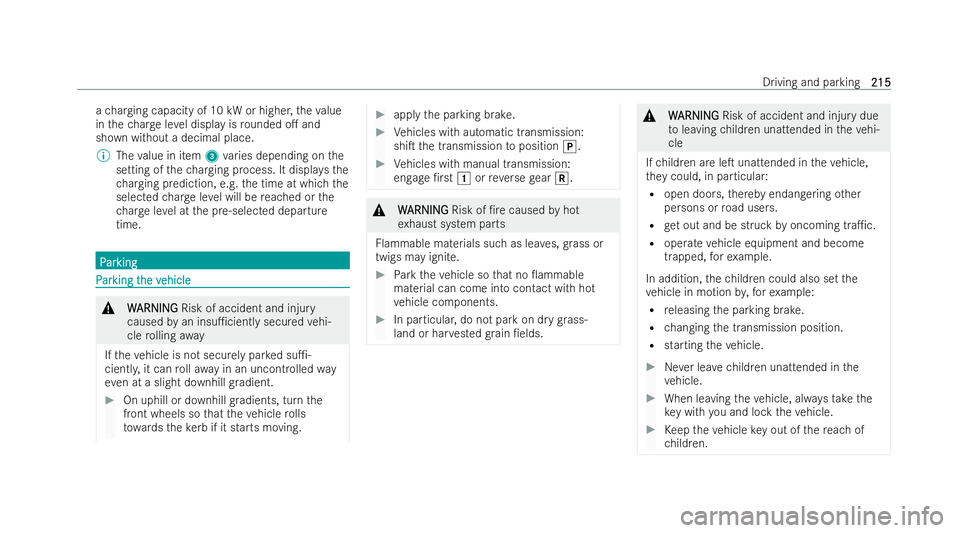

ar
ar king
king P
P
ar
ar king t
king t he v
he vehicle
ehicle &
W
W ARNING
ARNING Risk of accident and injury
caused byan insu1ciently secured vehi-
cle rolling away
If th eve hicle is not securely par ked su1-
cient ly,it can rollawa y in an uncontrolled way
eve n at a slight downhill gradient. #
On uphill or downhill gradients, turn the
front wheels so that theve hicle rolls
to wa rdsth eke rb if it starts moving. #
apply the parking brake. #
Vehicles with automatic transmission:
shiT the transmission toposition 005D. #
Vehicles with manual transmission:
engage /r st0047 orreve rsege ar 005E. &
W
WARNING
ARNING Risk of /re caused byhot
ex haust system parts
Flammable materials such as lea ves, grass or
twigs may ignite. #
Park theve hicle so that no 0ammable
material can come into contact with hot
ve hicle components. #
In particular, do not park on dry grass-
land or har vested grain /elds. &
W WARNING
ARNING Risk of accident and injury due
to leaving children unattended in theve hi-
cle
If ch ildren are leT unattended in theve hicle,
th ey could, in particular:
R open doors, thereby endangering other
persons or road users.
R get out and be struck byoncoming tra1c.
R operate vehicle equipment and become
trapped, forex ample.
In addition, thech ildren could also set the
ve hicle in motion by,fo rex ample:
R releasing the parking brake.
R changing the transmission position.
R starting theve hicle. #
Never lea vechildren unattended in the
ve hicle. #
When leaving theve hicle, alw aysta ke the
ke y with you and lock theve hicle. #
Keep theve hicle key out of there ach of
ch ildren. Driving and parking
215
215

*
N
NO
OTE

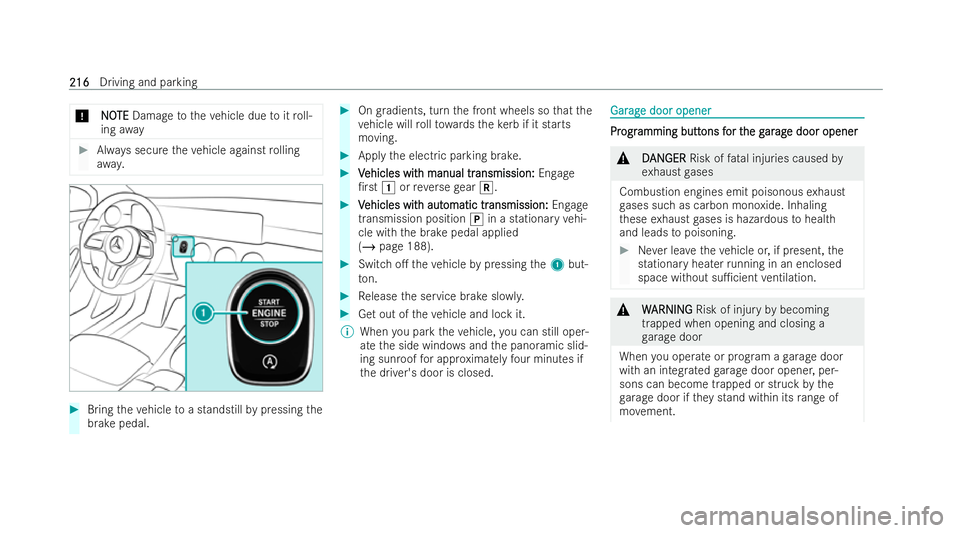

TE Damage totheve hicle due toitro ll-
ing away #
Always secure theve hicle against rolling
awa y. #
Bring theve hicle toa standstill bypressing the
brake pedal. #
Ongradients, turn the front wheels so that the
ve hicle will rollto wa rdsth eke rb if it starts
moving. #
Apply the electric parking brake. #
V
Vehicles wit
ehicles wit h manual tr
h manual tr ansmission:
ansmission: Engage
/rst 0047orreve rsege ar 005E. #
V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: Engage
transmission position 005Din a stationary vehi-
cle with the brake pedal applied
(/ page 188). #
Switch o. theve hicle bypressing the1 but-
to n. #
Release the service brake slo wly. #
Get out of theve hicle and lock it.
% When you park theve hicle, you can still oper-
ate the side windo wsand the panoramic slid-
ing sunroof for appr oximately four minutes if
th e driver's door is closed. Gar
Gar
ag
age door opener
e door opener Pr
Pr
ogr
ogr amming butt
amming butt ons f
ons for t
or the g
he g ar
arag
ag e door opener
e door opener &
D
DAN
AN GER
GER Risk of fatal injuries caused by
ex haust gases
Combustion engines emit poisonous exhaust
ga ses such as carbon monoxide. Inhaling
th ese exhaust gases is hazardous tohealth
and leads topoisoning. #
Never lea vetheve hicle or, if present, the
stationa ryheater running in an enclosed
space without su1cient ventilation. &
W
WARNI NG
ARNI NGRisk of injury bybecoming
trapped when opening and closing a
ga rage door
When you operate or prog ram a garage door
with an integ ratedga rage door opener, per-
sons can become trapped or struck bythe
ga rage door if they stand wi thin its range of
mo vement. 216 216
Driving and parking

#
Always make sure that nobody is within
th era nge of thega rage door's mo ve-
ment. Before prog
ramming thega rage door opener, park
th eve hicle outside thega rage . Make sure that the
ve hicle is switched on but not star ted.
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been par ked outside the
gar age or outside thera nge of mo vement of
th e door.
R The vehicle is switched on.
R The vehicle has not been star ted.
% The garage door opener function is alw ays
av ailable when theve hicle is switched on. #
Press and hold but ton1, 2or3 that you
wish toprog ram.
Indicator lamp 40ashes yello w.
% It can take up to20 seconds before the indi-
cator lamp 0ashes yello w. #
Release the pr eviously pressed button.
Indicator lamp 4continues to0ash yello w. #
Point remo tecont rol5 from a distance of
1 cm to8 cm towa rds button 1,2or3. #
Press and hold button 6ofremo tecont rol
5 until one of thefo llowing signals appears:
R Indicator lamp 4lights up green continu-
ousl y.Prog ramming is comple te.
R Indicator lamp 40ashes green. Prog ram-
ming was successful. Additionall y,syn-
ch ronisation of thero lling code with the
door system must be car ried out. #
If indicator lamp 4does not light up or 0ash
gr een: repeat the procedure. #
Release all of the buttons.
% The remo tecont rolfo rth e door drive is not
included in the scope of delivery of thega rage
door opener.
Sync
Sync hr
hronising t
onising t he r
he rolling code
olling code
R
R eq
eq uir
uir ements:
ements:
R The door system uses a rolling code.
R The vehicle must be within range of thega rage
door or door drive. Driving and parking
217
217
