fuse MERCEDES-BENZ C-CLASS 2002 Owners Manual

4
Contents
LIGHTING SYSTEM .................... 300
LIGHT SENSOR........................... 302
DOOR............................................ 302
TRUNK OPEN ............................. 303
HOOD ........................................... 303
TELEPHONE – FUNCTION........ 304
TELE AID ..................................... 304
WASHER FLUID.......................... 305
RESTRAINT SYSTEM ................. 306
KEY ............................................... 306
FUEL RESERVE .......................... 307
UNDERVOLTAGE ........................ 307
STEERING WHEEL ADJUST. ..... 308
Practical hintsFirst aid kit...................................... 310
Stowing things in the vehicle ...... 311
Fuses ................................................ 311
Hood ................................................. 315
Automatic transmission fluid level ................................... 317
Adding engine oil........................... 318
Coolant level ................................... 319 Adding coolant ............................ 319
Windshield and headlamp washer system .......................... 320
Spare wheel, storage compartment ............................. 321
Vehicle tools and air pump .......... 322
Vehicle jack .................................... 323
Wheels ............................................ 324 Tire replacement........................ 324
Rotating wheels ......................... 325
Spare wheel .................................... 326
Changing wheels ........................... 327 Inflating the collapsible
spare tire ..................................... 333
Storing spare wheel in
wheel well ................................... 334
Tire inflation pressure ................. 335
Battery............................................. 336
Jump starting.................................. 338
Towing the vehicle ........................ 341 Transmission selector lever,
manually unlocking .................. 344
Exterior lamps ............................... 345 Replacing bulbs ......................... 345 Changing batteries in the
electronic main key .................. 351
Synchronizing remote
control .......................................... 353
Emergency engine shut-down ..... 353
Fuel filler flap, manual release ... 354
Replacing wiper blade insert ....... 356
Roof rack ......................................... 357
Vehicle careCleaning and care of the vehicle.................................. 360
Power washer.............................. 361
Tar stains ..................................... 361
Paintwork, painted body
components ................................. 361
Engine cleaning.......................... 362
Vehicle washing ......................... 362
Ornamental moldings................ 363
Headlamps, taillamps,
turn signal lenses ...................... 363
Window cleaning........................ 363
Wiper blade ................................. 363
ProCarManuals.com

280
Check regularly and before a long trip
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index
Check regularly and before a long trip 1 Windshield washer and
headlamp cleaning system
For refilling reservoir see page 320.
2 Coolant level,
see “Coolant level” on page 319
3 Brake fluid, (fuse box cover removed),
see “Brake fluid” on page 379
Opening hood, see page 315.
Removing fuse box cover, see page 312.
Ve h i c l e l i g h t i n g : Check function and cleanliness. For
replacement of light bulbs, see “Exterior lamps” on
page 345.
Exterior lamp switch, see page 143.
P01.00-2213-26
ProCarManuals.com

309
Contents - Practical hints
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Practical hintsFirst aid kit...................................... 310
Stowing things in the vehicle ...... 311
Fuses ................................................ 311
Hood ................................................. 315
Automatic transmission
fluid level ................................... 317
Adding engine oil........................... 318
Coolant level ................................... 319 Adding coolant............................ 319
Windshield and headlamp washer system ........................... 320
Spare wheel, storage compartment.............................. 321 Vehicle tools and air pump .......... 322
Vehicle jack .................................... 323
Wheels ............................................ 324
Tire replacement........................ 324
Rotating wheels ......................... 325
Spare wheel .................................... 326
Changing wheels ........................... 327
Inflating the collapsible
spare tire ..................................... 333
Storing spare wheel in
wheel well ................................... 334
Tire inflation pressure ................. 335
Battery............................................. 336
Jump starting.................................. 338 Towing the vehicle......................... 341
Transmission selector lever,
manually unlocking ................... 344
Exterior lamps ................................ 345
Replacing bulbs .......................... 345
Changing batteries in the electronic main key .................. 351
Synchronizing remote
control .......................................... 353
Emergency engine shut-down ..... 353
Fuel filler flap, manual release ... 354
Replacing wiper blade insert ....... 356
Roof rack ......................................... 357
ProCarManuals.com

311
Fuses
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Stowing things in the vehicle Fuses
Most of your vehicle’s electrical components are fused
with safety fuses. With the exception of the brake lights,
all individual lighting system components are
electronically fused. Before replacing a blown safety
fuse, determine the cause of the short circuit. Always
observe amperage and color of fuse.
The circuit for components is protected by a cycled
circuit breaker interrupted if too much current is being
drawn. The circuit closes automatically after a short
time; the circuit is broken again if the malfunction
reoccurs.
Always use a new fuse for replacement. Never attempt to
repair or bridge a blown fuse.
A fuse chart is located in fuse box (1).
A special fuse puller is located in the auxiliary fuse box
in the trunk, see page 314.
Wa r n i n g !
To help avoid personal injury during a collision or
sudden maneuver, exercise care when stowing
things. Put luggage or cargo in the trunk if
possible. Do not pile luggage or cargo higher than
the seat backs. Do not place anything on the shelf
below the rear window.
ProCarManuals.com

312
Fuses
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Fuse box in the passenger compartment
1 Fuse box in passenger compartment
To gain access to fuse box, pull cover away from fuse
box (arrow) and remove rearward. Fuse box in engine compartment
2 Cover
3 Screw
4 Retainer
To remove cover:
Twist screws (3) 90
0 counterclockwise. Pull up cover (2),
slide out retainer (4) and remove it by pulling cover
towards front.
Install in reverse order.
P54.15-2281-26
ProCarManuals.com

313
Fuses
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
5

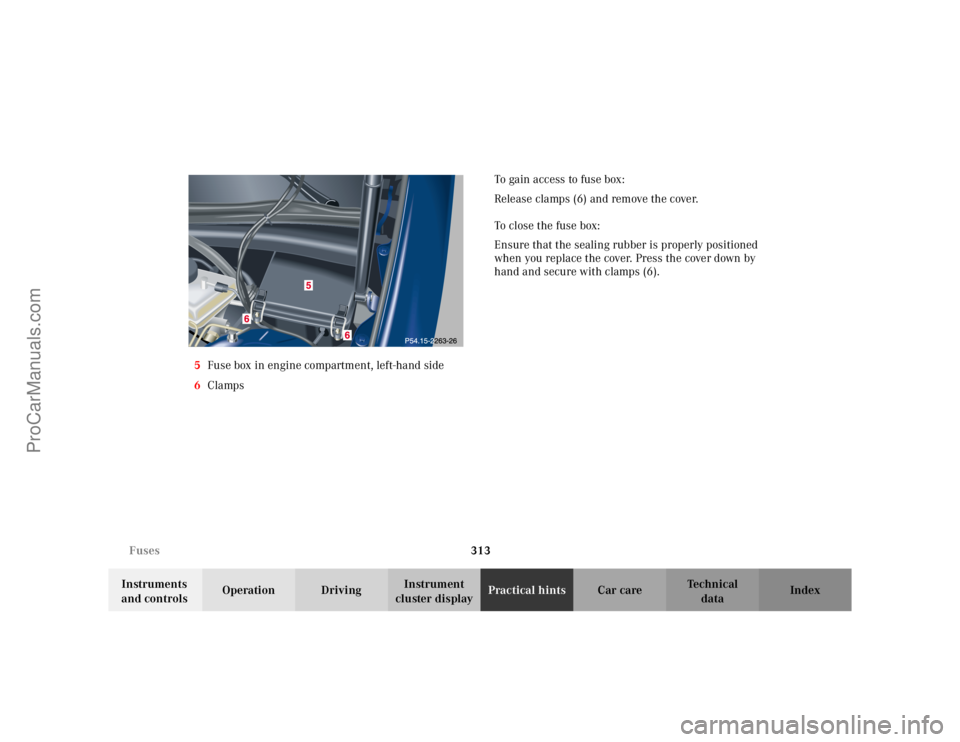

Fuse box in engine compartment, left-hand side
6 Clamps To gain access to fuse box:
Release clamps (6) and remove the cover.
To close the fuse box:
Ensure that the sealing rubber is properly positioned
when you replace the cover. Press the cover down by
hand and secure with clamps (6).
ProCarManuals.com

314
Fuses
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index

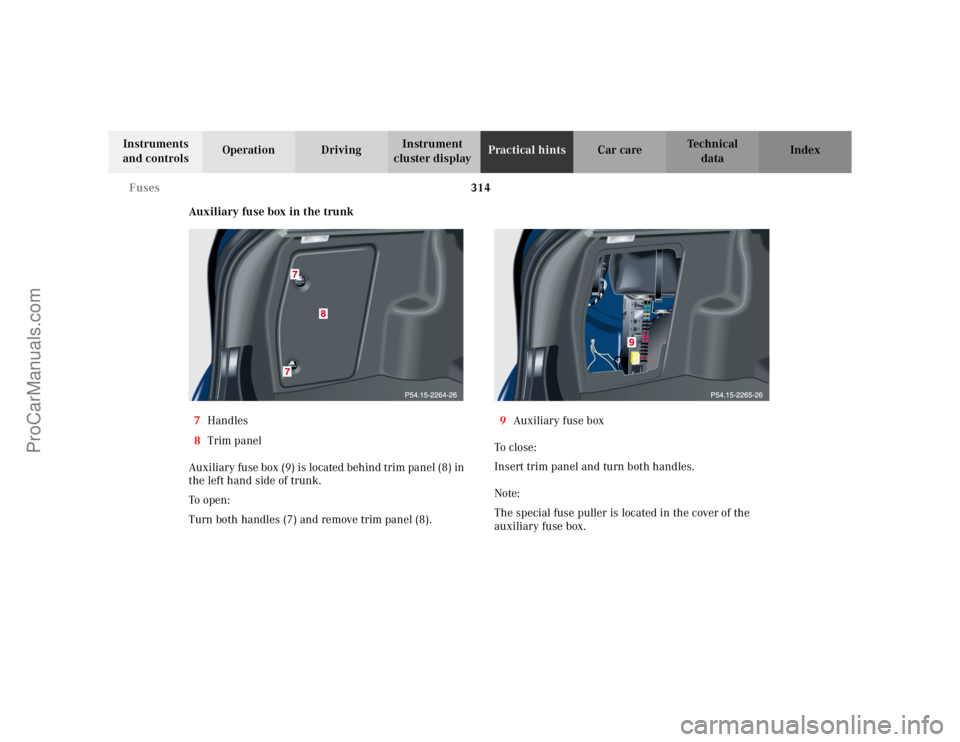

Auxiliary fuse box in the trunk
7 Handles
8 Trim panel
Auxiliary fuse box (9) is located behind trim panel (8) in
the left hand side of trunk.
To o pen :
Turn both handles (7) and remove trim panel (8). 9
Auxiliary fuse box
To c l o s e :
Insert trim panel and turn both handles.
Note:
The special fuse puller is located in the cover of the
auxiliary fuse box.
ProCarManuals.com

353
Emergency engine shut-down
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Important!
Batteries contain materials that can harm the
environment if disposed of improperly. Recycling of
batteries is the preferred method of disposal. For
disposal, please follow manufacturer’s recommendation
on battery package.
Replacement Battery:
Lithium, type CR 2025 or equivalent.
Synchronizing remote control
The remote control may have to be resynchronized, if
the vehicle cannot be locked or unlocked.
To synchronize insert electronic key in starter switch.
The remote control should once again be operational.
Emergency engine shut-down
If the engine can no longer be stopped using the
electronic key, the engine can be turned off by removing
two fuses.
For easy removal of fuses use the fuse puller (located in
the auxiliary fuse box in the trunk) to pull out the fuses
marked on the fuse chart as “ENGINE EMERGENCY
OFF”.
The fuse chart is located in the fuse box in the
passenger compartment.
For fuses see page 311.
ProCarManuals.com

362
Cleaning and care of the vehicle
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Engine cleaning
Prior to cleaning the engine compartment make sure to
protect electrical components and connectors from the
intrusion of water and cleaning agents.
Corrosion protection, such as MB Anticorrosion Wax
should be applied to the engine compartment after
every engine cleaning. Before applying, all control
linkage bushings and joints should be lubricated. The
poly-V-belt and all pulleys should be protected from any
wax. Ve h i c l e w a s h i n g
Do not use hot water or wash your vehicle in direct
sunlight. Use only a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo.
Thoroughly spray the vehicle with a diffused jet of
water. Direct only a very weak spray towards the
ventilation intake. Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clear water and thoroughly wipe dry with a
chamois. Do not allow cleaning agents to dry on the
finish.
Due to the width of the vehicle, prior to running the
vehicle through an automatic car wash, fold back the
outside mirrors to prevent them from getting damaged.
In the winter, thoroughly remove all traces of road salt
as soon as possible.
When washing the underbody, do not forget to clean the
inner sides of the wheels.
ProCarManuals.com

388
Index
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Front airbags .................................................................... 72
Front center console storage compartment ventilation .................................................................. 171
Front seat adjustment ..................................................... 48
Front seat backrest - locking and unlocking ............... 56
Fuel filler flap, manual release ................................... 354
Fuel reserve warning .................................................... 286
Fuse box .......................................................................... 311
Fuses ................................................................................ 311
GGarage door opener ....................................................... 221
Global locking
See Central locking system ....................................... 31
Glove box ......................................................................... 207HHazard warning flasher switch ................................... 151
Head restraint height ...................................................... 61
Head restraints Rear seat ....................................................................... 60
Head restraints, front seats Removal and installation ........................................... 54 Headlamp cleaning system........................................... 147
Headlamp mode (HEADLAMPS) .................................. 144
Heated seats ...................................................................... 58
High beams
See Combination switch........................................... 148
IIdentification labels ...................................................... 369
Indicator lamps in the instrument cluster .......... 98, 282
Individual settings ......................................................... 121"CONVENIENCE" (vehicles with memory function) ...................... 134
"INSTRUMENT CLUSTER"....................................... 124
"LIGHTING"................................................................ 128
"VEHICLE" (audio and central locking system) ... 132
Infant and child restraint systems ................................ 82 Child seat mounts - LATCH type............................... 85
Installation ................................................................... 84
Inflating the collapsible spare tire ............................. 333
Information call See Tele Aid............................................................... 228
Instrument cluster ........................................................... 96 Indicator lamps............................................................ 98
Instruments and controls ............................................... 18
ProCarManuals.com
