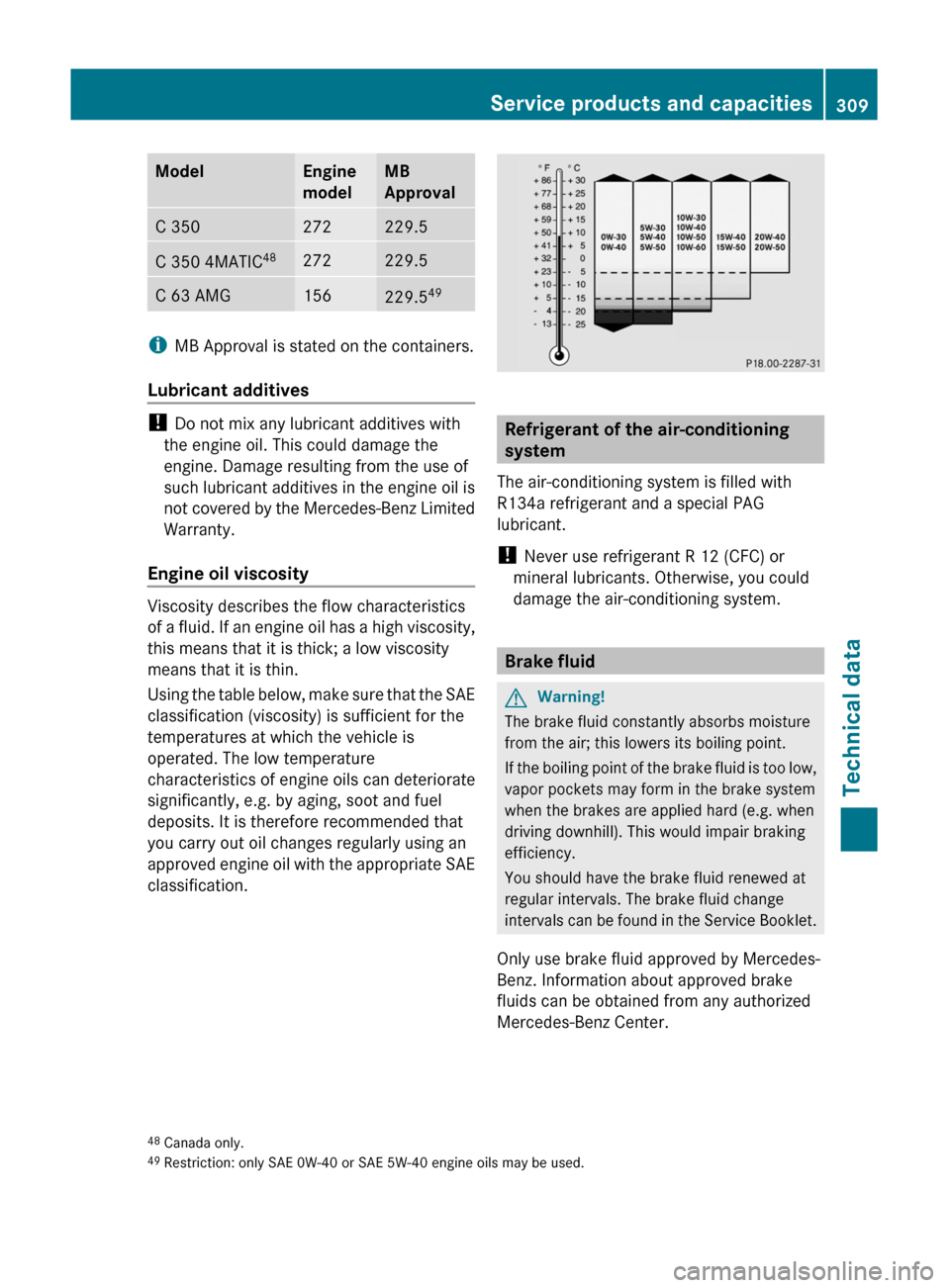

MERCEDES-BENZ C-Class 2011 W204 Owner's Manual

ModelEngine
modelMB
ApprovalC 350272229.5C 350 4MATIC 48272229.5C 63 AMG156229.549
i
MB Approval is stated on the containers.
Lubricant additives
! Do not mix any lubricant additives with
the engine oil. This could damage the
engine. Damage resulting from the use of
such lubricant additives in the engine oil is
not covered by the Mercedes-Benz Limited
Warranty.
Engine oil viscosity
Viscosity describes the flow characteristics
of a fluid. If an engine oil has a high viscosity,
this means that it is thick; a low viscosity
means that it is thin.
Using the table below, make sure that the SAE
classification (viscosity) is sufficient for the
temperatures at which the vehicle is
operated. The low temperature
characteristics of engine oils can deteriorate
significantly, e.g. by aging, soot and fuel
deposits. It is therefore recommended that
you carry out oil changes regularly using an
approved engine oil with the appropriate SAE
classification.
Refrigerant of the air-conditioning
system
The air-conditioning system is filled with
R134a refrigerant and a special PAG
lubricant.
! Never use refrigerant R 12 (CFC) or
mineral lubricants. Otherwise, you could
damage the air-conditioning system.
Brake fluid
GWarning!
The brake fluid constantly absorbs moisture
from the air; this lowers its boiling point.
If the boiling point of the brake fluid is too low,
vapor pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). This would impair braking
efficiency.
You should have the brake fluid renewed at
regular intervals. The brake fluid change
intervals can be found in the Service Booklet.
Only use brake fluid approved by Mercedes-
Benz. Information about approved brake
fluids can be obtained from any authorized
Mercedes-Benz Center.
48 Canada only.
49 Restriction: only SAE 0W-40 or SAE 5W-40 engine oils may be used.Service products and capacities309Technical dataBA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 309Z

Coolant
Important safety notes
The coolant is a mixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
R anti-corrosion protection
R antifreeze protection
R raising the boiling point
The cooling system is filled with coolant at the
factory which contains antifreeze/corrosion
inhibitor that ensures protection down to
approximately -35 ‡ (-37 †).
! Only add coolant that has been premixed
with the desired antifreeze protection. You
could otherwise damage the engine.
Further information on coolants and on
filling can be found in the Mercedes-Benz
Specifications for Service Products, MB
Approval 310.1, e.g. on the Internet at
http://bevo.mercedes-benz.com . You
can also consult an authorized Mercedes-
Benz Center.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the cooling system will not be
sufficiently protected from corrosion, and
the boiling point will be too low.
If the coolant has antifreeze protection down
to -35 ‡ (-37 †), the boiling point of the
coolant in the pressurized system is
approximately 266 ‡ (130 †).
Your vehicle has a range of aluminum
components. Use of aluminum components
in the engine make it necessary to specifically
match the antifreeze/corrosion inhibitor in
these systems in order to protect the
aluminum parts. Using other antifreeze/
corrosion inhibitors without these
characteristics affects the service life.
The coolant must be used throughout the year
in order to maintain the necessary corrosion
protection and provide protection from
overheating. In the Service Booklet, you can
find information on the intervals for renewal.
The renewal interval is determined by the
coolant type and the cooling system design.
The renewal interval in the Service Booklet is
only valid if the coolant is added or renewed
with Mercedes-Benz approved products.
Therefore, only use MB 326.0 antifreeze/
corrosion inhibitor or another Mercedes-Benz
approved product of the same specification.
Information on other Mercedes-Benz
approved products of the same specification
can be obtained at any authorized Mercedes-
Benz Center or on the Internet at
http://bevo.mercedes-benz.com .
The coolant is checked at every service date
at an authorized Mercedes-Benz Center.
The antifreeze/corrosion inhibitor
concentration in the cooling system should:
R be at least 50%. This will protect the cooling
system against freezing down to around
-35 ‡ (-37 †).
R not exceed 55% (antifreeze protection
down to -49 ‡ (-45 †); otherwise, heat will
not be dissipated as effectively.
If the coolant level is too low, MB 326.0
antifreeze/corrosion inhibitor should be
added. Have the cooling system checked for
leaks.
Windshield and headlamp cleaning
system
GWarning
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze on hot engine parts, because it may
ignite and burn. You could be seriously
burned.
XUse MB Windshield Washer Concentrate
MB SummerFit.XAt temperatures above freezing: add 1
part MB SummerFit to 100 parts water, e.g.310Service products and capacitiesTechnical data
BA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 310

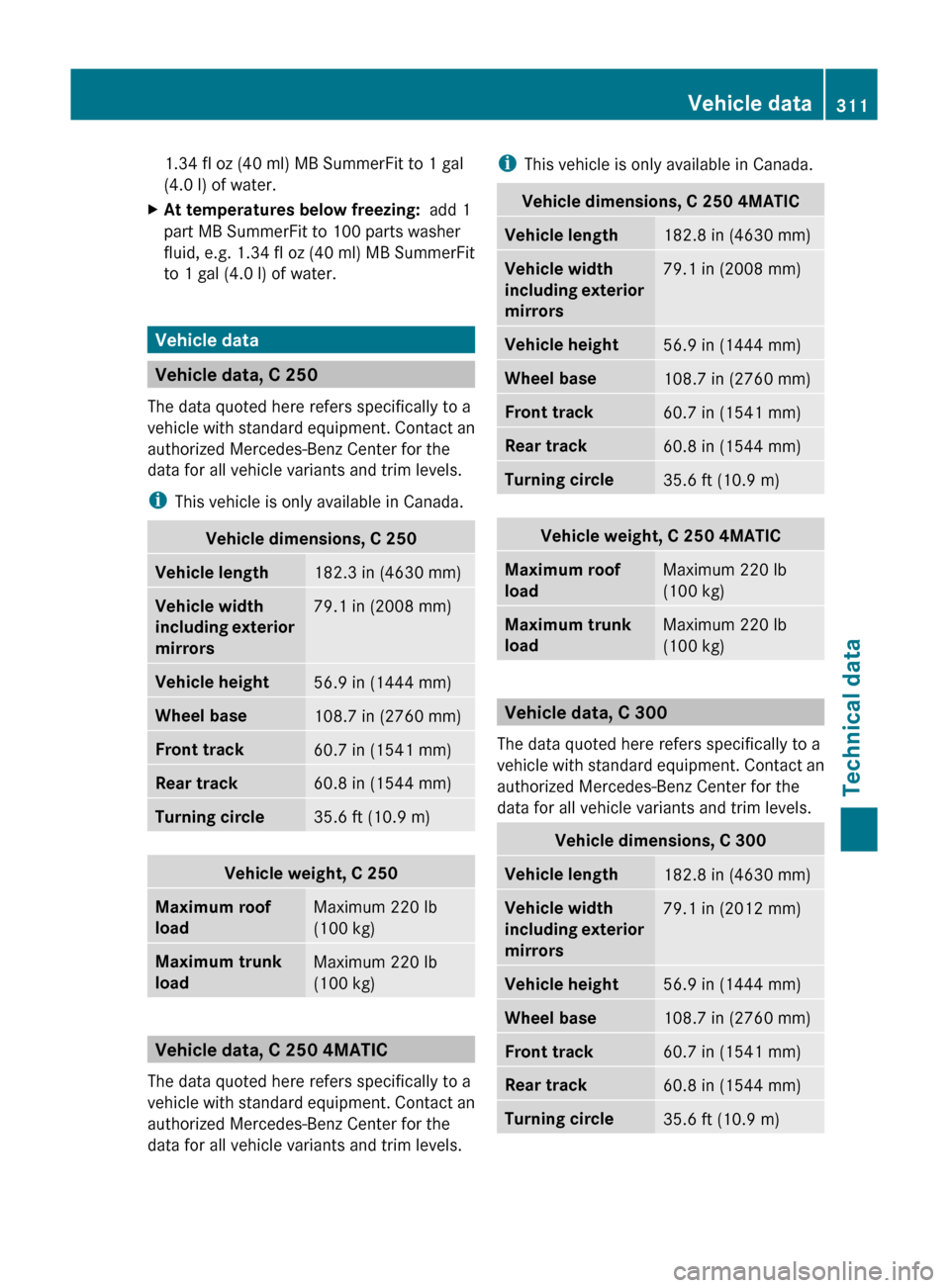

1.34 fl oz (40 ml) MB SummerFit to 1 gal
(4.0 l) of water.XAt temperatures below freezing: add 1
part MB SummerFit to 100 parts washer
fluid, e.g. 1.34 fl oz (40 ml) MB SummerFit
to 1 gal (4.0 l) of water.
Vehicle data
Vehicle data, C 250
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
i This vehicle is only available in Canada.
Vehicle dimensions, C 250Vehicle length182.3 in (4630 mm)Vehicle width
including exterior
mirrors79.1 in (2008 mm)Vehicle height56.9 in (1444 mm)Wheel base108.7 in (2760 mm)Front track60.7 in (1541 mm)Rear track60.8 in (1544 mm)Turning circle35.6 ft (10.9 m)Vehicle weight, C 250Maximum roof
loadMaximum 220 lb
(100 kg)Maximum trunk
loadMaximum 220 lb
(100 kg)
Vehicle data, C 250 4MATIC
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
i This vehicle is only available in Canada.Vehicle dimensions, C 250 4MATICVehicle length182.8 in (4630 mm)Vehicle width
including exterior
mirrors79.1 in (2008 mm)Vehicle height56.9 in (1444 mm)Wheel base108.7 in (2760 mm)Front track60.7 in (1541 mm)Rear track60.8 in (1544 mm)Turning circle35.6 ft (10.9 m)Vehicle weight, C 250 4MATICMaximum roof
loadMaximum 220 lb
(100 kg)Maximum trunk
loadMaximum 220 lb
(100 kg)
Vehicle data, C 300
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle dimensions, C 300Vehicle length182.8 in (4630 mm)Vehicle width
including exterior
mirrors79.1 in (2012 mm)Vehicle height56.9 in (1444 mm)Wheel base108.7 in (2760 mm)Front track60.7 in (1541 mm)Rear track60.8 in (1544 mm)Turning circle35.6 ft (10.9 m)Vehicle data311Technical dataBA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 311Z

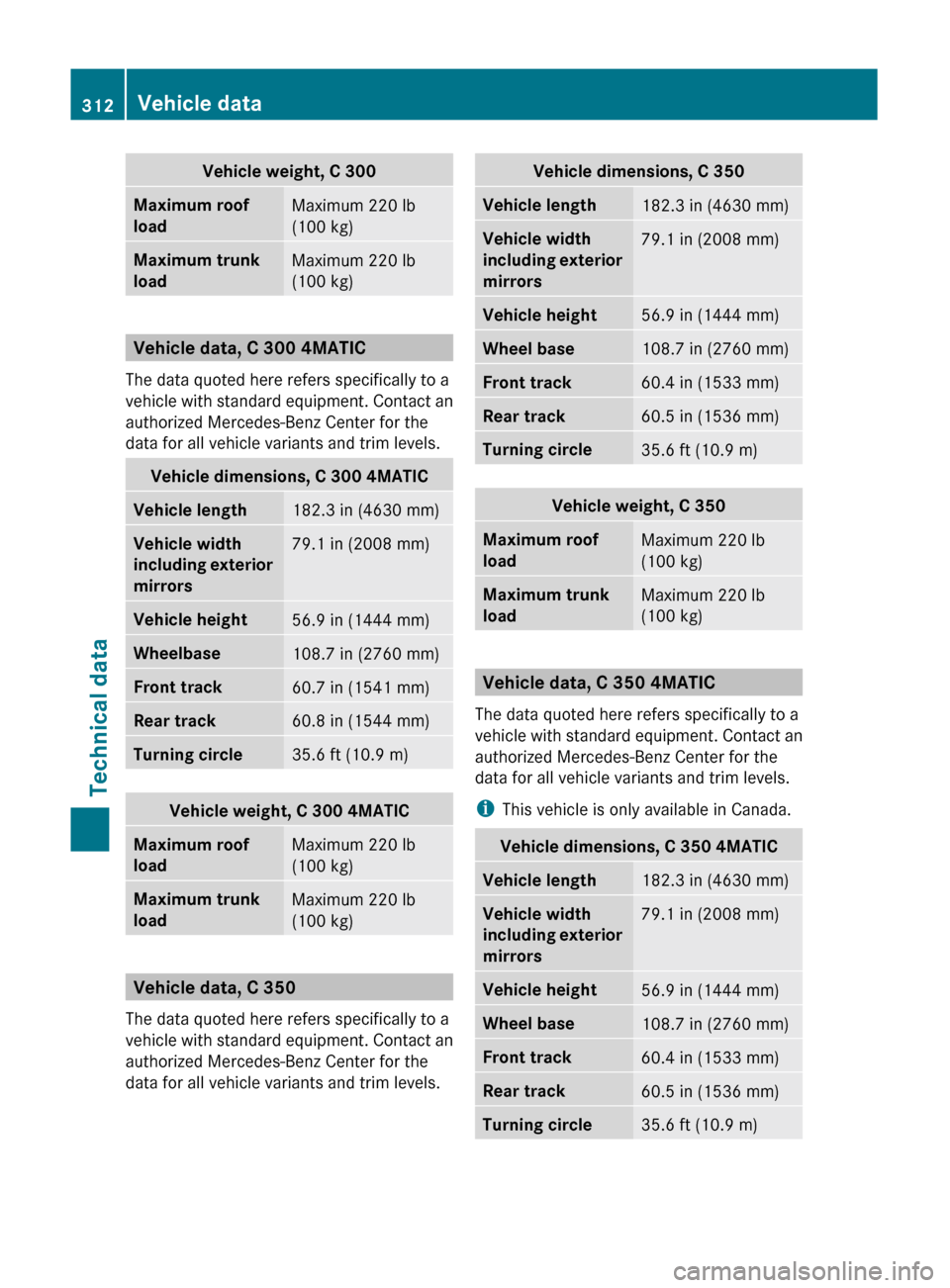

Vehicle weight, C 300Maximum roof
loadMaximum 220 lb
(100 kg)Maximum trunk
loadMaximum 220 lb
(100 kg)
Vehicle data, C 300 4MATIC
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle dimensions, C 300 4MATICVehicle length182.3 in (4630 mm)Vehicle width
including exterior
mirrors79.1 in (2008 mm)Vehicle height56.9 in (1444 mm)Wheelbase108.7 in (2760 mm)Front track60.7 in (1541 mm)Rear track60.8 in (1544 mm)Turning circle35.6 ft (10.9 m)Vehicle weight, C 300 4MATICMaximum roof
loadMaximum 220 lb
(100 kg)Maximum trunk
loadMaximum 220 lb
(100 kg)
Vehicle data, C 350
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle dimensions, C 350Vehicle length182.3 in (4630 mm)Vehicle width
including exterior
mirrors79.1 in (2008 mm)Vehicle height56.9 in (1444 mm)Wheel base108.7 in (2760 mm)Front track60.4 in (1533 mm)Rear track60.5 in (1536 mm)Turning circle35.6 ft (10.9 m)Vehicle weight, C 350Maximum roof
loadMaximum 220 lb
(100 kg)Maximum trunk
loadMaximum 220 lb
(100 kg)
Vehicle data, C 350 4MATIC
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
i This vehicle is only available in Canada.
Vehicle dimensions, C 350 4MATICVehicle length182.3 in (4630 mm)Vehicle width
including exterior
mirrors79.1 in (2008 mm)Vehicle height56.9 in (1444 mm)Wheel base108.7 in (2760 mm)Front track60.4 in (1533 mm)Rear track60.5 in (1536 mm)Turning circle35.6 ft (10.9 m)312Vehicle dataTechnical data
BA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 312

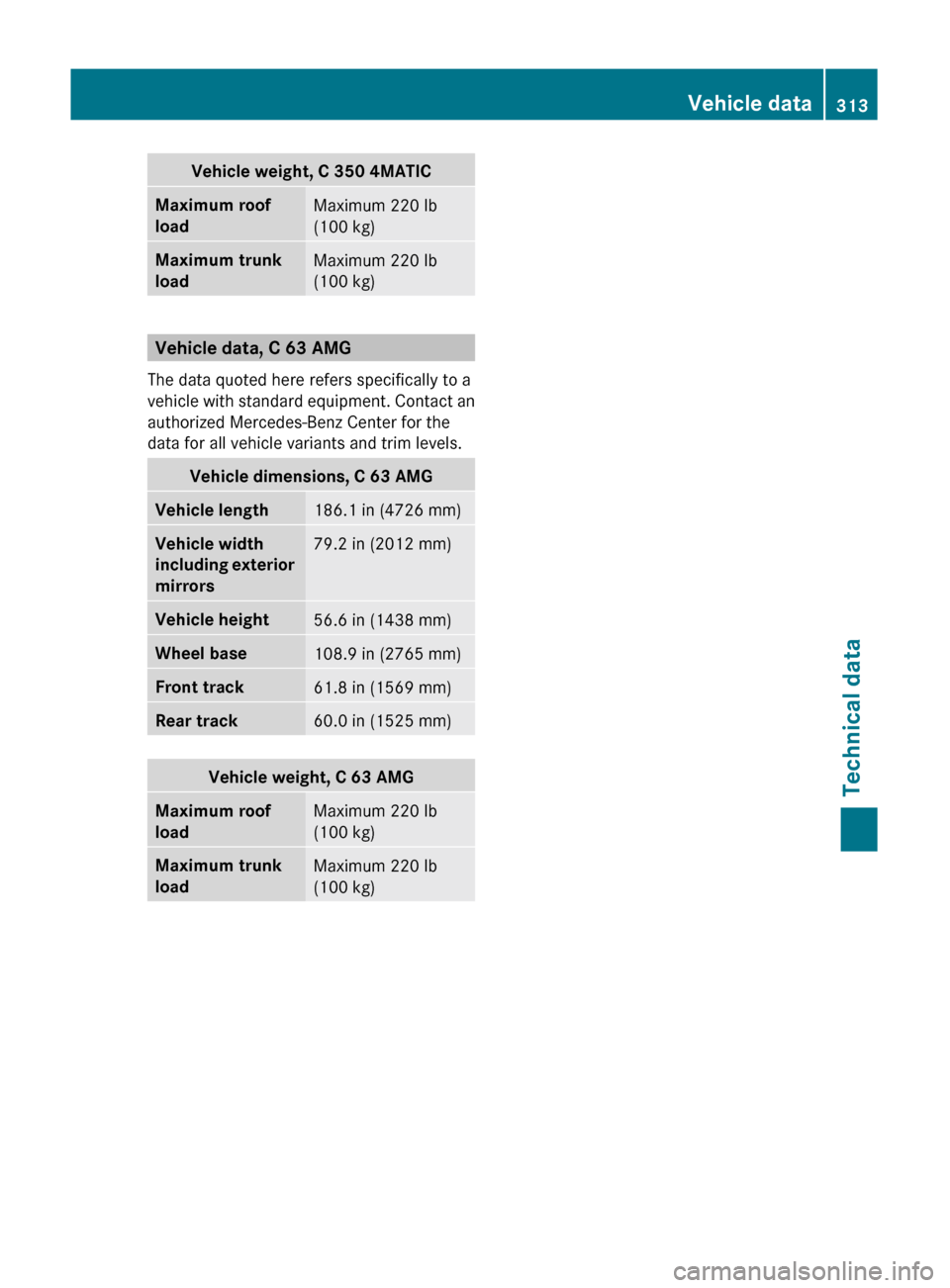

Vehicle weight, C 350 4MATICMaximum roof
loadMaximum 220 lb
(100 kg)Maximum trunk
loadMaximum 220 lb
(100 kg)
Vehicle data, C 63 AMG
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle dimensions, C 63 AMGVehicle length186.1 in (4726 mm)Vehicle width
including exterior
mirrors79.2 in (2012 mm)Vehicle height56.6 in (1438 mm)Wheel base108.9 in (2765 mm)Front track61.8 in (1569 mm)Rear track60.0 in (1525 mm)Vehicle weight, C 63 AMGMaximum roof
loadMaximum 220 lb
(100 kg)Maximum trunk
loadMaximum 220 lb
(100 kg)Vehicle data313Technical dataBA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 313Z

314BA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 314

315BA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 315

316BA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 316

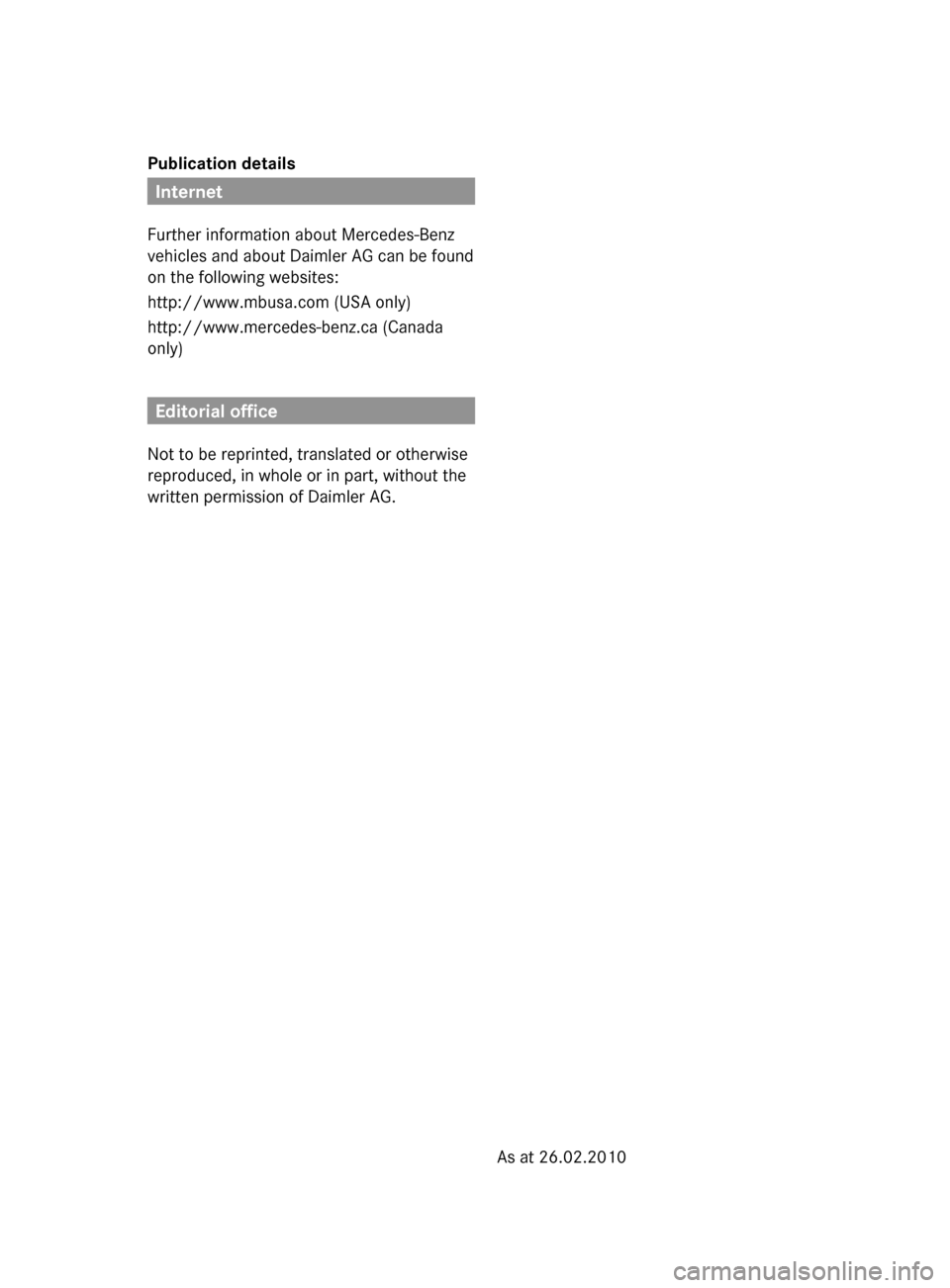

Publication details
Internet
Further information about Mercedes-Benz
vehicles and about Daimler AG can be found
on the following websites:
http://www.mbusa.com (USA only)
http://www.mercedes-benz.ca (Canada
only)
Editorial office
Not to be reprinted, translated or otherwise
reproduced, in whole or in part, without the
written permission of Daimler AG.
As at 26.02.2010BA 204 USA, CA Edition A 2011; 1; 5, en-UShereepeVersion: 3.0.3.62010-05-20T09:17:30+02:00 - Seite 317
