fuse box MERCEDES-BENZ C CLASS COUPE 2003 Owners Manual

ContentsTires and wheels ................................ 233Important guidelines .................... 233
Life of tire ..................................... 234
Direction of rotation ..................... 234
Checking tire inflation pressure ... 234
Rotating wheels ............................ 235
Winter driving..................................... 236 Winter tires ................................... 236
Block heater (Canada only) .......... 237
Snow chains ................................. 237
Maintenance ...................................... 238 Clearing the service indicator....... 238
Service term exceeded ................. 238
Calling up the service indicator .... 239
Resetting the service indicator ..... 239
Vehicle care ....................................... 240 Cleaning and care of vehicle ........ 240
Practical hints .................................. 245
What to do if … .................................. 246 Lamps in instrument cluster ......... 246
Lamp in center console ................ 251
Messages in the display ............... 252
Where will I find ... ............................. 271 First aid kit ................................... 271
Spare wheel ................................. 271
Vehicle tool kit ............................. 272
Unlocking/locking in an emergency .. 274 Unlocking the vehicle ................... 274
Locking the vehicle ...................... 275
Changing batteries ....................... 276
Fuel filler flap ............................... 277
Manually unlocking the
transmission selector lever .......... 277
Opening/closing in an emergency ..... 278 Panorama sliding/pop-up roof ..... 278
Replacing bulbs ................................. 280 Bulbs ............................................ 280
Replacing bulbs for front lamps ... 282
Side marker lamp bulb ................. 285
Replacing bulbs for rear lamps ..... 285 Replacing wiper blades ...................... 287
Removing ..................................... 287
Installing ...................................... 287
Flat tire .............................................. 288 Preparing the vehicle ................... 288
Mounting the spare wheel ............ 288
Battery ............................................... 294 Disconnecting the battery ............ 295
Removing the batteries ................ 295
Charging and reinstalling
batteries ...................................... 295
Reconnecting the batteries .......... 295
Jump starting ..................................... 297
Towing the vehicle ............................. 299 Installing towing eye bolt ............. 302
Fuses ................................................. 303 Fuse box in passenger
compartment ............................... 303
Fuse box in engine compartment . 303
Auxiliary fuse box in trunk ............ 304

225
Operation
At the gas station
Check regularly and before a long trip
1 Coolant level
More information on the coolant level
can be found in the “Operation” section
(
page 229).
2 Brake fluid (fuse box cover removed)
More information on brake fluid can be
found in the “Technical data” section
(page 317).
Removing fuse box cover see page
(page 303).
3 Windshield washer and headlamp
cleaning system
For more information on refilling the
reservoir, see the “Operation” section
(page 232). Engine oil level
More information on engine oil can be
found in the “Operation” section
(
page 227).
Opening hood see (
page 226).
Coolant
For normal replenishing, use water (pota-
ble water quality). More information on
coolant can be found in the“Operation”
section (
page 229).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
the “Practical hints” section (
page 280).
Exterior lamp switch (
page 96).
Tire inflation pressure
More information on tire inflation pressure
can be found in the “Operation” section
(
page 234).
iUse only premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
More information can be found in the
“Practical hints” section (
page 250).

303
Practical hintsFuses
Fuses

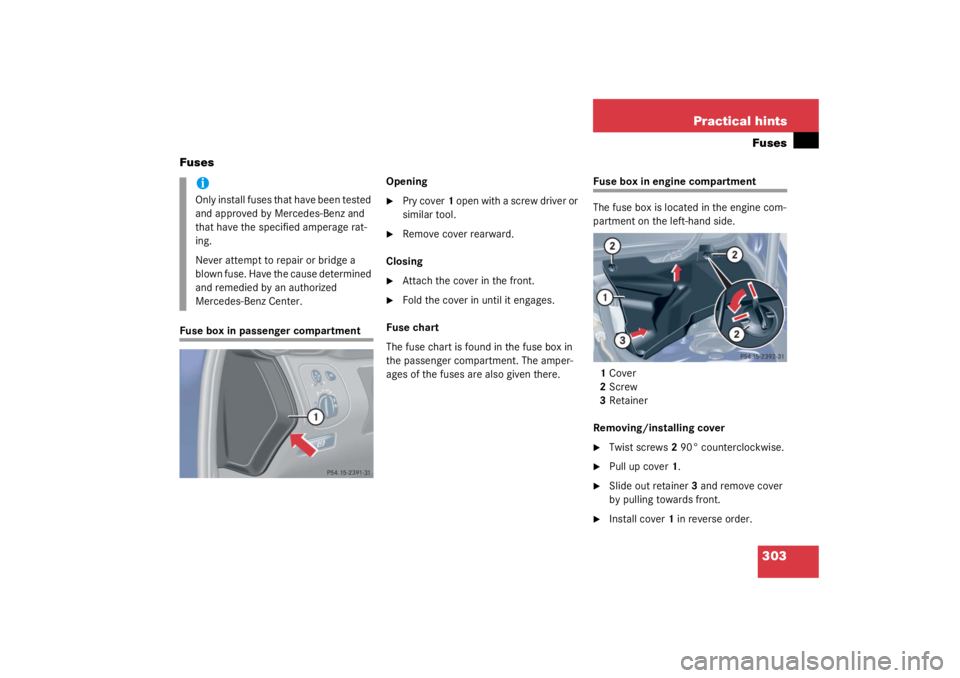

Fuse box in passenger compartment Opening

Pry cover
1 open with a screw driver or
similar tool.

Remove cover rearward.
Closing

Attach the cover in the front.

Fold the cover in until it engages.
Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the left-hand side.
1 Cover
2 Screw
3 Retainer
Removing/installing cover
Twist screws 2 90° counterclockwise.

Pull up cover 1.

Slide out retainer 3 and remove cover
by pulling towards front.

Install cover 1 in reverse order.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.

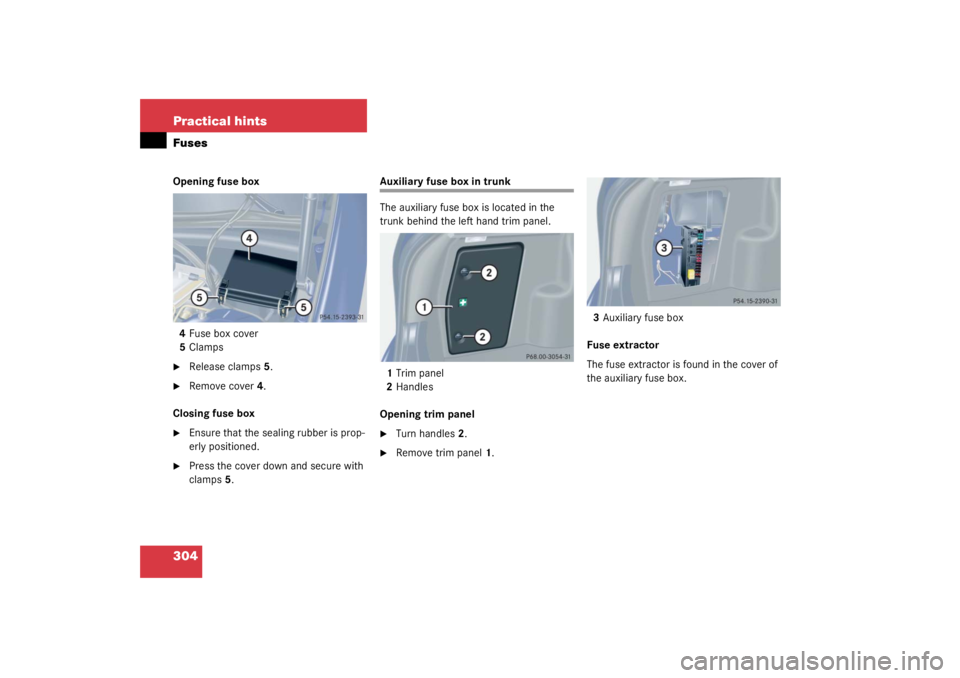

304 Practical hintsFusesOpening fuse box4 Fuse box cover
5 Clamps
Release clamps 5.

Remove cover 4.
Closing fuse box

Ensure that the sealing rubber is prop-
erly positioned.

Press the cover down and secure with
clamps 5.
Auxiliary fuse box in trunk
The auxiliary fuse box is located in the
trunk behind the left hand trim panel.
1 Trim panel
2 Handles
Opening trim panel
Turn handles 2.

Remove trim panel 1. 3
Auxiliary fuse box
Fuse extractor
The fuse extractor is found in the cover of
the auxiliary fuse box.
