heater MERCEDES-BENZ C CLASS COUPE 2003 Owners Manual

ContentsTires and wheels ................................ 233Important guidelines .................... 233
Life of tire ..................................... 234
Direction of rotation ..................... 234
Checking tire inflation pressure ... 234
Rotating wheels ............................ 235
Winter driving..................................... 236 Winter tires ................................... 236
Block heater (Canada only) .......... 237
Snow chains ................................. 237
Maintenance ...................................... 238 Clearing the service indicator....... 238
Service term exceeded ................. 238
Calling up the service indicator .... 239
Resetting the service indicator ..... 239
Vehicle care ....................................... 240 Cleaning and care of vehicle ........ 240
Practical hints .................................. 245
What to do if … .................................. 246 Lamps in instrument cluster ......... 246
Lamp in center console ................ 251
Messages in the display ............... 252
Where will I find ... ............................. 271 First aid kit ................................... 271
Spare wheel ................................. 271
Vehicle tool kit ............................. 272
Unlocking/locking in an emergency .. 274 Unlocking the vehicle ................... 274
Locking the vehicle ...................... 275
Changing batteries ....................... 276
Fuel filler flap ............................... 277
Manually unlocking the
transmission selector lever .......... 277
Opening/closing in an emergency ..... 278 Panorama sliding/pop-up roof ..... 278
Replacing bulbs ................................. 280 Bulbs ............................................ 280
Replacing bulbs for front lamps ... 282
Side marker lamp bulb ................. 285
Replacing bulbs for rear lamps ..... 285 Replacing wiper blades ...................... 287
Removing ..................................... 287
Installing ...................................... 287
Flat tire .............................................. 288 Preparing the vehicle ................... 288
Mounting the spare wheel ............ 288
Battery ............................................... 294 Disconnecting the battery ............ 295
Removing the batteries ................ 295
Charging and reinstalling
batteries ...................................... 295
Reconnecting the batteries .......... 295
Jump starting ..................................... 297
Towing the vehicle ............................. 299 Installing towing eye bolt ............. 302
Fuses ................................................. 303 Fuse box in passenger
compartment ............................... 303
Fuse box in engine compartment . 303
Auxiliary fuse box in trunk ............ 304

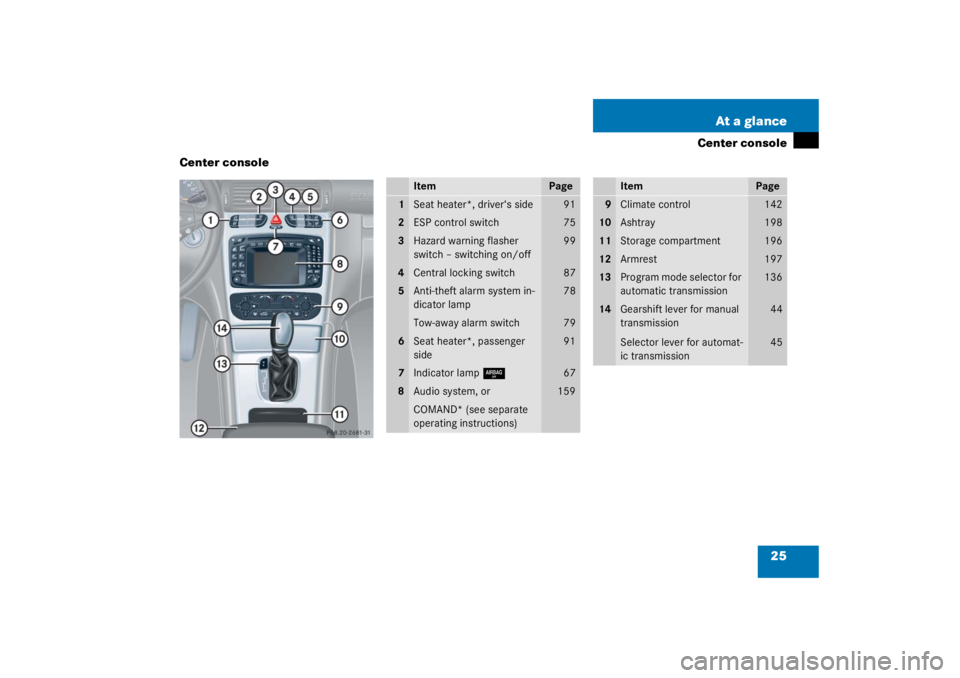

25
At a glance
Center console
Center console
Item
Page
1
Seat heater*, driver‘s side
91
2
ESP control switch
75
3
Hazard warning flasher
switch – switching on/off
99
4
Central locking switch
87
5
Anti-theft alarm system in-
dicator lamp
78
Tow-away alarm switch
79
6
Seat heater*, passenger
side
91
7
Indicator lamp
7
67
8
Audio system, or
159
COMAND* (see separate
operating instructions)
Item
Page
9
Climate control
142
10
Ashtray
198
11
Storage compartment
196
12
Armrest
197
13
Program mode selector for
automatic transmission
136
14
Gearshift lever for manual
transmission
Selector lever for automat-
ic transmission
44
45

92 Controls in detailSeatsSwitching on seat heating
Press upper switch position1.
A red indicator lamp on the switch
lights up.
Switching on rapid seat heating

Press lower switch position 2.
Both red indicator lamps on the switch
light up. Switching off seat heating

If one indicator lamp is on, press upper
switch position
1.

If both indicator lamps are on, press
lower switch position 2.
!If one or both of the lamps on the seat
heater switch are blinking, there is in-
sufficient voltage available since too
many electrical consumers are turned
on. The seat heater switches off auto-
matically.
The seat heater will switch back on
again automatically as soon as suffi-
cient voltage is available.
iThe system switches over to normal
heating mode after approximately five
minutes. Only one indicator lamp re-
mains lit. iThe seat heater will be automatically
switched off after approximately
30 minutes.

237
Operation
Winter driving
Block heater (Canada only)
The engine is equipped with a block heat-
er.
The electrical cable may be installed at
your authorized Mercedes-Benz Center.
Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not to ex-
ceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.
Please observe the following guidelines
when using snow chains:


Use of snow chains is not permissible
with all wheel/tire combinations.


Chains should only be used on the rear
wheels. Follow the manufacturer's
mounting instructions.


Use only snow chains that are ap-
proved by Mercedes-Benz. Your autho-
rized Mercedes-Benz Center will be
glad to advise you on this subject.
Warning!
G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Center.
iWhen driving with snow chains, you
may wish to deactivate the ESP
(page 75) before setting the vehicle
in motion. This will improve the vehi-
cle‘s traction.
!Use of snow chains is not permissible
with tire sizes 225/ 50 R16 and with
tire sizes 225/45 R17.

270 Practical hintsWhat to do if …Display
Possible cause
Suggested solution
#
UNDERVOLTAGE
ENGINE ON!
The battery has insufficient voltage and
can no longer supply the convenience
functions such as seat heater*.
Start the engine (
page 44).
UNDERVOLTAGE
SWITCH CONSUMERS OFF!
The battery is malfunctioning.

Have the battery checked at a ser-
vice station.
G
VISIT WORKSHOP!
DISPLAY DEFECTIVE
The instrument cluster display is malfunc-
tioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Center as soon as possible.
±
VISIT WORKSHOP!
DISPLAY DEFECTIVE
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature gauge


Tachometer


Cruise control display

Have the electronic systems checked
by an authorized Mercedes-Benz
Center (
page 250).
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 232).

333
Index
A
ABS 23, 73, 327
ABS control 74
Malfunction indicator lamp 247
Messages in display 253
Warning lamp 247
Accelerator position, automatic transmis- sion 137
Accident In case of 50
Activating Air conditioning (cooling) 148, 157
Air recirculation mode 146, 154
Anti-theft alarm system 78
Automatic climate control 151
Central locking (control system) 122
Climate control 143
Defrost 146, 154
Easy-entry/exit feature 123
ESP 77
Exterior headlamps 47
Exterior lamps 97
Hazard warning flasher 99
Headlamps 47
High beams 99
Ignition 31 Immobilizer 53, 78
Rear fog lamp 97
Rear window defroster 147, 156
Residual heat 158
Seat heater* 92
Tow-away alarm 79
Windshield wipers 48
Adding Coolant 230
Engine oil 228
Additional turn signals 280
Adjustable air outlets, rear passenger com- partment 149, 158
Adjusting 32 Air distribution 145, 153
Air volume 145, 153
Backrest tilt 33, 35
Exterior rear view mirror 40
Head restraint height 33, 35, 37
Head restraint tilt 34, 35
Head restraints 37
Inside rear view mirror 39
Instrument cluster illumination 102
Manual seat 33
Mirrors 39
Rear seat head restraints 36 Seat cushion tilt 33, 35
Seat fore and aft adjustment 33, 34
Seat height 33, 35
Seats 32
Steering column height 39
Steering column length 39
Steering wheel 37
Air conditioner (cooling) Turning off 148, 157
Turning on 148, 157
Air conditioner refrigerant 319
Air distribution Adjusting 145, 153
Air outlets, rear passenger compartment Adjustable 149, 158
Air pressure see Tire inflation pressure 234
Air recirculation mode 146, 154 Activating 146, 154
Deactivating 147, 155
Air volume Adjusting 145, 153
AIRBAG OFF indicator lamp 251
Airbags 57 BabySmart
TM airbag deactivation
system 327
BabySmartTM deactivation system 67

335
Index
Program mode selector switch 136
Selector lever position 132
Starting with 45
Transmission fluid 229
Winter program mode 136
Auxiliary fuse box 304
B
BabySmart
TM
Airbag deactivation system 67
Compatible child seats 67, 327
Self-test 68
BabySmart
TM airbag deactivation system
327
Backrest Folding forward 193
Folding rearward 193
BAS 74, 327 Messages in display 254
Batteries, SmartKey Changing 276
Check lamp 83
Checking 84
Battery discharged Jump starting 297 Battery, vehicle 231, 294
Charging 295
Disconnecting 295
Messages in display 270
Reconnecting 295
Reinstalling 295
Removing 295
Bi-Xenon headlamps* 327
Bi-Xenon type Front lamp bulbs 283
Block heater 237
Bolts For spare wheel 273
Brake assist system (BAS) 327
Brake fluid 225, 319
Brake lamp bulbs 281
Brake lamp, high mounted 281
Brake pads Message in display 256
Brakes 216 Warning lamp 249
Break-in period 214
Bulbs, replacing 280 Additional turn signals 280
Brake lamps 281
Fog lamps 280 Front lamps 280
High beam 280
High mounted brake lamp 281
License plate lamps 281, 286
Low beam 280
Parking lamps 280, 281, 283, 284
Rear fog lamp 281
Rear fog lamps 285
Side marker lamps 280, 285
Standing lamps 280, 281, 283, 284
Tail lamp assemblies 281, 285
Turn signal lamps 280, 281
Button Audio system 162
C
CAC (Customer Assistance Center) 327
Calling up Range (distance to empty) 126
Service indicator 239
CAN system 327
Capacities Fuels, coolants, lubricants, etc. 317
Cargo compartment Lighting 101
Casette mode Playing cassettes 168

338 Index
Front fog lamps 120
Hazard warning flasher 99
Headlamps 52
Immobilizer 78
Interior lighting delayed shut-off 121
Rear window defroster 147, 156
Residual heat 158
Seat heater 92
Tow-away alarm 80
Deep water see Standing water 221
Defogging Windshield 145, 153
Defrosting 146, 154
Delayed shut-off Exterior lamps 120
Interior lighting 121
Dialing A number (telephone) 128
Difficulties While driving see Problems while driving 50
With starting 45
Digital speedometer 110
Direction of rotation (tires) 234
Discharged battery
Jump starting 297 Disconnecting
Vehicle battery 295
Display Selecting 118
Display elements Audio system 160
Displays Digital speedometer 110
Messages 229, 252
Selecting 118
Service indicator 238
Showing malfunctions 113
Distance to empty (range) Calling up 125
Door control panel 27
Door handle 27
Door unlock With Tele Aid* 208
Doors Message in display 260
Opening from inside vehicle 85
Opening from outside 83
Downhill driving Cruise control 190
Downshifting 131, 133
Drink holder see Cup holder 196 Drinking and driving 215
Driving
Aquaplaning 219
General instructions 41, 215
In winter 220
Problems 50
Safety systems 73
Through standing water 221
Driving abroad 221
Driving instructions 215
Driving off 217
Driving safety systems ABS 73
BAS 74
ESP 75
Driving systems 189 Cruise control 189
Driving safety systems 73
E
Easy-entry/exit feature 89 Activating 123
Interrupting movement 123
Electrical fuses 303
Electrical system
Technical data 314

340 IndexFlexible Service System (FSS) 238, 328
Fog lamp, rear 98, 281
Fog lampsReplacing bulbs 280
Fog lamps, front Messages in display 266
Replacing bulbs 281
Switching on 98
Front airbags 61
Front lamps Bi-Xenon type 283
Halogen-type 282
Messages in display 264–267
Replacing bulbs 280, 282
Switching on 96
Front seat backrest Folding backrest back 36
Folding backrest forward 35
Front seat head restraints Installing 90
Manual seat 90
Power seat* 90
Removing 90
Front seats Heater 91
FSS (Flexible Service System) 238, 328 Fuel 225
Additives 321
Fuel reserve warning lamp 250
Gasoline additives 321
Premium unleaded gasoline 225, 318, 320
Requirements 320
Reserve warning 23
Technical data 317
Fuel additives 321
Fuel consumption statistics After start 125
Since last reset 125
Fuel filler flap 224 Locking 224
Opening 277
Unlocking 224
Fuel requirements 320
Fuel reserve tank Message in display 263
Fuel tank Capacity 318
Filler flap 224
Fuels, coolants, lubricants etc. Capacities 317 Functions (control system) 106, 109
Resetting 115
Fuse box 303
Fuse chart 303
Fuse extractor 304
Fuses 303 Auxiliary fuse box in trunk 304
Fuse box in engine compartment 303
Fuse box in passenger compartment 303
Fuse chart 303
Fuse extractor 304
G
Garage door opener 26, 209 Erasing in remote control 212
Integrated remote control 210
Rolling code programming 211
Gasoline see Fuel 225 Gasoline additives 321
Gear range 328 Automatic transmission 134
Limiting 134
Shifting into optimal 133
Gear range limit
Canceling 133

348 Index
Rear turn signal bulbs 285
Side marker lamp bulbs 285
Standing lamp bulbs 283, 284
Wiper blades 287
Reset knob in the instrument cluster 114
Resetting All functions (control system) 114
All functions of a submenu 115
Fuel consumption 125
Service indicator (FSS) 239
Trip odometer 103
Residual heat utilization 158, 330
Residual ventilation 158
REST (Residual engine heat utilization) 330
Restraint system see Infant and child re- straint systems 65, 69
Reverse (manual transmission) Shifting into 131
Rims 311
Roadside assistance Tele Aid* 204
Rolling code programming 211
RON 225
RON (Research Octane Number) 330
Roof rack 192
Rotating wheels 235 Rubber parts
Cleaning 244
S
Safety Occupant 56
Safety belts see Seat belts 41
Safety systems Driving 73
Saving current speed 190
Searching Radio station 111
Seat belt force limiter 64
Seat belt outlet height adjustment 43
Seat belts 62 Cleaning 244
Fastening 41
Height adjustment 43
Proper use of 43, 63
Safety guidelines 60
Warning lamp 250
Seat heater* Switching off 92
Switching on 92
Seats 89
Adjusting 32
Easy entry/exit feature 89 Heater 91
Manual 33
Rapid seat heating 92
Split rear bench seat 192
Selecting Display 118
Selector lever 23 Lock 45
Position (automatic transmission) 23, 132
Self-test BabySmart
TM airbag deactivation sys-
tem 68
Tele Aid* 202
Service Calling up the service indicator 239
Major service (Service B) 238
Minor service (Service A) 238
Overdue 238
Spare parts 306
Types 238
When due 238
Service and Warranty Booklet Loss of 307
