MERCEDES-BENZ C CLASS COUPE 2004 Owners Manual

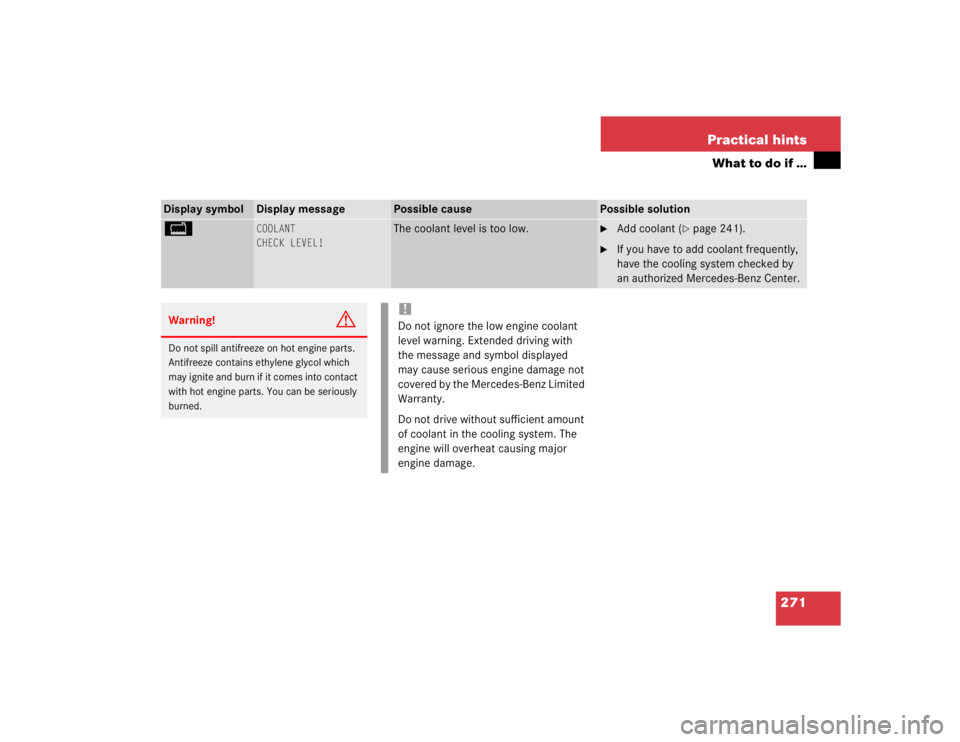

271
Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
B
COOLANT
CHECK LEVEL!
The coolant level is too low.

Add coolant (
page 241).

If you have to add coolant frequently,
have the cooling system checked by
an authorized Mercedes-Benz Center.
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may ignite and burn if it comes into contact
with hot engine parts. You can be seriously
burned.
!Do not ignore the low engine coolant
level warning. Extended driving with
the message and symbol displayed
may cause serious engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Do not drive without sufficient amount
of coolant in the cooling system. The
engine will overheat causing major
engine damage.

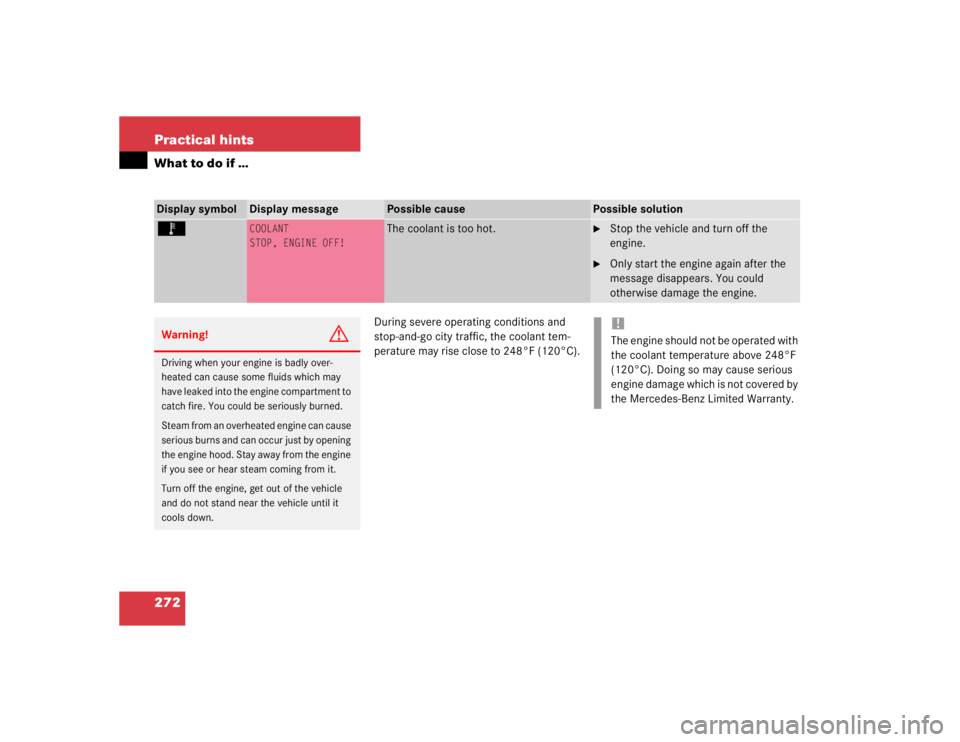

272 Practical hintsWhat to do if …
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display symbol
Display message
Possible cause
Possible solution
Ï
COOLANT
STOP, ENGINE OFF!
The coolant is too hot.

Stop the vehicle and turn off the
engine.

Only start the engine again after the
message disappears. You could
otherwise damage the engine.
Warning!
G
Driving when your engine is badly over-
heated can cause some fluids which may
have leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.
!The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.

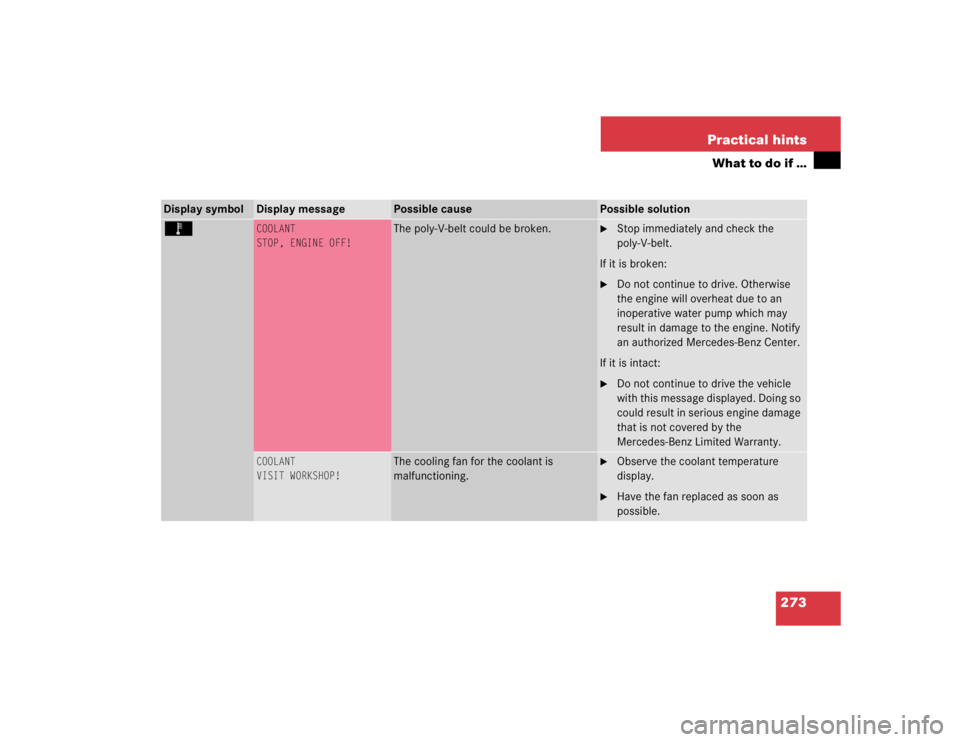

273
Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
Ï
COOLANT
STOP, ENGINE OFF!
The poly-V-belt could be broken.

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an
inoperative water pump which may
result in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Do not continue to drive the vehicle
with this message displayed. Doing so
could result in serious engine damage
that is not covered by the
Mercedes-Benz Limited Warranty.
COOLANT
VISIT WORKSHOP!
The cooling fan for the coolant is
malfunctioning.

Observe the coolant temperature
display.

Have the fan replaced as soon as
possible.

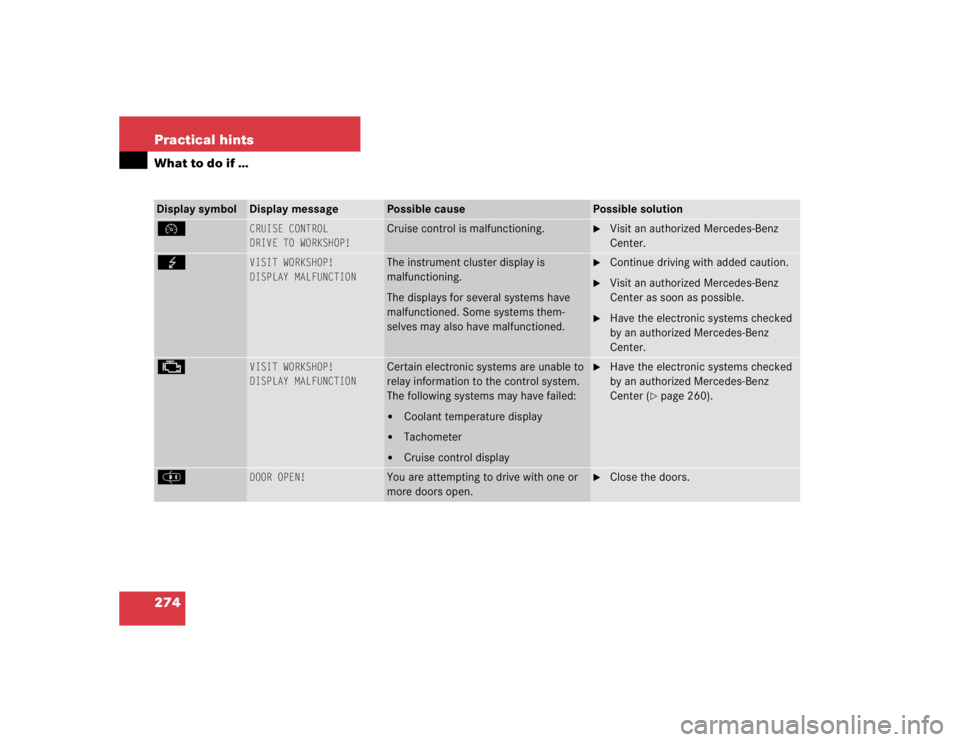

274 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
Ñ
CRUISE CONTROL
DRIVE TO WORKSHOP!
Cruise control is malfunctioning.

Visit an authorized Mercedes-Benz
Center.
G
VISIT WORKSHOP!
DISPLAY MALFUNCTION
The instrument cluster display is
malfunctioning.
The displays for several systems have
malfunctioned. Some systems them-
selves may also have malfunctioned.

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Center as soon as possible.

Have the electronic systems checked
by an authorized Mercedes-Benz
Center.
±
VISIT WORKSHOP!
DISPLAY MALFUNCTION
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems checked
by an authorized Mercedes-Benz
Center (
page 260).
J
DOOR OPEN!
You are attempting to drive with one or
more doors open.

Close the doors.

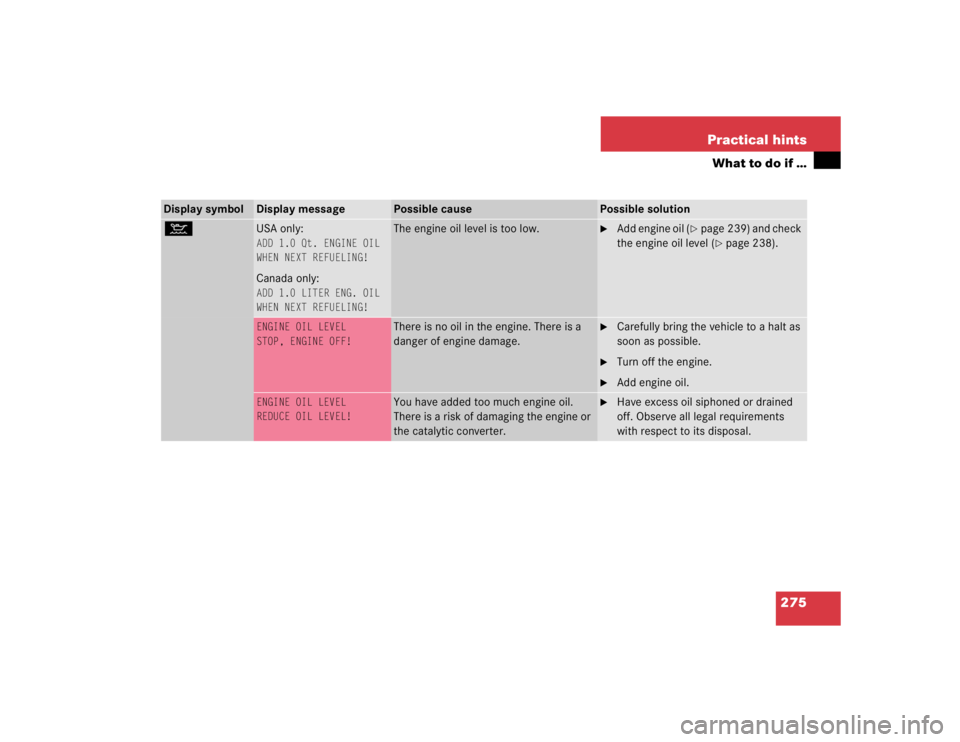

275
Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
:
USA only:ADD 1.0 Qt. ENGINE OIL
WHEN NEXT REFUELING!Canada only:ADD 1.0 LITER ENG. OIL
WHEN NEXT REFUELING!
The engine oil level is too low.

Add engine oil (
page 239) and check
the engine oil level (
page 238).
ENGINE OIL LEVEL
STOP, ENGINE OFF!
There is no oil in the engine. There is a
danger of engine damage.

Carefully bring the vehicle to a halt as
soon as possible.

Turn off the engine.

Add engine oil.
ENGINE OIL LEVEL
REDUCE OIL LEVEL!
You have added too much engine oil.
There is a risk of damaging the engine or
the catalytic converter.

Have excess oil siphoned or drained
off. Observe all legal requirements
with respect to its disposal.

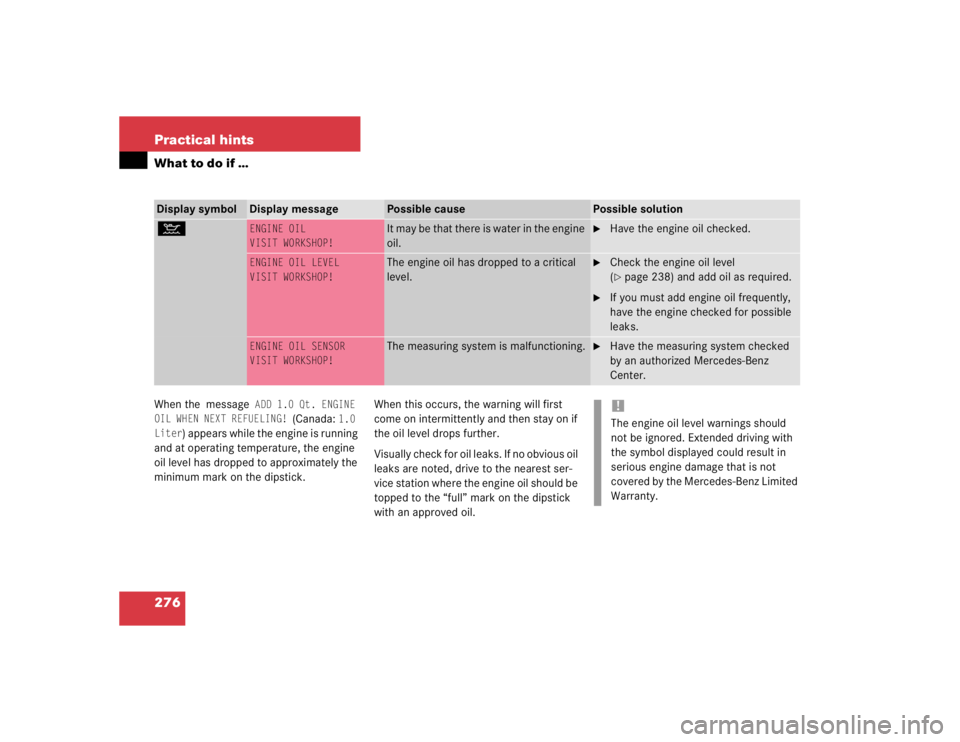

276 Practical hintsWhat to do if …When the message
ADD 1.0 Qt. ENGINE
OIL WHEN NEXT REFUELING!
(Canada:
1.0
Liter
) appears while the engine is running
and at operating temperature, the engine
oil level has dropped to approximately the
minimum mark on the dipstick. When this occurs, the warning will first
come on intermittently and then stay on if
the oil level drops further.
Visually check for oil leaks. If no obvious oil
leaks are noted, drive to the nearest ser-
vice station where the engine oil should be
topped to the “full” mark on the dipstick
with an approved oil.
Display symbol
Display message
Possible cause
Possible solution
:
ENGINE OIL
VISIT WORKSHOP!
It may be that there is water in the engine
oil.

Have the engine oil checked.
ENGINE OIL LEVEL
VISIT WORKSHOP!
The engine oil has dropped to a critical
level.

Check the engine oil level
(page 238) and add oil as required.

If you must add engine oil frequently,
have the engine checked for possible
leaks.
ENGINE OIL SENSOR
VISIT WORKSHOP!
The measuring system is malfunctioning.

Have the measuring system checked
by an authorized Mercedes-Benz
Center.!The engine oil level warnings should
not be ignored. Extended driving with
the symbol displayed could result in
serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.

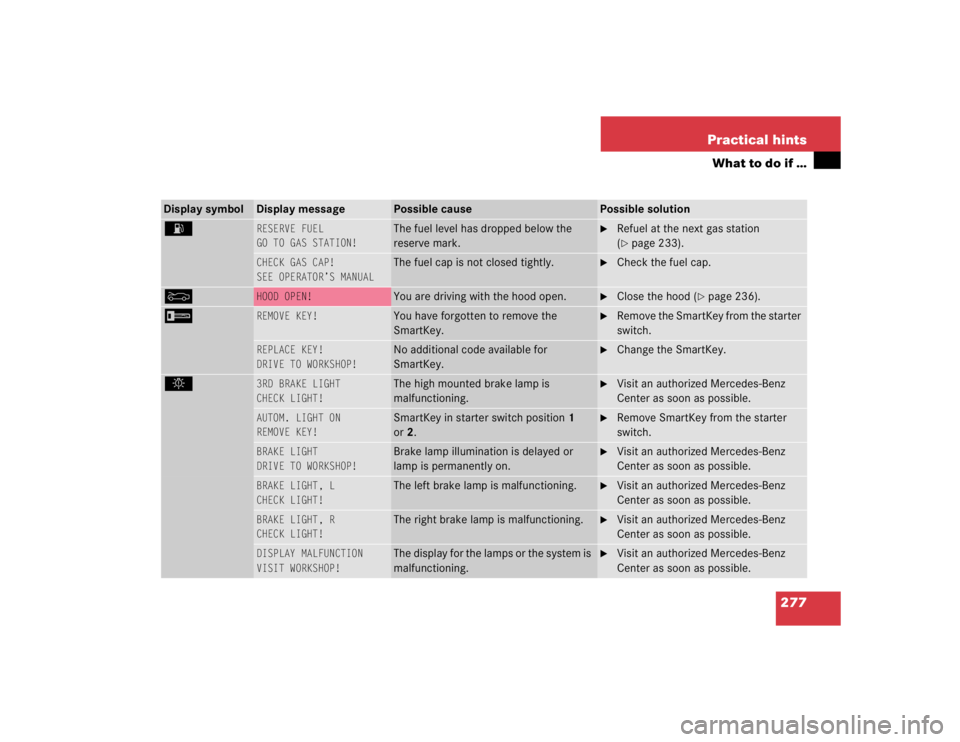

277
Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
A
RESERVE FUEL
GO TO GAS STATION!
The fuel level has dropped below the
reserve mark.

Refuel at the next gas station
(page 233).
CHECK GAS CAP!
SEE OPERATOR’S MANUAL
The fuel cap is not closed tightly.

Check the fuel cap.
Y
HOOD OPEN!
You are driving with the hood open.

Close the hood (
page 236).
I
REMOVE KEY!
You have forgotten to remove the
SmartKey.

Remove the SmartKey from the starter
switch.
REPLACE KEY!
DRIVE TO WORKSHOP!
No additional code available for
SmartKey.

Change the SmartKey.
.
3RD BRAKE LIGHT
CHECK LIGHT!
The high mounted brake lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
AUTOM. LIGHT ON
REMOVE KEY!
SmartKey in starter switch position
1
or 2.

Remove SmartKey from the starter
switch.
BRAKE LIGHT
DRIVE TO WORKSHOP!
Brake lamp illumination is delayed or
lamp is permanently on.

Visit an authorized Mercedes-Benz
Center as soon as possible.
BRAKE LIGHT, L
CHECK LIGHT!
The left brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
BRAKE LIGHT, R
CHECK LIGHT!
The right brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
DISPLAY MALFUNCTION
VISIT WORKSHOP!
The display for the lamps or the system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.

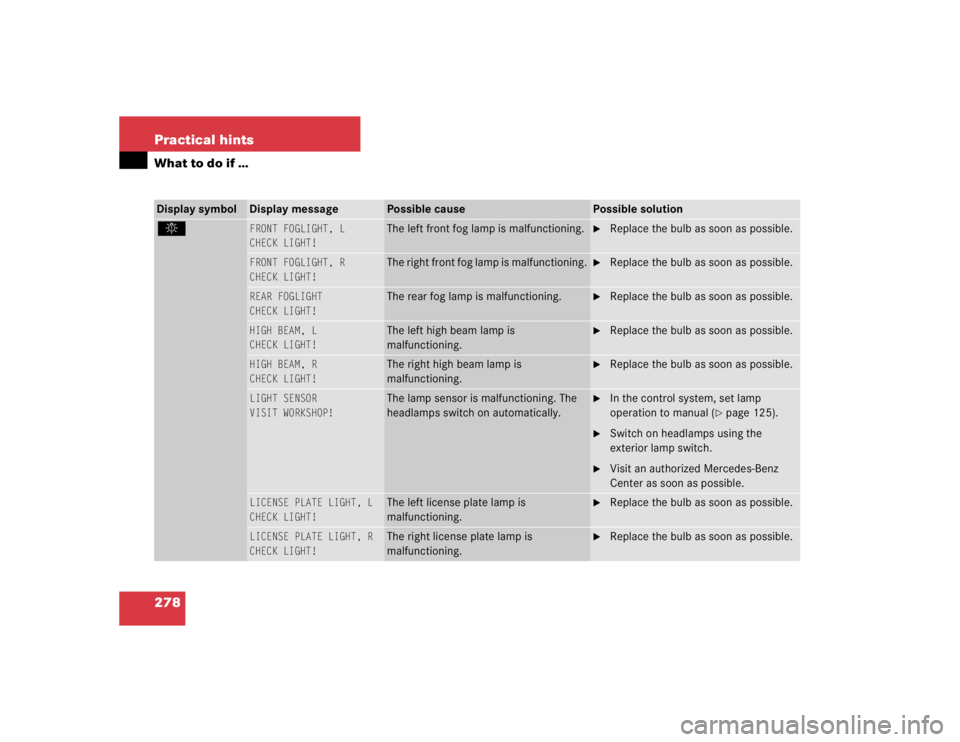

278 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
.
FRONT FOGLIGHT, L
CHECK LIGHT!
The left front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
FRONT FOGLIGHT, R
CHECK LIGHT!
The right front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
REAR FOGLIGHT
CHECK LIGHT!
The rear fog lamp is malfunctioning.

Replace the bulb as soon as possible.
HIGH BEAM, L
CHECK LIGHT!
The left high beam lamp is
malfunctioning.

Replace the bulb as soon as possible.
HIGH BEAM, R
CHECK LIGHT!
The right high beam lamp is
malfunctioning.

Replace the bulb as soon as possible.
LIGHT SENSOR
VISIT WORKSHOP!
The lamp sensor is malfunctioning. The
headlamps switch on automatically.

In the control system, set lamp
operation to manual (
page 125).

Switch on headlamps using the
exterior lamp switch.

Visit an authorized Mercedes-Benz
Center as soon as possible.
LICENSE PLATE LIGHT, L
CHECK LIGHT!
The left license plate lamp is
malfunctioning.

Replace the bulb as soon as possible.
LICENSE PLATE LIGHT, R
CHECK LIGHT!

The right license plate lamp is
malfunctioning.

Replace the bulb as soon as possible.

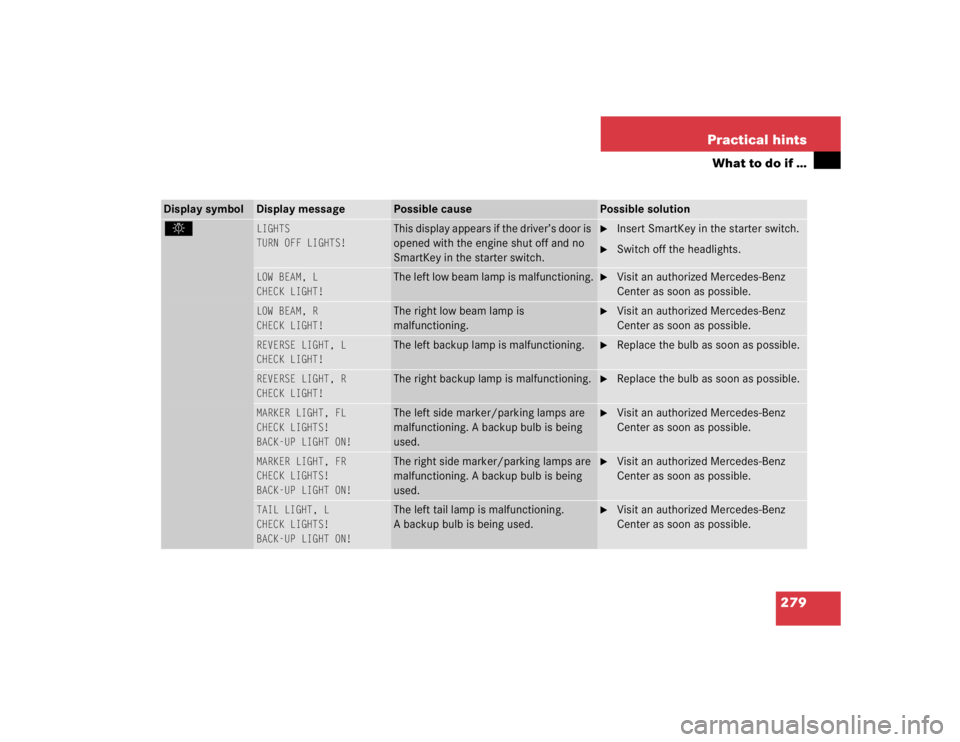

279
Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
.
LIGHTS
TURN OFF LIGHTS!
This display appears if the driver’s door is
opened with the engine shut off and no
SmartKey in the starter switch.

Insert SmartKey in the starter switch.

Switch off the headlights.
LOW BEAM, L
CHECK LIGHT!
The left low beam lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
LOW BEAM, R
CHECK LIGHT!
The right low beam lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
REVERSE LIGHT, L
CHECK LIGHT!
The left backup lamp is malfunctioning.

Replace the bulb as soon as possible.
REVERSE LIGHT, R
CHECK LIGHT!
The right backup lamp is malfunctioning.

Replace the bulb as soon as possible.
MARKER LIGHT, FL
CHECK LIGHTS!
BACK-UP LIGHT ON!
The left side marker/parking lamps are
malfunctioning. A backup bulb is being
used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
MARKER LIGHT, FR
CHECK LIGHTS!
BACK-UP LIGHT ON!

The right side marker/parking lamps are
malfunctioning. A backup bulb is being
used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
TAIL LIGHT, L
CHECK LIGHTS!

BACK-UP LIGHT ON!

The left tail lamp is malfunctioning.
A backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.

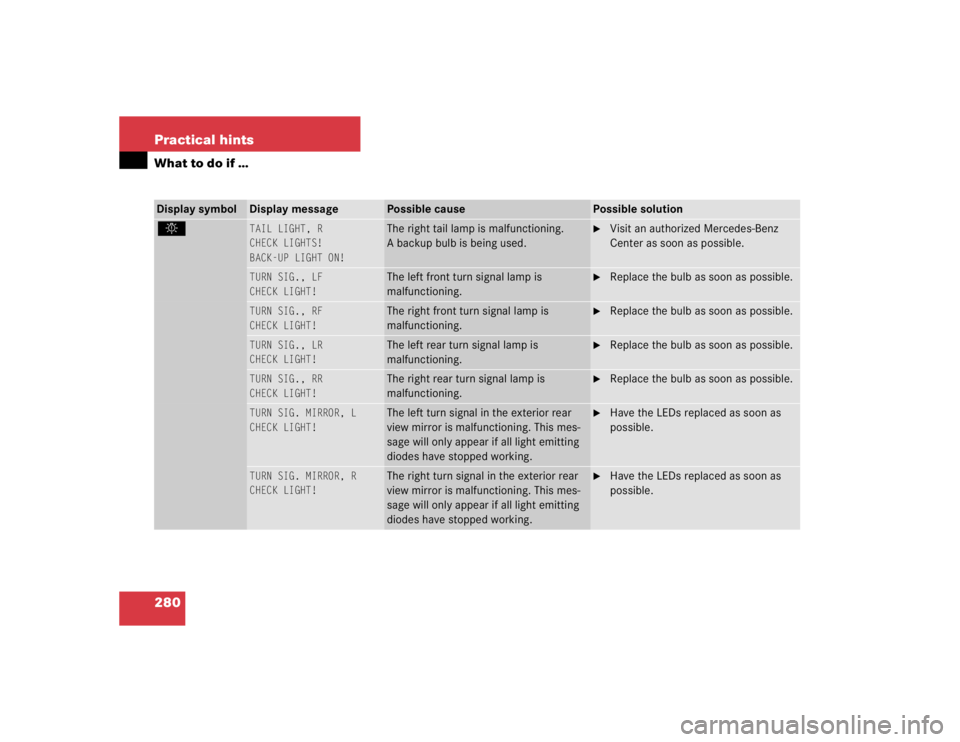

280 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
.
TAIL LIGHT, R
CHECK LIGHTS!

BACK-UP LIGHT ON!

The right tail lamp is malfunctioning.
A backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
TURN SIG., LF
CHECK LIGHT!
The left front turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.
TURN SIG., RF
CHECK LIGHT!
The right front turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.
TURN SIG., LR
CHECK LIGHT!

The left rear turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.
TURN SIG., RR
CHECK LIGHT!

The right rear turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.
TURN SIG. MIRROR, L
CHECK LIGHT!
The left turn signal in the exterior rear
view mirror is malfunctioning. This mes-
sage will only appear if all light emitting
diodes have stopped working.

Have the LEDs replaced as soon as
possible.
TURN SIG. MIRROR, R
CHECK LIGHT!
The right turn signal in the exterior rear
view mirror is malfunctioning. This mes-
sage will only appear if all light emitting
diodes have stopped working.

Have the LEDs replaced as soon as
possible.
