MERCEDES-BENZ C CLASS COUPE 2005 Owners Manual

270 Controls in detailUseful featuresWarning!
G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent
potential harm or damage. When program-
ming a garage door opener, the door moves
up or down. When programming a gate oper-
ator, the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks safe-
ty stop and reverse features as required by
U.S. federal safety standards (this includes
any garage door opener model manufac-
tured before April 1, 1982). A garage door
that cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards.
iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact an authorized
Mercedes-Benz Center, or call
Mercedes-Benz Customer Assistance
Center (in the USA) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

271
Controls in detail
Useful features
Programming or reprogramming the in-
tegrated remote control
Step 1:
Switch on the ignition (
page 33).
Step 2:

If you have previously programmed an
integrated signal transmitter button
and wish to retain its programming,
proceed to step 3. Otherwise, press
and hold the two outer signal transmit-
ter buttons 2 and 4 and release
them only when the indicator lamp 1
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory. If you later wish to program a
second and/or third hand-held trans-
mitter to the remaining two signal
transmitter buttons, do not repeat this
step and begin directly with step 3. Step 3:

Hold the end of the hand-held remote
control transmitter
6 of the device
you wish to train approximately 2 to
5 in (5 to12 cm) away from the surface
of the integrated remote control locat-
ed on the interior rear view mirror,
keeping the indicator lamp 1 in view.
Step 4:

Using both hands, simultaneously
press the hand-held transmitter
button 5 and the desired integrated
signal transmitter button (2 , 3
or 4 ). Do not release the buttons until
completing step 5.
The indicator lamp 1 on the integrat-
ed remote control will flash, first slowly
and then rapidly.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer- ence, and
(2) this device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.


272 Controls in detailUseful featuresStep 5:
When the indicator lamp1 flashes
rapidly, release both buttons.
Step 6:

Press and hold the just-trained inte-
grated signal transmitter button and
observe the indicator lamp 1.
If the indicator lamp 1 stays on con-
stantly, programming is complete and
your device should activate when the
integrated signal transmitter button is
pressed and released. Step 7:

To program the remaining two buttons,
repeat the steps above starting with
step 3.
Rolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:

Locate “training” button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the “train-
ing” button may also be referred to as
“learn”or “smart” button. If there is
difficulty locating the transmitting
button, refer to the garage door opener
operator’s manual.
iThe indicator lamp
1 flashes the first
time the signal transmitter button is
programmed. If this button has already
been programmed, the indicator lamp
will only start flashing after
20 seconds.
iIf the indicator lamp 1 blinks rapidly
for about two seconds and then turns
to a constant light, continue with pro-
gramming steps 8 through 12 as your
garage door opener may be equipped
with the “rolling code” feature.


273
Controls in detail
Useful features
Step 9:
Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the
following step.
Step 10:

Firmly press, hold for two seconds and
release the programmed integrated
signal transmitter button ( 2, 3
or 4 ).
Step 11:

Press, hold for two seconds and
release same button a second time to
complete the training process.
Some garage door openers (or other rolling
code equipped devices) may require you to
perform this procedure a third time to
complete the training.
Step 12:

Confirm the garage door operation by
pressing the programmed integrated
signal transmitter button ( 2, 3
or 4 ).
Step 13:

To program the remaining two buttons,
repeat the steps above starting with
step 3.
Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the inte-
grated signal transmitter to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having
difficulties programming a gate operator
(regardless of where you live) by using the
programming procedures, replace step 4
with the following: Step 4:

Continue to press and hold the inte-
grated signal transmitter button (
2,
3 or 4) while you press and re-press
(“cycle”) your hand-held remote con-
trol transmitter 6 every two seconds
until the frequency signal has been
learned. Upon successful training, the
indicator lamp 1 will flash slowly and
then rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.
Operation of integrated remote control

Switch on the ignition.

Select and press the appropriate inte-
grated signal transmitter button ( 2,
3 or 4) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.

274 Controls in detailUseful featuresErasing the remote control memory
Switch on the ignition.

Simultaneously hold down the signal
transmitter buttons2 and 4, for
approximately 20 seconds, until the
indicator lamp 1 blinks rapidly. Do not
hold for longer than 30 seconds.
The codes of all three channels are
erased. Reprogramming a single integrated
signal transmitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:

Press and hold the desired signal trans-
mitter button (
2, 3 or 4). Do not
release the button.

The indicator lamp will begin to flash af-
ter 20 seconds. Without releasing the
integrated signal transmitter button,
proceed with programming starting
with step 3.
iIf you sell your vehicle, erase the codes
of all three channels.

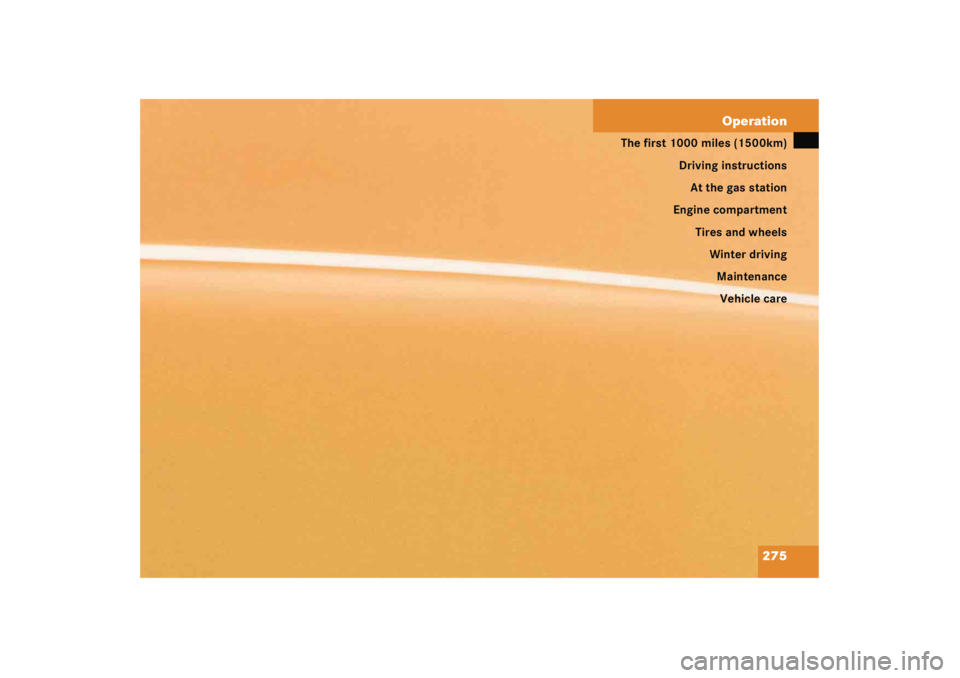

275
Operation
The first 1000 miles (1500km)
Driving instructionsAt the gas station
Engine compartment Tires and wheelsWinter driving
MaintenanceVehicle care

276 OperationIn the “Operation” section you will find de-
tailed information on operating, maintain-
ing and caring for your vehicle.The first 1000 miles (1500km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1000 miles (1500 km) at varying but
moderate vehicle and engine speeds.


During this period, avoid heavy loads
(full throttle driving) and excessive
engine speeds (no more than
2/3 of
maximum rpm in each gear).


Shift gears in a timely manner.


Avoid accelerating by kick-down.


Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.


Select positions 3, 2 or 1 only when
driving at moderate speeds (for hill
driving).


Select C as the preferred shift program
(page 164) for the first 1000 miles
(1500 km).
After 1000 miles (1500 km) you may grad-
ually increase vehicle and engine speeds
to the permissible maximum.
All of the above instructions also apply
when driving the first 1000 miles
(1500 km) after the engine or the rear dif-
ferential has been replaced.
iAlways obey applicable speed limits.

277
Operation
Driving instructions
 Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:

Keep tires at the recommended infla-
tion pressures


Remove unnecessary loads


Remove roof rack when not in use


Allow engine to warm up under low
load use


Avoid frequent acceleration and decel-
eration


Have all maintenance work performed
by qualified technicians at the intervals
specified in the Maintenance Booklet
and as required by the maintenance
service display. Contact an authorized
Mercedes-Benz Center
Fuel consumption is also increased by driv-
ing in cold weather, in stop-and-go traffic,
on short trips and in hilly area.
Drinking and driving
PedalsPower assistance
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgement.
The possibility of a serious or even fatal ac-
cident are greatly increased when you drink
or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Keep driver’s foot area clear at all times. Ob-
jects stored in this area may impair pedal
movement.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.

278 OperationDriving instructionsBrakesTo help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.
If the parking brake is released and the
brake warning lamp in the instrument clus-
ter stays on, the brake fluid level in the res-
ervoir is too low.Brake pad wear or a leak in the system may
be the reason for low brake fluid in the res-
ervoir.
Have the brake system inspected by quali-
fied technicians immediately. Contact an
authorized Mercedes-Benz Center.
All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Center.
Install only brake pads and brake fluid
recommended by Mercedes-Benz.Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking
effect. Maintain a safe distance from vehi-
cles in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an
accident.
!Be very careful not to endanger other
road users when you apply the brakes.
Refer to the description of the Brake
Assist System (BAS), (
page 82).
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.

279
Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
parking, so that the air stream will cool
down the brakes faster.Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.
When starting off on a slippery surface, do
not allow a wheel to spin for an extended
period with the ESP switched off. Doing so
may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
Parking
!When driving down long and steep
grades, relieve the load on the brakes
by shifting into a lower gear to use the
engine’s braking power. This helps pre-
vent overheating of the brakes and re-
duces brake pad wear.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.!Set the parking brake whenever park-
ing or leaving the vehicle. In addition,
move gear selector lever to position
P
(manual transmission: first or reverse
gear).
When parking on hills, always turn front
wheel towards the curb.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
position P (manual transmission: first or
reverse gear).


Slowly release brake pedal.


When parked on an incline, turn front
wheel against curb.


Turn the SmartKey to starter switch
position 0 and remove the SmartKey
from the starter switch.


Take the SmartKey with you and lock
the vehicle when leaving.
