123
Controls in detail
Control system
 Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position 1. The control system
enables you to

call up information about your vehicle


change vehicle settings
For example, you can use the control
system to find out when your vehicle is
next due for service, to set the language
for messages in the instrument cluster
display, and much more.
The control system relays information to
the multifunction display.
Multifunction display
1 Trip odometer
2 Main odometer
3 Current program mode (automatic
transmission*)
4 Current gear selector lever
position/gear range (automatic trans-
mission*)
5 Digital clock
6 Status indicator (outside tempera-
ture/digital speedometer)
iThe displays for the audio systems
(radio and CD player) will appear in
English, regardless of the language
selected.
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others,
selecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions
permit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.

127
Controls in detail
Control system
Menus, submenus and functions
Menu
1
Menu 2
Menu3
Menu4
Menu5
Menu6
Menu7
Standard
display
AUDIO
NAV*
Vehicle status
message memory
Settings
Trip computer
Telephone*
(page 128)
(page 129)
(page 131)
(page 132)
(page 133)
(page 151)
(page 153)
Commands/submenusDigital
speedometer or
outside tempera-
ture
Select radio sta-
tion
Activate route
guidance
Call up vehicle mal-
function, warning
and system status
messages stored
in memory
Reset to factory
settings
Fuel consump-
tion statistics af-
ter start
Load phone
book
Call up mainte-
nance service
display
Select satellite
radio station*
(USA only)
Instrument clus-
ter submenu
Fuel consump-
tion statistics
since the last
reset
Search for name
in phone book
Check engine oil
level
Operate the
CD player*
Time/Date
submenu
Call up range
Lighting
submenuVehicle
submenuConvenience
submenu

129
Controls in detail
Control system

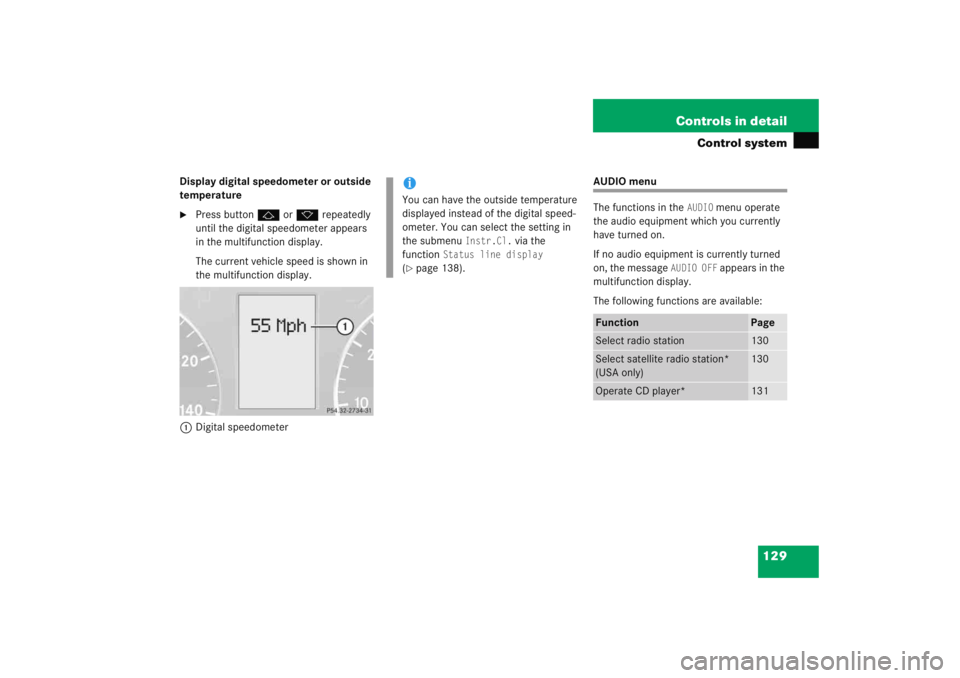

Display digital speedometer or outside
temperature
Press button
j ork repeatedly
until the digital speedometer appears
in the multifunction display.
The current vehicle speed is shown in
the multifunction display.
1 Digital speedometer
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF
appears in the
multifunction display.
The following functions are available:
iYou can have the outside temperature
displayed instead of the digital speed-
ometer. You can select the setting in
the submenu
Instr.Cl.
via the
function
Status line display

(
page 138).
Function
Page
Select radio station
130
Select satellite radio station*
(USA only)
130
Operate CD player*
131

131
Controls in detail
Control system

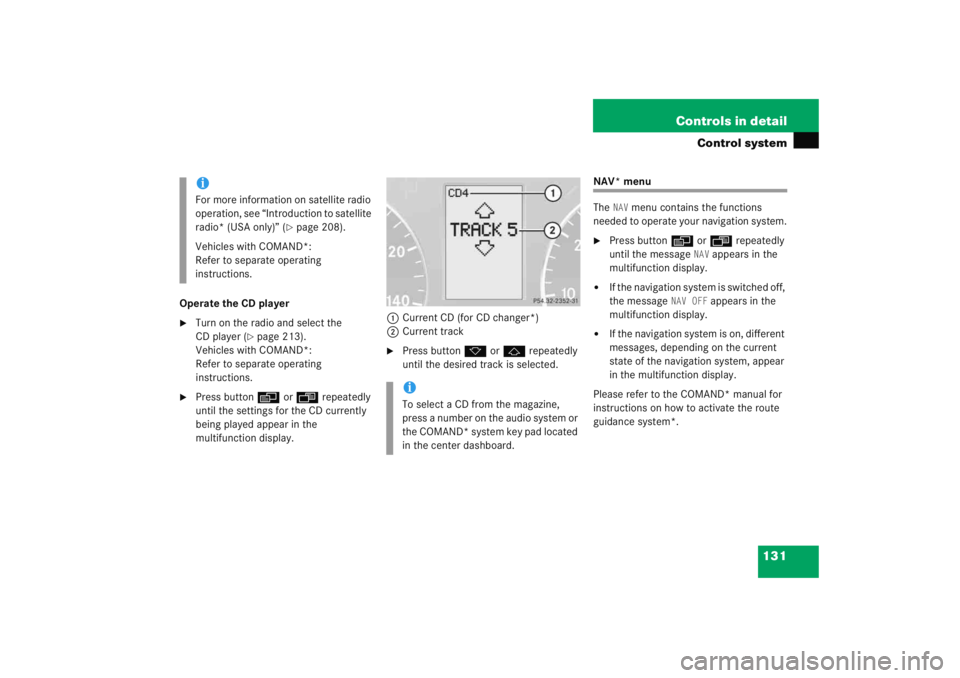

Operate the CD player
Turn on the radio and select the
CD player (
page 213).
Vehicles with COMAND*:
Refer to separate operating
instructions.

Press button è orÿ repeatedly
until the settings for the CD currently
being played appear in the
multifunction display. 1
Current CD (for CD changer*)
2 Current track

Press button k orj repeatedly
until the desired track is selected.
NAV* menu
The
NAV
menu contains the functions
needed to operate your navigation system.

Press button è orÿ repeatedly
until the message
NAV
appears in the
multifunction display.


If the navigation system is switched off,
the message
NAV OFF
appears in the
multifunction display.


If the navigation system is on, different
messages, depending on the current
state of the navigation system, appear
in the multifunction display.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
iFor more information on satellite radio
operation, see “Introduction to satellite
radio* (USA only)” (
page 208).
Vehicles with COMAND*:
Refer to separate operating
instructions.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.

213
Controls in detail
Audio system
Calling up the ESN information menu
Press
INF
soft key.

Press
ESN
soft key.
The twelve-digit electronic serial num-
ber (ESN) of the SAT tuner* installed in
your vehicle is displayed.

Press
RET
soft key to exit the menu.
CD mode
Safety precautions
General notes
The system may not be able to play audio
CDs with copy protection.
Playing copied CDs may cause malfunc-
tions during playback.Warning!
G
The single CD player and the CD changer*
are Class 1 laser products. There is a danger
of invisible laser radiation if the housing is
opened or damaged.
Do not open the housing. The single CD
player and the CD changer* do not contain
any parts that can be serviced by the user.
For safety reasons, have any service work
which may be necessary performed only by
qualified personnel.
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and oper-
ate the audio system only if permitted by
road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m) ev-
ery second.

214 Controls in detailAudio system

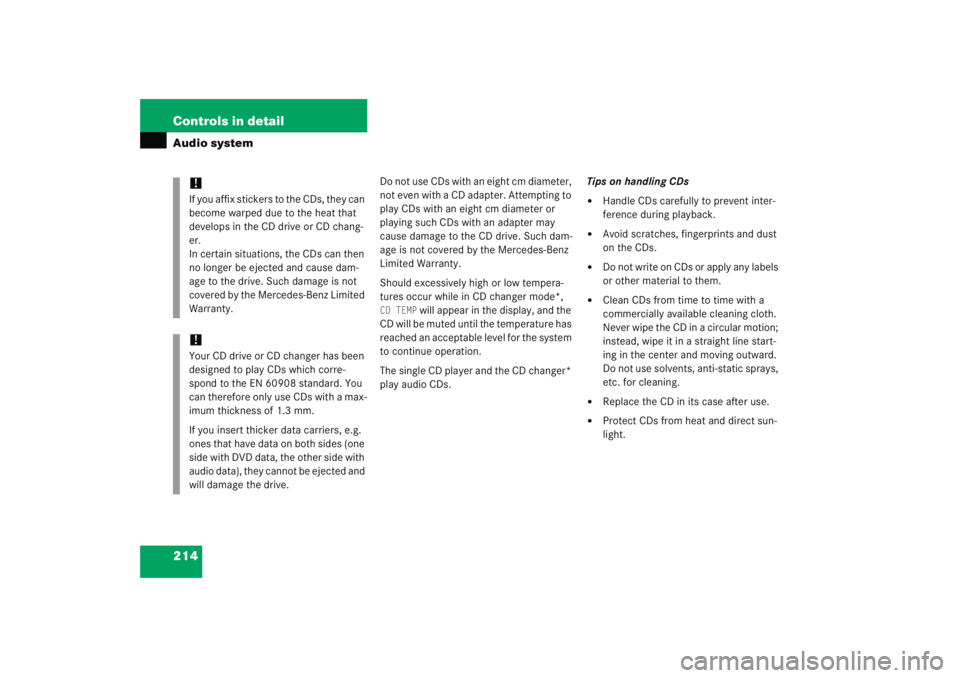

D o n o t u s e C D s w i t h a n e i g h t c m d i a m e t e r ,
not even with a CD adapter. Attempting to
play CDs with an eight cm diameter or
playing such CDs with an adapter may
cause damage to the CD drive. Such dam-
age is not covered by the Mercedes-Benz
Limited Warranty.
Should excessively high or low tempera-
tures occur while in CD changer mode*, CD TEMP
will appear in the display, and the
CD will be muted until the temperature has
reached an acceptable level for the system
to continue operation.
The single CD player and the CD changer*
play audio CDs. Tips on handling CDs


Handle CDs carefully to prevent inter-
ference during playback.


Avoid scratches, fingerprints and dust
on the CDs.


Do not write on CDs or apply any labels
or other material to them.


Clean CDs from time to time with a
commercially available cleaning cloth.
Never wipe the CD in a circular motion;
instead, wipe it in a straight line start-
ing in the center and moving outward.
Do not use solvents, anti-static sprays,
etc. for cleaning.


Replace the CD in its case after use.


Protect CDs from heat and direct sun-
light.
!If you affix stickers to the CDs, they can
become warped due to the heat that
develops in the CD drive or CD chang-
er.
In certain situations, the CDs can then
no longer be ejected and cause dam-
age to the drive. Such damage is not
covered by the Mercedes-Benz Limited
Warranty.!Your CD drive or CD changer has been
designed to play CDs which corre-
spond to the EN 60908 standard. You
can therefore only use CDs with a max-
imum thickness of 1.3 mm.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected and
will damage the drive.

215
Controls in detail
Audio system

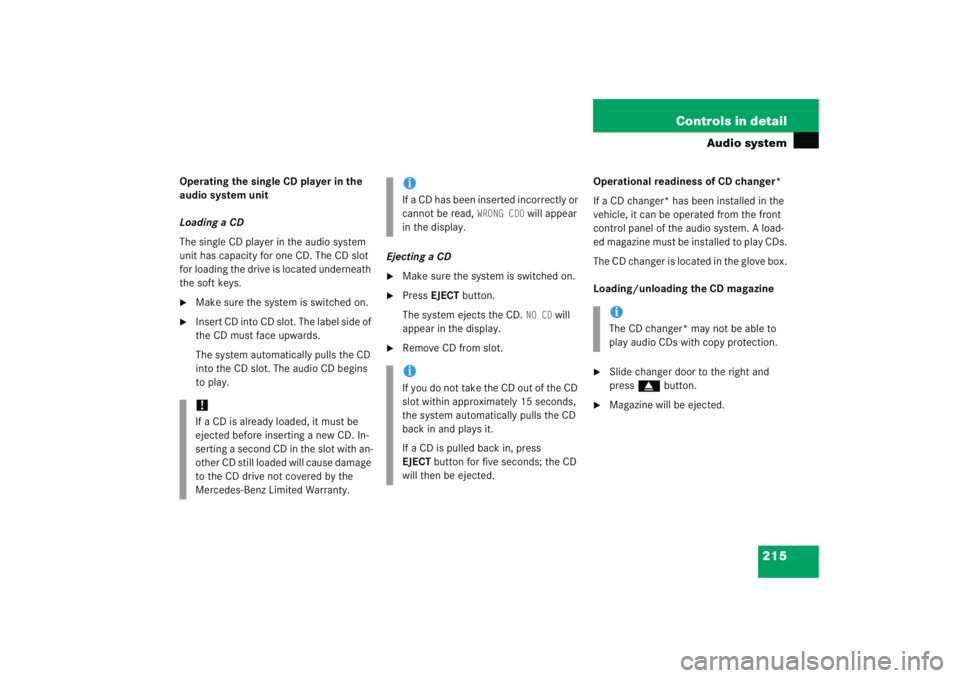

Operating the single CD player in the
audio system unit
Loading a CD
The single CD player in the audio system
unit has capacity for one CD. The CD slot
for loading the drive is located underneath
the soft keys.
Make sure the system is switched on.

Insert CD into CD slot. The label side of
the CD must face upwards.
The system automatically pulls the CD
into the CD slot. The audio CD begins
to play.
Ejecting a CD

Make sure the system is switched on.

Press
EJECT button.
The system ejects the CD.
NO CD
will
appear in the display.

Remove CD from slot. Operational readiness of CD changer*
If a CD changer* has been installed in the
vehicle, it can be operated from the front
control panel of the audio system. A load-
ed magazine must be installed to play CDs.
The CD changer is located in the glove box.
Loading/unloading the CD magazine

Slide changer door to the right and
press
gbutton.

Magazine will be ejected.
!If a CD is already loaded, it must be
ejected before inserting a new CD. In-
serting a second CD in the slot with an-
other CD still loaded will cause damage
to the CD drive not covered by the
Mercedes-Benz Limited Warranty.
iIf a CD has been inserted incorrectly or
cannot be read,
WRONG CD0
will appear
in the display.
iIf you do not take the CD out of the CD
slot within approximately 15 seconds,
the system automatically pulls the CD
back in and plays it.
If a CD is pulled back in, press
EJECT button for five seconds; the CD
will then be ejected.
iThe CD changer* may not be able to
play audio CDs with copy protection.

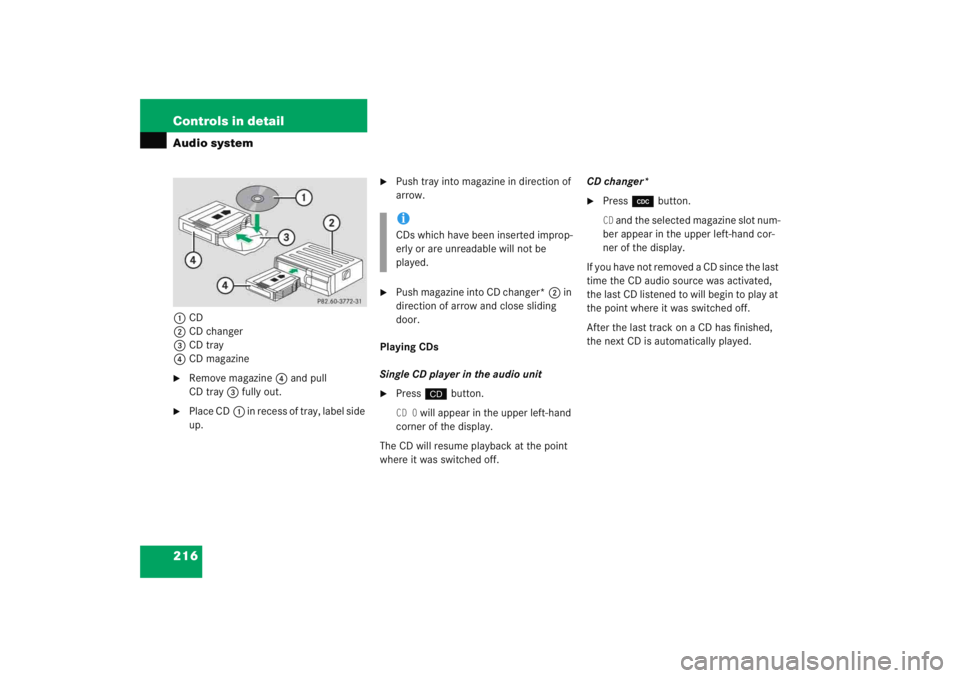

216 Controls in detailAudio system1CD
2 CD changer
3 CD tray
4 CD magazine
Remove magazine 4 and pull
CD tray 3 fully out.

Place CD 1 i n r e c e s s o f t r a y , l a b e l s i d e
up.

Push tray into magazine in direction of
arrow.

Pus h ma ga zine i nt o CD chang er* 2 in
direction of arrow and close sliding
door.
Playing CDs
Single CD player in the audio unit

Press i button.CD 0
will appear in the upper left-hand
corner of the display.
The CD will resume playback at the point
where it was switched off. CD changer*

Press
Q button.CD and the selected magazine slot num-
ber appear in the upper left-hand cor-
ner of the display.
If you have not removed a CD since the last
time the CD audio source was activated,
the last CD listened to will begin to play at
the point where it was switched off.
After the last track on a CD has finished,
the next CD is automatically played.
iCDs which have been inserted improp-
erly or are unreadable will not be
played.

217
Controls in detail
Audio system
Playing tracks
You have the following options:

Audio system with CD changer*: se-
lecting CDs


Direct track entry


Track skip forward/reverse


Fast forward/reverse


Scan


Random tracks


Repeat track
Selecting CDs in the audio unit with CD
changer*

You can select from among the
inserted CDs with buttons
R
to6 .
R = CD player in the audio unit
1 to6 = CDs in the CD
changer*
The magazine slot number of the se-
lected CD appears next to
CD in the dis-
play, and the number of the currently
played track appears next to TRACK
. Direct track entry
You can make a direct selection from
among the tracks on a CD.

Press
* button.

Enter track number using buttons 1
to R .iIf there is no CD in the selected maga-
zine slot,
NO CD
appears in the display
with the corresponding slot number.


446 IndexBoltsFor spare wheel 376
Brake Indicator lamp 25
Brake assist system (BAS) 437
Brake fluid 290, 428 Checking 290
Message in display 358
Brake lamp bulbs 385
Brake pads Message in display 358
Brakes 278 Warning lamp 341
Break-in period 276
Bulbs, replacing 384 Additional turn signals 385
Brake lamps 385
Fog lamps 385
Front lamps 385
High beam 385
High beam flasher 385
License plate lamps 385, 392
Low beam 385
Parking lamps 385, 388, 390
Rear fog lamp 385, 390
Rear lamps 385 Side marker lamp 391
Side marker lamps 385, 390
Standing lamps 385, 388, 390
Tail lamp assemblies 385
Tail lamp unit 390
Turn signal lamps 385
Button Audio system 198
C
CAC (Customer Assistance Center) 437
Calling up Range (distance to empty) 152
Service indicator 331
CAN system 437
Capacities Fuels, coolants, lubricants, etc. 426
Cargo compartment Lighting 118
Tie-down rings 253
Cargo tie-down rings 253
Catalytic converter 285
CD changer* 213
CD changer* operation 215
CD player
Operating 131
CD* operation 213 Center console 27
Front passenger front air bag off indica-tor lamp 27, 76, 345
Lower part 28
Upper part 27
Centigrade Setting temperature units 137
Central locking Automatic 97
From inside 98
Switch 98
Switching on/off (control system) 148
Unlocking from inside 98
Central locking switch 98
Changing CDs 213
Key setting 148
Charcoal filter 191 Activating 191
Deactivating 192
Charging Vehicle battery 402
CHECK ENGINE malfunction indicator lamp 342
