fold seats MERCEDES-BENZ C-Class COUPE 2014 CL204 Owner's Manual

Rolle
rblind
see Roller sunblind
Roller sunblind
Opening/closin g.............................. 89
Panorama roof with power tilt/
sliding panel ..................................... 88
Roof carrier ........................................ 250
Roof lining and carpets (cleaning
guidelines) ......................................... 279
Roof load (maximum) ........................340
Route (navigation) see Route guidance (navigation)
Route guidance (navigation) ............193 S
Safety Childre ninthe vehicle ..................... 56
Child restraint systems ....................56
Occupant Classification System
(OCS) ............................................... 45
Overview of occupant safety
systems ........................................... 38
Safety system
see Driving safety systems
Seat belts
Adjusting the driver's and front-
passenger sea tbelt ......................... 54
Belt force limiters ............................ 55
Cleaning ......................................... 279
Correct usage .................................. 52
Emergency Tensioning Devices ....... .55
Fastening ......................................... 53
Important safety guidelines .............52
Releasing ......................................... 54
Safety guidelines ............................. 39
Switching belt adjustment on/off
(on-board computer) ......................202
Warning lamp ................................. 232
Warning lamp (function) ................... 55
Seats
Adjusting (electrically). ....................94
Adjusting (manually and
electrically). ..................................... 94
Adjusting the 4-way lumbar
support ............................................ 96
Adjusting the head restraint ............95
Cleaning the cover .........................279Correct driver's seat position ........... 92
Folding the backrests forward/
back ................................................
.95
Important safety notes ....................93
Seat backres tdisplay message .....229
Seat heating problem ......................98
Seat ventilation problem ..................98
Storing settings (memory function) 103
Switching sea theating on/off .........96
Switching sea tventilation on/off ....98
Sensors (cleaning instructions) .......277
Service menu (on-board computer) .199
Service products Brake fluid ..................................... 337
Coolant (engine) ............................ 337
Engine oil ....................................... 336
Fuel ................................................ 333
Important safety notes ..................333
Refrigerant (air-conditioning
system) .......................................... 339
Washer fluid .................................. .338
Settings
Factory (on-board computer) .........203
On-board computer .......................199
Setting the air distribution ...............124
Setting the airflow ............................125
SETUP (on-board computer) .............203
Side impact air bag .............................43
Side marker lamp (display
message) ............................................ 216
Side windows Cleaning ......................................... 276
Convenience closing feature ............85
Convenience opening feature ..........85
Important safety information ...........83
Opening/closing .............................. 84
Problem (malfunction) .....................86
Resetting ......................................... 86
Sliding sunroof
see Panorama roof with power
tilt/sliding panel
SmartKey
Changing the battery .......................75
Changing the programming .............73
Checking the battery .......................75
Convenience closing feature ............85
Convenience opening feature ..........85
Display message ............................ 230 Index
15

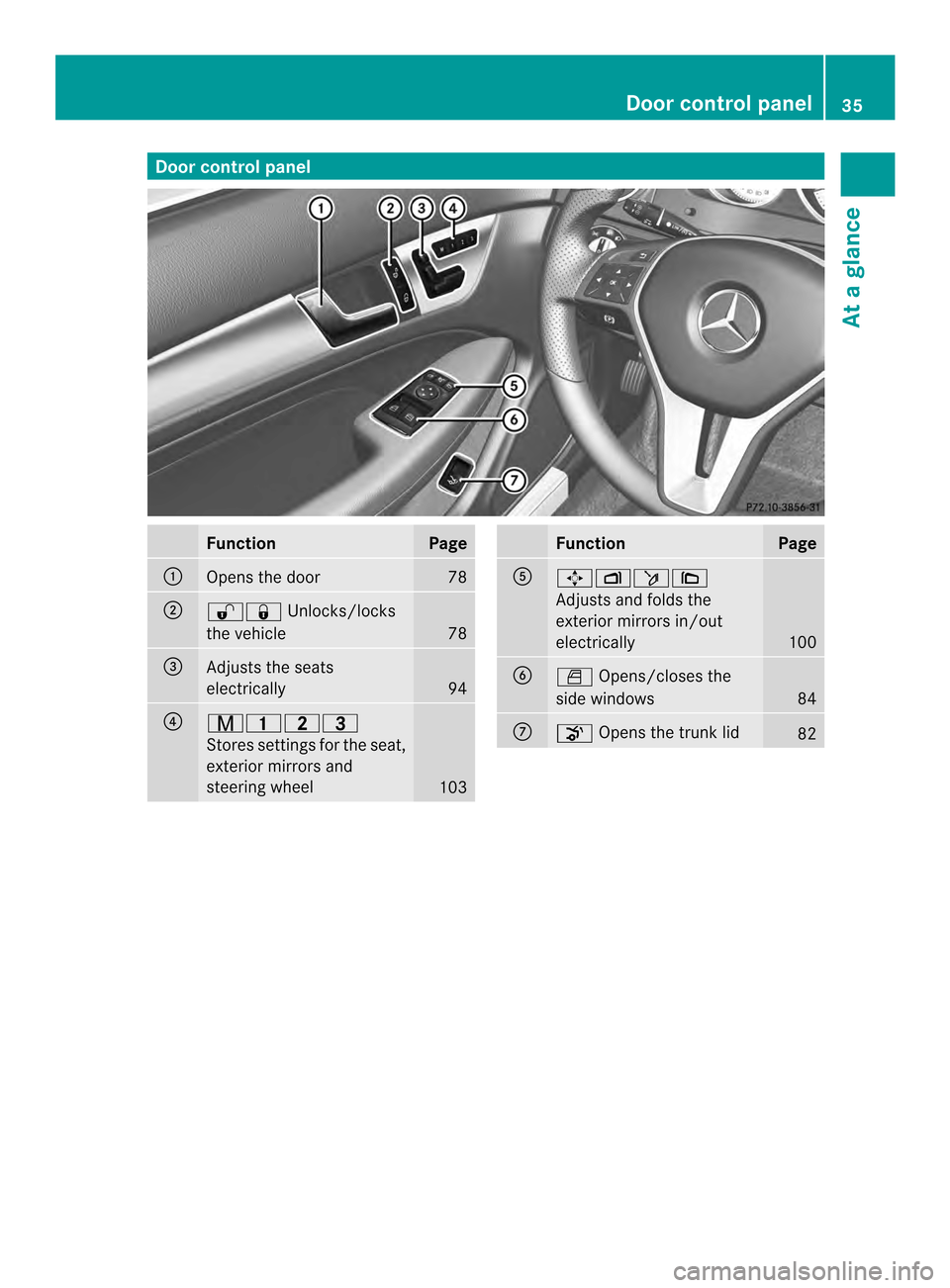

Door control panel
Function Page
0002
Opens the door 78
0003
000B000A
Unlocks/locks
the vehicle 78
0022
Adjusts the seats
electrically
94
0021
0010000D0009
Stores settings fo
rthe seat,
exterior mirrors and
steering wheel 103 Function Page
001F
00040007000D0008
Adjusts and folds the
exterior mirrors in/out
electrically
100
0020
0005
Opens/closes the
side windows 84
0012
000F
Opens the trunk lid 82Doorc
ontrol panel
35At a glance

Removing a child restrain
tsystem/
deactivating the special seat belt retractor:
X Always comply with the manufacturer's
installation instructions.
X Press the seat belt release butto nand
guide the belt tongue to the belt outlet.
The special sea tbelt retractor is
deactivated. G
WARNING
Never release the seat belt buckle while the
vehicle is in motion, since the special seat belt
retractor will be deactivated.
LATCH-type (ISOFIX) child seat anchors
in the rear G
WARNING
Children that are too large for a child restraint
must travel in seats using normal seat belts.
Position shoulder belt across the chest and
shoulder, not face or neck.
Ab ooster seat may be necessary to achieve
proper seat belt positioning for children over
41 lb (18 kg) until they reach a height where
a lap/shoulder belt fits properly without a
booster.
Install the child restraint system in
accordance with the manufacturer's
instructions.
Attach the child restraint system to both
securing rings.
An incorrectly installed child restraint system
could come loose during an accident and
seriously or even fatally injure the child.
Child restraint systems or child seat securing
rings that are malfunctioning or damaged as
the result of a collision must be replaced.
LATCH-type (ISOFIX) is a standardized
securing system for specially designed child
restraint systems on the rear seats. Securing
rings for two LATCH-type (ISOFIX) child
restraint systems are installed on the left and
right of the rear seats. Secure non-LATCH-type (ISOFIX) child
restraint systems using the vehicle's seat belt
system. When installing child restraint
systems, you must observe the
manufacturer's installation instructions.
The securing rings on the rear seats are
covered by an upholstered lining.
Installation instructions
0002indicate the
installation location of securing rings 2.
X Fold upholstery cover 0022and the Velcro
fastener down.
X Install the LATCH-type (ISOFIX) child
restraint systems on both securing
rings 0003. Comply with the manufacturer's
instructions when installing the LATCH-
type (ISOFIX) child restraint system.
Top Tether G
WARNING
Always lock the rear seat backrests in their
upright position when the rear seats are
occupied by passengers. Lock the rear seat
backrests in their upright position before
installing the Top Tether straps or when the
cargo compartment is not in use. Make sure
that rear seat backrest sare secured properly
by pushing and pulling on the seat backrests.
If the seat backrest is not locked properly, the
seat backrest could fold forward. The child
restraint system is no longer supported
properly or held in position and can no longer
fulfill its function. This could cause serious or
even fatal injuries. 60
Children in the vehicleSafety

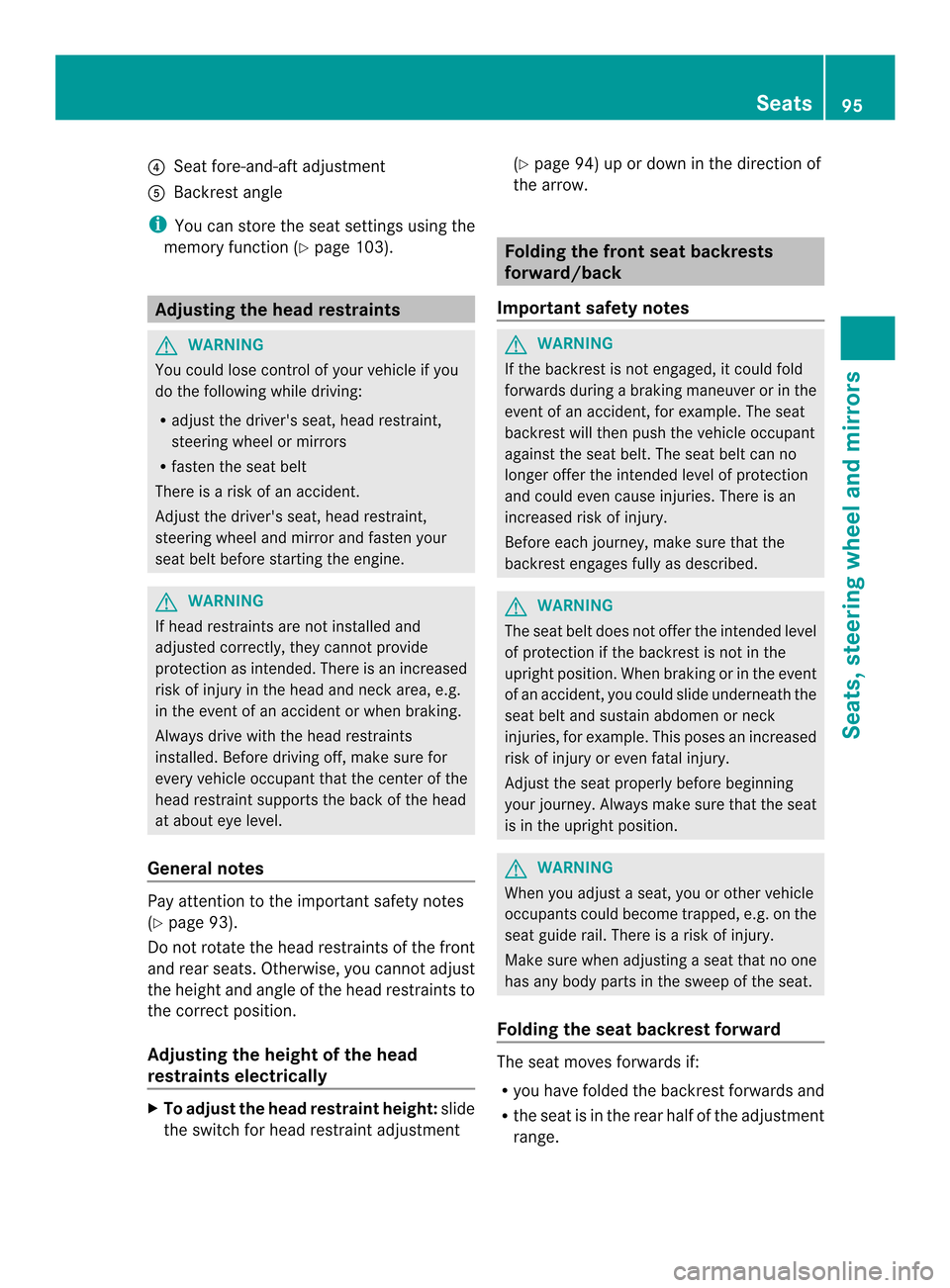

0021
Seat fore-and-aft adjustment
001F Backrest angle
i You can store the sea tsettings using the
memory function (Y page 103). Adjusting the head restraints
G
WARNING
You could lose control of your vehicle if you
do the following while driving:
R adjust the driver's seat, head restraint,
steering wheel or mirrors
R fasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine. G
WARNING
If head restraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the head and neck area, e.g.
in the event of an accident or when braking.
Always drive with the head restraints
installed. Before driving off, make sure for
every vehicle occupant that the center of the
head restraint supports the back of the head
at about eye level.
General notes Pay attention to the important safety notes
(Y page 93).
Do not rotate the head restraints of the front
and rear seats. Otherwise, you cannot adjust
the height and angle of the head restraints to
the correct position.
Adjusting the height of the head
restraints electrically X
To adjust the head restraint height: slide
the switch for head restraint adjustment (Y
page 94) up or down in the direction of
the arrow. Folding the front seat backrests
forward/back
Important safety notes G
WARNING
If the backrest is not engaged, it could fold
forwards during a braking maneuver or in the
event of an accident, for example. The seat
backrest will then push the vehicle occupant
against the seat belt. The seat belt can no
longer offer the intended level of protection
and could even cause injuries. There is an
increased risk of injury.
Before each journey, make sure that the
backrest engages fully as described. G
WARNING
The seat belt does not offer the intended level
of protection if the backrest is not in the
upright position .When braking or in the event
of an accident, you could slide underneath the
seat belt and sustain abdomen or neck
injuries, for example. This poses an increased
risk of injury or even fatal injury.
Adjust the seat properly before beginning
your journey. Always make sure that the seat
is in the upright position. G
WARNING
When you adjust a seat, you or other vehicle
occupants could become trapped, e.g. on the
seat guide rail. There is arisk of injury.
Make sure when adjusting aseat that no one
has any body parts in the sweep of the seat.
Folding the seat backrest forward The seat moves forwards if:
R
you have folded the backrest forwards and
R the seat is in the rear half of the adjustment
range. Seats
95Seats, steering wheel and mirrors Z

This makes it easier for passengers to get into
and out of the rear compartment. The head
restraint is lowered simultaneously. X
Pull seat release handle 0002forwards and
fold the backrest forwards as far as it will
go.
The seat automatically moves to the
foremost position and the head restraint is
lowered.
Folding the seat backrest back X
Swing back the seat backrest.
The seat moves automatically to the stored
position. Adjusting the 4-way lumbar support
You can adjust the contour of the front seat
backrests individually to provide optimum
support for your back. 0002
To raise the backrest contour
0003 To soften the backrest contour 0022
To lower the backrest contour
0021 To harden the backrest contour Switching the seat heating on/off
Activating/deactivating G
WARNING
Repeatedly switching on the seat heating can
cause the seat cushion and backrest pads to
become very hot. The health of persons with
limited temperature sensitivity or a limited
ability to react to excessively high
temperatures may be affected or they may
even suffer burn-like injuries. There is a risk
of injury.
Therefore, do not switch the seat heating on
repeatedly.
The three red indicator lamps in the button
indicate the heating level you have selected.
i If the battery voltage is too low, the seat
heating may switch off. Driver's and front-passenger seat
The system automatically switches down
from level
3to level 2after approximately
eight minutes.
The system automatically switches down
from level 2to level 1after approximately ten
minutes.
The system automatically switches off
approximately 20 minutes after it is set to
level 1. 96
SeatsSeats, steering wheel and mirrors

For this reason, always make sure of the
actual distance from the road users traveling
behind by glancing over your shoulder.
The convex exterior mirrors provide a larger
field of vision.
The exterior mirrors are automatically heated
afte rstarting the vehicl eifthe rear window
defroster is switched on and the outside
temperature is low. Mirror heating lasts up to
10 minutes.
i You can also heat up the exterior mirrors
manually by switching on the rear window
defroster. X
Make sure that the SmartKey is in position
1 or 2in the ignition lock.
X Press button 0002for the left-hand exterior
mirror or button 0003for the right-hand
exterior mirror.
The indicator lamp in the corresponding
button lights up in red.
The indicator lamp goes out again after
some time. You can adjust the selected
mirror using adjustment button 0022as long
as the indicator lamp is lit.
X Press adjustment button 0022up, down, or
to the left or right until you have adjusted
the exterior mirror to the correct position.
You should have a good overview of traffic
conditions. Folding the exterior mirrors in or out
electrically This function is only available in vehicles for
Canada.
X
Make sure that the SmartKey is in position
1or 2in the ignition lock.
X Briefly press button 0002.
Both exterior mirrors fold in or out.
i Make sure that the exterior mirrors are
always folded out fully while driving. They
could otherwise vibrate.
i If you are driving faster than
9m ph(15 km/h), you can no longer fold in
the exterior mirrors.
Setting the exterior mirrors This function is only available in vehicles for
Canada.
If the battery has been disconnected or
completely discharged, the exterior mirrors
must be reset
.The exterior mirrors will
otherwise not fold in when you select the
"Fold in mirrors when locking" function in the
on-board computer (Y page 202).
X Make sure that the SmartKey is in
position 1in the ignition lock.
X Briefly press button 0002.
Folding the exterior mirrors in or out
automatically This function is only available in vehicles for
Canada. Mirrors
101Seats, steering wheel and mirrors Z

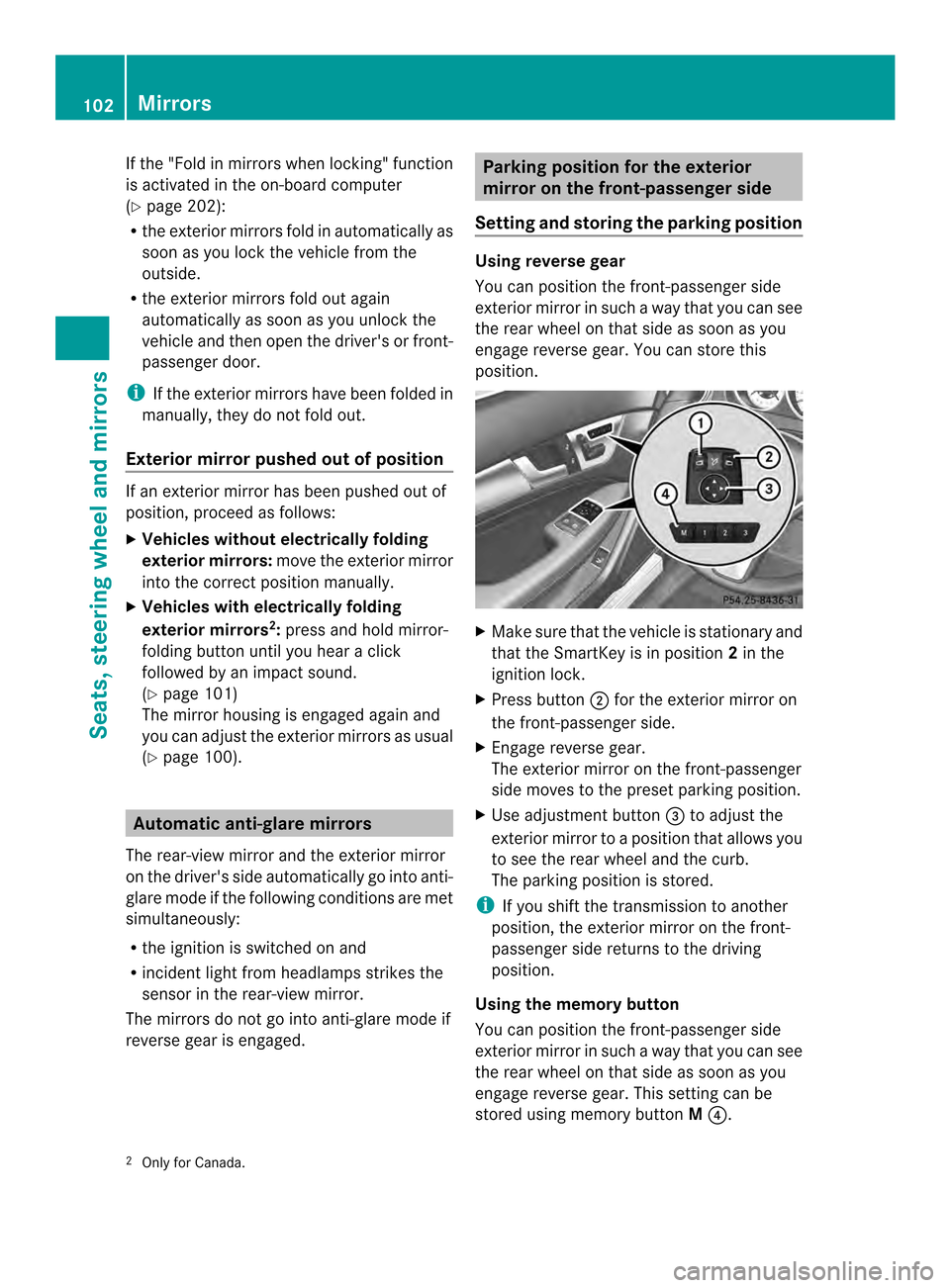

If the "Fold in mirrors when locking" function
is activated in the on-board computer
(Y
page 202):
R the exterior mirrors fold in automatically as
soon as you lock the vehicle from the
outside.
R the exterior mirrors fold out again
automatically as soon as you unlock the
vehicle and then open the driver's or front-
passenger door.
i If the exterior mirrors have been folded in
manually, they do not fold out.
Exterior mirror pushed out of position If an exterior mirror has been pushed out of
position, proceed as follows:
X
Vehicles without electricall yfolding
exterior mirrors: move the exterior mirror
into the correc tposition manually.
X Vehicles with electrically folding
exterior mirrors 2
: press and hold mirror-
folding button until you hear a click
followed by an impact sound.
(Y page 101)
The mirror housing is engaged again and
you can adjust the exterior mirrors as usual
(Y page 100). Automatic anti-glare mirrors
The rear-view mirror and the exterior mirror
on the driver's side automatically go into anti-
glare mode if the following conditions are met
simultaneously:
R the ignition is switched on and
R incident light from headlamps strikes the
sensor in the rear-view mirror.
The mirrors do not go into anti-glare mode if
reverse gear is engaged. Parking position for the exterior
mirror on the front-passenger side
Setting and storing the parking position Using reverse gear
You can position the front-passenger side
exterior mirror in such a way that you can see
the rear wheel on that side as soon as you
engage reverse gear. You can store this
position.
X
Make sure that the vehicle is stationary and
that the SmartKey is in position 2in the
ignition lock.
X Press button 0003for the exterior mirror on
the front-passenger side.
X Engage reverse gear.
The exterior mirror on the front-passenger
side moves to the preset parking position.
X Use adjustment button 0022to adjust the
exterior mirror to a position that allows you
to see the rear wheel and the curb.
The parking position is stored.
i If you shift the transmission to another
position, the exterior mirror on the front-
passenger side returns to the driving
position.
Using the memory button
You can position the front-passenger side
exterior mirror in such a way that you can see
the rear wheel on that side as soon as you
engage reverse gear. This setting can be
stored using memory button M0021.
2 Only for Canada. 102
MirrorsSeats, steering wheel and mirrors
