Page 5 of 354
1, 2,3...
4MATIC (permanent four-wheel
drive) .................................................. 174
12 Vsocket
see Socket (12 V)
360° camera
Cleaning ........................................ .296
Display in the multimedi asystem .. 187
Function/notes .............................1 85
A
ABS (Anti-lock Braking System)
Display message ............................ 220
Function/notes ................................ 62
Important safety notes .................... 62
Warning lamp ................................. 249
Accident
Automatic measure safter an acci-
dent ................................................. 56
Activatin gmedia mode
General notes ................................ 266
Activating/deactivating cooling
with air dehumidification ................. 123
Active Blin dSpot Assist
Activating/deactivating (on-
board computer) ............................ 213
Display message ............................ 237
Active Lane Keepin gAssist
Activating/deactivating (on-
board computer) ............................ 213
Display message ............................ 237
Function/informatio n.................... 197
Active Parking Assist
Canceling ....................................... 181
Detecting parking spaces .............. 178
Displa ymessage ............................ 237
Exiting aparking space .................. 180
Function/note s............................. 177
Important safety notes .................. 177
Parking .......................................... 179
ADAPTIVE BRAKE ................................. 70
Adaptive Brake Assist
Function/note s................................ 66
Adaptive Damping System
Function/note s............................. 173
Adaptive Damping System (ADS) ..... 173Adaptive Highbeam Assist
Displa ymessage ............................ 232
Function/note s............................. 112
Switching on/of f........................... 113
Additional speedometer ................... 215
Additive s(engine oil)........................ 347
Address book
see also Digital Operator's Man-
ual.................................................. 258
Adjustin gthe volume
Multimedia system ........................ 259
Ai rb ags
Deployment ..................................... 53
Displa ymessage ............................ 229
Front ai rbag (driver, front
passenger )....................................... 48
Important safety notes .................... 46
Introduction ..................................... 46
Knee ba g.......................................... 48
Occupant Classification System
(OCS) ............................................... 49
PASSENGER AIR BAG indica tor
l
amps ............................................... 42
Sid eimpact ai rbag .......................... 48
Window curtai nairba g. ................... 49
Ai rv ents
Important safety notes .................. 128
Rear ............................................... 128
Setting ........................................... 128
Setting the center ai rvents ........... 128
Setting the sid eairvents ............... 128
Air-conditioning system
see Climate control
AIRMATIC
Displa ymessage ............................ 236
Function/note s............................. 172
Alarm
ATA (Anti-Theft Alarm system )......... 73
Switching off (ATA) .......................... 73
Switching the function on/off
(ATA) ................................................ 73
Alarm system
see ATA (Anti-Theft Alarm system)
AMG
Adaptive sport suspensio nsys-
tem ................................................ 173
Performance Seat. ......................... 101
AMG men u(on-board computer) ..... 216
Index3
Page 176 of 354
XPress button:.
Indicator lamp =lights up. You have selected
Sport mode.
The AMG Suspension System SPORT
mes-
sage appears in the multifunction display.
Sport +mode
The very firm setting of the suspension setting in
Sport +mode ensures the best possible contact
with the road. Select this mode only when driv-
ing on race circuits.
If indicator lamps ;and =are off:
XPress button :twice.
Indicator lamps ;and =light up. You have
selected Sport +mode.
The AMG
SuspensionSystemSPORT +mes-
sage appears in the multifunction display.
If indicator lamp =lights up:
XPress button :once.
Secondi ndicator lamp ;lights up. You have
selected Sport +mode.
The AMG
SuspensionSystemSPORT +mes-
sage appears in the multifunction display.
Comfort mode
In Comfort mode, the driving characteristics of
your vehicle are more comfortable. Select this
mode if you favor amore comfortable driving
style, but also when driving fast on straight
roads, e.g. highways.
XPress button :repeatedly until indicator
lamps ;and =go out.
You have selected Comfort mode.
The AMG
SuspensionSystemCOMFORTmes-
sage appears in the multifunction display.
4MATIC (permanent four-wheel drive)
4MATI Censures that all four wheels are perma-
nently driven. Together with ESP®,iti mproves
the traction of your vehicle whenever adrive
wheel spins due to insufficien tgrip.
If you fail to adapt your driving style, 4MATI Ccan
neither reduce the risk of accident nor override the laws of physics. 4MATI Ccannot take
account of road, weather and traffic conditions.
4MATI Ciso nly an aid. You are responsible for
the distanc etothe vehicle in front, for vehicle speed, for braking in good time and for staying in
your lane.
If
ad rive wheel spins due to insufficien tgrip:
ROnly depress the accelerator pedal as far as
necessary when pulling away.
RAccelerate less when driving.
!Never tow the vehicle with one axle raised.
This may damage the transfer case. Damage
of this sort is not covered by the Mercedes-
Benz Limited Warranty. All wheels must
remain either on the ground or be fully raised.
Observe the instruction sfor towing the vehi-
cle with all wheels in full contact with the
ground.
iIn wintry driving conditions, the maximum
effect of 4MATI Ccan only be achieved if you
use winter tires (M+S tires), with snow chains
if necessary.
PARKTRONIC
Important safety notes
PARKTRONIC is an electronic parking aid with
ultrasonic sensors.Itm onitors the area around
your vehicle using six sensors in the front
bumper and six sensors in the rear bumper.
PARKTRONIC indicates visually and audibly the
distanc ebetween your vehicle and an object.
PARKTRONIC is only an aid. It is not areplace-
ment for your attention to your immediate sur-
roundings. You are alwaysr esponsible for safe
maneuvering, parking and exitin gaparking
space. When maneuvering, parking or pulling
out of aparking space, make sure that there are
no persons, animals or object sinthe area in
which you are maneuvering.
!When parking, pay particular attention to
object sabove or below the sensors,s uch as
flower pots or trailer drawbars. PARKTRONIC
does not detect such object swhen they are in
the immediate vicinityoft he vehicle. You
could damage the vehicle or the objects.
The sensors may not detect snow and other
object sthat absorb ultrasonic waves.
Ultrasonic sources such as an automatic car
wash, the compressed-air brakes on atruck
or ap neumatic drill could cause PARKTRONIC
to malfunction.
PARKTRONIC may not function correctly on
uneven terrain.
174Driving systems
Driving and parking
Page 218 of 354
AMG menu(Mercedes-AM Gvehicles)
WAR MUP
:Digital speedometer
;Gear indicator
=Charge-air pressur e
?Engineoil temperature
ATransmission fluid temperature
XPress th eò buttonont hesteering whee l
to open th emenulist .
XPress :or9 on thesteering whee lto
select th eAMGmenu.
XConfir mbyp ressing aon thesteering
wheel.
Engin eand transmission oil tempera-
tures :when th eenginea nd transmission are
at normal operating temperature, oil temper-
atures ?and Aare displayed in whit einthe
multifunction display.
If th emultifunction display shows oil temper-
atur e? orA in blue, th eengineort he
transmission are no tyet at normal operating
temperature. Avoid drivin gatfull engin eout-
put during this time.
G- Meter
The G-Meter shows you th eforce stha tare exer-
te dont hedriver during th ejou rney, bot hlater-
ally and in th edirection of travel .
The maximum value sare indicated in red in th e
guidelin esystem.
XPress òon thesteering whee ltoo pen th e
men ulist .
XPress :or9 on thesteering whee lto
select th eAMGmenu.
XConfir mbyp ressing aon thesteering
wheel.
XPress th e9 buttonrepeatedly until th eG-
Meter appears.
The maximum value softheG-Meter are
saved.
XTo reset th eG-Meter: press aagain.
XUsing :or9 select Yeson thesteer -
ing wheel.
XPress ato confirm .
The maximum value softheG-Meter are
deleted.
If th eignition remain sswitched off for longer
than four hours, th eG-Meter will be automati-
call yreset .
SETUP
:Drive Comfor t/Sport/Sport +/Rac e
;Chassis Comfort/Sport/Sport +
=Transmission D/M
?Exhaust system Comfort/Sport +
AESP®On/Offor SPORT handlin gmode
Sport
SETUP displays th efollowin ginformation and
functions:
Rth eg ear indicator
Rthed igital speedometer
Rthed rive system setting
216Menusa nd submenus
On-boardc omputer andd isplays
Page 328 of 354
for monitoring. In most cases,the tire pressure
monitor wil lautomatically detect the new refer-
ence values after you have changed the tire
pressure. However, you can als odefine refer-
ence values manually as described here. The tire
pressure monitor then monitors the new tire
pressure values.
XSet the tire pressure to the valu erecommen-
ded for the corresponding driving situation on
the Tire and Loading Informatio nplacard on
the driver's side B-pillar (
Ypag e319).
You can find more tire pressure values for
various operating conditions in the tire pres-
sure tabl einsidet he fuel filler flap
(
Ypag e319).
XMake sure that the tire pressure is correct on
all four wheels.
XMake sure that the SmartKey is in position 2
in the ignition lock (Ypag e131).
XPress òon the steering whee ltocall up
the menu list.
XPress 9or: on the steering whee lto
select the Servicemenu.
XConfirm by pressing aon the steering
wheel.
XPress 9or: to select Tire Pres‐sure.
XPressato confirm.
The multifunction display showst he current
tire pressure of each whee lortheTire
pressurew ill be displayed afterdrivingafew minutesmessage.
XPress the :button.
The UseCurrentPressuresasNewRef‐erence Valuesmessage is shownint he
multifunction display.
If you wis htoconfirm the restart:
XPress the abutton.
The TirePress.MonitorRestartedmes-
sage is shownint he multifunction display.
After driving for afew minutes ,the system
checks whethe rthe current tire pressures are
withi nthe specified range. The new tire pres-
sure sare then accepted as reference values
and monitored.
If you wis htocancel the restart:
XPress the %button.
The tire pressure values stored at the last
restart wil lcontinue to be monitored.
Loading the vehicle
Instruction labels for tires and loads
GWARNING
Overloade dtires can overheat, causing a
blowout. Overloade dtires can als oimpair the
steering and driving characteristics and lead
to brake failure. There is arisk of accident.
Observet he loadrating of the tires. The load
rating must be at least hal fofthe GAWR of
you rvehicle. Never overload the tires by
exceeding the maximu mload.
Two instruction labels on you rvehicles how the
maximu mpossible load.
(1) The Tire and Loading Informatio nplacard is
on the B-pillar on the driver's side .The Tire
and Loading Informatio nplacard showst he
maximu mpermissible numbe rofoccu-
pants and the maximu mpermissible vehicle
load. It als ocontains details of the tire sizes
and corresponding pressures for tires
mounted at the factory.
(2) The vehicl eidentificatio nplate is on the B-
pillar on the driver's side .The vehicl eiden-
tification plate informs you of the gross
vehicl eweight rating. It is made up of the
vehicl eweight, all vehicl eoccupants, the
fuel and the cargo. You can als ofind infor-
mation about the maximu mgross axle
weight rating on the front and rear axle.
The maximu mgross axle weight rating is
the maximu mweight that can be carrie dby
one axle (front or rear axle). Never exceed
the maximu mloadort he maximu mgross
axle weight rating for the front or rear axle.
:B-pillar, driver's side
326Loading the vehicle
Wheels and tires
Page 335 of 354

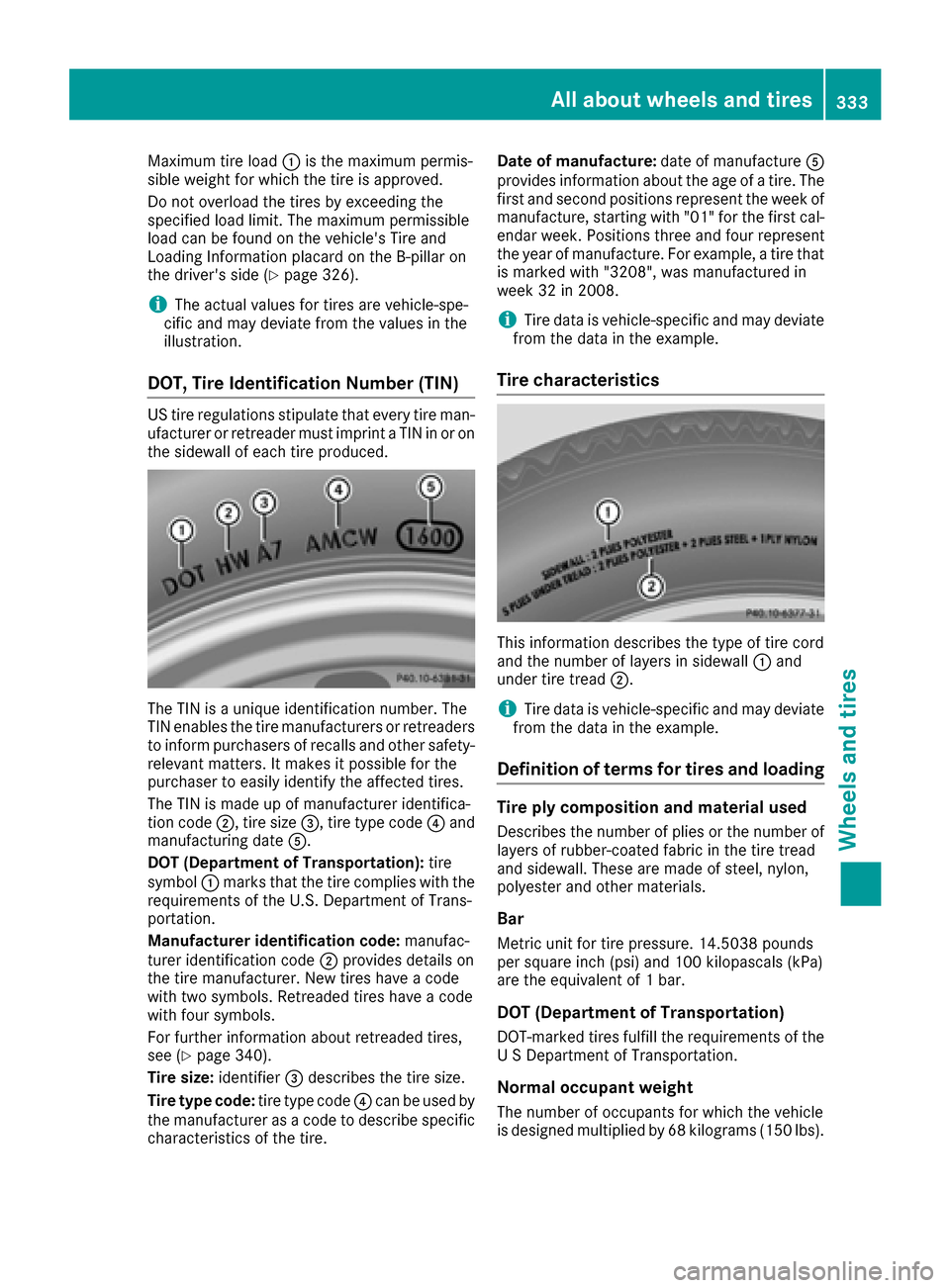

Maximum tire load:is the maximum permis-
sible weight for which the tire is approved.
Do not overload the tires by exceeding the
specified load limit. The maximum permissible
load can be found on the vehicle's Tire and
Loading Information placard on the B-pillar on
the driver's side (
Ypage 326).
iThe actual values for tires are vehicle-spe-
cific and may deviate from the values in the
illustration.
DOT, Tire Identification Number (TIN)
US tire regulations stipulate that every tire man-
ufacturer or retreader must imprint aTIN in or on
the sidewall of each tire produced.
The TIN is aunique identification number. The
TIN enables the tire manufacturers or retreaders
to inform purchasers of recalls and other safety-
relevant matters. It makes it possible for the
purchaser to easily identify the affected tires.
The TIN is made up of manufacturer identifica-
tion code ;,tire size =,tire type code ?and
manufacturing date A.
DOT (Department of Transportation): tire
symbol :marks that the tire complies with the
requirements of the U.S. DepartmentofT rans-
portation.
Manufacturer identification code: manufac-
turer identification code ;provides details on
the tire manufacturer. New tires have acode
with two symbols. Retreaded tires have acode
with four symbols.
For further information about retreaded tires,
see (
Ypage 340).
Tire size: identifier=describes the tire size.
Tire type code: tire type code?can be used by
the manufacturer as acode to describe specific
characteristics of the tire. Date of manufacture:
date of manufactureA
provides information about the age of atire. The
first and second positions represent the week of
manufacture, startin gwith "01" for the first cal-
endar week. Positions three and four represent
the year of manufacture. For example, atire that
is marked with "3208", was manufactured in
week 32 in 2008.
iTire data is vehicle-specific and may deviate
from the data in the example.
Tire characteristics
This information describes the type of tire cord
and the number of layers in sidewall :and
under tire tread ;.
iTire data is vehicle-specific and may deviate
from the data in the example.
Definition of termsf or tires and loading
Tire ply composition and material used
Describes the number of plies or the number of
layers of rubber-coated fabric in the tire tread
and sidewall. These are made of steel, nylon,
polyester and other materials.
Bar
Metric unit for tire pressure. 14.5038 pounds
per square inch (psi) and 100 kilopascals (kPa)
are the equivalent of1bar.
DOT (Department of Transportation)
DOT-marked tires fulfill the requirements of the
USD epartmen tofTransportation.
Normal occupant weight
The number of occupants for which the vehicle
is designed multiplied by 68 kilograms (150 lbs).
All about wheels and tires333
Wheels and tires
Z
