MERCEDES-BENZ C-CLASS ESTATE 2007 Owners Manual

Troubleshooting
27

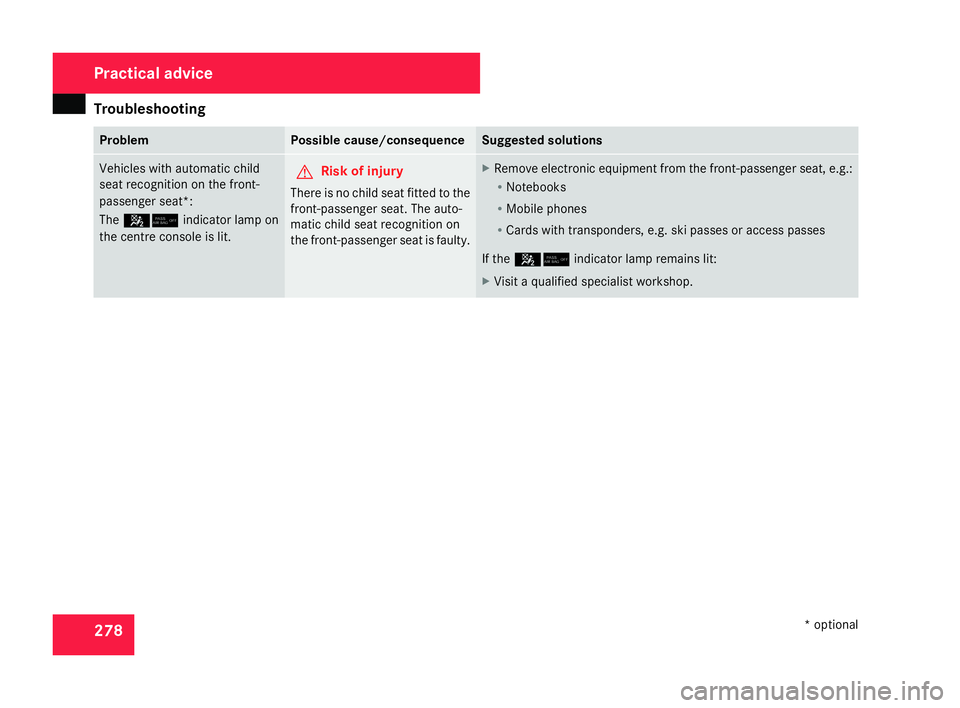

8 Problem Possible cause/consequence Suggested solutions
Vehicles with automatic child
seat recognition on the front-
passenger seat*:
The
5/ indicator lamp on
the centre console is lit. G
Risk of injury
There is no child seat fitted to the
front-passenger seat. The auto-
matic child seat recognition on
the front-passenger seat is faulty . X
Remove electronic equipment from the front-passenger seat, e.g. :
R Notebooks
R Mobile phones
R Cards with transponders, e.g. ski passes or access passes
If the 5/ indicator lamp remains lit :
X Visit a qualified specialist workshop. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 278

Troubleshooting
27

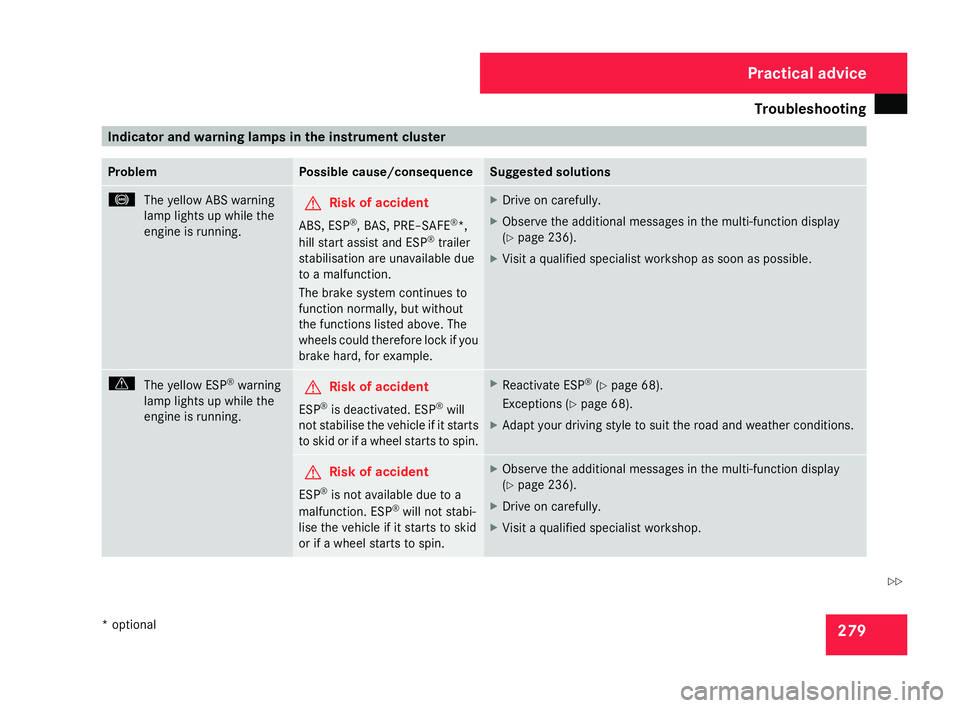

9 Indicator and warning lamps in the instrument cluster
Problem Possible cause/consequence Suggested solutions
-
The yellow ABS warning
lamp lights up while the
engine is running. G
Risk of accident
ABS, ESP ®
, BAS, PRE–SAFE ®
*,
hill start assist and ESP ®
trailer
stabilisation are unavailable du e
to a malfunction.
The brake system continues to
function normally, but without
the functions listed above. Th e
wheels could therefore lock if you
brake hard, for example. X
Drive on carefully.
X Observe the additional messages in the multi-function display
(Y page 236).
X Visit a qualified specialist workshop as soon as possible. v
The yellow ESP ®
warning
lamp lights up while th e
engine is running. G
Risk of accident
ESP ®
is deactivated. ES P®
will
not stabilise the vehicle if it start s
to skid or if a wheel starts to spin. X
Reactivate ES P®
(Y page 68).
Exceptions (Y page 68).
X Adapt your driving style to suit the road and weather conditions. G
Risk of accident
ESP ®
is not available due to a
malfunction. ESP ®
will not stabi-
lise the vehicle if it starts to skid
or if a wheel starts to spin . X
Observe the additional messages in the multi-function display
(Y page 236).
X Drive on carefully.
X Visit a qualified specialist workshop. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 279 Z

Troubleshooting
28

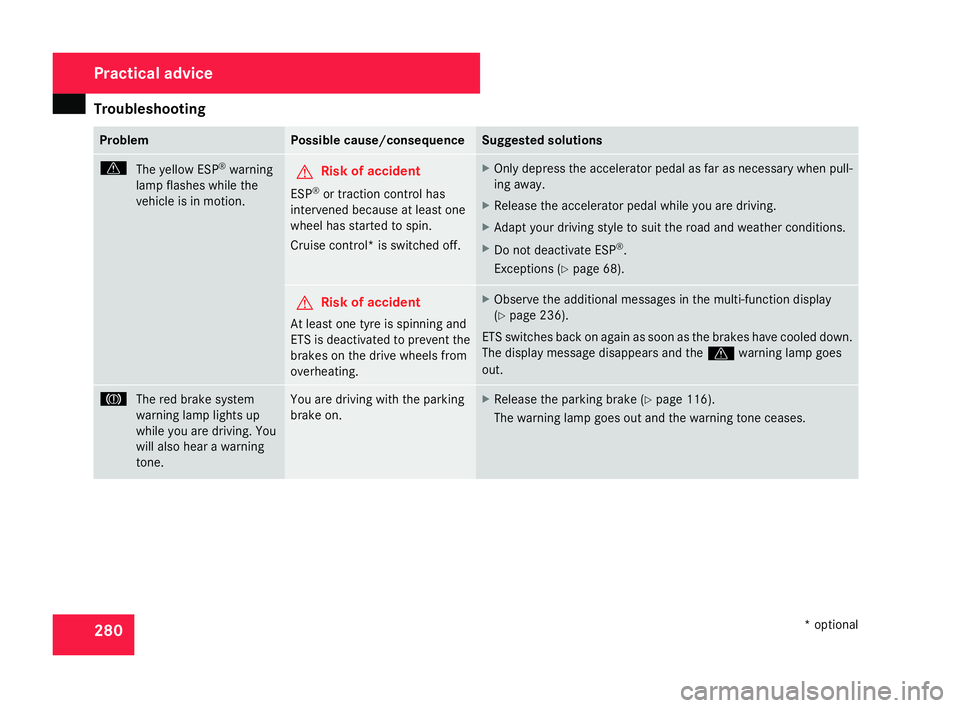

0 Problem Possible cause/consequence Suggested solutions
v
The yellow ESP ®
warning
lamp flashes while th e
vehicle is in motion. G
Risk of accident
ESP ®
or traction control has
intervened because at least one
wheel has started to spin.
Cruise control* is switched off. X
Only depress the accelerator pedal as far as necessary when pull-
ing away.
X Release the accelerator pedal while you are driving.
X Adapt your driving style to suit the road and weather conditions.
X Do not deactivate ESP ®
.
Exceptions (Y page 68). G
Risk of accident
At least one tyre is spinning and
ETS is deactivated to prevent the
brakes on the drive wheels from
overheating. X
Observe the additional messages in the multi-function display
(Y page 236).
ETS switches back on again as soon as the brakes have cooled down.
The display message disappears and the vwarning lamp goes
out. 3
The red brake system
warning lamp lights up
while you are driving. You
will also hear a warning
tone. You are driving with the parking
brake on. X
Release the parking brake (Y page 116).
The warning lamp goes out and the warning tone ceases. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 280

Troubleshooting
28
1 Problem Possible cause/consequence Suggested solutions

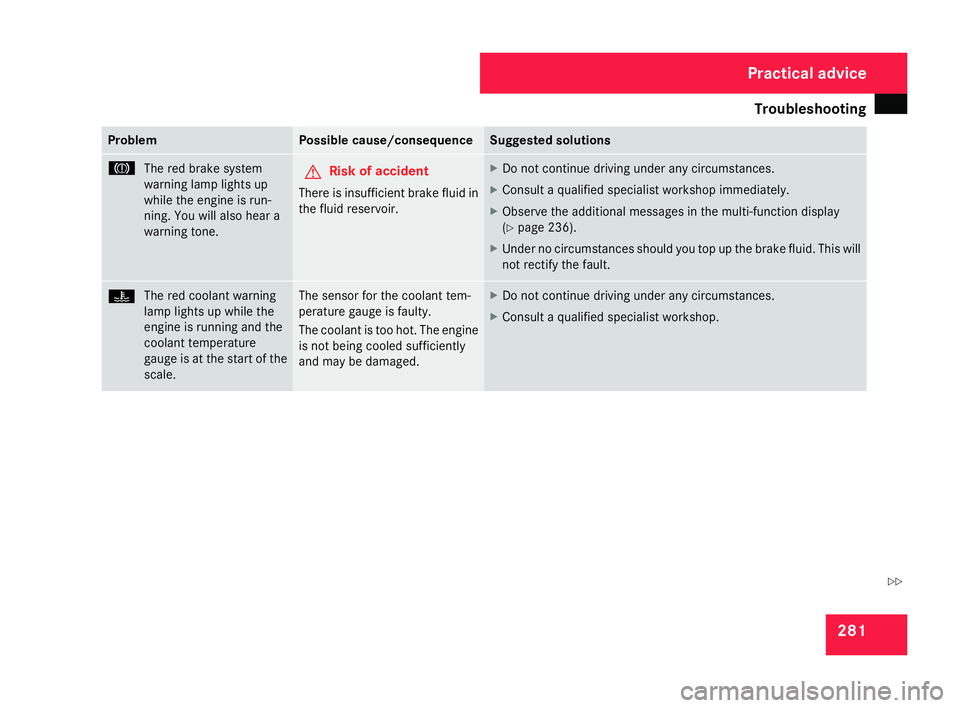

3
The red brake system
warning lamp lights up
while the engine is run-
ning. You will also hear a
warning tone. G
Risk of accident
There is insufficient brake fluid in
the fluid reservoir. X
Do not continue driving under any circumstances .
X Consult a qualified specialist workshop immediately.
X Observe the additional messages in the multi-function display
(Y page 236).
X Under no circumstances should you top up the brake fluid. This will
not rectify the fault. D
The red coolant warning
lamp lights up while the
engine is running and the
coolant temperature
gauge is at the start of the
scale. The sensor for the coolant tem-
perature gauge is faulty.
The coolant is too hot. The engine
is not being cooled sufficiently
and may be damaged. X
Do not continue driving under any circumstances .
X Consult a qualified specialist workshop. Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 28
1 Z

Troubleshooting
28

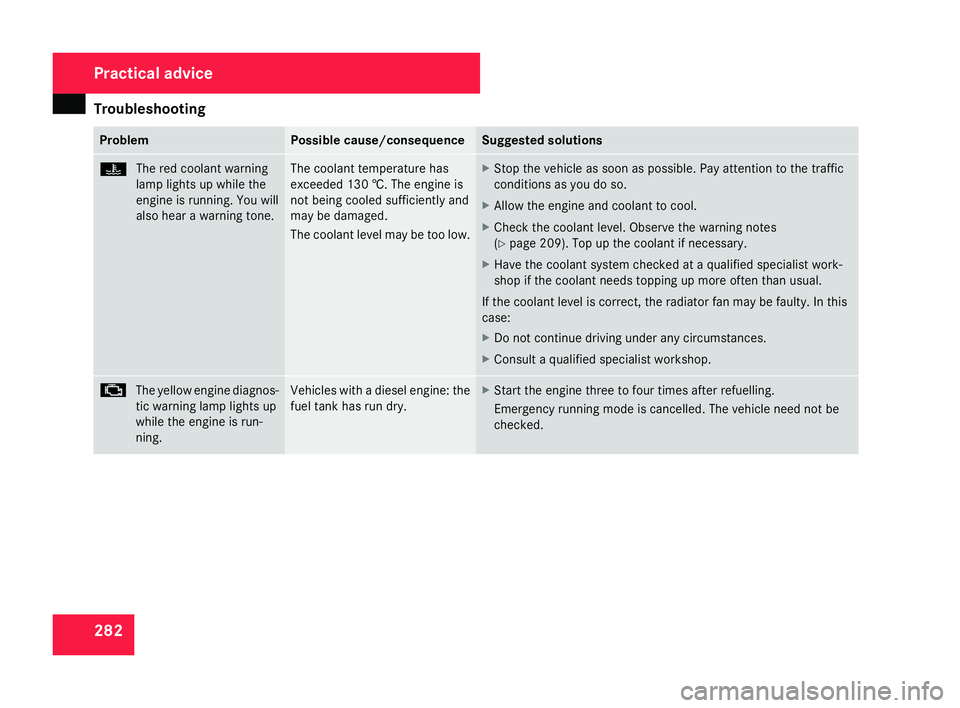

2 Problem Possible cause/consequence Suggested solutions
D
The red coolant warning
lamp lights up while the
engine is running. You will
also hear a warning tone. The coolant temperature has
exceeded 130
†. The engine is
not being cooled sufficiently and
may be damaged .
The coolant level may be too low. X
Stop the vehicle as soon as possible. Pay attention to the traffic
conditions as you do so.
X Allow the engine and coolant to cool.
X Check the coolant level. Observe the warning note s
( Y page 209). Top up the coolant if necessary.
X Have the coolant system checked at a qualified specialist work-
shop if the coolant needs topping up more often than usual .
If the coolant level is correct, the radiator fan may be faulty. In this
case:
X Do not continue driving under any circumstances .
X Consult a qualified specialist workshop. ±
The yellow engine diagnos-
tic warning lamp lights up
while the engine is run-
ning. Vehicles with a diesel engine: the
fuel tank has run dry. X
Start the engine three to four times after refuelling.
Emergency running mode is cancelled. The vehicle need not be
checked. Practical advice
204_AKB; 2; 3, en-G
B
mkalafa , 2007-06-26T23:11:51+02:00 - Seite 282

Troubleshooting
28
3 Problem Possible cause/consequence Suggested solutions
±
The yellow engine diagnos-
tic warning lamp lights up
while the engine is run-
ning. There may be a malfunction:
R
in the fuel injection system or
R in the exhaust system or
R in the ignition system (on vehi-
cles with a petrol engine)
The emission limit values may be
exceeded and the engine may be
running in emergency mode. X
Have the vehicle checked as soon as possible at a qualified spe -
cialist workshop. =
The red SRS warning lamp
lights up while the engine
is running. G
Risk of injury
The restraint systems are faulty .
The airbags or belt tensioners
may either be triggered uninten-
tionally or, in the event of an acci-
dent, not be triggered at all. X
Visit a qualified specialist workshop immediately. <
The red seat belt warning
lamp lights up for 6 sec-
onds after the engine
starts up. 16 The seat belt warning lamp
reminds the driver and front
passenger to fasten their seat
belts. X
Fasten your seat belt (Y page 98). 16
Only for certain countries Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 283 Z

Troubleshooting
28

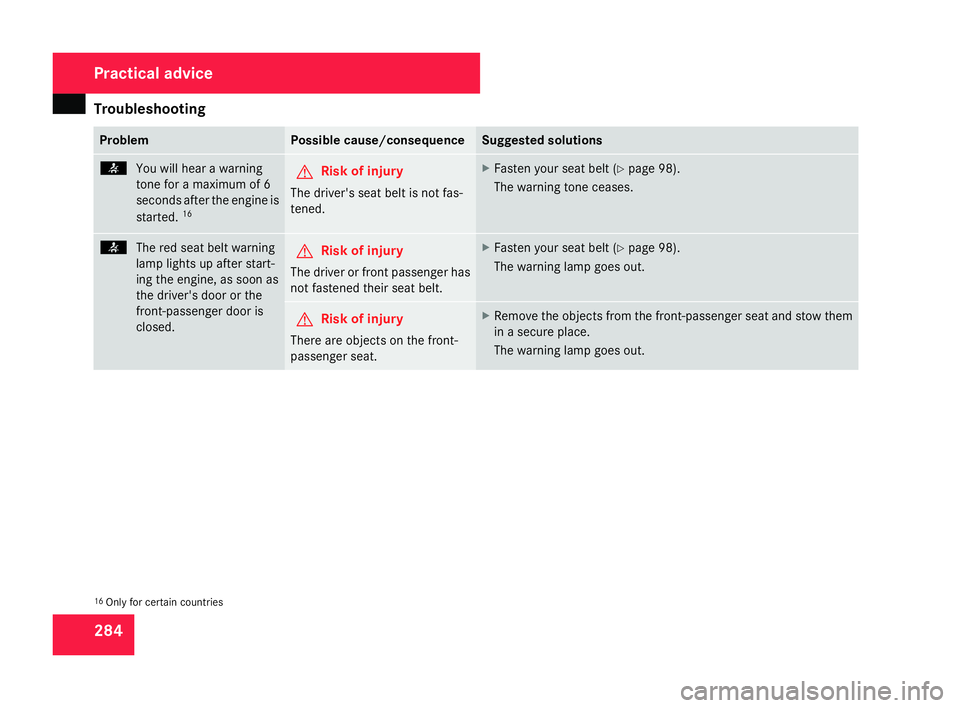

4 Problem Possible cause/consequence Suggested solutions
<
You will hear a warnin g
tone for a maximum of 6
seconds after the engine is
started. 16 G
Risk of injury
The driver's seat belt is not fas -
tened. X
Fasten your seat belt (Y page 98).
The warning tone ceases. <
The red seat belt warning
lamp lights up after start -
ing the engine, as soon as
the driver's door or the
front-passenger door is
closed. G
Risk of injury
The driver or front passenger ha s
not fastened their seat belt. X
Fasten your seat belt (Y page 98).
The warning lamp goes out. G
Risk of injury
There are objects on the front-
passenger seat. X
Remove the objects from the front-passenger seat and stow them
in a secure place.
The warning lamp goes out .16
Only for certain countries Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 284

Troubleshooting
28

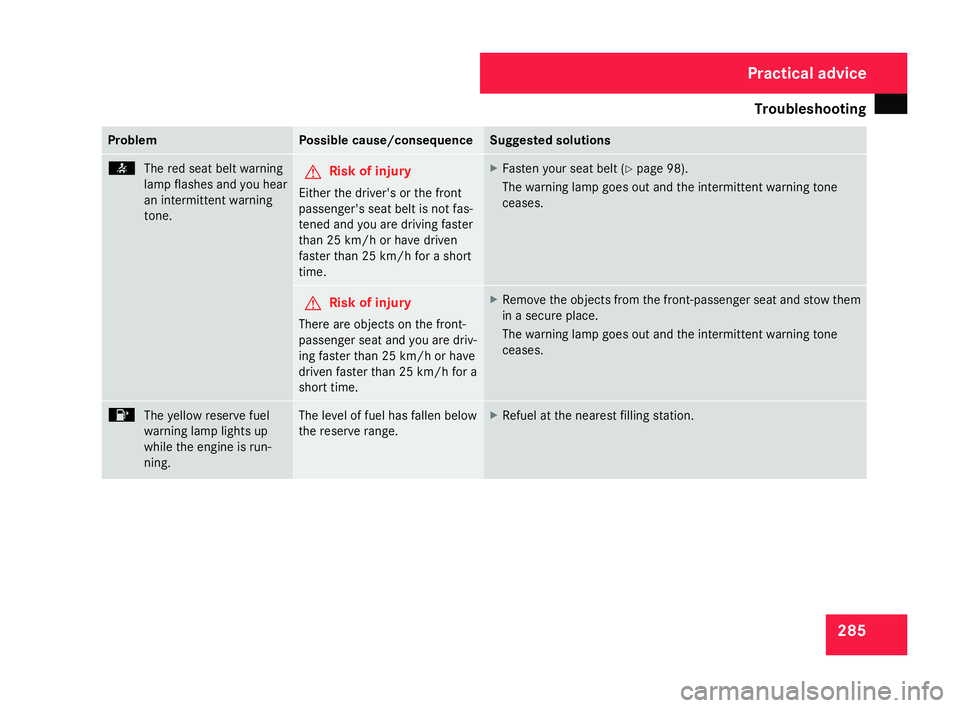

5 Problem Possible cause/consequence Suggested solutions
<
The red seat belt warning
lamp flashes and you hear
an intermittent warning
tone. G
Risk of injury
Either the driver's or the front
passenger's seat belt is not fas -
tened and you are driving faste r
than 25 km/h or have driven
faster than 25 km/h for a short
time. X
Fasten your seat belt (Y page 98).
The warning lamp goes out and the intermittent warning ton e
ceases . G
Risk of injury
There are objects on the front-
passenger seat and you are driv-
ing faster than 25 km/h or have
driven faster than 25 km/h for a
short time. X
Remove the objects from the front-passenger seat and stow them
in a secure place.
The warning lamp goes out and the intermittent warning tone
ceases . 4
The yellow reserve fuel
warning lamp lights up
while the engine is run-
ning. The level of fuel has fallen below
the reserve range. X
Refuel at the nearest filling station . Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 285

Troubleshooting
28

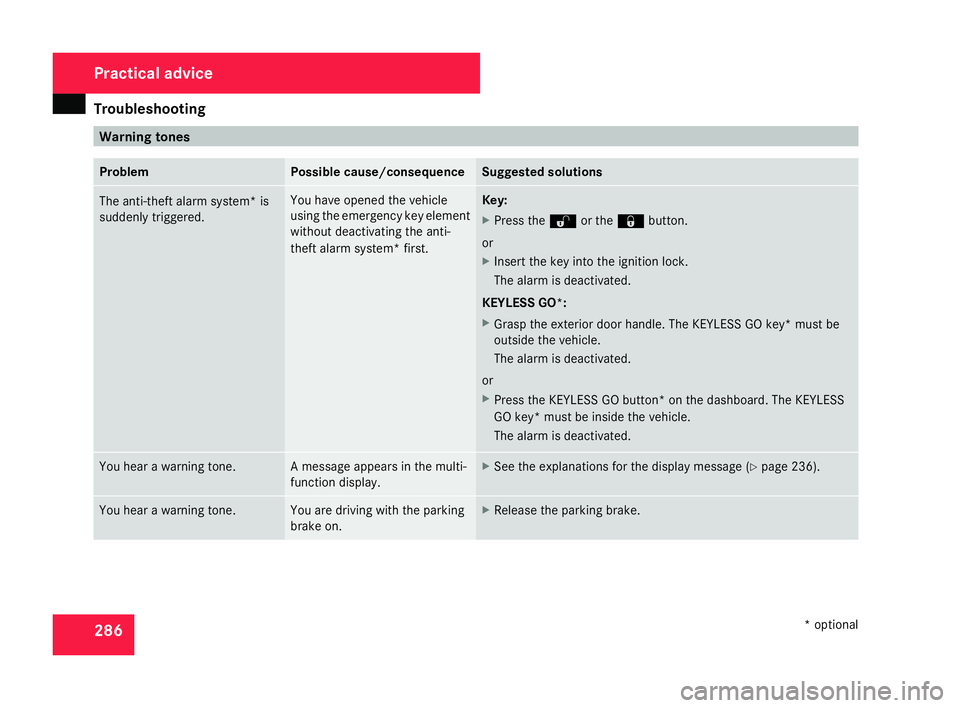

6 Warning tone
s Problem Possible cause/consequence Suggested solutions
The anti-theft alarm system* is
suddenly triggered. You have opened the vehicle
using the emergency key element
without deactivating the anti-
theft alarm system* first. Key:
X
Press the Œor the ‹button.
or
X Insert the key into the ignition lock.
The alarm is deactivated.
KEYLESS GO* :
X Grasp the exterior door handle. The KEYLESS GO key* must be
outside the vehicle .
The alarm is deactivated.
or
X Press the KEYLESS GO button* on the dashboard. The KEYLESS
GO key* must be inside the vehicle.
The alarm is deactivated. You hear a warning tone. A message appears in the multi-
function display. X
See the explanations for the display message (Y page 236). You hear a warning tone. You are driving with the parkin
g
brake on. X
Release the parking brake. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 28
6

Troubleshooting
28

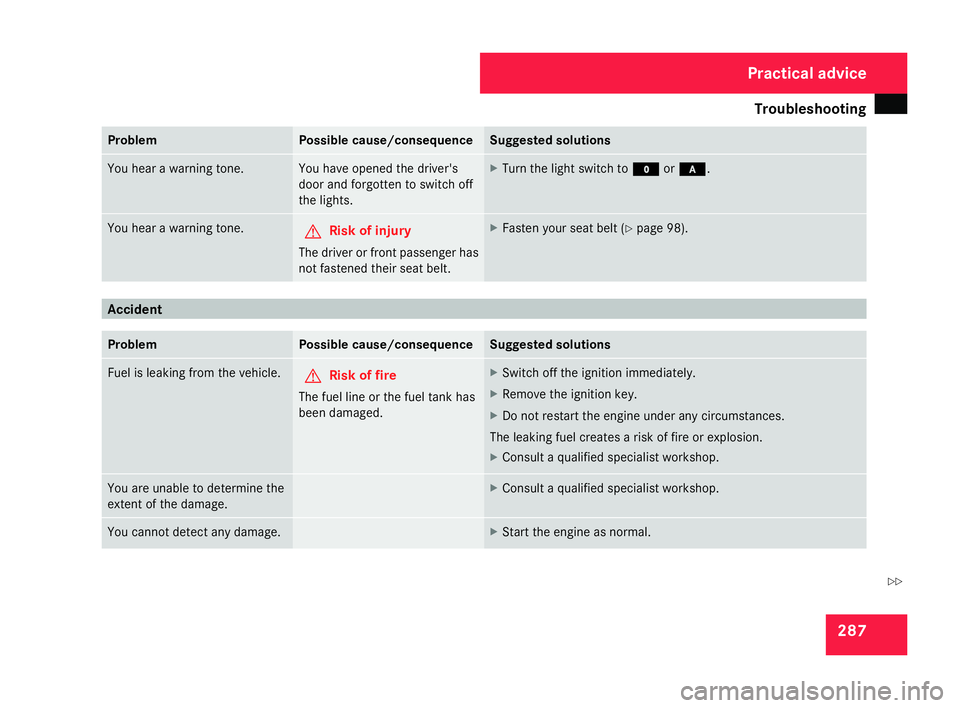

7 Problem Possible cause/consequence Suggested solutions
You hear a warning tone. You have opened the driver's
door and forgotten to switch off
the lights. X
Turn the light switch to Mor* . You hear a warning tone.
G
Risk of injury
The driver or front passenger ha s
not fastened their seat belt. X
Fasten your seat belt (Y page 98). Accident
Problem Possible cause/consequence Suggested solutions
Fuel is leaking from the vehicle.
G
Risk of fire
The fuel line or the fuel tank ha s
been damaged. X
Switch off the ignition immediately.
X Remove the ignition key.
X Do not restart the engine under any circumstances .
The leaking fuel creates a risk of fire or explosion.
X Consult a qualified specialist workshop. You are unable to determine th
e
extent of the damage. X
Consult a qualified specialist workshop. You cannot detect any damage. X
Start the engine as normal. Practical advice
204_AKB; 2; 3, en-G
B
mkalafa , 2007-06-26T23:11:51+02:00 - Seite 287 Z
