MERCEDES-BENZ C-CLASS ESTATE 2018 Owners Manual

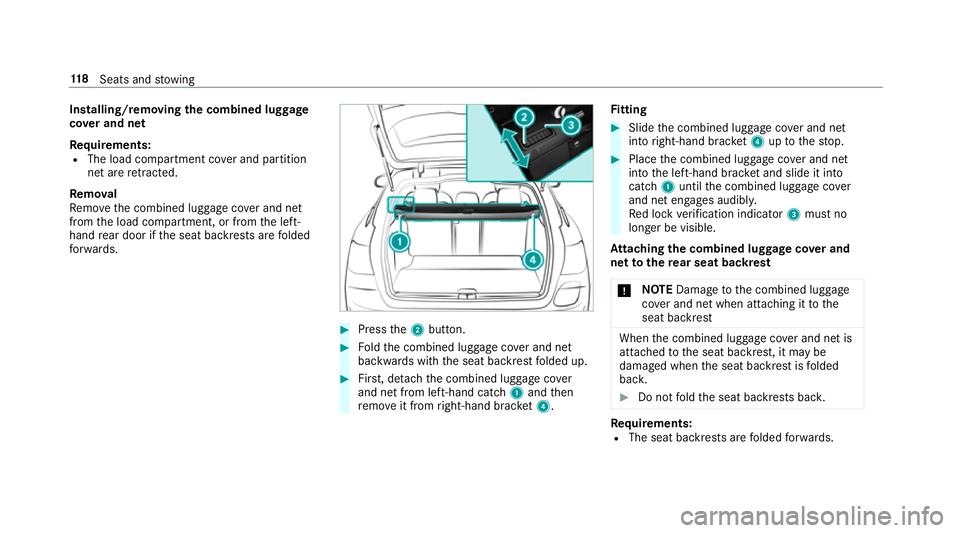

Installing/removing
the combined luggage
co ver and net
Re quirements:
R The load compartment co ver and partition
net are retracted.
Re mo val
Re mo vethe combined luggage co ver and net
from the load compartment, or from the left-
hand rear door if the seat backrests are folded
fo rw ards. 0007
Press the2 button. 0007
Foldthe combined luggage co ver and net
backwards with the seat backrest folded up. 0007
First, de tach th e combined luggage co ver
and net from left-hand cat ch1 and then
re mo veit from right-hand brac ket4. Fi
tting 0007
Slide the combined luggage co ver and net
into right-hand brac ket4 uptothestop. 0007
Place the combined luggage co ver and net
into the left-hand brac ket and slide it into
catch 1until the combined luggage co ver
and net engages audibl y.
Re d lock verification indicator 3must no
longer be visible.
At taching the combined luggage co ver and
net tothere ar seat backrest
000E NO
TEDama getothe combined luggage
co ver and net when attaching it tothe
seat backrest When
the combined luggage co ver and net is
attached tothe seat backrest, it may be
damaged when the seat backrest is folded
bac k. 0007
Do not fold the seat backrests bac k. Re
quirements:
R The seat backrests are folded forw ards. 11 8
Seats and stowing

0007

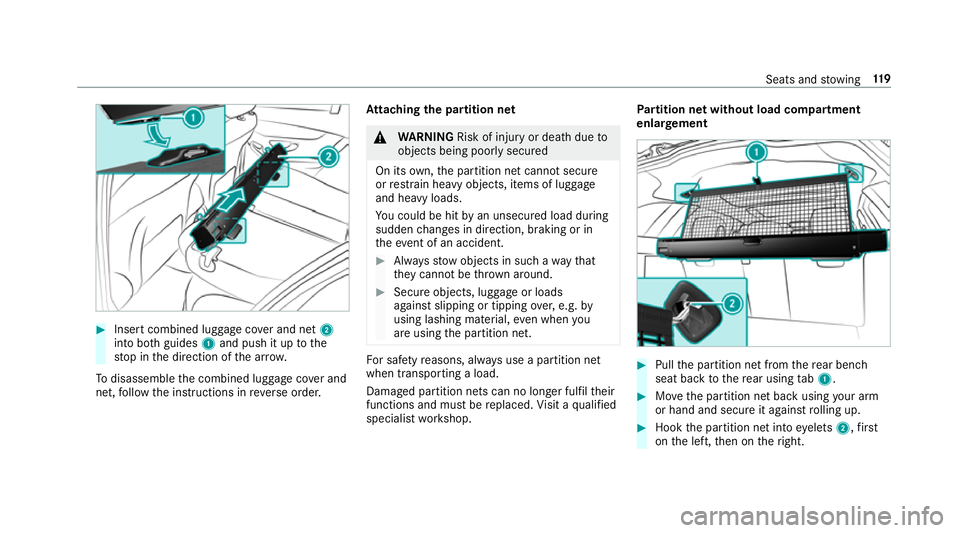

Insert combined luggage co ver and net 2
into bo thguides 1and push it up tothe
st op in the direction of the ar row.
To disassemble the combined luggage co ver and
net, follow the instructions in reve rse order. At
taching the pa rtition net 000A
WARNING Risk of inju ryor death due to
objects being poorly secured
On its own,the partition net cann otsecure
or restra in heavy objects, items of luggage
and heavy loads.
Yo u could be hit byan unsecured load during
sudden changes in direction, braking or in
th eev ent of an accident. 0007
Alw aysstow objects in such a wayth at
th ey cannot be thro wn around. 0007
Secure objects, luggage or loads
against slipping or tipping over,e.g. by
using lashing material, even when you
are using the partition net. Fo
r saf etyre asons, alw ays use a partition net
when transporting a load.
Damaged partition nets can no longer fulfil their
functions and must be replaced. Visit a qualified
specialist workshop. Pa
rtition net without load compartment
enlar gement 0007
Pull the partition net from there ar ben ch
seat back tothere ar using tab1. 0007
Movethe partition net back using your arm
or hand and secure it against rolling up. 0007
Hook the partition net into eyelets 2,first
on the left, then on theright. Seats and
stowing 11 9

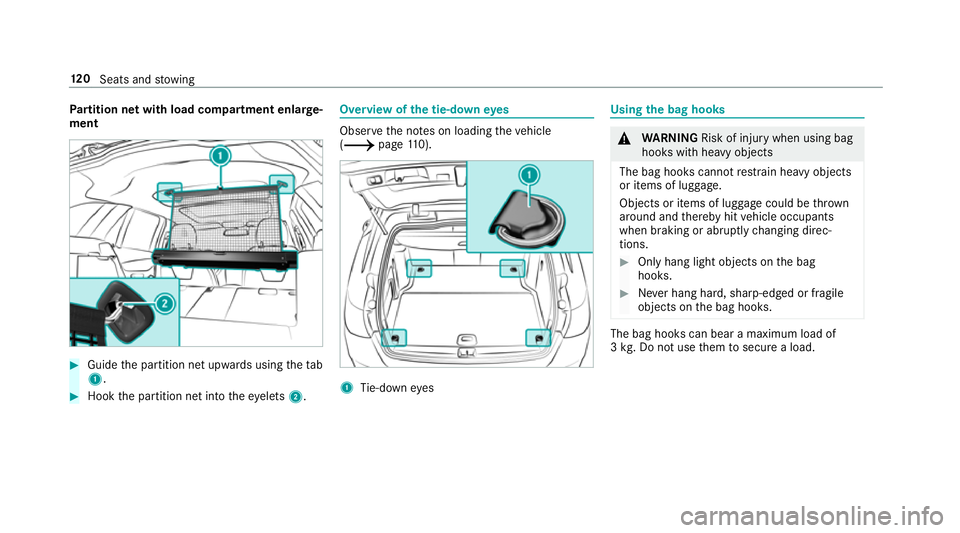

Pa
rtition net with load compartment enlar ge‐
ment 0007
Guide the partition net upwards using thetab
1 . 0007
Hook the partition net into theey elets 2. Overview of
the tie-down eyes Obser
vethe no tes on loading theve hicle
(0013 page110). 1
Tie-down eyes Using
the bag hooks 000A
WARNING Risk of inju rywhen using bag
hooks with heavy objects
The bag hooks cannot restra in heavy objects
or items of luggage.
Objects or items of luggage could be thrown
around and thereby hit vehicle occupants
when braking or abruptly changing direc‐
tions. 0007
Onlyhang light objects on the bag
hooks. 0007
Never hang hard, sharp-edged or fragile
objects on the bag hooks. The bag hooks can bear a maximum load of
3 kg . Do not use them tosecure a load. 12 0
Seats and stowing

0007
Press the bag hook 1atthe bottom.
The bag hook 1swings out.
0009 Obser vethe no tes on loading theve hicle
(0013 page110). Overvi
ewof coat hooks on the tailgate Obser
vethe no tes on loading theve hicle
(0013 page110). 1
Coat hook
Coat hoo ksare not suitable for hanging heavy
objects as this can cause theta ilgate tolower
automaticall y.Only use the coat hooks for light
objects, e.g. jac kets. Hooking the lug
gage net 000A
WARNING Risk of inju ryfrom inade‐
qu ate stow age of objects
If yo u do not adequately stowobjects in the
ve hicle interior, they could slip or be tossed
around and thereby strike vehicle occupants.
In addition, cup holders, open stowage
spaces and mobile phone brac kets cann ot
alw aysre stra in the objects they contain in
th eev ent of an accident.
There is a risk of injur y,particularly in the
ev ent of sudden braking or a sudden change
in direction. 0007
Alw aysstow objects in such a wayth at
th ey cannot be tossed around in these
or similar situations. 0007
Alw ays make sure that objects do not
project from stowage spaces, luggage
nets or stowage nets. 0007
Close all sealable stowage spaces
before youstart your journe y. Seats and
stowing 121

0007

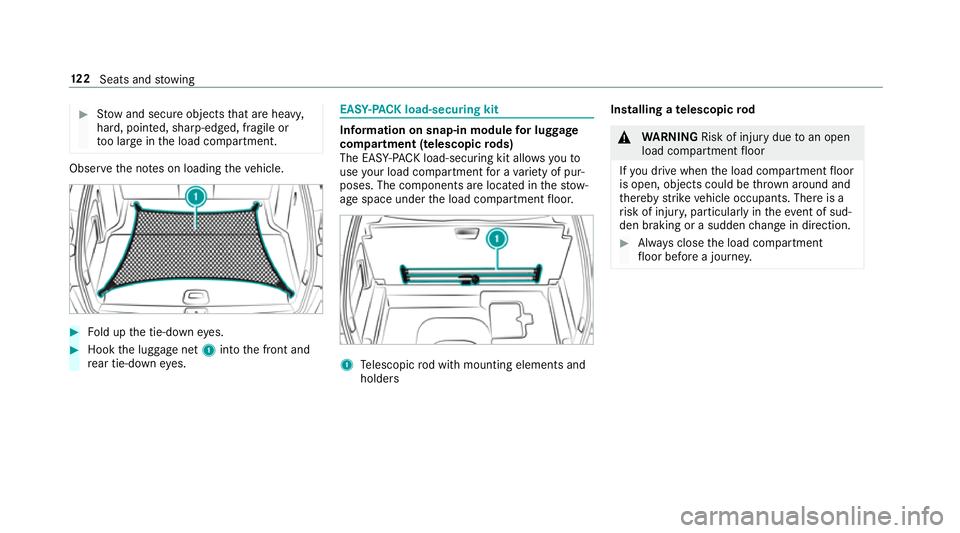

Stow and secure objects that are heavy,
hard, poin ted, sharp-edged, fragile or
to o lar geinthe load compartment. Obser
vethe no tes on loading theve hicle. 0007
Fold up the tie-down eyes. 0007
Hook the luggage net 1into the front and
re ar tie-down eyes. EAS
Y-PA CK load-securing kit Information on snap-in module
for lug gage
compa rtment (telescopic rods)
The EAS Y-PA CK load-securing kit allo wsyouto
use your load co mpartment for a variet y of pur‐
poses. The co mponents are located in thestow‐
age space under the load compartment floor. 1
Telescopic rod with mounting elements and
holders Installing a
telescopic rod 000A
WARNING Risk of inju rydue toan open
load compartment floor
If yo u drive when the load compartment floor
is open, objects could be thro wn around and
th ereby strike vehicle occupants. There is a
ri sk of injur y,particular lyin theeve nt of sud‐
den braking or a sudden change in direction. 0007
Alw ays close the load compartment
fl oor before a journe y.12 2
Seats and stowing

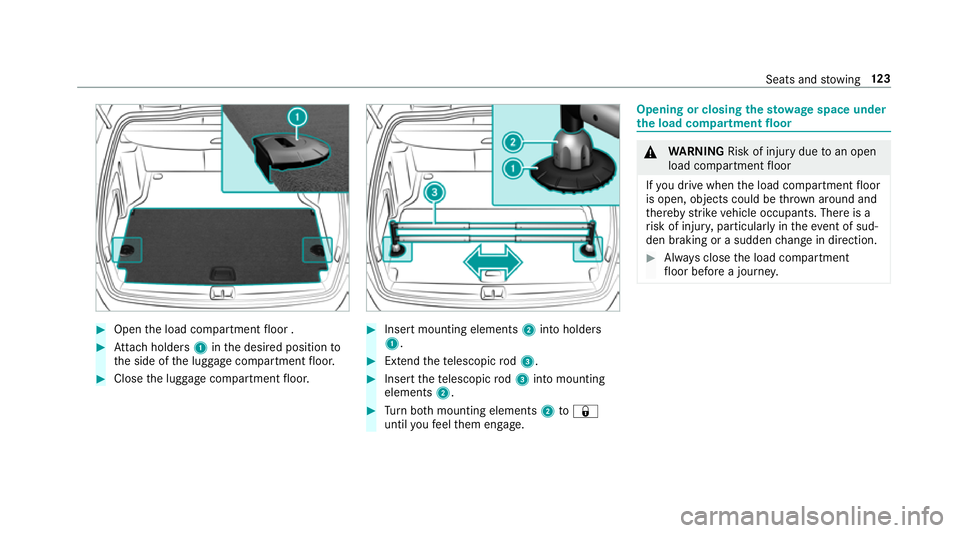

0007
Open the load compartment floor . 0007
Attach holders 1inthe desired position to
th e side of the luggage compartment floor. 0007
Close the luggage compartment floor. 0007
Insert mounting elements 2into holders
1. 0007
Extend thete lescopic rod3. 0007
Insert thete lescopic rod3 into mounting
elements 2. 0007
Turn both mounting elements 2to0037
until youfe el them engage. Opening or closing
thesto wage space under
th e load compa rtment floor 000A
WARNING Risk of inju rydue toan open
load compartment floor
If yo u drive when the load compartment floor
is open, objects could be thro wn around and
th ereby strike vehicle occupants. There is a
ri sk of injur y,particular lyin theeve nt of sud‐
den braking or a sudden change in direction. 0007
Alw ays close the load compartment
fl oor before a journe y. Seats and
stowing 12 3

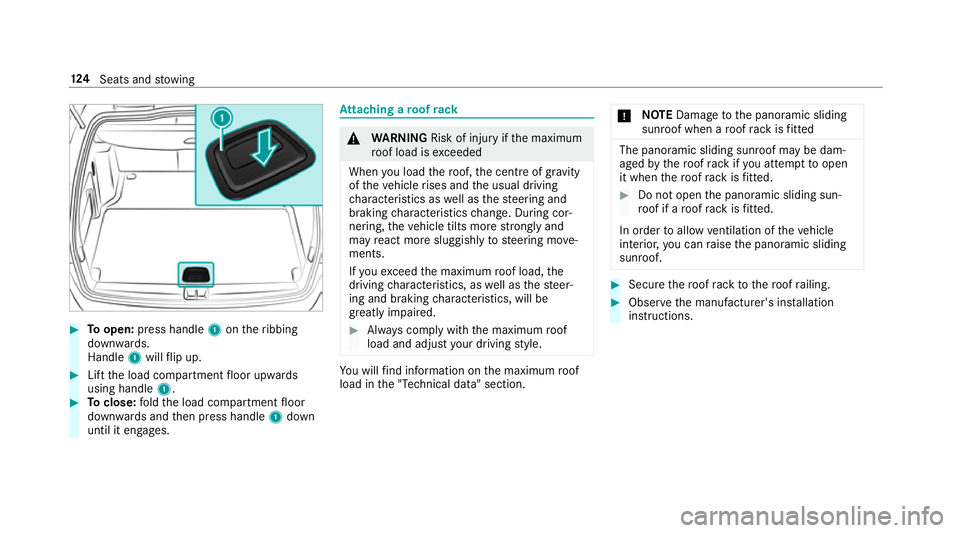

0007
Toopen: press handle 1ontheribbing
down wards.
Handle 1will flip up. 0007
Lift the load compartment floor upwards
using handle 1. 0007
Toclose: fold the load compartment floor
down wards and then press handle 1down
until it engages. At
taching a roof rack 000A
WARNING Risk of inju ryifth e maximum
ro of load is exceeded
When you load thero of, the cent reof gr avity
of theve hicle rises and the usual driving
ch aracteristics as well as thesteering and
braking characteristics change. During cor‐
nering, theve hicle tilts more strongly and
may react more sluggishly tosteering mo ve‐
ments.
If yo uexc eed the maximum roof load, the
driving characteristics, as well as thesteer‐
ing and braking characteristics, will be
great lyimpaired. 0007
Alw ays comply with the maximum roof
load and adjust your driving style. Yo
u will find information on the maximum roof
load in the "Technical data" section. 000E
NO
TEDama getothe panoramic sliding
sunroof when a roof rack isfitted The panoramic sliding sunroof may be dam‐
aged
bythero of rack ifyo u attem pttoopen
it when thero of rack isfitted. 0007
Do not open the panoramic sliding sun‐
ro of if a roof rack isfitted.
In order toallow ventilation of theve hicle
interior, you can raise the panoramic sliding
sunroof. 0007
Secure thero of rack tothero of railing. 0007
Obser vethe manufacturer's ins tallation
instructions. 124
Seats and stowing

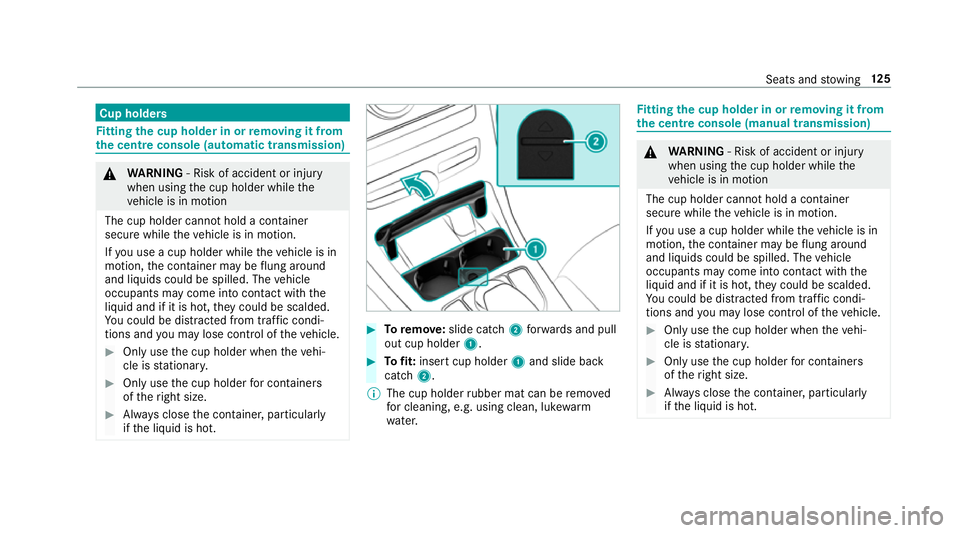

Cup holders
Fi
tting the cup holder in or removing it from
the centre console (au tomatic transmission) 000A
WARNING ‑ Risk of accident or inju ry
when using the cup holder while the
ve hicle is in motion
The cup holder cannot hold a container
secure while theve hicle is in motion.
If yo u use a cup holder while theve hicle is in
motion, the conta iner may be flung around
and liquids could be spilled. The vehicle
occupants may come into contact with the
liquid and if it is hot, they could be scalded.
Yo u could be distracted from traf fic condi‐
tions and you may lose cont rol of theve hicle. 0007
Only use the cup holder when theve hi‐
cle is stationar y. 0007
Only use the cup holder for containers
of theright size. 0007
Alw ays close the conta iner, particularly
if th e liquid is hot. 0007
Toremo ve:slide catch 2forw ards and pull
out cup holder 1. 0007
Tofit: inse rtcup holder 1and slide ba ck
catch 2.
0009 The cup holder rubber mat can be remo ved
fo r cleaning, e.g. using clean, luk ewarm
wate r. Fi
tting the cup holder in or removing it from
the centre console (manual transmission) 000A
WARNING ‑ Risk of accident or inju ry
when using the cup holder while the
ve hicle is in motion
The cup holder cannot hold a container
secure while theve hicle is in motion.
If yo u use a cup holder while theve hicle is in
motion, the conta iner may be flung around
and liquids could be spilled. The vehicle
occupants may come into contact with the
liquid and if it is hot, they could be scalded.
Yo u could be distracted from traf fic condi‐
tions and you may lose cont rol of theve hicle. 0007
Only use the cup holder when theve hi‐
cle is stationar y. 0007
Only use the cup holder for containers
of theright size. 0007
Alw ays close the conta iner, particularly
if th e liquid is hot. Seats and
stowing 12 5

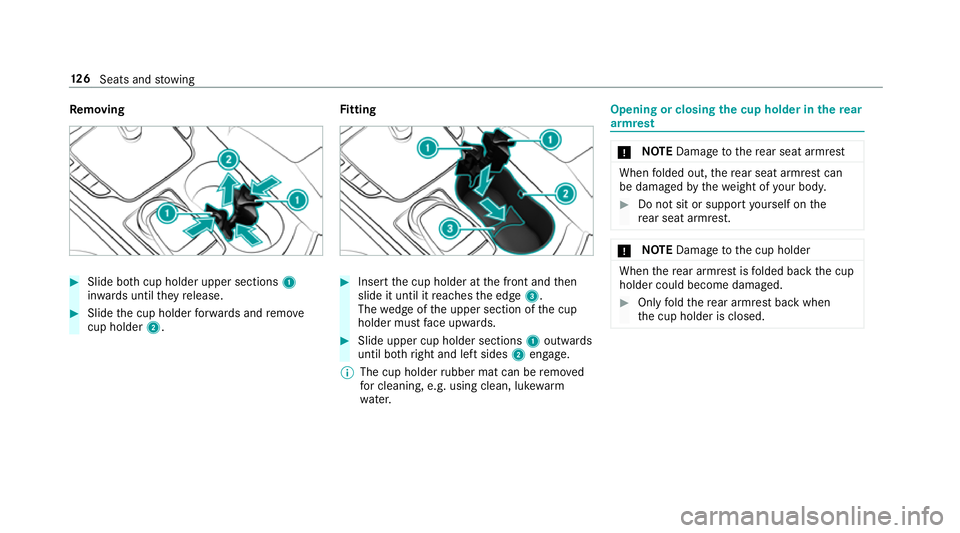

Re
moving 0007
Slide bo thcup holder upper sections 1
in wa rds until they release. 0007
Slide the cup holder forw ards and remo ve
cup holder 2. Fi
tting 0007
Inse rtthe cup holder at the front and then
slide it until it reaches the edge 3.
The wedge of the upper section of the cup
holder must face up wards. 0007
Slide upper cup holder sections 1outwards
until bo thright and left sides 2engage.
0009 The cup holder rubber mat can be remo ved
fo r cleaning, e.g. using clean, luk ewarm
wate r. Opening or closing
the cup holder in there ar
armrest 000E
NO
TEDama getothere ar seat armrest When
folded out, there ar seat armrest can
be damaged bythewe ight of your body. 0007
Do not sit or suppo rtyo urself on the
re ar seat armrest. 000E
NO
TEDama getothe cup holder When
there ar armrest is folded back the cup
holder could become damaged. 0007
Only fold there ar armrest back when
th e cup holder is closed. 12 6
Seats and stowing

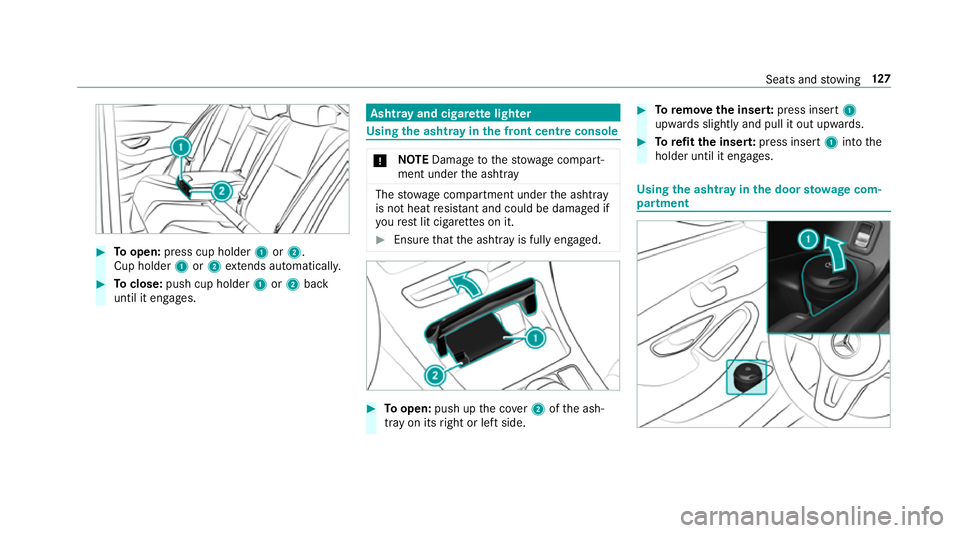

0007
Toopen: press cup holder 1or2.
Cup holder 1or2 extends au tomatical ly. 0007
Toclose: push cup holder 1or2 back
until it engages. Asht
ray and cigar ette lighter Using
the ashtr ayinthe front centre console 000E
NO
TEDama getothestow age compart‐
ment under the ashtr ay The
stow age compartment under the ashtray
is not heat resis tant and could be dama ged if
yo ure st lit cigar ette s on it. 0007
Ensure that the ashtr ayis fully engaged. 0007
Toopen: push up the co ver2 ofthe ash‐
tray on its right or left side. 0007
Toremo vethe inser t:press insert 1
upwards slightly and pull it out upwards. 0007
Torefit the inse rt:press insert 1into the
holder until it engages. Using
the ashtr ayinthe door stow age com‐
partment Seats and
stowing 127
