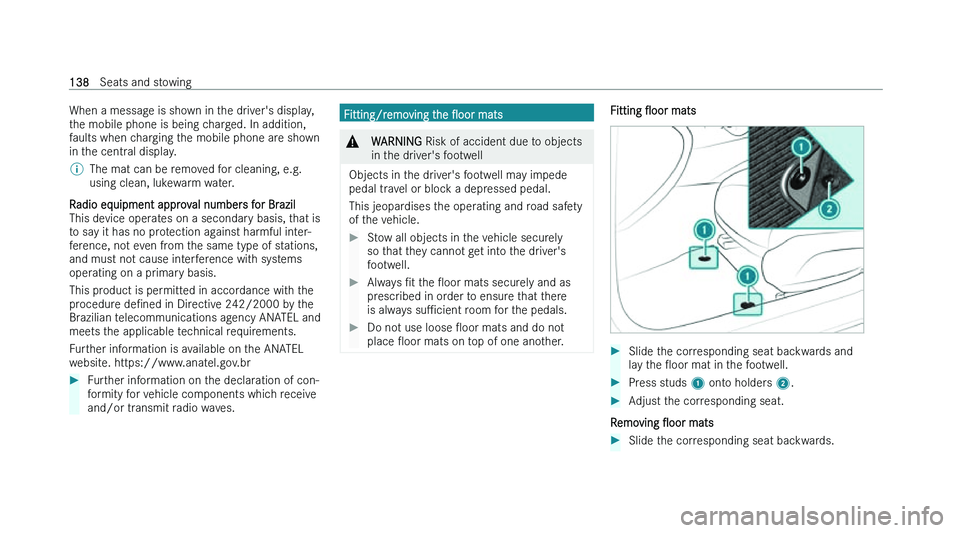

When a message is shown in the driver's display,
t he mobile phone is being charged. In addition,
faults when charging the mobile phone are shown
in the central display.
% The mat can be removed for cleaning, e.g.
using clean, luk

ewarm water.
Radio equipment approval numbers for Brazil
This de
vice operates on a secondary basis, that is
to say it has no protection against harmful inter-
ference, not even from the same type of stations,
and must not cause interference with systems
operating on a primary basis.
This product is permitted in accordance with the
procedure deNned in Directive 242/2000 by the
Brazilian telecommunications agency ANATEL and
meets the applicable technical requirements.
Further information is available on the ANATEL
website. https://www.anatel.gov.br
Further information on the declaration of con-
f

ormity for vehicle components which receive
and/or transmit radio waves. Fitting/removing the
Ooor mats &
WARNING Risk of accident due t
o objects
in the driver's footwell
Objects in the driver's footwell may impede
pedal tr
avel or block a depressed pedal.
This jeopardises the operating and road safety
of the vehicle.
Stow all objects in the vehicle securely
so t
hat they cannot get into the driver's
footwell.
Always Nt t
he Ooor mats securely and as
prescribed in order to ensure that there
is always suPcient room for the pedals.
Do not use loose Ooor mats and do no
t
place Ooor mats on top of one another. Fitting
Ooor mats
Slide the corresponding seat backwards and
la

y the Ooor mat in the footwell.
Press studs 1 ont
o holders 2.
Adjust the corresponding seat.
Removing Ooor mats
Slide the corresponding seat backwards. 138
Seats and stowing

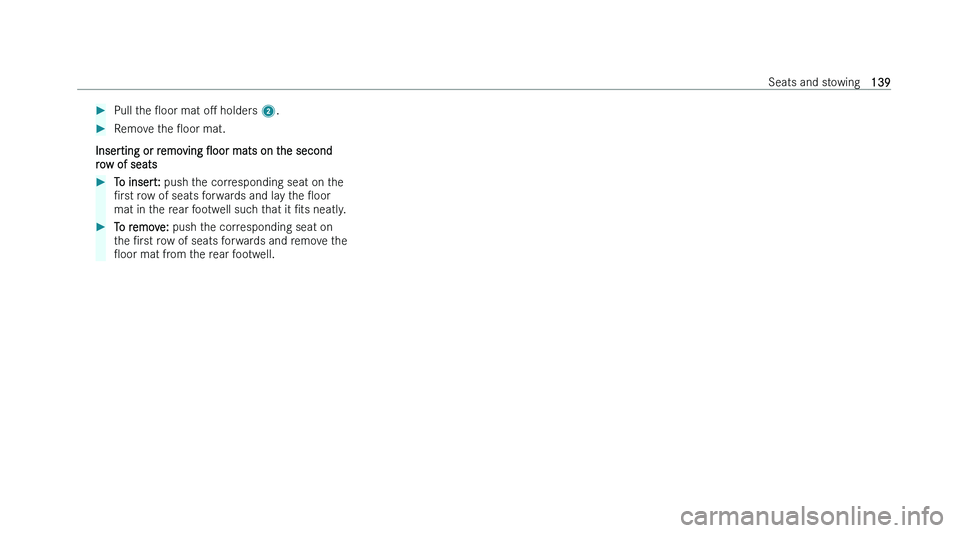

Pull the Ooor mat oM holder s 2.
Remove the Ooor mat.
Inserting or removing Ooor mats on t
he second
row of seats
To insert: push t
he corresponding seat on the
Nrst row of seats forwards and lay the Ooor
mat in the rear footwell such that it Nts neatly.
To remove: push t
he corresponding seat on
the Nrst row of seats forwards and remove the
Ooor mat from the rear footwell. Seats and stowing
139

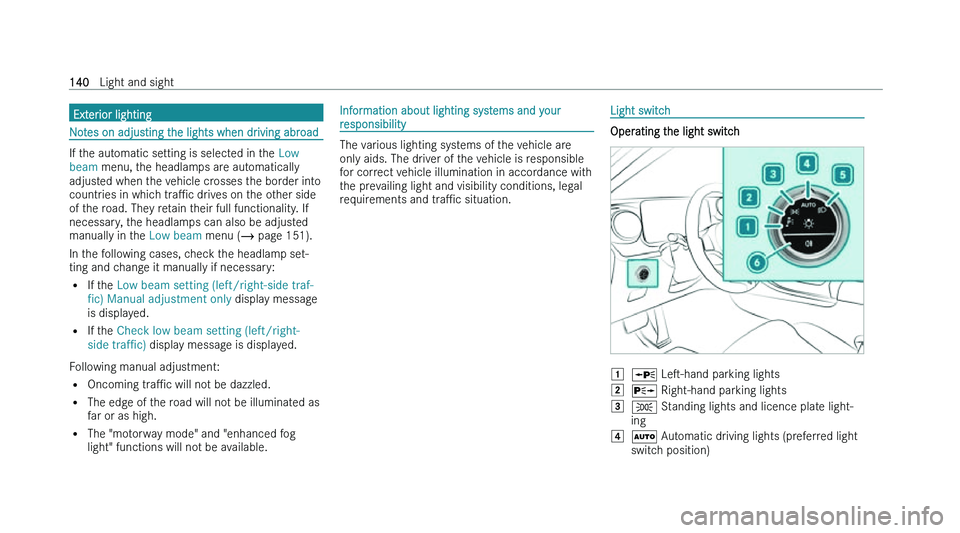

Exterior lighting
Notes on adjusting the lights when driving abroad
If the automatic setting is selected in the
Low
beam menu, t
he headlamps are automatically
adjusted when the vehicle crosses the border into
countries in which traPc drives on the other side
of the road. They retain their full functionality. If
necessary, the headlamps can also be adjusted
manually in the Low beam menu ( page 151).
In the following cases, check the headlamp set-
ting and change it manually if necessary: = If the Low beam setting (left/right-side traf-
fic) Manual adjustment only display message
is displayed.
= If the Check low beam setting (left/right-
side traffic) display message is displayed.
Following manual adjustment: = Oncoming traPc will not be dazzled.
= The edge of the road will not be illuminated as
far or as high.
= The "motorway mode" and "enhanced fog
light" functions will not be available. Information about lighting systems and your
r
esponsibility The various lighting systems of the vehicle are
onl

y aids. The driver of the vehicle is responsible
for correct vehicle illumination in accordance with
the prevailing light and visibility conditions, legal
requirements and traPc situation. Light switch
Operating the light switch
1
W Les-hand par
king lights
2 X Right-hand par
king lights
3 ` S
tanding lights and licence plate light-
ing
4 X A
utomatic driving lights (preferred light
switch position) 140
Light and sight

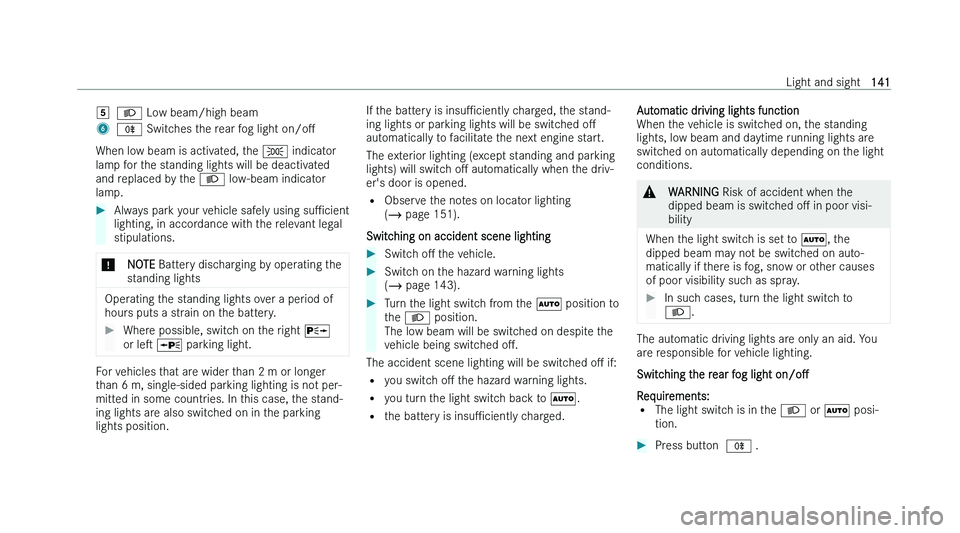

5
L Low beam/high beam
6 ^ Switc
hes the rear fog light on/oM
When low beam is activated, the ` indicat
or
lamp for the standing lights will be deactivated
and replaced by the L low-beam indicator
lamp.
Always park your vehicle safely using suPcient
lighting, in accor
dance with the relevant legal
stipulations.
* NOTE Batt
ery discharging by operating the
standing lights Operating the standing lights over a period of
hour
s puts a strain on the battery.
Where possible, switch on the right X
or les W par
king light. For vehicles that are wider than 2 m or longer
t
han 6 m, single-sided parking lighting is not per-
mitted in some countries. In this case, the stand-
ing lights are also switched on in the parking
lights position. If the battery is
insuPcientl
y charged, the stand-
ing lights or parking lights will be switched oM
automatically to facilitate the next engine start.
The exterior lighting (except standing and parking
lights) will switch oM automatically when the driv-
er's door is opened.
= Observe the notes on locator lighting
( page 151).
Switching on accident scene lighting
Switch oM t
he vehicle.
Switch on the hazard warning lights
( pag
e 143).
Turn the light switch from the X position t
o
the L position.
The low beam will be switched on despite the
vehicle being switched oM.
The accident scene lighting will be switched oM if:
= y

ou switch oM the hazard warning lights.
= you turn the light switch back to X.
= the battery is insuPciently charged. Automatic driving lights function
When t

he vehicle is switched on, the standing
lights, low beam and daytime running lights are
switched on automatically depending on the light
conditions. &
WARNING Risk of accident when t
he
dipped beam is switched oM in poor visi-
bility
When the light switch is set to X, t
he
dipped beam may not be switched on auto-
matically if there is fog, snow or other causes
of poor visibility such as spray.
In such cases, turn the light switch to
L. The automatic driving lights are only an aid. You
ar
e responsible for vehicle lighting.
Switching the rear fog light on/oM
R
equirements:
= The light switch is in the L or X posi-
tion.
Press button ^ . Light and sight
141

Please observe the
countr y-speciNc laws on the

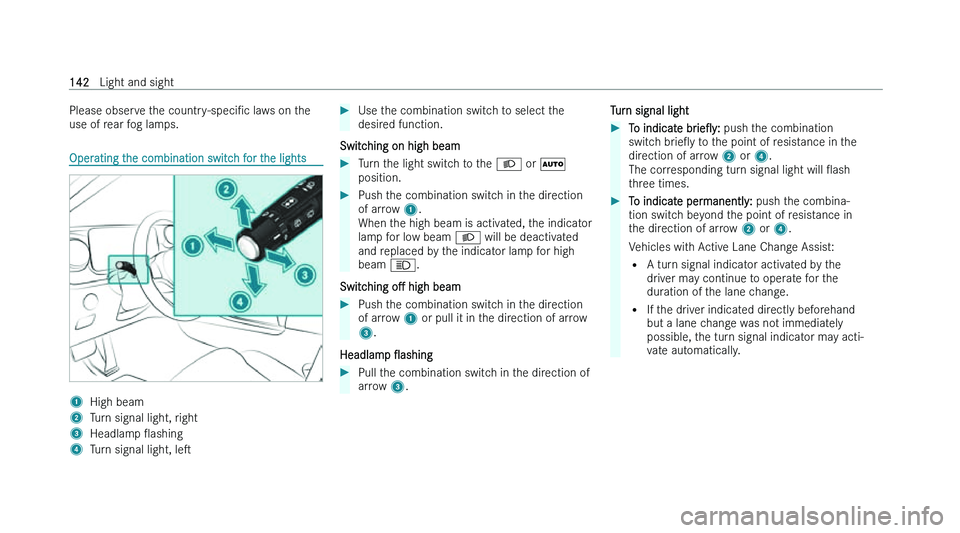

use of rear fog lamps. Operating the combination switch for the lights
1
High beam
2 Turn signal light, right
3 Headlamp Oashing
4 Turn signal light, les
Use the combination switch to select the
desir ed function.
Switching on high beam
Turn the light switch to the L or X
position.
Push the combination switch in the direction
of ar
row 1.
When the high beam is activated, the indicator
lamp for low beam L will be deactivated
and replaced by the indicator lamp for high
beam K.
Switching oM high beam
Push the combination switch in the direction
of ar
row 1 or pull it in the direction of arrow
3.
Headlamp Oashing
Pull the combination switch in the direction of
ar
row 3. Turn signal light
To indicate br
ieOy: push the combination
switch brieOy to the point of resistance in the
direction of arrow 2 or 4.
The corresponding turn signal light will Oash
three times.
To indicate permanently: push t
he combina-
tion switch beyond the point of resistance in
the direction of arrow 2 or 4.
Vehicles with Active Lane Change Assist:
= A turn signal indicator activated by the
driver may continue to operate for the
duration of the lane change.
= If the driver indicated directly beforehand
but a lane change was not immediately
possible, the turn signal indicator may acti-
vate automatically. 142
Light and sight

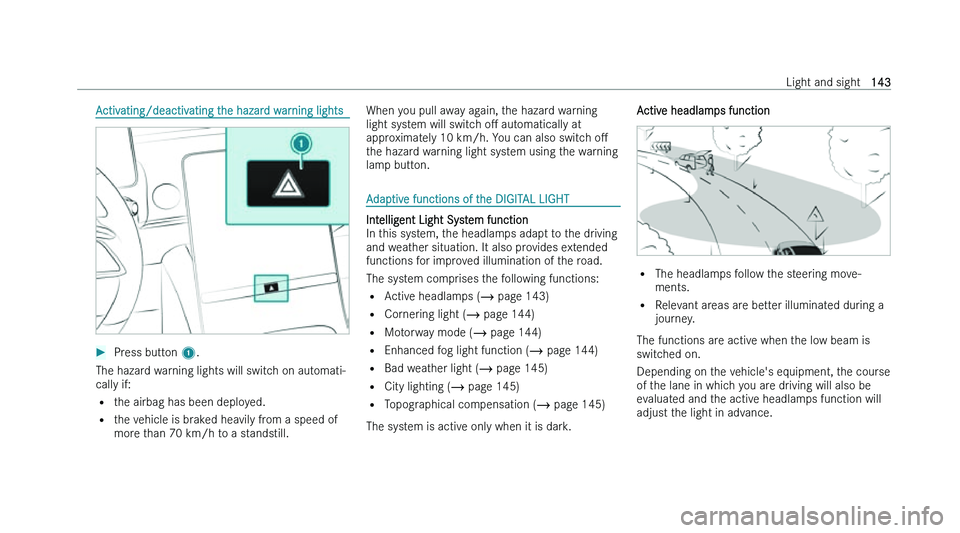

Activating/deactivating the hazard warning lights

Press button 1.
The hazard warning lights will switch on automati-
call y if:
= the airbag has been deployed.
= the vehicle is braked heavily from a speed of
more than 70 km/h to a standstill. When you pull away again, the hazard warning
light sy

stem will switch oM automatically at
approximately 10 km/h. You can also switch oM
the hazard warning light system using the warning
lamp button. Adaptive functions of the DIGITAL LIGHT
Intelligent Light System function
In t

his system, the headlamps adapt to the driving
and weather situation. It also provides extended
functions for improved illumination of the road.
The system comprises the following functions: = Active headlamps (  page 143)
= Cornering light (  page 144)
= Motorway mode (  page 144)
= Enhanced fog light function ( page 144)
= Bad weather light ( page 145)
= City lighting ( page 145)
= Topographical compensation (  page 145)
The system is active only when it is dark. Active headlamps function
=
The headlam
ps follow the steering move-
ments.
= Relevant areas are better illuminated during a
journey.
The functions are active when the low beam is
switched on.
Depending on the vehicle's equipment, the course
of the lane in which you are driving will also be
evaluated and the active headlamps function will
adjust the light in advance. Light and sight
143

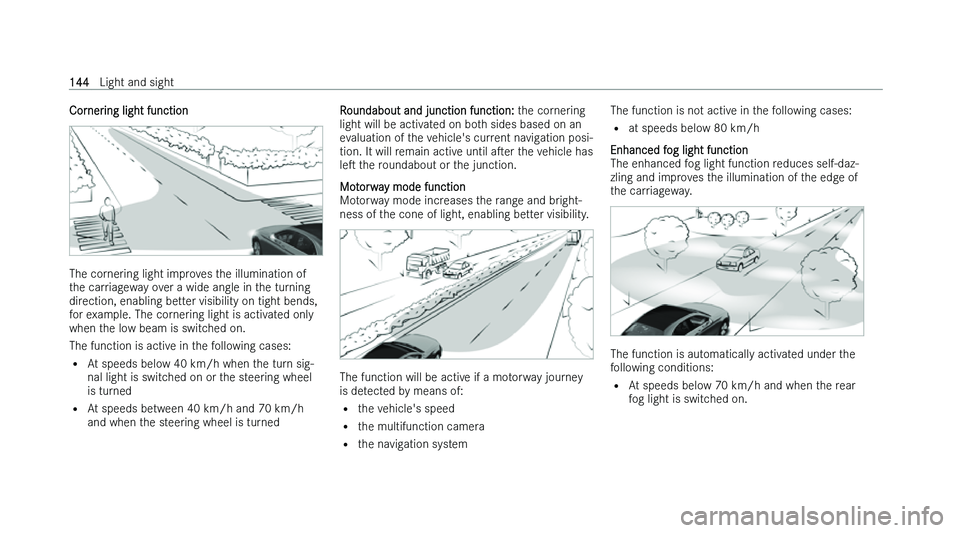

Cornering light function
The cornering light improves the illumination of
t
he carriageway over a wide angle in the turning
direction, enabling better visibility on tight bends,
for example. The cornering light is activated only
when the low beam is switched on.
The function is active in the following cases:
= At speeds below 40 km/h when the turn sig-
nal light is switched on or the steering wheel
is turned
= At speeds between 40 km/h and 70 km/h
and when the steering wheel is turned Roundabout and junction function:
t
he cornering
light will be activated on both sides based on an
evaluation of the vehicle's current navigation posi-
tion. It will remain active until aser the vehicle has
les the roundabout or the junction.
Motorway mode function
Motorway mode increases the range and bright-
ness of the cone of light, enabling better visibility. The function will be active if a motorway journey
is de

tected by means of:
= the vehicle's speed
= the multifunction camera
= the navigation system The function is not active in the following cases:
= at speeds belo

w 80 km/h
Enhanced fog light function
The enhanced fog light function reduces self-daz-
zling and improves the illumination of the edge of
the carriageway. The function is automatically activated under the
f
ollowing conditions:
= At speeds below 70 km/h and when the rear
fog light is switched on. 144
Light and sight

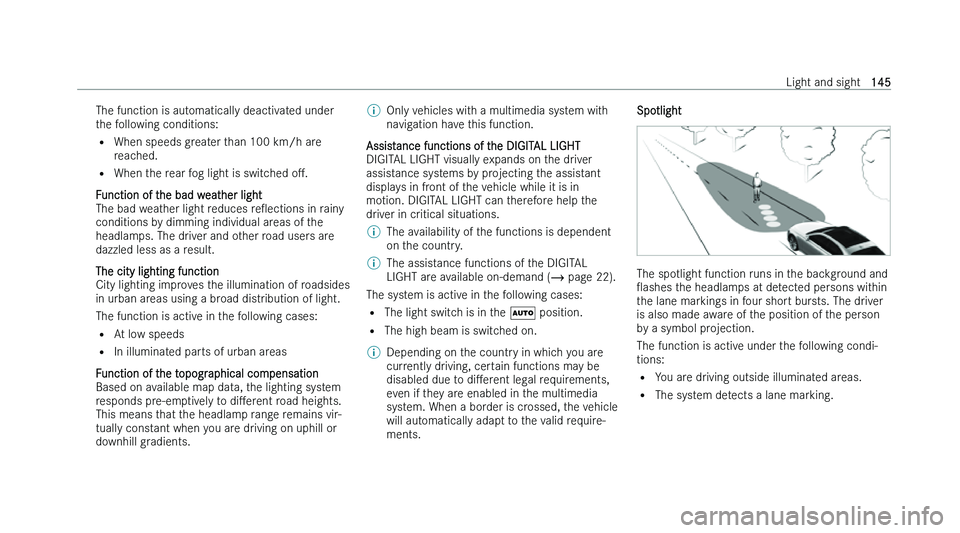

The function is automatically deactivated under
t he following conditions:
= When speeds greater than 100 km/h are
reached.
= When the rear fog light is switched oM.
Function of the bad weather light
The bad weather light reduces reOections in rainy
conditions by dimming individual areas of the
headlamps. The driver and other road users are
dazzled less as a result.
The city lighting function
City lighting improves the illumination of roadsides
in urban areas using a broad distribution of light.
The function is active in the following cases:
= At low speeds
= In illuminated parts of urban areas
Function of the topographical compensation
Based on available map data, the lighting system
responds pre-emptively to diMerent road heights.
This means that the headlamp range remains vir-
tually constant when you are driving on uphill or
downhill gradients. %
Only vehicles with a multimedia system with
na vigation have this function.
Assistance functions of the DIGITAL LIGHT
DIGIT
AL LIGHT visually expands on the driver
assistance systems by projecting the assistant
displays in front of the vehicle while it is in
motion. DIGITAL LIGHT can therefore help the
driver in critical situations.
% The availability of the functions is dependent
on t
he country.
% The assistance functions of the DIGITAL
LIGHT ar

e available on-demand (  page 22).
The system is active in the following cases:
= The light switc

h is in the X position.
= The high beam is switched on.
% Depending on the country in which you are
cur
rently driving, certain functions may be
disabled due to diMerent legal requirements,
even if they are enabled in the multimedia
system. When a border is crossed, the vehicle
will automatically adapt to the valid require-
ments. Spotlight
The spotlight function runs in the background and
Oashes t

he headlamps at detected persons within
the lane markings in four short bursts. The driver
is also made aware of the position of the person
by a symbol projection.
The function is active under the following condi-
tions:
= You are driving outside illuminated areas.
= The system detects a lane marking. Light and sight
145

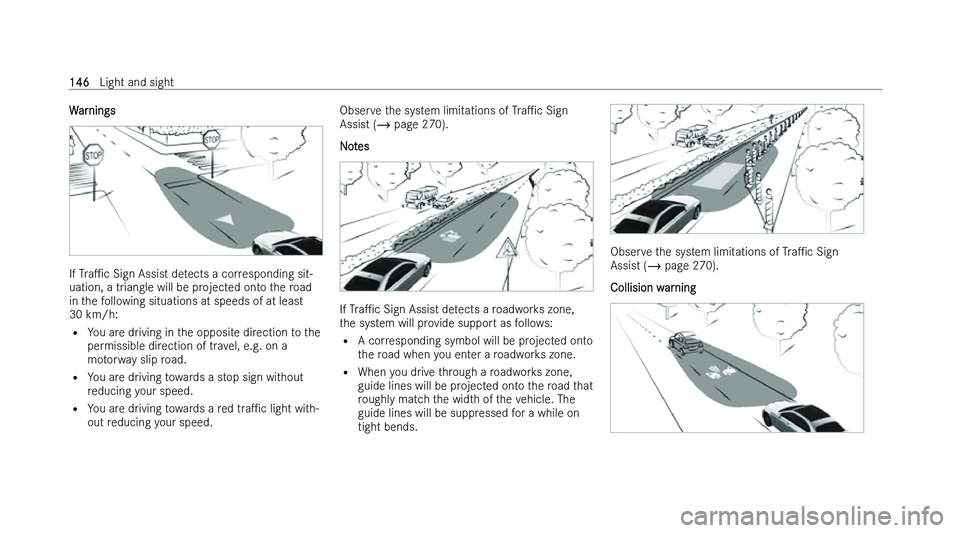

Warnings
If TraPc
Sign Assist detects a corresponding sit-
uation, a triangle will be projected onto the road
in the following situations at speeds of at least
30 km/h:
= You are driving in the opposite direction to the
permissible direction of travel, e.g. on a
motorway slip road.
= You are driving towards a stop sign without
reducing your speed.
= You are driving towards a red traPc light with-
out reducing your speed. Observe the system limitations of
T
raPc Sign
Assist (  page 270).
Notes If T
raPc
Sign Assist detects a roadworks zone,
the system will provide support as follows:
= A corresponding symbol will be projected onto
the road when you enter a roadworks zone.
= When you drive through a roadworks zone,
guide lines will be projected onto the road that
roughly match the width of the vehicle. The
guide lines will be suppressed for a while on
tight bends. Observe the system limitations of
T
raPc Sign
Assist ( page 270).
Collision warning 146
Light and sight

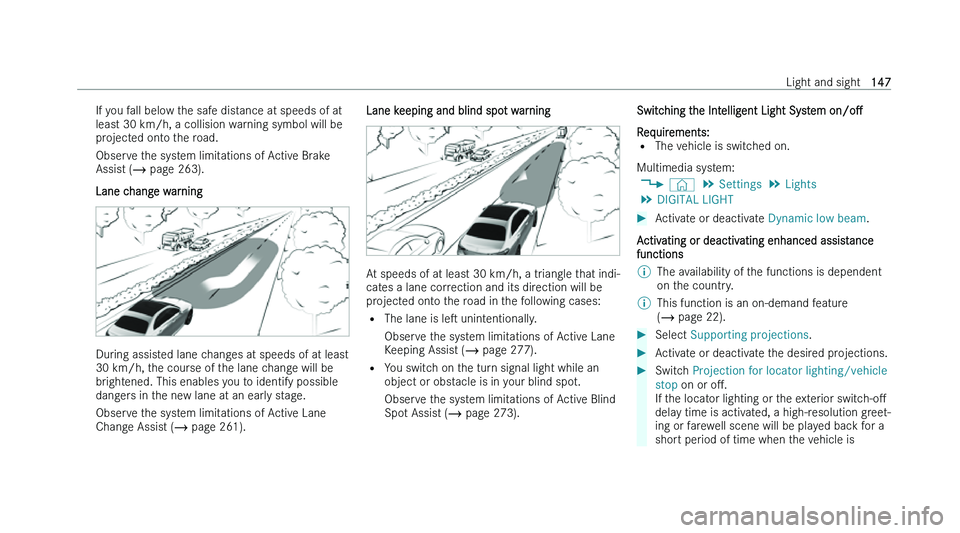

If you fall below the safe distance at speeds of at
leas t 30 km/h, a collision warning symbol will be
projected onto the road.
Observe the system limitations of Active Brake
Assist ( page 263).
Lane change warning During assisted lane changes at speeds of at least
30 km/h

, the course of the lane change will be
brightened. This enables you to identify possible
dangers in the new lane at an early stage.
Observe the system limitations of Active Lane
Change Assist ( page 261). Lane keeping and blind spot warning
At speeds of at least 30 km/h, a triangle that indi-
cat

es a lane correction and its direction will be
projected onto the road in the following cases:
= The lane is les unintentionally.
Observe the system limitations of Active Lane
Keeping Assist (  page 277).
= You switch on the turn signal light while an
object or obstacle is in your blind spot.
Observe the system limitations of Active Blind
Spot Assist ( page 273). Switching the Intelligent Light System on/oM
R
equirements:
= The vehicle is switched on.
Multimedia system: 4 © 5
Settings 5
Lights
5 DIGITAL LIGHT
Activate or deactivate Dynamic low beam.
Activating or deactivating enhanced assistance
functions
% The availability of the functions is dependent
on t
he country.
% This function is an on-demand feature
(  pag

e 22).
Select Supporting projections .
Activate or deactivate the desired projections.
Switch Projection for locator lighting/vehicle
stop on or oM.
If t

he locator lighting or the exterior switch-oM
delay time is activated, a high-resolution greet-
ing or farewell scene will be played back for a
short period of time when the vehicle is Light and sight
147
