service indicator MERCEDES-BENZ C-CLASS SALOON 2007 Owners Manual

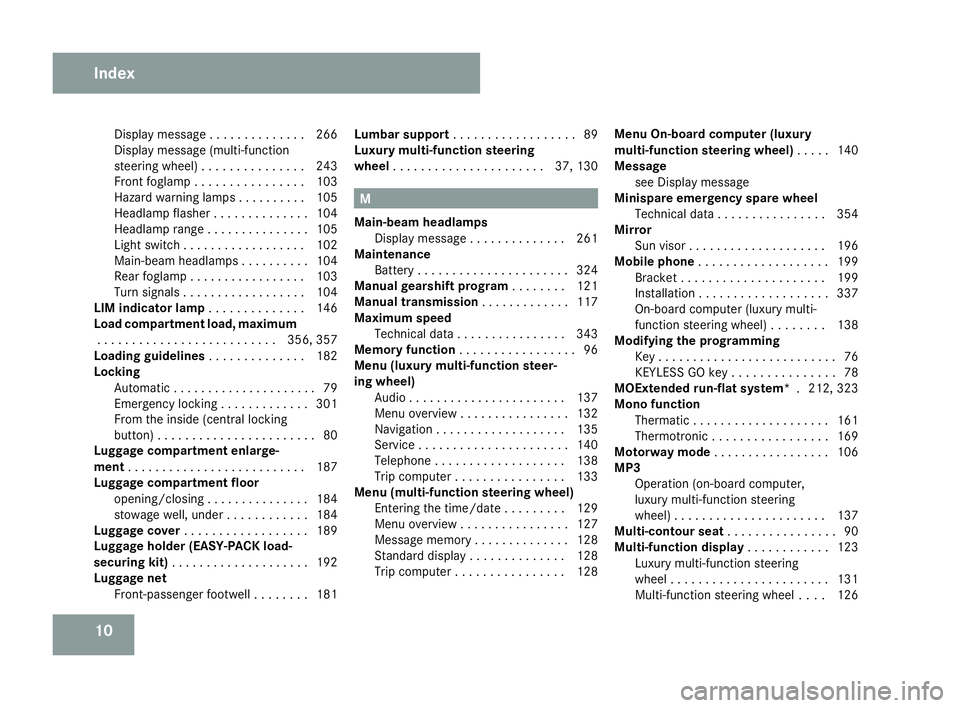

10Display message . . . . . . . . . . . . .
.266
Display message (multi-function
steering wheel) . . . . . . . . . . . . . . .243
Front foglamp . . . . . . . . . . . . . . . .103
Hazard warning lamps . . . . . . . . . .105
Headlamp flasher . . . . . . . . . . . . . .104
Headlamp range . . . . . . . . . . . . . . .105
Light switch . . . . . . . . . . . . . . . . . .102
Main-beam headlamps . . . . . . . . . .104
Rear foglamp . . . . . . . . . . . . . . . . .103
Turn signals . . . . . . . . . . . . . . . . . .104
LIM indicator lamp . . . . . . . . . . . . ..146
Load compartment load, maximum
. . . . . . . . . . . . . . . . . . . . . . . . . .356, 357
Loading guidelines . . . . . . . . . . . . ..182
Locking Automatic . . . . . . . . . . . . . . . . . . . . .79
Emergency locking . . . . . . . . . . . . .301
From the inside (central locking
button) . . . . . . . . . . . . . . . . . . . . . . .80
Luggage compartment enlarge-
ment . . . . . . . . . . . . . . . . . . . . . . . . . .187
Luggage compartment floor opening/closing . . . . . . . . . . . . . . .184
stowage well, unde r.. . . . . . . . . . .184
Luggage cover . . . . . . . . . . . . . . . . . .189
Luggage holder (EASY-PACK load-
securing kit) . . . . . . . . . . . . . . . . . . . .192
Luggage net Front-passenger footwell . . . . . . . .181 Lumbar support
. . . . . . . . . . . . . . . . . .89
Luxury multi-function steering
wheel . . . . . . . . . . . . . . . . . . . . . .37, 130 M
Main-beam headlamps Display message . . . . . . . . . . . . . .261
Maintenanc e
Battery . . . . . . . . . . . . . . . . . . . . . .324
Manual gearshift program . . . . . . ..121
Manual transmission . . . . . . . . . . . ..117
Maximum spee d
Technical data . . . . . . . . . . . . . . . .343
Memory function . . . . . . . . . . . . . . . . .96
Menu (luxury multi-function steer-
ing wheel)
Audi o.. . . . . . . . . . . . . . . . . . . . . .137
Menu overview . . . . . . . . . . . . . . . .132
Navigation . . . . . . . . . . . . . . . . . . .135
Service . . . . . . . . . . . . . . . . . . . . . .140
Telephone . . . . . . . . . . . . . . . . . . .138
Trip computer . . . . . . . . . . . . . . . .133
Menu (multi-function steering wheel)
Entering the time/date . . . . . . . . .129
Menu overview . . . . . . . . . . . . . . . .127
Message memory . . . . . . . . . . . . . .128
Standard displa y.. . . . . . . . . . . . .128
Trip computer . . . . . . . . . . . . . . . .128 Menu On-board computer (luxury
multi-function steering wheel)
. . . ..140
Message see Display message
Minispare emergency spare wheel
Technical data . . . . . . . . . . . . . . . .354
Mirror
Sun viso r.. . . . . . . . . . . . . . . . . . .196
Mobile phone . . . . . . . . . . . . . . . . . . .199
Bracket . . . . . . . . . . . . . . . . . . . . .199
Installatio n.. . . . . . . . . . . . . . . . . .337
On-board computer (luxury multi-
function steering wheel) . . . . . . . .138
Modifying the programming
Key . . . . . . . . . . . . . . . . . . . . . . . . . .76
KEYLESS GO key . . . . . . . . . . . . . . .78
MOExtended run-flat system* .212, 323
Mono function Thermatic . . . . . . . . . . . . . . . . . . . .161
Thermotronic . . . . . . . . . . . . . . . . .169
Motorway mode . . . . . . . . . . . . . . . . .106
MP3 Operation (on-board computer,
luxury multi-function steering
wheel) . . . . . . . . . . . . . . . . . . . . . .137
Multi-contour seat . . . . . . . . . . . . . . ..90
Multi-function display . . . . . . . . . . ..123
Luxury multi-function steering
wheel . . . . . . . . . . . . . . . . . . . . . . .131
Multi-function steering wheel . . . .126 Index
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 10

13

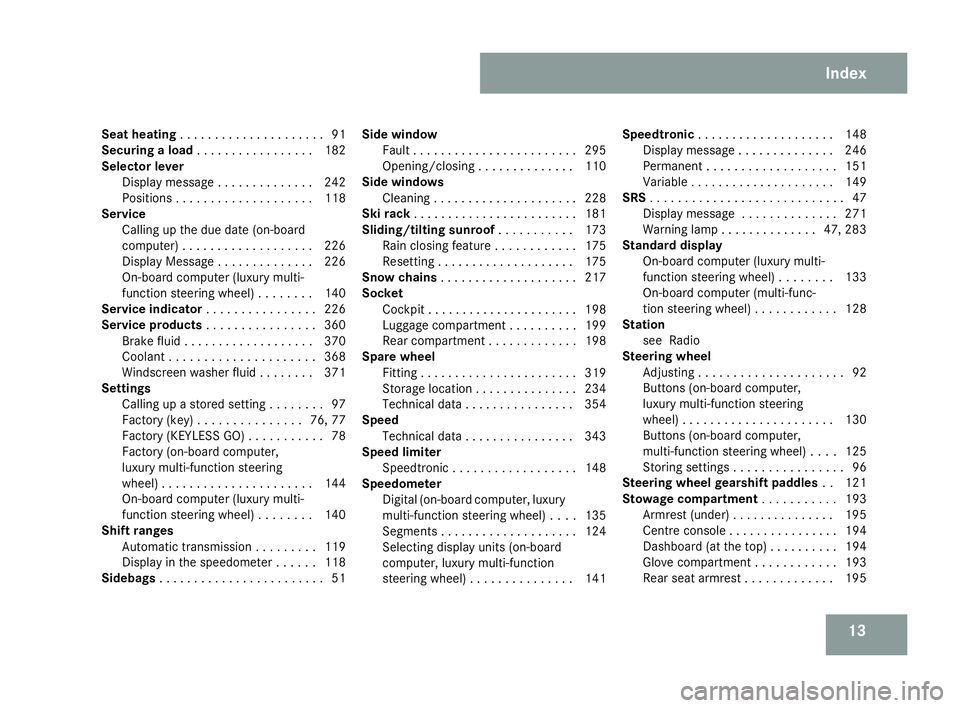

Seat heating
. . . . . . . . . . . . . . . . . . . . .91
Securing a load . . . . . . . . . . . . . . . . .182
Selector lever Display message . . . . . . . . . . . . . .242
Positions . . . . . . . . . . . . . . . . . . . .118
Service
Calling up the due date (on-board
computer) . . . . . . . . . . . . . . . . . . .226
Display Message . . . . . . . . . . . . . .226
On-board computer (luxury multi-
function steering wheel) . . . . . . . .140
Service indicator . . . . . . . . . . . . . . . .226
Service products . . . . . . . . . . . . . . . .360
Brake fluid . . . . . . . . . . . . . . . . . . .370
Coolant . . . . . . . . . . . . . . . . . . . . .368
Windscreen washer fluid . . . . . . . .371
Settings
Calling up a stored setting . . . . . . . .97
Factory (key ).. . . . . . . . . . . . . .76, 77
Factory (KEYLESS GO) . . . . . . . . . . .78
Factory (on-board computer,
luxury multi-function steering
wheel ).. . . . . . . . . . . . . . . . . . . . .144
On-board computer (luxury multi-
function steering wheel) . . . . . . . .140
Shift range s
Automatic transmission . . . . . . . . .119
Display in the speedometer . . . . . .118
Sidebags . . . . . . . . . . . . . . . . . . . . . . . .51 Side window
Fault . . . . . . . . . . . . . . . . . . . . . . . .295
Opening/closing . . . . . . . . . . . . . .110
Side window s
Cleaning . . . . . . . . . . . . . . . . . . . . .228
Ski rack . . . . . . . . . . . . . . . . . . . . . . . .181
Sliding/tilting sunroo f. . . . . . . . . . .173
Rain closing feature . . . . . . . . . . . .175
Resetting . . . . . . . . . . . . . . . . . . . .175
Snow chains . . . . . . . . . . . . . . . . . . . .217
Socket Cockpit . . . . . . . . . . . . . . . . . . . . . .198
Luggage compartment . . . . . . . . . .199
Rear compartment . . . . . . . . . . . . .198
Spare wheel
Fitting . . . . . . . . . . . . . . . . . . . . . . .319
Storage location . . . . . . . . . . . . . . .234
Technical data . . . . . . . . . . . . . . . .354
Spee d
Technical data . . . . . . . . . . . . . . . .343
Speed limiter
Speedtronic . . . . . . . . . . . . . . . . . .148
Speedometer
Digital (on-board computer, luxury
multi-function steering wheel) . . . .135
Segments . . . . . . . . . . . . . . . . . . . .124
Selecting display units (on-board
computer, luxury multi-function
steering wheel) . . . . . . . . . . . . . . .141 Speedtronic
. . . . . . . . . . . . . . . . . . . .148
Display message . . . . . . . . . . . . . .246
Permanent . . . . . . . . . . . . . . . . . . .151
Variabl e.. . . . . . . . . . . . . . . . . . . .149
SRS . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Display message . . . . . . . . . . . . . .271
Warning lamp . . . . . . . . . . . . . .47, 283
Standard display
On-board computer (luxury multi-
function steering wheel) . . . . . . . .133
On-board computer (multi-func-
tion steering wheel) . . . . . . . . . . . .128
Station
see Radio
Steering wheel
Adjusting . . . . . . . . . . . . . . . . . . . . .92
Buttons (on-board computer,
luxury multi-function steering
wheel ).. . . . . . . . . . . . . . . . . . . . .130
Buttons (on-board computer,
multi-function steering wheel) . . . .125
Storing settings . . . . . . . . . . . . . . . .96
Steering wheel gearshift paddles ..1 21
Stowage compartment . . . . . . . . . ..193
Armrest (under) . . . . . . . . . . . . . . .195
Centre console . . . . . . . . . . . . . . . .194
Dashboard (at the top) . . . . . . . . . .194
Glove compartment . . . . . . . . . . . .193
Rear seat armrest . . . . . . . . . . . . .195 Index
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 13

Occupant safet
y 55

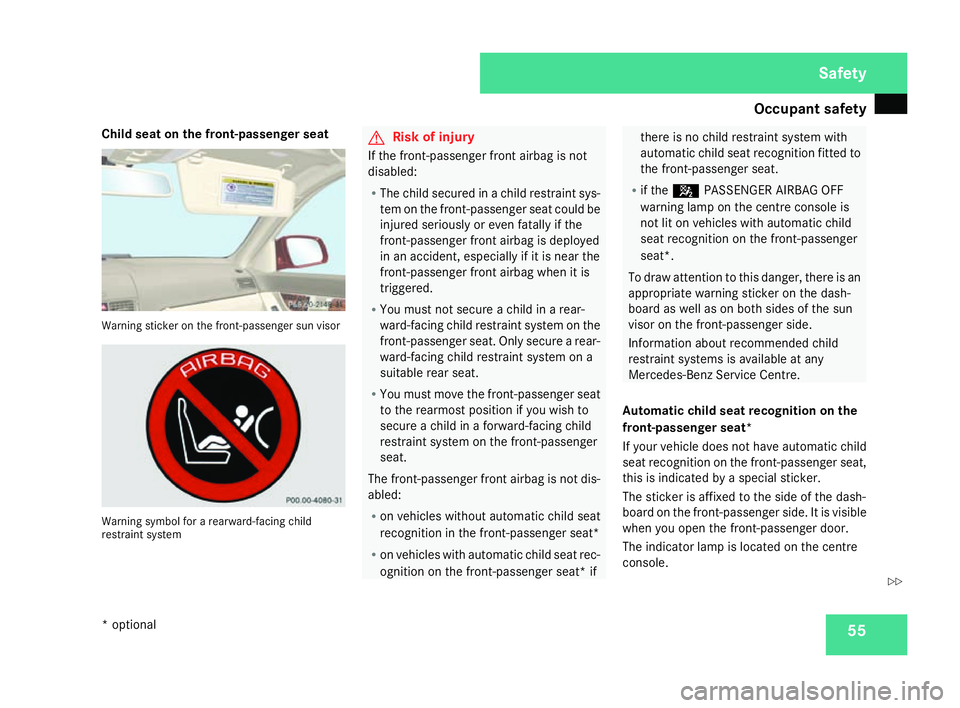

Child seat on the front-passenger seat
Warning sticker on the front-passenger sun visor
Warning symbol for a rearward-facing child
restraint system G
Risk of injury
If the front-passenger front airbag is not
disabled:
R The child secured in a child restraint sys-
tem on the front-passenger seat could be
injured seriously or even fatally if the
front-passenger front airbag is deployed
in an accident, especially if it is near the
front-passenger front airbag when it is
triggered.
R You must not secure a child in a rear-
ward-facing child restraint system on the
front-passenger seat. Only secure a rear-
ward-facing child restraint system on a
suitable rear seat.
R You must move the front-passenger seat
to the rearmost position if you wish to
secure a child in a forward-facing child
restraint system on the front-passenge r
seat.
The front-passenger front airbag is not dis-
abled:
R on vehicles without automatic child seat
recognition in the front-passenger seat*
R on vehicles with automatic child seat rec-
ognition on the front-passenger seat* if there is no child restraint system with
automatic child seat recognition fitted to
the front-passenger seat.
R if the 5 PASSENGER AIRBAG OFF
warning lamp on the centre console is
not lit on vehicles with automatic child
seat recognition on the front-passenger
seat*.
To draw attention to this danger, there is an
appropriate warning sticker on the dash-
board as well as on both sides of the sun
visor on the front-passenger side.
Information about recommended child
restraint systems is available at any
Mercedes-Benz Service Centre.
Automatic child seat recognition on the
front-passenger seat*
If your vehicle does not have automatic child
seat recognition on the front-passenger seat,
this is indicated by a special sticker.
The sticker is affixed to the side of the dash-
board on the front-passenger side. It is visible
when you open the front-passenger door.
The indicator lamp is located on the centre
console. Safety
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 55 Z

Occupant safet

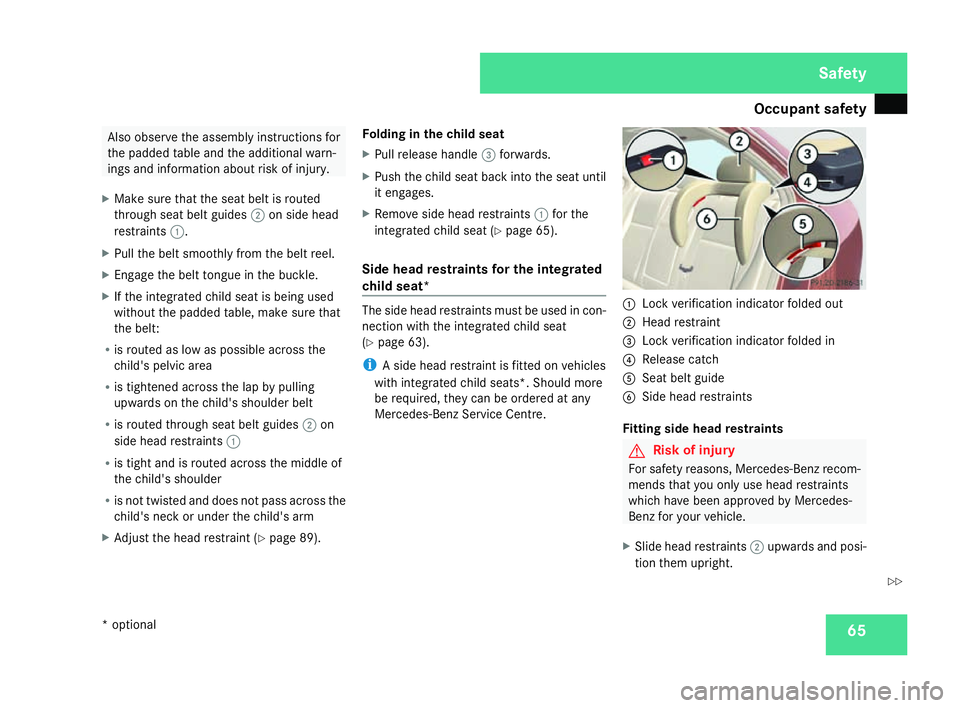

y 65Also observe the assembly instructions for
the padded table and the additional warn-
ings and information about risk of injury.
X Make sure that the seat belt is routed
through seat belt guides 2on side head
restraints 1.
X Pull the belt smoothly from the belt reel.
X Engage the belt tongue in the buckle .
X If the integrated child seat is being used
without the padded table, make sure that
the belt:
R is routed as low as possible across the
child's pelvic area
R is tightened across the lap by pulling
upwards on the child's shoulder belt
R is routed through seat belt guides 2on
side head restraints 1
R is tight and is routed across the middle of
the child's shoulder
R is not twisted and does not pass across the
child's neck or under the child's arm
X Adjust the head restraint (Y page 89). Folding in the child seat
X
Pull release handle 3forwards.
X Push the child seat back into the seat until
it engages.
X Remove side head restraints 1for the
integrated child seat (Y page 65).
Side head restraints for the integrated
child seat* The side head restraints must be used in con
-
nection with the integrated child sea t
( Y page 63).
i A side head restraint is fitted on vehicles
with integrated child seats*. Should mor e
be required, they can be ordered at any
Mercedes-Benz Service Centre. 1
Lock verification indicator folded out
2 Head restraint
3 Lock verification indicator folded in
4 Release catch
5 Seat belt guid e
6 Side head restraints
Fitting side head restraints G
Risk of injury
For safety reasons, Mercedes-Benz recom-
mends that you only use head restraints
which have been approved by Mercedes-
Benz for your vehicle.
X Slide head restraints 2upwards and posi -
tion them upright. Safety
* optional
204_AKB; 2; 3, en-G
B
mkalafa , 2007-06-26T23:11:51+02:00 - Seite 65 Z

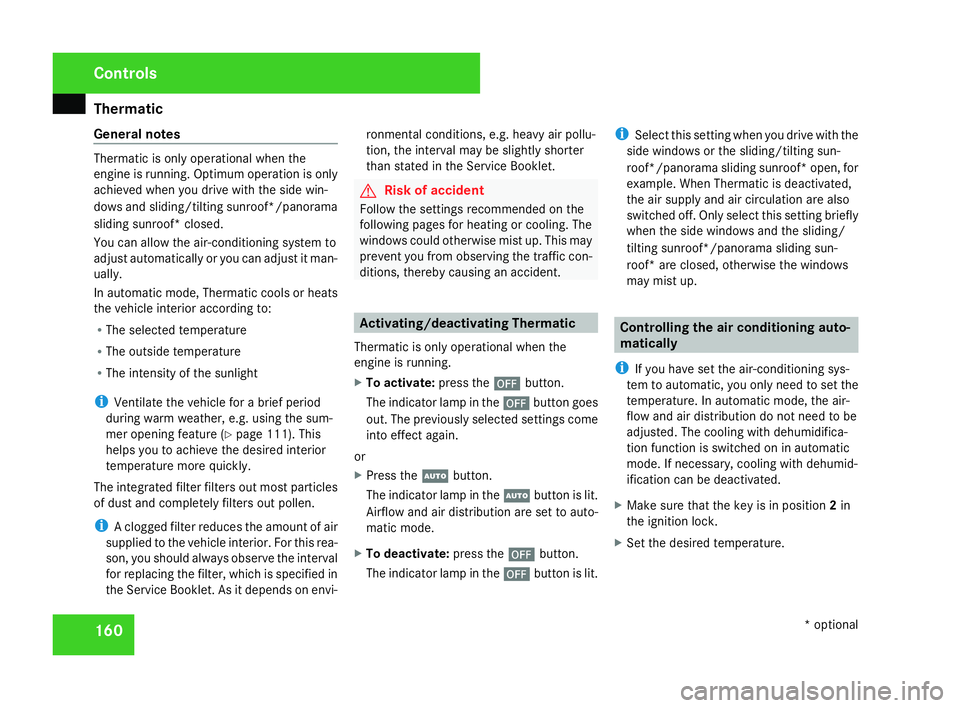

Thermatic
16
0
General notes Thermatic is only operational when the
engine is running. Optimum operation is only
achieved when you drive with the side win-
dows and sliding/tilting sunroof*/panorama
sliding sunroof* closed .
You can allow the air-conditioning system to
adjust automatically or you can adjust it man-
ually.
In automatic mode, Thermatic cools or heats
the vehicle interior according to:
R The selected temperature
R The outside temperature
R The intensity of the sunlight
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the sum-
mer opening feature (Y page 111). This
helps you to achieve the desired interior
temperature more quickly.
The integrated filter filters out most particles
of dust and completely filters out pollen.
i A clogged filter reduces the amount of ai r
supplied to the vehicle interior. For this rea-
son, you should always observe the interval
for replacing the filter, which is specified in
the Service Booklet. As it depends on envi- ronmental conditions, e.g. heavy air pollu-
tion, the interval may be slightly shorter
than stated in the Service Booklet. G
Risk of accident
Follow the settings recommended on the
following pages for heating or cooling. The
windows could otherwise mist up. This may
prevent you from observing the traffic con-
ditions, thereby causing an accident. Activating/deactivating Thermati
c
Thermatic is only operational when the
engine is running.
X To activate :press the ´button.
The indicator lamp in the ´button goes
out. The previously selected settings come
into effect again.
or
X Press the Ubutton.
The indicator lamp in the Ubutton is lit.
Airflow and air distribution are set to auto-
matic mode.
X To deactivate: press the´button.
The indicator lamp in the ´button is lit. i
Select this setting when you drive with the
side windows or the sliding/tilting sun-
roof*/panorama sliding sunroof* open, for
example. When Thermatic is deactivated,
the air supply and air circulation are also
switched off. Only select this setting briefl y
when the side windows and the sliding/
tilting sunroof*/panorama sliding sun-
roof* are closed, otherwise the windows
may mist up. Controlling the air conditioning auto-
matically
i If you have set the air-conditioning sys-
tem to automatic, you only need to set the
temperature. In automatic mode, the air-
flow and air distribution do not need to be
adjusted. The cooling with dehumidifica-
tion function is switched on in automatic
mode. If necessary, cooling with dehumid-
ification can be deactivated.
X Make sure that the key is in position 2in
the ignition lock .
X Set the desired temperature .Cont
rols
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 160

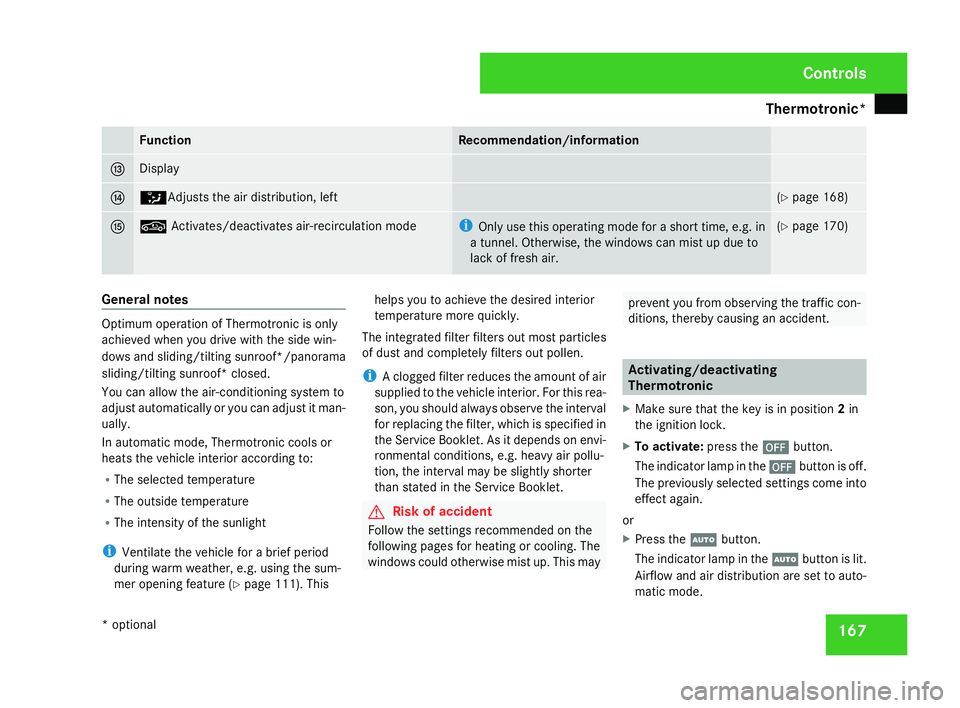

Thermotronic*
16
7 Function Recommendation/information
d Display
e Z
Adjusts the air distribution, left (
Y page 168 ) f ,
Activates/deactivates air-recirculation mod e i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (
Y page 170 ) General notes
Optimum operation of Thermotronic is only
achieved when you drive with the side win-
dows and sliding/tilting sunroof*/panorama
sliding/tilting sunroof* closed
.
You can allow the air-conditioning system to
adjust automatically or you can adjust it man-
ually.
In automatic mode, Thermotronic cools or
heats the vehicle interior according to:
R The selected temperature
R The outside temperature
R The intensity of the sunlight
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the sum-
mer opening feature (Y page 111). This helps you to achieve the desired interior
temperature more quickly.
The integrated filter filters out most particles
of dust and completely filters out pollen.
i A clogged filter reduces the amount of ai r
supplied to the vehicle interior. For this rea-
son, you should always observe the interval
for replacing the filter, which is specified in
the Service Booklet. As it depends on envi-
ronmental conditions, e.g. heavy air pollu-
tion, the interval may be slightly shorter
than stated in the Service Booklet. G
Risk of accident
Follow the settings recommended on the
following pages for heating or cooling. The
windows could otherwise mist up. This may prevent you from observing the traffic con-
ditions, thereby causing an accident. Activating/deactivatin
g
Thermotroni c
X Make sure that the key is in position 2in
the ignition lock .
X To activate :press the ´button.
The indicator lamp in the ´button is off.
The previously selected settings come int o
effect again.
or
X Press the Ubutton.
The indicator lamp in the Ubutton is lit.
Airflow and air distribution are set to auto-
matic mode. Controls
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 167

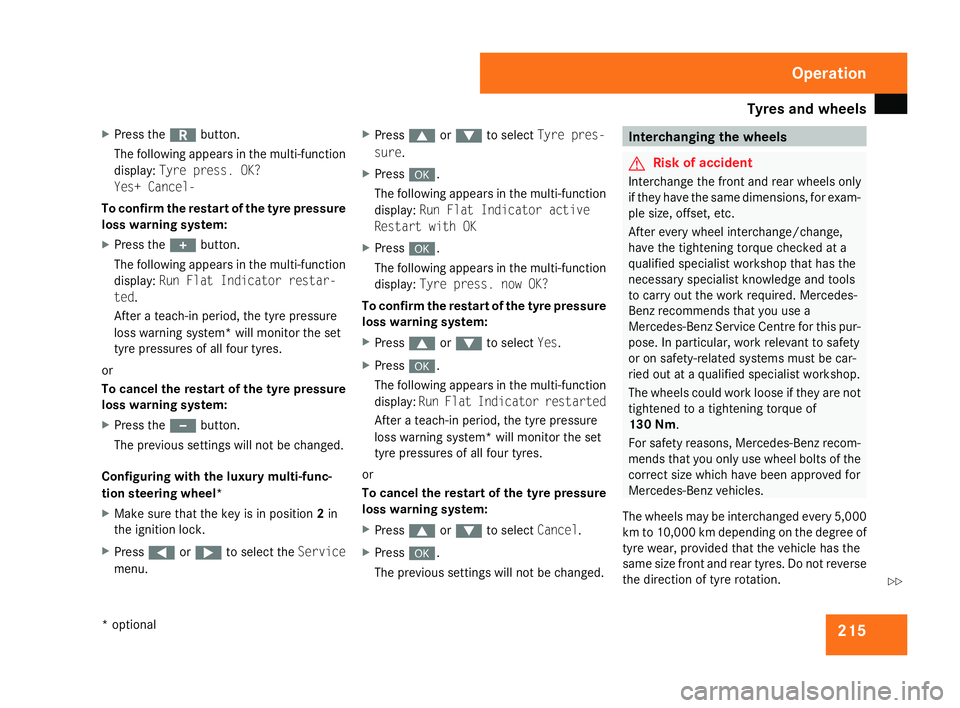

Tyres and wheels
21
5
X
Press the íbutton.
The following appears in the multi-function
display: Tyre press. OK?
Yes+ Cancel -
To confirm the restart of the tyre pressure
loss warning system:
X Press the +button.
The following appears in the multi-function
display: Run Flat Indicator restar -
ted.
After a teach-in period, the tyre pressure
loss warning system* will monitor the set
tyre pressures of all four tyres.
or
To cancel the restart of the tyre pressure
loss warning system:
X Press the -button.
The previous settings will not be changed.
Configuring with the luxury multi-func-
tion steering wheel*
X Make sure that the key is in position 2in
the ignition lock .
X Press (or& to select the Service
menu. X
Press $or% to select Tyre pres-
sur e.
X Press #.
The following appears in the multi-function
display: Run Flat Indicator active
Restart with OK
X Press #.
The following appears in the multi-function
display: Tyre press. now OK?
To confirm the restart of the tyre pressur e
loss warning system:
X Press $or% to select Yes.
X Press #.
The following appears in the multi-function
display: Run Flat Indicator restarted
After a teach-in period, the tyre pressure
loss warning system* will monitor the set
tyre pressures of all four tyres.
or
To cancel the restart of the tyre pressur e
loss warning system:
X Press $or% to select Cancel.
X Press #.
The previous settings will not be changed. Interchanging the wheels
G
Risk of accident
Interchange the front and rear wheels only
if they have the same dimensions, for exam-
ple size, offset, etc.
After every wheel interchange/change,
have the tightening torque checked at a
qualified specialist workshop that has the
necessary specialist knowledge and tools
to carry out the work required. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at a qualified specialist workshop.
The wheels could work loose if they are not
tightened to a tightening torque of
130 Nm.
For safety reasons, Mercedes-Benz recom -
mends that you only use wheel bolts of the
correct size which have been approved for
Mercedes-Benz vehicles.
The wheels may be interchanged every 5,000
km to 10,000 km depending on the degree of
tyre wear, provided that the vehicle has the
same size front and rear tyres. Do not reverse
the direction of tyre rotation. Operation
* optiona l
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 215 Z

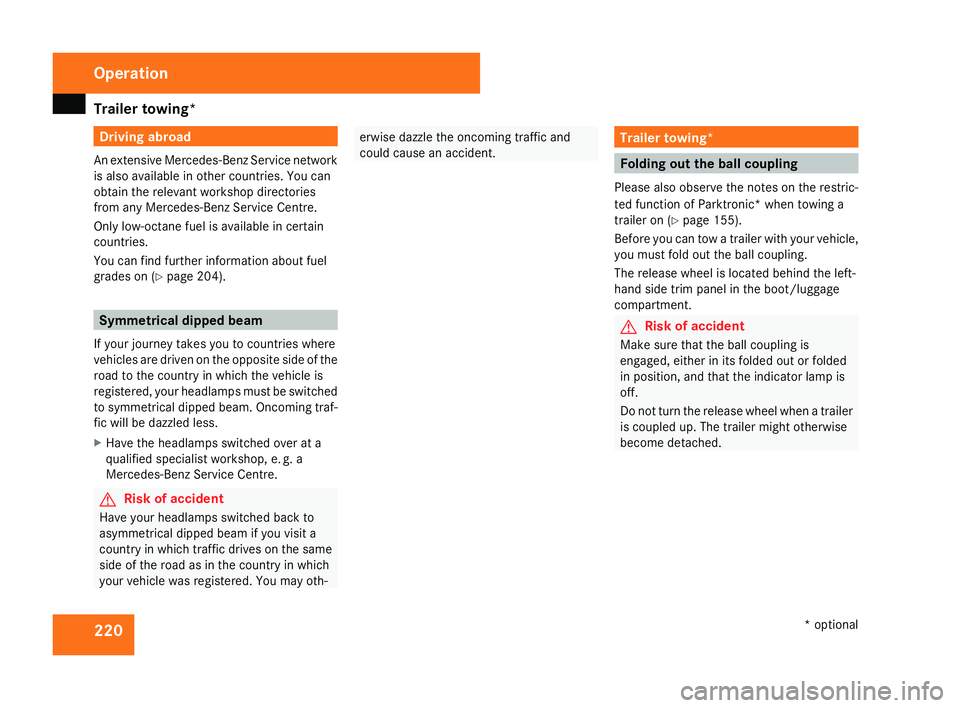

Trailer towing*
22
0 Driving abroad
An extensive Mercedes-Benz Service networ k
is also available in other countries. You can
obtain the relevant workshop directories
from any Mercedes-Benz Service Centre.
Only low-octane fuel is available in certain
countries.
You can find further information about fuel
grades on (Y page 204). Symmetrical dipped beam
If your journey takes you to countries where
vehicles are driven on the opposite side of the
road to the country in which the vehicle is
registered, your headlamps must be switched
to symmetrical dipped beam. Oncoming traf -
fic will be dazzled less .
X Have the headlamps switched over at a
qualified specialist workshop, e. g. a
Mercedes-Benz Service Centre. G
Risk of accident
Have your headlamps switched back to
asymmetrical dipped beam if you visit a
country in which traffic drives on the same
side of the road as in the country in which
your vehicle was registered. You may oth- erwise dazzle the oncoming traffic and
could cause an accident.
Trailer towing*
Folding out the ball coupling
Please also observe the notes on the restric-
ted function of Parktronic* when towing a
trailer on (Y page 155).
Before you can tow a trailer with your vehicle,
you must fold out the ball coupling.
The release wheel is located behind the left-
hand side trim panel in the boot/luggage
compartment . G
Risk of accident
Make sure that the ball coupling is
engaged, either in its folded out or folded
in position, and that the indicator lamp is
off.
Do not turn the release wheel when a traile r
is coupled up. The trailer might otherwise
become detached. Operation
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 220

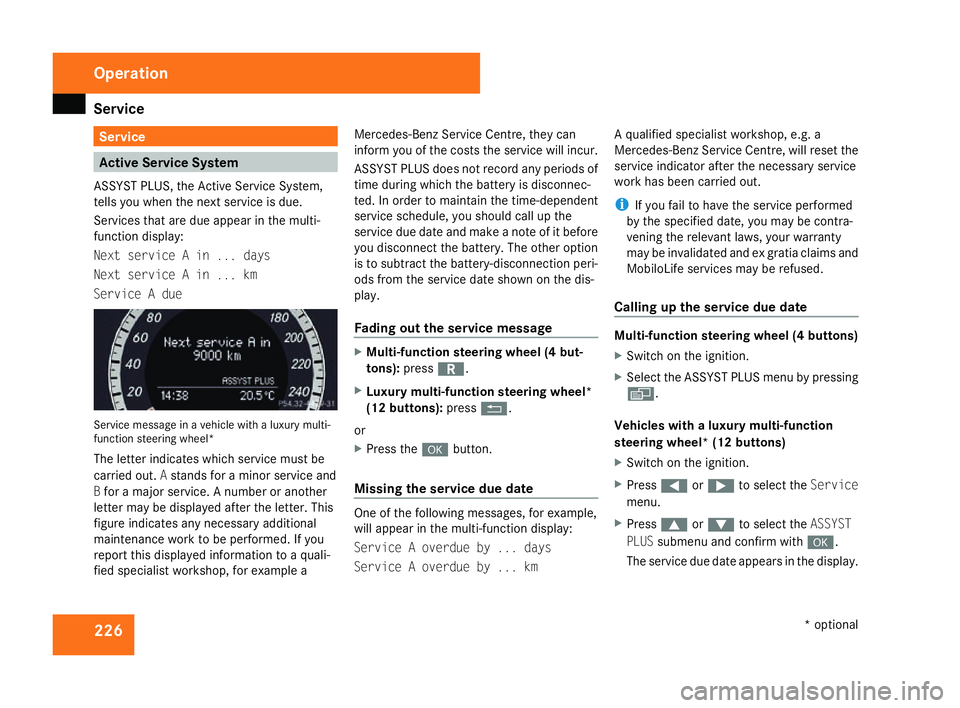

Service
226 Service
Active Service System
ASSYST PLUS, the Active Service System,
tells you when the next service is due.
Services that are due appear in the multi-
function display:
Next service A in ... days
Next service A in ... km
Service A due Service message in a vehicle with a luxury multi-
function steering wheel*
The letter indicates which service must be
carried out. Astands for a minor service and
B for a major service. A number or another
letter may be displayed after the letter. This
figure indicates any necessary additiona l
maintenance work to be performed. If you
report this displayed information to a quali-
fied specialist workshop, for example aMercedes-Benz Service Centre, they can
inform you of the costs the service will incur.
ASSYST PLUS does not record any periods of
time during which the battery is disconnec-
ted. In order to maintain the time-dependent
service schedule, you should call up the
service due date and make a note of it befor
e
you disconnect the battery. The other option
is to subtract the battery-disconnection peri-
ods from the service date shown on the dis-
play.
Fading out the service message X
Multi-function steering wheel (4 but-
tons) :press í.
X Luxury multi-function steering wheel*
(12 buttons): pressL.
or
X Press the #button.
Missing the service due dat e One of the following messages, for example,
will appear in the multi-function display:
Service A overdue by ... days
Service A overdue by ... kmA qualified specialist workshop, e.g.
a
Mercedes-Benz Service Centre, will reset the
service indicator after the necessary service
work has been carried out.
i If you fail to have the service performed
by the specified date, you may be contra-
vening the relevant laws, your warranty
may be invalidated and ex gratia claims and
MobiloLife services may be refused .
Calling up the service due date Multi-function steering wheel (4 buttons)
X
Switch on the ignition.
X Select the ASSYST PLUS menu by pressing
è .
Vehicles with a luxury multi-function
steering wheel* (12 buttons)
X Switch on the ignition.
X Press (or& to select the Service
menu.
X Press $or% to select the ASSYST
PLU Ssubmenu and confirm with #.
The service due date appears in the display .Operation
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 226

Display
messages 23

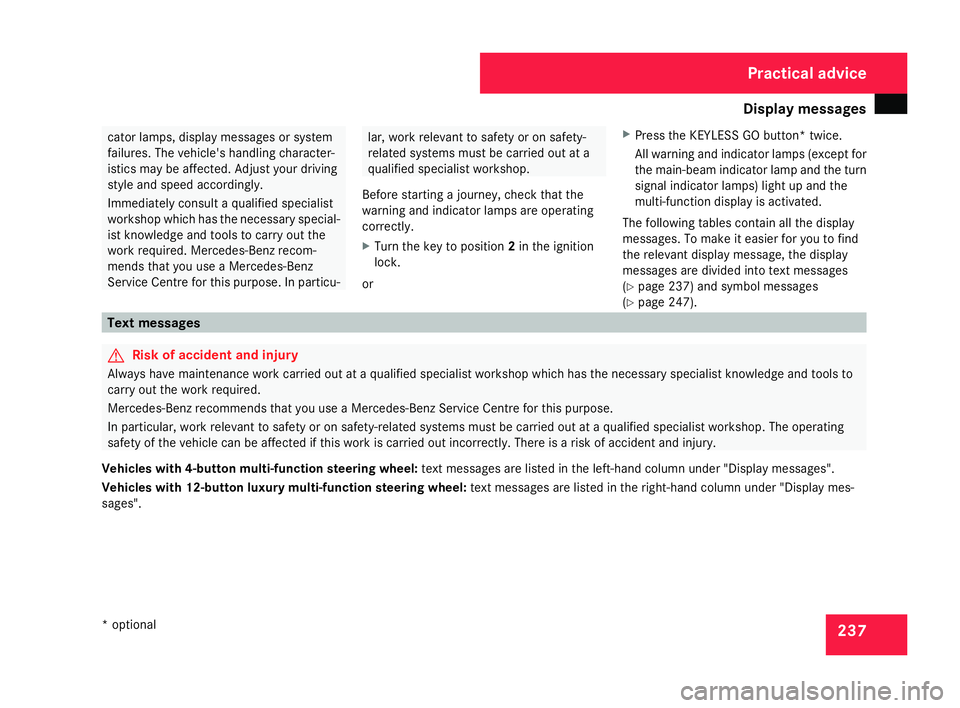

7 cator lamps, display messages or system
failures. The vehicle's handling character-
istics may be affected. Adjust your driving
style and speed accordingly .
Immediately consult a qualified specialist
workshop which has the necessary special-
ist knowledge and tools to carry out the
work required. Mercedes-Benz recom-
mends that you use a Mercedes-Benz
Service Centre for this purpose. In particu- lar, work relevant to safety or on safety-
related systems must be carried out at
a
qualified specialist workshop.
Before starting a journey, check that the
warning and indicator lamps are operatin g
correctly .
X Turn the key to position 2in the ignition
lock .
or X
Press the KEYLESS GO button* twice.
All warning and indicator lamps (except for
the main-beam indicator lamp and the turn
signal indicator lamps) light up and the
multi-function display is activated.
The following tables contain all the display
messages. To make it easier for you to find
the relevant display message, the display
messages are divided into text messages
( Y page 237) and symbol messages
( Y page 247). Text messages
G
Risk of accident and injury
Always have maintenance work carried out at a qualified specialist workshop which has the necessary specialist knowledge and tools to
carry out the work required .
Mercedes-Benz recommends that you use a Mercedes-Benz Service Centre for this purpose.
In particular, work relevant to safety or on safety-related systems must be carried out at a qualified specialist workshop. The operating
safety of the vehicle can be affected if this work is carried out incorrectly. There is a risk of accident and injury.
Vehicles with 4-button multi-function steering wheel: text messages are listed in the left-hand column under "Display messages".
Vehicles with 12-button luxury multi-function steering wheel: text messages are listed in the right-hand column under "Display mes-
sages". Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 237
