MERCEDES-BENZ C COUPE 2005 CL203 Owner's Manual

420 Technical dataRims and TiresSame size tiresModel
C 230 Kompressor (standard in Canada; Canada only)
Rims (light alloy)
7Jx16H2
Wheel offset
1.22 in (31 mm)
Summer tires (radial-ply tires)
-
All season tires (radial-ply tires)
205/55 R16 91H M+S
Winter tires (radial-ply tires)
205/55 R16 91H M+S

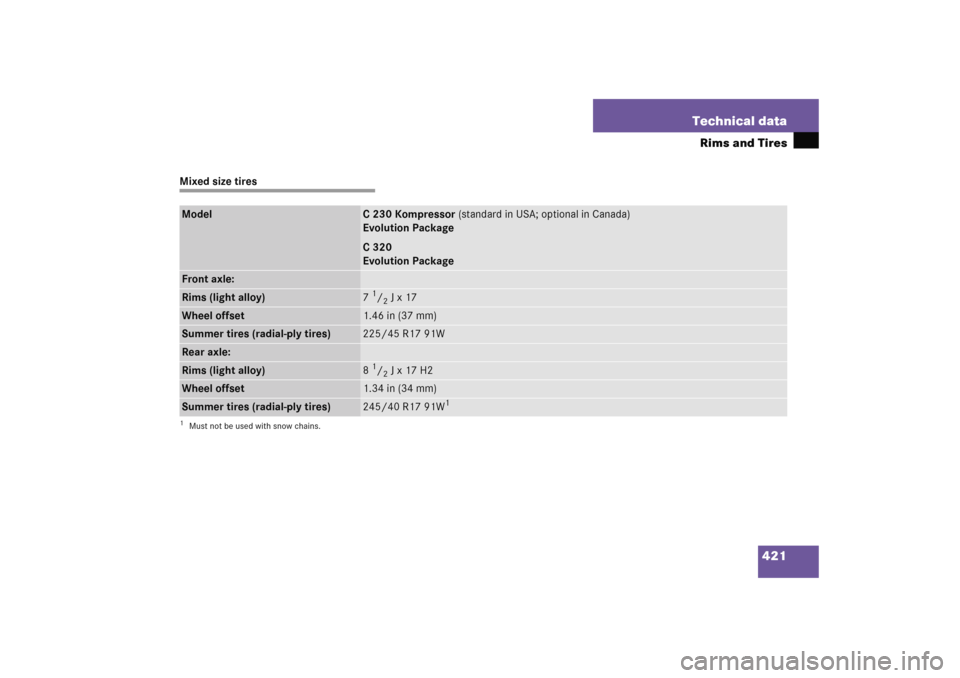

421 Technical data
Rims and Tires
Mixed size tiresModel
C230 Kompressor (standard in USA; optional in Canada)
Evolution Package
C320
Evolution Package
Front axle:Rims (light alloy)
71/2Jx17
Wheel offset
1.46 in (37 mm)
Summer tires (radial-ply tires)
225/45 R17 91W
Rear axle:Rims (light alloy)
81/2Jx17 H2
Wheel offset
1.34 in (34 mm)
Summer tires (radial-ply tires)
245/40 R17 91W
1
1Must not be used with snow chains.

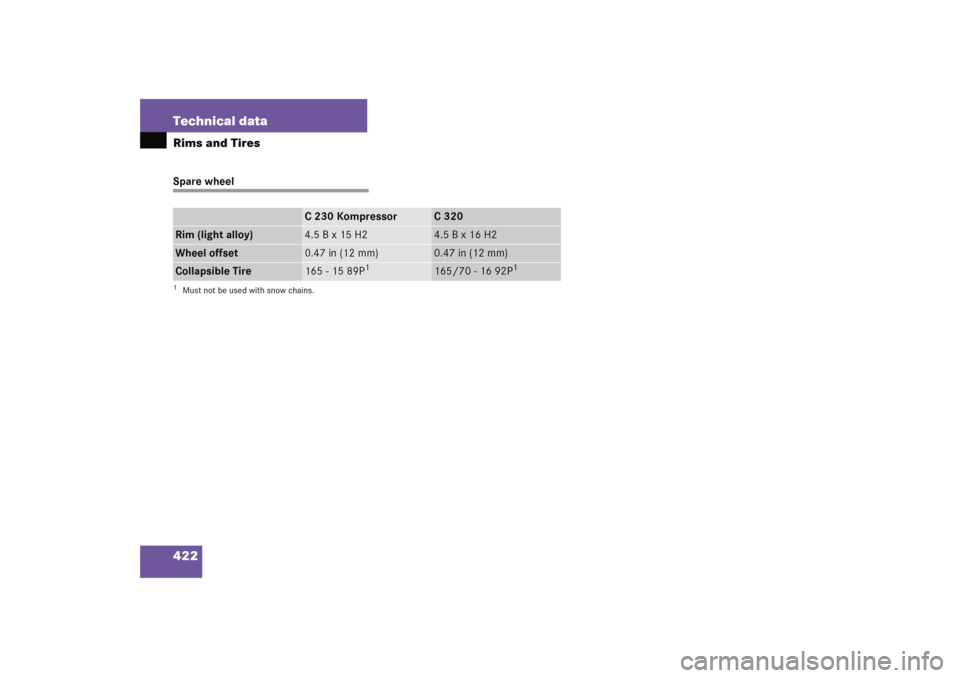

422 Technical dataRims and TiresSpare wheel
C 230 Kompressor
C320
Rim (light alloy)
4.5Bx15H2
4.5Bx16H2
Wheel offset
0.47 in (12 mm)
0.47 in (12 mm)
Collapsible Tire
165 - 15 89P
1
165/70 - 16 92P
1
1Must not be used with snow chains.

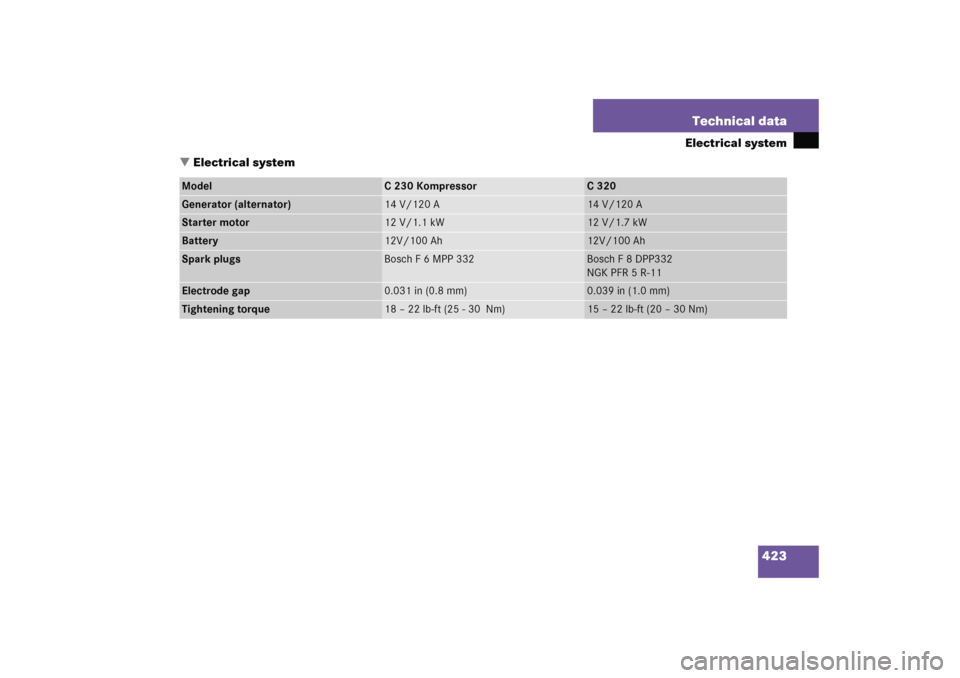

423 Technical data
Electrical system
Electrical system
Model
C230Kompressor
C320
Generator (alternator)
14 V/120 A
14 V/120 A
Starter motor
12 V/1.1 kW
12 V/1.7 kW
Battery
12V/100 Ah
12V/100 Ah
Spark plugs
Bosch F 6 MPP 332
Bosch F 8 DPP332
NGK PFR 5 R-11
Electrode gap
0.031 in (0.8 mm)
0.039 in (1.0 mm)
Tightening torque
18 – 22 lb-ft (25 - 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

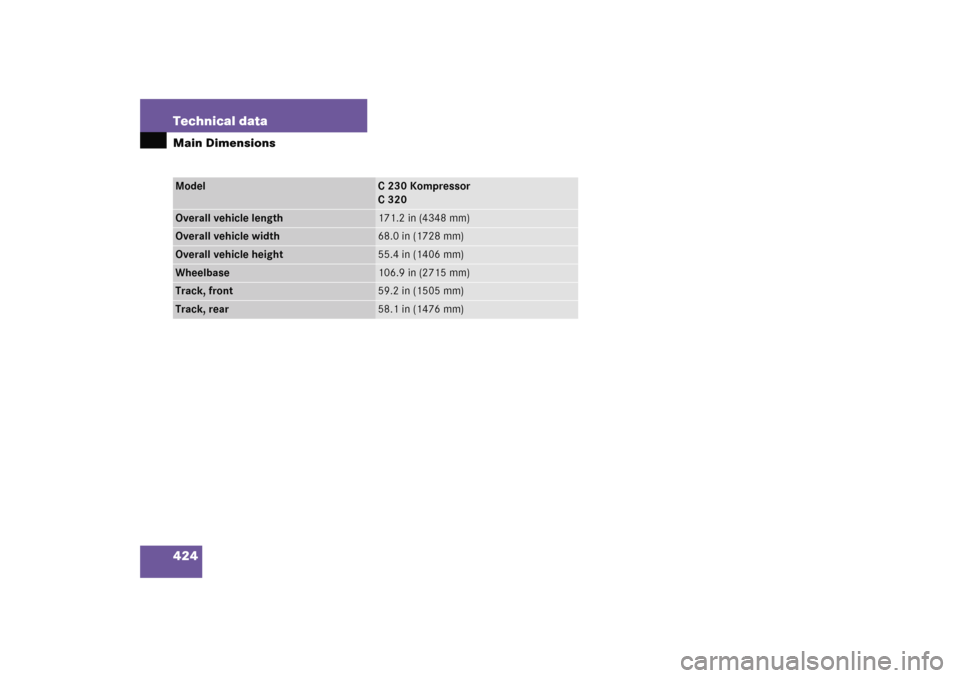

424 Technical dataMain DimensionsModel
C230Kompressor
C320
Overall vehicle length
171.2 in (4348 mm)
Overall vehicle width
68.0 in (1728 mm)
Overall vehicle height
55.4 in (1406 mm)
Wheelbase
106.9 in (2715 mm)
Track, front
59.2 in (1505 mm)
Track, rear
58.1 in (1476 mm)

425 Technical data
Weights
Weights
Roof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

426 Technical dataFuels, coolants, lubricants, etc.CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and approved by
Mercedes-Benz. Please refer to the Factory Approved Service Products
pamphlet, or inquire at your authorized
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
C230Kompressor
C320
5.8 US qt (5.5 l)
7.9 US qt (7.5 l)
approved engine oils
Automatic transmission
8.5 US qt (8.0 l)
MB Automatic Transmission Fluid
Manual transmission
1.3 US qt (1.2 l)
MB Manual Transmission Oil
Rear axle
1.2 US qt (1.1 l)
Hypoid gear oil SAE 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubs
approx. 2.1 oz (60 g) each
High temperature roller bearing grease
Cooling system
C230Kompressor
C320
approx. 5.9 US qt (5.6 l)
approx. 6.8 US qt (6.4 l)
MB 325.0 Anticorrosion/Antifreeze Agent

427 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Fuel tank
including a reserve of
16.4 US gal (62.0 l)
2.1 US gal (8.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91 (Avg. of 96 RON / 86 MON)
Flexible Fuel Vehicles (identified by a label reading
Premium gasoline or E85 only! on fuel filler flap):
Alternative fuel: Ethanol fuel (E85)
Air conditioning system
R-134a refrigerant and special PAG lubricant oil
(never R-12)
Windshield washer
3.2 US qt (3.0 l)
MB Windshield Washer Concentrate
1
Windshield washer and
headlamp cleaning system*
6.4 US qt (6.0 l)
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 435).

428 Technical dataFuels, coolants, lubricants, etc.Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet, or
contact an authorized Mercedes-Benz
Center.
Using engine oils and oil filters of specifica-
tion other than those expressly required
for the Maintenance System (U.S.
vehicles) or FSS (Canada vehicles), or
changing of oil and oil filter at change inter-
vals longer than those called for by the
Maintenance System (U.S. vehicles) or
FSS (Canada vehicles) will result in engine
damage not covered by the
Mercedes-Benz Limited WarrantyPlease follow Maintenance System (U.S.
vehicles) or FSS (Canada vehicles) recom-
mendations for scheduled oil changes.
Failure to do so will result in engine dam-
age not covered by the Mercedes-Benz
Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. An
authorized Mercedes-Benz Center will
provide you with additional information.

429 Technical data
Fuels, coolants, lubricants, etc.
Premium unleaded gasoline
Fuel requirements
Use only premium unleaded fuel meeting
ASTM standard D 439:

The octane number (posted at the
p um p) m us t be 91 mi n. It i s an a vera ge
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M) / 2). This is also known as the
ANTI-KNOCK INDEX.Unleaded gasoline containing oxygenates
such as Ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of Methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of Ethanol and Methanol is
not allowed. Gasohol, which contains 10%
Ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.


Do not exceed
2/3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain.
iFlexible Fuel Vehicles (identified by a
label reading Premium gasoline or
E85 only! on fuel filler flap) are de-
signed to operate on premium unlead-
ed gasoline or Ethanol fuel (E85), or any
mixture of these two.
For more information, see “Flexible
Fuel Vehicles” (
page 431).
