Safety and Security........................... 57
Occupant safety................................... 58
Air bags .......................................... 59
Occupant Classification System ..... 64
Seat belts ....................................... 69
Active head restraint ...................... 73
Children in the vehicle .................... 74
Blocking of
rear door window operation ........... 80
Panic alarm* ........................................ 81
Activating ....................................... 81
Deactivating ................................... 81
Driving safety systems ......................... 82
ABS ................................................ 82
BAS ................................................ 84
ESP
®............................................... 85
Four wheel electronic traction
system (4MATIC) with the ESP
®..... 88
Anti-theft systems................................ 89
Immobilizer..................................... 89
Anti-theft alarm system* ................ 89
Controls in detail............................... 91
Locking and unlocking ......................... 92
SmartKey ....................................... 92
Checking the batteries ................... 95
Loss of SmartKey
or mechanical key .......................... 95
Opening the doors from the inside . 96
Opening the trunk .......................... 96
Closing the trunk............................ 97
Trunk emergency release ............... 98
Valet locking .................................. 99
Automatic central locking .............. 99
Locking and unlocking
from the inside ............................. 100
Seats ................................................. 101
Front seat active head restraints . 101
Rear seat head restraints ............. 101
Lumbar support............................ 105
Multicontour seats*
(Canada only) ............................... 105
Seat heating* ............................... 106
Memory function* ............................. 107
Storing positions into memory ..... 108
Recalling positions from memory . 108Lighting ............................................. 109
Exterior lamp switch .................... 109
Combination switch ..................... 113
Corner-illuminating front
fog lamps* (C 230 (Canada only),
C 280, C 350 and models
with 4MATIC: with
Bi-Xenon* headlamps)................. 113
Hazard warning flasher ................ 115
Interior lighting ............................ 116
Door entry lamps ......................... 117
Trunk lamp ................................... 117
Instrument cluster ............................. 118
Adjusting
instrument cluster illumination .... 118
Coolant temperature gauge ......... 119
Resetting trip odometer ............... 119
Tachometer.................................. 120
Outside temperature indicator ..... 120
Control system .................................. 121
Multifunction display.................... 121
Multifunction steering wheel........ 122
Menus .......................................... 124
Standard display menu ................ 126
AUDIO menu ................................ 127
NAV* menu .................................. 129
Page 15 of 441
14 Introduction
Where to find it

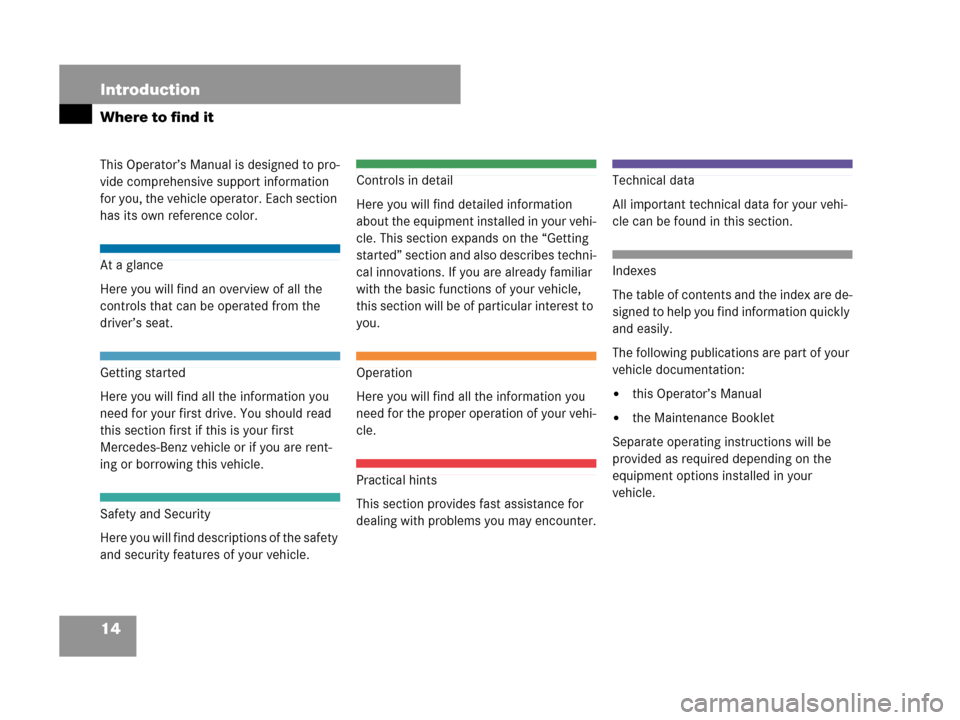

This Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. Each section
has its own reference color.
At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.
Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.
Safety and Security
Here you will find descriptions of the safety
and security features of your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed in your vehi-
cle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.
Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.
Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.
Indexes
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:
this Operator’s Manual
the Maintenance Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your
vehicle.
Page 36 of 441
35 Getting started
Adjusting

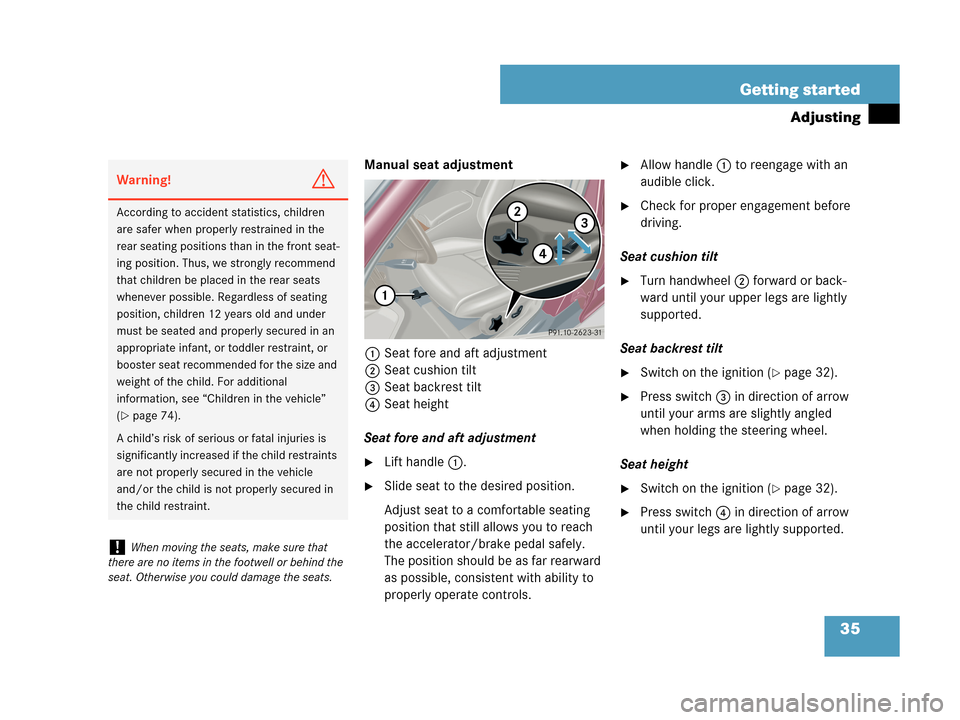

Manual seat adjustment
1Seat fore and aft adjustment
2Seat cushion tilt
3Seat backrest tilt
4Seat height
Seat fore and aft adjustment
Lift handle1.
Slide seat to the desired position.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator/brake pedal safely.
The position should be as far rearward
as possible, consistent with ability to
properly operate controls.
Allow handle1 to reengage with an
audible click.
Check for proper engagement before
driving.
Seat cushion tilt
Turn handwheel2 forward or back-
ward until your upper legs are lightly
supported.
Seat backrest tilt
Switch on the ignition (page 32).
Press switch3 in direction of arrow
until your arms are slightly angled
when holding the steering wheel.
Seat height
Switch on the ignition (page 32).
Press switch4 in direction of arrow
until your legs are lightly supported.
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional
information, see “Children in the vehicle”
(
page 74).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
!When moving the seats, make sure that
there are no items in the footwell or behind the
seat. Otherwise you could damage the seats.
Page 40 of 441
39 Getting started
Adjusting

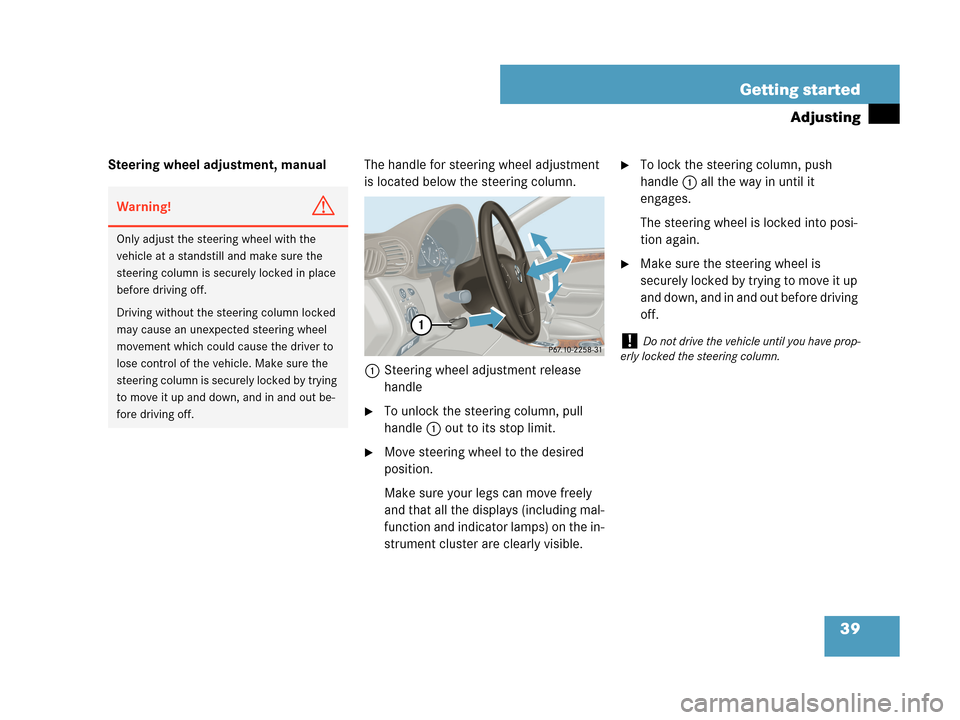

Steering wheel adjustment, manualThe handle for steering wheel adjustment
is located below the steering column.
1Steering wheel adjustment release
handle
To unlock the steering column, pull
handle1 out to its stop limit.
Move steering wheel to the desired
position.
Make sure your legs can move freely
and that all the displays (including mal-
function and indicator lamps) on the in-
strument cluster are clearly visible.
To lock the steering column, push
handle1 all the way in until it
engages.
The steering wheel is locked into posi-
tion again.
Make sure the steering wheel is
securely locked by trying to move it up
and down, and in and out before driving
off.
Warning!G
Only adjust the steering wheel with the
vehicle at a standstill and make sure the
steering column is securely locked in place
before driving off.
Driving without the steering column locked
may cause an unexpected steering wheel
movement which could cause the driver to
lose control of the vehicle. Make sure the
steering column is securely locked by trying
to move it up and down, and in and out be-
fore driving off.
!Do not drive the vehicle until you have prop-
erly locked the steering column.
Page 44 of 441
43 Getting started
Driving
Driving

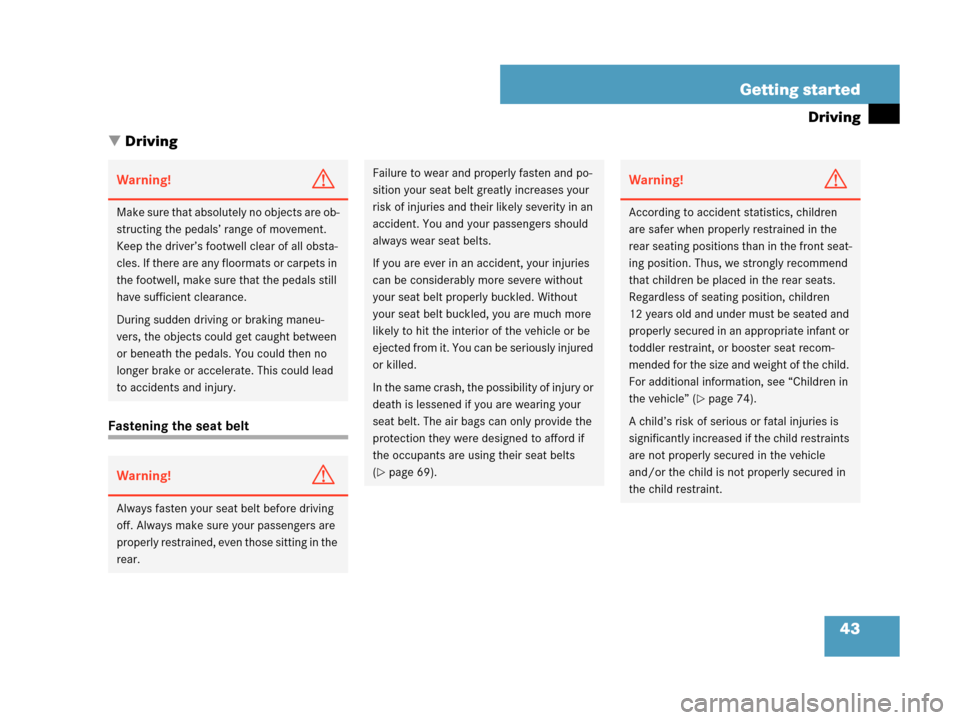

Fastening the seat belt
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
or beneath the pedals. You could then no
longer brake or accelerate. This could lead
to accidents and injury.
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(
page 69).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 74).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Page 45 of 441
44 Getting started
Driving

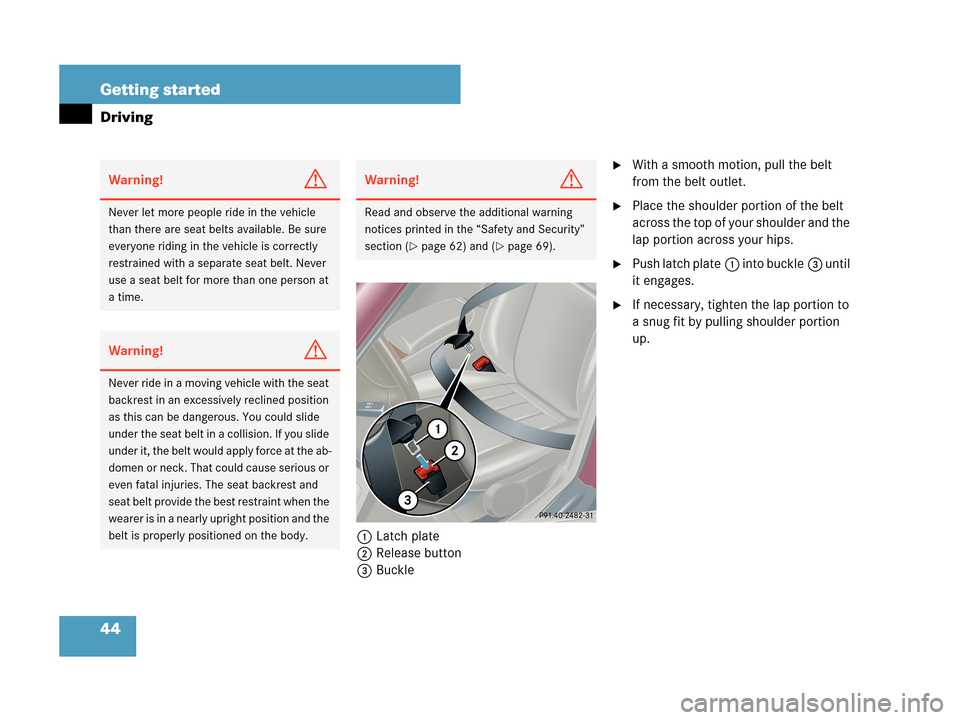

1Latch plate
2Release button
3Buckle
With a smooth motion, pull the belt
from the belt outlet.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate1 into buckle3 until
it engages.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!G
Read and observe the additional warning
notices printed in the “Safety and Security”
section (
page 62) and (page 69).
Page 46 of 441
45 Getting started
Driving

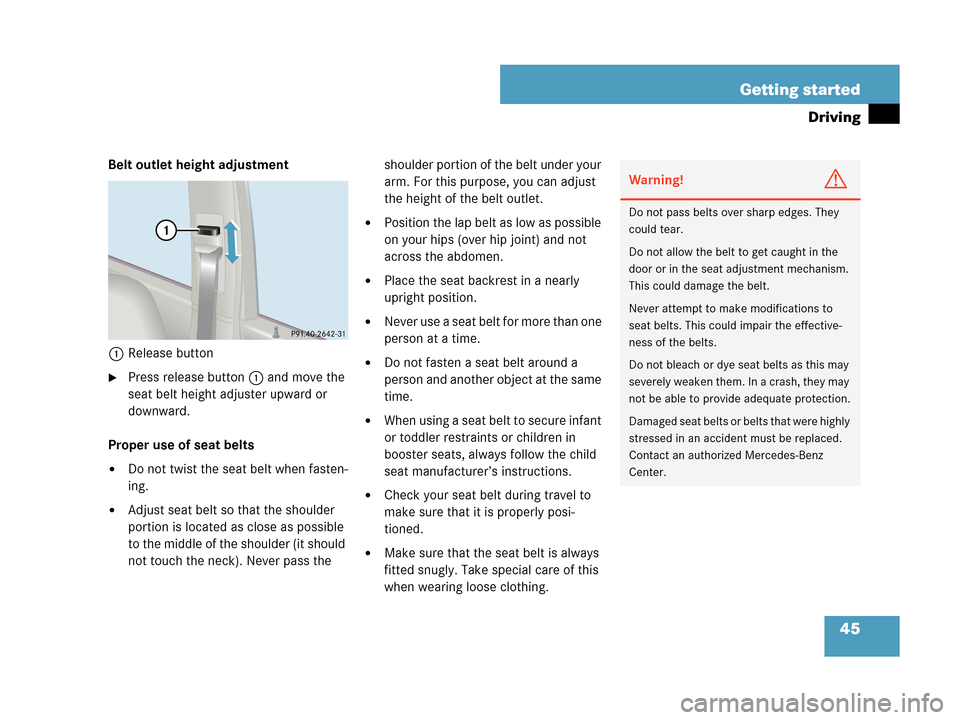

Belt outlet height adjustment
1Release button
Press release button1 and move the
seat belt height adjuster upward or
downward.
Proper use of seat belts
Do not twist the seat belt when fasten-
ing.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly
upright position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a
person and another object at the same
time.
When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.
Check your seat belt during travel to
make sure that it is properly posi-
tioned.
Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.
Warning!G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Page 56 of 441
55 Getting started
Parking and locking

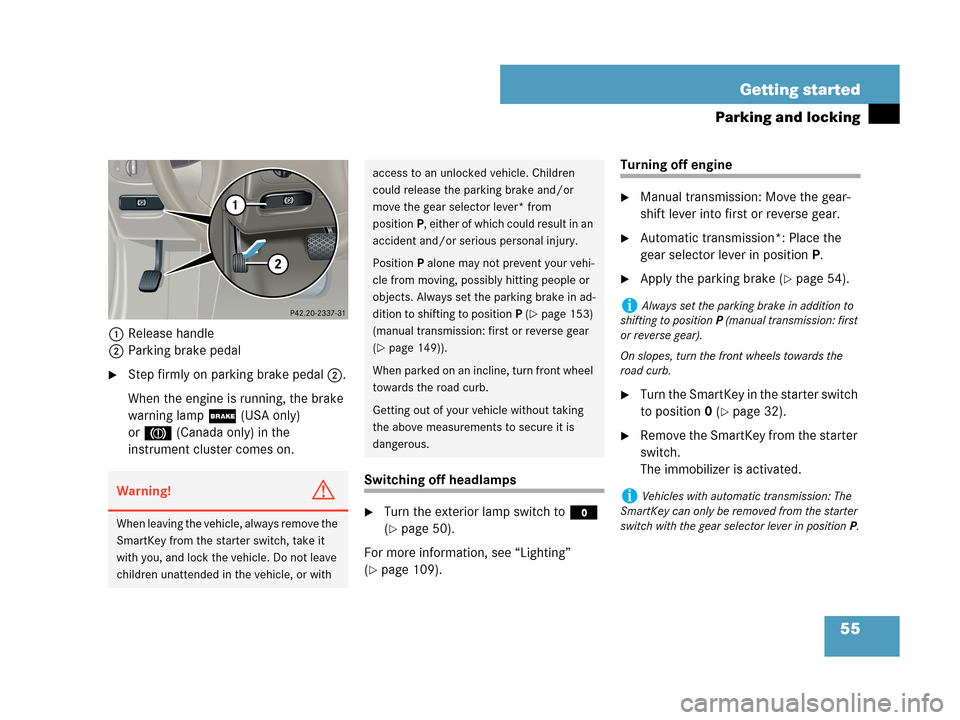

1Release handle
2Parking brake pedal
Step firmly on parking brake pedal2.
When the engine is running, the brake
warning lamp; (USA only)
or3(Canada only) in the
instrument cluster comes on.
Switching off headlamps
Turn the exterior lamp switch toM
(
page 50).
For more information, see “Lighting”
(
page 109).
Turning off engine
Manual transmission: Move the gear-
shift lever into first or reverse gear.
Automatic transmission*: Place the
gear selector lever in positionP.
Apply the parking brake (page 54).
Turn the SmartKey in the starter switch
to position0 (
page 32).
Remove the SmartKey from the starter
switch.
The immobilizer is activated.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever* from
positionP, either of which could result in an
accident and/or serious personal injury.
PositionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects. Always set the parking brake in ad-
dition to shifting to positionP (
page 153)
(manual transmission: first or reverse gear
(
page 149)).
When parked on an incline, turn front wheel
towards the road curb.
Getting out of your vehicle without taking
the above measurements to secure it is
dangerous.
iAlways set the parking brake in addition to
shifting to positionP (manual transmission: first
or reverse gear).
On slopes, turn the front wheels towards the
road curb.
iVehicles with automatic transmission: The
SmartKey can only be removed from the starter
switch with the gear selector lever in positionP.
Page 58 of 441
57 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems
Page 59 of 441

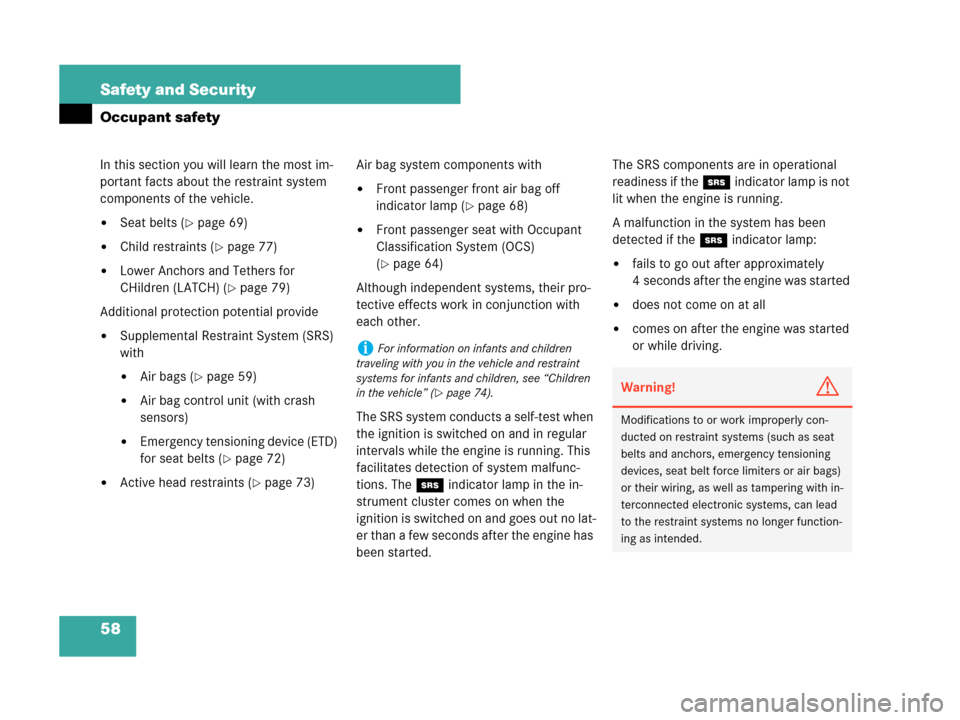

58 Safety and Security
Occupant safety
In this section you will learn the most im-
portant facts about the restraint system
components of the vehicle.
Seat belts (page 69)
Child restraints (page 77)
Lower Anchors and Tethers for
CHildren (LATCH) (
page 79)
Additional protection potential provide
Supplemental Restraint System (SRS)
with
Air bags (page 59)
Air bag control unit (with crash
sensors)
Emergency tensioning device (ETD)
for seat belts (
page 72)
Active head restraints (page 73)Air bag system components with
Front passenger front air bag off
indicator lamp (
page 68)
Front passenger seat with Occupant
Classification System (OCS)
(
page 64)
Although independent systems, their pro-
tective effects work in conjunction with
each other.
The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates detection of system malfunc-
tions. The1indicator lamp in the in-
strument cluster comes on when the
ignition is switched on and goes out no lat-
er than a few seconds after the engine has
been started.The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:fails to go out after approximately
4 seconds after the engine was started
does not come on at all
comes on after the engine was started
or while driving.
iFor information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 74). Warning!G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with in-
terconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.
