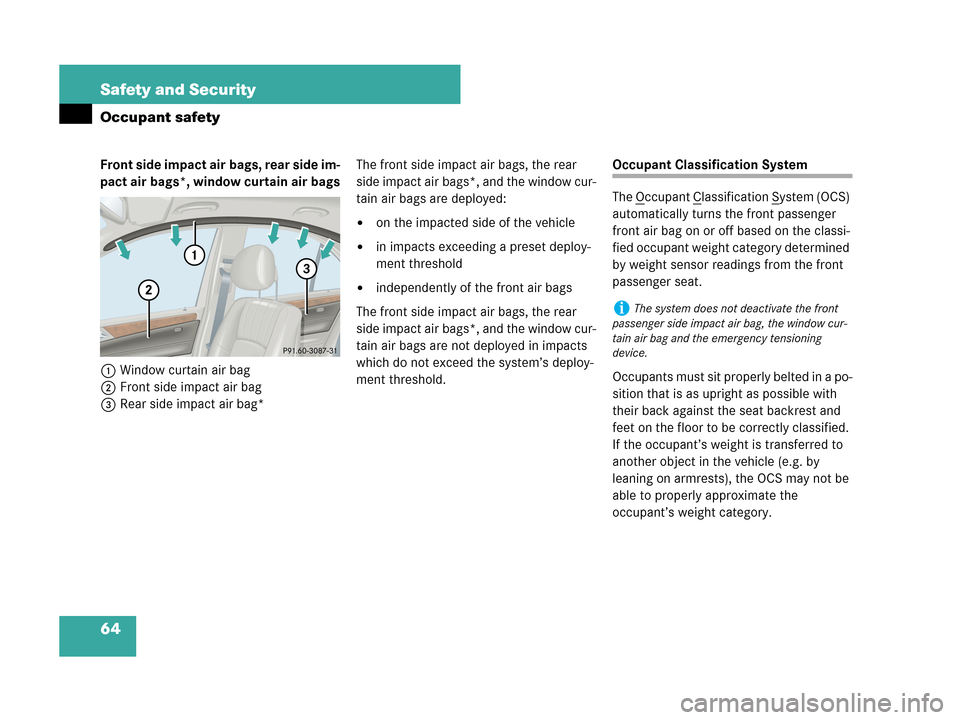

64 Safety and Security
Occupant safety
Front side impact air bags, rear side im-
pact air bags*, window curtain air bags
1Window curtain air bag
2Front side impact air bag
3Rear side impact air bag*The front side impact air bags, the rear
side impact air bags*, and the window cur-
tain air bags are deployed:

on the impacted side of the vehicle

in impacts exceeding a preset deploy-
ment threshold

independently of the front air bags
The front side impact air bags, the rear
side impact air bags*, and the window cur-
tain air bags are not deployed in impacts
which do not exceed the system’s deploy-
ment threshold.
Occupant Classification System
The O
ccupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a po-
sition that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant’s weight is transferred to
another object in the vehicle (e.g. by
leaning on armrests), the OCS may not be
able to properly approximate the
occupant’s weight category.
iThe system does not deactivate the front
passenger side impact air bag, the window cur-
tain air bag and the emergency tensioning
device.
