MERCEDES-BENZ C230 COUPE 2003 CL203 Owner's Guide

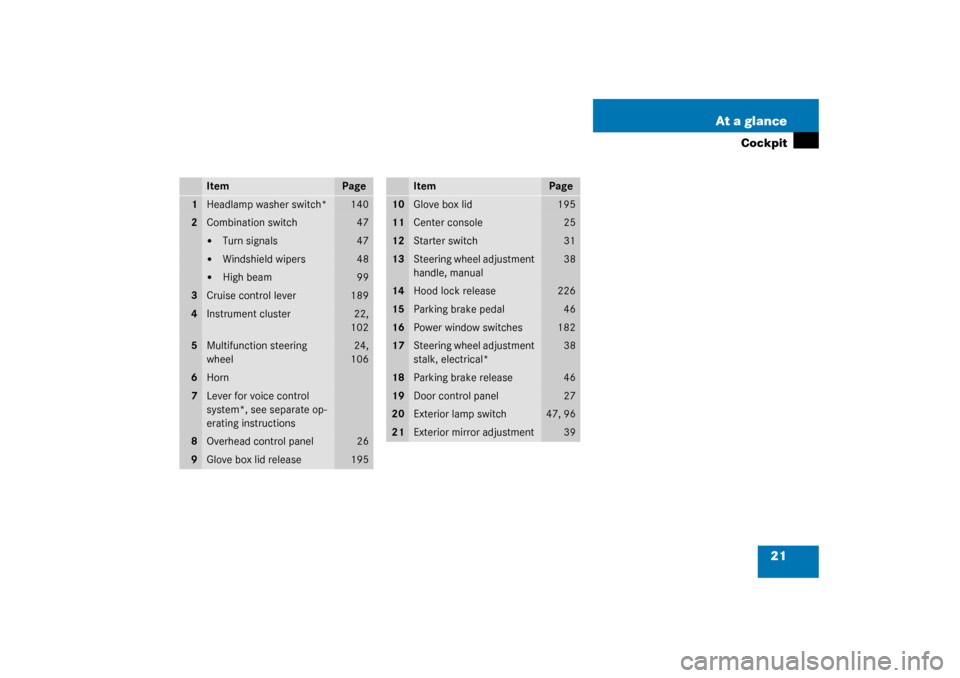

21 At a glance
Cockpit
Item
Page
1
Headlamp washer switch*
140
2
Combination switch
47


Turn signals
47


Windshield wipers
48


High beam
99
3
Cruise control lever
189
4
Instrument cluster
22,
102
5
Multifunction steering
wheel
24,
106
6
Horn
7
Lever for voice control
system*, see separate op-
erating instructions
8
Overhead control panel
26
9
Glove box lid release
195
Item
Page
10
Glove box lid
195
11
Center console
25
12
Starter switch
31
13
Steering wheel adjustment
handle, manual
38
14
Hood lock release
226
15
Parking brake pedal
46
16
Power window switches
182
17
Steering wheel adjustment
stalk, electrical*
38
18
Parking brake release
46
19
Door control panel
27
20
Exterior lamp switch
47, 96
21
Exterior mirror adjustment
39

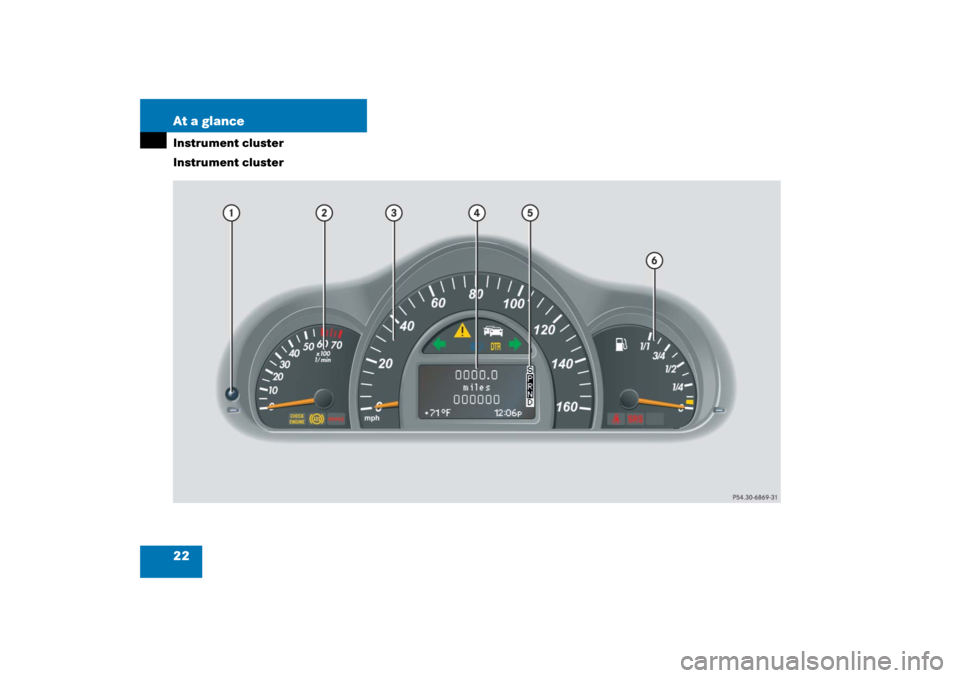

22 At a glanceInstrument cluster
Instrument cluster

23 At a glance
Instrument cluster
Item
Page
1
Reset knob for:

Resetting trip odome-
ter
103


Instrument cluster illu-
mination
102


Resetting individual
settings
114
2
Tachometer with:?
Engine malfunction
indicator lamp
250
-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
247
;
Brake warning
lamp, except Cana-
da
249
3
Brake warning
lamp, Canada only
249
Item
Page
3
Speedometer with:L
Left turn signal indi-
cator lamp
K
Right turn signal in-
dicator lamp
v
Electronic Stability
Program (ESP)
warning lamp
246
A
High beam head-
lamp indicator
99
E
Indicator lamp with-
out function
1
1The indicator lamp illuminates briefly when you
turn the key in the starter switch to position2
DTRIndicator lamp with-
out function
1
Item
Page
4
Multifunction display
with:Trip odometer
103
Main odometerOutside temperature dis-
play
104
Digital clock
116
5
Display for program
mode and selector lever
position
135
136
6
Fuel gauge with:Fuel reserve warning lamp
250
<
Seat belt nonusage
warning lamp
250
1
Supplemental re-
straint system indi-
cator lamp
248

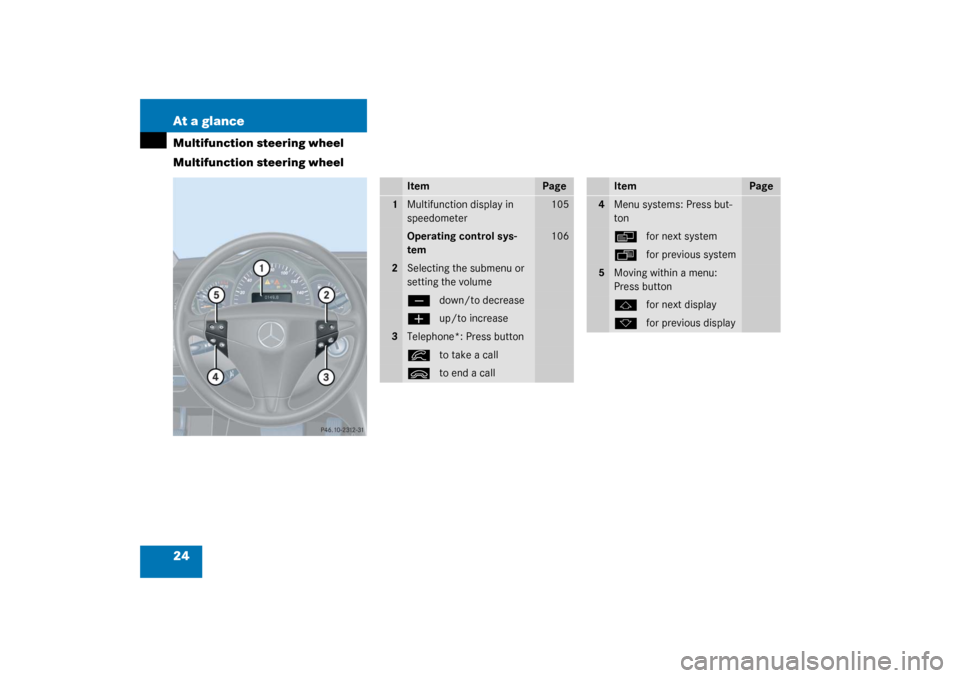

24 At a glanceMultifunction steering wheel
Multifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
105
Operating control sys-
tem
106
2
Selecting the submenu or
setting the volumeç
down/to decrease
æ
up/to increase
3
Telephone*: Press buttoní
to take a call
ì
to end a call
Item
Page
4
Menu systems: Press but-
tonè
for next system
ÿ
for previous system
5
Moving within a menu:
Press buttonj
for next display
k
for previous display

25 At a glance
Center console
Center console
Item
Page
1
Seat heater*, driver‘s side
91
2
ESP control switch
75
3
Hazard warning flasher
switch – switching on/off
99
4
Central locking switch
87
5
Anti-theft alarm system in-
dicator lamp
78
Tow-away alarm switch
79
6
Seat heater*, passenger
side
91
7
Indicator lamp
7
67
8
Audio system, or
159
COMAND* (see separate
operating instructions)
Item
Page
9
Climate control
142
10
Ashtray
198
11
Storage compartment
196
12
Armrest
197
13
Program mode selector for
automatic transmission
136
14
Gearshift lever for manual
transmission
Selector lever for automat-
ic transmission
44
45

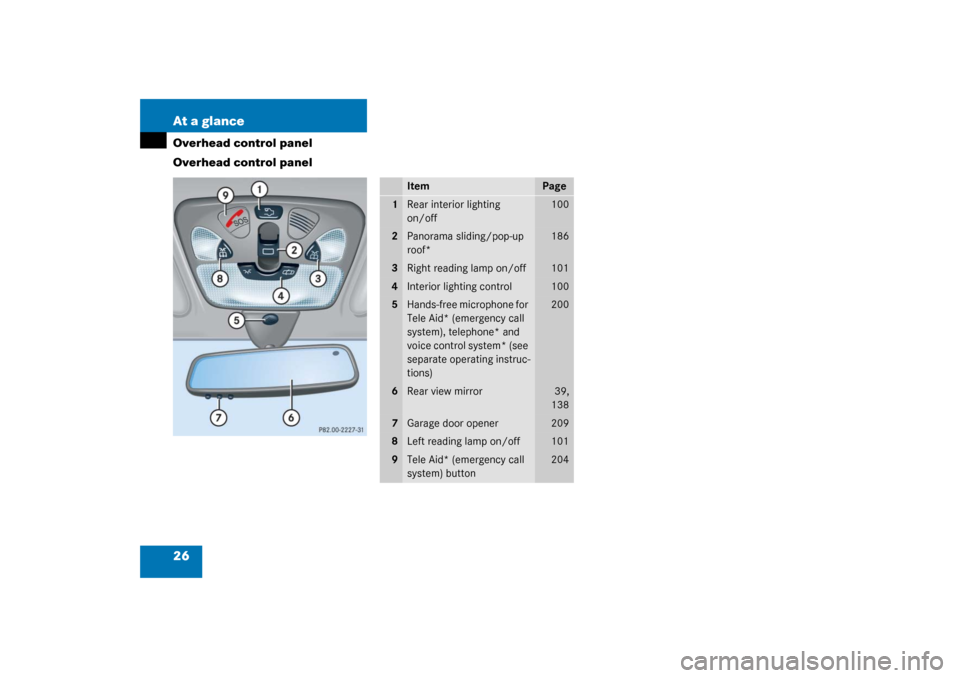

26 At a glanceOverhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
100
2
Panorama sliding/pop-up
roof*
186
3
Right reading lamp on/off
101
4
Interior lighting control
100
5
Hands-free microphone for
Tele Aid* (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
200
6
Rear view mirror
39,
138
7
Garage door opener
209
8
Left reading lamp on/off
101
9
Tele Aid* (emergency call
system) button
204

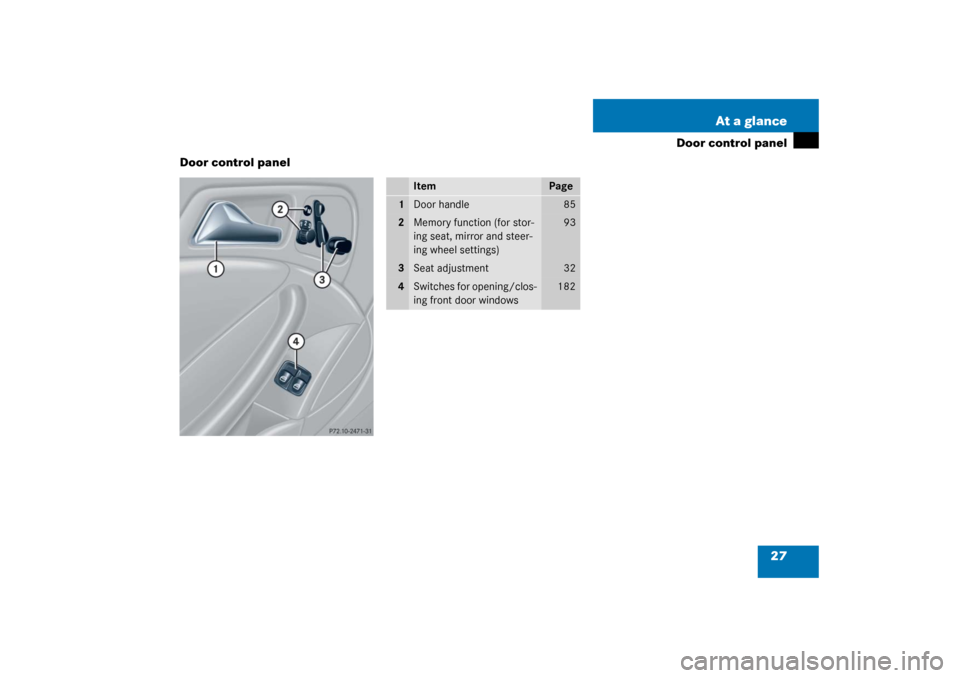

27 At a glance
Door control panel
Door control panel
Item
Page
1
Door handle
85
2
Memory function (for stor-
ing seat, mirror and steer-
ing wheel settings)
93
3
Seat adjustment
32
4
Switches for opening/clos-
ing front door windows
182

28

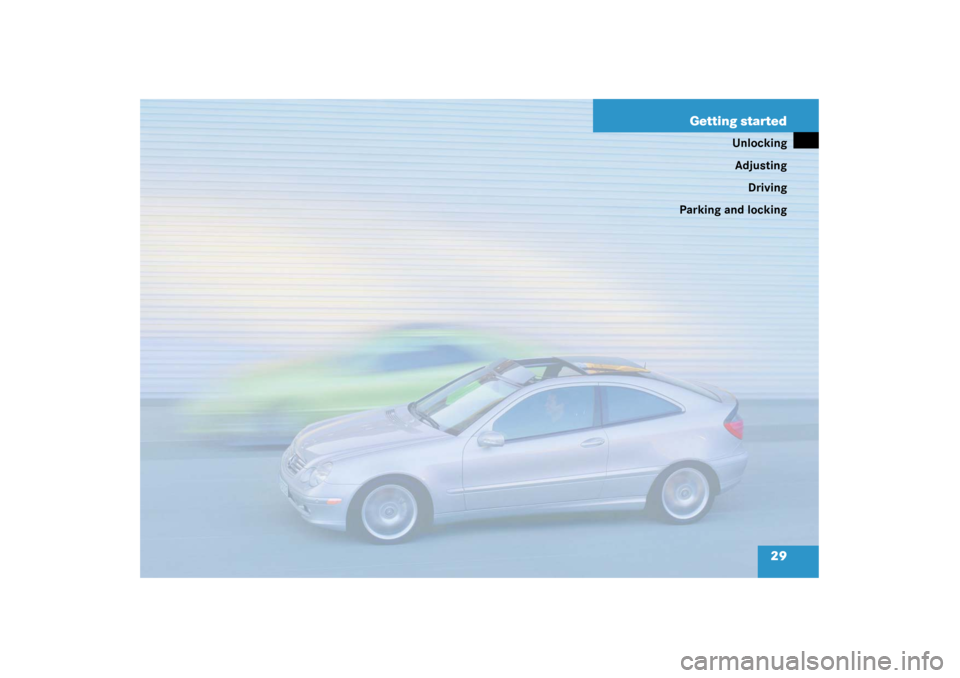

29 Getting started
Unlocking
Adjusting
Driving
Parking and locking

30 Getting startedUnlockingThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.

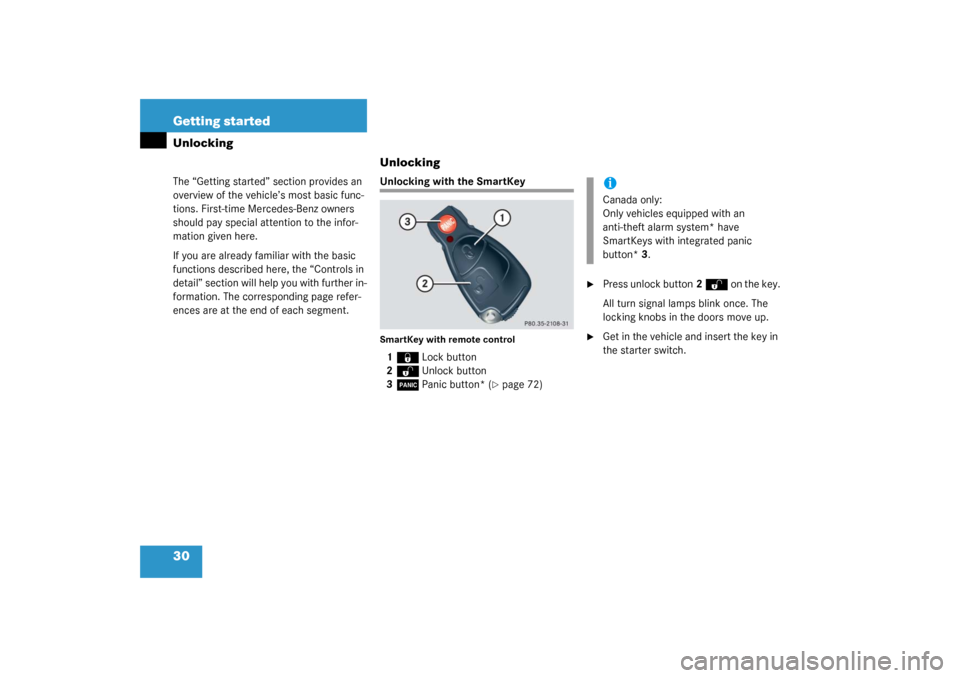

UnlockingUnlocking with the SmartKeySmartKey with remote control 1‹
Lock button
2
Œ
Unlock button
3
Â
Panic button* (
page 72)

Press unlock button2
Œ
on the key.
All turn signal lamps blink once. The
locking knobs in the doors move up.

Get in the vehicle and insert the key in
the starter switch.iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button*3.
