Page 6 of 376
ContentsOperation......................................... 221
The first 1 000 miles (1 500 km) ......... 222
Driving instructions ............................ 223
Drive sensibly – save fuel ............. 223
Drinking and driving ..................... 223
Pedals .......................................... 223
Power assistance ......................... 224
Brakes .......................................... 224
Driving off..................................... 225
Parking ......................................... 225
Tires ............................................. 226
Hydroplaning ................................ 227
Tire traction .................................. 227
Tire speed rating .......................... 227
Winter driving instructions ........... 228
Standing water ............................. 229
Passenger compartment .............. 230
Driving abroad .............................. 230
Control and operation of
radio transmitter .......................... 230
Catalytic converter ....................... 231
Emission control........................... 231
Coolant temperature .................... 232At the gas station .............................. 233
Check regularly and before
a long trip ..................................... 234
Engine compartment ......................... 235
Hood ............................................ 235
Engine oil ..................................... 236
Transmission fluid level ................ 238
Coolant level ................................ 238
Battery ......................................... 240
Windshield washer system and
headlamp cleaning* system ......... 241
Tires and wheels ................................ 242
Important guidelines .................... 242
Life of tire..................................... 243
Direction of rotation ..................... 243
Checking tire inflation pressure ... 243
Rotating wheels ........................... 244
Winter driving .................................... 245
Winter tires .................................. 245
Block heater (Canada only) .......... 246
Snow chains ................................. 246Maintenance...................................... 247
Clearing the service indicator ...... 247
Service term exceeded ................ 247
Calling up the service indicator .... 248
Resetting the service indicator .... 248
Vehicle care....................................... 249
Cleaning and care of vehicle ........ 249

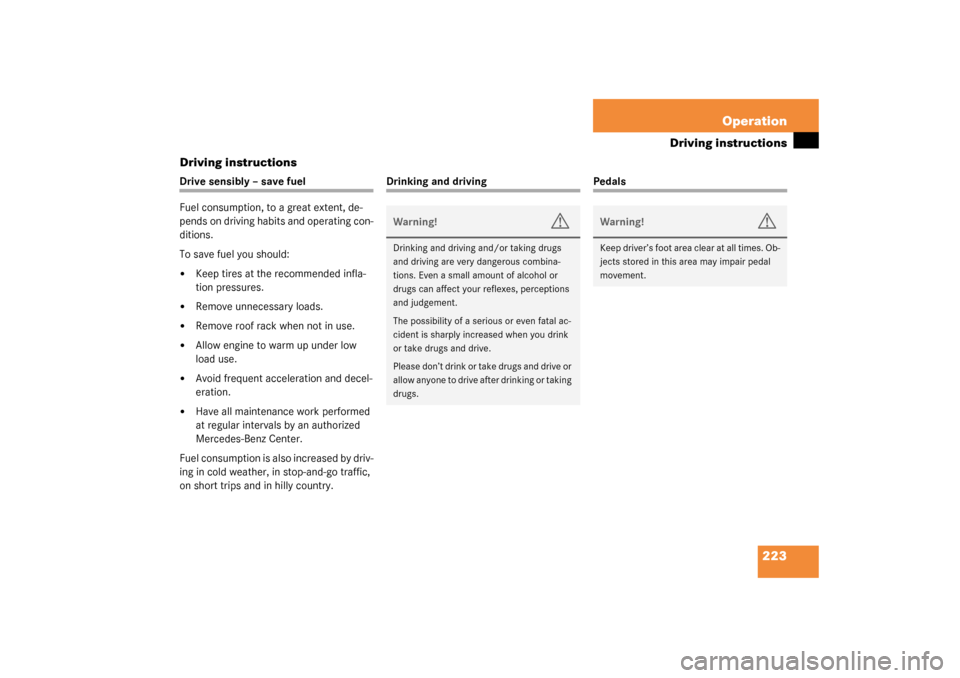

Page 223 of 376
223 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:
Keep tires at the recommended infla-
tion pressures.
Remove unnecessary loads.
Remove roof rack when not in use.
Allow engine to warm up under low
load use.
Avoid frequent acceleration and decel-
eration.
Have all maintenance work performed
at regular intervals by an authorized
Mercedes-Benz Center.
Fuel consumption is also increased by driv-
ing in cold weather, in stop-and-go traffic,
on short trips and in hilly country.
Drinking and driving
Pedals
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgement.
The possibility of a serious or even fatal ac-
cident is sharply increased when you drink
or take drugs and drive.
Please don’t drink or take drugs and drive or
allow anyone to drive after drinking or taking
drugs.
Warning!
G
Keep driver’s foot area clear at all times. Ob-
jects stored in this area may impair pedal
movement.

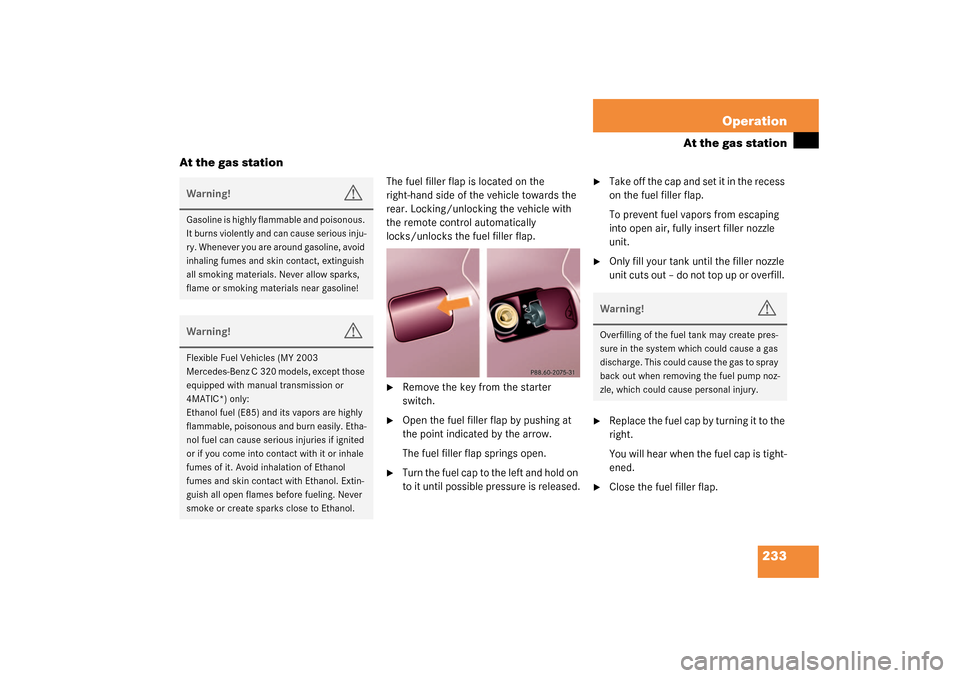

Page 233 of 376
233 Operation
At the gas station
At the gas station
The fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the remote control automatically
locks/unlocks the fuel filler flap.
Remove the key from the starter
switch.
Open the fuel filler flap by pushing at
the point indicated by the arrow.
The fuel filler flap springs open.
Turn the fuel cap to the left and hold on
to it until possible pressure is released.
Take off the cap and set it in the recess
on the fuel filler flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.
Only fill your tank until the filler nozzle
unit cuts out – do not top up or overfill.
Replace the fuel cap by turning it to the
right.
You will hear when the fuel cap is tight-
ened.
Close the fuel filler flap.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline! Warning!
G
Flexible Fuel Vehicles (MY 2003
Mercedes-Benz C 320 models, except those
equipped with manual transmission or
4MATIC*) only:
Ethanol fuel (E85) and its vapors are highly
flammable, poisonous and burn easily. Etha-
nol fuel can cause serious injuries if ignited
or if you come into contact with it or inhale
fumes of it. Avoid inhalation of Ethanol
fumes and skin contact with Ethanol. Extin-
guish all open flames before fueling. Never
smoke or create sparks close to Ethanol.
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.

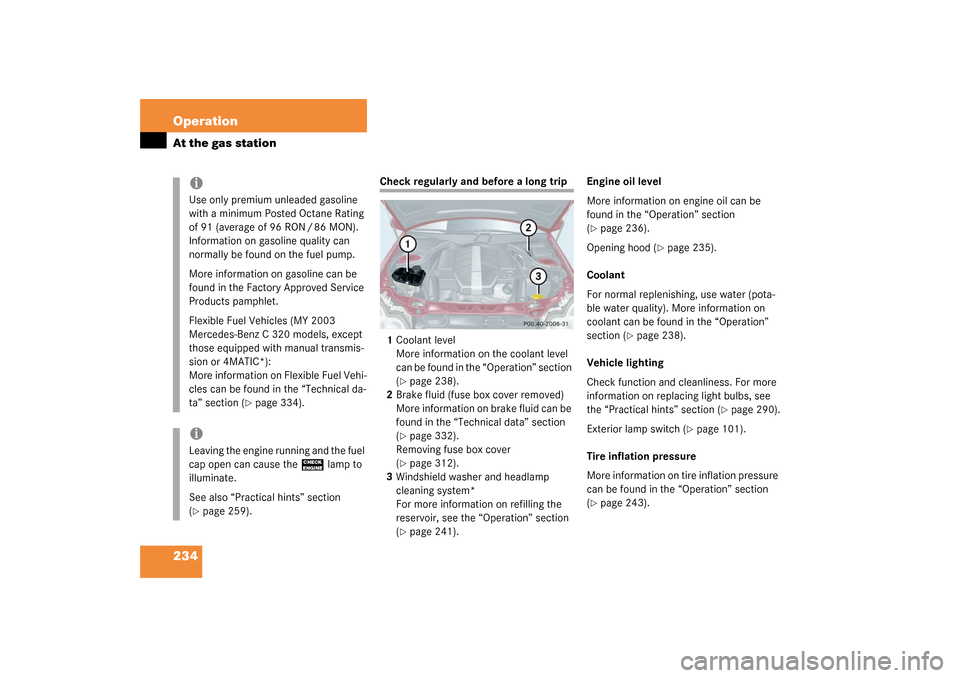

Page 234 of 376
234 OperationAt the gas station
Check regularly and before a long trip
1Coolant level
More information on the coolant level
can be found in the “Operation” section
(
page 238).
2Brake fluid (fuse box cover removed)
More information on brake fluid can be
found in the “Technical data” section
(page 332).
Removing fuse box cover
(page 312).
3Windshield washer and headlamp
cleaning system*
For more information on refilling the
reservoir, see the “Operation” section
(page 241).Engine oil level
More information on engine oil can be
found in the “Operation” section
(
page 236).
Opening hood (
page 235).
Coolant
For normal replenishing, use water (pota-
ble water quality). More information on
coolant can be found in the “Operation”
section (
page 238).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
the “Practical hints” section (
page 290).
Exterior lamp switch (
page 101).
Tire inflation pressure
More information on tire inflation pressure
can be found in the “Operation” section
(
page 243).
iUse only premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.
Flexible Fuel Vehicles (MY 2003
Mercedes-Benz C 320 models, except
those equipped with manual transmis-
sion or 4MATIC*):
More information on Flexible Fuel Vehi-
cles can be found in the “Technical da-
ta” section (
page 334).
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
See also “Practical hints” section
(
page 259).

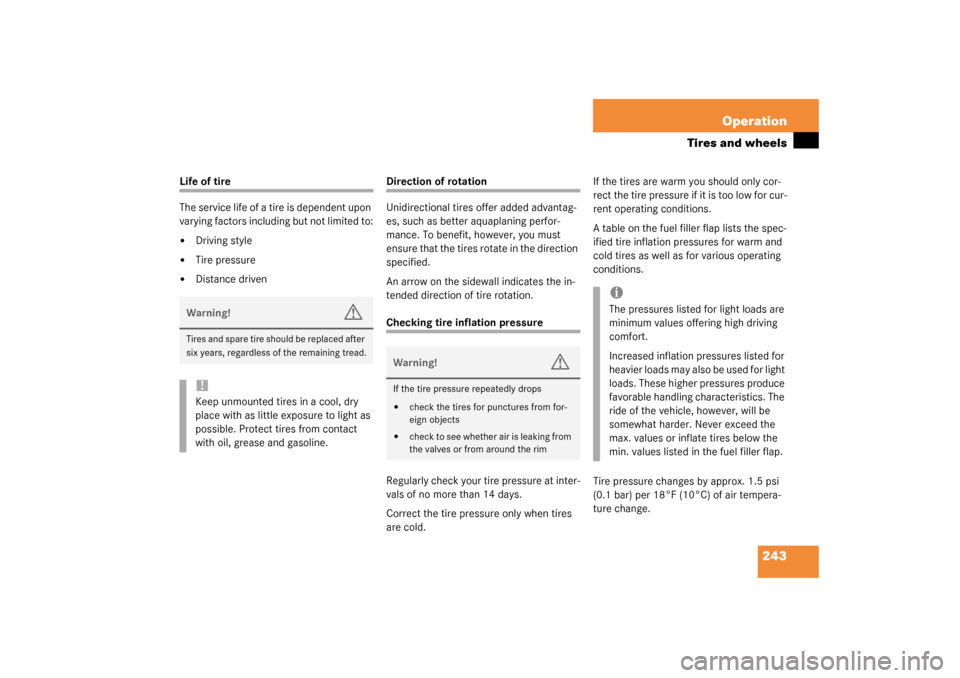

Page 243 of 376
243 Operation
Tires and wheels
Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:
Driving style
Tire pressure
Distance driven
Direction of rotation
Unidirectional tires offer added advantag-
es, such as better aquaplaning perfor-
mance. To benefit, however, you must
ensure that the tires rotate in the direction
specified.
An arrow on the sidewall indicates the in-
tended direction of tire rotation.Checking tire inflation pressure
Regularly check your tire pressure at inter-
vals of no more than 14 days.
Correct the tire pressure only when tires
are cold.If the tires are warm you should only cor-
rect the tire pressure if it is too low for cur-
rent operating conditions.
A table on the fuel filler flap lists the spec-
ified tire inflation pressures for warm and
cold tires as well as for various operating
conditions.
Tire pressure changes by approx. 1.5 psi
(0.1 bar) per 18°F (10°C) of air tempera-
ture change.
Warning!
G
Tires and spare tire should be replaced after
six years, regardless of the remaining tread.!Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.
Warning!
G
If the tire pressure repeatedly drops
check the tires for punctures from for-
eign objects
check to see whether air is leaking from
the valves or from around the rim
iThe pressures listed for light loads are
minimum values offering high driving
comfort.
Increased inflation pressures listed for
heavier loads may also be used for light
loads. These higher pressures produce
favorable handling characteristics. The
ride of the vehicle, however, will be
somewhat harder. Never exceed the
max. values or inflate tires below the
min. values listed in the fuel filler flap.

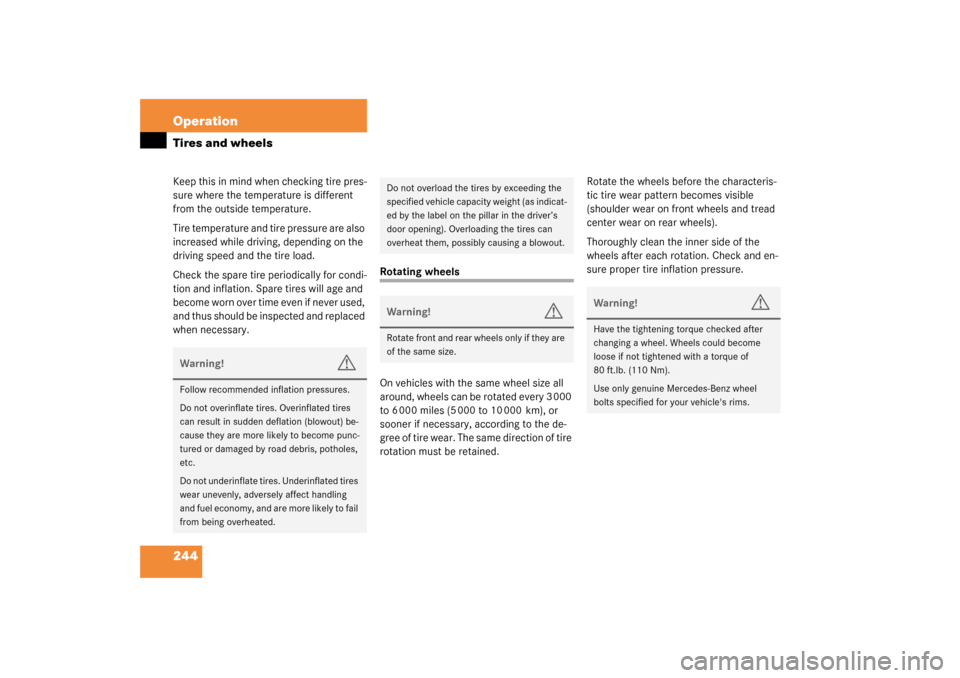

Page 244 of 376
244 OperationTires and wheelsKeep this in mind when checking tire pres-
sure where the temperature is different
from the outside temperature.
Tire temperature and tire pressure are also
increased while driving, depending on the
driving speed and the tire load.
Check the spare tire periodically for condi-
tion and inflation. Spare tires will age and
b e c o m e w o r n o v e r t i m e e v e n i f n e v e r u s e d ,
and thus should be inspected and replaced
when necessary.
Rotating wheels
On vehicles with the same wheel size all
around, wheels can be rotated every 3 000
to 6 000 miles (5 000 to 10 000 km), or
sooner if necessary, according to the de-
gree of tire wear. The same direction of tire
rotation must be retained.Rotate the wheels before the characteris-
tic tire wear pattern becomes visible
(shoulder wear on front wheels and tread
center wear on rear wheels).
Thoroughly clean the inner side of the
wheels after each rotation. Check and en-
sure proper tire inflation pressure.
Warning!
G
Follow recommended inflation pressures.
Do not overinflate tires. Overinflated tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Do not overload the tires by exceeding the
specified vehicle capacity weight (as indicat-
ed by the label on the pillar in the driver’s
door opening). Overloading the tires can
overheat them, possibly causing a blowout.Warning!
G
Rotate front and rear wheels only if they are
of the same size.
Warning!
G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
80 ft.lb. (110 Nm).
Use only genuine Mercedes-Benz wheel
bolts specified for your vehicle's rims.

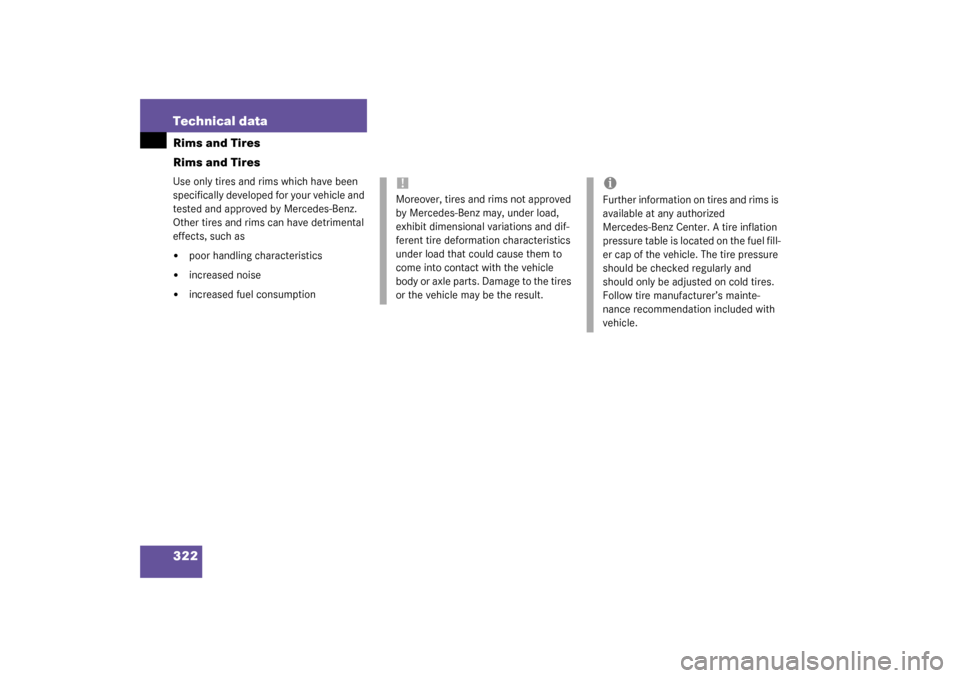

Page 322 of 376
322 Technical dataRims and Tires
Rims and TiresUse only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as
poor handling characteristics
increased noise
increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
under load that could cause them to
come into contact with the vehicle
body or axle parts. Damage to the tires
or the vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

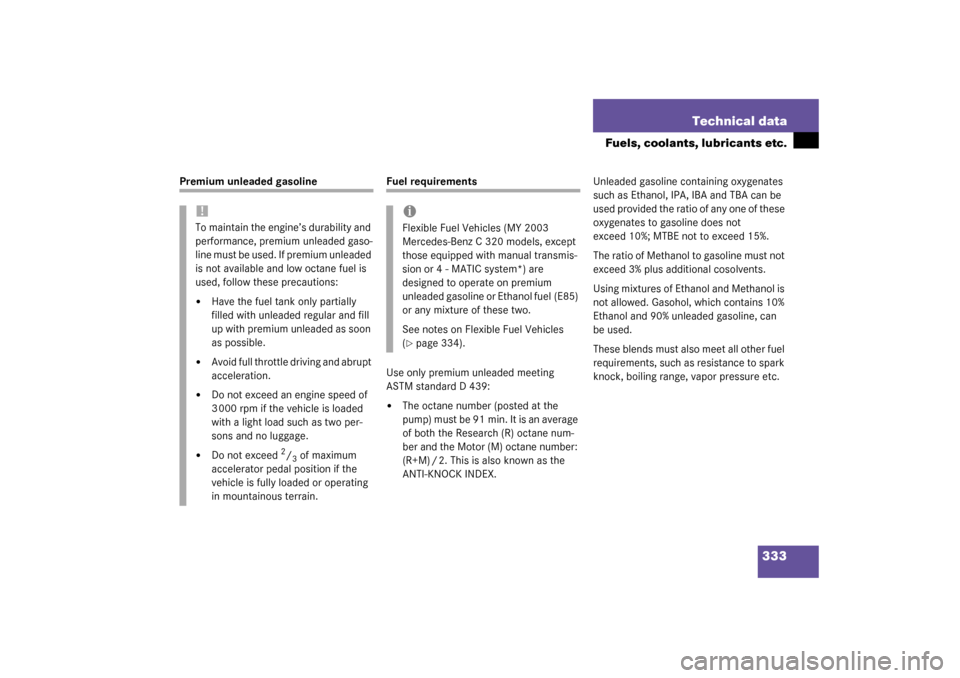

Page 333 of 376
333 Technical data
Fuels, coolants, lubricants etc.
Premium unleaded gasoline
Fuel requirements
Use only premium unleaded meeting
ASTM standard D 439:
The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M) / 2. This is also known as the
ANTI-KNOCK INDEX.Unleaded gasoline containing oxygenates
such as Ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not
exceed 10%; MTBE not to exceed 15%.
The ratio of Methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of Ethanol and Methanol is
not allowed. Gasohol, which contains 10%
Ethanol and 90% unleaded gasoline, can
be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure etc.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:
Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.
Avoid full throttle driving and abrupt
acceleration.
Do not exceed an engine speed of
3 000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.
Do not exceed
2/3 of maximum
accelerator pedal position if the
vehicle is fully loaded or operating
in mountainous terrain.
iFlexible Fuel Vehicles (MY 2003
Mercedes-Benz C 320 models, except
those equipped with manual transmis-
sion or 4 - MATIC system*) are
designed to operate on premium
unleaded gasoline or Ethanol fuel (E85)
or any mixture of these two.
See notes on Flexible Fuel Vehicles
(page 334).
Page 350 of 376
350 IndexButton
Audio system 168
C
CAC (Customer Assistance Center) 341
California
Important notice 11
Calling up
Range (distance to empty) 133
Service indicator 248
CAN system 341
Capacities
Fuels, coolants, lubricants, etc. 329
Cargo area see Trunk 86
Casette mode
Playing cassettes 174
Cassette player
Operating 118
Catalytic converter 231
CD changer* 178
CD mode 178
CD player*
Operating 117
Center console 25
AIRBAG OFF indicator lamp 260
Lower part 26
Upper part 25Centigrade
Setting temperature units 123
Central locking
Automatic 91
From inside 92
Switch 92
Switching on/off
(control system) 129
Unlocking from inside 92
Central locking switch 92
Certification label 318
Changing
Batteries (SmartKey) 287
Key setting 129
Changing CDs 178
Charcoal filter 161
Charging
Vehicle battery 304
CHECK ENGINE malfunction
indicator lamp 259
Checking
Brake fluid 234
Coolant level 234, 238
Oil level 234, 236
Tire inflate pressure 234
Vehicle lighting 234Child safety 65
Airbags 58
Infant and child restraint
systems 62, 65
LATCH child seat anchors 69
Child safety switch see Blocking of
rear door window operation 71
Child seat anchors
see LATCH child seat anchors 70
Cigarette lighter 208
Cleaning
Cup holder 252
Gear selector lever 252
Hard plastic trim items 252
Headlamps 146
Headliner 252
Instrument cluster 252
Leather upholstery 253
Light alloy wheels 252
MB Tex upholstery 253
Plastic and rubber parts 252
Seat belts 252
Steering wheel 252
Windows 251
Windshield 49
Wiper blades 251

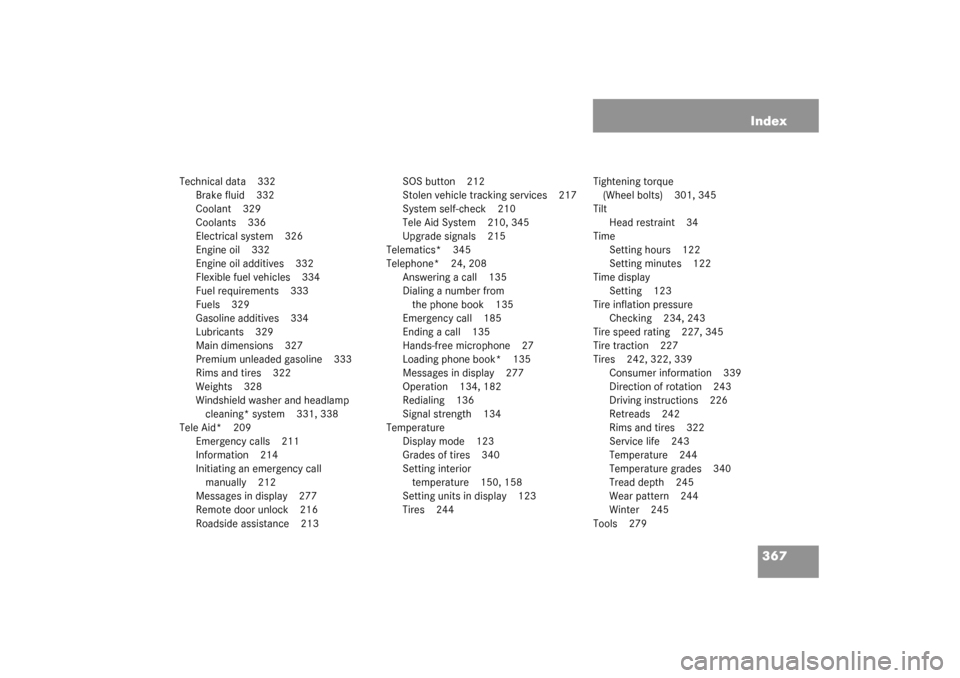

Page 367 of 376
367 Index
Technical data 332
Brake fluid 332
Coolant 329
Coolants 336
Electrical system 326
Engine oil 332
Engine oil additives 332
Flexible fuel vehicles 334
Fuel requirements 333
Fuels 329
Gasoline additives 334
Lubricants 329
Main dimensions 327
Premium unleaded gasoline 333
Rims and tires 322
Weights 328
Windshield washer and headlamp
cleaning* system 331, 338
Tele Aid* 209
Emergency calls 211
Information 214
Initiating an emergency call
manually 212
Messages in display 277
Remote door unlock 216
Roadside assistance 213SOS button 212
Stolen vehicle tracking services 217
System self-check 210
Tele Aid System 210, 345
Upgrade signals 215
Telematics* 345
Telephone* 24, 208
Answering a call 135
Dialing a number from
the phone book 135
Emergency call 185
Ending a call 135
Hands-free microphone 27
Loading phone book* 135
Messages in display 277
Operation 134, 182
Redialing 136
Signal strength 134
Temperature
Display mode 123
Grades of tires 340
Setting interior
temperature 150, 158
Setting units in display 123
Tires 244Tightening torque
(Wheel bolts) 301, 345
Tilt
Head restraint 34
Time
Setting hours 122
Setting minutes 122
Time display
Setting 123
Tire inflation pressure
Checking 234, 243
Tire speed rating 227, 345
Tire traction 227
Tires 242, 322, 339
Consumer information 339
Direction of rotation 243
Driving instructions 226
Retreads 242
Rims and tires 322
Service life 243
Temperature 244
Temperature grades 340
Tread depth 245
Wear pattern 244
Winter 245
Tools 279
