148 Combination switch
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Combination switch
1Low beam
(exterior lamp switch position B)
2High beam
(exterior lamp switch position B)3High beam flasher (high beam available
independent of exterior lamp switch position)
4Turn signals, right
5Turn signals, left
To signal minor directional changes, such as changing
lanes on a highway, move combination switch briefly to
the point of resistance only and release. The turn
signals blink three times.
To operate the turn signals continuously, move the
combination switch past the point of resistance (up or
down). The switch is automatically canceled when the
steering wheel is turned to a large enough degree.
Turn signal failure
If one of the turn signals fails, the turn signal indicator
system flashes and sounds at a faster than normal rate.

149 Combination switch
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

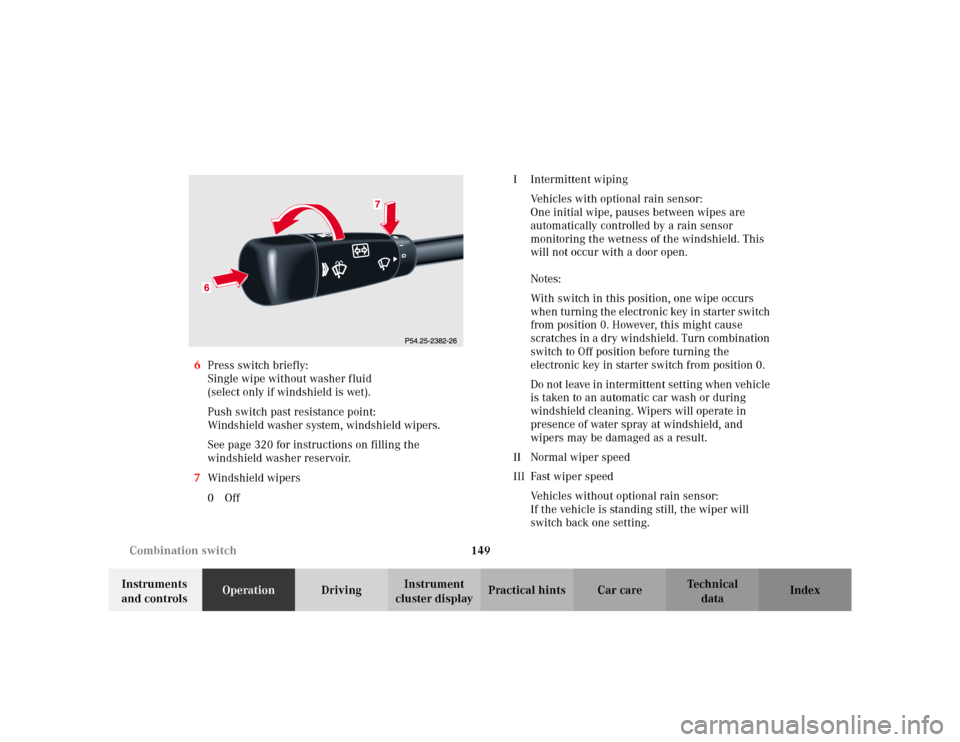

cluster displayPractical hints Car care Index 6Press switch briefly:
Single wipe without washer fluid
(select only if windshield is wet).
Push switch past resistance point:
Windshield washer system, windshield wipers.
See page 320 for instructions on filling the
windshield washer reservoir.
7Windshield wipers
0OffI Intermittent wiping
Vehicles with optional rain sensor:
One initial wipe, pauses between wipes are
automatically controlled by a rain sensor
monitoring the wetness of the windshield. This
will not occur with a door open.
Notes:
With switch in this position, one wipe occurs
when turning the electronic key in starter switch
from position 0. However, this might cause
scratches in a dry windshield. Turn combination
switch to Off position before turning the
electronic key in starter switch from position 0.
Do not leave in intermittent setting when vehicle
is taken to an automatic car wash or during
windshield cleaning. Wipers will operate in
presence of water spray at windshield, and
wipers may be damaged as a result.
II Normal wiper speed
III Fast wiper speed
Vehicles without optional rain sensor:
If the vehicle is standing still, the wiper will
switch back one setting.

150 Combination switch
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Blocked windshield wipers
If the windshield wipers become blocked (for example,
due to snow), switch off the wipers.
For safety reasons before removing ice or snow, remove
electronic key from starter switch. Remove blockage.
Activate combination switch again (electronic key in
starter switch position 1).
Emergency operation of windshield wipers
In case of windshield wiper malfunction in switch
positions I or III, turn combination switch to wiper
setting II. Have the system checked at your authorized
Mercedes-Benz Center as soon as possible.Windshield wipers smear
If the windshield wipers smear the windshield, even
during rain, activate the washer system as often as
necessary. The fluid in the washer reservoir should be
mixed in the correct ratio.
See page 320 for instructions on filling up the
windshield washer reservoir.
See page 356 for instructions on replacing wiper blade
inserts.
Windshield and headlamp washer fluid mixing ratio
For temperatures above freezing:
MB Windshield Washer Concentrate “S” and water.
1 part “S” to 100 parts water
(40 ml “S” to 1 gallon water).
For temperature below freezing:
MB Windshield Washer Concentrate “S” and
commercially available premixed windshield washer
solvent / antifreeze
1 part “S” to 100 parts solvent
(40 ml “S” to 1 gallon solvent).

151 Hazard warning flasher
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Hazard warning flasher switch
The hazard warning flasher can be activated either
manually via the switch located in the dashboard, or it
is activated automatically at the time an airbag is
deployed.To activate hazard warning flasher, press switch once.
To deactivate, press switch again.
Note:
With the hazard warning flasher activated, the
combination switch in position for either left or right
turn, and the electronic key in starter switch position 1
or 2, only the respective left or right side turn signals
will operate. After turn signal cancellation, the hazard
warning flasher is activated.

152 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Climate control
P83.20-2150-29

153 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

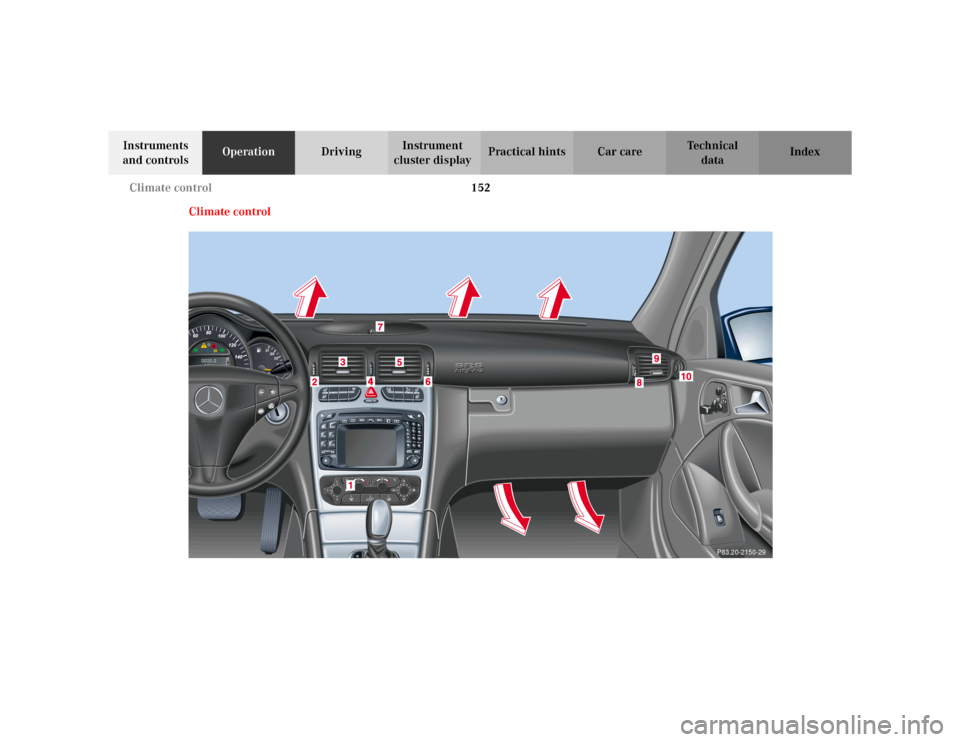

cluster displayPractical hints Car care Index 1Display and controls
2Air volume control for left center air outlet
3Center air outlet, left, adjustable
4Thumbwheel for adding outside air at air outlets for
center, left and right sides, as well as dashboard top
center and rear passenger compartment
5Center air outlet, right, adjustable6Air volume control for right center air outlet
7Air volume control and air outlet on dashboard top
center
8Air volume control for side air outlet
9Side air outlet, adjustable
10Side defroster outlet, fixed

154 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

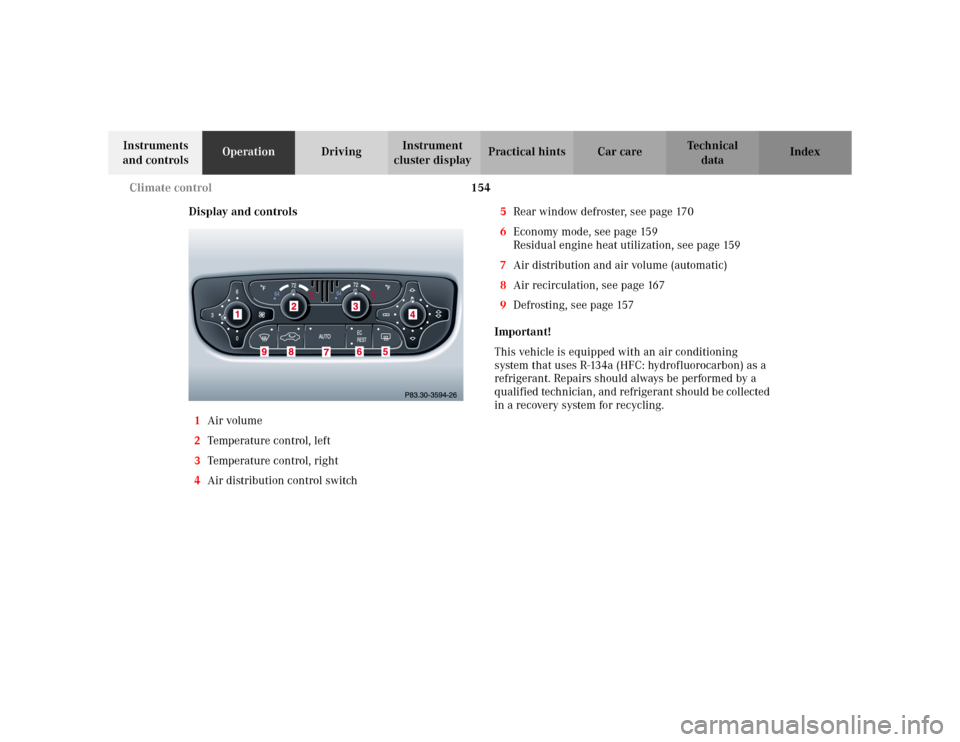

Display and controls
1Air volume
2Temperature control, left
3Temperature control, right
4Air distribution control switch5Rear window defroster, see page 170
6Economy mode, see page 159
Residual engine heat utilization, see page 159
7Air distribution and air volume (automatic)
8Air recirculation, see page 167
9Defrosting, see page 157
Important!
This vehicle is equipped with an air conditioning
system that uses R-134a (HFC: hydrofluorocarbon) as a
refrigerant. Repairs should always be performed by a
qualified technician, and refrigerant should be collected
in a recovery system for recycling.

155 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Climate control
The system is always at operational readiness, except
when manually switched off.
The climate control only operates with the engine
running.
The temperature selector should be left at the desired
temperature setting. The temperature selected is
reached as quickly as possible.
The system will not heat or cool any quicker by setting a
higher or lower temperature.
The desired interior temperature can be selected
separately for the left and right side of the passenger
compartment. Adjust the temperature settings in small
increments.
The climate control removes considerable moisture from
the air during operation in the cooling mode. It is
normal for water to drip on the ground through ducts in
the underbody.
The air conditioning will not engage (no cooling) if the
economy mode S is selected, see page 159. Notes:
Do not obstruct the air flow by placing objects on the air
flow-through exhaust slots below the rear window.
Also keep the air intake grill in front of the windshield
free of snow and debris.
The storage compartment between the front seats can be
ventilated. See page 171 for notes on ventilating the
storage space under the armrest in the center console.
The air conditioner switches itself off for its own
protection if refrigerant is lost. No cooling will then take
place. Economy mode S cannot be switched off. Have
the air conditioner checked by a Mercedes-Benz Center
should this happen.
If the vehicle interior has been heated by direct sunlight
and is very hot, ventilate the interior (open door or
windows for a short period) before driving off.
Dust filter
Nearly all dust particles and pollen are filtered out
before outside air enters the passenger compartment
through the air distribution system.

156 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Basic setting – automatic mode
In the automatic mode the climate control cools or heats
the interior depending on outside temperature and the
selected interior temperature. With the automatic mode
switched off, the air volume and distribution can still be
set manually.
Press U button. Air volume and distribution are
controlled automatically.
We recommend to set the left and right temperature
to 72
°F (22
°C). Please make changes from this setting to
suit your personal requirements.
Heating mode:
To lower headroom temperature, use thumbwheel
(4, page 152).
Air conditioning mode:
Open air outlets at dashboard top center (7, page 152)
for an even air distribution.Special settings (use only for short duration)
Air distribution and air volume, manual
Press U button. The indicator lamp in the button will
go out.
The air distribution for the right and left side operate
together.
Select any of the six air volume speeds and the air
distribution.
Air distribution, manual:
hAir from the center, side, dashboard top center
and rear passenger compartment air outlets.
jAir from the windshield, side defroster and rear
passenger compartment air outlets.
kAir from the center, side, footwell, rear footwell
and rear passenger compartment air outlets.
To return to automatic mode:
Press the U button. The indicator lamp in the button
illuminates.

157 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Defrosting
Press the P button. The indicator lamp in the button
illuminates.
Switch off air recirculation, if selected. Press
buttonO, the indicator lamp in the button will go
out.
Close center air outlets.
Turn wheels (8, page 152) up to open left and right side
air outlets (9, page 152). Adjust side air outlets upward.
Pressing the switch again returns the system to the
previous setting.Windows fogged up on the inside
Switch off the economy mode, if selected. Press
buttonS. The indicator lamp in the button will go
out.
Switch off air recirculation, if selected. Press
buttonO. The indicator lamp in the button will go
out.
Set blower to the maximum blower speed.
Press the P button. The indicator lamp in the button
illuminates.
Increase temperature setting.
Open the side air outlets (9, page 152) and direct them
onto the side windows.
Windshield fogged up on the outside
Switch on the windshield wiper.
Close air outlet at dashboard top center.
Switch to manual mode.
Turn air distribution control switch to positionh
ork.
