21 At a glance
Cockpit
Item
Page
1
Headlamp washer switch*
148
2
Combination switch
48
Turn signals
48
Windshield wipers
49
High beam
102
3
Cruise control lever
194
4
Instrument cluster
22,
105
5
Multifunction steering
wheel
24,
110
6
Horn
7
Lever for voice control
system*, see separate op-
erating instructions
8
Overhead control panel
27
9
Glove box lid release
200
Item
Page
a
Glove box lid
200
b
Center console
25
c
Starter switch
31
d
Steering wheel adjustment
handle, manual
38
e
Hood lock release
236
f
Parking brake pedal
46
g
Power window switches
186
h
Steering wheel adjustment
stalk, electrical*
38
j
Parking brake release
46
k
Door control panel
28
l
Exterior lamp switch
48, 98
m
Exterior mirror adjustment
40
Page 22 of 376
22 At a glanceInstrument cluster
Instrument cluster
Page 23 of 376
23 At a glance
Instrument cluster
Item
Page
1
Reset button for:
Resetting trip odome-
ter
107
Instrument cluster illu-
mination
105
Resetting individual
settings
119
2
Tachometer with:?Engine malfunction
indicator lamp
260
-Antilock Brake Sys-
tem (ABS) malfunc-
tion warning lamp
258
;Brake warning
lamp, except Cana-
da
259
3Brake warning
lamp, Canada only
259
Item
Page
3
Speedometer with:LLeft turn signal indi-
cator lampKRight turn signal in-
dicator lampvElectronic Stability
Program (ESP)
warning lamp
261
AHigh beam head-
lamp indicator
102
EIndicator lamp
without function
1
DTRIndicator lamp
without function
1
1The indicator lamp illuminates briefly when you
turn the SmartKey in the starter switch to
position2
Item
Page
4
Multifunction display
with:Trip odometer
107
Main odometerOutside temperature dis-
play
107
Digital clock
122
Display for program mode
and gear selector lever
position
142
144
5
Fuel gauge with:Fuel reserve warning lamp
262
262
1Supplemental re-
straint system indi-
cator lamp
262
Page 24 of 376
24 At a glanceMultifunction steering wheel
Multifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
109
Operating control sys-
tem
110
2
Selecting the submenu or
setting the volumeçdown/to decreaseæup/to increase
3
Telephone*: Press buttoníto take a callìto end a call
Item
Page
4
Menu systems: Press but-
tonèfor next systemÿfor previous system
5
Moving within a menu:
Press buttonjfor next displaykfor previous display
Page 25 of 376

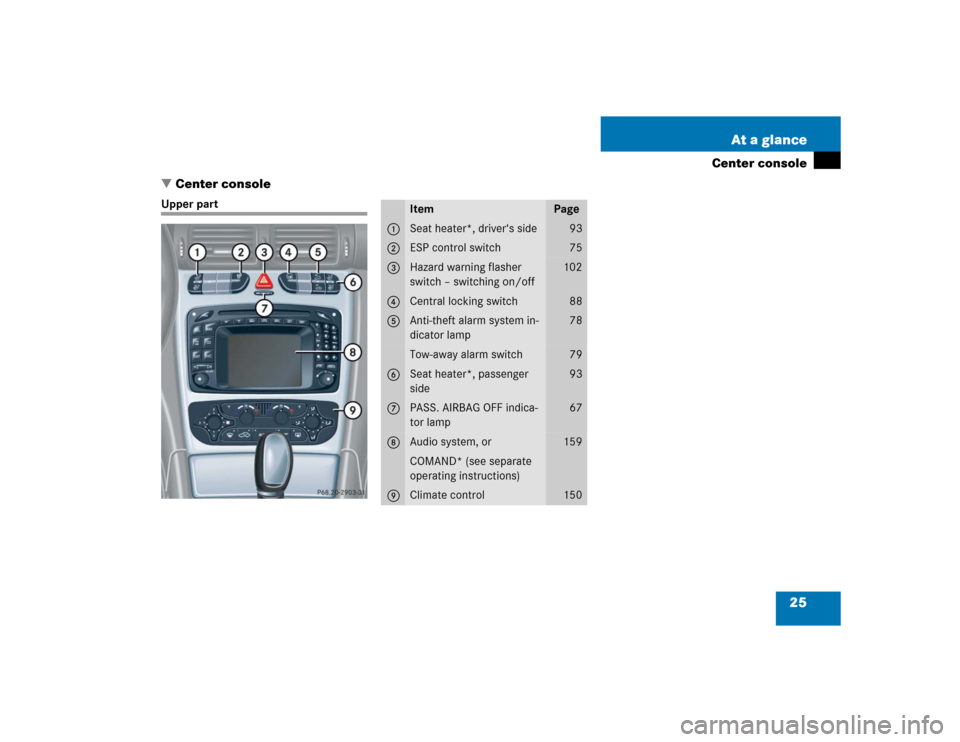

25 At a glance
Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver‘s side
93
2
ESP control switch
75
3
Hazard warning flasher
switch – switching on/off
102
4
Central locking switch
88
5
Anti-theft alarm system in-
dicator lamp
78
Tow-away alarm switch
79
6
Seat heater*, passenger
side
93
7
PASS. AIRBAG OFF indica-
tor lamp
67
8
Audio system, or
159
COMAND* (see separate
operating instructions)
9
Climate control
150
Page 26 of 376
26 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
203
2
Gearshift lever for manual
transmission
Selector lever for
automatic transmission
44
45
3
Storage compartment
201
4
Armrest
202
5
Program mode selector for
automatic transmission
144
Page 27 of 376

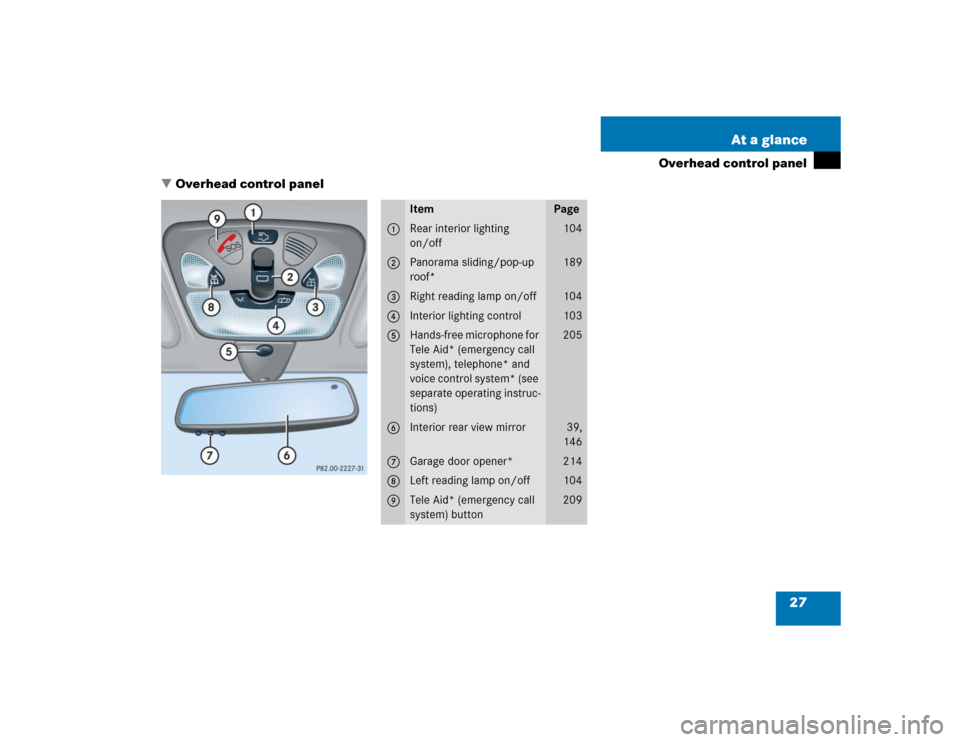

27 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
104
2
Panorama sliding/pop-up
roof*
189
3
Right reading lamp on/off
104
4
Interior lighting control
103
5
Hands-free microphone for
Tele Aid* (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
205
6
Interior rear view mirror
39,
146
7
Garage door opener*
214
8
Left reading lamp on/off
104
9
Tele Aid* (emergency call
system) button
209
Page 28 of 376
28 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
85
2
Memory function (for stor-
ing seat, exterior rear view
mirror and steering wheel
settings)
95
3
Seat adjustment
35
4
Switches for opening/clos-
ing front door windows
186
Page 29 of 376
29 Getting started
Unlocking
Adjusting
Driving
Parking and locking
Page 30 of 376
30 Getting startedUnlocking
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.
Unlocking
Unlocking with the SmartKeySmartKey with remote control 1‹Lock button
2ŒUnlock button
3ÂPanic button* (
page 72)
Press unlock buttonŒ on the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
Get in the vehicle and insert the Smart-
Key in the starter switch.
For more information, see “Locking and
unlocking” (
page 82).
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button*3.
