MERCEDES-BENZ C230 KOMPRESSOR COUPE 2004 CL203 Owner's Manual

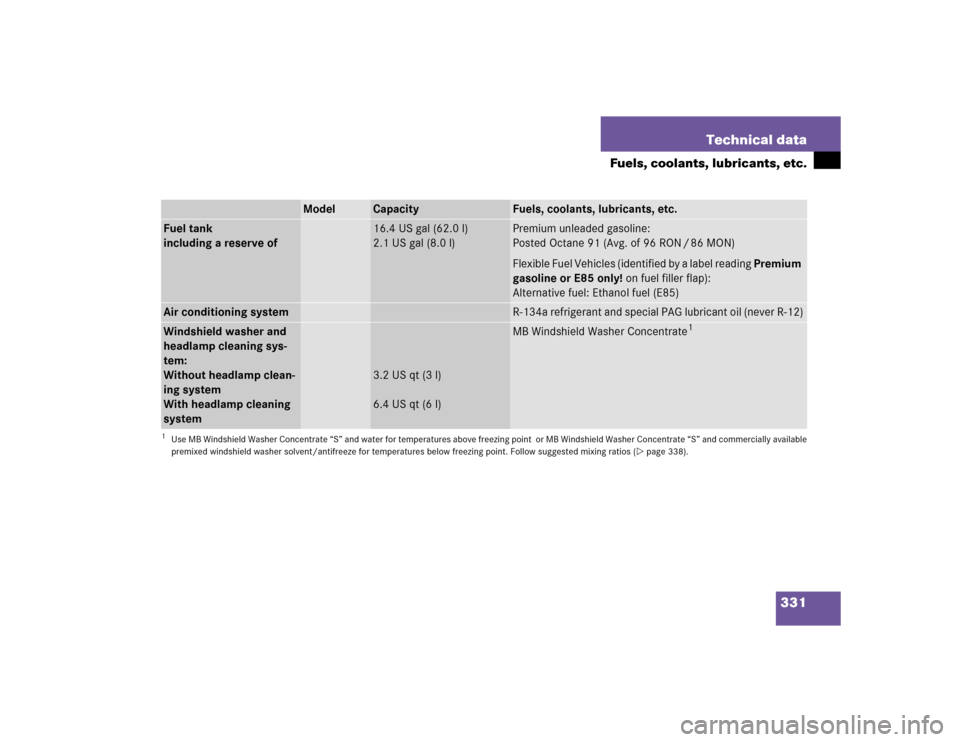

331 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Fuel tank
including a reserve of
16.4 US gal (62.0 l)
2.1 US gal (8.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96 RON / 86 MON)
Flexible Fuel Vehicles (identified by a label reading Premium
gasoline or E85 only! on fuel filler flap):
Alternative fuel: Ethanol fuel (E85)
Air conditioning system
R-134a refrigerant and special PAG lubricant oil (never R-12)
Windshield washer and
headlamp cleaning sys-
tem:
Without headlamp clean-
ing system
With headlamp cleaning
system
3.2 US qt (3 l)
6.4 US qt (6 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 338).

332 Technical dataFuels, coolants, lubricants, etc.Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, use
only engine oils approved by
Mercedes-Benz. Information on approved
products is available in the Factory Ap-
proved Service Products pamphlet, or at
your authorized Mercedes-Benz Center.Please follow FSS recommendations for
scheduled oil changes. Failure to do so
could result in engine damage not covered
by the Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air condition-
ing system.Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
!Always check the oil filler cap
(page 240) for important informa-
tion pertaining to the engine oil need-
ing to meet a specific Mercedes-Benz
specification (e.g. MB 229.5). If such
information is printed on the oil filler
cap, only use an engine oil from the list
of approved engine oils in the Factory
Approved Service Products pamphlet
that meets the specification indicated
on the oil filler cap.
!Using engine oils of other specification
may cause the FSS to incorrectly deter-
mine the next service interval and will
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.

333 Technical data
Fuels, coolants, lubricants, etc.
Premium unleaded gasoline
Fuel requirements
Use only premium unleaded meeting
ASTM standard D 439:

The octane number (posted at the
p um p) m us t be 91 mi n. It i s an a vera ge
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M) / 2). This is also known as the
ANTI-KNOCK INDEX.Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
l i n e m u s t b e u s e d . I f p r e m i u m u n l e a d e d
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.


Do not exceed
2/3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain.
iFlexible Fuel Vehicles (identified by a
label reading Premium gasoline or
E85 only! on fuel filler flap) are de-
signed to operate on premium unlead-
ed gasoline or Ethanol fuel (E85), or any
mixture of these two.
See notes on Flexible Fuel Vehicles
(page 334).

334 Technical dataFuels, coolants, lubricants, etc.Gasoline additives
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz recommends only the
use of quality gasoline containing additives
that prevent the build-up of carbon depos-
its.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to en-
gine performance problems such as:

Warm-up hesitation


Unstable idle


Knocking/pinging


Misfire


Power loss
Do not blend any specific fuel additives
with fuel. This only results in unnecessary
cost and may be harmful to engine opera-
tion.Damage or malfunctions resulting from
poor fuel quality or from blending specific
fuel additives are not covered by the
Mercedes-Benz Limited Warranty.
Flexible Fuel Vehicles
Flexible Fuel Vehicles are identified by a la-
bel reading Premium gasoline or E85
only! on fuel filler flap).
These vehicles are designed to operate on
premium unleaded gasoline or Ethanol fuel
(E85), or on any mixture of these two.
Ethanol fuel (E85) is a mixture of approxi-
mately 85% Ethanol and 15% unleaded gas-
oline.Switching fuels
For best performance and driveability it is
recommended to use either one or the oth-
er fuel. A refueling pattern that alternates
between the two different fuels should be
avoided if possible.
Warning!
G
Ethanol fuel (E85) and its fumes are highly
flammable, poisonous and burn easily. Etha-
nol fuel can cause serious injuries if ignited
or if you come into contact with it or inhale
fumes of it. Avoid inhalation of Ethanol
fumes and skin contact with Ethanol. Extin-
guish all open flames before fueling. Never
smoke or create sparks close to Ethanol.

335 Technical data
Fuels, coolants, lubricants, etc.
When switching fuels, make sure:

Fuel level is below half full.


Fuel level is above reserve (reserve
warning lamp is not lit).


Amount of added fuel is more than
5 gallons (20 liters).


Ignition is off during refill.


Immediately after refueling engine is
started and operated for at least five
minutes.
These precautions and recommendations
are supposed to prevent any difficulties
when starting and operating the engine
which otherwise may be experienced be-
fore the engine has fully adapted to the dif-
ferent fuel.
If in spite of these recommendations the
engine does not perform properly, adding
more gasoline (at least 3 gallons
[12 liters]) to the fuel may improve the en-
gine behavior.Cold weather performance
It is possible that starting times will signif-
icantly increase at temperatures below
32°F (0°C). At low temperatures the use
of a block heater is recommended (see
your authorized Mercedes-Benz Center for
further information). Rough idling may also
be experienced at such temperatures be-
fore the engine is fully warmed up.
Hot weather performance
At ambient temperatures above 95°F
(35°C) start times may increase and be ac-
companied by a rough idle following the
start.Cruising range
E85 fuel contains less energy per gallon
than gasoline. To ensure that engine per-
formance with Ethanol fuel is similar to
that when using gasoline, the engine must
burn more Ethanol fuel. As a result, it is to
be expected that the fuel consumption will
increase when using E85 compared to gas-
oline operation.
Maintenance
Please inform your Mercedes-Benz Center
if you use or have used E85 fuel when your
vehicle is delivered for maintenance or re-
pairs.
!E85 fuel is unsuitable for use when am-
bient temperatures fall below 14°F
(-10°C).
iUse of E85 may reduce your driving
range.

336 Technical dataFuels, coolants, lubricants, etc.Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which pro-
vides:

Corrosion protection


Freeze protection


Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -22°F (-30°C) and corro-
sion protection.
If the antifreeze mixture is effective to
-22°F (-30°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).The coolant solution must be used
year-round to provide the necessary corro-
sion protection and increase boil-over pro-
tection. Refer to Service Booklet for
replacement interval.
Coolant system design and coolant used
stipulate the replacement interval. The
replacement interval published in the Ser-
vice Booklet is only applicable if MB 325.0
anticorrosion/antifreeze solution or other
Mercedes-Benz approved products of
equal specification (see Factory Approved
Service Products pamphlet) are used to re-
new the coolant concentration or bring it
back up to the proper level.
To provide important corrosion protection,
the solution must be at least 45% anticor-
rosion/antifreeze (equivalent to freeze
protection to approx. - 22°F [-30°C]).If you use a solution that is more than 55%
anticorrosion/antifreeze (freeze protec-
tion to approx. - 49°F [-45°C]), the engine
temperature will increase due to the lower
heat transfer capability of the solution.
Therefore, do not use more than this
amount of anticorrosion/antifreeze.
If the coolant level is low, water and
MB 325.0 anticorrosion/antifreeze should
be used to bring it up to the proper level
(have cooling system checked for signs of
leakage). Please make sure the mixture is
in accordance with label instructions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality, con-
sult your authorized Mercedes-Benz
Center.

337 Technical data
Fuels, coolants, lubricants, etc.
Anticorrosion/antifreeze
Your vehicle contains a number of alumi-
num parts. The use of aluminum compo-
nents in motor vehicle engines
necessitates that anticorrosion/antifreeze
coolant used in such engines be specifical-
ly formulated to protect the aluminum parts. (Failure to use such anticorro-
sion/antifreeze coolant will result in a sig-
nificantly shortened service life.)
Therefore, the following product is strongly
recommended for use in your vehicle:
Mercedes-Benz 325.0 Anticorrosion/Anti-
freeze agent.Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to your authorized Mercedes-Benz
Center for service.
Anticorrosion/antifreeze quantityModel
Approx. freeze protection–35°F (–37°C)
–49°F (–45°C)
C230Kompressor
3.0 US qt (2.8 l)
3.3 US qt (3.1 l)
C320
3.4 US qt (3.2 l)
3.8 US qt (3.6 l)

338 Technical dataFuels, coolants, lubricants, etc.Windshield washer system and headlamp cleaning system
Both the windshield and headlamp washer
systems are supplied from the windshield
washer fluid reservoir.
The washer fluid reservoir has a capacity of
approx.

6.4 US qt (6.0 l) in vehicles with head-
lamp cleaning system*


3.2 US qt (3.0 l) in vehicles without
headlamp cleaning system

Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer sol-
vent/antifreeze, depending on ambient
temperatures).Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing point use
MB Windshield Washer Concentrate “S”
and water:


1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 liters) water]
For temperatures below freezing point use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent/antifreeze:


1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 liters) solvent].
Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You can be seriously burned.

339 Technical data
Consumer information
Consumer information
The following text is published as required
of all manufacturers of passenger cars un-
der Title 49, Code of U.S. Federal Regula-
tions, Part 575 pursuant to the “National
Traffic and Motor Vehicle Safety Act of
1966”.Uniform tire quality grading
Quality grades can be found, where appli-
cable, on the tire sidewall between tread
shoulder and maximum section width. For
example:
All passenger car tires must conform to
federal safety requirements in addition to
these grades.Tread wear
The tread wear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1½) times as well on the gov-
ernment course as a tire graded 100. The
relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences in
road characteristics and climate.Traction
The traction grades, from highest to lowest
are AA, A, B, and C. Those grades repre-
sent the tire’s ability to stop on wet pave-
ment as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.Tread wear
Traction
Temperature
200
AA
A
Warning!
G
The traction grade assigned to this tire is
based on straightahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.

340 Technical dataConsumer informationTemperature
The temperature grades are A (the high-
est), B, and C, representing the tire’s resis-
tance to the generation of heat and its
ability to dissipate heat when tested under
controlled conditions on a specified indoor
laboratory test wheel. Sustained high tem-
perature can cause the material of the tire
to degenerate and reduce tire life, and ex-
cessive temperature can lead to sudden
tire failure. Grade C corresponds to a level
of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning!
G
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underin-
flation, or excessive loading, either sepa-
rately or in combination, can cause
excessive heat build-up and possible tire
failure.
