anti-theft alarm system MERCEDES-BENZ C230 KOMPRESSOR SPORT 2004 W203 Owner's Manual

ContentsSafety and Security........................... 53
Occupant safety................................... 54
Airbags ........................................... 55
Seat belts ....................................... 60
Children in the vehicle .................... 63
Blocking of rear door window
operation ........................................ 70
Panic alarm* ........................................ 71
Activating ....................................... 71
Deactivating ................................... 71
Driving safety systems ......................... 72
ABS ................................................ 72
BAS ................................................ 73
ESP ................................................. 74
Four wheel electronic traction
system (4MATIC) with the ESP ....... 77
Anti-theft systems................................ 78
Immobilizer..................................... 78
Anti-theft alarm system* ................ 78
Tow-away alarm* ........................... 79
Controls in detail............................... 81
Locking and unlocking ......................... 82
SmartKey ....................................... 82
Opening the doors from
the inside ....................................... 85
Opening the trunk .......................... 86
Closing the trunk............................ 87
Trunk lid emergency release .......... 88
Separately locking the trunk .......... 89
Separately unlocking the trunk ...... 90
Automatic central locking .............. 90
Locking and unlocking from
the inside ....................................... 91
Seats ................................................... 92
Easy-entry/exit feature* ................ 92
Removing and installing front seat
head restraints ............................... 93
Rear seat head restraints ............... 94
Multicontour seat* ......................... 97
Heated seats* ................................ 98
Memory function* ............................... 99
Storing positions into memory ..... 100
Recalling positions from memory . 100
Storing exterior rear view mirror
parking position ........................... 101Lighting ............................................. 102
Exterior lamp switch .................... 102
Combination switch ..................... 105
Hazard warning flasher ................ 106
Interior lighting ............................ 107
Door entry lamps ......................... 108
Trunk lamp ................................... 108
Instrument cluster ............................. 109
Instrument cluster illumination .... 109
Coolant temperature display........ 110
Trip odometer .............................. 111
Tachometer .................................. 111
Outside temperature indicator ..... 111
Control system .................................. 113
Multifunction display.................... 113
Multifunction steering wheel........ 114
Menus .......................................... 116
Standard display menu ................ 118
AUDIO menu ................................ 118
NAVI* menu ................................. 121
Malfunction memory menu .......... 122
Settings menu .............................. 123
Trip computer menu..................... 136
TEL menu* ................................... 138

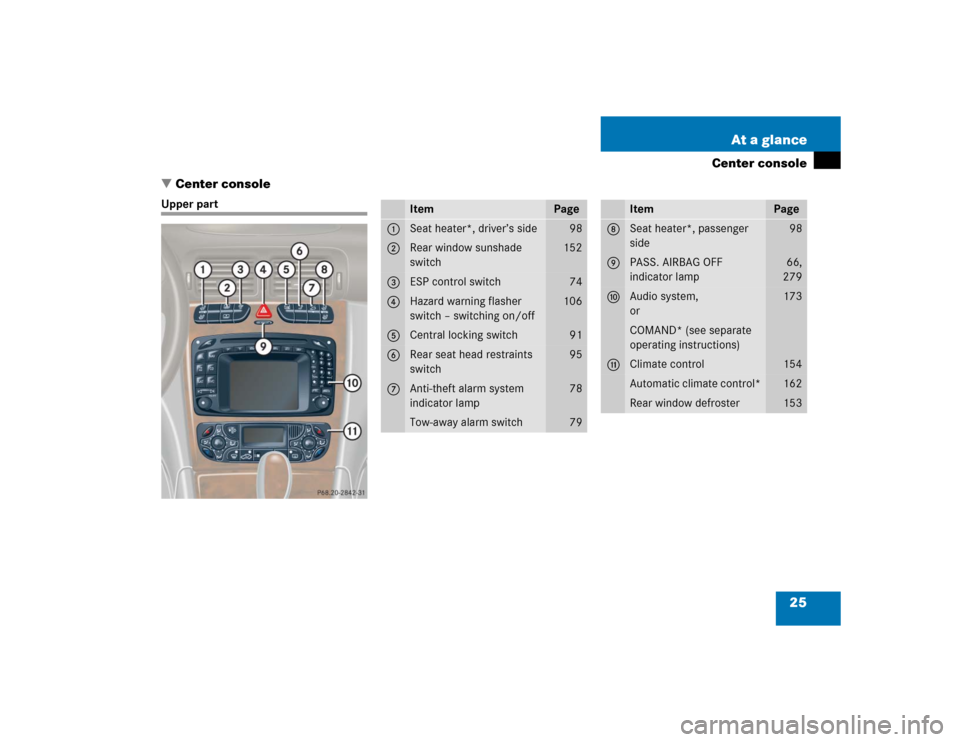

25 At a glance
Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver’s side
98
2
Rear window sunshade
switch
152
3
ESP control switch
74
4
Hazard warning flasher
switch – switching on/off
106
5
Central locking switch
91
6
Rear seat head restraints
switch
95
7
Anti-theft alarm system
indicator lamp
78
Tow-away alarm switch
79
Item
Page
8
Seat heater*, passenger
side
98
9
PASS. AIRBAG OFF
indicator lamp
66,
279
a
Audio system,
or
173
COMAND* (see separate
operating instructions)
b
Climate control
154
Automatic climate control*
162
Rear window defroster
153

30 Getting startedUnlocking
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.
Unlocking
Unlocking with the SmartKeySmartKey with remote control 1‹Lock button
2ŠOpening button for the trunk lid
3ŒUnlock button
4ÂPanic button* (
page 71)

Press unlock buttonΠon the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.

Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 82).
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button*4.

53 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems

71 Safety and Security
Panic alarm*
Panic alarm*
An audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.
1Âbutton
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or

Insert SmartKey in starter switch.
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button1.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

78 Safety and SecurityAnti-theft systems
Anti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

Removing the SmartKey from the
starter switch activates the
immobilizer.
Deactivating


Inserting the SmartKey in the starter
switch deactivates the immobilizer.
Anti-theft alarm system*
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk lid


the hood
The alarm will stay on, even if the
activating element (a door, for example) is
immediately closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle


opening the vehicle with the
mechanical keyArming the alarm system
The alarm system is armed after locking
the vehicle with the SmartKey. The turn
signal lamps flash three times to indicate
that the alarm system is activated. A red
indicator lamp in the switch for the
tow-away alarm (
page 79) begins to
flash after approx. ten seconds after
arming the alarm system.
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
iIf the alarm stays on for more than
20 seconds, an emergency call is
initiated automatically by the Tele Aid
system* (
page 223) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.

79 Safety and Security
Anti-theft systems
Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the SmartKey. The
turn signal lamps flash once to indicate
that the alarm system is deactivated.
Canceling the alarm
To cancel the alarm:
Insert the SmartKey in the starter
switch.
or

Press theŒ or‹ button on the
SmartKey.
Tow-away alarm*
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iIf the turn signal lamps do not flash
three times, one of the following
elements may not be properly closed:

a door


the trunk lid
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
no door or the trunk lid was opened.
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
20 seconds, an emergency call is
initiated automatically by the Tele Aid
system* (
page 223) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.

80 Safety and SecurityAnti-theft systemsArming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms
automatically.
Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.The switch is located on the center
console.
1Tow-away alarm off switch
2Indicator lamp

Switch off the ignition and remove the
SmartKey.

Press upper switch position1.
Indicator lamp2 in switch comes on
briefly.

Exit and lock your vehicle with the
SmartKey.
The tow-away alarm remains disarmed
until you lock your vehicle again.
Canceling the alarm
To cancel the alarm:

Insert the SmartKey in the starter
switch.
or

Press theŒ or‹ button on the
SmartKey.
iYou cannot disarm the tow-away alarm
while the ignition is switched on.

82 Controls in detailLocking and unlocking
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key. The locking
tabs for the mechanical key portion of the
two SmartKeys are a different color to help
distinguish each SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with remote control1‹ Lock button
2Š Opening button for the trunk lid
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button* (
page 71).
iYou can also open and close the power
windows (
page 202) and
sliding/pop-up roof* (
page 204)
from outside using the SmartKey.
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button*6.

86 Controls in detailLocking and unlocking
Opening the trunk
Opening the trunk from the outside
A minimum height clearance of 5.71 ft
(1.74 m) is required to open the trunk lid.
The handle is located above the rear
license plate recess.
1Handle
Pull on handle1.
The trunk opens.The trunk can also be opened using the
SmartKey, see “Unlocking and opening the
trunk lid” (
page 84) or from its inside in
an emergency, see “Trunk lid emergency
release” (
page 88).
iIf the vehicle has previously been
locked from the outside with the
SmartKey, opening a door from the
inside will trigger the anti-theft alarm
system*.
To cancel the alarm, do one of the
following:

Press buttonŒ or‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
!The trunk lid swings open upwards
automatically. Always make sure there
is sufficient overhead clearance.iIf the trunk lid does not open, it is still
locked separately (if applicable)
(page 89).
The vehicle must be unlocked.
