Page 7 of 400
Contents
Practical hints................................ 273
What to do if … .................................. 274
Lamps in instrument cluster ........ 274
Lamp in center console................ 279
Messages in the display ............... 280
Where will I find ...? ........................... 300
First aid kit ................................... 300
Vehicle tool kit ............................. 300
Minispare wheel ........................... 302
Unlocking/locking in an emergency .. 305
Unlocking the vehicle ................... 305
Locking the vehicle ...................... 306
Changing batteries in
the SmartKey ............................... 307
Fuel filler flap ............................... 308
Manually unlocking the
transmission gear selector lever .. 308
Opening/closing in an emergency..... 309
Sliding/pop-up roof* ................... 309Replacing bulbs .................................. 310
Bulbs ............................................. 310
Replacing bulbs for front lamps .... 312
Side marker lamp bulb .................. 314
Replacing bulbs for rear lamps ..... 315
Replacing wiper blades....................... 316
Removing wiper blades ................. 316
Installing wiper blades .................. 316
Flat tire ............................................... 317
Preparing the vehicle .................... 317
Mounting the Minispare wheel...... 317
Battery................................................ 323
Disconnecting the battery............. 324
Removing the battery.................... 324
Charging and reinstalling
the battery .................................... 324
Reconnecting the battery.............. 325Jump starting...................................... 326
Towing the vehicle.............................. 328
Installing towing eye bolt .............. 331
Fuses.................................................. 332
Fuse box in
passenger compartment ............... 332
Fuse box in engine compartment . 333
Auxiliary fuse box in trunk ............ 334
Page 251 of 400
251 Operation
At the gas station
Check regularly and before a long trip
1Coolant level
For more information on coolant, see
“Coolant level” (
page 257).
2Brake fluid (fuse box cover removed)
Removing fuse box cover
(
page 333).
3Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield
washer system and headlamp cleaning
system*” (
page 259).Engine oil level
For more information on engine oil level,
see “Engine oil” (
page 253).
Opening hood (
page 252).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (page 310).
Exterior lamp switch (page 102).
Tire inflation pressure
More information on tire inflation pressure
(
page 261).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see “Practical
hints” (
page 275).
Page 266 of 400
266 OperationMaintenanceThe Mercedes-Benz Center will reset the
service indicator following a completed
service.Calling up the service indicator
Switch on ignition.
The standard display of the control
system appears (
page 113).
Press buttonk orj on the mul-
tifunction steering wheel until the FSS
indicator appears in the multifunction
display.
Resetting the service indicator
In the event that the service on your
vehicle is not carried out by an authorized
Mercedes-Benz Center, you can reset the
service indicator yourself.
Switch on ignition.
The standard display of the control
system appears (
page 113).
Press buttonk orj on the mul-
tifunction steering wheel until the FSS
indicator appears in the multifunction
display.
Press reset button for about three
seconds.
This message appears in the multifunc-
tion display:SERVICE INTERVAL?
RESET WITH R BUTTON FOR 3 SEC.
To confirm, press reset button until you
hear a signal.
The service indicator now displays the
reset interval.
iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the service indica-
tor. To arrive at the true service
deadline, you will need to subtract
these days from the days shown in the
service indicator.
Do not confuse the service indicator
with the engine oil level indicator:.
iIf the service indicator was
inadvertently reset, have a
Mercedes-Benz Center correct it.
Only reset if the proper service has
been performed. Resetting the system
without performing proper service as
called for by the FSS will cause the FSS
to incorrectly determine the next
service interval which will result in
engine damage not covered by the
Mercedes-Benz Limited Warranty.
Page 269 of 400
269 Operation
Vehicle care
Engine cleaning
Prior to cleaning the engine compartment,
make sure to protect electrical compo-
nents and connectors from the intrusion of
water and cleaning agents.
Corrosion protection, such as MB Anticor-
rosion Wax, should be applied to the
engine compartment after every engine
cleaning. Before applying, all control
linkage bushings and joints should be
lubricated. The poly-V-belt and all pulleys
should be protected from any wax.Vehicle washing
Do not use hot water or wash your vehicle
in direct sunlight. Only use a mild car wash
detergent, such as Mercedes-Benz
approved Car Shampoo.
Thoroughly spray the vehicle with a dif-
fused jet of water. Direct only a very weak
spray towards the ventilation intake. Use
plenty of water and rinse the sponge and
chamois frequently.
Rinse with clear water and thoroughly dry
with a chamois. Do not allow cleaning
agents to dry on the finish.
Due to the width of the vehicle, fold in
outside mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the underbody, do not
forget to clean the inner sides of the
wheels.Ornamental moldings
For regular cleaning and care of very dirty
chrome-plated parts, use a chrome
cleaner.
Headlamps, tail lamps, side markers,
turn signal lenses
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo,
with plenty of water.
To prevent scratches, never apply strong
force and only use a soft, non-scratchy
cloth when cleaning the lenses. Do not
attempt to wipe dirty lenses with a dry
cloth or sponge.

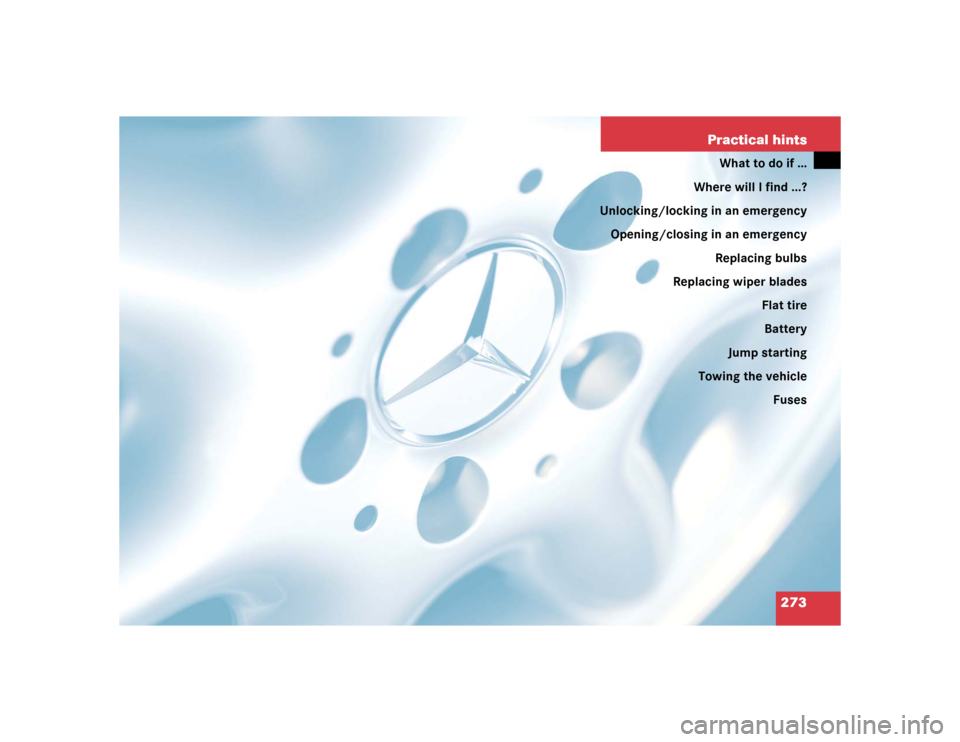

Page 273 of 400
273 Practical hints
What to do if …
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses
Page 300 of 400

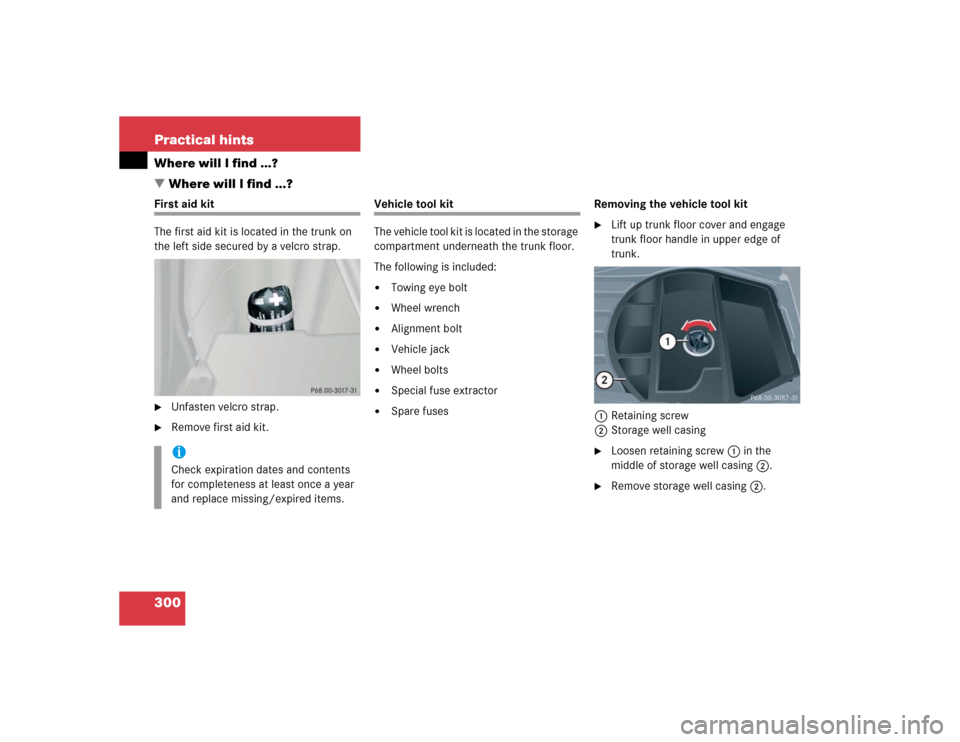

300 Practical hintsWhere will I find ...?
Where will I find ...?First aid kit
The first aid kit is located in the trunk on
the left side secured by a velcro strap.
Unfasten velcro strap.
Remove first aid kit.
Vehicle tool kit
The vehicle tool kit is located in the storage
compartment underneath the trunk floor.
The following is included:
Towing eye bolt
Wheel wrench
Alignment bolt
Vehicle jack
Wheel bolts
Special fuse extractor
Spare fusesRemoving the vehicle tool kit
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1Retaining screw
2Storage well casing
Loosen retaining screw1 in the
middle of storage well casing2.
Remove storage well casing2.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.
Page 332 of 400
332 Practical hintsFuses
Fuses

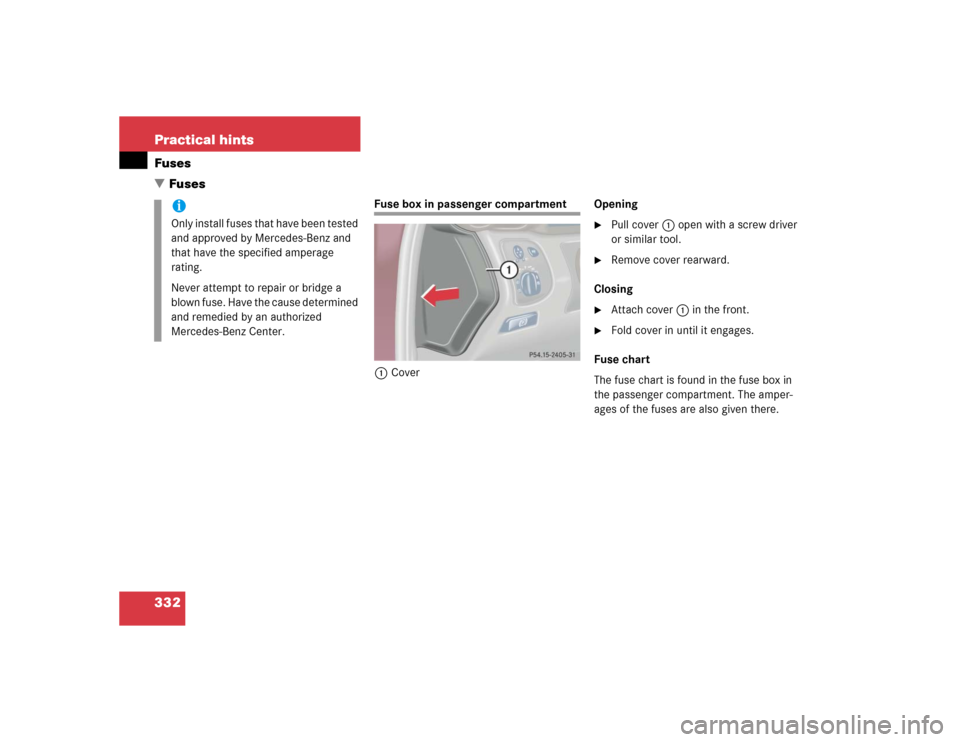

Fuse box in passenger compartment
1CoverOpening
Pull cover1 open with a screw driver
or similar tool.
Remove cover rearward.
Closing
Attach cover1 in the front.
Fold cover in until it engages.
Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage
rating.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.
Page 333 of 400
333 Practical hintsFuses

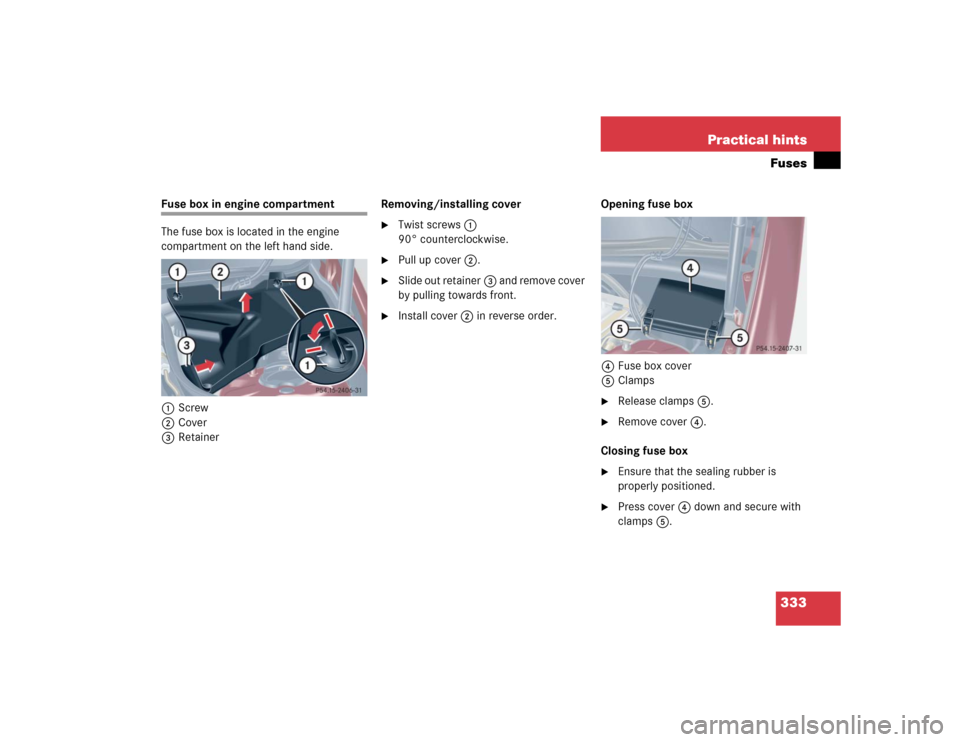

Fuse box in engine compartment
The fuse box is located in the engine
compartment on the left hand side.
1Screw
2Cover
3RetainerRemoving/installing cover
Twist screws1
90° counterclockwise.
Pull up cover2.
Slide out retainer3 and remove cover
by pulling towards front.
Install cover2 in reverse order.Opening fuse box
4Fuse box cover
5Clamps
Release clamps5.
Remove cover4.
Closing fuse box
Ensure that the sealing rubber is
properly positioned.
Press cover4 down and secure with
clamps5.
Page 334 of 400

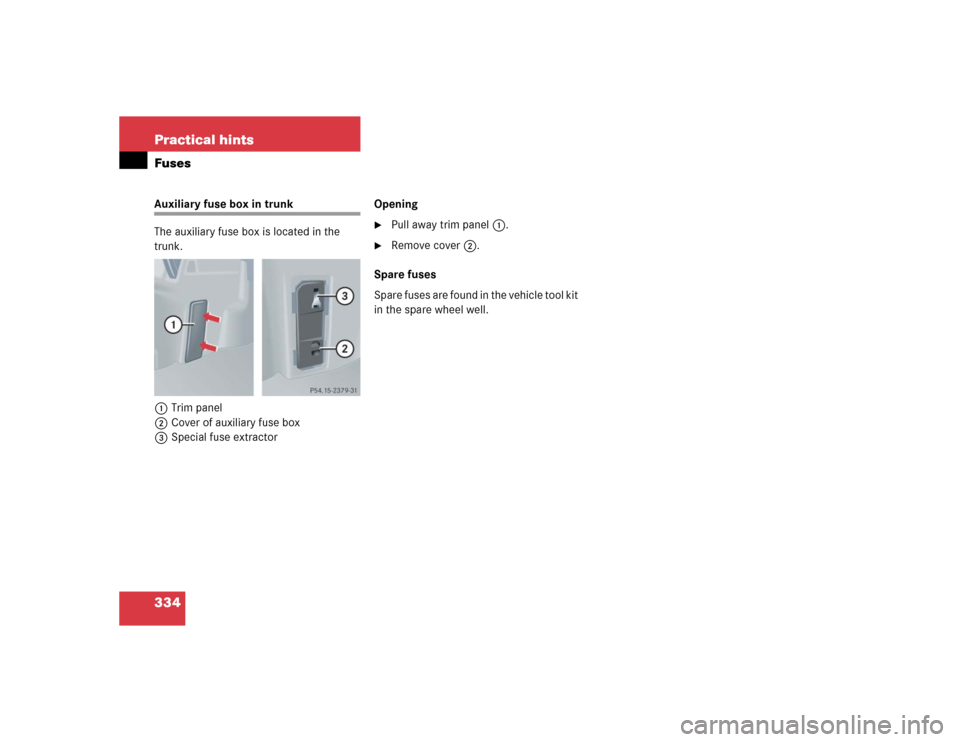

334 Practical hintsFusesAuxiliary fuse box in trunk
The auxiliary fuse box is located in the
trunk.
1Trim panel
2Cover of auxiliary fuse box
3Special fuse extractorOpening
Pull away trim panel1.
Remove cover2.
Spare fuses
Spare fuses are found in the vehicle tool kit
in the spare wheel well.
Page 370 of 400
370 IndexAutomatic climate control* 162
Activating 163
Adjusting air distribution 166
Adjusting air volume 166
Air recirculation mode 167
Deactivating 163
Defrosting 167
Rear window defroster 153
Residual heat utilization 171
Residual ventilation 171
Setting the temperature 165
Automatic headlamp mode 103
Automatic lighting control
Activating 107
Deactivating 107
Automatic locking when driving 90
Automatic transmission fluid see ATF
Automatic transmission* 142
Accelerator position 147
Comfort program mode 146
Emergency operation
(Limp Home Mode) 147
Fluid level 256Gear ranges 144
Gear selector lever 44
Gear selector lever position 142, 145
Gear shifting malfunctions 147
Kickdown 147
Manual shifting 143
One-touch gearshifting 143
Program mode selector switch 146
Starting with 44
Transmission fluid 256
Auxiliary fuse box 334
B
BabySmart
TM
Airbag deactivation system 66, 361
Compatible child seats 66, 361
Self-test 66
Backrest
Folding forward 213
Folding rearward 213
Backrest contour
Adjusting 97Backrest side bolsters
Adjusting 97
Backrest tilt
Manual seat 33
Power seat* 35
Backup lamps 311, 315
Bulbs 310
BAS 73, 361
Messages in display 281
Batteries, SmartKey
Changing 307
Check lamp 83
Checking 84
Battery discharged
Jump starting 326
Battery, vehicle 258, 323
Charging 324
Disconnecting 324
Messages in display 285
Reconnecting 325
Reinstalling 324
Removing 324
