MERCEDES-BENZ C240 2005 W203 Service Manual

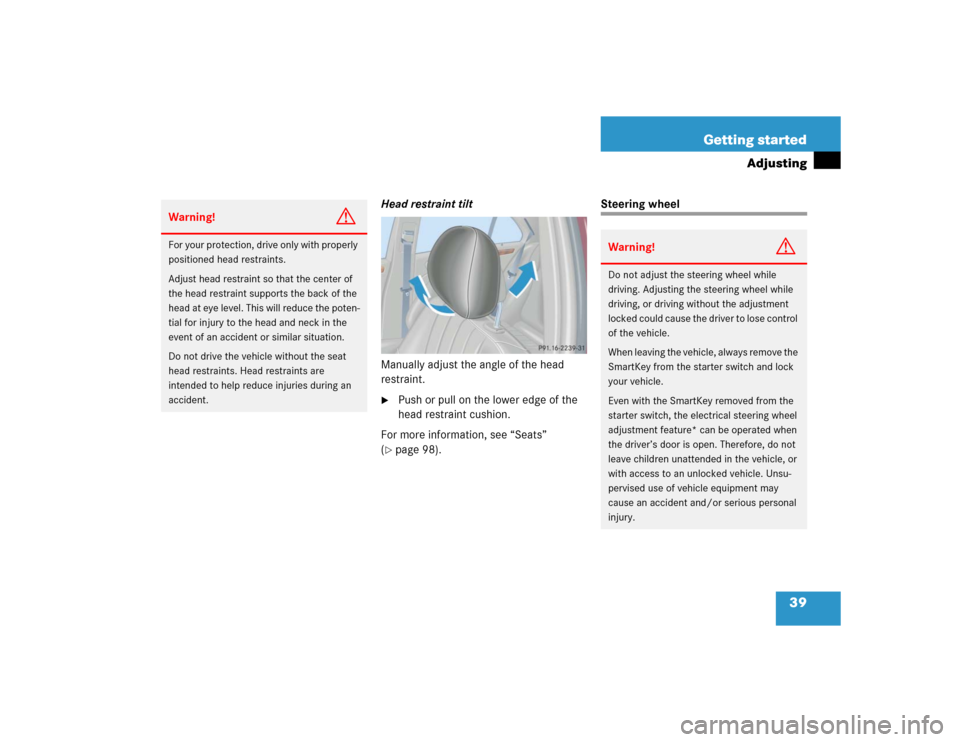

39 Getting started
Adjusting
Head restraint tilt
Manually adjust the angle of the head
restraint.
Push or pull on the lower edge of the
head restraint cushion.
For more information, see “Seats”
(
page 98).
Steering wheel
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are
intended to help reduce injuries during an
accident.
Warning!
G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving, or driving without the adjustment
locked could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
your vehicle.
Even with the SmartKey removed from the
starter switch, the electrical steering wheel
adjustment feature* can be operated when
the driver’s door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

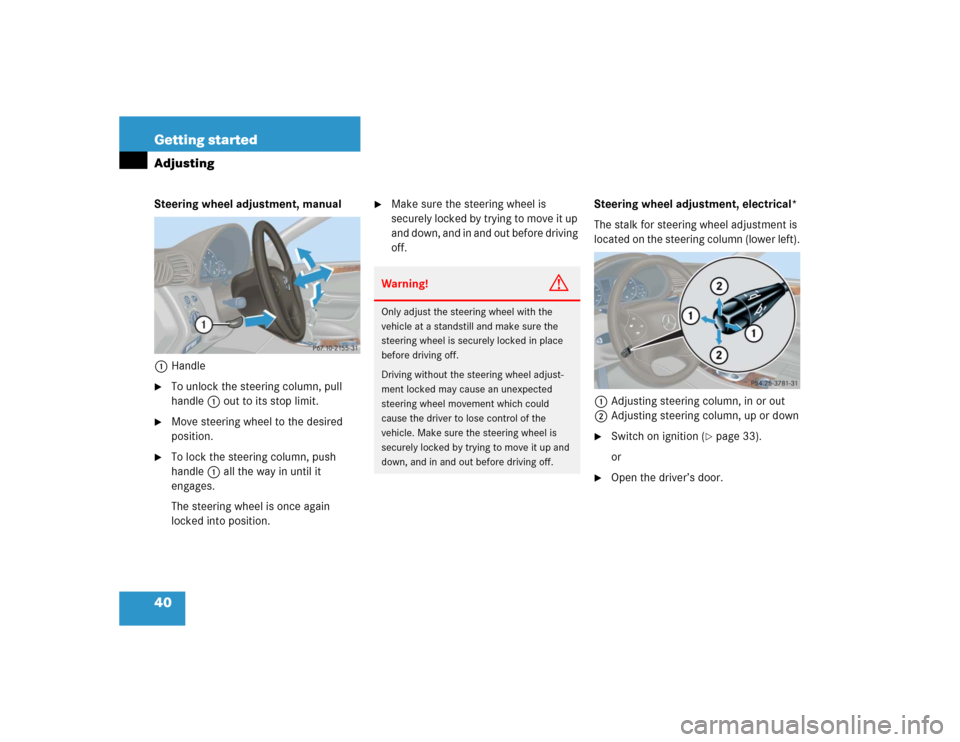

40 Getting startedAdjustingSteering wheel adjustment, manual
1Handle
To unlock the steering column, pull
handle1 out to its stop limit.

Move steering wheel to the desired
position.

To lock the steering column, push
handle1 all the way in until it
engages.
The steering wheel is once again
locked into position.

Make sure the steering wheel is
securely locked by trying to move it up
and down, and in and out before driving
off.Steering wheel adjustment, electrical*
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down

Switch on ignition (
page 33).
or

Open the driver’s door.
Warning!
G
Only adjust the steering wheel with the
vehicle at a standstill and make sure the
steering wheel is securely locked in place
before driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the
vehicle. Make sure the steering wheel is
securely locked by trying to move it up and
down, and in and out before driving off.

41 Getting started
Adjusting
Adjusting steering column in or out
Move stalk forward or back in the
direction of arrow1 until a comfort-
able steering wheel position is reached
with your arms slightly bent at the
elbow.
Adjusting steering column up or down

Move stalk up or down in the direction
of arrow2.
Make sure your legs can move freely
and that all the displays (incl. malfunc-
tion and indicator lamps) on the instru-
ment cluster are clearly visible.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 168).Exterior rear view mirrors
iThe memory function* (
page 106)
lets you store the setting for the
steering wheel together with the
settings for the seat position and
exterior rear view mirrors.
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes. !Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state and by applying plenty of
water.

42 Getting startedAdjustingThe buttons are located above the exterior
lamp switch.
1Adjustment button
2Passenger-side exterior rear view
mirror button
3Driver’s side exterior rear view mirror
button
Switch on ignition (
page 33).

Press button3 for the driver’s side
exterior rear view mirror or button2
for passenger-side exterior rear view
mirror.

Push adjustment button1 up, down,
left, or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 168).
!If an exterior rear view mirror was
forcibly pushed forward (hit from the
rear) or forcibly pushed rearward (hit
from the front), reposition it by
applying firm pressure until it snaps
into place. The mirror housing is now
properly positioned and you can adjust
the mirror normally.
iThe memory function* (
page 106)
lets you store the setting for the
exterior rear view mirrors together with
the settings for the steering wheel and
seat position.
iAt low ambient temperatures, the
exterior rear view mirrors will be
heated automatically.

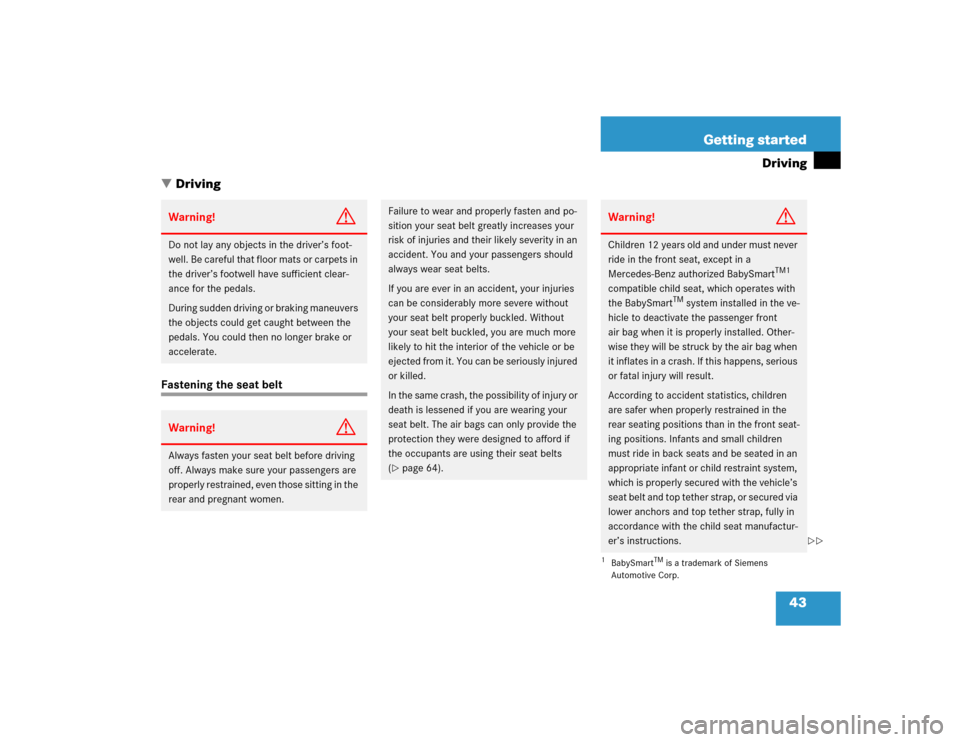

43 Getting started
Driving
Driving
Fastening the seat beltWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 64).
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM1

compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed. Other-
wise they will be struck by the air bag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.

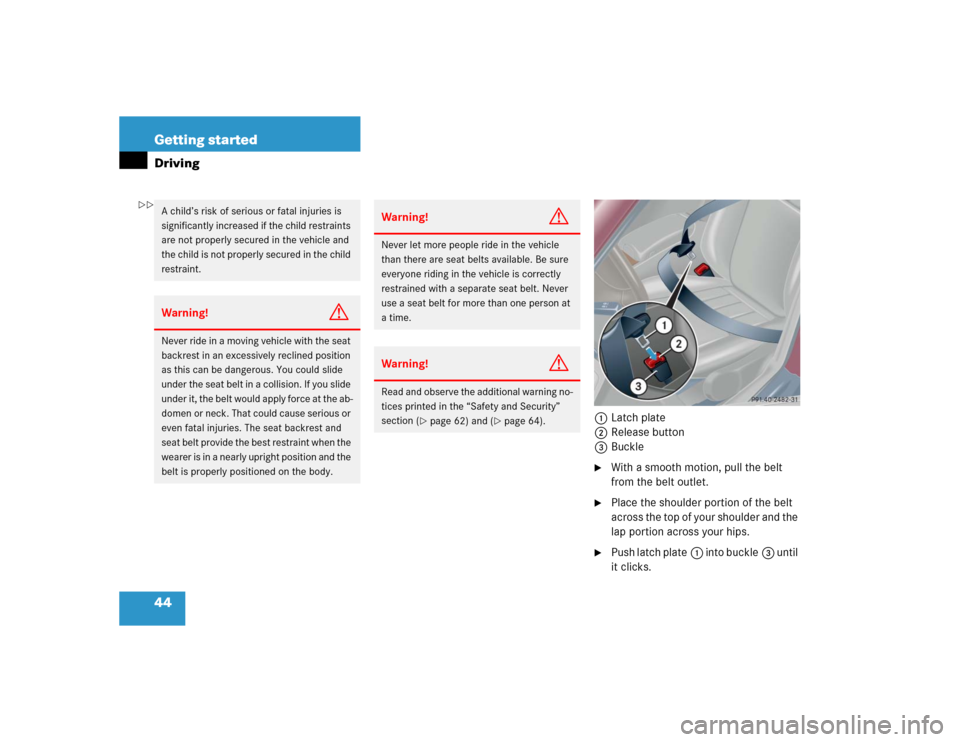

44 Getting startedDriving
1Latch plate
2Release button
3Buckle
With a smooth motion, pull the belt
from the belt outlet.

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate1 into buckle3 until
it clicks.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 62) and (
page 64).

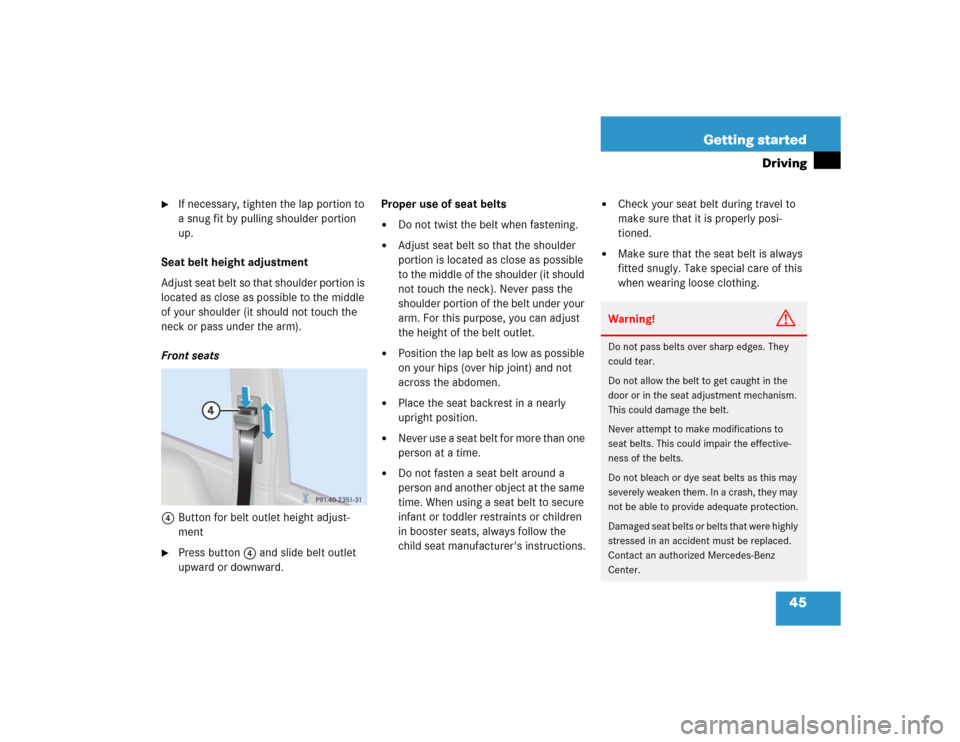

45 Getting started
Driving

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Seat belt height adjustment
Adjust seat belt so that shoulder portion is
located as close as possible to the middle
of your shoulder (it should not touch the
neck or pass under the arm).
Front seats
4Button for belt outlet height adjust-
ment

Press button4 and slide belt outlet
upward or downward.Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly
upright position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer's instructions.


Check your seat belt during travel to
make sure that it is properly posi-
tioned.


Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.

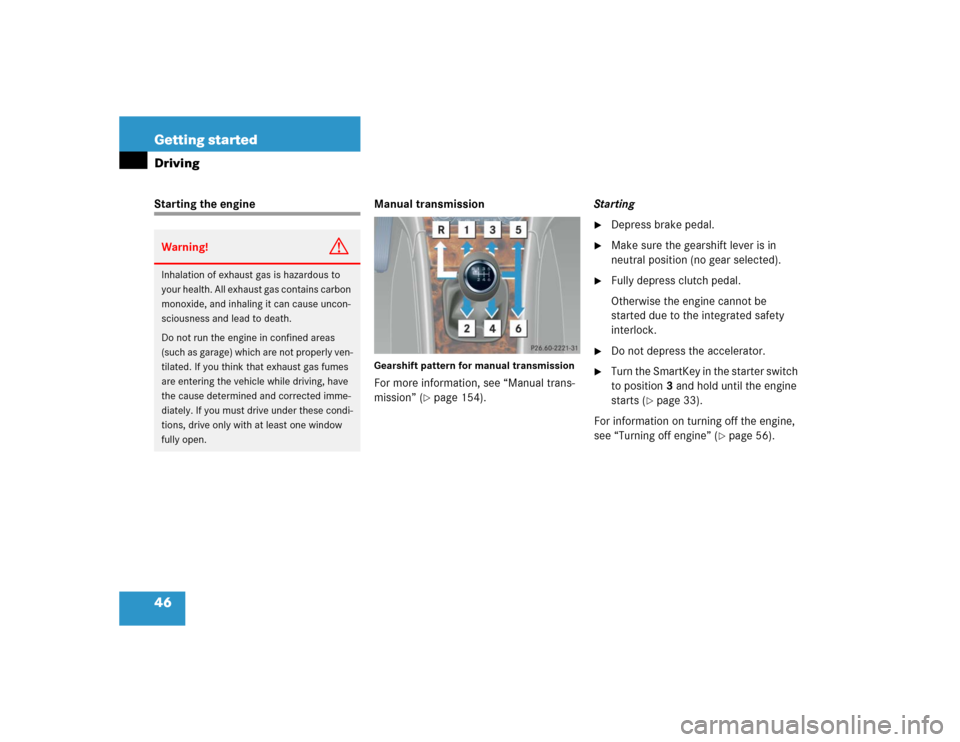

46 Getting startedDrivingStarting the engine Manual transmission
Gearshift pattern for manual transmissionFor more information, see “Manual trans-
mission” (
page 154).Starting

Depress brake pedal.

Make sure the gearshift lever is in
neutral position (no gear selected).

Fully depress clutch pedal.
Otherwise the engine cannot be
started due to the integrated safety
interlock.

Do not depress the accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 33).
For information on turning off the engine,
see “Turning off engine” (
page 56).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.

47 Getting started
Driving
Automatic transmission*Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see “Automatic
transmission*” (
page 156).Starting

Make sure the gear selector lever is set
toP.

Do not depress the accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 33).

Depress the brake pedal.
The gear selector lever lock is released.
For information on turning off the engine,
see “Turning off engine” (
page 56).Starting difficulties
If the engine does not start as described,
carry out the following steps:

Turn the SmartKey in the starter switch
to position0 and repeat starting
procedure (
page 46).
Remember that extended starting
attempts can drain the battery.

Get a jump start (
page 363).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.
iYou can also use the “touch-start”
function. Turn the SmartKey in the
starter switch to position3 and release
it again immediately. The engine then
starts automatically.

48 Getting startedDrivingParking brake
1Release handle
2Parking brake

Release parking brake by pulling on
handle1.
The warning lamp; (USA only)
or3 (Canada only) in the
instrument cluster goes out.
Driving

Depress the brake pedal.

Move gear selector lever to positionD
orR (manual transmission: first or
reverse gear).

Release the brake pedal.

Carefully depress the accelerator.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Children could release the
parking brake, which could result in an acci-
dent and/or serious injury.
iVehicles with automatic transmission:
Wait for the gear selection process to
complete before setting the vehicle in
motion.
iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic
locking using the control system
(page 145).
!Simultaneously depressing the
accelerator pedal and applying the
brake reduces engine performance and
causes premature brake and drivetrain
wear.!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.
