49 Getting started
Driving
After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.
For more information on driving, see “Driv-
ing instructions” (
page 265).
Switching on headlamps
For more information on headlamps, see
“Lighting” (
page 109).
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch1Off
2Low beam headlamps on
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!Vehicles with automatic transmission:
Place the gear selector lever in
positionR only when the vehicle is
stopped in order to avoid damaging the
transmission.
!Do not run cold engine at high engine
speeds. Running a cold engine at high
engine speeds may shorten the service
life of the engine.Warning!
G
Vehicles with automatic transmission:
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.

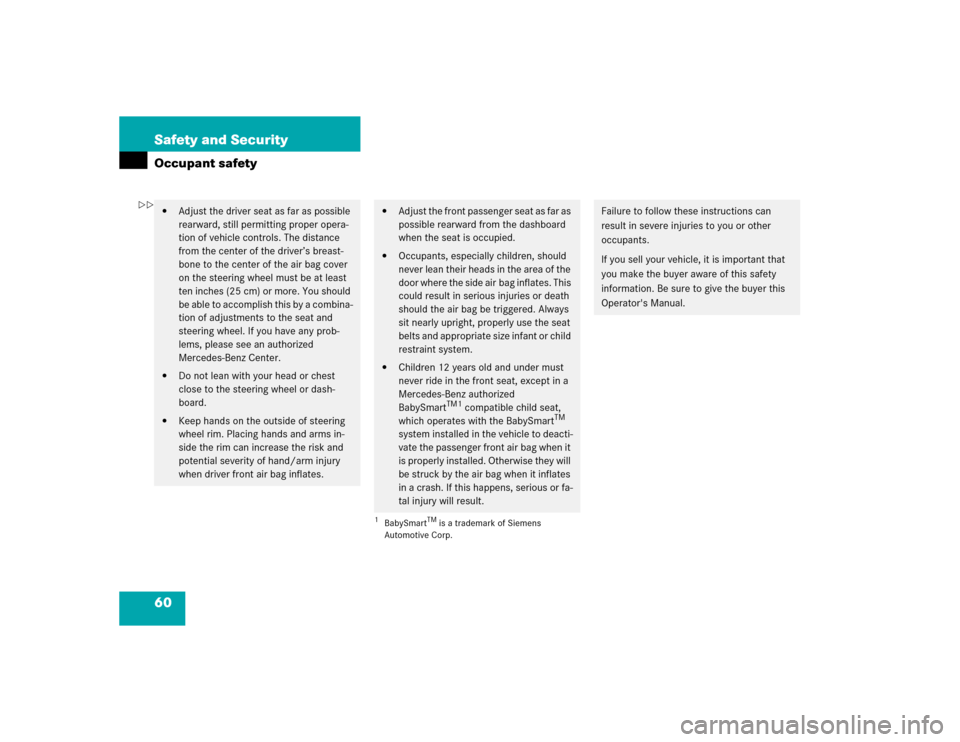

60 Safety and SecurityOccupant safety

Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
ten inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never lean their heads in the area of the
door where the side air bag inflates. This
could result in serious injuries or death
should the air bag be triggered. Always
sit nearly upright, properly use the seat
belts and appropriate size infant or child
restraint system.


Children 12 years old and under must
never ride in the front seat, except in a
Mercedes-Benz authorized
BabySmart
TM1
compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger front air bag when it
is properly installed. Otherwise they will
be struck by the air bag when it inflates
in a crash. If this happens, serious or fa-
tal injury will result.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator's Manual.

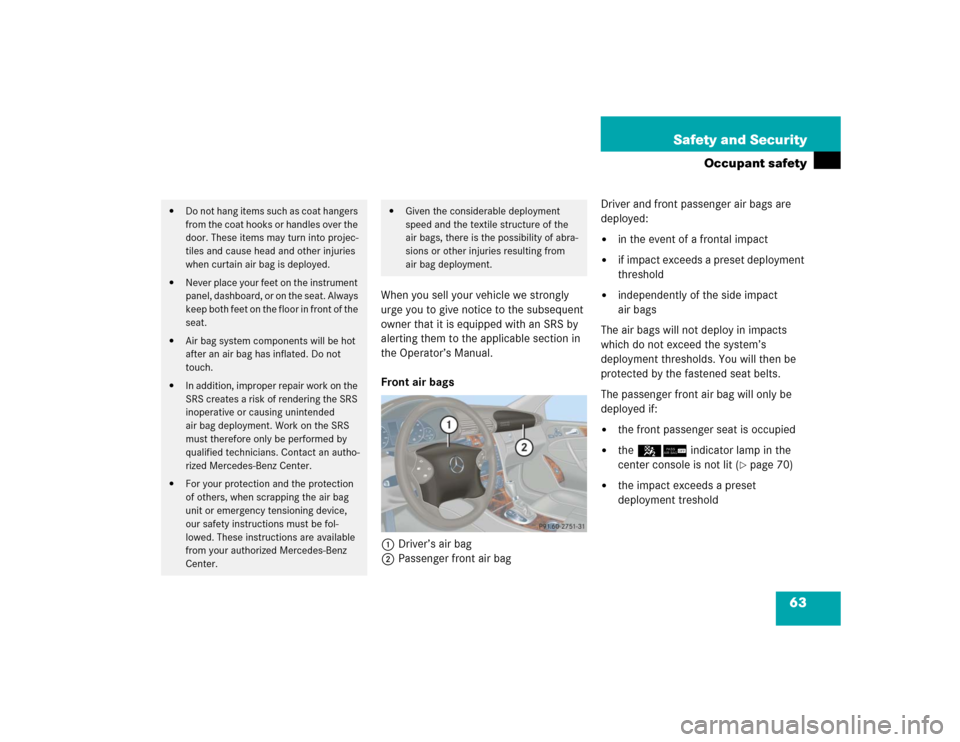

63 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.
Front air bags
1Driver’s air bag
2Passenger front air bagDriver and front passenger air bags are
deployed:


in the event of a frontal impact


if impact exceeds a preset deployment
threshold


independently of the side impact
air bags
The air bags will not deploy in impacts
which do not exceed the system’s
deployment thresholds. You will then be
protected by the fastened seat belts.
The passenger front air bag will only be
deployed if:


the front passenger seat is occupied


the56 indicator lamp in the
center console is not lit (
page 70)


the impact exceeds a preset
deployment treshold


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain air bag is deployed.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended
air bag deployment. Work on the SRS
must therefore only be performed by
qualified technicians. Contact an autho-
rized Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed and the textile structure of the
air bags, there is the possibility of abra-
sions or other injuries resulting from
air bag deployment.

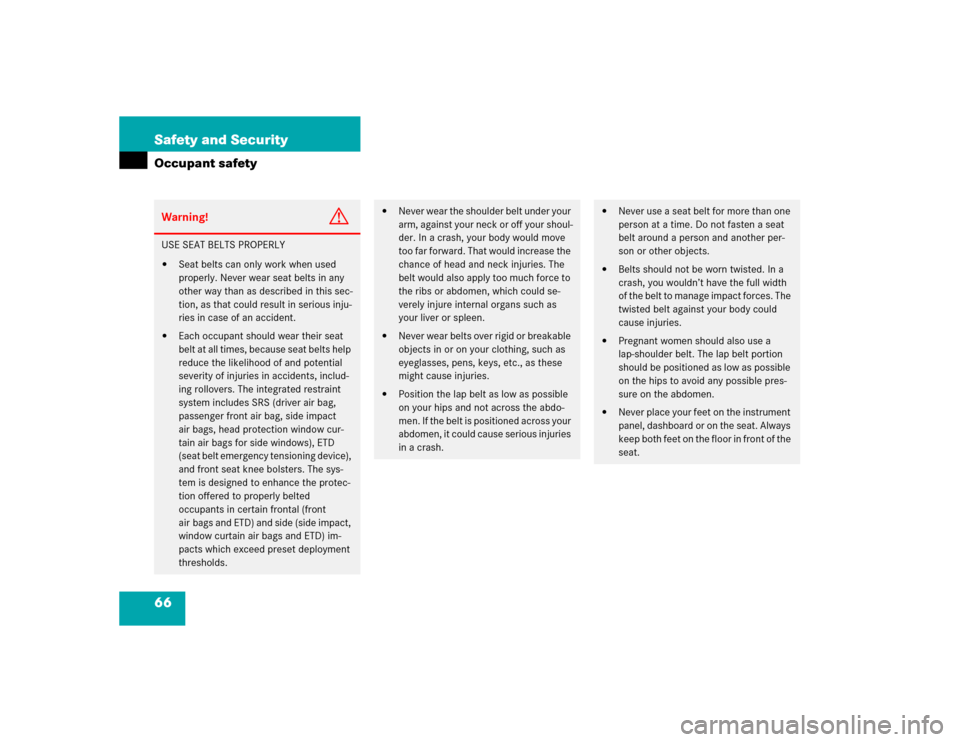

66 Safety and SecurityOccupant safetyWarning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag,
passenger front air bag, side impact
air bags, head protection window cur-
tain air bags for side windows), ETD
(seat belt emergency tensioning device),
and front seat knee bolsters. The sys-
tem is designed to enhance the protec-
tion offered to properly belted
occupants in certain frontal (front
air bags and ETD) and side (side impact,
window curtain air bags and ETD) im-
pacts which exceed preset deployment
thresholds.


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.

109 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 49)
and “Turn signals” (
page 50).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch
MOff
Daytime running lamp mode
(
page 111)
UAutomatic headlamp mode
Daytime running lamp mode
(page 111)
CParking lamps (also tail lamps,
license plate lamps, side marker
lamps, instrument panel lamps)
BLow beam headlamps (or high
beam headlamps when the
combination switch is pushed
forward) and parking lamps
ˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
‡Indicator lamp for front fog lamps
†Indicator lamp for rear fog lamp
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Center.

129 Controls in detail
Control system

Press buttonk orj repeatedly
until the desired channel is found.Operate the CD player*

Turn on the radio and select the
CD player (
page 201).
Vehicles with COMAND*:
Refer to separate operating
instructions.

Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the
multifunction display.
1Current CD (for CD changer*)
2Current track

Press buttonk orj repeatedly
until the desired track is selected.
iFeature description is based on
preliminary information available at
time of printing.
For more information on satellite radio
operation, see “Introduction to satellite
radio* (USA only)” (
page 196).
Vehicles with COMAND*:
Refer to separate operating
instructions.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.

168 Controls in detailGood visibilityFor information on the windshield wipers,
see “Windshield wipers” (
page 51).
Headlamp cleaning system*
The switch is located on the left side of the
dashboard.
1Headlamp washer switch
Switch on ignition (
page 33).

Press switch1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 285).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 41).
Interior rear view mirror, antiglare
position
1Lever

Tilt the mirror to the antiglare night
position by moving lever1 towards
the windshield.
The interior rear view mirror is dimmed.

182 Controls in detailClimate controlRear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the climate
control panel (
page 175).The air vents for the rear passenger
compartment are located in the rear
center console.
1Left center air vent
2Thumbwheel for air volume control for
center air vents
3Right center air ventAdjusting air distribution

Push the slide for the left center
vent1 or right center vent3 to the
left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume

Turn thumbwheel2 up or down.
The air volume is increased or
decreased.
iThe temperature at the center air vents
for the rear passenger
compartment1 and3 i s t h e s a m e a s
at the dashboard center air vents.
iFor draft-free ventilation, push
slides1 and3 upward.

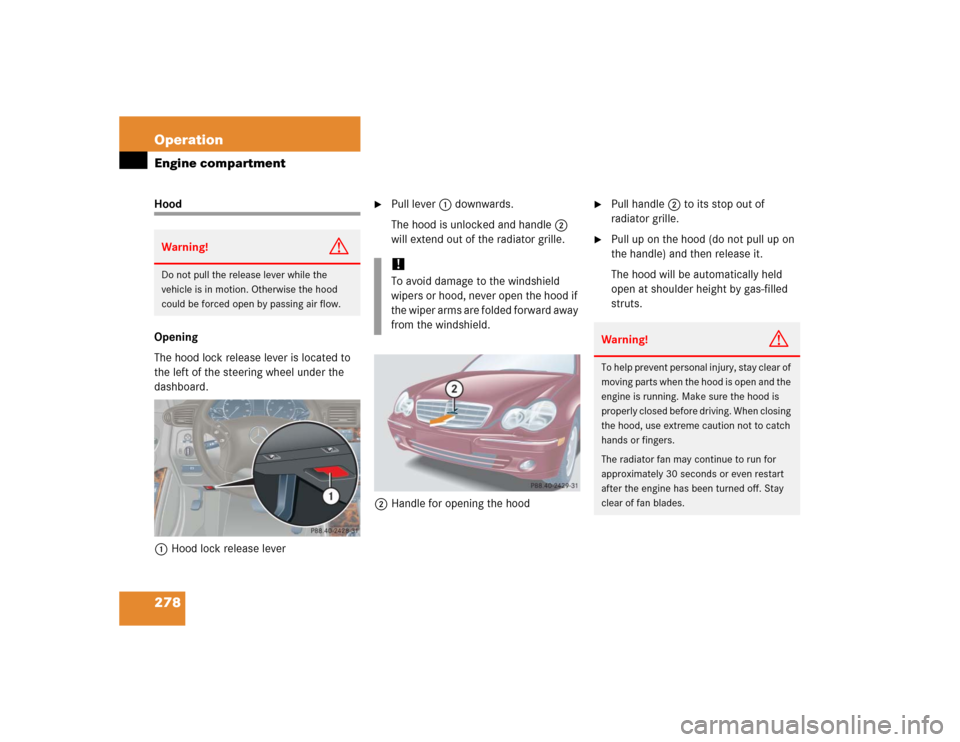

278 OperationEngine compartmentHood
Opening
The hood lock release lever is located to
the left of the steering wheel under the
dashboard.
1Hood lock release lever

Pull lever1 downwards.
The hood is unlocked and handle2
will extend out of the radiator grille.
2Handle for opening the hood

Pull handle2 to its stop out of
radiator grille.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the
vehicle is in motion. Otherwise the hood
could be forced open by passing air flow.
!To avoid damage to the windshield
wipers or hood, never open the hood if
the wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for
approximately 30 seconds or even restart
after the engine has been turned off. Stay
clear of fan blades.
