Page 81 of 370

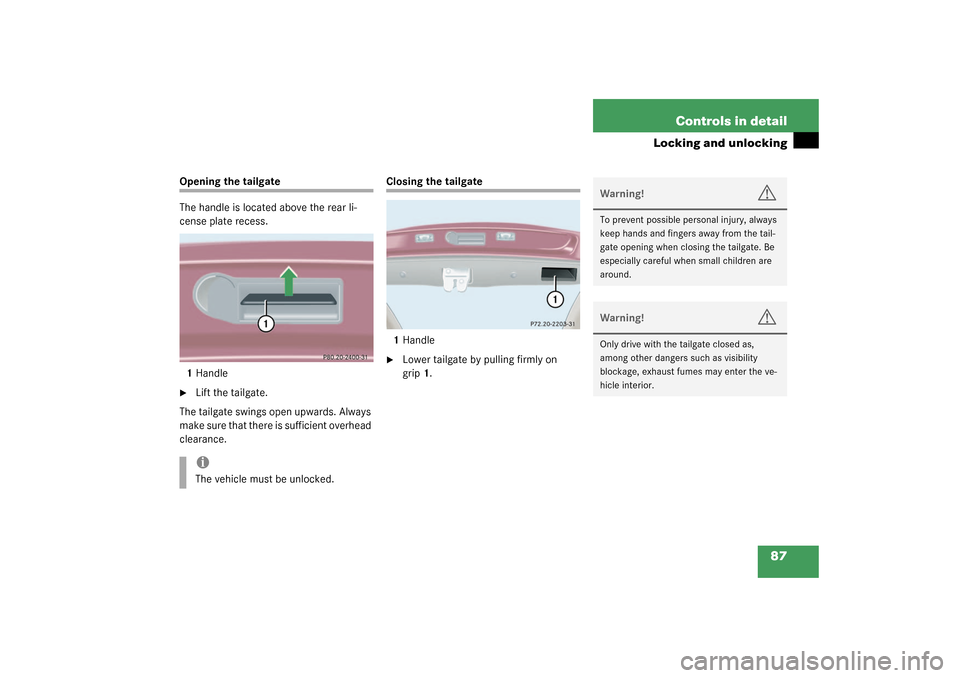

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 87 Controls in detail
Locking and unlocking
Opening the tailgate
The handle is located above the rear li-
cense plate recess.
1Handle
Lift the tailgate.
The tailgate swings open upwards. Always
make

Page 82 of 370

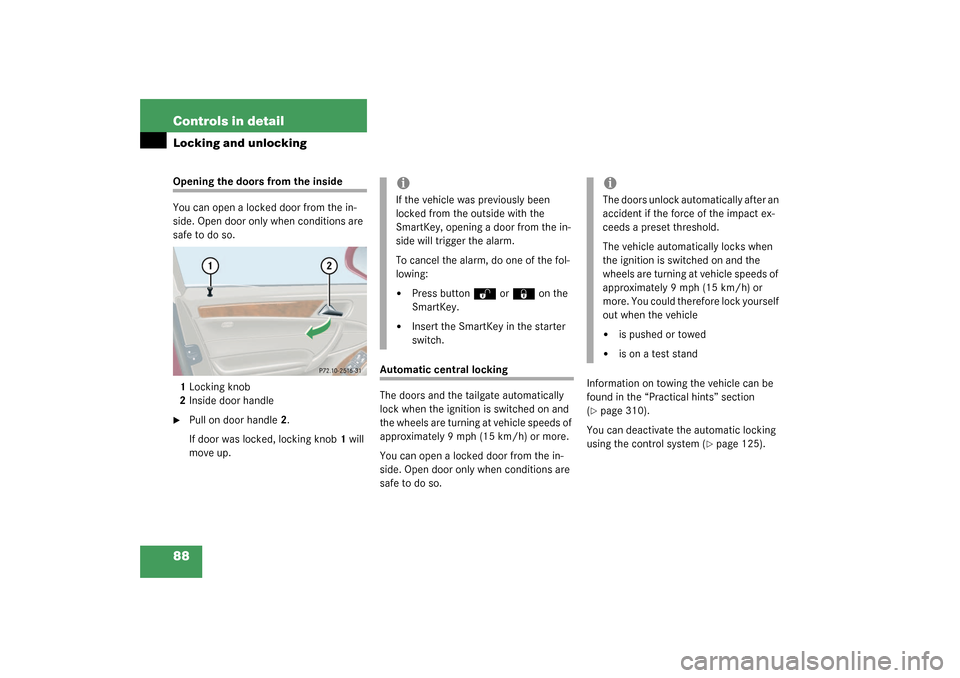

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 88 Controls in detailLocking and unlockingOpening the doors from the inside
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
1Locking knob
2Inside door

Page 83 of 370

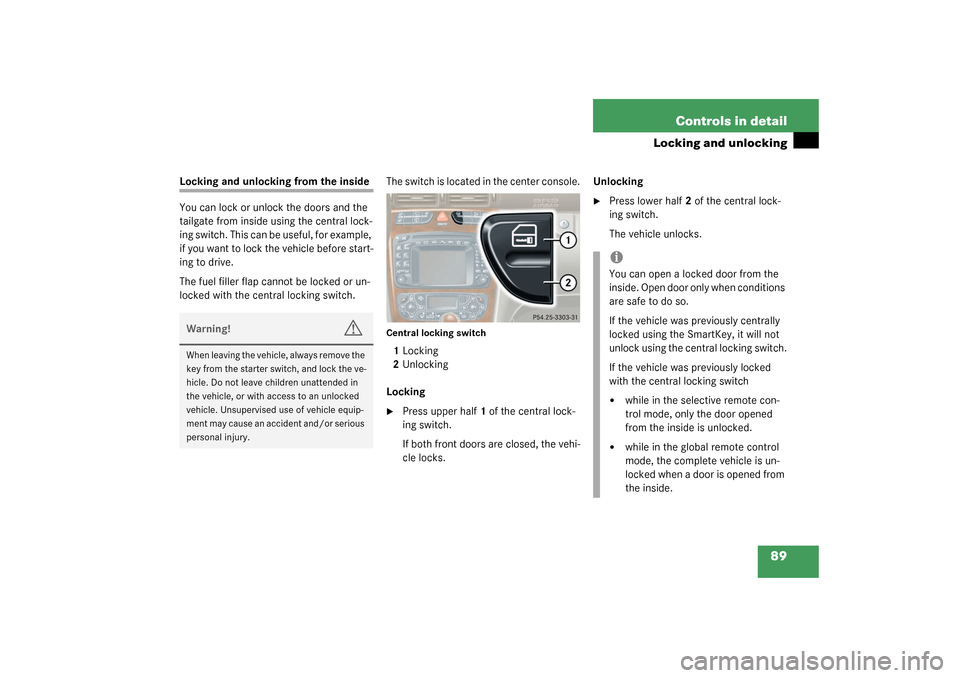

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 89 Controls in detail
Locking and unlocking
Locking and unlocking from the inside
You can lock or unlock the doors and the
tailgate from inside using the central lock-
ing switch. This can be useful,

Page 84 of 370

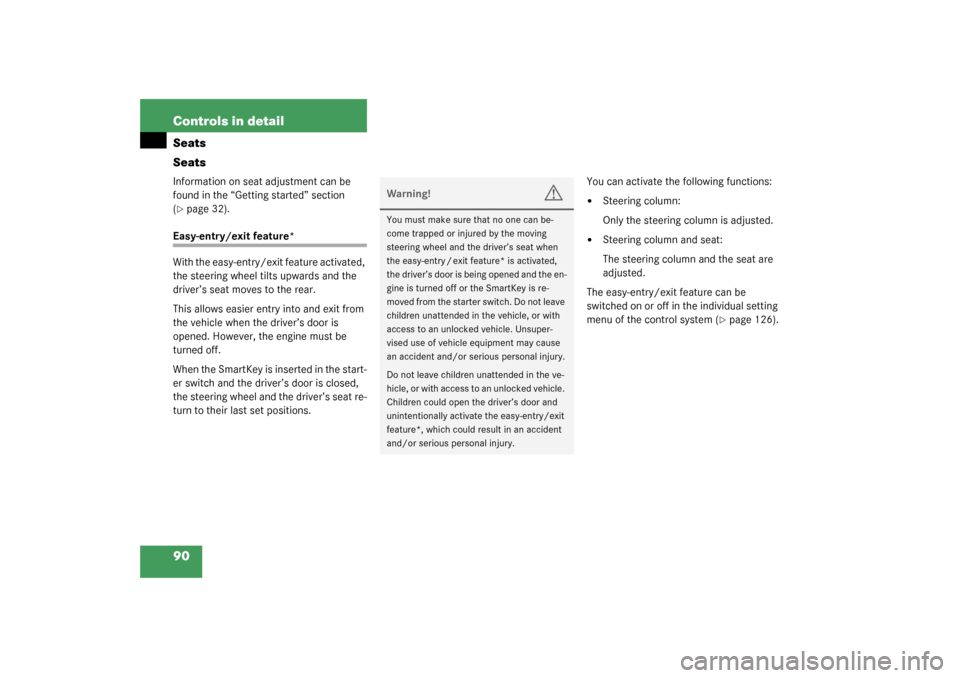

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 90 Controls in detailSeats
SeatsInformation on seat adjustment can be
found in the “Getting started” section
(page 32).
Easy-entry/exit feature*
With the easy-entry/exit feature activated,
the

Page 85 of 370

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 91 Controls in detail
Seats
Head restraints
Information on head restraint adjustment
can be found in the “Getting started” sec-
tion (
page 32).Front seat head restraints, manual seat
Removing f

Page 86 of 370

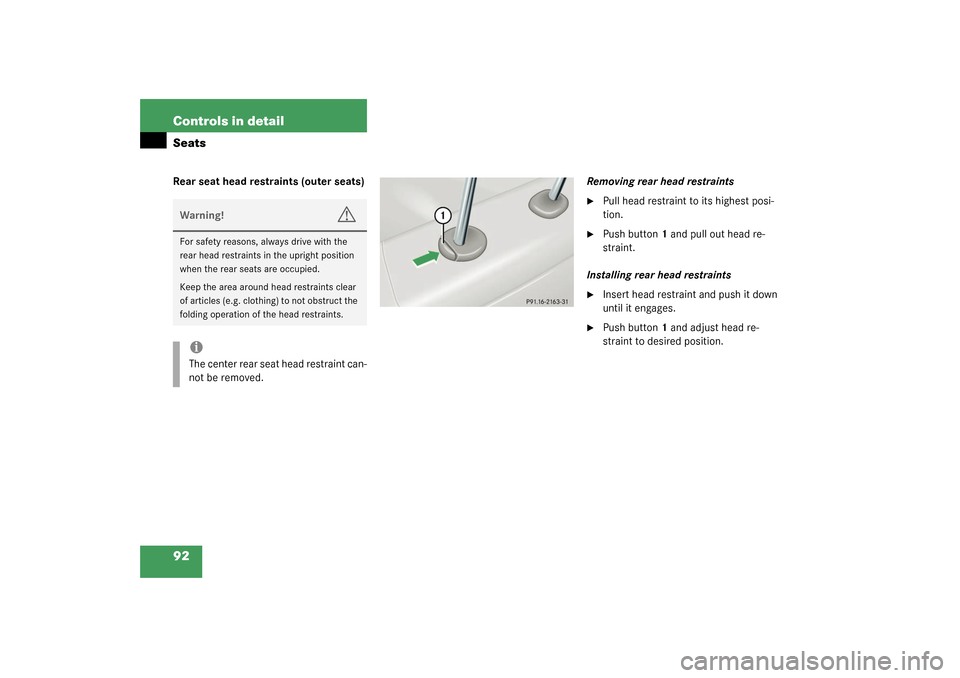

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 92 Controls in detailSeatsRear seat head restraints (outer seats)Removing rear head restraints

Pull head restraint to its highest posi-
tion.

Push button1 and pull out head re-
straint.
Installing

Page 87 of 370

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 93 Controls in detail
Seats
Multicontour seat*
Some models may be equipped with driv-
er’s multicontour seat. This seat has a
movable seat cushion and inflatable air
cushions built into the backre

Page 88 of 370

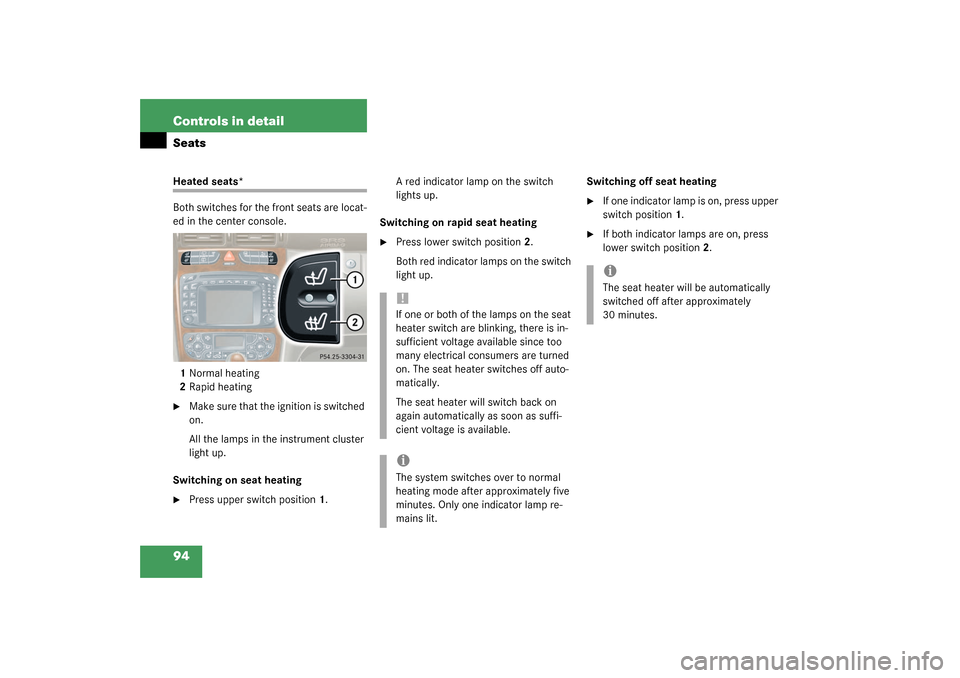

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 94 Controls in detailSeatsHeated seats*
Both switches for the front seats are locat-
ed in the center console.
1Normal heating
2Rapid heating
Make sure that the ignition is switched
on.
All the lamp

Page 89 of 370

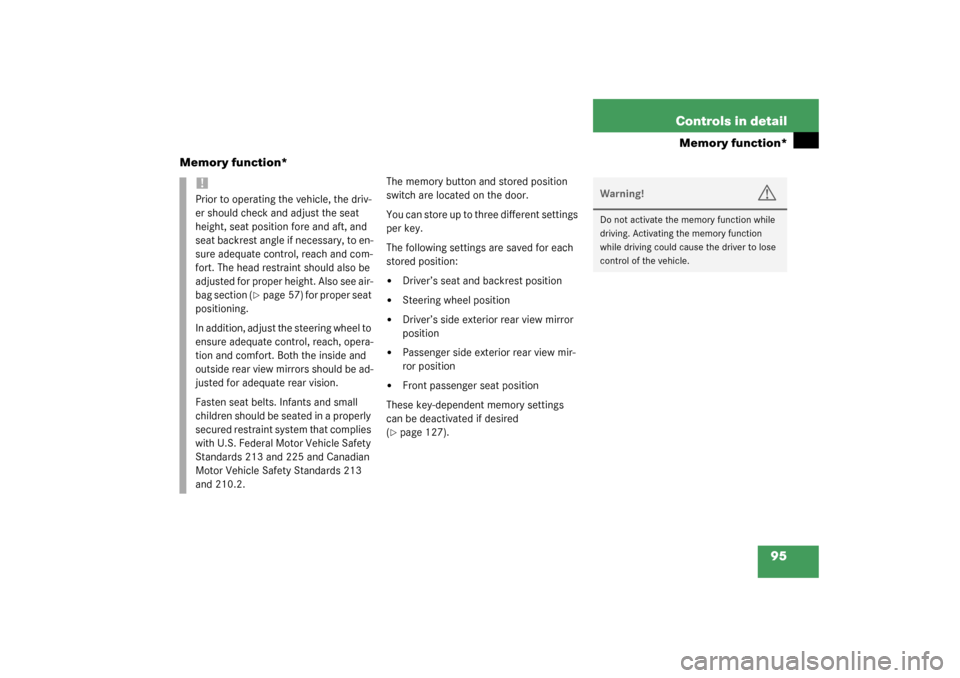

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 95 Controls in detail
Memory function*
Memory function*
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per key.
The following sett

Page 90 of 370

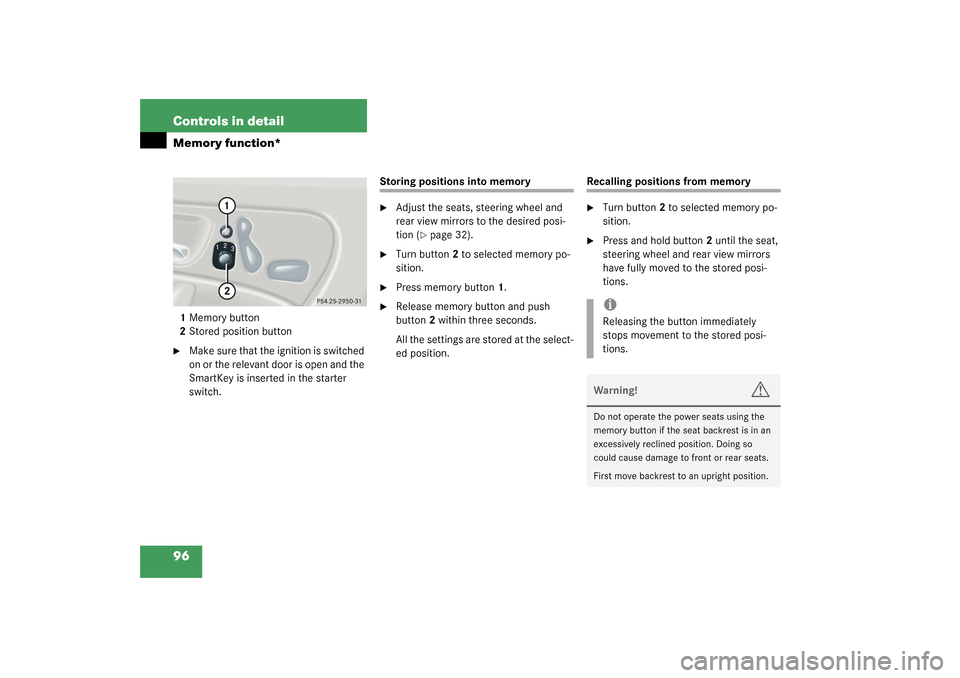

MERCEDES-BENZ C240 WAGON 2003 S203 Manual Online 96 Controls in detailMemory function*1Memory button
2Stored position button
Make sure that the ignition is switched
on or the relevant door is open and the
SmartKey is inserted in the starter
swit
