Page 367 of 509
366 Operation
Vehicle care
Engine cleaning
Prior to cleaning the engine compartment,
make sure to protect electrical compo-
nents and connectors from contact with
water and cleaning agents.
Corrosion protection, such as
MB Anticorrosion Wax, should be applied
to the engine compartment after every
engine cleaning. Before applying, all
control linkage bushings and joints should
be lubricated. The poly-V-belt and all pul-
leys should be protected from any wax. Vehicle washing
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the vehicle underbody, do
not forget to clean the inner sides of the
wheels.Hand-wash
Do not use hot water or wash your vehicle
in direct sunlight.
Only use a mild car wash detergent,
such as Mercedes-Benz approved Car
Shampoo.
Thoroughly spray the vehicle with a dif-
fused jet of water.
Direct only a very weak spray towards
the ventilation intake.
Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clean water and thoroughly
dry with a chamois.
Do not allow cleaning agents to dry on
the finish.
iVehicles with KEYLESS-GO* (Canada only):
If a door handle is hit by a strong jet of water, and
a SmartKey with KEYLESS-GO* is in close prox-
imity, i.e. within approximately 3 ft (approxi-
mately 1 m), the vehicle could be inadvertently
locked or unlocked.
!Do not use scouring agents on these parts.
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the vehicle.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you may scratch or damage the paint.
Page 374 of 509
373 Practical hints
What to do if …?
Where will I find ...?
Unlocking/locking in an emergency
Resetting activated head restraints
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses
Page 427 of 509
426 Practical hints
Unlocking/locking in an emergency
Fuel filler flap
Open the fuse box in the trunk
(
page 458).
1Release cable
Pull on the release cable1.
Open the fuel filler flap.Manually unlocking the transmission
gear selector lever
In case of power failure, the transmission
gear selector lever can be manually un-
locked, e.g. to tow the vehicle.
1Selector lever cover
2Unlocking mechanism
Apply the parking brake firmly.
Push the selector lever cover1 to the
left and pull it up and off.
Push the unlocking mechanism2
down and move the selector lever out
of positionP at the same time.The selector lever can now move freely
until reset to positionP.
iThis procedure does not arm the anti-theft
alarm system nor does it lock the fuel filler flap.
iThe gear selector lever is locked again when
moving it to positionP.
Page 438 of 509
437 Practical hints
Replacing bulbs
Tail lamp unit
Open trunk lid.
For driver side: Lift up the bottom and
pull out the trim panel covering the
driver side rear light.
For passenger side: Open the fuse box
in the trunk (
page 458).
1Tabs
2Connector
Disconnect electrical connector2.
Pull tabs1 in direction of arrows.
Remove the bulb carrier.1Side marker lamp
2Rear fog lamp (driver’s side)/Side
marker lamp
3Backup lamp
4Brake lamp/tail lamp
5Parking and standing lamp, brake
lamp/tail lamp
6Turn signal lamp
Press gently onto the respective bulb
and turn counterclockwise out of its
bulb socket.
Side marker lamp1: Turn the bulb
socket on backside of tail lamp unit
counterclockwise and removes side
marker lamp1 with bulb socket
Press the new bulb gently into its bulb
socket and turn clockwise until it
engages.
Side marker lamp1: Turn the new
bulb with socket on backside of tail
lamp unit clockwise until it engages.
Reinstall the bulb carrier.
Let tabs1 (
page 437) engage.
Connect the electrical connector2
(
page 437) until it engage.
Reinstall trim panel.
License plate lamp
Since replacing the license plate lamp
bulbs is a technically highly demanding
process, we recommend you have the li-
cense plate lamp bulbs replaced at an au-
thorized Mercedes-Benz Center.
Page 457 of 509
456 Practical hints
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the component(s) and
systems secured by that fuse will stop op-
erating.If a newly inserted fuse blows again, have
the cause determined and rectified at an
authorized Mercedes-Benz Center.
A fuse chart explains the fuse allocation
and fuse amperages. It is located in the
main fuse box in the passenger compart-
ment (
page 457).
The electrical fuses are located in different
fuse boxes:
Fuse box in passenger compartment
(
page 457)
Fuse box in engine compartment
(
page 457)
Fuse box in trunk (page 458)Before replacing fuses:
Depress the parking brake
(
page 134).
Make sure the manual transmission is
in Neutral (
page 136), automatic
transmission* is set to P (
page 140).
The gear position indicator in the ta-
chometer display should be on P.
Turn off all electrical consumers.
Turn off the engine (page 134).
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*
(Canada only):
Open the driver’s door.
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than ap-
proved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied at an au-
thorized Mercedes-Benz Center.
iA blown fuse must be replaced by an appro-
priate spare fuse (recognizable by its color or the
fuse rating given on the fuse) of the amperage
recommended in the fuse chart.
Any Mercedes-Benz Center will be glad to advise
you on this subject.
!Switch off the vehicle’s internal electrical
functions (
page 448) when you are working on
the fuses.
iIn case of a blown fuse contact Roadside
Assistance or an authorized Mercedes-Benz
Center.
Page 458 of 509
457 Practical hints
Fuses
Fuse box in passenger compartment

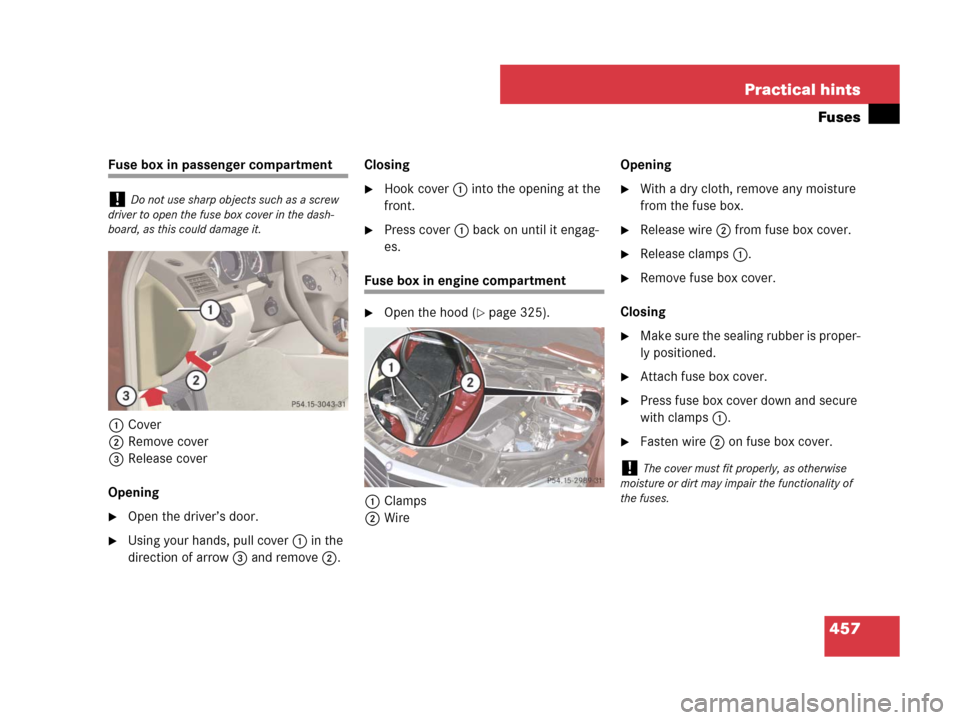

1Cover
2Remove cover
3Release cover
Opening
Open the driver’s door.
Using your hands, pull cover1 in the
direction of arrow3 and remove2.Closing
Hook cover1 into the opening at the
front.
Press cover1 back on until it engag-
es.
Fuse box in engine compartment
Open the hood (page 325).
1Clamps
2WireOpening
With a dry cloth, remove any moisture
from the fuse box.
Release wire2 from fuse box cover.
Release clamps1.
Remove fuse box cover.
Closing
Make sure the sealing rubber is proper-
ly positioned.
Attach fuse box cover.
Press fuse box cover down and secure
with clamps1.
Fasten wire2 on fuse box cover.
!Do not use sharp objects such as a screw
driver to open the fuse box cover in the dash-
board, as this could damage it.
!The cover must fit properly, as otherwise
moisture or dirt may impair the functionality of
the fuses.
Page 459 of 509
458 Practical hints
Fuses
Fuse box in the trunk

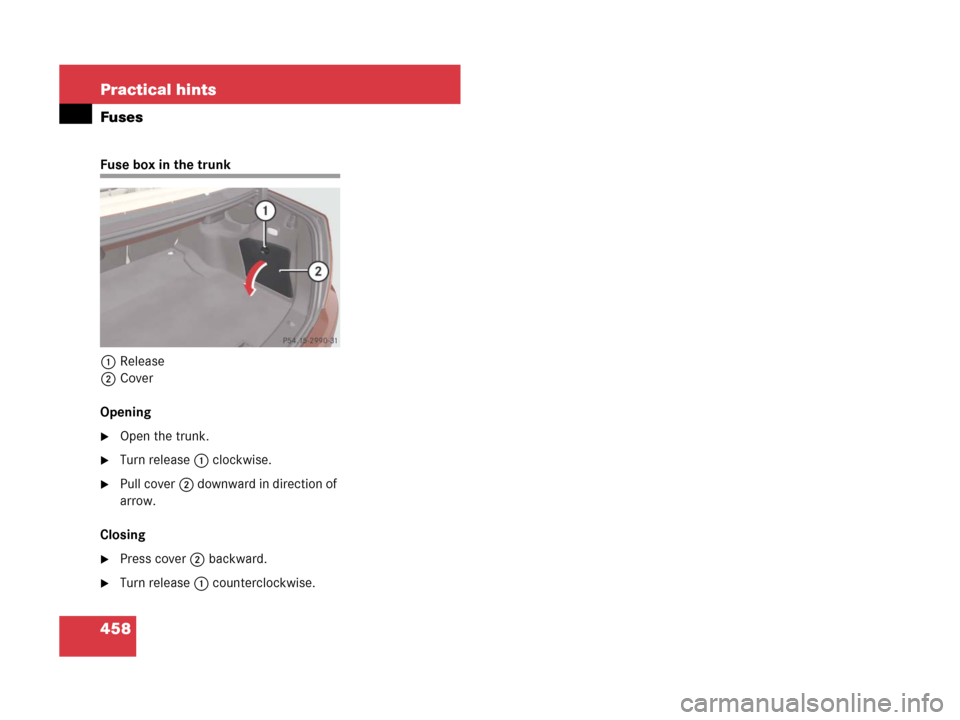

1Release
2Cover
Opening
Open the trunk.
Turn release1 clockwise.
Pull cover2 downward in direction of
arrow.
Closing
Press cover2 backward.
Turn release1 counterclockwise.
Page 493 of 509
492 Index
Dual-zone automatic climate control
Maximum cooling MAX COOL 256
Dual-zone automatic climate control see
Climate control system
E
Easy-entry/exit feature*
(Canada only) 95, 174
EBP 61
Electrical fuses see Fuses
Electrical outlet
Glove box 293
Rear passenger compartment 293
Electrical system, Technical Data 473
Electronic Brake Proportioning see EBP
Electronic Stability Program see ESP
®
Electronic traction system 63
Emergency call system 295
Emergency calls, Tele Aid* 296
Emergency operation (Limp-Home
Mode) 146Emergency operations
Gear selector lever*, Unlocking 426
Locking the vehicle 424
Releasing from inside 271
Remote door lock* 302
Remote door unlock* 301
Unlocking the trunk 425
Unlocking the vehicle 424
Emergency tensioning device see ETD
Emergency, In case of
Battery, Jump starting 451
First aid kit 420
Flat tire 440
Fuses 456
Instrument cluster, Indicator
lamps 374–383
Roadside Assistance 12
Roadside Assistance* (Tele
Aid*) 299
Towing the vehicle 453
Emission control 320
Emission control information label 463
Emission control system warranties 10Engine
Adding engine oil 328
Belt layout 464
Cleaning 366
Compartment 325
Coolant 329, 478, 484
Malfunction indicator lamp 27, 378
Number 462, 463
Oil 327, 476, 480
Residual heat and ventilation 266
Starting 127
Technical data 465
Turning off 134
Engine coolant see Coolant
Engine oil 327
Adding 328
Additives 480
Checking level (Dipstick) 327
Consumption 327
Dipstick 327
Filler neck 327, 328
Recommended engine oils and oil
filters 476
Page 495 of 509
494 Index
Fuel cap
Message in display 406
Fuel consumption statistics
From start 156
Resetting 157
Since last reset 157
Fuel filler flap 322
Locking/Unlocking 322
Fuel tank
Capacity 478
Filler flap 322
Fuels, coolants, lubricants etc.
Capacities 476
Fuses 456
Fuse box in engine compartment 457
Fuse box in passenger
compartment 457
Fuse box in trunk 458
Replacing 456G
Garage door opener 303
Gasoline also see Fuel
GAWR 357
Gear range
Automatic transmission 143
Limiting 143
Shifting into optimal 145
Gear selector lever 126, 137
Messages in display 392
Position, Automatic
transmission* 139, 151
Shifting procedure 139
Gear selector lever one-touch gearshifting
Automatic transmission* 145
Gear selector lever* 138
Gearshift pattern 138
Lock 127
Position, Automatic
transmission* 140
Unlocking in an emergency 426
Glove box 284
Aux socket 220
Power outlet 293
Gloves, Vehicle tool kit 420GPS
Tele Aid* 295
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight Rating see GVWR
Gross Vehicle Weight see GVW
GVW 357
GVWR 357
