Page 9 of 509
Contents
Flat tire .............................................. 440
Preparing the vehicle.................... 440
Mounting the Minispare wheel ..... 441
Battery ............................................... 446
Disconnecting the battery ............ 448
Removing the battery ................... 449
Charging and reinstalling
the battery.................................... 449
Reconnecting the battery ............. 450
Jump starting ..................................... 451
Towing the vehicle ............................. 453
Installing towing eye bolt.............. 455
Fuses ................................................. 456
Fuse box
in passenger compartment .......... 457
Fuse box
in engine compartment ................ 457
Fuse box
in the trunk................................... 458
Technical data................................. 459
Parts service ...................................... 460
Warranty coverage............................. 461
Loss of Service and
Warranty Information Booklet ...... 461
Identification labels ........................... 462
Layout of poly-V-belt drive ................. 464
C 300/C 350 ............................... 464
Engine................................................ 465
Rims and tires.................................... 467
Same size tires ............................. 468
Mixed size tires ............................ 469
Minispare wheel ........................... 471
Electrical system ............................... 473
Main dimensions and weights............ 474
Main dimensions .......................... 474
Weights ........................................ 475
Fuels, coolants, lubricants, etc. ......... 476
Capacities .................................... 476
Engine oils.................................... 480
Engine oil additives ...................... 480
Air conditioning refrigerant .......... 480
Brake fluid .................................... 480
Premium unleaded gasoline ......... 481
Gasoline additives ........................ 481Fuel requirements ........................ 482
Flexible Fuel Vehicles (USA only) . 482
Coolants ...................................... 484
Windshield washer system
and headlamp cleaning system* .. 486
Index................................................. 487
Page 118 of 509
117 Controls in detail
Windshield wipers
Windshield wipers
Combination switch
1Switching on windshield wipers
2Single wipe
Wiping with windshield washer fluid
Switch on the ignition.
!If the windshield wipers leave smears on the
windshield after the car has been driven through
an automatic car wash, then wax or other resi-
due is on the windshield. Shortly after washing
the car in an automatic car wash, clean the wind-
shield with windshield washer fluid.
!Do not operate the windshield wipers when
the windshield is dry. Dust that accumulates on
a windshield might scratch the glass and/or
damage the wiper blades when wiping occurs on
a dry windshield. If it is necessary to operate the
windshield wipers in dry weather conditions, al-
ways operate the windshield wipers with wind-
shield washer fluid.
!If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off immediate-
ly.
For safety reasons, stop the vehicle in a safe
location and,
remove the SmartKey from starter
switch
or
turn off the engine by pressing the
KEYLESS-GO* start/stop button and
open the driver’s door (with the driver’s
door open, starter switch is in
position0, same as with SmartKey re-
moved from starter switch)
engage the parking brake
before attempting to remove any blockage.
Remove blockage.
Turn the windshield wipers on again.
If the windshield wipers fail to function at all in
combination switch position U or V,
set the combination switch to the next
higher wiper speed
have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center
Page 119 of 509
118 Controls in detail
Windshield wipers
Switching on/off windshield wipers
Turn the combination switch to the
desired position depending on the
intensity of the rain.
MWindshield wipers off
USlow intermittent wiping
(rain sensor* operation with low
sensitivity)
VFast intermittent wiping
(rain sensor* operation with
high sensitivity)
uSlow continuous wiping
tFast continuous wiping
Single wipe
Press the combination switch briefly in
the direction of arrow2 (
page 117)
to the resistance point.
The windshield wipers wipe one time
without washer fluid.
Intermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
iWhen the windshield wipers are switched on
and you brake the vehicle to a stop, the wipers
operate more slowly.
!Vehicles with rain sensor*:
Do not leave windshield wipers in intermittent
setting when the vehicle is taken to an automatic
car wash or during windshield cleaning. Wipers
will operate in the presence of water sprayed on
the windshield, and the windshield wipers may
be damaged as a result.
!Vehicles with rain sensor*:
If you have set intermittent wiping, dirt on the
surface of the rain sensor or optical effects may
cause the windshield wipers to wipe in an undes-
ired fashion. This could then damage the wind-
shield wiper blades or scratch the windows. You
should therefore switch off the windshield wip-
ers when weather conditions are dry.
Page 313 of 509
312 Operation
Driving instructions
Brakes
To help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.
Refer to the description of the Brake Assist
System (BAS) (
page 60).
Brake pad wear or a leak in the system may
be the reason for low brake fluid level in
the reservoir.

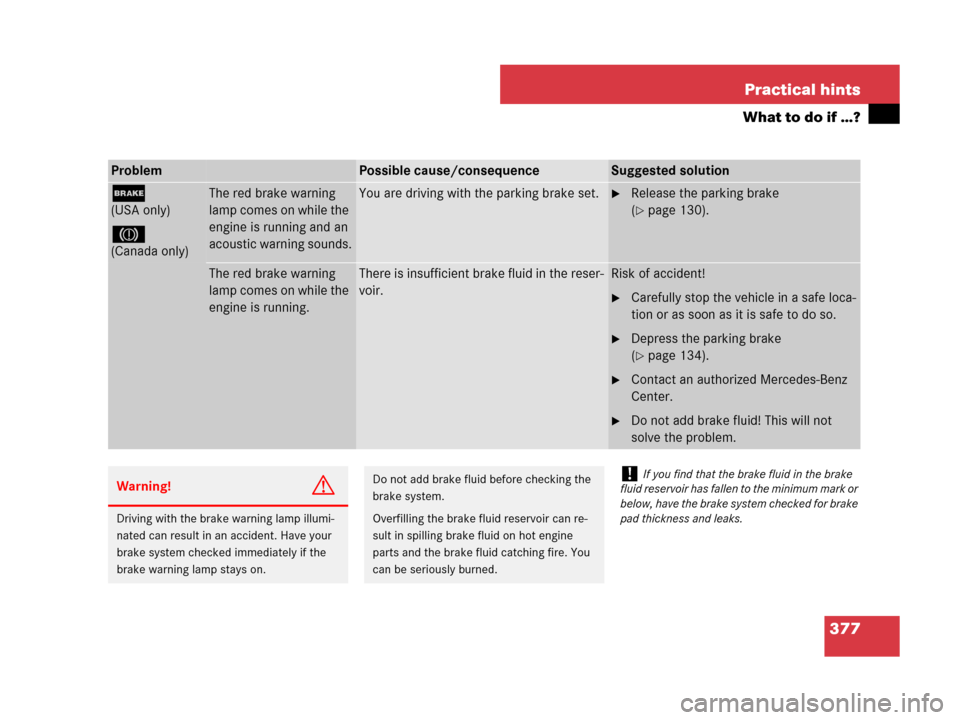

The brake fluid level in the reservoir may
be too low if the red brake warning lamp in
the instrument cluster comes on while the
engine is running and an acoustic warning
sounds (
page 376). Observe additional
messages in the multifunction display that
may appear (
page 387).
Warning!G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking
effect. Maintain a safe distance from
vehicles in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an
accident.
!Vehicles without 4MATIC:
Because the ESP® operates automatically, the
engine and ignition must be shut off (SmartKey
in starter switch position0 or1 or KEYLESS-GO
(Canada only) start/stop button* in position0
or1) when
the parking brake is being tested on a brake
test dynamometer
the vehicle is being towed with the front axle
raised
Active braking action through the ESP
® may oth-
erwise seriously damage the brake system.
For information on vehicles with 4MATIC, see
“Four wheel electronic traction system (4MATIC)
with the ESP®” (
page 65).
Warning!G
Make sure not to endanger any other road
users when carrying out these braking ma-
neuvers.
Page 314 of 509
313 Operation
Driving instructions
Have the brake system inspected
immediately. Contact an authorized
Mercedes-Benz Center.
All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Center.
Only install brake pads and brake fluid
recommended by Mercedes-Benz.After hard braking, it is advisable to drive
on for some time, rather than immediately
park, so that the air stream can cool down
the brakes faster.
Warning!G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.
!When driving down long and steep grades,
relieve the load on the brakes by shifting into a
lower gear to use the engine’s braking power.
This helps prevent overheating of the brakes and
reduces brake pad wear.
When using the engine’s braking power, a drive
wheel may not spin for an extended period of
time, e.g. on slippery road surfaces.This may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz Lim-
ited Warranty.
Page 325 of 509
324 Operation
At the gas station
Check regularly and before a long trip
1Coolant level
2Brake fluid
3Windshield washer and headlamp
cleaning system*Windshield washer system and head-
lamp cleaning system*
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system*”
(
page 330).
Coolant
For more information on coolant, see
“Coolant level” (
page 329) and see “Fu-
els, coolants, lubricants, etc.”
(
page 476).
Brake fluid
For information on brake fluid, see “Brake
fluid” (
page 480).Engine oil level
For more information on engine oil, see
“Engine oil” (
page 327).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 430).
For more information, see “Lighting”
(
page 108).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(

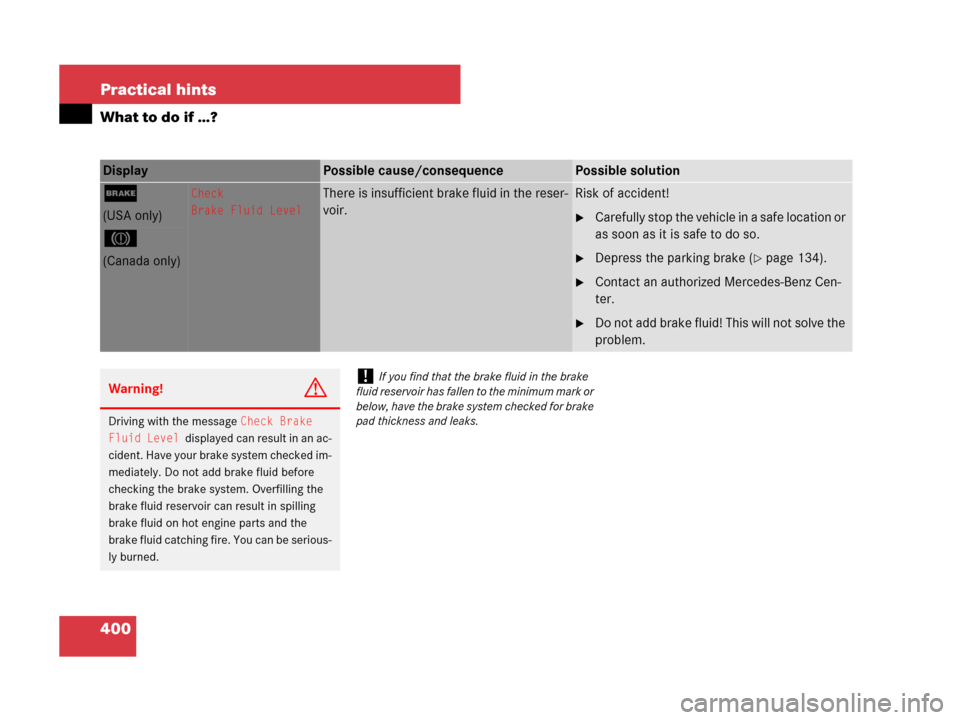

page 341).iOpening the hood (page 325).!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Center immediately.
Do not add brake fluid as this will not solve the
problem. For more information, see “Practical
hints” (
page 376) and (page 400).
Page 365 of 509
364 Operation
Vehicle care
Cleaning and care of vehicle
Regular and proper care will help to main-
tain the value of your vehicle. The best way
to protect your vehicle from harmful envi-
ronmental influences is to wash it and use
protective treatments regularly.
While in operation, even while parked, your
vehicle is subjected to varying external in-
fluences which, if gone unchecked, can
attack the paintwork as well as the vehicle
underbody and cause lasting damage.Such damage is caused not only by
extreme and varying climatic conditions,
but also by:
Air pollution
Road salt
Tar
Gravel and stone chipping
To avoid paint damage, you should imme-
diately remove:
Grease and oil
Fuel
Coolant
Brake fluid
Bird droppings
Insects
Tree resins, etc.
Frequent washing reduces and/or elimi-
nates the aggressiveness and potency of
the above adverse influences.More frequent washings are necessary to
deal with unfavorable conditions:
near the ocean
in industrial areas (smoke, exhaust
emissions)
during winter operation
You should check your vehicle from time to
time for stone chipping or other damage.
Any damage should be repaired as soon as
possible to prevent corrosion.
In doing so, do not neglect the underbody
of the vehicle. A prerequisite for a
thorough check is a washing of the
underbody followed by a thorough
inspection. Damaged areas need to be
re-undercoated.
Your vehicle has been treated at the facto-
ry with a wax-base rustproofing in the body
cavities which will last for the lifetime of
the vehicle. Post-production treatment is
neither necessary nor recommended by
Mercedes-Benz because of the possibility
Warning!G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the partic-
ular container. Always open your vehicle’s
doors or windows when cleaning the inside.
Never use fluids or solvents that are not de-
signed for cleaning your vehicle.
Always lock away cleaning products and
keep them out of reach of children.
Page 378 of 509
377 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
;
(USA only)
3
(Canada only)
The red brake warning
lamp comes on while the
engine is running and an
acoustic warning sounds.You are driving with the parking brake set.Release the parking brake
(
page 130).
The red brake warning
lamp comes on while the
engine is running.There is insufficient brake fluid in the reser-
voir.Risk of accident!
Carefully stop the vehicle in a safe loca-
tion or as soon as it is safe to do so.
Depress the parking brake
(
page 134).
Contact an authorized Mercedes-Benz
Center.
Do not add brake fluid! This will not
solve the problem.
Warning!G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on.
Do not add brake fluid before checking the
brake system.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.
Page 401 of 509
400 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
;Check
Brake Fluid LevelThere is insufficient brake fluid in the reser-
voir.Risk of accident!
Carefully stop the vehicle in a safe location or
as soon as it is safe to do so.
Depress the parking brake (page 134).
Contact an authorized Mercedes-Benz Cen-
ter.
Do not add brake fluid! This will not solve the
problem.
(USA only)
3
(Canada only)
Warning!G
Driving with the message Check Brake
Fluid Level
displayed can result in an ac-
cident. Have your brake system checked im-
mediately. Do not add brake fluid before
checking the brake system. Overfilling the
brake fluid reservoir can result in spilling
brake fluid on hot engine parts and the
brake fluid catching fire. You can be serious-
ly burned.
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.
Page 479 of 509
478 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Power steeringAll models0.85 US qt. (0.8 l)MB Power Steering Fluid
(Chevron Texaco PSF 9109)1
1For detailed information, please refer to the Factory Approved Service Products pamphlet (USA only) or contact an authorized Mercedes-Benz Center.
Front wheel hubsAll modelsapprox. 3.6 oz. (95 g) eachHigh-temperature roller bearing grease
Brake systemAll modelsapprox. 0.53 US qt. (0.5 l)MB Brake Fluid (DOT 4+)
Cooling systemAll models5.07 US qt. (4.8 l)MB 325.0 Anticorrosion/Antifreeze
Fuel tank
including a reserve ofAll models17.43 US gal (66.0 l)
2.11 US gal (8.0 l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
C 300 and C 300 Sport (with automatic
transmission*), USA only:
Flexible Fuel Vehicle (identified by a label
reading Premium gasoline or E85 only!
on fuel filler flap).
Alternative fuel: Ethanol fuel (E85)
Air conditioning systemAll modelsR-134a refrigerant and special PAG
lubricant oil (never R-12)
