flat tire MERCEDES-BENZ C300 SPORT 2008 W204 Owner's Manual

Contents
At the gas station .............................. 322
Refueling ...................................... 322
Check regularly and
before a long trip.......................... 324
Engine compartment ......................... 325
Hood ............................................ 325
Engine oil ..................................... 327
Transmission fluid level ................ 328
Coolant level ................................ 329
Windshield washer system and
headlamp cleaning system* ......... 330
Tires and wheels ................................ 331
Important guidelines .................... 331
Tire care and maintenance........... 332
Direction of rotation ..................... 334
Loading the vehicle ...................... 334
Recommended tire
inflation pressure ......................... 339
Checking tire inflation pressure ... 341
Tire labeling.................................. 348
Load identification ....................... 352
DOT,
Tire Identification Number (TIN) ... 352
Maximum tire load ....................... 353
Maximum tire inflation pressure .. 354Uniform Tire Quality Grading
Standards (U.S. vehicles) .............. 354
Tire ply material ............................ 356
Tire and loading terminology......... 356
Rotating tires ................................ 359
Winter driving ..................................... 360
Winter tires ................................... 360
Snow chains.................................. 361
Maintenance....................................... 362
Maintenance
service indicator message ............ 362
Calling up the maintenance
service indicator display ............... 363
Resetting the maintenance
service indicator ........................... 363
Vehicle care........................................ 364
Cleaning and care of vehicle ......... 364
Practical hints.................................. 373
What to do if …? ................................. 374
Lamps in instrument cluster ......... 374
Air bag off indicator lamp ............. 385
Vehicle status messages in
the multifunction display .............. 387
Where will I find ...? ............................ 420
First aid kit.................................... 420
Vehicle jack, vehicle tool kit,
luggage bowl, Minispare wheel ..... 420
Unlocking/locking in an emergency .. 424
Unlocking the vehicle ................... 424
Locking the vehicle ....................... 425
Fuel filler flap ................................ 426
Manually unlocking the
transmission gear selector lever ... 426
Resetting activated head restraints.... 427
Replacing SmartKey batteries ............ 428
Replacing bulbs .................................. 430
Bulbs............................................. 431
Replacing bulbs for front lamps .... 432
Replacing bulbs for rear lamps ..... 436
Replacing wiper blades ...................... 438
Removing wiper blades ................. 439
Installing wiper blades .................. 439

Contents
Flat tire .............................................. 440
Preparing the vehicle.................... 440
Mounting the Minispare wheel ..... 441
Battery ............................................... 446
Disconnecting the battery ............ 448
Removing the battery ................... 449
Charging and reinstalling
the battery.................................... 449
Reconnecting the battery ............. 450
Jump starting ..................................... 451
Towing the vehicle ............................. 453
Installing towing eye bolt.............. 455
Fuses ................................................. 456
Fuse box
in passenger compartment .......... 457
Fuse box
in engine compartment ................ 457
Fuse box
in the trunk................................... 458
Technical data................................. 459
Parts service ...................................... 460
Warranty coverage............................. 461
Loss of Service and
Warranty Information Booklet ...... 461
Identification labels ........................... 462
Layout of poly-V-belt drive ................. 464
C 300/C 350 ............................... 464
Engine................................................ 465
Rims and tires.................................... 467
Same size tires ............................. 468
Mixed size tires ............................ 469
Minispare wheel ........................... 471
Electrical system ............................... 473
Main dimensions and weights............ 474
Main dimensions .......................... 474
Weights ........................................ 475
Fuels, coolants, lubricants, etc. ......... 476
Capacities .................................... 476
Engine oils.................................... 480
Engine oil additives ...................... 480
Air conditioning refrigerant .......... 480
Brake fluid .................................... 480
Premium unleaded gasoline ......... 481
Gasoline additives ........................ 481Fuel requirements ........................ 482
Flexible Fuel Vehicles (USA only) . 482
Coolants ...................................... 484
Windshield washer system
and headlamp cleaning system* .. 486
Index................................................. 487

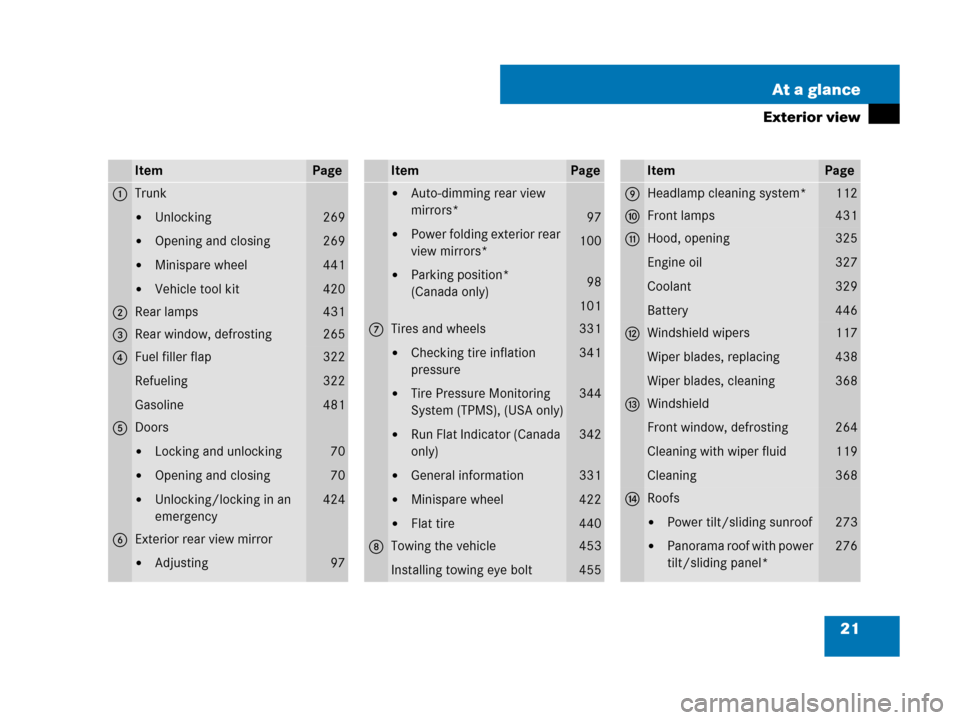

21 At a glance
Exterior view
ItemPage
1Trunk

Unlocking

Opening and closing

Minispare wheel

Vehicle tool kit
269
269
441
420
2Rear lamps431
3Rear window, defrosting265
4Fuel filler flap
Refueling
Gasoline322
322
481
5Doors

Locking and unlocking

Opening and closing

Unlocking/locking in an
emergency
70
70
424
6Exterior rear view mirror

Adjusting97
ItemPage

Auto-dimming rear view
mirrors*

Power folding exterior rear
view mirrors*

Parking position*
(Canada only)
97
100
98
101
7Tires and wheels

Checking tire inflation
pressure

Tire Pressure Monitoring
System (TPMS), (USA only)

Run Flat Indicator (Canada
only)

General information

Minispare wheel

Flat tire
331
341
344
342
331
422
440
8Towing the vehicle
Installing towing eye bolt453
455
ItemPage
9Headlamp cleaning system*112
aFront lamps431
bHood, opening
Engine oil
Coolant
Battery325
327
329
446
cWindshield wipers
Wiper blades, replacing
Wiper blades, cleaning117
438
368
dWindshield
Front window, defrosting
Cleaning with wiper fluid
Cleaning
264
119
368
eRoofs

Power tilt/sliding sunroof

Panorama roof with power
tilt/sliding panel*
273
276

155 Controls in detail
Control system
Menus, submenus and functions
Menu1Menu2Menu3Menu4Menu5Menu6
Trip computerNavi*AudioTel*ServiceSettings
(page 156)(page 158)(page 158)(page 160)(page 164)(page 165)
Commands/submenus
Standard displayShow route guid-
ance instructions,
current direction
traveledSelecting radio
stationTo take a callCall up vehicle mal-
function, warning and
system status mes-
sages stored in mem-
ory
1
1The vehicle status message memory menu is only displayed if there is a message stored.
Reset to factory
settings
Fuel consumption
statistics since startSelecting satellite
radio station*Select a phone
book entryTire Pressure Monitor-
ing System (TPMS)
(USA only)Instrument cluster
submenu
Fuel consumption
statistics since the
last resetOperating
CD player* RedialRun Flat Indicator
(Canada only)
Distance to emptyCall up maintenance
service display
Digital speed-
ometer or outside
temperature

164 Controls in detail
Control system
Service menu
The
Service menu is used for

calling up messages

checking tire inflation pressure elec-
tronically with the TPMS (standard on
U.S. vehicles)

activating Run Flat Indicator (standard
on Canada vehicles)

calling up the maintenance service in-
dicator displayCalling up vehicle malfunction, warning
and system status messages stored in
memory
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the
system. Such messages appear in the
multifunction display and are based on
conditions or system status the vehicle’s
system has recorded.
The vehicle status message memory menu
only appears if there are any messages
stored.
Warning!G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 387).

165 Controls in detail
Control system
Press ( or & to select the
Service menu.
If conditions have occurred causing status
messages to be recorded, the number of
messages appears in the multifunction
display:
1Number of messages
Press % or $ to select the mes-
sage.
Press # to confirm.
The stored messages will now be
displayed in the order in which they
have occurred.
Use % or $ to scroll through the
messages.Checking tire inflation pressure
For information about checking tire infla-
tion pressure (
page 339).
Activating Run Flat Indicator
(Canada only)
For information about activating Run Flat
Indicator (
page 342).
Calling up the maintenance service
indicator display
For information about calling up the main-
tenance service indicator display
(
page 362).
Settings menu
In the
Settings menu there are two
functions:

The function Reset to factory
settings
, with which you can reset all
the settings to the original factory
settings.

A collection of submenus with which
you can make individual settings for
your vehicle.
iSee the “Practical hints” section for mal-
function and warning messages (
page 387).
iIf you turn the SmartKey in the starter
switch to position0 and then back to position2,
all messages will be deleted from the message
memory.

299 Controls in detail
Useful features
Roadside Assistance button*b
The Roadside Assistance buttonb is
located in the overhead control panel.
1Roadside Assistance buttonb
Press and hold Roadside Assistance
button b (for longer than
2 seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message:

Connecting call appears in the
multifunction display
and the audio system is muted.When the connection is established, the
message:

Call connected appears in the multi-
function display
The Tele Aid system will transmit data gen-
erating the vehicle identification number,
model, color and location (subject to avail-
ability of cellular and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance Man-
ual for more information.
These programs are only available in the
USA:

Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp in the Roadside Assis-
tance buttonb remains illuminated in red for
approximately 10 seconds during the system
self-check after switching on the ignition (togeth-
er with the SOS button and the Information
button*}).
See system self-check (
page 296) if the indi-
cator lamp does not come on in red or stays on
longer than approximately 10 seconds.
If the indicator lamp in the Roadside Assistance
buttonb is flashing continuously and no
voice connection to the Response Center was
established, the Tele Aid system could not ini-
tiate a Roadside Assistance call (e.g. the relevant
telephone network is not available). The mes-
sage:

Call failed appears in the multifunction
display for approximately 10 seconds
Roadside Assistance calls can be terminated us-
ing the t button on the multifunction steer-
ing wheel or the respective button for ending a
telephone call on the audio system or the
COMAND* head unit.

311 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent,
depends on driving habits and operating
conditions.
To save fuel you should:

Keep tires at the recommended tire
inflation pressures.

Remove unnecessary loads.

Remove roof rack when not in use.

Allow engine to warm up under low
load use.

Avoid frequent acceleration and decel-
eration.

Have all maintenance work performed
at the intervals specified in the Mainte-
nance Booklet and as required by the
Maintenance System. Contact an au-
thorized Mercedes-Benz Center.
Fuel consumption is also increased by driv-
ing in cold weather, in stop-and-go traffic,
on short trips, and in hilly area.
Drinking and drivingPedals
Power assistance
Warning!G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal ac-
cident are greatly increased when you drink
or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!G
Make sure absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure the pedals still have
sufficient clearance. Otherwise this could
lead to accidents or injury.
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.

315 Operation
Driving instructions
Tires
Treadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and be-
come visible at a tread depth of approxi-
mately
1/16in (1.6 mm), at which point the
tire is considered worn and should be
replaced.The treadwear indicator appears as a solid
band across the tread.
Specified tire inflation pressures must be
maintained. This applies particularly if the
tires are subject to extreme operating con-
ditions (e.g. high speeds, heavy loads, high
ambient temperatures).For more information, see “Tires and
wheels” (
page 331).
Hydroplaning
Depending on the depth of the water layer
on the road, hydroplaning may occur, even
at low speeds and with new tires. Reduce
vehicle speed, avoid track grooves in the
road and apply brakes cautiously in the
rain.
Warning!G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
tion to an area which is a safe distance from
the road.
Inspect the tires and the vehicle underbody
for possible damage. If the vehicle or tires
appear unsafe, have the vehicle towed to
the nearest Mercedes-Benz Center or tire
dealer for repairs.
Warning!G
Although the applicable federal motor vehi-
cle safety laws consider a tire to be worn
when the treadwear indicators (TWI) be-
come visible at approximately
1/16 in
(1.6 mm), we recommend that you do not al-
low your tires to wear down to that level. As
tread depth approaches
1/8 in (3 mm), the
adhesion properties on a wet road are
sharply reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire or driving at high
speed with a flat tire will cause excessive
heat build-up and possibly a fire.

324 Operation
At the gas station
Check regularly and before a long trip
1Coolant level
2Brake fluid
3Windshield washer and headlamp
cleaning system*Windshield washer system and head-
lamp cleaning system*
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system*”
(
page 330).
Coolant
For more information on coolant, see
“Coolant level” (
page 329) and see “Fu-
els, coolants, lubricants, etc.”
(
page 476).
Brake fluid
For information on brake fluid, see “Brake
fluid” (
page 480).Engine oil level
For more information on engine oil, see
“Engine oil” (
page 327).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 430).
For more information, see “Lighting”
(
page 108).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 341).iOpening the hood (page 325).!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Center immediately.
Do not add brake fluid as this will not solve the
problem. For more information, see “Practical
hints” (
page 376) and (page 400).
