MERCEDES-BENZ C320 2001 W203 Owner's Guide

12 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

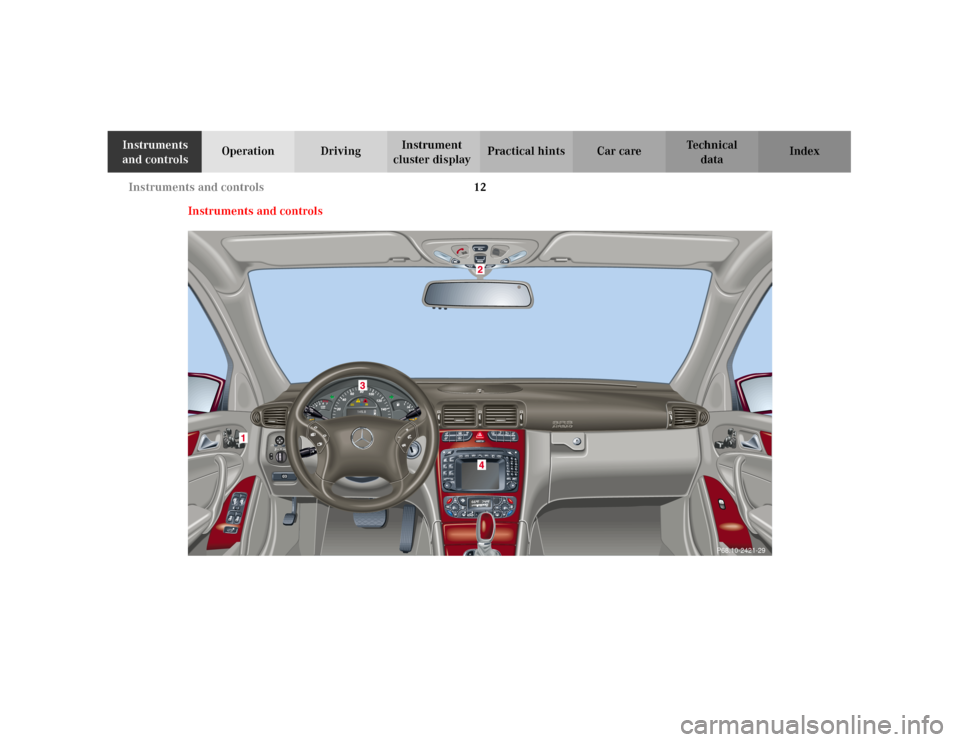

Instruments and controls
P68.10-2421-29

13 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 1Door control panel, see page 14
2Overhead control panel, see page 153Dashboard, see page 16
4Center console, see page 18

14 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Door control panel1Door handle, pull to open, see page 31
2Memory function (for storing seat, steering wheel
and exterior rear view mirror settings), see page 85
3Front seat adjustment, see page 42
4Steering wheel adjustment, see page 79
5Power windows, see page 184
6Switch for rear door window override, see page 184
and 186
7Trunk lid release switch, see page 37

15 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Overhead control panel1Interior lighting, see page 189
2Tele Aid (emergency call system), see page 220
3Sliding / pop-up roof, see page 187
4Hands-free microphone for Tele Aid and optional
telephone with voice recognition system
5Rear view mirror, see page 80
6Garage door opener, see page 212

16 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

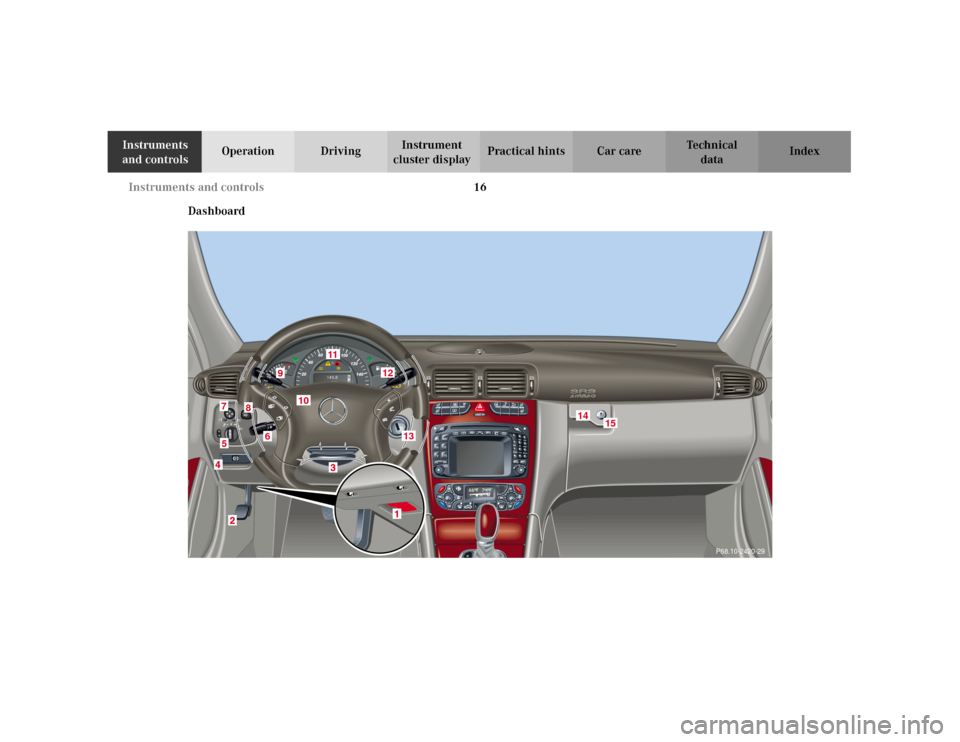

Dashboard
P68.10-2420-29
6
5
8
9
10
11
12
13
14
15
7

17 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 1Hood lock release, see page 297
2Parking brake pedal, see page 243
3Steering wheel adjustment (manual), see page 77
4Parking brake release, see page 243
5Exterior lamp switch, see page 130
6Combination switch, see page 134
7Exterior mirror adjustment, see page 81
8Headlamp washer button, see page 133
9Cruise control switch, see page 25410Multifunction steering wheel, see page 92
Horn (with electronic key in starter switch
position 1 or 2)
11Instrument cluster, see page 88
12Voice recognition system switch, see separate
operating instructions
13Starter switch, see page 230
14Glove box lid release, see page 194
15Glove box lock, see page 194

18 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Center console1Left front seat heater switch, see page 50
2Rear window sunshade (optional), see page 191
3ESP (electronic stability program) control switch,
see page 260
4Hazard warning flasher switch, see page 137
5Central locking switch, see page 33
6Rear seat head restraints, see page 52
7Antitheft alarm system, see page 38
Switch for tow-away protection, see page 39
8Right front seat heater switch, see page 50
9AIRBAG OFF indicator lamp, see page 273
10COMAND system (optional), see separate
operating instructions, or
audio system, see page 160
11Climate control (C 240), see page 138
Automatic climate control (C 320) see page 146
Rear window defroster, see page 157

19 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 12Ashtray, see page 199
13Automatic transmission, see page 234, or
Manual transmission, see page 23314Storage compartment, see page 195
15Armrest, see page 195
Storage compartment, see page 201

20 Contents - Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
OperationVehicle keys ...................................... 22
Start lock-out .................................... 24
General notes on the
central locking system ............... 24
Central locking system ................... 25
Radio frequency and
infrared remote control ............... 25
Locking and unlocking ................ 27
Choosing global or selective
mode on remote control .............. 27
Opening the trunk ....................... 28
Opening and closing windows
and sliding / pop-up roof
from outside .................................. 29
Panic button .................................. 30
Mechanical keys ........................... 30
Doors .................................................. 31
Central locking switch .................... 33
Automatic central locking .............. 34
Emergency unlocking
in case of accident ...................... 34
Trunk ................................................. 35
Trunk lid release switch ................. 37Antitheft alarm system ................... 38
Tow-away alarm ............................... 39
Easy-entry/exit feature ................... 41
Front seat adjustment ..................... 42
Removal and installation of
front seat head restraints .......... 47
Multicontour seat ............................ 49
Heated seats ..................................... 50
Rear seat head restraints ............... 52
Seat belts and integrated
restraint system .......................... 55
Seat belts .......................................... 55
Seat belt nonusage
warning system .......................... 56
BabySmart
TM airbag
deactivation system ................... 62
Supplemental Restraint
System (SRS) ............................... 63
Emergency tensioning
retractor (ETR) ............................ 64
Airbags .............................................. 65
Safety guidelines for the seat
belt, emergency tensioning
retractor and airbag ................... 72Infant and child
restraint systems ......................... 73
Steering wheel adjustment
(manual) ....................................... 77
Steering wheel adjustment
(electrical) .................................... 79
Rear view mirrors ............................ 80
Instrument cluster ........................... 88
Multifunction steering wheel,
multifunction display ................. 92
Trip and main odometer, FSS, coolant
temperature, vehicle speed,
engine oil level indicator ........... 96
Audio systems .................................. 98
Radio .............................................. 98
CD player ....................................... 99
Cassette player ........................... 100
Telephone ........................................ 101
Navigation system .......................... 106
Trip computer ................................. 107
Malfunction/warning
message memory ...................... 109
Individual settings .......................... 111
Setting the audio volume ............. 123

21 Contents - Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Coolant temperature gauge .......... 124
Flexible service system
(FSS) ............................................ 125
Engine oil level indicator .............. 128
Engine oil consumption ................ 129
Exterior lamp switch ..................... 130
Headlamp mode ............................. 131
Night security illumination ......... 132
Locator lighting .......................... 133
Headlamp cleaning system .......... 133
Combination switch ...................... 134
Hazard warning flasher
switch .......................................... 137
Climate control ............................... 138
Automatic climate control ............ 146
Front center console storage
compartment ventilation ......... 158Rear passenger compartment
adjustable air outlets ................159
Operation Audio and telephone ...160
Operating safety .............................160
Operating and
display elements ........................ 161
Button and soft key operation ......163
Operation .........................................163
Power windows ...............................184
Sliding/pop-up roof ........................187
Interior lighting ..............................189
Rear window sunshade ................. 191
Sun visors ........................................192
Vanity mirrors ................................192
Interior .............................................193Storage compartments and
armrests ..................................... 193
Glove box ..................................... 194
Cup holder ...................................... 197
Ashtrays .......................................... 199
Lighter ............................................. 201
Parcel net in front passenger
footwell .......................................202
Ski sack ...........................................202
Enlarged cargo area .......................207
Split folding rear seat bench ........207
Loading instructions
(vehicle with enlarged
cargo area) ..................................209
Cellular telephone ......................... 210
Telephone, general ........................ 211
Garage door opener ....................... 212
