Page 31 of 376
31 Getting started
Unlocking
Starter switch positionsStarter switch0For removing key
The steering is locked when the key is
removed from the starter switch. If
necessary, move steering wheel slight-
ly to allow the locking mechanism to
engage.
1Power supply to some electrical
consumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of vehicle
equipment may cause an accident and/or
serious personal injury.iVehicles with automatic transmission:
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!If the key is left in starter switch
position0 for an extended period of
time, it can no longer be turned in the
starter switch.
Remove the key from the starter
switch and reinsert.
If the key can still not be turned, the
battery may not be sufficiently
charged.
Check the battery and charge it if
necessary (
page 240).
Get a jump start (
page 306).
To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the key from the starter
switch.
Page 153 of 376
153 Controls in detail
Climate control
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press button
F
.
The indicator lamp on the button lights
up.
Deactivating
Press button
F
again.
The indicator lamp on the button goes
out.Deactivating the climate control
system
Deactivating
Set the air volume control
(page 149) to position 0.
Reactivating
Set the air volume control
(page 149) to any speed.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.
Page 162 of 376
162 Controls in detailAutomatic climate control*Deactivating
Press button
e
.
The indicator lamp on the button goes
out.
The automatic air recirculation mode does
not function if theACOFF
mode is selected
or if the outside temperature has fallen
below 41°F (5°C).The activated charcoal filter should be
switched off when windows fog up on the
inside, or if the passenger compartment
needs to be quickly heated or cooled
down.
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press button
F
.
The indicator lamp on the button lights
up.Deactivating
Press button
F
again.
The indicator lamp on the button goes
out.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof* will be closed.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof* will be returned to their previous
position.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.
Page 257 of 376
257 Practical hints
What to do if …
-
The yellow ABS malfunction
indicator lamp comes on while
driving.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP are also
switched off (see messages in display).
The brake system is still functioning normally
but without the ABS available.
Continue driving with added caution.
Wheels may lock during hard braking
reducing steering capability.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS has switched off.
When the voltage is above this value
again, the ABS is operational again.
If necessary, have the generator and
battery checked.
1
The red SRS indicator lamp lights
up while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETDs) could deploy unexpectedly or
fail to activate in an accident.
Drive with added caution to the
nearest authorized Mercedes-Benz
Center.
Problem
Possible cause
Suggested solution
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an
accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could result in an
accident and/or injury to you or to others.

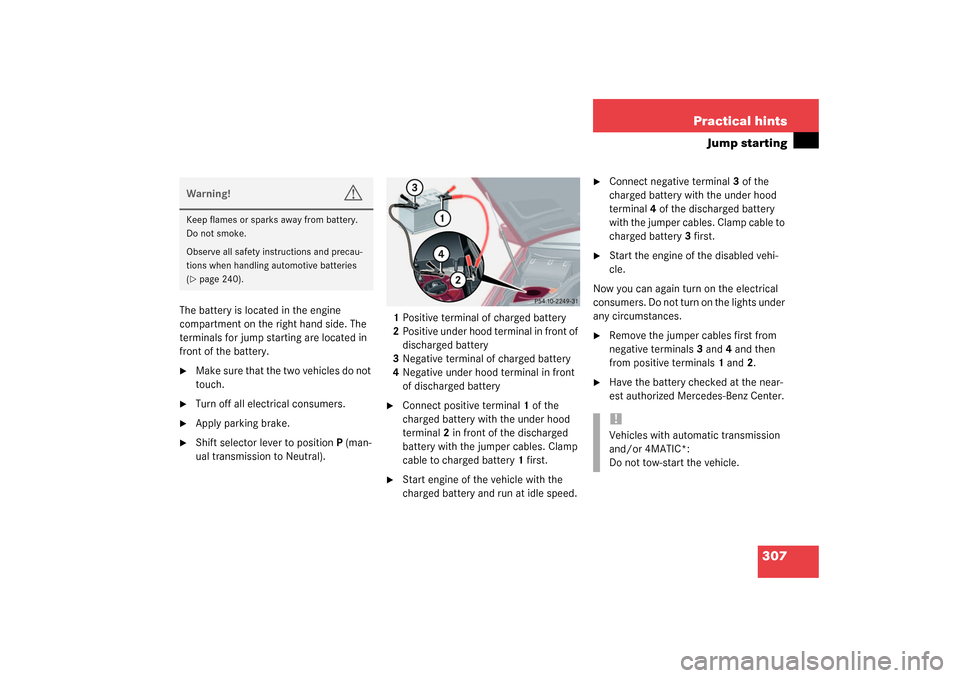

Page 307 of 376
307 Practical hints
Jump starting
The battery is located in the engine
compartment on the right hand side. The
terminals for jump starting are located in
front of the battery.
Make sure that the two vehicles do not
touch.
Turn off all electrical consumers.
Apply parking brake.
Shift selector lever to positionP (man-
ual transmission to Neutral).1Positive terminal of charged battery
2Positive under hood terminal in front of
discharged battery
3Negative terminal of charged battery
4Negative under hood terminal in front
of discharged battery
Connect positive terminal1 of the
charged battery with the under hood
terminal2 in front of the discharged
battery with the jumper cables. Clamp
cable to charged battery1 first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminal3 of the
charged battery with the under hood
terminal4 of the discharged battery
with the jumper cables. Clamp cable to
charged battery3 first.
Start the engine of the disabled vehi-
cle.
Now you can again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.
Remove the jumper cables first from
negative terminals3 and4 and then
from positive terminals1 and2.
Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 240).
!Vehicles with automatic transmission
and/or 4MATIC*:
Do not tow-start the vehicle.

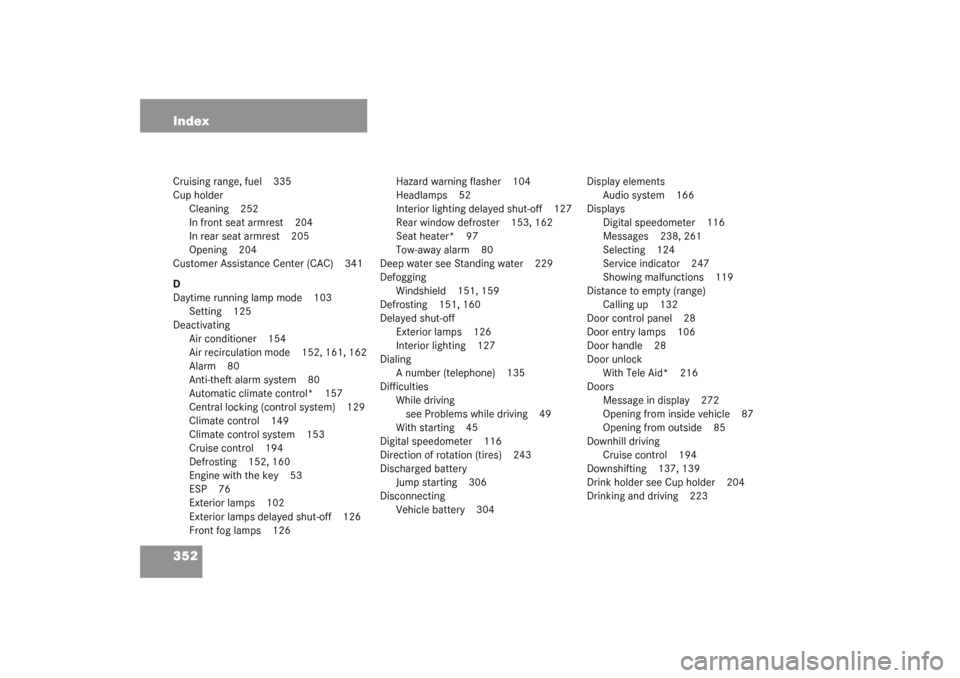

Page 352 of 376
352 IndexCruising range, fuel 335
Cup holder
Cleaning 252
In front seat armrest 204
In rear seat armrest 205
Opening 204
Customer Assistance Center (CAC) 341
D
Daytime running lamp mode 103
Setting 125
Deactivating
Air conditioner 154
Air recirculation mode 152, 161, 162
Alarm 80
Anti-theft alarm system 80
Automatic climate control* 157
Central locking (control system) 129
Climate control 149
Climate control system 153
Cruise control 194
Defrosting 152, 160
Engine with the key 53
ESP 76
Exterior lamps 102
Exterior lamps delayed shut-off 126
Front fog lamps 126Hazard warning flasher 104
Headlamps 52
Interior lighting delayed shut-off 127
Rear window defroster 153, 162
Seat heater* 97
Tow-away alarm 80
Deep water see Standing water 229
Defogging
Windshield 151, 159
Defrosting 151, 160
Delayed shut-off
Exterior lamps 126
Interior lighting 127
Dialing
A number (telephone) 135
Difficulties
While driving
see Problems while driving 49
With starting 45
Digital speedometer 116
Direction of rotation (tires) 243
Discharged battery
Jump starting 306
Disconnecting
Vehicle battery 304Display elements
Audio system 166
Displays
Digital speedometer 116
Messages 238, 261
Selecting 124
Service indicator 247
Showing malfunctions 119
Distance to empty (range)
Calling up 132
Door control panel 28
Door entry lamps 106
Door handle 28
Door unlock
With Tele Aid* 216
Doors
Message in display 272
Opening from inside vehicle 87
Opening from outside 85
Downhill driving
Cruise control 194
Downshifting 137, 139
Drink holder see Cup holder 204
Drinking and driving 223

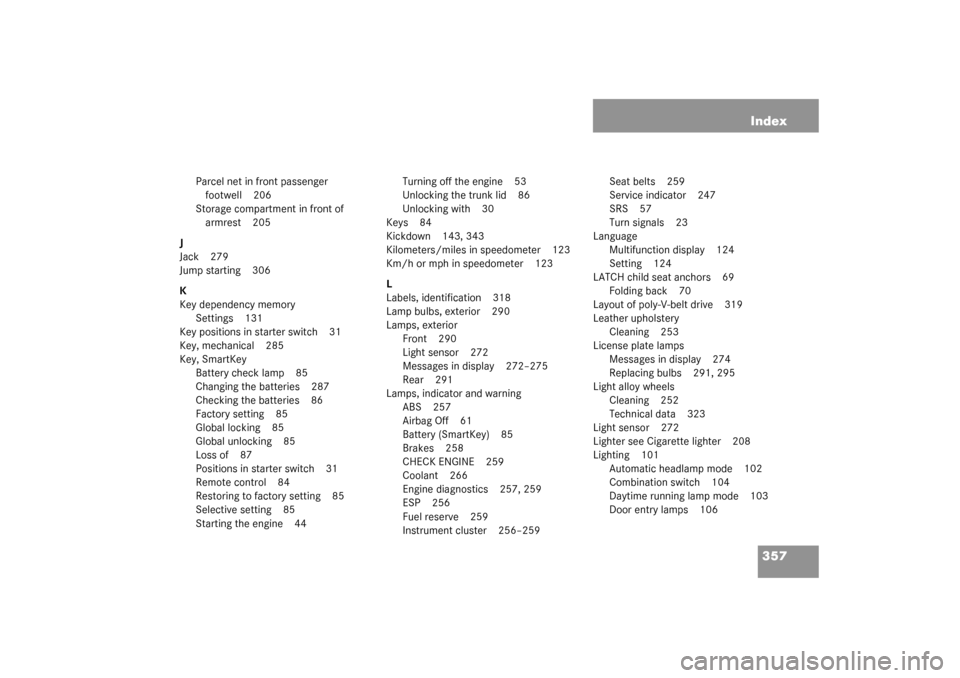

Page 357 of 376
357 Index
Parcel net in front passenger
footwell 206
Storage compartment in front of
armrest 205
J
Jack 279
Jump starting 306
K
Key dependency memory
Settings 131
Key positions in starter switch 31
Key, mechanical 285
Key, SmartKey
Battery check lamp 85
Changing the batteries 287
Checking the batteries 86
Factory setting 85
Global locking 85
Global unlocking 85
Loss of 87
Positions in starter switch 31
Remote control 84
Restoring to factory setting 85
Selective setting 85
Starting the engine 44Turning off the engine 53
Unlocking the trunk lid 86
Unlocking with 30
Keys 84
Kickdown 143, 343
Kilometers/miles in speedometer 123
Km/h or mph in speedometer 123
L
Labels, identification 318
Lamp bulbs, exterior 290
Lamps, exterior
Front 290
Light sensor 272
Messages in display 272–275
Rear 291
Lamps, indicator and warning
ABS 257
Airbag Off 61
Battery (SmartKey) 85
Brakes 258
CHECK ENGINE 259
Coolant 266
Engine diagnostics 257, 259
ESP 256
Fuel reserve 259
Instrument cluster 256–259Seat belts 259
Service indicator 247
SRS 57
Turn signals 23
Language
Multifunction display 124
Setting 124
LATCH child seat anchors 69
Folding back 70
Layout of poly-V-belt drive 319
Leather upholstery
Cleaning 253
License plate lamps
Messages in display 274
Replacing bulbs 291, 295
Light alloy wheels
Cleaning 252
Technical data 323
Light sensor 272
Lighter see Cigarette lighter 208
Lighting 101
Automatic headlamp mode 102
Combination switch 104
Daytime running lamp mode 103
Door entry lamps 106

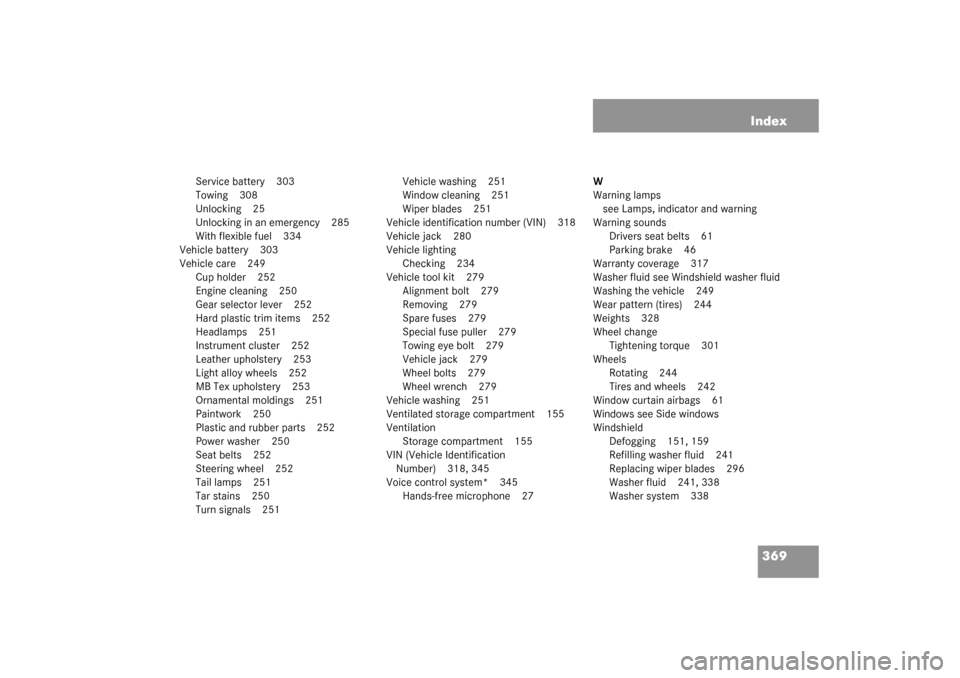

Page 369 of 376
369 Index
Service battery 303
Towing 308
Unlocking 25
Unlocking in an emergency 285
With flexible fuel 334
Vehicle battery 303
Vehicle care 249
Cup holder 252
Engine cleaning 250
Gear selector lever 252
Hard plastic trim items 252
Headlamps 251
Instrument cluster 252
Leather upholstery 253
Light alloy wheels 252
MB Tex upholstery 253
Ornamental moldings 251
Paintwork 250
Plastic and rubber parts 252
Power washer 250
Seat belts 252
Steering wheel 252
Tail lamps 251
Tar stains 250
Turn signals 251Vehicle washing 251
Window cleaning 251
Wiper blades 251
Vehicle identification number (VIN) 318
Vehicle jack 280
Vehicle lighting
Checking 234
Vehicle tool kit 279
Alignment bolt 279
Removing 279
Spare fuses 279
Special fuse puller 279
Towing eye bolt 279
Vehicle jack 279
Wheel bolts 279
Wheel wrench 279
Vehicle washing 251
Ventilated storage compartment 155
Ventilation
Storage compartment 155
VIN (Vehicle Identification
Number) 318, 345
Voice control system* 345
Hands-free microphone 27W
Warning lamps
see Lamps, indicator and warning
Warning sounds
Drivers seat belts 61
Parking brake 46
Warranty coverage 317
Washer fluid see Windshield washer fluid
Washing the vehicle 249
Wear pattern (tires) 244
Weights 328
Wheel change
Tightening torque 301
Wheels
Rotating 244
Tires and wheels 242
Window curtain airbags 61
Windows see Side windows
Windshield
Defogging 151, 159
Refilling washer fluid 241
Replacing wiper blades 296
Washer fluid 241, 338
Washer system 338
