ContentsOperation......................................... 221
The first 1 000 miles (1 500 km) ......... 222
Driving instructions ............................ 223
Drive sensibly – save fuel ............. 223
Drinking and driving ..................... 223
Pedals .......................................... 223
Power assistance ......................... 224
Brakes .......................................... 224
Driving off..................................... 225
Parking ......................................... 225
Tires ............................................. 226
Hydroplaning ................................ 227
Tire traction .................................. 227
Tire speed rating .......................... 227
Winter driving instructions ........... 228
Standing water ............................. 229
Passenger compartment .............. 230
Driving abroad .............................. 230
Control and operation of
radio transmitter .......................... 230
Catalytic converter ....................... 231
Emission control........................... 231
Coolant temperature .................... 232At the gas station .............................. 233
Check regularly and before
a long trip ..................................... 234
Engine compartment ......................... 235
Hood ............................................ 235
Engine oil ..................................... 236
Transmission fluid level ................ 238
Coolant level ................................ 238
Battery ......................................... 240
Windshield washer system and
headlamp cleaning* system ......... 241
Tires and wheels ................................ 242
Important guidelines .................... 242
Life of tire..................................... 243
Direction of rotation ..................... 243
Checking tire inflation pressure ... 243
Rotating wheels ........................... 244
Winter driving .................................... 245
Winter tires .................................. 245
Block heater (Canada only) .......... 246
Snow chains ................................. 246Maintenance...................................... 247
Clearing the service indicator ...... 247
Service term exceeded ................ 247
Calling up the service indicator .... 248
Resetting the service indicator .... 248
Vehicle care....................................... 249
Cleaning and care of vehicle ........ 249

ContentsFuels, coolants, lubricants etc. .......... 329
Capacities .................................... 329
Engine oils .................................... 332
Engine oil additives ...................... 332
Air conditioning refrigerant .......... 332
Brake fluid .................................... 332
Premium unleaded gasoline ......... 333
Fuel requirements ........................ 333
Gasoline additives ........................ 334
Flexible Fuel Vehicles ................... 334
Coolants ....................................... 336
Windshield washer and
headlamp cleaning* system ......... 338
Consumer information ....................... 339
Uniform tire quality grading.......... 339
Technical terms............................... 341Index................................................. 347

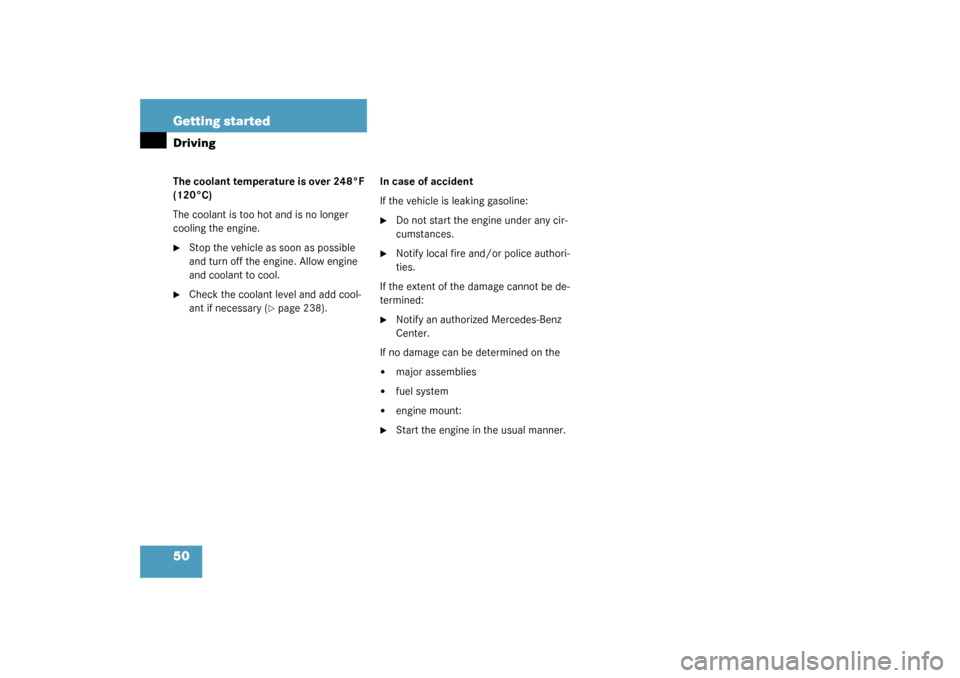

50 Getting startedDrivingThe coolant temperature is over 248°F
(120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 238).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

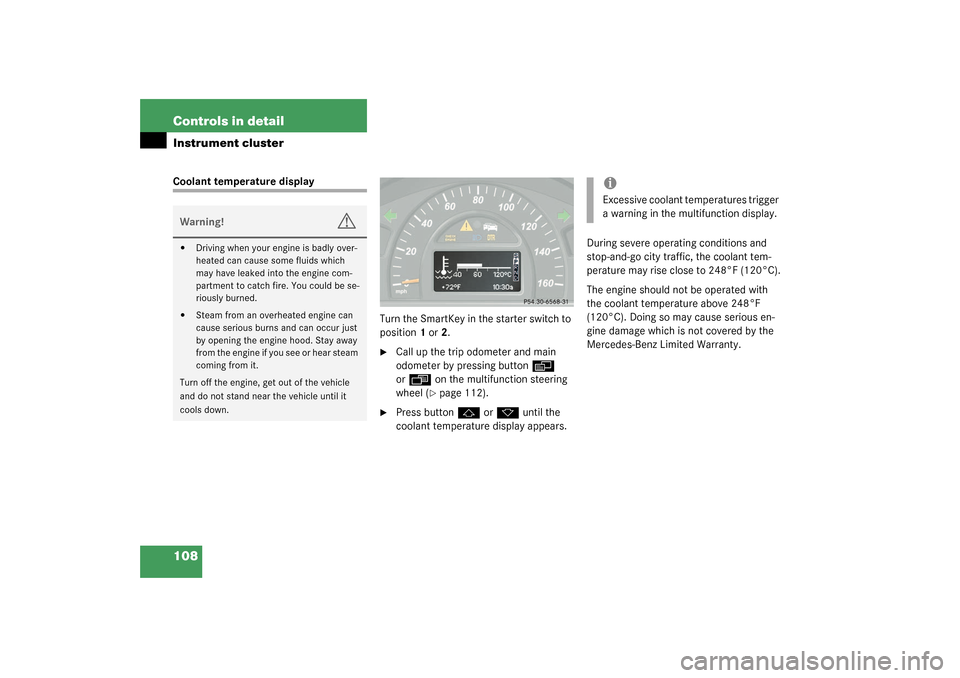

108 Controls in detailInstrument clusterCoolant temperature display
Turn the SmartKey in the starter switch to
position1 or2.

Call up the trip odometer and main
odometer by pressing button
è

or
ÿ
on the multifunction steering
wheel (page 112).

Press button
j
or
k
until the
coolant temperature display appears.During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious en-
gine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
from the engine if you see or hear steam
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.
iExcessive coolant temperatures trigger
a warning in the multifunction display.

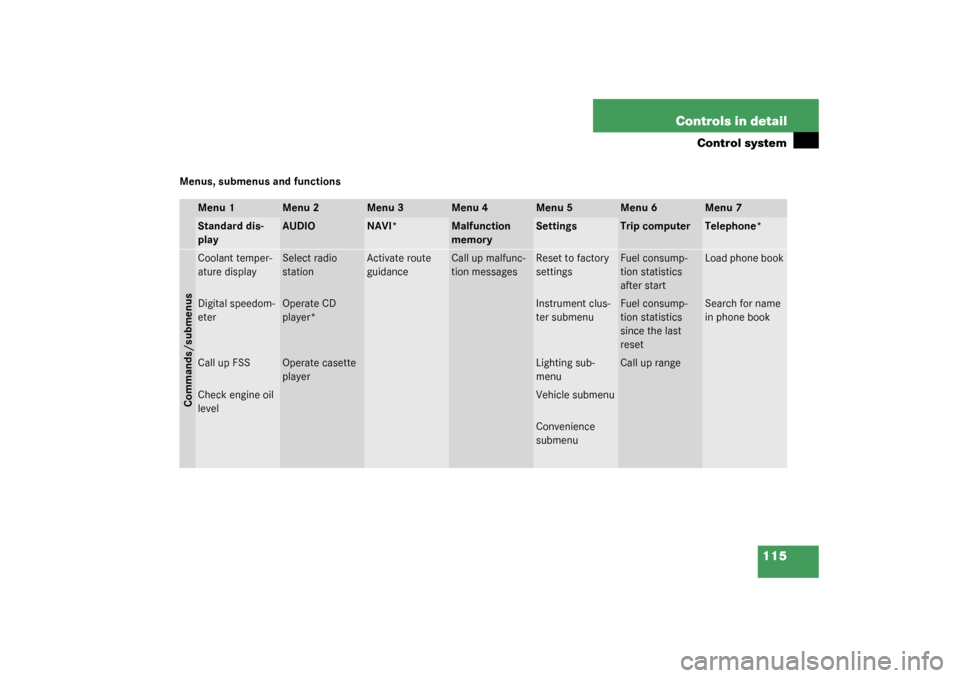

115 Controls in detail
Control system
Menus, submenus and functions
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Standard dis-
play
AUDIO
NAVI*
Malfunction
memory
Settings
Trip computer
Telephone*
Commands/submenusCoolant temper-
ature display
Select radio
station
Activate route
guidance
Call up malfunc-
tion messages
Reset to factory
settings
Fuel consump-
tion statistics
after start
Load phone book
Digital speedom-
eter
Operate CD
player*
Instrument clus-
ter submenu
Fuel consump-
tion statistics
since the last
reset
Search for name
in phone book
Call up FSS
Operate casette
player
Lighting sub-
menu
Call up range
Check engine oil
level
Vehicle submenuConvenience
submenu

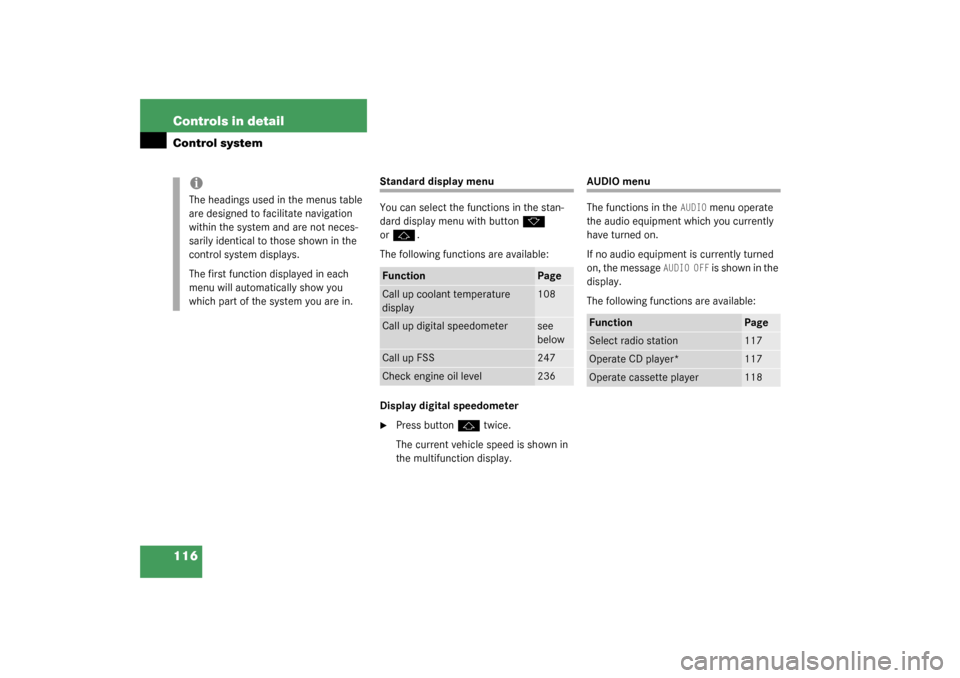

116 Controls in detailControl system
Standard display menu
You can select the functions in the stan-
dard display menu with button
k

or
j
.
The following functions are available:
Display digital speedometer

Press button
j
twice.
The current vehicle speed is shown in
the multifunction display.
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF
i s s h o w n i n t h e
display.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Call up coolant temperature
display
108
Call up digital speedometer
see
below
Call up FSS
247
Check engine oil level
236
Function
Page
Select radio station
117
Operate CD player*
117
Operate cassette player
118

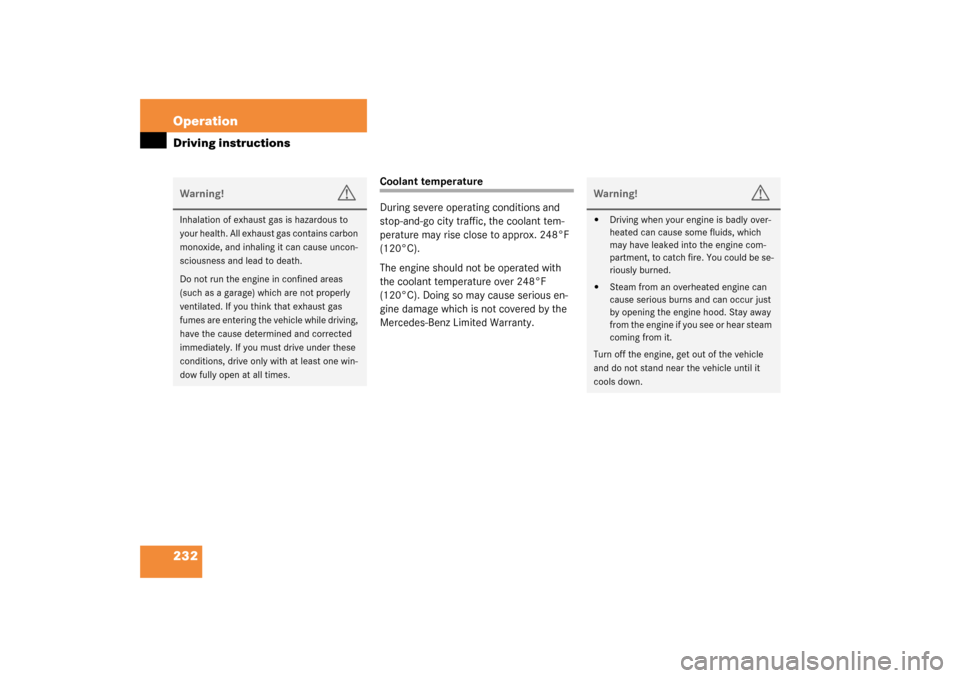

232 OperationDriving instructions
Coolant temperature
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to approx. 248°F
(120°C).
The engine should not be operated with
the coolant temperature over 248°F
(120°C). Doing so may cause serious en-
gine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open at all times.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids, which
may have leaked into the engine com-
partment, to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
f r o m t h e e n g i n e i f y o u s e e o r h e a r s t e a m
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.

234 OperationAt the gas station
Check regularly and before a long trip
1Coolant level
More information on the coolant level
can be found in the “Operation” section
(
page 238).
2Brake fluid (fuse box cover removed)
More information on brake fluid can be
found in the “Technical data” section
(page 332).
Removing fuse box cover
(page 312).
3Windshield washer and headlamp
cleaning system*
For more information on refilling the
reservoir, see the “Operation” section
(page 241).Engine oil level
More information on engine oil can be
found in the “Operation” section
(
page 236).
Opening hood (
page 235).
Coolant
For normal replenishing, use water (pota-
ble water quality). More information on
coolant can be found in the “Operation”
section (
page 238).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
the “Practical hints” section (
page 290).
Exterior lamp switch (
page 101).
Tire inflation pressure
More information on tire inflation pressure
can be found in the “Operation” section
(
page 243).
iUse only premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.
Flexible Fuel Vehicles (MY 2003
Mercedes-Benz C 320 models, except
those equipped with manual transmis-
sion or 4MATIC*):
More information on Flexible Fuel Vehi-
cles can be found in the “Technical da-
ta” section (
page 334).
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
See also “Practical hints” section
(
page 259).

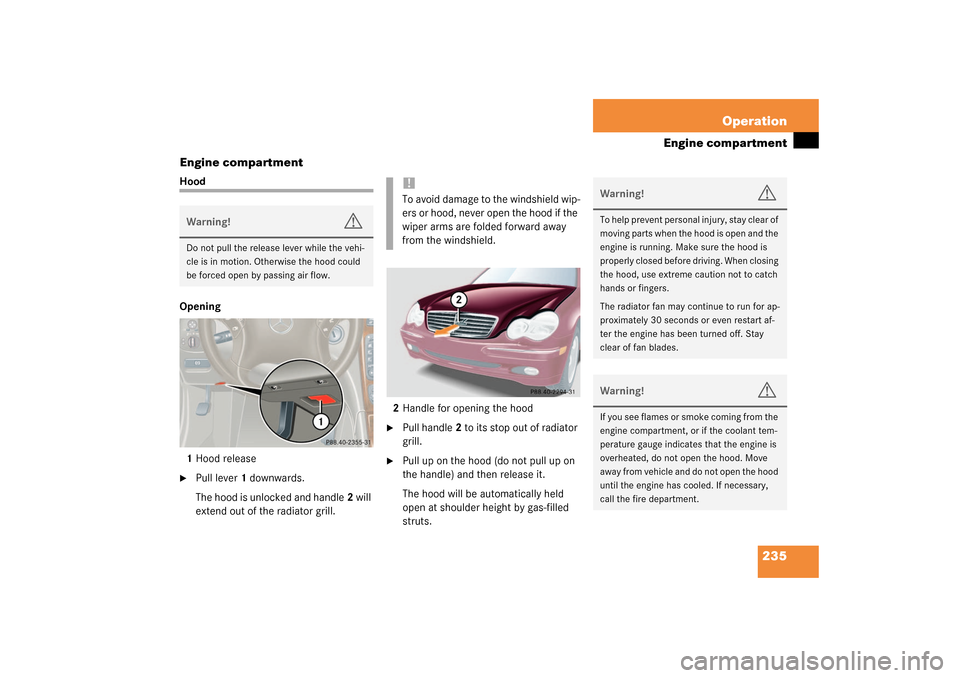

235 Operation
Engine compartment
Engine compartment
Hood
Opening
1Hood release
Pull lever1 downwards.
The hood is unlocked and handle2 will
extend out of the radiator grill. 2Handle for opening the hood

Pull handle2 to its stop out of radiator
grill.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.

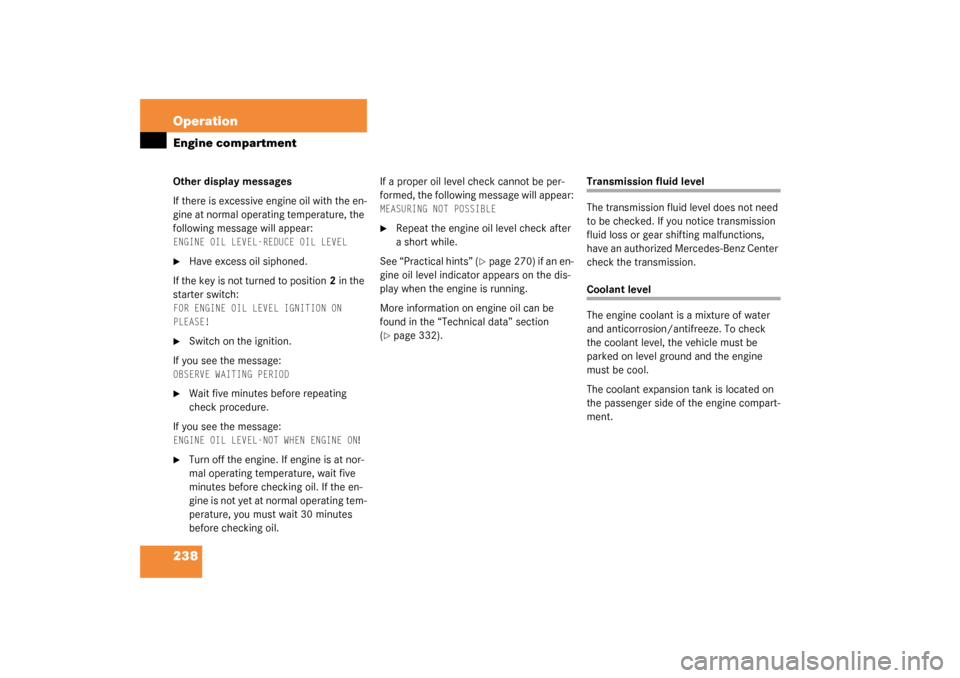

238 OperationEngine compartmentOther display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear: ENGINE OIL LEVEL-REDUCE OIL LEVEL
Have excess oil siphoned.
If the key is not turned to position2 in the
starter switch:
FOR ENGINE OIL LEVEL IGNITION ON
PLEASE!
Switch on the ignition.
If you see the message:
OBSERVE WAITING PERIOD
Wait five minutes before repeating
check procedure.
If you see the message:
ENGINE OIL LEVEL-NOT WHEN ENGINE ON
!

Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.If a proper oil level check cannot be per-
formed, the following message will appear:
MEASURING NOT POSSIBLE
Repeat the engine oil level check after
a short while.
See “Practical hints” (
page 270) if an en-
gine oil level indicator appears on the dis-
play when the engine is running.
More information on engine oil can be
found in the “Technical data” section
(
page 332).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
