Page 181 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 179 Controls in detail
Climate control
Deactivating
Press buttonP (
page 175).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculatio

Page 182 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 180 Controls in detailClimate control
Deactivating
Press button, (
page 175).
The indicator lamp on the button goes
out.The air recirculation mode is deactivated
automatically:

after five minute

Page 183 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 181 Controls in detail
Climate control
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.Deactivating

Page 184 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 182 Controls in detailClimate controlRear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the climate
control panel (
page 175).

Page 185 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 183 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain usef

Page 186 of 442

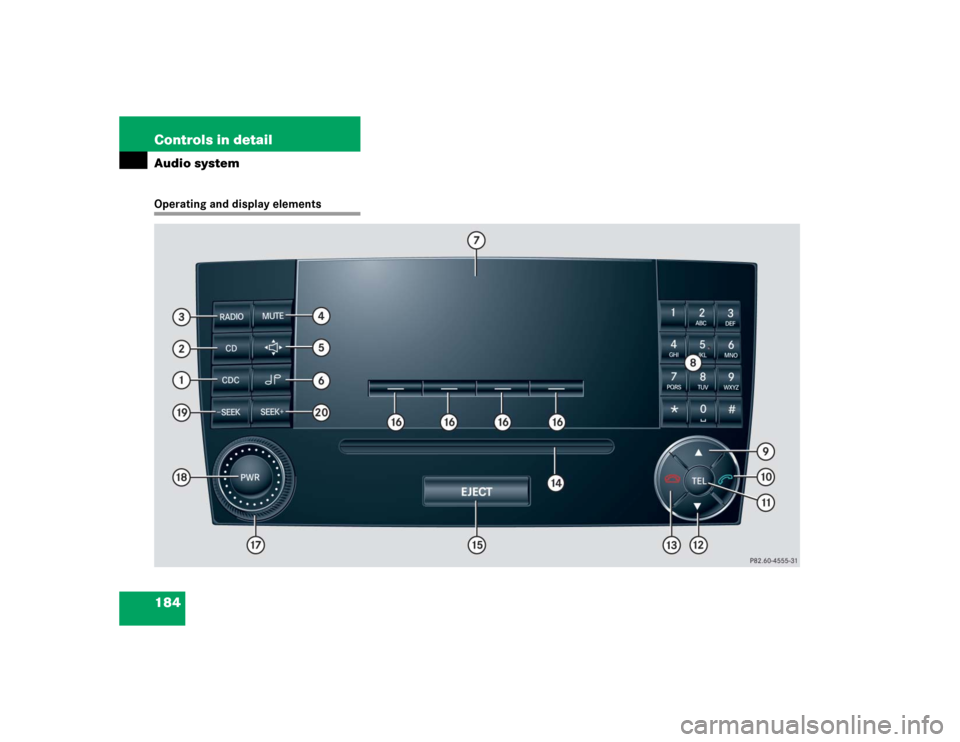

MERCEDES-BENZ C320 2005 W203 Owners Manual 184 Controls in detailAudio systemOperating and display elements

Page 187 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 185 Controls in detail
Audio system
Item
Page
1
CD changer mode selector
AUX mode selector
201
191
2
Single CD mode selector
203
3
Radio mode selector
4
Mute function (radio)
195
Pause (CD)
207
5
Vol

Page 188 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 186 Controls in detailAudio systemButton and soft key operation
In these instructions, the alphanumeric
keypad (right side of radio panel) and the
function buttons (left side of radio panel)
are re

Page 189 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 187 Controls in detail
Audio system
Switching off
Remove SmartKey from starter switch.
or

Press M button.
Adjusting the volume

Turn rotary control of N button.
The volume will increase or decreas

Page 190 of 442

MERCEDES-BENZ C320 2005 W203 Owners Manual 188 Controls in detailAudio systemAdjusting treble
Press O button repeatedly until TREBLE
 appears in the display.

Press
+ or
– soft key to increase or
decrease tone level accordingly.
or

Pre
